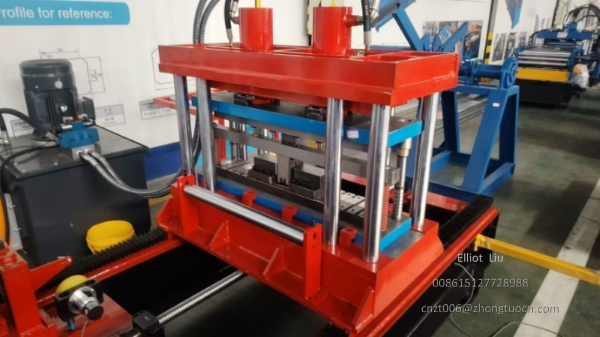

Cable Tray Ladder Making Cold Roll Forming Machine 50 to 600 mm Versatile Width

Cable tray manufacturers often ask one question when buying equipment: can this machine cover the order specs I have on hand? The cable tray ladder making cold roll forming machine is designed around that question. Finished width, finished height, applicable material thickness, feed width, and tolerance can be customized based on the customer's product requirements. Customers confirm the machine setup based on the tray spec range they commonly produce, rather than buying a fixed setup and then trying to fit products to it.

Applications Where This Machine Serves Cable Tray Production

This cable tray ladder making cold roll forming machine is mainly used in batch manufacturing of cable trays.

• Cable tray factories: batch production of standard trays for various engineering projects

• Electrical equipment workshops: supporting tray production for complete electrical sets

• Building electrical material supply lines: finished trays for construction projects

A cable tray roll machine configured to product requirements supports manufacturers in handling varied orders.

Machine Advantages Customizable Setup Value

Built to product specifications: The cable tray roll forming machine is configured based on the finished width, height, and material thickness required by the customer's tray products.

Supports multiple profile requirements: The cable tray ladder making cold roll forming machine can be set up to produce different tray cross sections according to product drawings.

Production flexibility: The machine configuration is confirmed before delivery to match the customer's common production range.

Parameters Machine Specifications

The following are typical configurations of the cable tray ladder making cold roll forming machine. Finished width, finished height, applicable material thickness, and feed width can be customized based on customer product requirements. Other parameters are based on the machine configuration.

Customization Value of Each Specification

Finished height and cable capacity

Different projects install different amounts and sizes of cables. Tray height may need to be selected based on cable quantity, cable size, and installation requirements. The cable tray ladder making cold roll forming machine can be configured to the height range the customer commonly produces. When confirming the machine setup, customers provide their common height range to the manufacturer.

Applicable material thickness and product strength grade

The tray's use environment determines how thick it needs to be. Material thickness is selected based on the required product strength for the application. The cable tray ladder making cold roll forming machine can be configured to the thickness range the customer commonly uses. Customers provide their common thickness range to the manufacturer.

Feed width and material utilization

The tray's bottom width determines how wide the strip needs to be. Matching feed width to product width helps reduce unnecessary material leftover. The machine can be configured to the feed width range the customer commonly requires. Customers provide their common tray width range to the manufacturer.

Tolerance and installation matching

Trays need to connect with other trays and mount on supports at the job site. Tolerance can be customized to help meet installation requirements. Customers provide their installation accuracy requirements to the manufacturer, and the machine is configured to that requirement. Good tolerance control helps trays meet installation needs and reduces on site adjustment.

Tray Types One Line Can Produce

The cable tray ladder making cold roll forming machine can be configured to produce trays with different cross sections. The exact cross section types and profile range need to be confirmed based on the customer's product drawings and machine configuration.

One line covering multiple tray types means manufacturers do not need to invest in a separate production line for each cross section.

Customization Process and Setup Confirmation

If you are evaluating whether this machine fits your production needs, send us the following information:

• Product drawings or cross section sketches

• Common material types

• Finished width, height, and length ranges

• Profile requirements

• Expected output

We will confirm the customized setup based on your actual product requirements, including finished width, finished height, applicable material thickness, feed width, and tolerance. After confirmation, we will provide a detailed quotation and machine proposal for the cable tray ladder making cold roll forming machine.
