Guardrail Curve Bending Machine 2.5 to 4.0 mm Thick Plate Stable Forming Solution

Unstable equipment is the biggest risk in guardrail production. Roller marks on the surface one day, profile asymmetry from speed fluctuation the next, and then a full stop for repairs. A single shutdown costs more than time, it puts order delivery at risk. This guardrail curve bending machine is designed to address these challenges. This article explains what a forming system needs for long term stable operation, starting from actual production requirements.

Production Requirements and Applications for Guardrail Forming

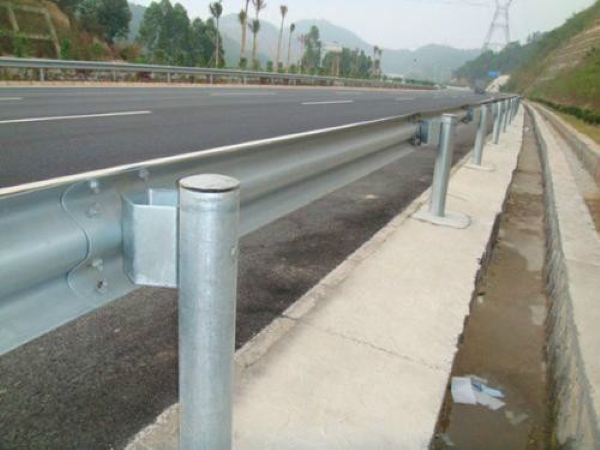

W-beam guardrail panels are a core component of road safety barriers. They are widely used for highway side protection, primary road median separation, mountain curve and cliff edge side protection, and bridge tunnel transition sections. In all these scenarios, the panels must have symmetric profiles, accurate hole positions, and smooth installation.

In actual production, material thickness ranges from 2.5mm to 4.0mm. Materials include galvanized steel, cold rolled steel, carbon steel, and Q235. This wide thickness range and material variety place different demands on the forming system. Finished length accuracy must meet a high standard. Hole position deviations directly affect installation efficiency on site. These production requirements determine the basic design direction of the guardrail curve bending machine.

Core Advantages of the Equipment

This guardrail curve bending machine delivers several key benefits that address common production challenges.

• 15 forming stations: progressive forming with evenly distributed deformation for symmetric profiles and consistent thickness

• Gr15 roller material: high wear resistance, reducing replacement frequency and maintenance costs

• K127 gearbox with 22KW × 2 stepless speed regulating motors: stable power delivery for continuous multi station operation

• PLC control system: coordinates all steps, reducing manual intervention and operating errors

• 3 stand rollers: guide sheet edges and prevent deviation that causes asymmetric profiles

Workflow

The complete production line follows this sequence:

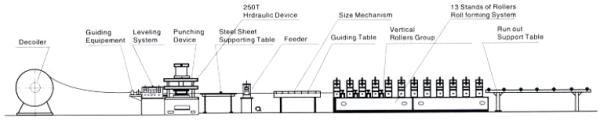

Uncoiling → Alignment guiding roller → 9 rollers leveling → hydraulic punching hole → Panel Transport table → Swift sheet feeding → Photoelectrical switch → Roller guiding table → 15 stations roll forming → Finished product support table.

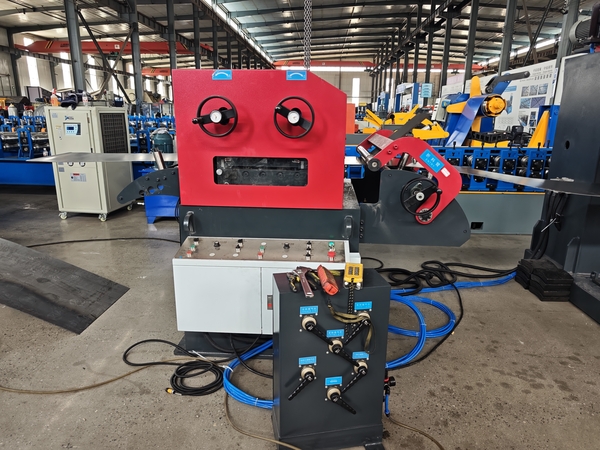

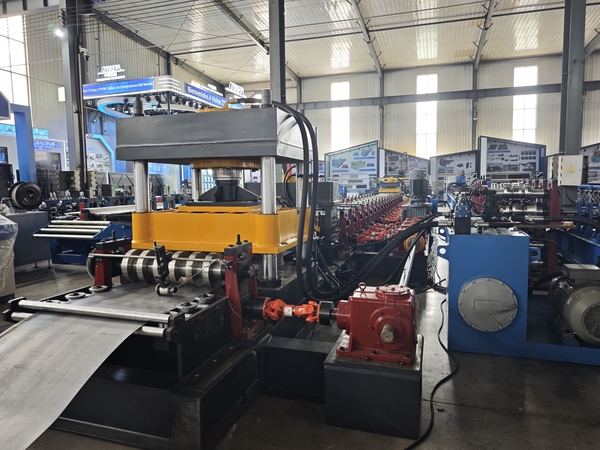

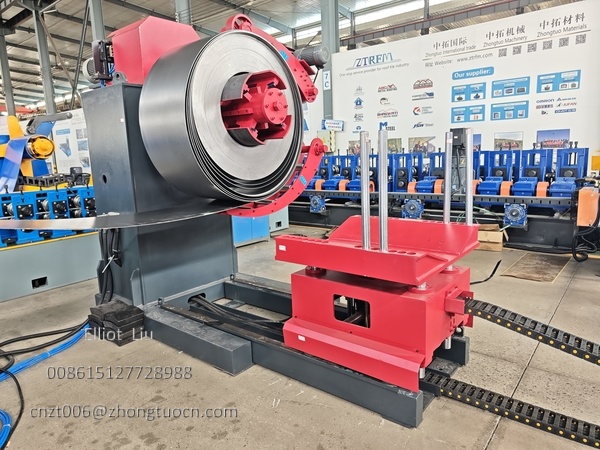

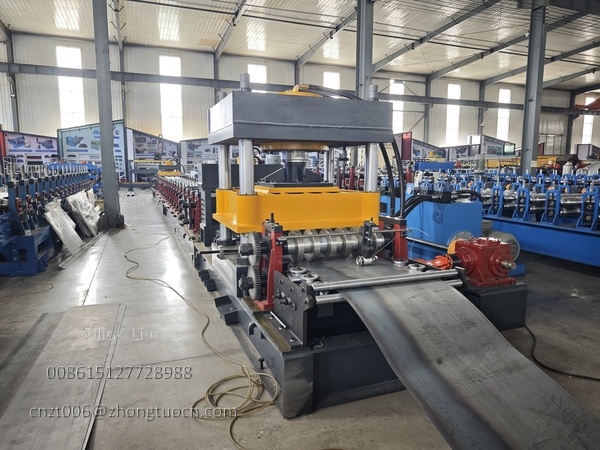

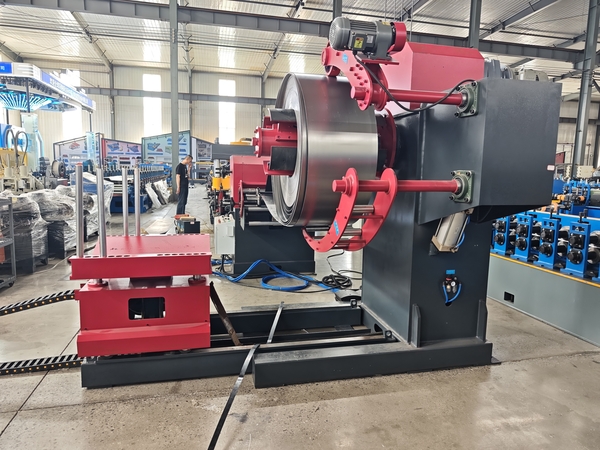

Coil enters through the decoiler, passes through leveling to remove internal stress, and moves to the punching station for hole processing. The sheet then goes through a Photoelectrical switch for accurate length positioning, and gradually forms the profile across 15 forming stations. A highway guardrail metal roller forming machine follows this same production logic to achieve consistent results.

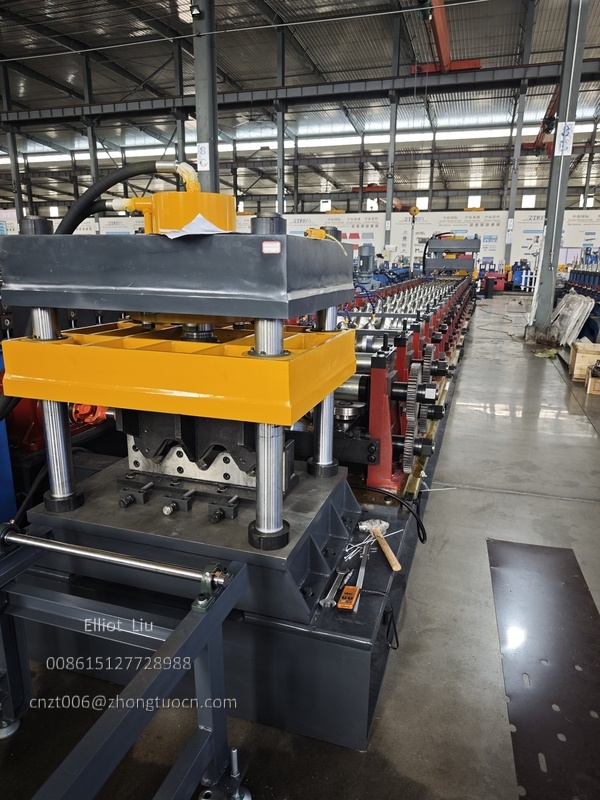

Finally, the cutting station cuts the sheet to length and finished panels land on the support table. A PLC coordinates the entire line, and all steps run automatically from coil to finished panel without manual handling. This guardrail curve bending machine ensures that each panel meets the required specifications through precise coordination of all stations.

Forming System and Progressive Forming Logic

W-beam guardrail panels cannot be formed in a single stamping operation. A single high deformation pass would cause cracking or springback, making it impossible to achieve symmetric profiles and consistent thickness. That is why multiple progressive forming steps are needed, with the total deformation distributed across several stations.

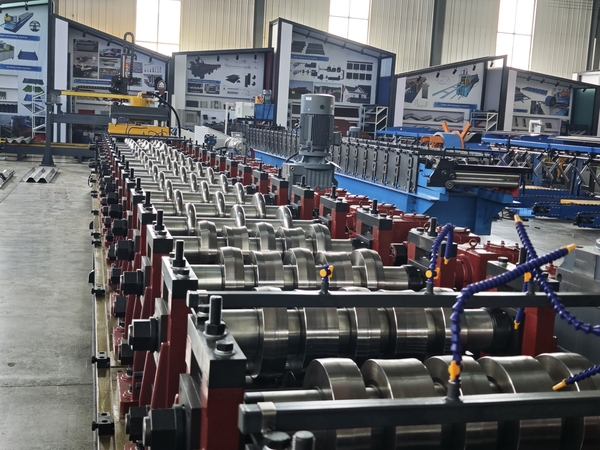

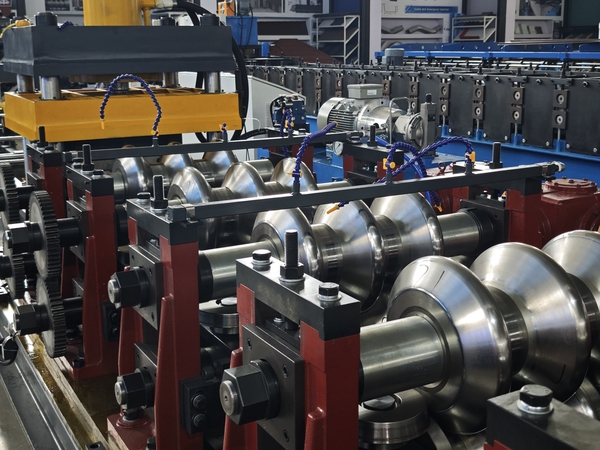

Each station performs a small portion of the bending. From the first station to the fifteenth, the profile gradually takes shape from flat to fully formed. The number of stations directly affects forming quality. Too few stations mean excessive deformation per step. Too many increase equipment cost with diminishing returns. Fifteen stations are a proven configuration for guardrail production. Three stand rollers guide the sheet edges and prevent deviation that could cause asymmetric profiles or inconsistent width. The final profile is clean, without twisting or cracking. A highway guardrail roller forming machine relies on this multistage approach to maintain profile consistency across long production runs.

Technical Parameters

Key Components and Material Selection

Forming rollers are the fastest wearing parts on a production line. The sheet passes through 15 stations during forming, and each station bears continuous bending stress. If the material is not hard enough, surface marks or grooves will appear quickly, causing surface damage to the guardrail panels and affecting corrosion resistance and appearance.

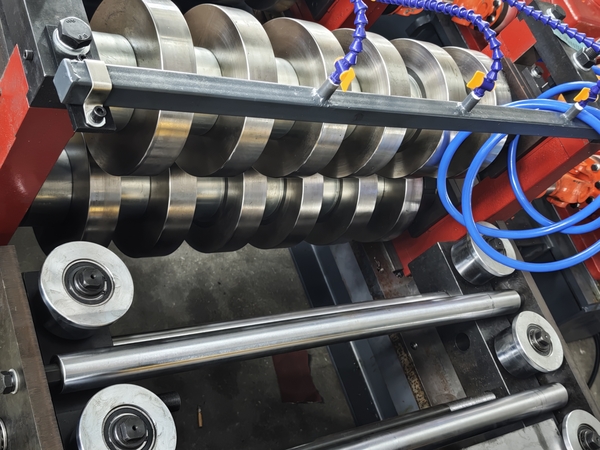

The rollers use Gr15 bearing steel with overall heat treatment to HRC55-60. The surface offers good wear resistance, while the core retains enough toughness to avoid brittleness. Compared with ordinary steel, Gr15 rollers last significantly longer when processing galvanized steel, cold rolled steel, and carbon steel. Material choice directly affects maintenance frequency and long term operating costs. When rollers do not need frequent replacement, the high guardrail roll forming machine keeps running with minimal downtime.

Drive System and Running Stability

A stable drive system is essential for any guardrail curve bending machine to maintain consistent output quality.

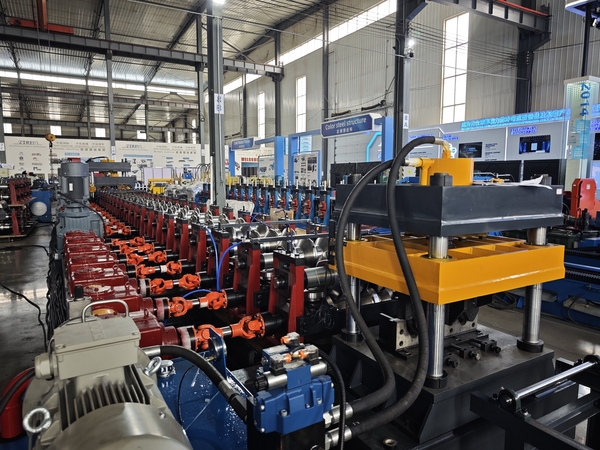

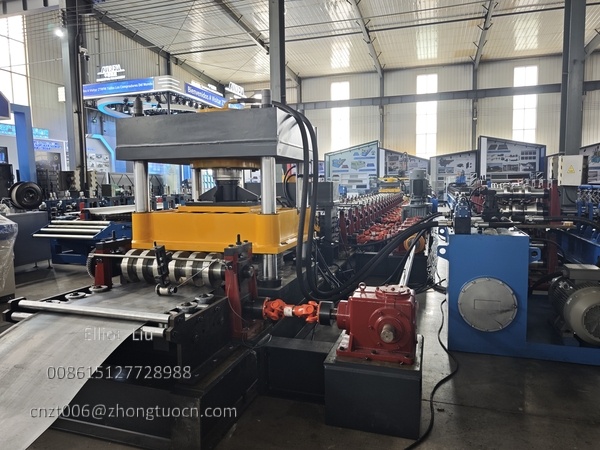

Speed synchronization across stations directly affects product quality. If speeds do not match, the sheet can thin or wrinkle during forming. The K127 gearbox with 22KW × 2 stepless speed regulating motors provides stable torque output to meet the demands of continuous multi station operation. A synchronized distribution gearbox delivers power evenly to each station, keeping line speed consistent. A stable drive system helps reduce non conforming products caused by speed fluctuation.

Equipment Configuration and Production Integration

Proper configuration ensures that this guardrail curve bending machine runs smoothly from start to finish.

After forming, the line cuts the sheet to length and collects the finished panels. A PLC controller coordinates all steps. Decoiler feed speed adjusts automatically to match downstream steps. Punching stays in sync with feeding. A Photoelectrical switch checks sheet length and triggers cutting. Speed matching and timing across all systems run through the PLC, so the line operates without frequent manual adjustment.

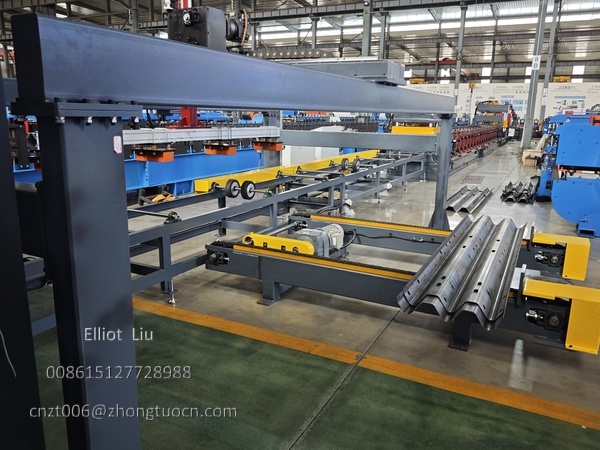

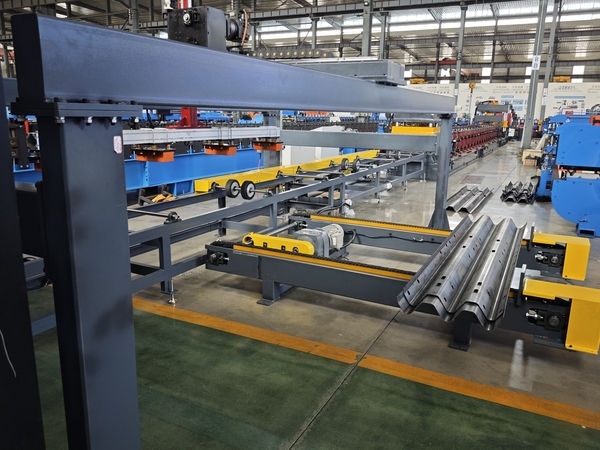

The equipment also includes an automatic stacker for collecting and stacking finished panels. Forming, cutting, and stacking run continuously, with finished panels coming off the end of the line. Operators only need to monitor and package. Good configuration keeps manual involvement to a minimum.

Stability is what matters most in guardrail production. A stable forming system, durable roller material, and reliable drive configuration are not isolated advantages, they are the foundation for long term continuous operation. Understanding these design choices helps explain why some guardrail curve bending machine models run reliably while others break down constantly.
