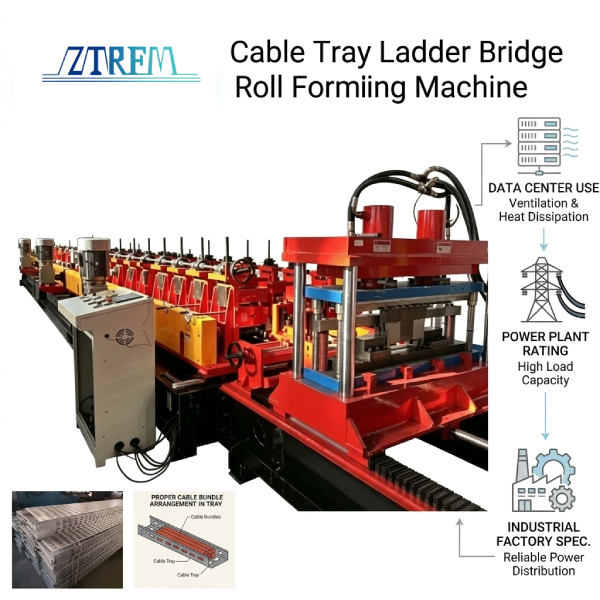

Cable Tray Ladder Bridge Roll Forming Machine 50 to 600 mm Popular Choice for Manufacturers

Manual bending and scattered processing used to handle small cable tray orders. Now order batches are bigger and specs are more varied. A cable tray ladder bridge roll forming machine gives manufacturers a way to produce continuously, keep sizes stable, and switch specs without hassle.

Why Cable Tray Forming Machines Are Popular Among Manufacturers

Changes in cable tray orders are the root reason. Orders used to be scattered. A few hundred meters of one spec, then on to the next. Now projects often need several thousand meters of the same spec, and delivery times are short. Manual bending and scattered processing struggle to keep up.

A cable tray production line combines uncoiling, leveling, punching, forming, cutting, and discharging into one line. Steel strip runs through each station without stopping or touching the ground. This is why this type of equipment gets so much attention.

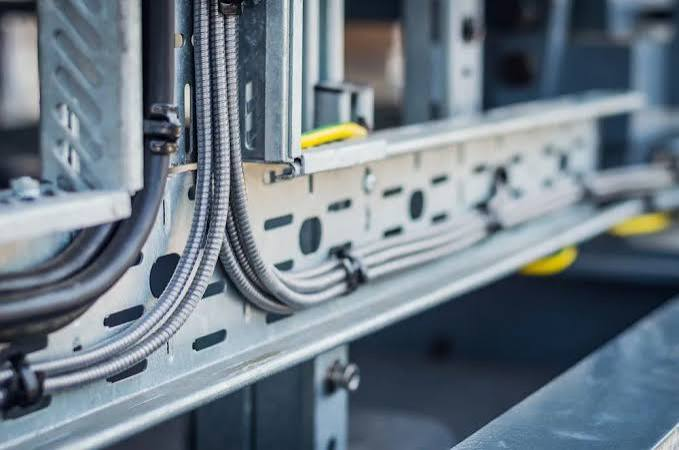

Where Cable Tray Forming Machines Are Used

This equipment mainly serves these production scenarios:

• Cable tray factories: batch production of standard trays for engineering projects

• Electrical equipment workshops: supporting tray production for complete electrical sets

• Building electrical material supply lines: finished trays for construction projects

Technical Parameters of Cable Tray Ladder Bridge Roll Forming Machine

The following parameters come from the actual machine configuration. They can be adjusted based on customer requirements.

Key Advantages of Cable Tray Ladder Bridge Roll Forming Machine

Continuous production: steel strip moves through each station without stopping, which suits batch orders.

Stable forming quality: 26 forming stations bend the strip gradually, so finished sizes stay consistent.

Inline punching: punching and forming run on the same production line, with no secondary processing.

Size adjustment: the machine handles different product widths through setup changes rather than a full tooling replacement.

How the Forming Process Supports Continuous Production

Continuous production depends on how each stage connects. Steel strip leaves the decoiler and goes straight into leveling, then into the punch press for holes and cutting to length. Cut pieces then move through the conveying platform into the forming mainframe. The strip keeps moving through the whole line.

A roll forming machine cable tray setup works because the stations stay in sequence. The press punches mounting holes and ventilation slots, then cuts the strip to length. The cut piece goes straight into the forming mainframe with no second positioning. After forming, finished trays come out from the discharge table.

Workers check dimensions, remove burrs, and pack the finished trays. The whole process runs from coil to finished tray in one pass.

What Manufacturers Consider Before Choosing a Forming Machine

Manufacturers look at practical points when choosing forming equipment. Does the product size range cover common orders? This decides whether the machine can take most jobs. Does the material thickness match target products? This decides whether the machine can process common sheets. Does the machine layout fit the existing workshop, including floor length, power supply, and operator arrangement?

These points come down to one question: can this machine produce trays that meet order requirements steadily and continuously? If yes, it's worth buying. If no, a lower price doesn't help.

So why do cable tray forming machines keep drawing attention from manufacturers? Because they match the real demands of continuous, batch, and consistent production. Whether one fits your factory still depends on your product specs, materials, production requirements, and actual machine configuration. Send us your product drawings, materials, sizes, and profile requirements, and we'll check the cable tray ladder bridge roll forming machine setup against your working conditions.
