Key attributes
Type	Tile Forming Machine	Tile Type	Colored Steel
Feeding width	1220mm Or as customer's request	Rolling thinckness	0.3-0.8mm
Production Capacity	15 m/min	Voltage	380V,50HZ,3P
Core Components	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC	Use	Roof and wall
Warranty	1 Year	Video outgoing-inspection	Provided
Machinery Test Report	Provided	Key Selling Points	Automatic
Place of Origin	Hebei, China	Weight	6500 kg
Brand Name	ZTRFM	Dimension(L*W*H)	about 12.5m*1.6m*1.5m
Product name	Portable ibr roofing sheet tile making machinery for sale	Finished products shape	customized(we can design as your need)
Usage	Roofing and wall	Raw material	Galvanized steel,color steel
Control system	PLC	Automation	Full automatic
Cutting blade material	Cr12 Quenched	Cutting type	Hydraulic cutting
Certification	ISO9001,CE	Speed	0-20m/min
Packaging and delivery
Selling Units	Single item	Single package size	110X100X3 cm
Single gross weight	10.0 kg

Product Title: Portable TR4 Trapezoidal 4-Rib Metal Roof Tile Roll Forming Machine

Product Description

This portable trapezoidal 4-rib metal roof tile making machine (TR4/IBR profile) is designed to produce high-quality metal roofing and wall cladding materials. The resulting products are widely used in the construction of factories, warehouses, garages, gymnasiums, and exhibition centers. Key advantages include ease of installation, reduced construction time, aesthetic appeal, lightweight properties, and high structural strength.

Machines can be customized according to your drawings or samples. Below are the standard specifications for reference:

Technical Specifications

1. Forming Material: PPGI, GI, Al
   Thickness: 0.3-0.8mm
   Width: 1000mm / 1250mm (Customizable)
2. Decoiler:
   • Hydraulic automatic decoiler
   • Manual decoiler (Included free of charge)
3. Main Body:

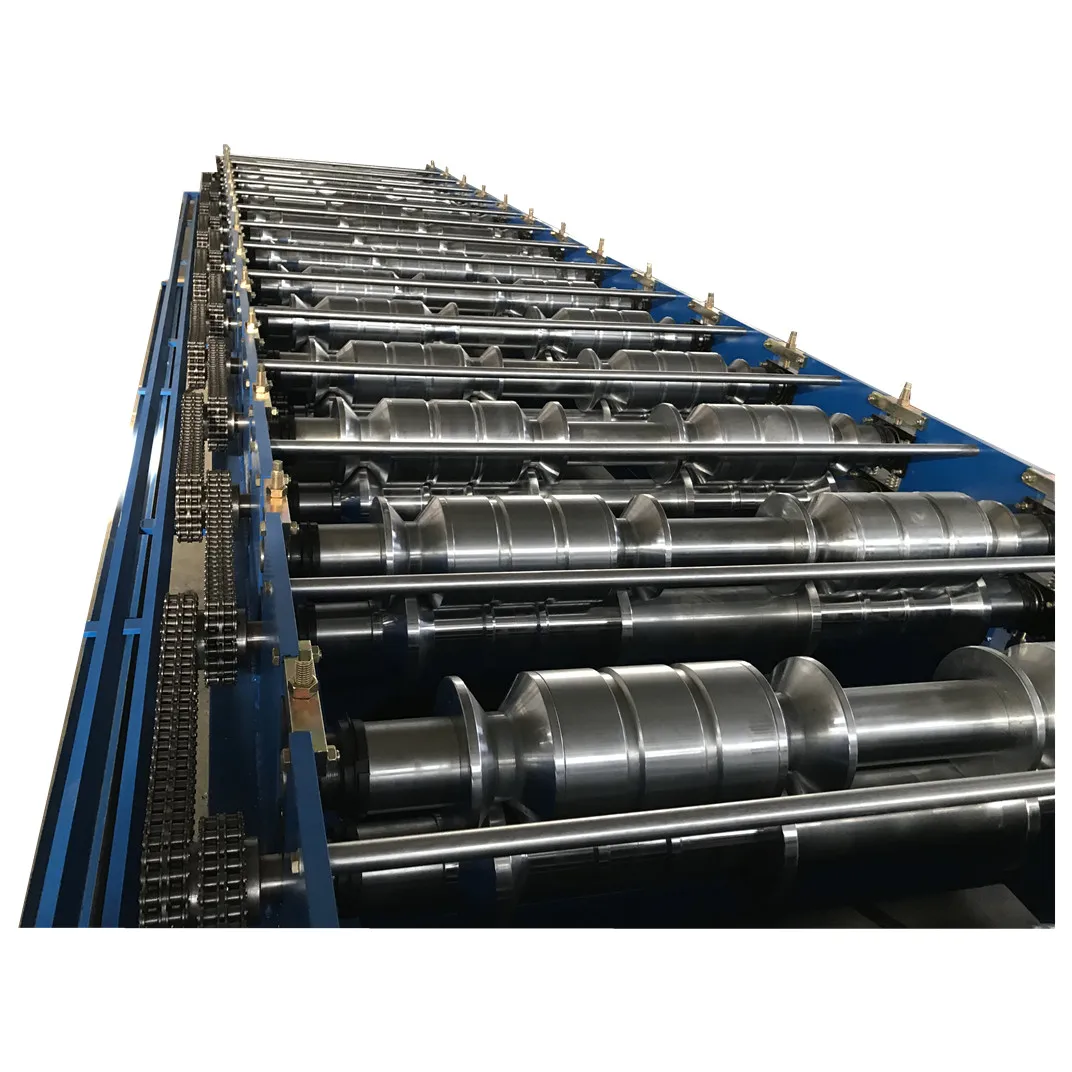

   • Roller Stations: 18 rows (Customizable per requirement)
   • Shaft Diameter: 80mm solid shaft
   • Roller Material: 45# steel with hard chrome plating
   • Machine Frame: 350 H-beam steel
   • Drive System: Chain transmission
   • Dimensions (L*W*H): 9500*1600*1600mm (Customizable)
   • Weight: [Refer to specific model configuration]
4. Cutter: Automatic cutting system using Cr12Mov material; ensures no scratches or deformation.
5. Power:
   • Motor Power: 5.5KW
   • Hydraulic System Power: Included
6. Voltage: 380V, 50Hz, 3-Phase (Customizable per requirement)
7. Control System:
   • Electric Box: Customized with famous brand components
   • PLC Interface: Supports multiple languages (Default: English)
   • Functionality: Fully automatic production control; allows setting of batch size, length, quantity, etc.
8. Forming Speed: 15-20m/min (Adjustable)

Product Features & Display

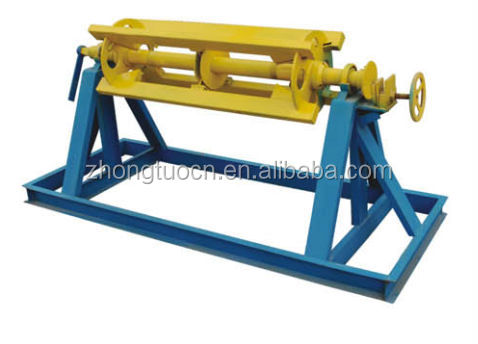

• Manual Decoiler: 5-ton capacity (One unit included free of charge)
• PLC Control Cabinet: Advanced automation control
• Connectivity: Aviation plugs for easy installation
• Components: Schneider buttons for reliable operation

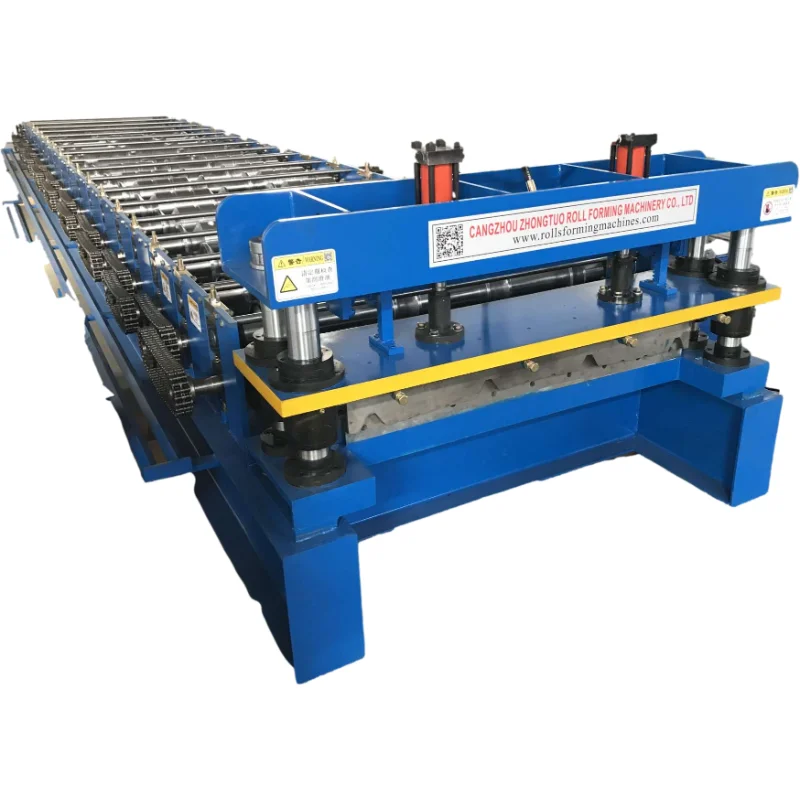

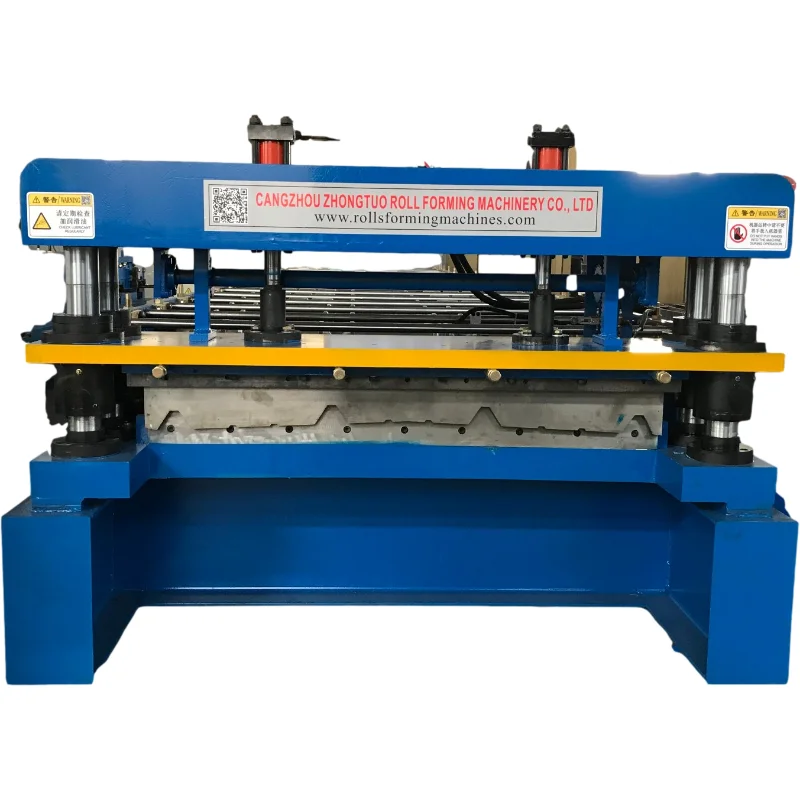

• Cutting Device: Hydraulic cutting mechanism

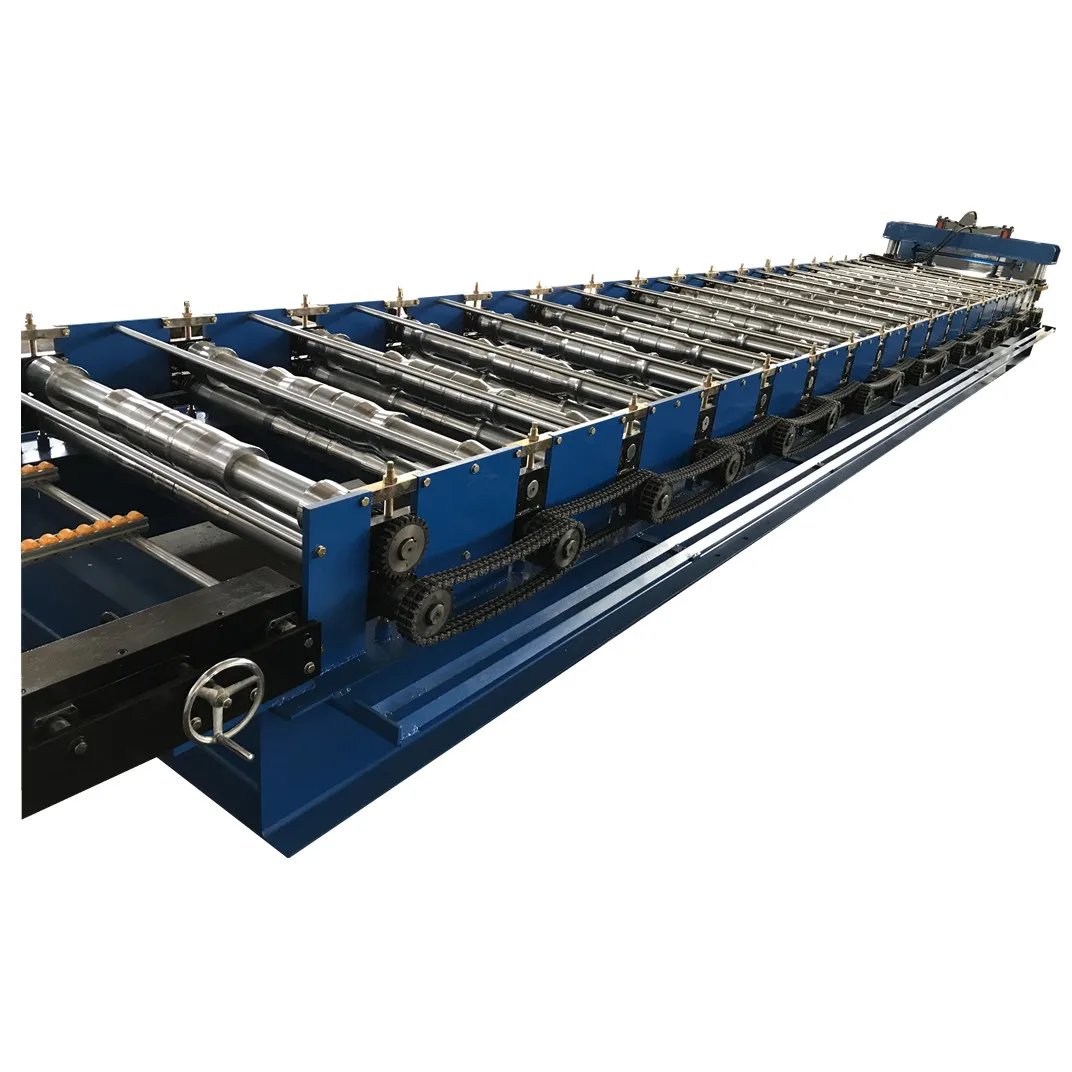

• Roll Forming Device: Double chain and gear transmission feeding device
• Adjustment: Equipped with rubbers and handwheels for precise adjustment
• Hydraulic Station: Includes cooling fan for extended operational life
• Receiving Table: One unit included free of charge
