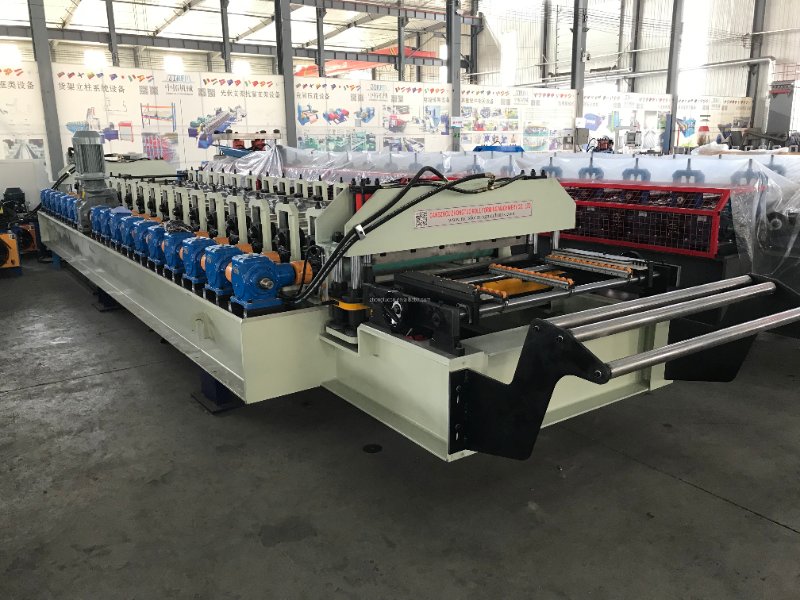

PBR Max Rib Panel Roll Forming Machine | Automatic Roofing Line

The ZTRFM PBR Max Rib Panel Roll Forming Machine is a fully automatic production line designed for manufacturing popular metal roofing and wall panels for the North American construction market.

PBR Panel, R Panel and Max Rib Panel are widely used in the United States and other regions because of their excellent structural strength, attractive appearance and convenient installation. The finished panels are commonly applied in industrial buildings, warehouses, workshops, commercial facilities, agricultural buildings, garages and residential projects.

ZTRFM provides customized roll forming solutions according to different roofing profile drawings, helping customers produce panels that meet their local construction standards and market requirements.

Professional Production Solution for American Roofing Profiles

The machine is specially designed for producing American-style roofing panels, including PBR Panel, R Panel and Max Rib Panel.

These profiles are widely recognized in the metal building industry because they provide good load-bearing performance while maintaining lightweight construction characteristics.

Different customers may require different rib shapes, coverage widths and connection designs. Therefore, the machine can be customized according to the customer's final product drawing instead of being limited to one standard profile.

Customers can provide profile drawings, samples or detailed dimensions, and ZTRFM engineers will design the appropriate forming solution.

Automatic Roll Forming Process

The complete production process includes:

Uncoiling → Material Feeding → Guiding → Roll Forming → Length Measuring → Automatic Cutting → Finished Panel Receiving

After the steel coil is installed, the material enters the forming section through the feeding and guiding system.

The sheet passes through multiple precision rollers and is gradually shaped into the final PBR or Max Rib profile. After reaching the preset length, the automatic cutting system completes the cutting process.

The PLC control system manages the production process automatically, reducing manual operation and improving production efficiency.

Precision Forming Roller Design

The forming system is the core component that determines the quality of the finished roofing panel.

The steel sheet is gradually formed through multiple roller stations. Each roller performs a specific forming step, allowing the material to transition smoothly from a flat sheet into the final ribbed profile.

This progressive forming method helps reduce unnecessary material stress and improves:

• Profile accuracy

• Panel straightness

• Rib consistency

• Surface quality

• Installation performance

The forming rollers are precisely machined from high-quality steel and can receive surface treatment to improve wear resistance and service life.

A smooth roller surface also helps protect painted and coated steel materials during production.

Stable Transmission System

The production line uses a reliable transmission structure designed for continuous industrial operation.

Stable power transmission ensures that each forming station works smoothly and maintains synchronization throughout the production process.

A well-designed transmission system reduces unnecessary movement between components and helps maintain consistent panel quality during long production runs.

For customers with higher production requirements, different transmission solutions can also be customized according to the project.

Heavy-Duty Machine Structure

The main machine frame is manufactured with a strong welded steel structure to provide stable support for the forming system.

A rigid frame helps maintain accurate alignment between shafts, rollers and transmission components.

This is especially important when producing long roofing panels because even small forming deviations may affect the final installation quality.

The machine structure can be optimized according to the customer's profile design, material requirements and production conditions.

Suitable Metal Roofing Materials

The PBR Max Rib Panel machine can process various materials commonly used in metal construction, including:

• PPGI pre-painted galvanized steel

• PPGL pre-painted Galvalume steel

• Galvanized steel

• Aluzinc steel

• Color-coated steel coils

Different materials have different forming characteristics. Before production, customers can provide their material information so that the forming system can be designed according to the actual application.

This helps ensure stable production and consistent finished panel quality.

Easy PLC Automatic Control

The machine is equipped with a PLC control system and touch-screen operating interface.

Operators can set production requirements directly through the control panel, including production length and quantity.

During operation, the control system coordinates the forming process, length measurement and cutting automatically.

The operating interface can be customized according to customer language requirements, while electrical standards can also be adjusted for different countries.

Automatic Cutting System

After the PBR or Max Rib panel reaches the required length, the cutting system automatically separates the finished product.

The cutting unit is designed according to the roofing profile to maintain the panel shape and cutting accuracy.

Automatic cutting provides several advantages:

• Reduced manual measurement

• Improved production efficiency

• Consistent panel length

• Easier batch production management

This allows roofing manufacturers to produce panels according to different construction project requirements.

Wide Application Range

PBR and Max Rib panels produced by this machine are widely used in:

• Industrial factories

• Warehouses

• Steel structure buildings

• Agricultural buildings

• Commercial facilities

• Garages

• Residential houses

• Roofing systems

• Wall cladding applications

The strong rib structure improves panel rigidity while keeping transportation and installation convenient.

Different colors and surface coatings can be selected by changing the raw material coil.

Customized Roofing Machine Service

Because roofing standards differ between countries and manufacturers, ZTRFM provides customized equipment solutions.

The machine can be designed according to:

• Finished panel drawings

• Material type

• Production requirements

• Factory layout

• Automation requirements

Customization options include forming rollers, transmission system, cutting method, control system, decoiler, receiving table and other auxiliary equipment.

This allows customers to build a production line that matches their actual business needs.

Optional Equipment

To improve production efficiency, additional equipment can be added according to customer requirements.

Available options include:

• Hydraulic decoiler

• Coil loading trolley

• Automatic feeding system

• Servo tracking cutting system

• Finished sheet receiving table

• Automatic stacking system

These options help reduce manual handling and improve overall production capacity.

Quality Control Before Delivery

Before shipment, every production line can be assembled and tested in the factory.

The testing process includes:

• Machine structure inspection

• Roller alignment checking

• Transmission operation testing

• Electrical system testing

• Profile forming inspection

• Cutting performance testing

Trial production ensures that the finished panels meet the confirmed requirements before delivery.

Customers can also provide their own raw material for testing when necessary.

After-Sales Technical Support

ZTRFM provides complete technical support for machine installation, commissioning, operation and maintenance.

Customers can receive:

• Operation manuals

• Electrical drawings

• Remote technical guidance

• Troubleshooting support

• Spare parts service

Engineer installation service can also be arranged according to project requirements.

With professional manufacturing experience and customized design capability, ZTRFM provides reliable PBR Panel and Max Rib Panel roll forming solutions for customers worldwide.
