ZhongTuo New PPGI Aluminum IBR PV4 R‑Panel Metal Roof Sheet Roll Forming Machine Building Material Customizable

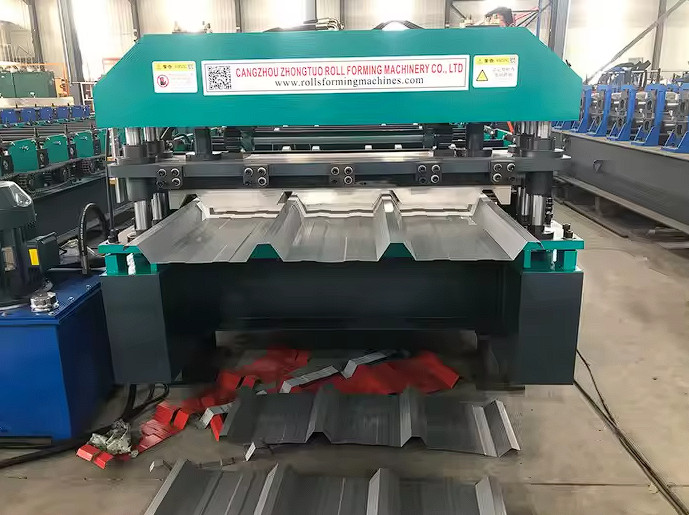

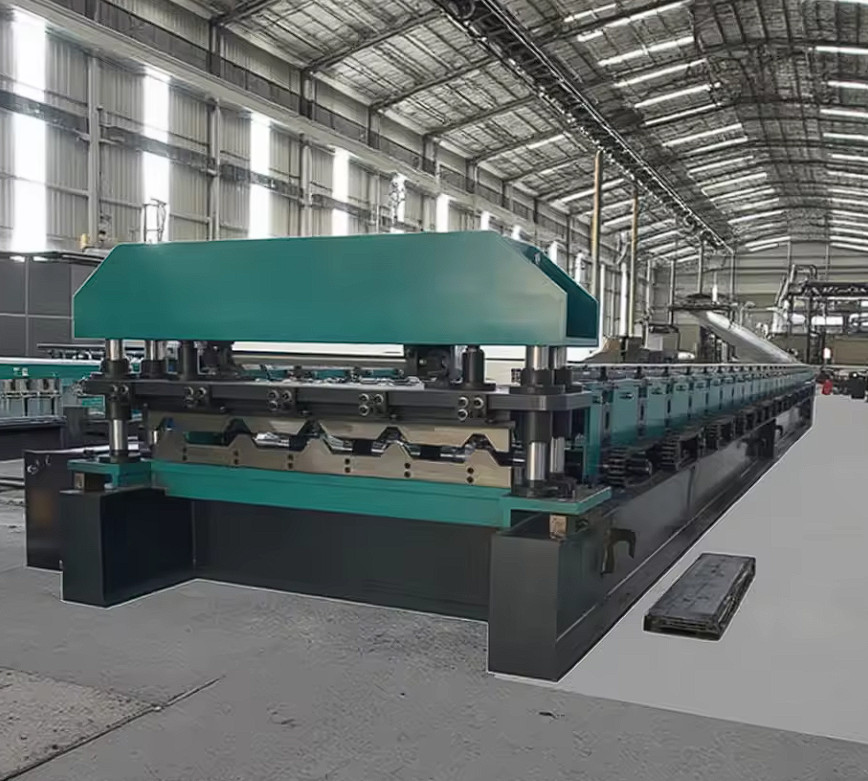

New PPGI Aluminum IBR PV4 R‑Panel Metal Roof Sheet Roll Forming Machine Building Material

Product Description:
Our Metal Steel PPGI, Aluminum, and Iron Roof Sheet Making Machine (IBR/PV4/R Panel Roll Forming Machine) is designed to produce high-quality building materials for metal roofing. These products are widely used for the roofs and walls of factories, warehouses, garages, gymnasiums, and exhibition centers. Key benefits include easy installation, short construction periods, aesthetic appeal, lightweight structure, and high strength.

Machine Features:

1. Customizable production capabilities for various roof sheet shapes.
2. Updated design ensuring easy installation and operation.
3. Fully automatic operation to reduce labor requirements.
4. Rollers equipped with internal bearings to eliminate linear velocity inconsistency, ensuring high-quality final products.

Application of Finished Product:

1. Formed Material: PPGI, GI, AI
   Thickness: 0.3-0.8 mm
   Width: 1220 mm / 1450 mm (customized as per drawing)
2. Decoiler: Hydraulic automatic decoiler; Manual decoiler included free of charge.

1. Main Body:
   - Roller stations: 16 rows (adjustable as per requirement)
   - Shaft diameter: 90 mm solid shaft
   - Roller material: 45# steel with hard chrome plating
   - Machine body frame: 400 H steel
   - Drive: Chain transmission
   - Dimensions (L*W*H): 7500*1800*1600 mm (customizable)
   - Weight: As specified
2. Cutter: Automatic cutting using Cr12Mov material; ensures no scratches or deformation.
3. Power:
   - Motor Power: 7.5 kW
   - Hydraulic System Power: 5.5 kW
4. Voltage: 380V, 50Hz, 3-Phase (customizable as per requirement)
5. Control System:
   - Electric Box: Customized with famous brands
   - Language: English (supports multiple languages)
   - PLC: Controls automatic production of the entire machine; allows setting of batch, length, quantity, etc.
6. Forming Speed: 15-20 m/min (adjustable)

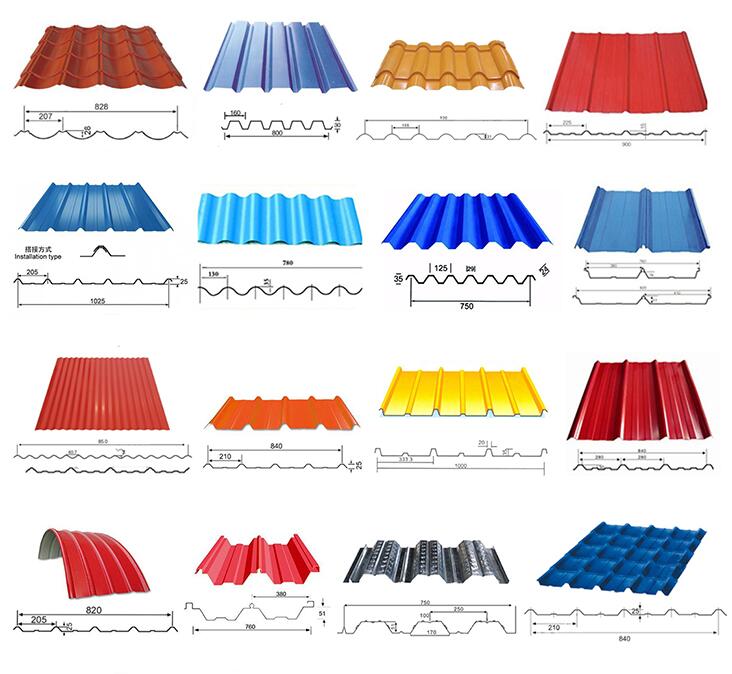

Machines are customized according to your drawings. Hot-sale drawing profiles are available for reference.
