Metal Sheet IBR Profile Machine for Roofing and Wall Cladding

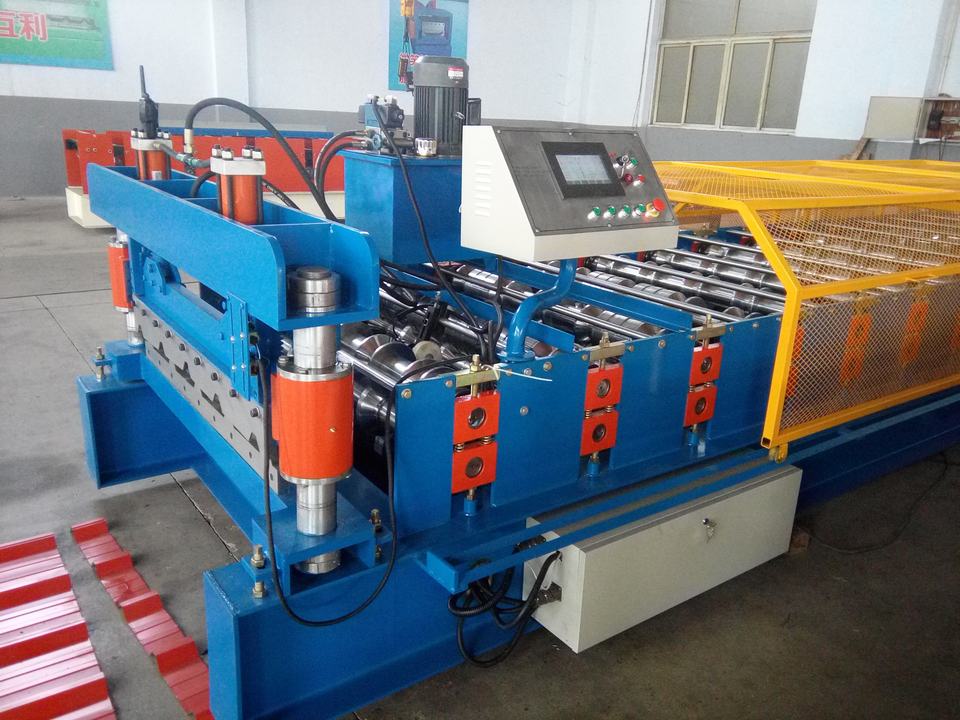

Product Description

This Metal Sheet IBR Profile Machine is designed for producing high-quality roofing and wall cladding panels. It processes colored steel plates, galvanized plates, or aluminum plates into precise IBR profiles.

Technical Specifications

• Processing Material: Colored steel plate, galvanized plate, or aluminum plate
• Material Thickness: 0.3–0.8 mm
• Material Hardness: 195–350 MPa
• Material Width: 1200 mm
• Forming Speed: 8–12 m/min

Main Components Configuration

No.	Component Name	Unit	Quantity
1	6T Decoiler	Set	1
2	Feeding Part	Set	1
3	Main Roll Former	Set	1
4	Auto Shearing Part	Set	1
5	Sizing Part	Set	1
6	Product Run-out Table	Set	1
7	PLC Control Station	Set	1
8	Hydraulic Oil Pump Station	Set	1
9	Spare Parts	Set	1

Component Details

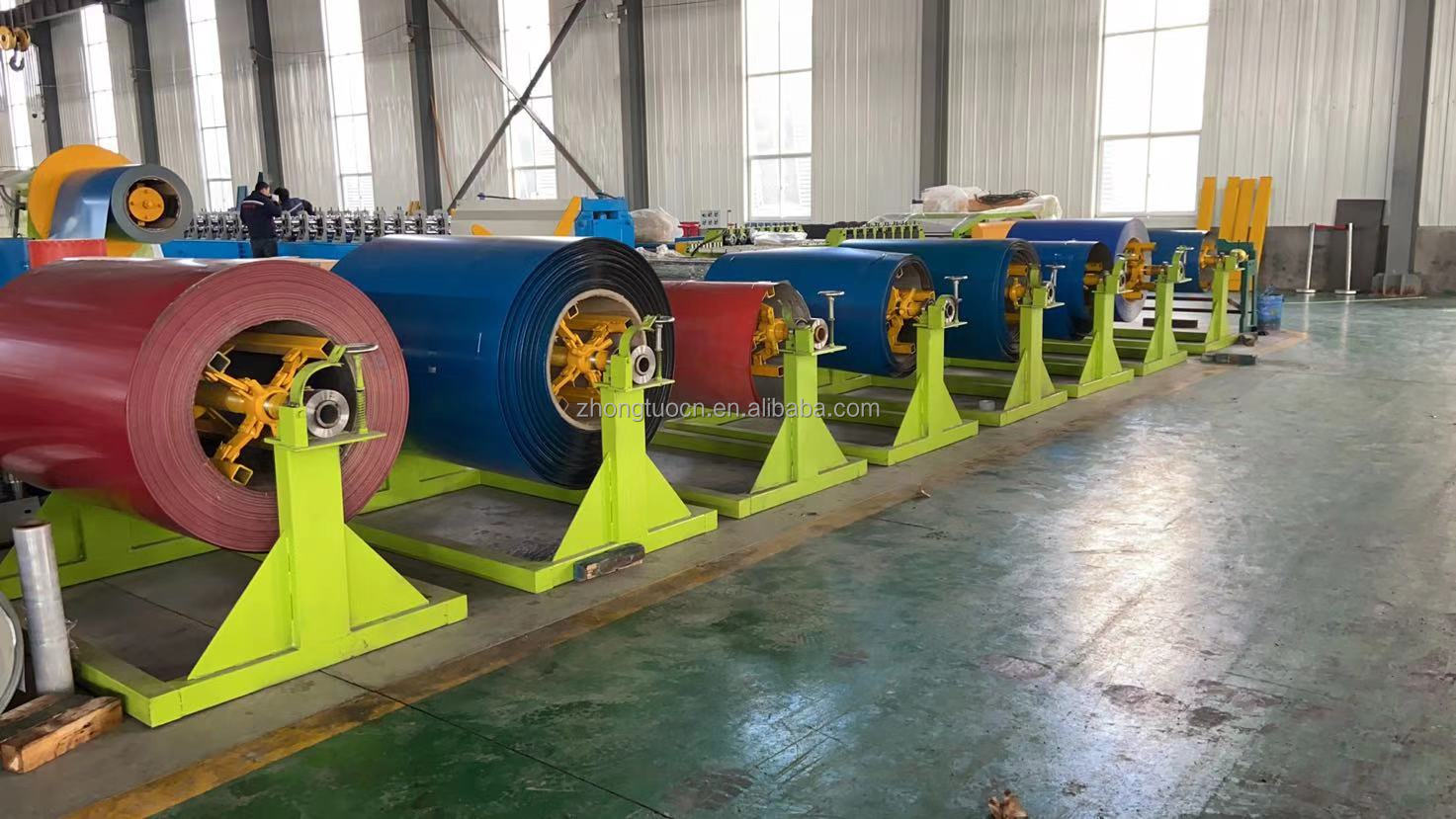

1. Uncoiler (Decoiler)
Function: Supports the steel coil and allows for passive uncoiling driven by the roll forming system.
Loading Capacity: 5T
Uncoiling Width: 1250 mm
Inner Diameter: 450–550 mm

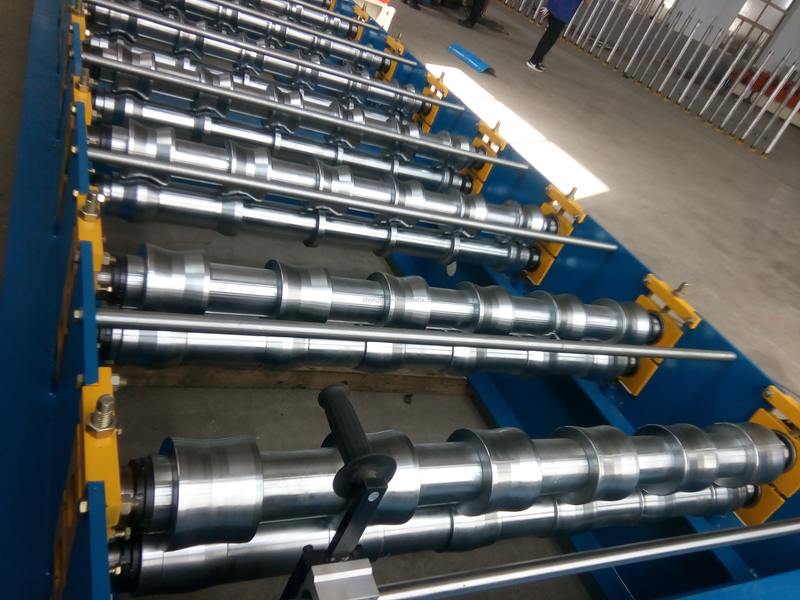

2. Entry Guide & Main Forming Section
Function: Guides the raw material (steel plate) into the forming station to ensure neat, parallel, and uniform product output. Please refer to equipment regulations for angle iron positioning.
Main Part Dimensions: Approx. 8500 × 1650 × 1500 mm
Weight of Main Part: 5T
Voltage: 380V / 50Hz / 3-Phase
Roller Fixer: Middle plate
Frame: 350H Steel
Drive Mode: Chain drive
Roller Material: 45# Steel with surface hard chromium plating
Shaft Material: 45# Steel
Shaft Diameter: φ80 mm
Number of Rollers: 13 stations
Main Motor Power: 5.5 kW
Mold Material: Cr12 (Quenched)
Power Supply: Hydraulic power

3. Cutting Device
Function: Adopts hydraulic drive and automatic positioning to determine dimensions and cut products to target lengths.
Blade Material: Cr12 (Quenched)
Power Supply: Hydraulic power
Components: Includes one set of blades, one hydraulic tank, and one cutter machine.
Cutter Power: 3 kW

Packaging & Shipping

• Packaging: Machine shipped naked in container or packed according to customer requirements.
• Payment Terms: 30% T/T in advance; balance 70% after inspection confirmation before shipment.
• Delivery Time: Within 45 working days after receipt of deposit.
• Warranty: One year warranty with lifetime technical support.
