ZhongTuo IBR Trapezoidal Sheet R Panel Roofing Panel Roofing Sheet Roll Forming Machine Manufacturer in China Cheap Price Customizable

Key attributes
Type	Tile Forming Machine	Tile Type	Colored Steel
Feeding width	1000/1200mm	Rolling thinckness	0.3-0.8mm
Production Capacity	0-20m/min	Voltage	380V,50HZ,3P
Core Components	Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC	Use	ROOF
Warranty	1 Year	Video outgoing-inspection	Provided
Machinery Test Report	Provided	Key Selling Points	Automatic
Place of Origin	Hebei, China	Weight	6500 kg
Brand Name	ZTRFM	Dimension (L*W*H)	about 10.5m*1.6m*1.5m
Product name	IBR panel roofing panel roofing sheet roll forming machine	Raw material width	1200mm or as request
Delivery time	45 working days	Control system	PLC
Automation	Full automatic	Cutting blade material	Cr12 Quenched
Cutting type	Hydraulic cutting	Speed	0-20m/min
Motor brand	Siemens	Electric brand	Siemens and Schneider
Packaging and delivery
Packaging Details	1.One 20ft or 40ft container for loading one set machine. 2.The whole wiped anti rust oil ,PLC controller covered by foam film. 3.Spare parts and some small parts packed in plastic tooling box. 4.All components of the roll forming machine are fixed by steel wire.	Port of dispatch	Xingang Tianjin
Selling Units	Single item	Single volume	0 cm³
Single gross weight	0.0 kg	Packaging examples
Supply capacity
Supply Ability	30 sets per Month

Product Overview

This portable trapezoidal 4-rib metal roof tile roll forming machine (TR4/IBR profile) is designed to produce high-quality building materials for industrial and commercial applications. The resulting panels are widely used for roofing and wall cladding in factories, warehouses, garages, gyms, and exhibition centers. Key advantages include ease of installation, short construction periods, aesthetic appeal, lightweight structure, and high strength.

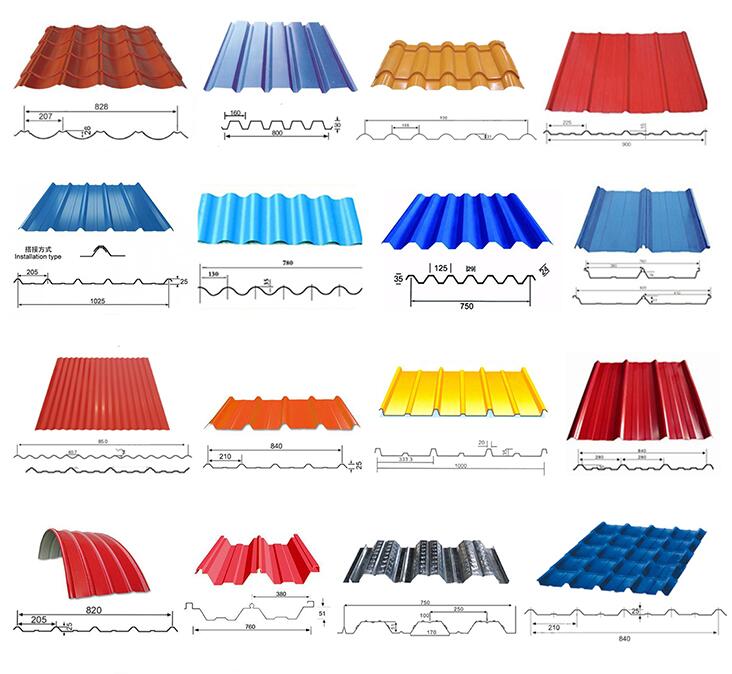

Machines can be customized according to your drawings. Below are hot-selling profile specifications for reference.

Technical Specifications

1. Forming Material: PPGI, GI, Al-Zn (AI)
   Thickness: 0.3-0.8mm
   Width: 1000mm / 1250mm (customizable)
2. Decoiler:
   • Hydraulic automatic decoiler
   • Manual decoiler (included free of charge)

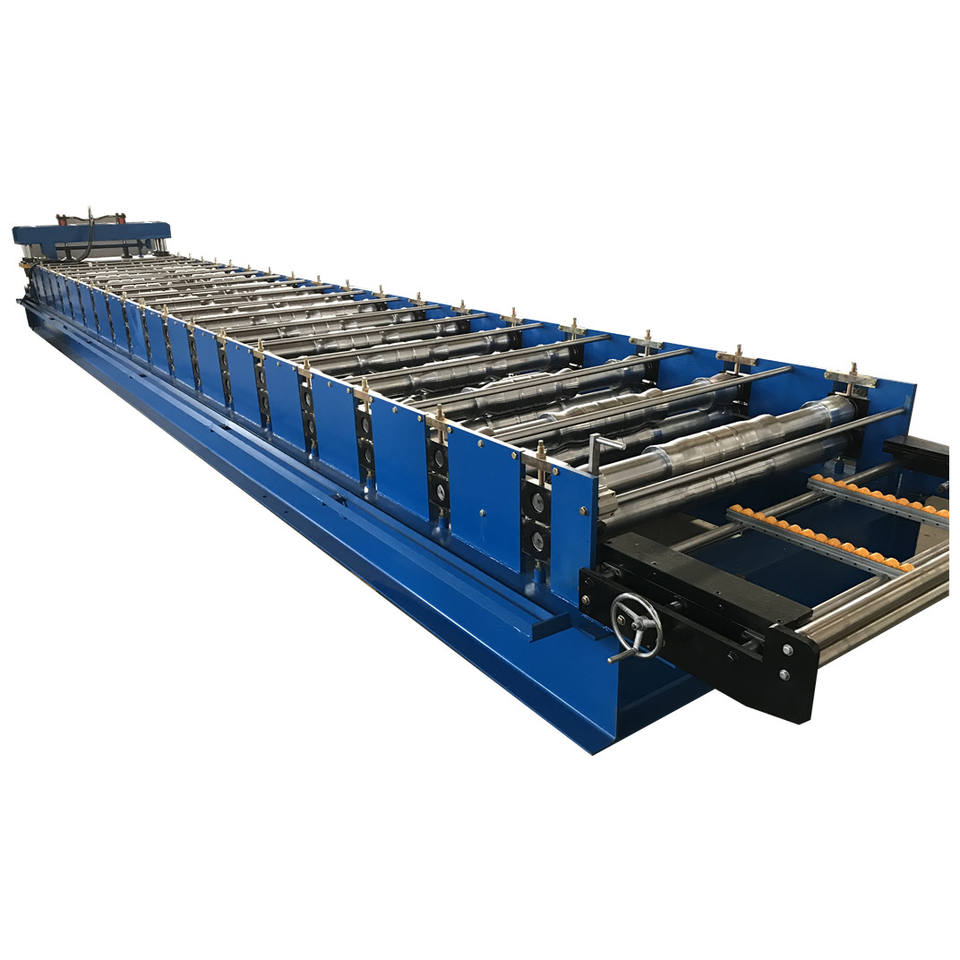

3. Main Body:

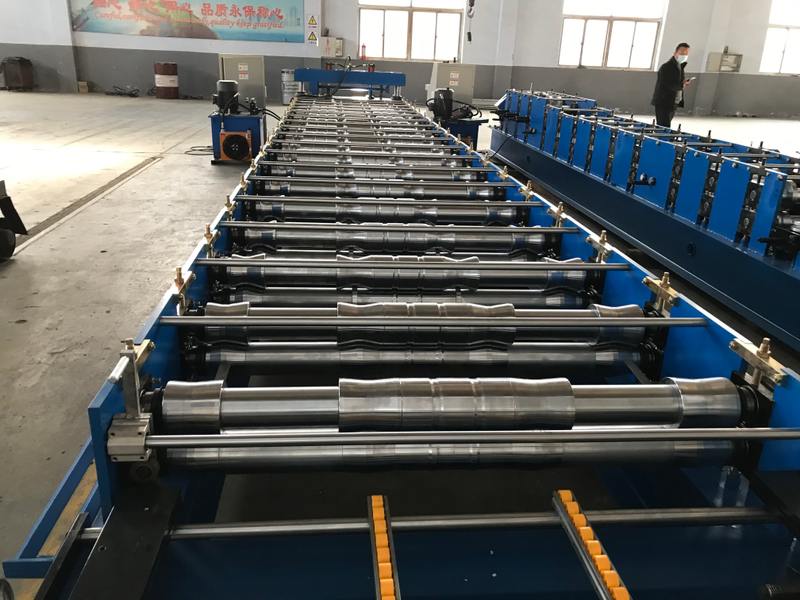

   • Roller Stations: 18 rows (customizable per requirement)
   • Shaft Diameter: 80mm solid shaft
   • Roller Material: 45# steel with hard chrome plating
   • Machine Frame: 350 H-beam steel
   • Drive System: Chain transmission
   • Dimensions (L*W*H): 9500*1600*1600mm (customizable)
4. Cutter: Automatic cutting system using Cr12Mov material; ensures no scratches or deformation.
5. Power:
   • Motor Power: 5.5KW
   • Hydraulic System Power: Included
6. Voltage: 380V, 50Hz, 3-Phase (customizable per requirement)
7. Control System:
   • Electric Box: Customized with famous brand components
   • PLC Interface: Supports multiple languages (default: English); enables automatic production control including batch setting, length, and quantity.
8. Forming Speed: 15-20m/min (adjustable)

Product Features & Components

• Manual Decoiler: 5-ton capacity (one unit included free of charge)

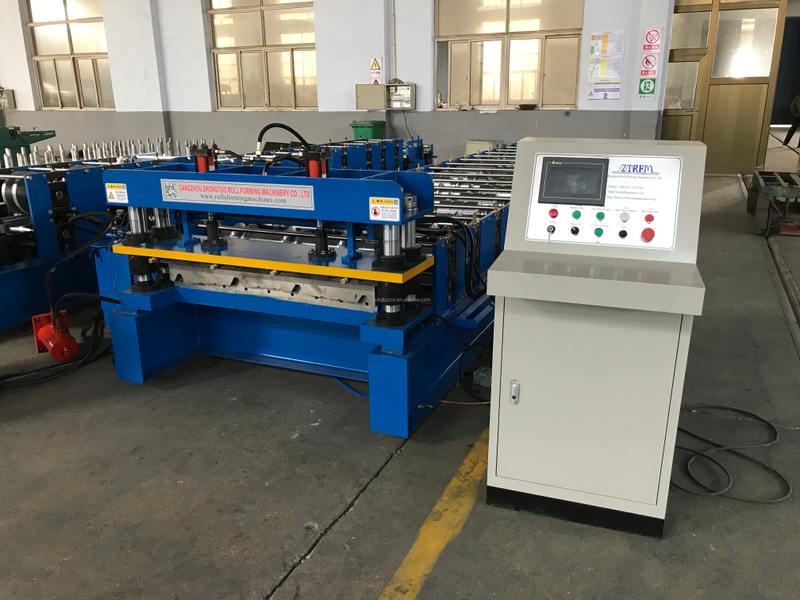

• PLC Control Cabinet: Advanced automation control
• Connectors: Aviation plugs for easy installation
• Operation: Schneider electric buttons
• Cutting Device: Hydraulic cutting for precision
• Roll Forming Device: Double chain and gear transmission feeding device
• Adjustment: Equipped with rubbers and handwheels
• Hydraulic Station: Includes cooling fan for extended operation time
• Receiving Table: One unit included free of charge
