IBR Roof Sheet Roll Forming Machine | Automatic Roofing Line

The ZTRFM IBR Roof Sheet Roll Forming Machine is a fully automatic production line designed for manufacturing IBR and trapezoidal metal roofing sheets. It provides an efficient solution for roofing sheet manufacturers, steel processing factories and building material suppliers that require stable production, easy operation and consistent finished panel quality.

IBR roofing sheets are widely used for industrial buildings, warehouses, workshops, commercial facilities, agricultural structures, residential houses and wall cladding systems. ZTRFM can customize the machine according to the customer’s profile drawing, raw material and production requirements, allowing the finished product to match different local construction markets.

Fully Automatic Roofing Sheet Production

The complete production process includes uncoiling, material feeding, guiding, roll forming, automatic length measuring, cutting and finished sheet receiving.

After the metal coil is placed on the decoiler, the sheet enters the forming section through the guiding device. Multiple forming rollers gradually transform the flat steel strip into the required IBR profile.

The operator can set the required sheet length and production quantity through the control system. During production, the machine automatically coordinates forming, measuring and cutting, reducing manual operation and making batch production easier to manage.

Precision IBR Profile Forming

The roll forming system is designed according to the confirmed finished panel drawing.

Instead of forcing the steel sheet into its final shape in one step, the machine gradually forms the ribs through multiple roller stations. This progressive forming method helps distribute material deformation more evenly and improves the straightness and consistency of the finished roofing sheet.

The roller design focuses on maintaining accurate rib shape, effective panel width and side overlap so that the finished sheets can be installed conveniently at the construction site.

High-quality forming rollers with precision-machined surfaces also help reduce unnecessary friction during production and protect coated roofing materials.

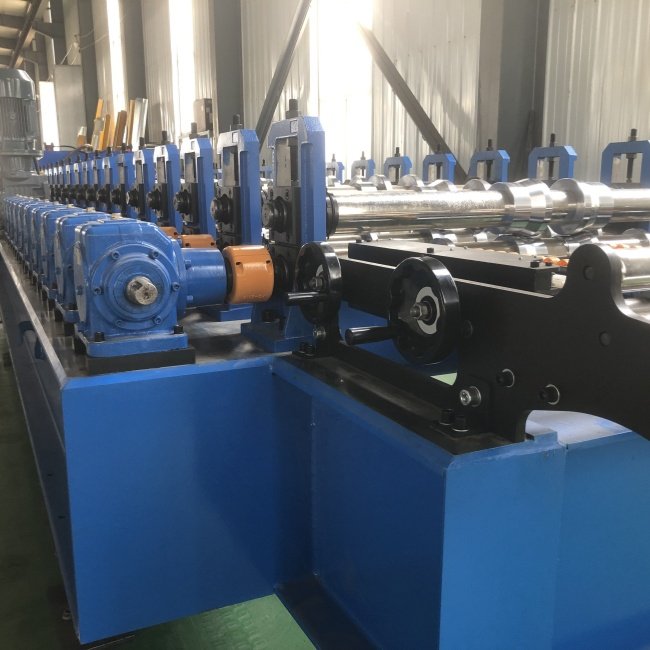

Strong and Stable Machine Structure

The main forming machine uses a heavy-duty steel structure designed for continuous industrial production.

A rigid machine frame provides stable support for the forming rollers, shafts and transmission components. Maintaining correct roller alignment is especially important when producing long roofing sheets because small deviations can affect panel straightness and installation accuracy.

The machine structure can also be optimized according to the customer’s IBR profile, material characteristics and production requirements.

Suitable for Different Roofing Materials

The production line can process PPGI, PPGL, galvanized steel, Galvalume steel, Aluzinc and other suitable color-coated metal coils.

These materials are widely used for roofing and wall cladding because they combine lightweight construction, corrosion resistance and attractive surface finishes.

Different materials may have different strength and forming characteristics. Customers can provide their actual coil information before machine production so that our engineering team can design a suitable forming solution.

PLC Automatic Control System

The machine is equipped with an industrial PLC control system and convenient operating interface.

Operators can set production orders directly through the control panel. Once the required length and quantity are entered, the system automatically manages the main production process.

The control interface language can be customized according to customer requirements, making the machine easier to operate in different countries.

Remote technical support and monitoring solutions can also be provided according to the selected machine configuration, helping customers solve operating questions more efficiently.

Automatic Cutting System

After the steel sheet has completed the roll forming process, it enters the automatic cutting section.

The cutting blade is designed according to the finished IBR profile so that the panel can be cut while maintaining its shape.

The measuring system continuously monitors the finished sheet length. When the required length is reached, the machine automatically performs the cutting cycle.

This system reduces manual measurement and allows manufacturers to produce roofing sheets in different lengths according to individual construction orders.

Wide Application of IBR Roofing Sheets

IBR roofing panels are widely used because their deep rib structure provides good rigidity while keeping the sheet relatively lightweight.

Finished products are suitable for factory roofing, warehouses, workshops, agricultural buildings, steel structure projects, commercial buildings, residential houses, garages, prefabricated buildings and exterior wall cladding.

By changing the raw material coil, manufacturers can also offer different colors and surface coatings to meet different architectural and market requirements.

Customized IBR Roofing Solutions

IBR profiles are not identical in every country. Rib height, rib spacing, effective width and side overlap can vary according to local construction standards and customer preferences.

ZTRFM therefore provides customized roll forming solutions based on the customer’s actual drawing or sample.

Customers can send us their finished roofing sheet drawing, and our engineers can design the forming rollers and machine structure accordingly.

Customization can cover the profile design, feeding system, forming structure, cutting method, control system, electrical configuration and finished product handling solution.

Flexible Automation Options

The production line can be combined with different auxiliary equipment according to factory requirements.

A hydraulic decoiler and coil loading trolley can simplify heavy coil handling. Automatic feeding equipment can improve material control, while servo tracking cutting and automatic stacking systems can further increase production efficiency.

This flexible configuration allows customers to select a suitable solution according to their workshop layout, production volume and investment plan.

Factory Testing and Quality Control

Before shipment, the complete production line can be assembled and tested at the ZTRFM factory.

Trial production is carried out to inspect material feeding, roller alignment, profile forming, transmission operation, electrical control and cutting performance.

The finished IBR roofing sheet is checked against the confirmed drawing before delivery. Machine testing reports and outgoing inspection information can also be provided according to project requirements.

Customers can provide their own raw material for testing when necessary, allowing the machine to be adjusted according to actual production conditions.

After-Sales Technical Support

ZTRFM provides technical support covering installation, commissioning, operation and maintenance.

Customers can receive operation instructions, electrical documentation, remote video assistance and troubleshooting support. Engineer installation and commissioning services can also be arranged according to project requirements.

With automatic production, customized profile design and reliable roll forming technology, the ZTRFM IBR Roof Sheet Roll Forming Machine provides a practical production solution for metal roofing manufacturers serving different international markets.
