High Speed TR4 TR5 Roofing Sheet Roll Forming Machine

The ZTRFM High Speed TR4 TR5 Roofing Sheet Roll Forming Machine is an automatic production line developed for efficient manufacturing of TR4, TR5 and similar trapezoidal metal roofing panels. It is especially suitable for roofing sheet manufacturers serving Peru, Chile and other Latin American markets where trapezoidal metal roofing profiles are widely used.

Compared with conventional roofing sheet production equipment, this high-speed design focuses on improving continuous production efficiency while maintaining stable profile quality. The machine can be customized according to the customer’s actual roofing drawing, raw material and factory requirements.

High-Speed Roofing Sheet Production

This production line is designed for manufacturers that require higher output and continuous batch production.

The complete working process includes:

Uncoiling → Feeding → Guiding → Roll Forming → Length Measuring → Automatic Cutting → Finished Sheet Receiving

After the steel coil is loaded, the material enters the forming section through the feeding and guiding system. Multiple forming stations gradually shape the flat steel sheet into the required TR4 or TR5 trapezoidal roofing profile.

The automatic control system coordinates production speed, length measurement and cutting, reducing manual operation and improving overall manufacturing efficiency.

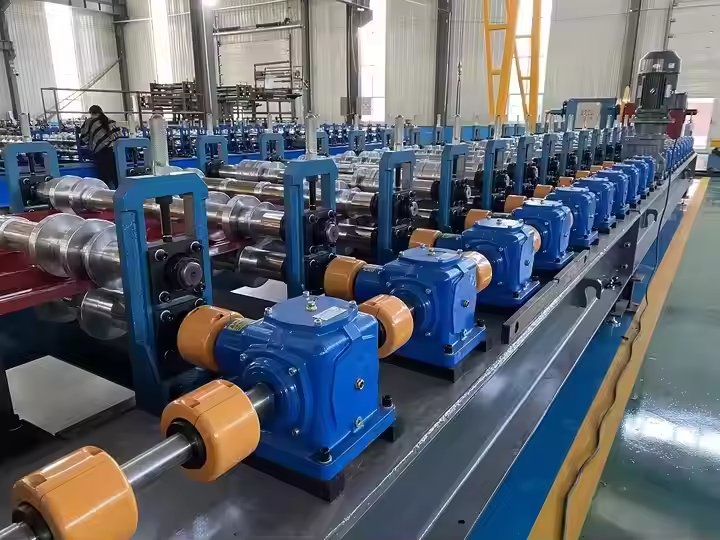

Gearbox Driven Forming System

A key feature of this high-speed machine is its reinforced transmission design.

Compared with a conventional chain-driven roofing machine, a gearbox-based transmission structure provides more stable power delivery during high-speed production.

Stable transmission helps the forming rollers maintain synchronized operation and reduces unnecessary movement between different forming stations.

This design is particularly suitable for roofing factories requiring long production hours and large-volume orders.

Precision TR4 and TR5 Forming

TR4 and TR5 roofing sheets require accurate rib dimensions, smooth forming transitions and consistent side overlaps.

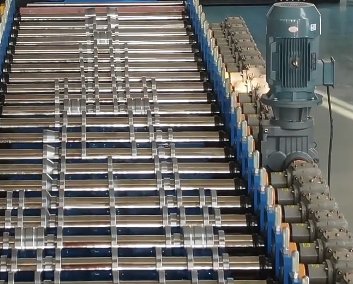

The machine uses multiple precision forming stations to gradually shape the steel sheet into the final profile.

Instead of completing the deformation in only a few stages, the progressive forming process distributes material stress throughout the production line.

This helps improve:

• Roofing profile consistency

• Rib forming accuracy

• Panel straightness

• Surface appearance

• Side overlap stability

• Finished sheet installation quality

The forming rollers are manufactured according to the customer’s confirmed profile drawing to ensure that the finished sheet matches the required dimensions.

Roller Bearing Design

For higher-speed production, stable roller movement is especially important.

The forming system can use roller structures equipped with bearings to help maintain smoother rotation and reduce differences in linear speed between forming components.

This design can help reduce unnecessary friction during production and improve the surface quality of coated roofing sheets.

It is particularly useful when processing pre-painted steel where scratches or surface marks may affect the appearance of the finished product.

Suitable Roofing Materials

The production line can process common materials used for metal roofing, including:

• PPGI pre-painted galvanized steel

• PPGL pre-painted Galvalume steel

• Galvanized steel

• Aluzinc steel

• Color-coated steel coils

Because steel strength and coating characteristics can vary between suppliers, customers are recommended to provide actual raw material information before machine manufacturing.

The forming solution can then be optimized according to the material and finished roofing profile.

Automatic Control System

The machine uses an industrial automatic control system with a touch-screen operating interface.

Operators can set the required roofing sheet length, production quantity and related production information directly from the control panel.

Once production begins, the system coordinates the forming machine, length measuring device and cutting unit automatically.

Remote control and troubleshooting functions can also be integrated according to the selected electrical configuration.

The operating language and electrical standard can be customized according to the customer’s country and factory requirements.

Automatic Cutting

After the roofing sheet reaches the preset length, the automatic cutting system completes the cutting process.

The cutter is designed according to the finished TR4 or TR5 roofing profile, helping maintain the panel shape around the cutting position.

Automatic length measurement and cutting reduce manual measuring work and make batch production easier to manage.

Customers can produce different roofing sheet lengths by changing the settings through the control system.

TR4 and TR5 Roofing Applications

TR4 and TR5 trapezoidal roofing sheets are widely used in construction projects because of their strong rib structure, lightweight design and convenient installation.

Finished roofing sheets can be used for:

• Industrial factories

• Warehouses

• Workshops

• Commercial buildings

• Agricultural buildings

• Steel structure projects

• Residential houses

• Garages

• Wall cladding

• Prefabricated buildings

Different colors and surface coatings can be produced by changing the raw material coil.

Customized Profile Design

ZTRFM does not limit the production line to only one standard TR4 or TR5 drawing.

Customers can provide their own roofing profile drawings, samples or dimensional requirements.

Our engineers can design the forming rollers and production line according to the required rib shape, effective width, side overlap and material characteristics.

This allows customers to manufacture roofing products suitable for their local market rather than adapting their products to a fixed machine design.

Flexible Automation Options

Different auxiliary equipment can be integrated according to production requirements.

Available solutions can include:

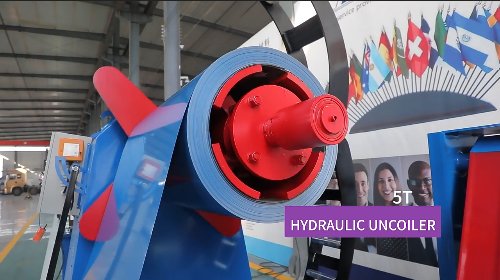

• Hydraulic decoiler

• Coil loading trolley

• Automatic feeding system

• Servo tracking cutting

• Finished sheet receiving table

• Automatic stacking system

• Safety protection system

These options allow customers to select the appropriate automation level according to factory capacity and production plans.

Factory Testing and Quality Control

Before shipment, the complete production line can be assembled and tested in the ZTRFM factory.

Trial production is used to inspect material feeding, roller alignment, transmission operation, profile forming, automatic control and cutting performance.

The finished TR4 or TR5 roofing sheet is checked against the confirmed profile drawing before delivery.

Customers can also provide their own steel coils for machine testing when required.

After-Sales Technical Support

ZTRFM provides technical support for installation, commissioning, operation and maintenance.

Customers can receive operating instructions, electrical documentation, remote technical assistance and troubleshooting support.

Engineer installation and commissioning services can also be arranged according to project requirements.

For customers looking to increase roofing sheet production capacity, the ZTRFM High Speed TR4 TR5 Roofing Sheet Roll Forming Machine provides a flexible solution combining efficient production, stable forming and customized profile design.
