Cable Tray Housing Forming Machine Essential Parameters You Must Check

Buying a cable tray housing forming machine is not just about finding a good machine. The real challenge is knowing whether it actually fits your products and production requirements. The numbers on a spec sheet can look acceptable, but once the equipment is in your workshop, you may find that sizes don't match, materials aren't workable, or speed falls short.

This article walks through the critical technical parameters you need to confirm before you order a cable tray housing forming machine.

---

What This Machine Produces and How It Works

Before diving into the numbers, let's clarify what this cable tray housing forming machine is designed to do and what makes its production method stand out.

Applications – What Products This Machine Can Produce

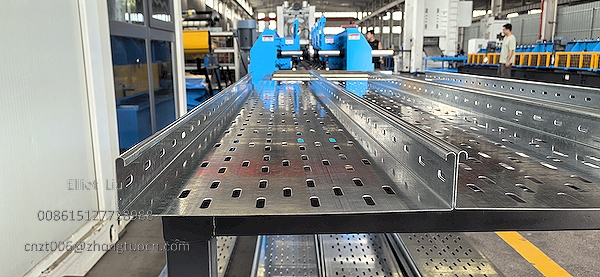

This equipment is mainly used to produce Cable Tray Housing (the trough or channel section of cable trays).

Profile size range: 100×50mm to 800×100mm

Suitable materials: Q235B cold rolled strip, hot rolled strip, galvanized sheet

Material thickness: 1.0 to 1.2mm

Material width: 200 to 1050mm

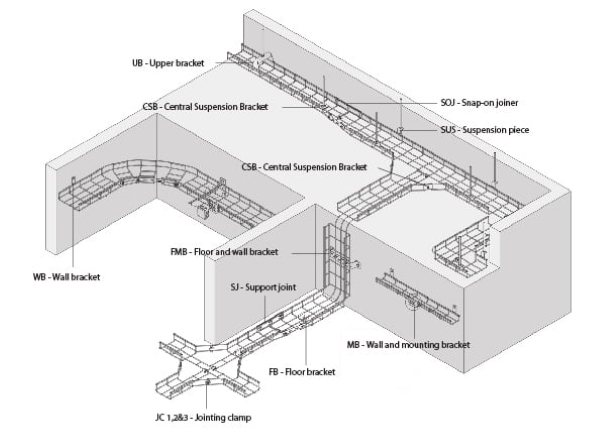

Typical application scenarios:

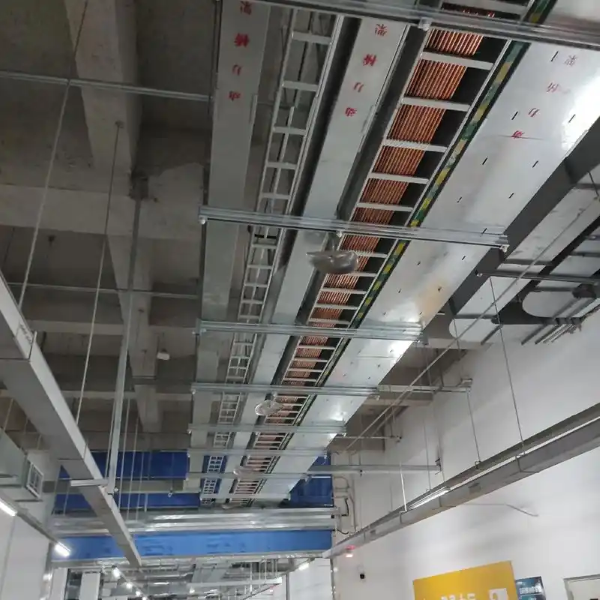

• Power engineering cable tray production

• Telecommunication cable tray manufacturing

• Building electrical installation support

• Industrial plant cable routing systems

Advantages – Key Production Features of a High Quality Cable Tray Forming Machine

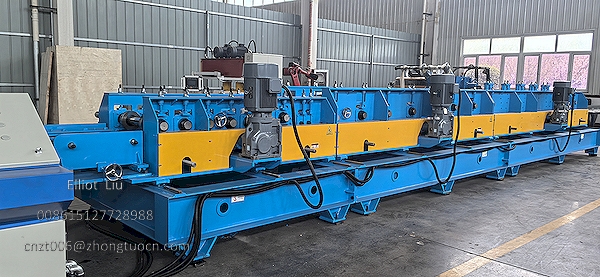

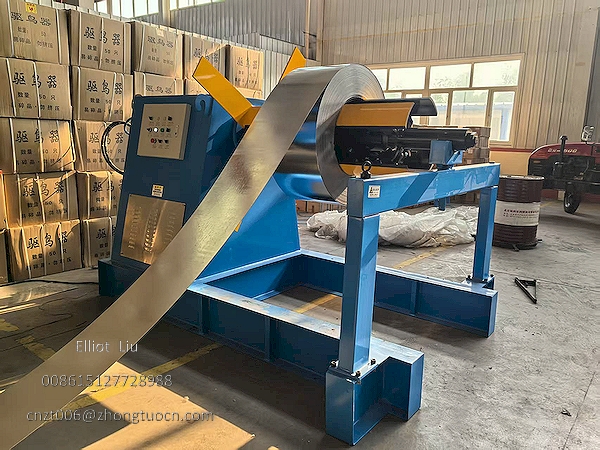

• Continuous production: From coil to finished tray in one pass, without transferring semi finished products between machines

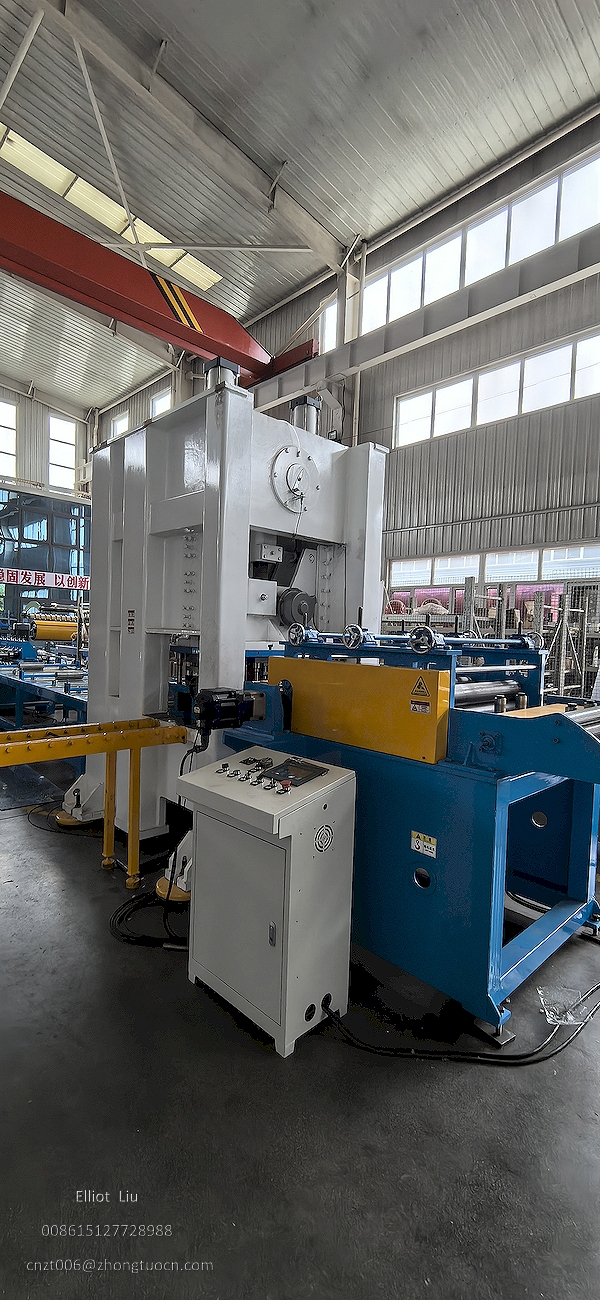

• In line punching and shearing: Punching and cutting are completed on the same production line

• Servo feeding: Servo motor driven, precisely controlling feed length

• PLC control: Adjust production parameters via touchscreen

• Stable accuracy: Length/width tolerance ±1.5mm, angle tolerance ±2°

These features define how the cable tray housing forming machine operates and the quality it delivers. However, the actual performance for each feature will depend on your specific product requirements.

---

Key Technical Parameters to Confirm for Your Cable Tray Housing Forming Machine

The following parameters come from the equipment quotation.

Each number in this cable tray housing forming machine spec sheet represents a specific purchasing decision – whether it matches your products and production requirements.

Below is a breakdown of how each parameter affects machine configuration.

Finished Product Size – How It Determines Machine Configuration

The design of the forming rollers and cutting system depends on the finished product size. Different sizes require different roller arrangements and cutting methods.

The standard range in the quotation is 100×50mm to 800×100mm.

If your product size falls within this range, the cable tray housing forming machine matches the standard configuration. If it exceeds the standard range, you will need to ask the supplier whether customization is possible.

Profile Type and Drawings – How They Affect Roller Design

Different profile types require different forming roller designs. Changing the profile type means a different roller configuration.

If you already have a clear product plan, providing finished product photos or drawings can help the supplier confirm the roller design for your cable tray housing forming machine.

Material and Thickness – What Determines Machine Capability

The quotation specifies materials as Q235B cold rolled strip, hot rolled strip, and galvanized sheet, with thickness 1.0 to 1.2mm and width 200 to 1050mm.

Before purchasing, confirm whether the actual material type, thickness, and width you plan to use fall within the cable tray housing forming machine's specified range.

Production Speed – What Factors Actually Affect It

The quoted speed is 6 to 10 m/min, but the actual speed depends on the number of holes punched – more holes mean slower speeds.

Material thickness and profile complexity also affect actual production speed. Providing product drawings and punching requirements before purchase helps the supplier estimate the actual production speed for your specific product on the cable tray housing forming machine.

Voltage – How to Match Your Factory Conditions

The quotation lists 380V/50Hz/3 phase, with other voltages available on request.

Before purchasing, confirm your factory's power conditions and specify your voltage requirements when requesting a quote for the cable tray housing forming machine.

---

Customizable Options – What Can Be Adjusted to Your Needs

The parameters discussed so far mostly have clear standard ranges. But in practice, many customers' requirements don't fall entirely within those standards. That's when you need to know what can be discussed with the supplier to get a cable tray forming machine for your specific profile type.

A cable tray housing forming machine can be adapted in several ways:

• Profile type: Roller configuration can be adjusted based on your product requirements

• Voltage: Can be configured to match your factory's power supply

• Other custom needs: Further customization based on your specific product and production requirements

For example, if your profile type is unusual, the supplier may need to redesign the roller arrangement. If your factory voltage isn't 380V, the equipment will need a different motor and control system.

However, every customisation has technical and cost constraints. Some involve redesigning core components, which will affect lead time and cost. Others may not be technically feasible. The feasibility of each request must be evaluated by the supplier based on your specific needs.

When requesting a quote, provide as much detail as possible about your product drawings, material specifications, planned output, and factory conditions.

---

What to Do Next

Purchasing a cable tray housing forming machine is ultimately about matching equipment parameters to your product and production requirements.

The next step: prepare your finished product drawings, material information, dimensions, and production requirements, then contact our sales team for a quotation and consultation to confirm the right cable tray housing forming machine configuration for you.
