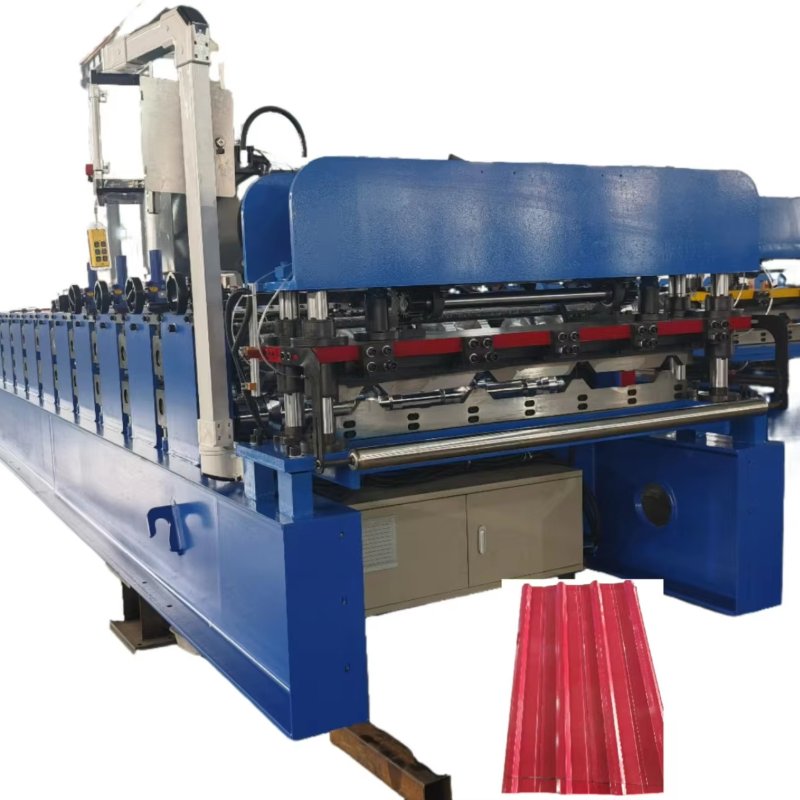

The TR4 Trapezoidal Panel Roofing Sheet Roll Forming Machine is a professional cold roll forming solution designed for continuous production of trapezoidal metal roofing panels.
TR4-style roofing profiles are widely used in industrial buildings, warehouses, workshops, commercial construction, agricultural buildings, and steel structure projects. The trapezoidal rib structure provides a practical combination of appearance, strength, drainage performance, and installation convenience, making this type of roofing panel a popular choice for modern metal building systems.
This roll forming machine converts metal coils into finished trapezoidal roofing sheets through a continuous forming process. The complete production line can integrate coil feeding, progressive roll forming, automatic length measurement, cutting, and finished panel collection, helping manufacturers achieve efficient and consistent production.
The machine can also be customized according to the customer's profile drawing, material requirements, production needs, and local roofing standards.
The TR4 profile is a practical trapezoidal roofing design with repeated ribs formed along the width of the panel.
During production, the flat metal strip passes through a series of precision forming stations. Each station gradually changes the material into the required trapezoidal shape.
The progressive forming process helps maintain consistent profile geometry throughout production while reducing unnecessary deformation of the material.
The finished panels can be manufactured in different lengths according to construction requirements, making the machine suitable for both standard roofing production and customized orders.
The complete production process is designed for continuous operation.
Coil Loading → Material Feeding → Roll Forming → Length Measurement → Automatic Cutting → Finished Panel Output
The metal coil is installed on the decoiler and prepared for continuous feeding.
The feeding section guides the metal strip into the forming machine while helping maintain stable material alignment.
The material passes through multiple roller stations and is gradually formed into the TR4 trapezoidal profile.
The control system monitors the forming length according to the production requirements.
After reaching the required length, the cutting system separates the finished roofing panel.
The completed panels are transferred to the output section for collection and further handling.
This continuous process helps reduce repetitive manual operations and improves overall production efficiency.
The forming roller system is the core component of the machine.
For a TR4 trapezoidal profile, every roller station is designed around a specific forming stage. The roller geometry must match the profile drawing and material characteristics.
A properly designed forming system helps provide:
The forming rollers can be customized according to the customer's actual profile.
This is especially important because trapezoidal roofing profiles may differ between countries, manufacturers, and construction markets.
Different roofing manufacturers may use different versions of TR4 or similar trapezoidal profiles.
For this reason, the machine is not limited to a single standard design.
Customers can provide:
Our engineering team can analyze the profile and develop a corresponding roll forming solution.
This customized approach allows the machine to be used for different regional roofing standards and specific customer requirements.
TR4 trapezoidal panels can be used in many types of construction projects.
Trapezoidal roofing sheets are commonly used for factories, workshops, manufacturing facilities, and steel structure buildings.
Their ribbed structure provides a practical solution for large roof areas.
For warehouse construction, continuous metal roofing panels can cover large areas efficiently.
The roll forming machine can produce panels according to the required project length, reducing unnecessary joints in suitable applications.
Trapezoidal roof panels can also be used in commercial buildings where durability, practical installation, and modern appearance are important.
The panels are suitable for barns, storage buildings, farm workshops, and other agricultural structures according to local construction requirements.
Depending on local building standards, trapezoidal roofing panels can also be used for residential structures, garages, extensions, and roof renovation projects.
The machine can be designed to process commonly used roofing materials according to the customer's requirements.
Galvanized steel is frequently used for metal roofing because its protective coating provides additional resistance against environmental exposure.
PPGI combines a protective metal coating with a colored surface, providing additional choices for architectural applications.
Depending on the profile, material characteristics, and forming requirements, other suitable metal materials can also be evaluated.
Before machine manufacturing, customers should provide information about the intended material so that the roller design and machine configuration can be properly matched.
For roofing sheet manufacturers, product consistency is one of the most important considerations.
The forming rollers work progressively to create the final trapezoidal profile.
A professional forming system helps maintain consistent:
For coated metal materials, proper roller design is particularly important because excessive friction or incorrect forming can affect the surface finish.
The roller forming process is therefore designed around both the final profile and the material characteristics.
The automatic cutting system allows finished roofing panels to be produced according to different length requirements.
The operator can enter the desired production length through the control system.
Once the required length is reached, the machine automatically coordinates the cutting operation.
This provides several benefits:
The cutting solution can be selected according to the customer's material, profile, and production requirements.
The electrical control system provides centralized management of the production process.
The operator can control the main functions through the control interface.
Typical functions include:
The control interface can be configured according to the customer's requirements.
Operation instructions and technical guidance can also be provided to help operators become familiar with the machine.
A rigid machine structure provides a stable foundation for continuous roll forming.
The frame supports the forming stations, transmission components, control system, and other sections of the production line.
A stable structure helps reduce unnecessary vibration during operation and supports consistent forming performance.
The machine layout can also be customized according to the customer's workshop conditions.
This allows the production line to be arranged according to available working space, material flow, operator access, and finished panel storage.
The TR4 trapezoidal panel roll forming machine can be supplied as part of a complete roofing sheet production solution.
Depending on the project, the production line can include:
Provides stable support for the metal coil and feeds the material into the forming system.
Guides the metal strip and helps maintain proper alignment before forming.
Gradually transforms the flat metal strip into the required trapezoidal profile.
Automatically separates the finished panel according to the programmed length.
Provides centralized control of the forming and cutting process.
Supports finished roofing sheets after cutting.
Additional automation can also be considered for customers who require higher production efficiency and reduced manual handling.
The machine processes metal coils continuously, making it suitable for regular roofing panel production.
Precision forming rollers help maintain stable panel geometry throughout production.
Different panel lengths can be produced according to project requirements.
Automatic feeding, forming, measuring, and cutting reduce repetitive manual work.
The machine can be designed according to the customer's specific roofing profile.
The equipment can be customized for different material types, profile designs, electrical standards, and factory conditions.
Cangzhou Zhongtuo Roll Forming Machinery focuses on the development and manufacturing of cold roll forming equipment for the construction and metal processing industries.
Our product range includes roofing sheet machines, wall panel machines, purlin machines, light steel framing machines, gutter and downspout machines, cable tray machines, and other customized roll forming systems.
With experience in international projects, we understand that overseas customers often require more than a standard machine.
Different customers may have different:
Our engineering team can therefore provide a customized solution based on the actual application.
Customized manufacturing is an important part of our roll forming business.
If you already have your own TR4 profile or another trapezoidal roofing design, you can send us the drawing or finished product sample.
Our engineers can evaluate the profile and design the corresponding roller system.
OEM and ODM solutions are suitable for:
Instead of simply supplying a standard machine, we focus on matching the equipment to the customer's actual product.
Before shipment, the machine is assembled and tested in our factory.
The testing process can include:
Factory testing helps identify potential issues before delivery and provides customers with greater confidence when preparing for installation.
Customers can also communicate specific testing requirements with our technical team before shipment.
For international customers, reliable technical support is an important part of the complete machine solution.
We provide remote assistance for:
Through online communication and video guidance, our technical team can help customers understand machine operation and solve common issues.
For projects requiring on-site installation or commissioning, engineer service can also be discussed according to the project requirements.
Regular maintenance is important for maintaining stable machine performance.
Operators should keep the machine clean and regularly inspect the mechanical, electrical, transmission, and forming components according to the maintenance instructions.
Routine maintenance can include:
Proper maintenance helps reduce unnecessary downtime and supports long-term production.
To design the right machine, customers are encouraged to provide the following information.
A clear cross-sectional drawing is the best reference for roller design.
If a drawing is unavailable, a physical roofing panel sample can also help engineers understand the required profile.
Please provide the material type and relevant material characteristics.
Tell us the desired panel width, profile design, cutting length, and production requirements.
The available workshop space and material flow can also be considered when designing the machine layout.
After receiving this information, our engineering team can recommend a suitable production solution.
It is a continuous cold roll forming machine designed to transform metal coils into TR4-style trapezoidal roofing panels.
Yes. The roller system and machine configuration can be customized according to the customer's profile drawing or finished panel sample.
Common materials include galvanized steel and pre-painted galvanized steel. Other suitable materials can be evaluated according to their forming characteristics.
Yes. The automatic cutting system can be configured to produce different finished panel lengths according to production requirements.
Yes. A complete solution can include coil feeding, roll forming, cutting, control, and finished panel output equipment.
Yes. The continuous roll forming process is suitable for manufacturers that need regular production of trapezoidal roofing panels.
Yes. Remote assistance can be provided for installation, commissioning, operation, troubleshooting, and maintenance.
Yes. Sending a profile drawing or finished panel sample is highly recommended. It allows our engineers to evaluate the product and design a more suitable machine.
The TR4 Trapezoidal Panel Roofing Sheet Roll Former provides an efficient solution for manufacturers producing metal roofing panels for industrial, commercial, agricultural, and construction applications.
With continuous roll forming, automatic cutting, customized roller design, centralized control, professional factory testing, and remote technical support, the machine can be adapted to a wide range of roofing production requirements.
Whether you are establishing a new roofing sheet production line, expanding an existing factory, or developing a customized trapezoidal roofing profile, Zhongtuo can provide a complete solution based on your actual product and production needs.
Send us your TR4 profile drawing or roofing sheet sample to start your customized roll forming machine project.
