The biggest risk on a guardrail production line is not too many orders. It's when a specification change stops the equipment. Different road projects need different panel profiles, thicknesses, and materials. If the machine can only handle one fixed specification, the line may sit idle when orders change. A guardrail forming machine combines leveling, punching, and forming into one continuous line. Each process is configured for the target profile and order requirements.

What Guardrail Panels Does This Machine Produce

A guardrail forming machine produces highway W beam guardrail panels. Finished panel cover width, profile height, and feeding width are customized to order requirements.

The equipment works with materials such as galvanized steel, cold rolled steel, carbon steel, and Q235. The exact material range and thickness are confirmed based on order requirements. A high guardrail roll forming machine is configured before delivery according to the target profile and material.

This road barrier highway guardrail cold making machine handles coil continuously, so panel dimensions follow the order plan rather than a fixed catalog.

Finished panels are used in these applications:

• Highway side protection

• Primary road median separation

• Mountain curve and cliff edge side protection

• Bridge and tunnel transition sections

Different projects have different panel specifications. Configuration depends on each order.

Why Does Guardrail Production Need a Continuous Line

A guardrail forming machine handles coil continuously. The coil enters the line and moves through uncoiling, leveling, punching, forming, and cutting at the end. Material goes in at one end and finished panels come out the other. Step by step processing requires moving, waiting, and re aligning between stages. Each move can add deviation. After leveling, the sheet goes to punching, then to forming. If alignment is off once, every later stage follows the error.

A continuous line addresses these issues by connecting the stages. Material enters the decoiler, passes through leveling to reduce internal stress, moves to punching for mounting holes, then to forming stations that gradually shape the profile. Finally, fixed length cutting sends finished panels out.

But a guardrail forming machine is not simply several pieces of equipment put together. Leveling, punching, and forming depend on each other. They must be configured together for the target profile and order requirements to keep the line stable.

Core Machine Advantages

A guardrail forming machine offers the following advantages for continuous production and custom configuration:

• Multiple processes in one line reduce material handling: Leveling, punching, and forming are integrated into one continuous line, cutting waiting and re alignment between stages.

• Process configuration follows the order: Leveling roller quantity, punching position, and forming station count are set for the target profile.

• Punching and forming run in coordination: The punching unit and forming stations are configured together for the target profile, avoiding hole position deviation from process gaps.

How Do Leveling, Punching, and Forming Work Together

A guardrail forming machine uses three core processes on a continuous line. They are linked production stages. The following sections explain the role of each process on the line and why they need to be configured together.

Leveling: Providing a Flat Sheet for Forming

Leveling is the first critical step before the sheet enters forming. Coil from the decoiler carries curvature. Without leveling, finished panels can show bending or wavy edges.

The leveling machine passes the strip through offset rollers that bend and release it repeatedly. This reduces internal stress and provides a flat blank for punching and forming. The leveling configuration can be selected according to the material type and thickness.

Punching: Coordinating with Forming to Avoid Gaps

The punching unit creates mounting holes on the guardrail panel. These holes connect the panel to posts and blocks with bolts. Hole positions must match the formed profile. If punching positions and the formed profile do not match, bolts will not pass through on site.

The punching unit and forming stations are configured together for the target profile. Punching position, die specifications, and hydraulic press tonnage can be customized to order requirements. The punching process stays coordinated with feed speed to avoid hole position deviation from process gaps.

Forming: Shaping the Profile Step by Step

Forming is the core stage of the entire line. The W beam profile is not made in one stamping pass. It is gradually bent through multiple forming stations. Each station completes only part of the deformation. The sheet moves from the first station to the last, and the profile goes from flat to fully shaped.

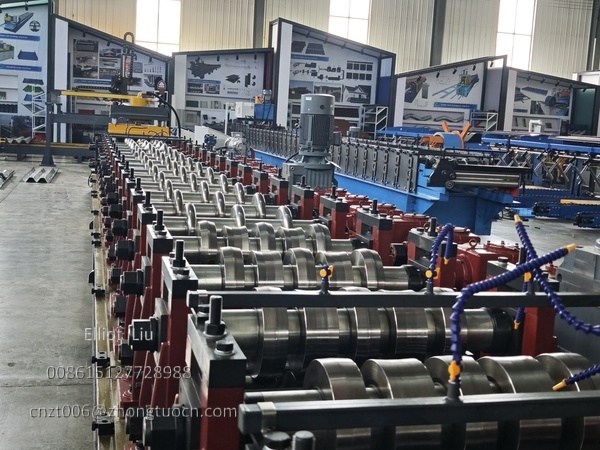

The number of forming stations and forming roller configuration are customized for the target profile. A K127 gearbox and synchronized distribution system are used in the drive. Stand rollers guide the sheet edges during forming. This guardrail forming machine uses this step by step approach to shape the W beam profile.

Why These Three Processes Must Be Configured Together

Leveling, punching, and forming are not three independent technical points. They are linked processes on one continuous line. Leveling flatness directly affects forming quality. Punching position accuracy directly affects installation efficiency. Forming profile consistency directly affects the finished product pass rate.

These processes need to be configured together based on the target profile, material thickness, and order requirements. The production capacity of a guardrail forming machine depends on whether these three processes can run in coordination.

Technical Parameters

Below are reference configuration examples. Selected configurations can be customized according to the target profile, material, and order requirements.

Selected configurations can be customized according to the target profile, material, and order requirements. A guardrail forming machine is configured before delivery based on the order plan. The specific configuration depends on the target profile, material type, thickness range, and capacity requirements.
