Highway Guardrail Making Machinery 5 Steps to Master Production Operation

Meta description: Learn how to use highway guardrail making machinery with a step by step guide covering production flow, key components, and operation tips for consistent guardrail output.

The production process for guardrail panels involves five core stages: uncoiling, leveling, punching, forming, and cutting. This article explains how to operate the highway guardrail making machinery and what to watch for during each stage.

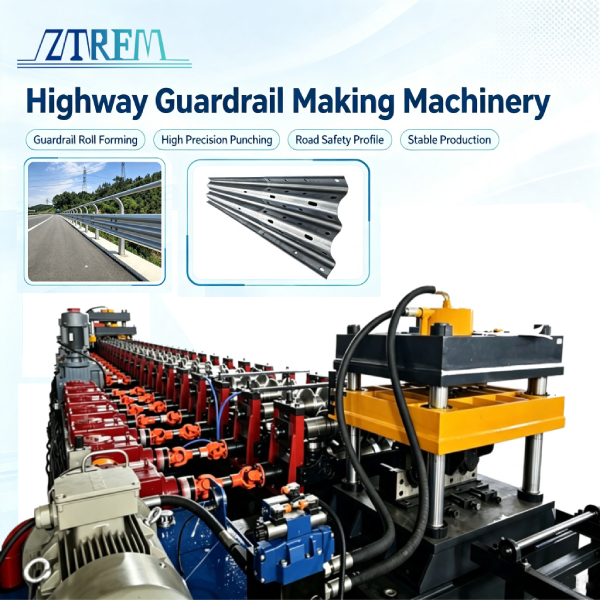

Applications – Where Does This Equipment Fit in Road Safety Projects

The W beam guardrail panels produced by this equipment are essential components in road safety barriers. You will find them on highways, primary roads, mountain curves, and bridge tunnel sections, where they absorb vehicle impact energy and reduce injury severity.

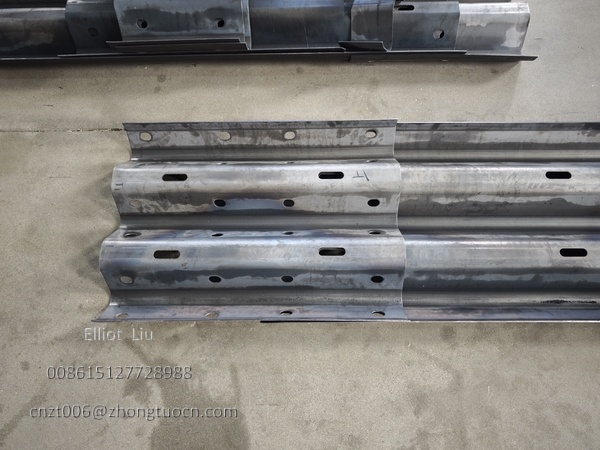

Finished panels have a cover width of 312mm, a profile height of 90mm, and a feeding width of 490mm. Standard panel length is 4320mm, with material thickness ranging from 2.5 to 4.0mm. The machine works with galvanized steel, cold rolled steel, carbon steel, and Q235.

Machine Advantages – Why This Production Line Runs Reliably

Continuous production: The line integrates multiple steps into one process, eliminating material handling and waiting time.

Forming precision: Multiple stations form the profile gradually, with deformation distributed evenly, giving you symmetric profiles and consistent thickness.

Automation: A PLC coordinates all steps. The operator sets parameters and the system runs automatically.

Production flexibility: The equipment adapts when order specifications change. Roller changes may be required depending on the specific thickness or material switch.

How to Use the Machine – Complete Production Flow from Coil to Finished Panel

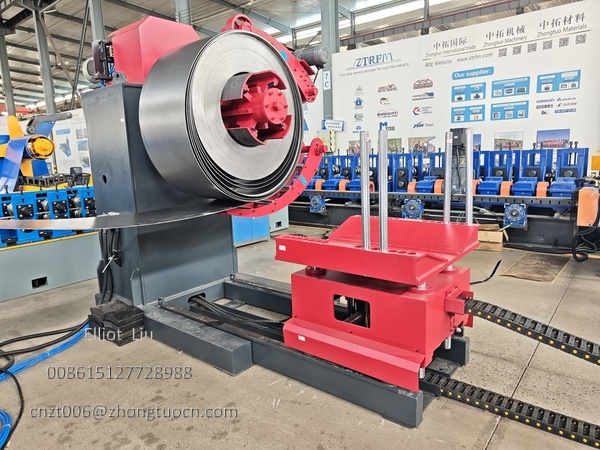

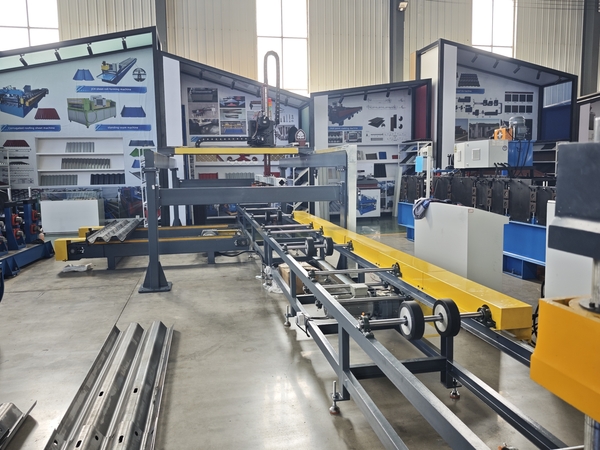

A complete highway guardrail making machinery line consists of five core stages: uncoiling, leveling, punching, forming, and cutting. Coil goes in from one end, and finished panels come out the other.

Production flow:

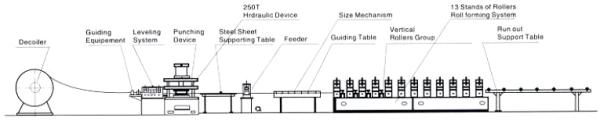

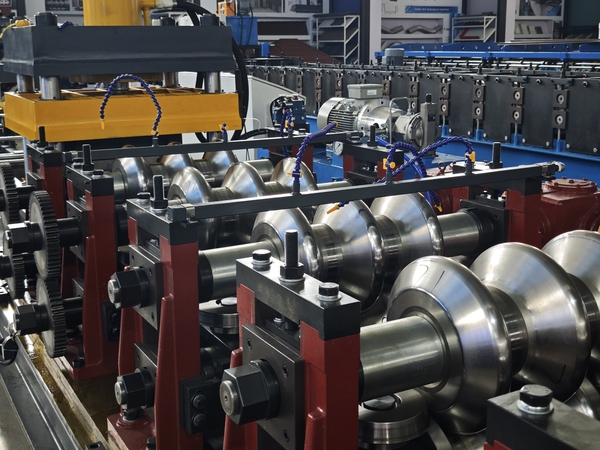

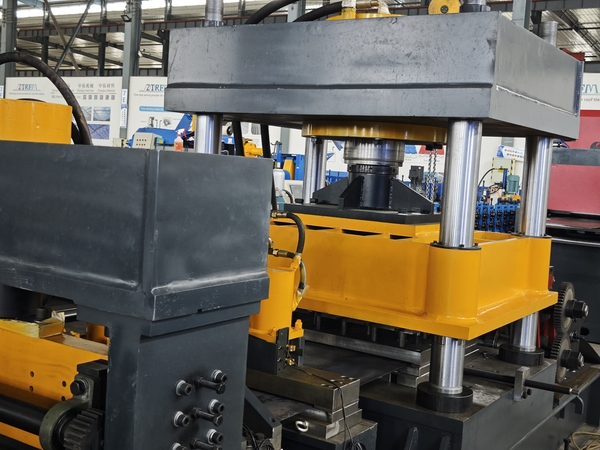

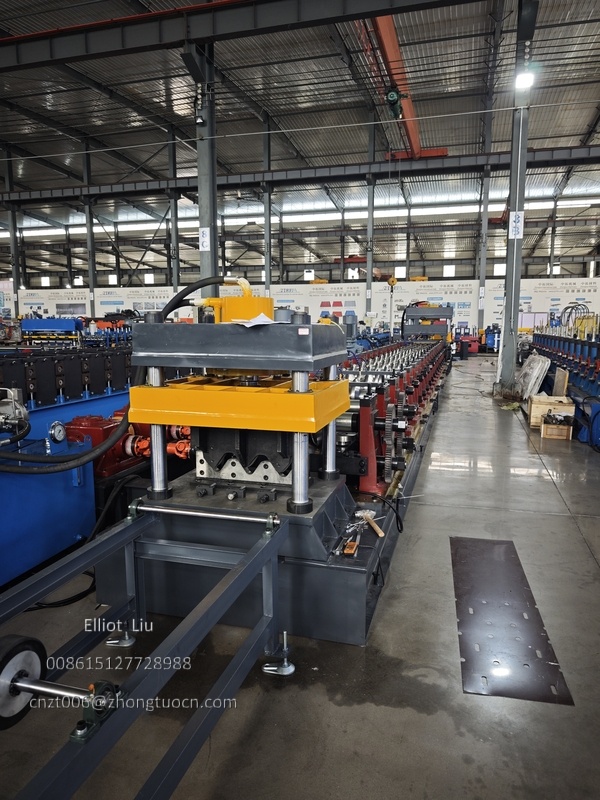

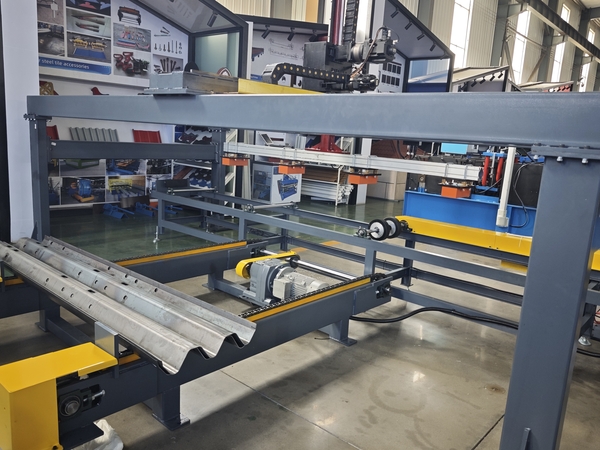

Uncoiling → Alignment guiding roller → 9 rollers leveling → hydraulic punching hole → Panel Transport table → Swift sheet feeding → Photoelectrical switch → Roller guiding table → 15 stations roll forming → Finished product support table.

The PLC coordinates all steps. The operator sets length and quantity on the touchscreen, and the line runs through the production cycle.

Key Points to Watch During Operation

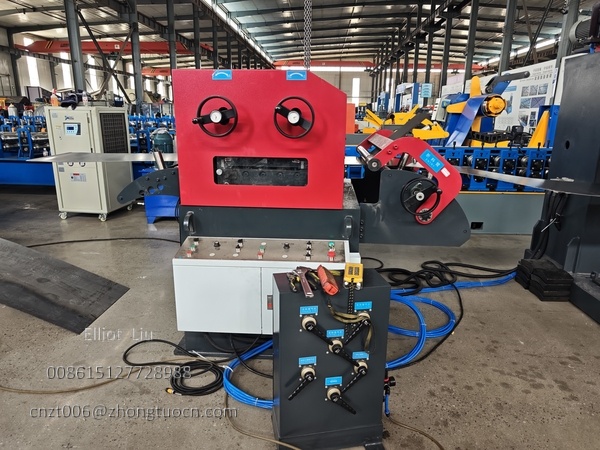

Material centering and deviation control: The sheet travel direction must stay perpendicular to the roller axis. Check the alignment regularly and adjust the guiding device when you notice any drift.

Synchronization of forming stations: If material bunches up or stretches around any station, stop and check the machine's drive components and transmission system.

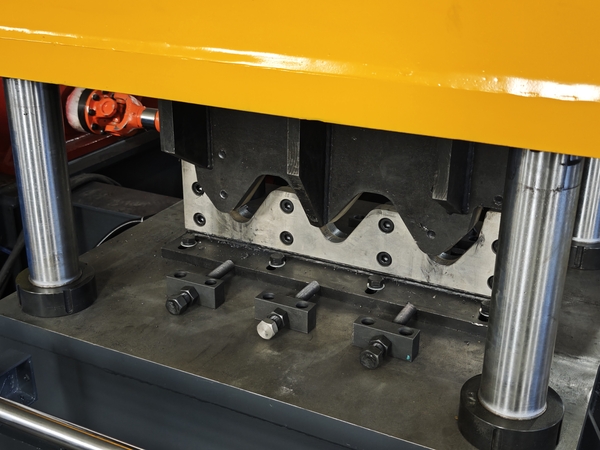

Punching position accuracy: Take sample panels regularly to measure hole spacing and confirm it stays within tolerance.

Cutting length control: Check each finished panel's actual length. Clean the photoelectric sensor if you see any deviation.

Technical Parameters

The following data comes from the equipment specification sheet:

Post Production Checks and Machine Maintenance

Finished panel inspection: Take samples from each batch and check profile height, cover width, hole spacing, and total length against specifications.

Equipment cleaning: Follow the machine's maintenance guide for cleaning roller surfaces. Remove metal dust and debris after each production run.

Roller inspection: Inspect roller working surfaces for wear or damage according to the machine's maintenance schedule. Polish or replace rollers when necessary.

Shutdown sequence: Always follow the shutdown procedure specified in the machine's operation manual. Allow all material to clear the forming stations before powering off.

The highway guardrail making machinery operation guide covers the main production stages and key points for consistent output. For specific material thickness, output requirements, or workshop layout questions, we can provide recommendations based on your actual production needs.
