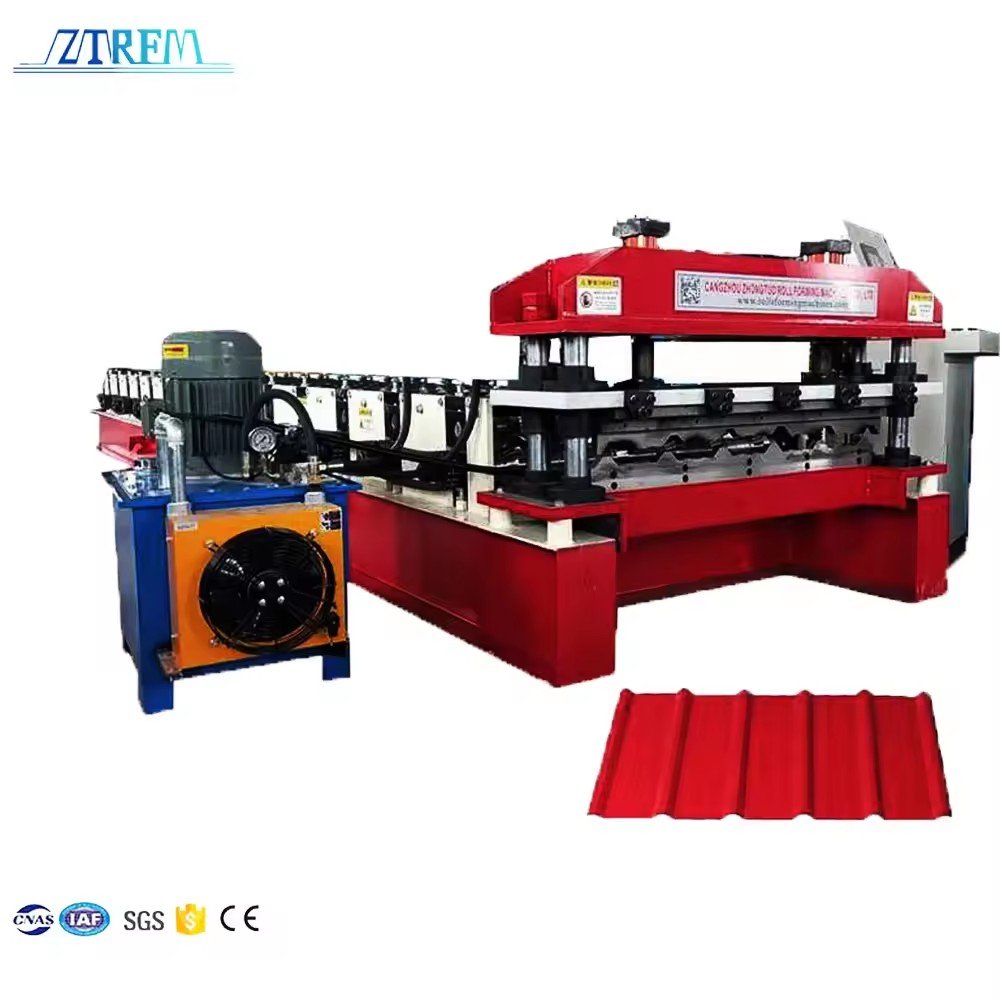

Ghana IBR Roofing Sheet Roll Forming Machine | Automatic Line

The ZTRFM Ghana IBR Roofing Sheet Roll Forming Machine is an automatic production line designed for manufacturing IBR and trapezoidal metal roofing sheets. It is suitable for roofing sheet manufacturers, building material factories and steel structure companies serving Ghana and other African markets.

IBR roofing sheets are widely used because of their strong rib design, lightweight structure and convenient installation. Finished panels can be applied to factories, warehouses, workshops, commercial buildings, agricultural structures, residential houses and wall cladding projects.

The machine can be manufactured according to the customer’s own roofing sheet drawing, allowing manufacturers to produce profiles that match their local market requirements.

Automatic Roofing Sheet Production

The complete production process includes:

Uncoiling → Feeding → Guiding → Roll Forming → Length Measuring → Hydraulic Cutting → Finished Sheet Receiving

After the steel coil is loaded onto the decoiler, the material enters the feeding and guiding section. It then passes continuously through multiple forming rollers where the flat sheet is gradually shaped into the required IBR profile.

The PLC control system automatically manages production length and quantity. Once the required panel length is reached, the cutting system completes the cutting operation automatically.

This integrated production method reduces manual work and helps manufacturers maintain consistent product quality during batch production.

Customized IBR Profile Design

Roofing profiles used in Ghana and other African countries can vary between different manufacturers and construction projects.

For this reason, ZTRFM does not limit the machine to one fixed IBR drawing. Customers can provide a finished roofing sheet drawing or physical sample, and our technical team can design the corresponding forming rollers according to the required profile.

The design can be adjusted according to rib height, rib spacing, effective coverage width, side overlap and raw material specifications.

This customized approach allows customers to manufacture roofing sheets that are suitable for their existing market instead of changing their products to match a standard machine.

Precision Roll Forming System

The forming section is one of the most important parts of the production line.

The metal sheet passes through a series of precision-machined rollers and is gradually formed into the final IBR roofing profile. Progressive forming helps distribute material deformation across multiple stages, reducing excessive stress on the steel sheet.

This helps maintain consistent rib dimensions, panel straightness and overall appearance.

High-quality steel can be used for the forming rollers, together with surface treatment to improve hardness and wear resistance.

Smooth roller surfaces also help protect painted or coated roofing materials during production.

Strong Machine Structure

The main machine uses a heavy-duty welded steel frame to provide stable support for the forming system.

A rigid machine structure helps maintain the alignment of the shafts and forming rollers during continuous operation. It also reduces unnecessary vibration, which can affect the appearance and dimensions of long roofing sheets.

The machine structure can be customized according to the selected roofing profile, raw material and production requirements.

Material Feeding and Guiding

Correct material feeding is essential for producing straight and consistent roofing panels.

The machine is equipped with an adjustable feeding and guiding system to keep the steel sheet properly positioned before it enters the forming rollers.

The guiding section can be adjusted according to the coil width. Roller-type guiding components help the material enter smoothly while reducing friction against coated steel surfaces.

Stable feeding helps maintain consistent rib position, side overlap and finished sheet width.

Suitable Roofing Materials

The production line can process common metal roofing materials such as:

• PPGI pre-painted galvanized steel

• GI galvanized steel

• PPGL pre-painted Galvalume steel

• Galvalume / Aluzinc steel

• Color-coated steel coils

Different materials have different strength and forming characteristics. Customers are therefore encouraged to provide information about their actual raw material before machine manufacturing.

Our technical team can then adjust the forming design according to the material and finished product requirements.

PLC Automatic Control System

The machine is equipped with an easy-to-operate PLC control system and touch-screen interface.

Operators can enter the required roofing sheet length and production quantity directly from the control panel.

During production, the PLC coordinates the forming machine, encoder and hydraulic cutting system automatically.

The operating language can be customized according to customer requirements, while the machine voltage and electrical system can also be designed according to the electrical standard of the destination country.

Hydraulic Cutting System

After the roofing sheet has completed the forming process, it enters the hydraulic cutting section.

The cutting blade is manufactured according to the finished IBR profile so the sheet can be cut while maintaining its final shape.

The cutting system works automatically with the PLC and length measuring device. Once the preset length is reached, the machine performs the cutting cycle without manual measurement.

This allows manufacturers to produce roofing sheets in different required lengths efficiently.

Applications of IBR Roofing Sheets

IBR roofing sheets produced by this machine can be widely used for:

• Residential roofing

• Factory buildings

• Warehouses

• Workshops

• Agricultural buildings

• Commercial buildings

• Steel structure projects

• Garages

• Wall cladding

• Prefabricated buildings

Different colors and surface coatings can be produced simply by changing the raw material coil.

Flexible Production Solutions

The production line can be combined with different auxiliary equipment according to factory requirements.

Optional solutions can include hydraulic decoilers, coil loading systems, automatic feeding equipment, receiving tables and automatic stacking systems.

Customers can select the required automation level according to production capacity, workshop layout and investment plan.

Factory Testing and Quality Control

Before shipment, the complete machine can be assembled and tested at the ZTRFM factory.

Trial production is used to check material feeding, roller alignment, profile forming, electrical control and cutting performance.

The finished roofing sheet is compared with the confirmed drawing to ensure the profile meets the agreed requirements.

Customers can also provide their own raw material for machine testing when necessary.

After-Sales Technical Support

ZTRFM provides technical support for machine installation, commissioning, operation and maintenance.

Customers can receive operating instructions, electrical documentation and remote technical guidance. Engineer installation and commissioning services can also be arranged according to project requirements.

For a customized Ghana IBR roofing sheet production solution, customers can send us their profile drawing, material information and production requirements. Our technical team will design a suitable machine according to the actual roofing product and factory conditions.
