The Fully Automatic High Speed IBR Roof Sheet Roll Forming Machine is a professional metal forming solution designed for continuous production of IBR roofing sheets and metal roof panels.
IBR roofing sheets are widely used in industrial buildings, warehouses, workshops, commercial buildings, agricultural structures, and residential construction. With their practical profile design, efficient installation characteristics, and wide range of applications, IBR roof panels have become a popular choice for modern metal roofing systems.
This roll forming machine uses continuous cold roll forming technology to transform metal coils into finished IBR roofing sheets. The production process is highly automated, helping manufacturers improve production efficiency, maintain consistent product quality, and reduce unnecessary manual operations.
The complete production line can be designed according to the customer's roofing profile, material requirements, production capacity, factory layout, and local market standards.
Whether you are starting a new roofing sheet production business or upgrading an existing production line, this machine provides a flexible solution for professional metal roofing manufacturing.
IBR is a popular type of metal roofing profile characterized by its repeated rib structure.
The profile provides a practical combination of strength, appearance, and drainage performance, making it suitable for a wide range of building applications.
IBR roof sheets are commonly used for:
Different markets may use different IBR profile dimensions and specifications. Therefore, a professional roll forming machine should be designed according to the actual profile required by the customer.
One of the main advantages of this IBR roofing sheet machine is its automatic production concept.
The production process can be organized as:
Coil Loading → Feeding → Roll Forming → Length Measurement → Automatic Cutting → Finished Sheet Output
Once the production parameters have been entered into the control system, the machine can continuously perform the forming and cutting process.
This reduces the need for repeated manual adjustment and makes daily production more convenient.
For manufacturers producing large quantities of roofing sheets, automation can also help improve production consistency and reduce dependence on manual operations.
The machine is designed for continuous and efficient production of IBR roofing panels.
Unlike traditional methods that require individual processing of each sheet, roll forming technology allows the metal coil to pass continuously through multiple forming stations.
During this process, the flat metal strip is gradually transformed into the required IBR profile.
The progressive forming process provides several advantages:
The actual production performance depends on the profile design, material characteristics, machine configuration, and operating conditions.
The forming rollers are one of the most important parts of a roofing sheet roll forming machine.
For IBR roofing sheets, the roller design determines the shape and consistency of the finished panel.
The rollers are designed according to the confirmed profile drawing and forming requirements.
During production, each forming station performs a specific shaping operation. The material is gradually formed instead of being pressed into the final shape in a single step.
This progressive forming method helps maintain:
For painted and coated steel materials, proper roller design can also help minimize unnecessary surface damage during the forming process.
After the metal coil has been continuously formed into the required IBR profile, the finished panel needs to be cut according to the required length.
The automatic cutting system works together with the control system to complete this process.
The operator can enter the required production length, and the machine can automatically coordinate forming and cutting according to the production program.
The automatic cutting system helps provide:
The cutting method can be customized according to the roofing profile and material requirements.
The control system is designed to make the entire production process easier to operate.
The operator can manage the main production functions through the control interface.
Typical control functions include:
The control system can also be configured according to the customer's preferred electrical components and operating requirements.
For overseas customers, the control interface and operation instructions can be customized to make daily operation easier for local workers.
A stable machine structure is important for continuous roll forming production.
The machine frame is designed to support the forming stations, transmission system, electrical components, and other functional sections of the production line.
A rigid structure helps reduce unnecessary vibration during operation and provides a stable working platform for the forming rollers.
The machine structure can be designed according to the customer's factory layout and production requirements.
Cold roll forming is a continuous metal forming process that gradually changes a flat metal strip into a specific profile.
For IBR roofing sheets, multiple roller stations work together to form the ribs and other structural features of the roof panel.
The major benefits of roll forming technology include:
The coil can be continuously processed without repeatedly loading individual sheets.
The roller system maintains the same forming geometry throughout production.
The continuous forming process makes efficient use of the metal coil.
Different panel lengths can be produced according to customer requirements.
Automatic control simplifies daily production operation.
The IBR roof sheet roll forming machine can be designed for commonly used roofing materials according to the customer's requirements.
Typical materials include:
Galvanized steel is widely used for metal roofing because of its protective coating and suitability for construction applications.
PPGI combines a protective metal coating with a colored surface finish, providing additional options for architectural roofing.
Depending on the profile and machine design, other metal materials may also be considered.
Before manufacturing, customers should provide the material type and relevant material information so that our engineers can select the appropriate forming solution.
Different countries and roofing manufacturers may use different IBR profile designs.
Therefore, we do not recommend simply selecting a machine based on the product name alone.
The forming machine should be matched to the actual profile.
Customers can provide:
Our engineering team can then evaluate the profile and design the appropriate roll forming solution.
This customization service is particularly useful for customers who want to develop their own roofing products or manufacture profiles for a specific local market.
The IBR roof sheet roll forming machine can be integrated into a complete production line.
Depending on project requirements, the production line may include:

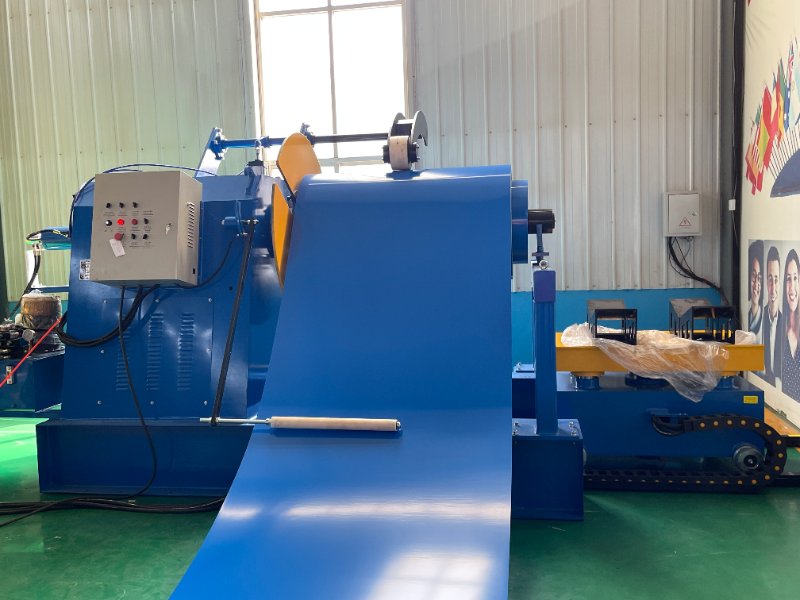

Decoiler
Used to support and continuously feed the metal coil into the forming system.
Feeding System
Guides the coil into the forming section and helps maintain proper material alignment.
Roll Forming System
Gradually forms the flat metal strip into the IBR roofing profile.
Cutting System
Cuts the finished panel according to the required length.
Control Cabinet
Controls the forming, measuring, cutting, and other automatic functions.
Output System
Supports the finished roofing sheets after cutting.
Additional equipment can also be considered according to the customer's production requirements.
IBR panels are widely used for factories, workshops, and industrial facilities.
The continuous rib structure provides a practical roofing solution for large building areas.
For warehouse construction, metal roofing sheets provide an efficient solution for covering large roof surfaces.
IBR panels can also be used for commercial and service buildings where practical performance and appearance are both important.
The roofing panels can be used for barns, agricultural storage buildings, and other farm structures according to local construction requirements.
IBR profiles can also be applied to selected residential roofing projects.
Metal roofing sheets can be manufactured in customized lengths to meet different renovation and replacement requirements.
Continuous roll forming allows manufacturers to produce roofing panels efficiently from metal coils.
The forming rollers provide stable and repeatable profile forming.
Automatic control reduces repetitive manual operations.
Finished sheets can be produced according to different project requirements.
The machine can be designed around the customer's specific IBR profile.
The continuous production method is suitable for roofing manufacturers with regular production demand.
Zhongtuo focuses on the design and manufacturing of cold roll forming machinery and provides solutions for different metal building products.
The product range covers roofing sheet machines, wall panel machines, purlin machines, light steel framing machines, gutter machines, downspout machines, cable tray machines, and other customized roll forming equipment.
We understand that every roofing manufacturer may have different product requirements.
Therefore, OEM and ODM services are available for customers who need customized machine design.
You can provide your own profile drawing, and our engineers can develop a corresponding forming solution.
This makes the machine suitable for:
Before shipment, the equipment is assembled and tested at our factory.
The testing process can include:
The purpose of factory testing is to confirm that the machine can operate normally before being shipped to the customer's factory.
Customers can also communicate with our team regarding specific testing requirements before shipment.
For international customers, technical support is an important part of the complete machine service.
We provide remote technical assistance for equipment installation, commissioning, operation, and troubleshooting.
Remote support can include:
This allows customers to receive technical assistance without always needing an engineer to travel to their factory.
For projects requiring on-site support, engineer service can also be discussed according to the customer's requirements.
The machine is designed to provide convenient operation for daily production.
After installation and commissioning, operators can learn the basic production process through the operation manual and technical guidance.
Routine maintenance mainly focuses on keeping the machine clean, checking mechanical connections, lubricating the relevant components, and inspecting electrical and transmission systems according to the maintenance requirements.
Proper maintenance can help improve machine stability and extend the service life of the equipment.
Before preparing a final machine design, customers are recommended to provide the following information:
A clear IBR cross-section drawing is the most useful reference for machine design.
Please tell us whether you plan to use galvanized steel, PPGI, or another material.
The material thickness affects the forming roller design and machine configuration.
The finished panel width should be confirmed before roller design.
Please tell us your expected production volume and working schedule.
Let us know whether you need fixed-length panels or flexible cutting lengths.
After receiving this information, our engineering team can recommend a suitable configuration.
It is a continuous metal forming machine designed to manufacture IBR roofing panels from metal coils.
Yes. We can design the forming rollers and machine configuration according to the customer's profile drawing or sample.
Yes. The automatic cutting system can be configured for different finished panel lengths.
Common materials include galvanized steel and pre-painted galvanized steel. Other materials can be evaluated according to the profile and material characteristics.
The production line can be configured with automatic feeding, forming, length measurement, and cutting functions. The exact level of automation can be customized according to the customer's requirements.
Yes. We provide operation guidance, remote technical support, troubleshooting assistance, and spare parts support.
Yes. Customized manufacturing is one of our main services. Please send us your profile drawing or finished panel sample for evaluation.
The Fully Automatic High Speed IBR Roof Sheet Roll Forming Machine provides a professional solution for manufacturers looking to produce high-quality metal roofing panels efficiently.
From coil feeding and progressive roll forming to automatic cutting and finished panel output, the complete production process is designed around continuous and reliable manufacturing.
With customized profile design, professional engineering support, automatic control, factory testing, and remote technical service, the machine can be adapted to different roofing products and market requirements.
If you are planning to start or expand an IBR roofing sheet production business, simply send us your IBR profile drawing or roofing panel sample. Our engineering team can evaluate your requirements and recommend a suitable roll forming solution for your project.
