ZhongTuo Full‑automatic Metal C Purlin Roll Forming Machine With PLC, Bearing & Motor Unit Customizable

Product Description

C Purlin Roll Forming Machine with Embossing Ribs

This C Purlin roll forming machine is designed to produce profiles ranging from 80mm to 300mm in width, with customization available up to 400mm upon request. To enhance the structural strength and rigidity of the C purlins, the machine can form embossing ribs on the bottom flange. Please refer to the attached profile drawings for reference.

Product Features & Display

• Wide Width Capability: When producing bottom widths up to 400mm, the machine features a reinforced structure and higher power capacity compared to standard models.
• Customizable Embossing: The machine supports various embossing rib patterns. For instance, customers may require dual-type embossing, which can be achieved using adjustable embossing rollers.
• Automation Options: Fully automatic configurations are available for this type of C purlin machine.

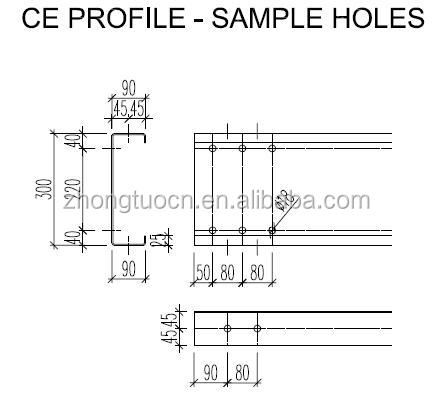

• Punching Integration: Optional punching units can be integrated for hole processing. Please contact us for specific punching profile drawings.

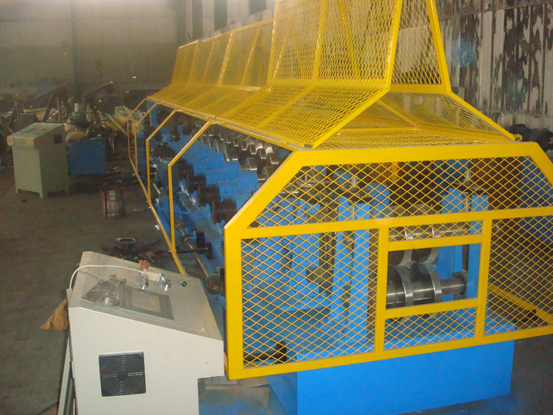

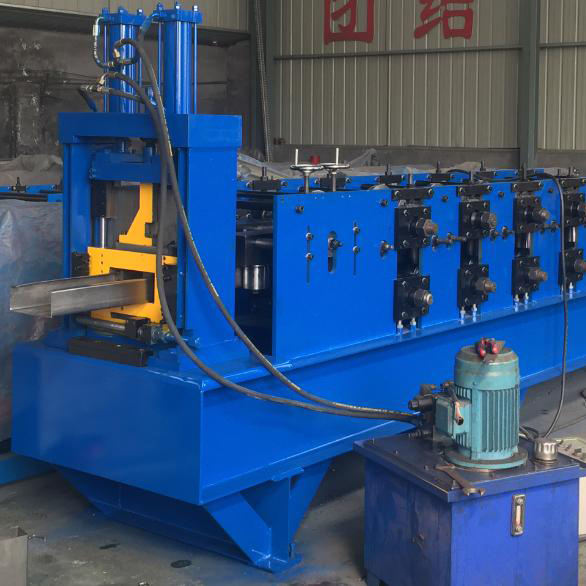

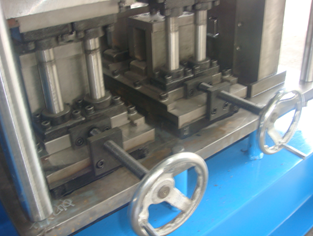

Please refer to the detailed machine photos and profile drawings provided for visual reference.

Technical Specifications

No.	Component Name	Specification / Remark	Quantity
Part 1	Decoiler	3T Manual Decoiler	1 Set
Part 2	Main Roll Forming Machine	High-speed forming unit	1 Set
Part 3	PLC Control Station	Mitsubishi Brand	1 Set
Part 4	Cutting System	Hydraulic Cutting	1 Set
Part 5	Hydraulic Station	Uses 45# Hydraulic Oil	1 Set
Part 6	Product Table	Standard Receiving Table	1 Set

Machine Parameters

1. Forming Steps: 2-step feeding rollers, 5-step leveling rollers, 12-step forming rollers.
2. Shaft Material: 45# Steel.
3. Roller Material: Bearing Steel (Outer Diameter: 90mm).
4. Transmission: Chain drive.
5. Forming Speed: 5-12 m/min.
6. Motor Power: 18.5 kW.
7. Voltage: 380V, 50Hz, 3 Phase.

3-Ton Manual Decoiler Specifications

Type	Passive
Coil Width	Max 400 mm
Loading Capacity	3 Tons
Inner Diameter	450-550 mm

Product Advantages

• Flexible Configuration: The machine can be equipped with or without a punching device, allowing for cost optimization based on project requirements.
• Durability: Designed for long-term stability with high-quality components.

For more detailed information or custom inquiries, please feel free to contact us.

Recommended Products

• Light Gauge Steel T Bar Profile Roll Forming Machine: Suitable for colored steel roofing tiles, featuring gear and bearing drive. (Price: $0.06-0.20/piece, MOQ: 500 pieces)
• Solar Panel Mounting Structure Roll Forming Machine: (Price: $35,000/set, MOQ: 1 set)
• High-Speed Metal Steel Coil Slitting Line: Precision slitting and cutting machine. (Price: $70,000-85,000/set)

Company Profile

Cangzhou ZHONGTUO Cold Roll Forming Machinery is a professional manufacturer and exporter specializing in the design, development, and production of cold roll forming machines and related equipment. Located in Cangzhou, Hebei Province—a region with a rich history in manufacturing—we cooperate with several associated production factories to ensure high standards. All our products comply with international quality standards and are widely appreciated in global markets, including Asia, Africa, Europe, South America, and Australia.

Packing & Delivery

Standard export packing suitable for long-distance transportation.

FAQ

1. Are you a trading company or a factory?
   We are a trading company with our own manufacturing facilities. This structure allows us to efficiently export various types of cold roll forming machines while maintaining direct quality control.
2. Why is your price higher than others?
   We prioritize quality above all else. We invest significantly in R&D to ensure our machines are highly automatic, precise, and durable. Our machines are designed to operate reliably for over 20 years. We also provide a 2-year free quality assurance period.
3. What is the production lead time?
   It usually takes approximately three months to manufacture the machine.
4. How can I visit your company?
   a. Fly to Beijing Airport: Take the high-speed train from Beijing Nan to Cangzhou Xi (approx. 1 hour). We will arrange pickup.
   b. Fly to Shanghai Airport: Take the high-speed train from Shanghai Hongqiao to Cangzhou Xi (approx. 4.5 hours). We will arrange pickup.
5. Can one machine produce multiple panel profiles?
   Not exactly for standard single-profile machines. However, for wider or double-layer machines, it is possible to produce more than 6 kinds of panels by adjusting the rollers.
6. Do you provide after-sales support?
   Yes. We offer technical advice and have skilled technicians available globally to ensure your business continues running smoothly.
7. What happens if the machine breaks down?
   The warranty period is 12 months. If parts cannot be repaired during this period, we will send new replacement parts free of charge (customer covers express shipping costs). After the warranty period, we continue to provide technical support for the life of the equipment, and spare parts can be supplied through negotiation.
8. Can you handle transportation?
   Yes. Please provide the destination port or address. We have extensive experience in arranging international logistics.
