ZhongTuo Full Automatic Half Round Rainwater Gutter Roll Forming Machine 0-20m/min

Cangzhou Zhongtuo Roll Forming Machinery Co., Ltd

ZhongTuo Full Automatic Half Round Rainwater Gutter Roll Forming Machine 0-20m/min

Name: ZhongTuo Full Automatic Half Round Rainwater Gutter Roll Forming Machine 0-20m/min
Brand: ZhongTuo
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Order CodeZT121357572

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Forming Speed:

0-20m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Thickness
0.5-1.2 mm
Roller Station
12 rows
Diameter Of Shaft
80mm solid shaft
Material Of Rollers
45# steel
Machine Body Frame
350 H steel
Drive
Chain transmission
Motor Power
5.5KW
Hydraulic System Power
5.5KW

The Full Automatic Half Round Rainwater Gutter Roll Forming Machine is a specialized equipment used for producing circular cross-section gutters (also known as eaves gutters or drainage channels). This type of equipment uses multiple precision arranged rollers to continuously roll metal sheets such as color coated steel coils, galvanized coils, and aluminum coils at room temperature, ultimately bending them into semi-circular or fully circular gutter profiles. The entire process is highly automated, integrating functions such as unwinding, forming, and fixed length cutting.

Main Features：

1.High precision forming:
High strength, heat-treated alloy steel rollers (such as Cr12MoV) are used to ensure smooth curvature, precise size, and smooth surface without wrinkles of the formed circular gutter.

2.Highly automated:
Operated by PLC control system and touch screen, it can automatically complete length measurement, cutting, and even automatically punch out the required mounting holes at both ends of the gutter, with extremely high production efficiency.

3.Strong adaptability:
It can process metal coils of different thicknesses and widths. By replacing the mold rollers, one equipment can produce circular gutters of various diameters and specifications.

4.Seamless production:
It can produce continuous seamless gutters on site or in the factory according to the actual length of the building roof, effectively avoiding water leakage problems caused by joints.

Application scenarios：

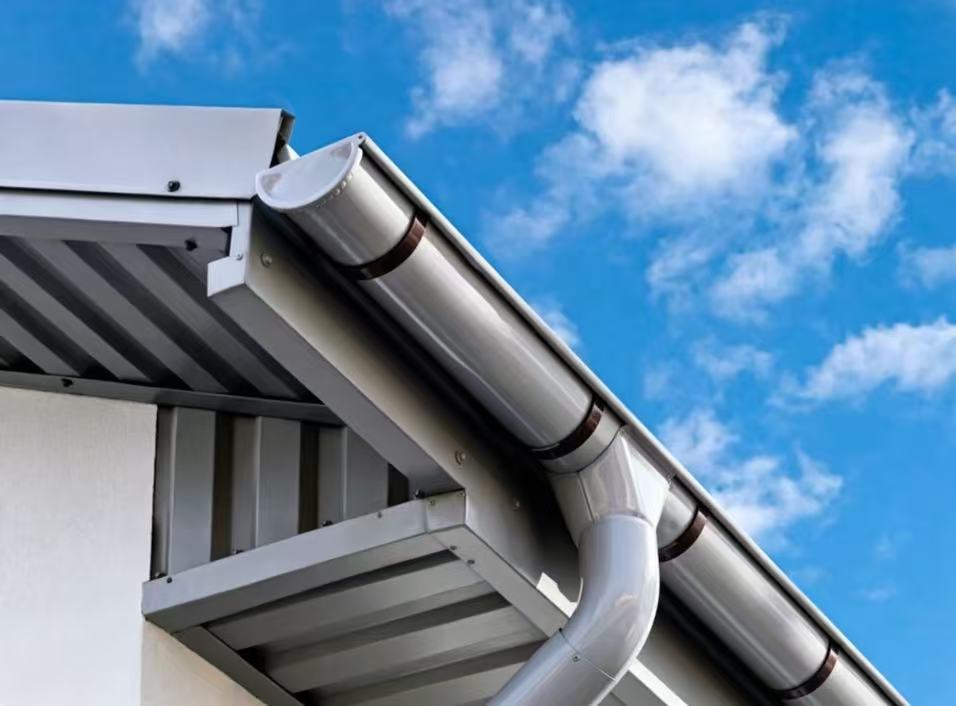

• High end and historical buildings:
Due to its classic and beautiful shape, semi-circular gutters are often used for villas, historical building restoration, or projects with high requirements for building appearance.
• Industrial and civil buildings:
Suitable for organized drainage of roofs of various steel structure factories, warehouses, shopping malls, residential buildings, etc., effectively collecting and guiding rainwater.
• Coastal and corrosive environments:
Circular gutters made of stainless steel (such as 304 material) or specially coated aluminum coils have excellent corrosion resistance and are particularly suitable for coastal areas or chemical plants.

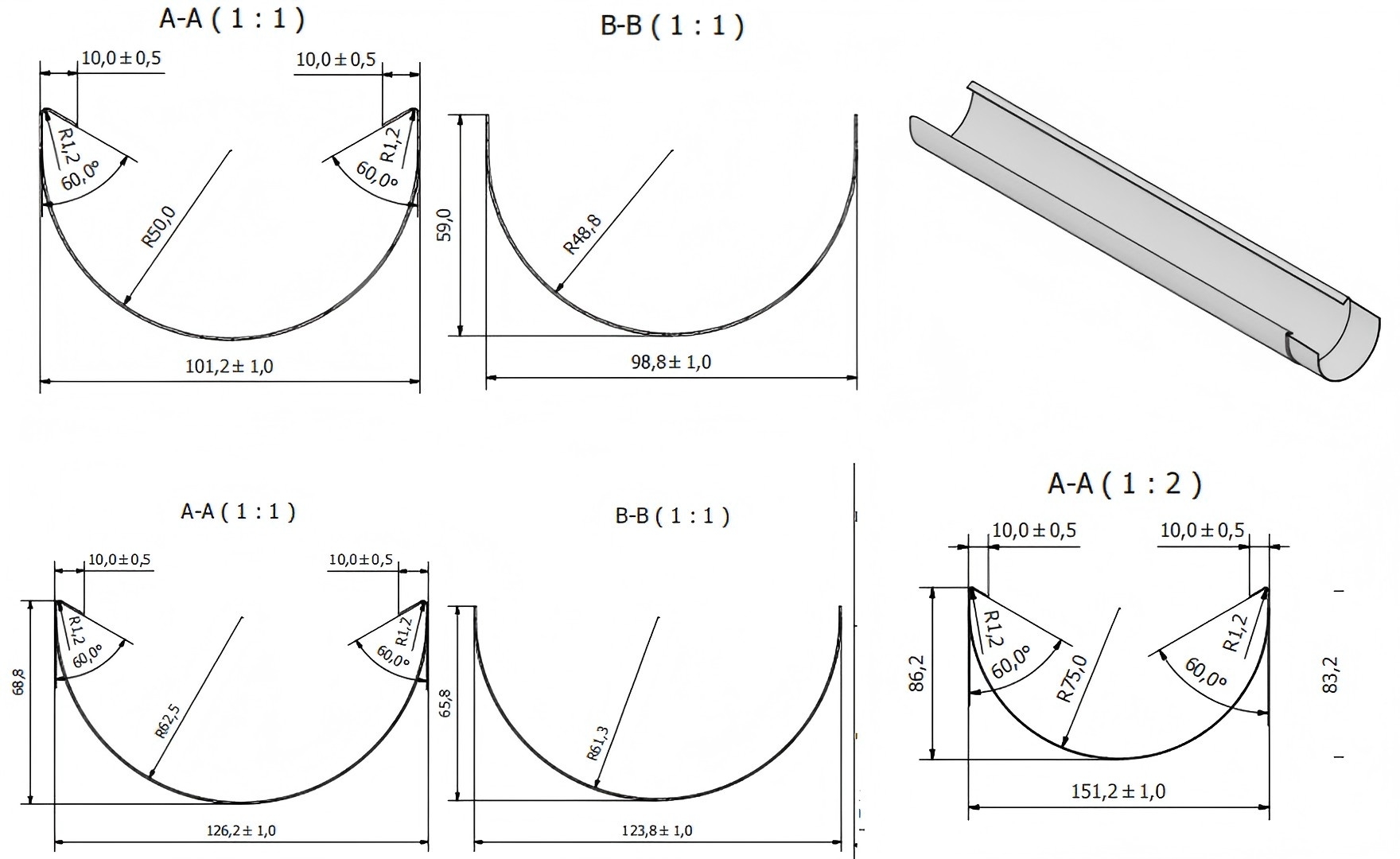

Pattern diagram：

Product Attributes :

1.Formed Material	PPGI,GI,AI	Thickness:0.5-1.2 mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler
3.Main body	Roller station	12 rows
	Diameter of shaft	80mm solid shaft
	Material of rollers	45# steel, hard chrome plated on the surface
	Machine body frame	350 H steel
	Drive	Chain transmission
	Dimension(LWH)	850010001200
	Weight	6.5T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	5.5KW
	Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	0-20m/min	Speed is adjustable according to customer’s request.

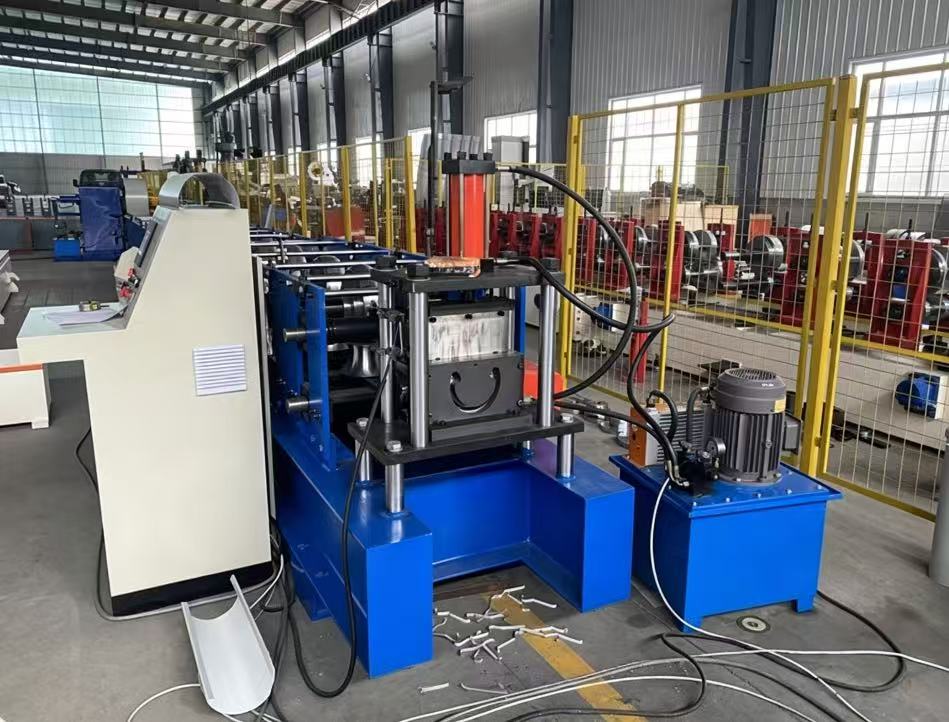

Machine photo:

Contact Us：

For manufacturers in the metal processing and building materials industries, investing in a Full Automatic Half Round Rainwater Gutter Roll Forming Machine is not only about introducing a set of production equipment, but also obtaining an efficient, low loss, and high return automated production line. Upgrading from traditional handmade or stamping processing to continuous roll forming can increase material utilization to over 95% and significantly reduce overall production costs.
