Corrugated Roofing Sheet Roll Forming Machine | Automatic Line

The ZTRFM Corrugated Roofing Sheet Roll Forming Machine is an automatic production line designed for manufacturing corrugated metal roofing and wall cladding sheets from steel coils. It provides a practical solution for roofing sheet manufacturers, building material suppliers and metal processing factories that require stable continuous production with consistent finished profile quality.

Corrugated metal sheets produced by this machine are widely used for industrial buildings, warehouses, workshops, garages, agricultural buildings, commercial facilities and other roofing or wall cladding projects. Different profile designs can be manufactured according to local construction standards and customer requirements.

Automatic Corrugated Sheet Production

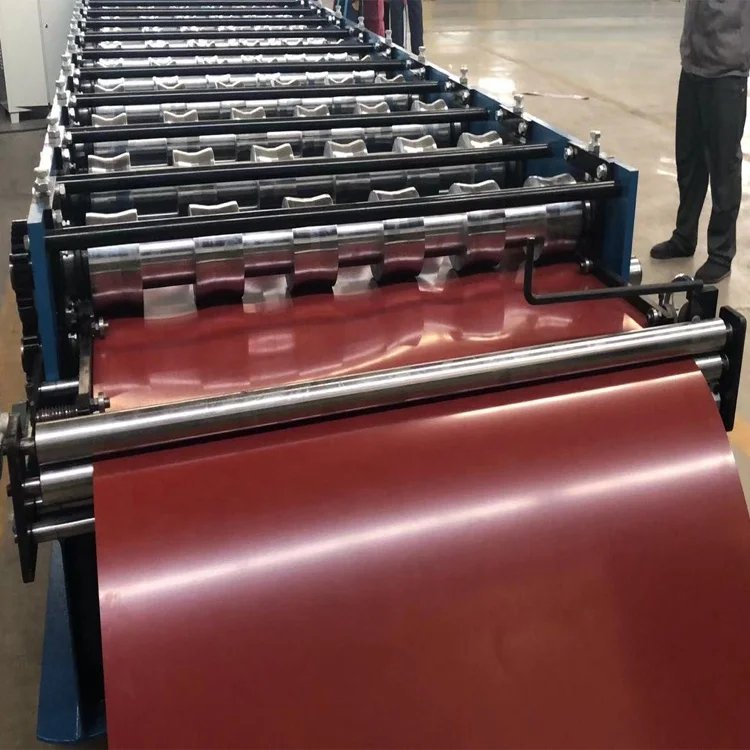

The production process starts with loading the metal coil onto the decoiler. The sheet is then guided into the forming section and gradually shaped by multiple forming rollers. After the required corrugated profile is completed, the control system measures the preset length and activates the cutting system automatically.

The complete process includes:

Uncoiling → Feeding → Guiding → Roll Forming → Length Measuring → Automatic Cutting → Finished Sheet Receiving

Operators can set the required sheet length and production quantity through the PLC control system. Once production starts, the machine completes the main forming and cutting operations automatically, helping reduce manual work and maintain consistent production.

Precision Roll Forming System

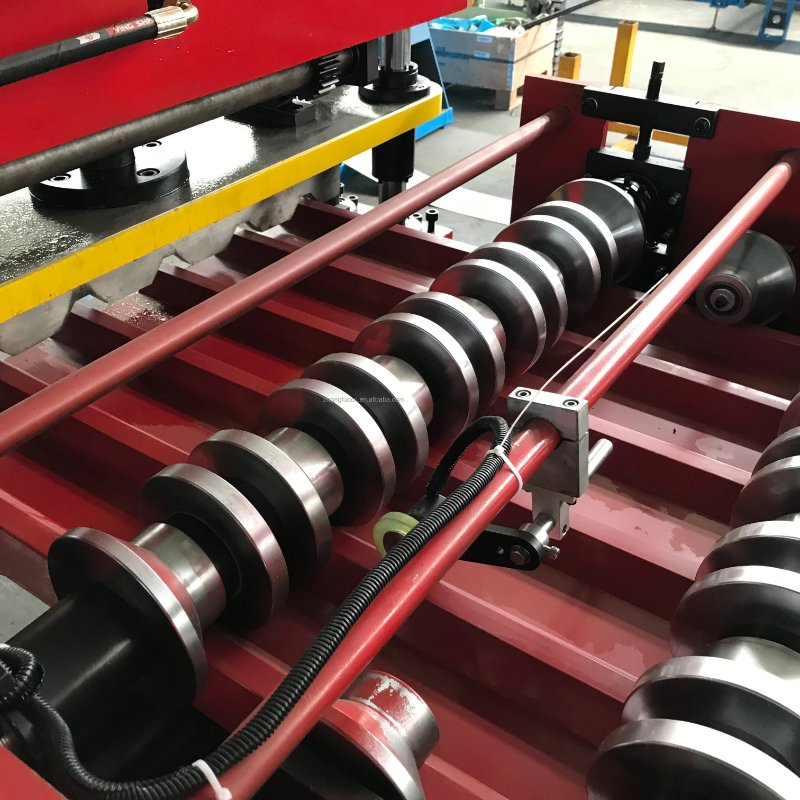

The corrugated profile is formed gradually through a series of precision-machined rollers. Each forming station makes a controlled change to the steel sheet until the final wave shape is produced.

This progressive forming method helps reduce excessive material deformation and improves the uniformity of the finished corrugated sheet. Properly designed rollers also help maintain consistent wave height, pitch and overall panel width during continuous production.

The forming rollers are manufactured from high-quality steel and treated to improve surface hardness and wear resistance. Smooth roller surfaces are particularly important when processing pre-painted steel because they help reduce scratches and protect the coating of the finished roofing sheet.

Stable Machine Structure

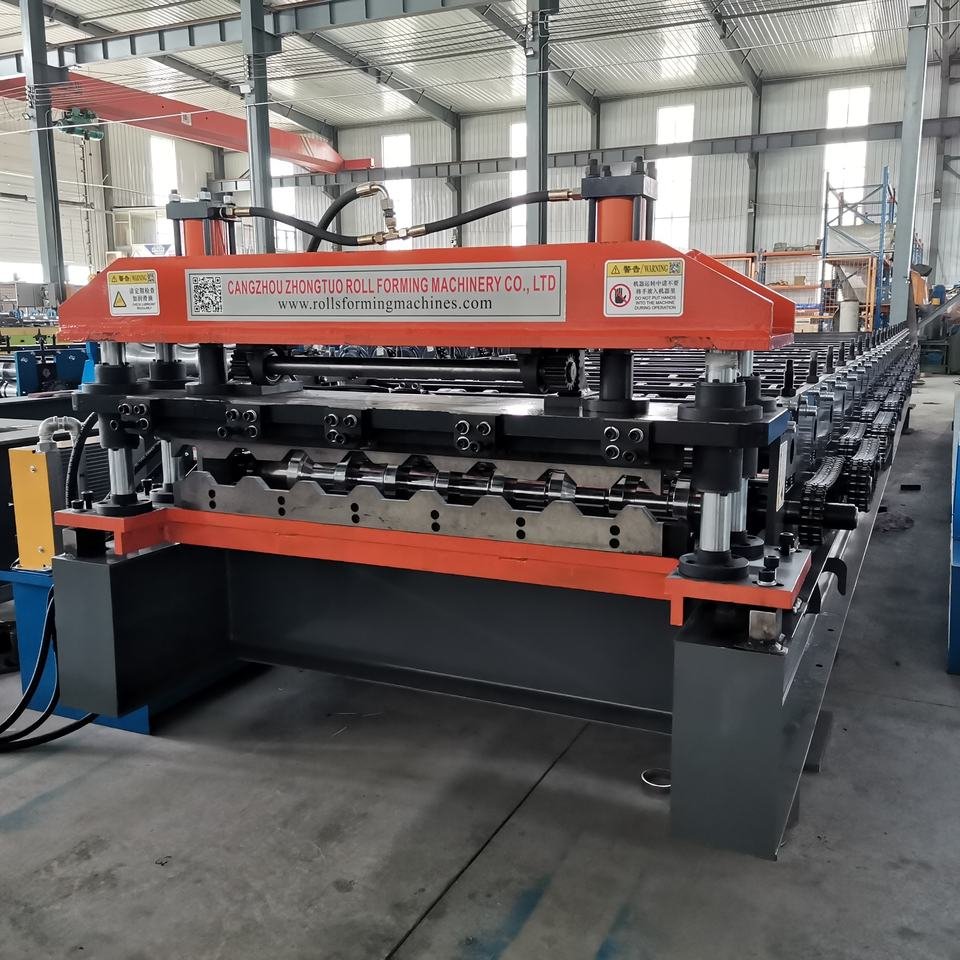

The main roll forming unit uses a strong welded steel structure designed to provide reliable support during continuous operation.

A rigid machine frame helps maintain the alignment of rollers, shafts and transmission components. This contributes to better finished panel straightness and reduces unwanted vibration during production.

The machine structure can also be reinforced according to the customer's material specification, corrugated profile and production requirements.

Suitable Roofing Materials

The machine can process different metal materials commonly used in roofing production, including PPGI, PPGL, galvanized steel, Galvalume steel and other suitable coated metal coils.

ZTRFM can also provide customized solutions for different roofing materials according to the customer's actual production requirements.

Because material properties vary between different markets, customers are recommended to provide information about coil material, thickness, width and steel strength before machine manufacturing. This allows the forming system to be designed more accurately for the intended product.

Automatic PLC Control

The production line is equipped with a PLC control system and touch-screen interface for convenient operation.

Operators can enter the required finished sheet length and quantity directly from the control panel. The system coordinates the forming, measuring and cutting processes automatically.

The electrical control system can use internationally recognized industrial components to improve reliability and simplify future maintenance. Operating language, voltage and electrical configuration can also be customized for different countries.

Hydraulic Cutting System

After the corrugated profile is completely formed, the sheet enters the cutting section.

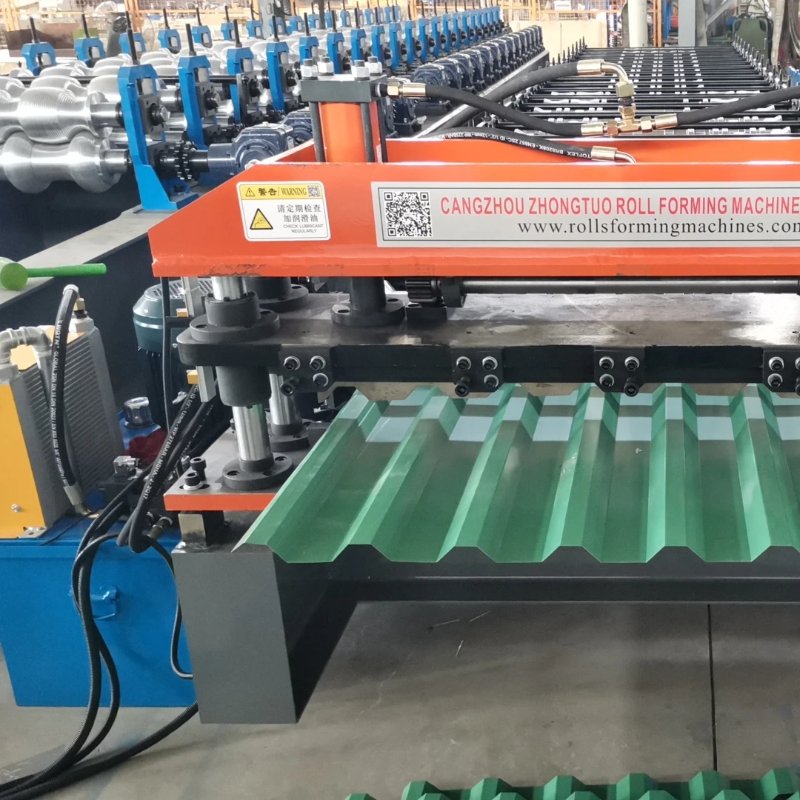

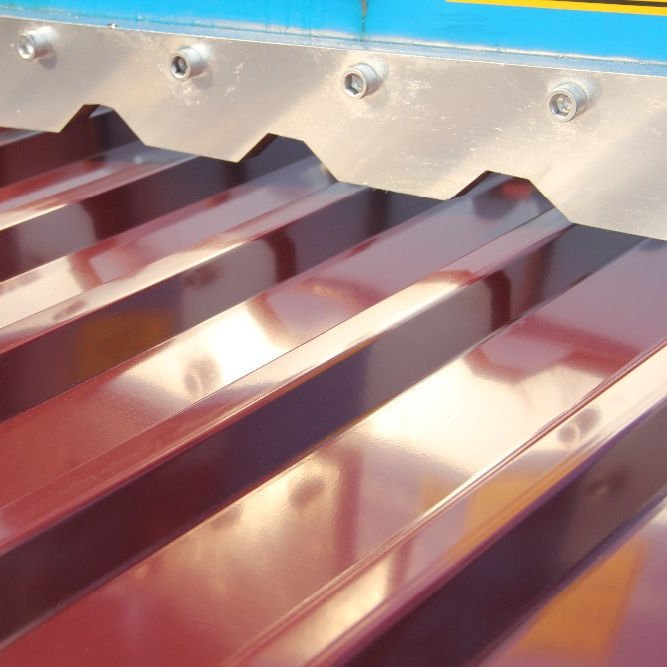

The hydraulic cutting system works together with the PLC and encoder to cut each panel according to the preset production length. The cutting blade is designed according to the finished corrugated profile to achieve stable cutting results.

A well-designed cutting structure helps reduce deformation around the cutting edge and supports continuous production of roofing sheets in different lengths.

Finished Product Applications

Corrugated roofing sheets provide a combination of lightweight construction, practical strength and convenient installation. Their wave-shaped structure increases sheet rigidity and makes them suitable for many building applications.

Finished products can be used for:

• Factory roofing and wall cladding

• Industrial workshops

• Warehouses

• Agricultural buildings

• Garages

• Commercial buildings

• Steel structure projects

• Temporary buildings

• Residential roofing

• General metal cladding

Customers can manufacture roofing sheets in different colors, coatings and lengths by changing the raw material coil and production settings.

Customized Profile Solutions

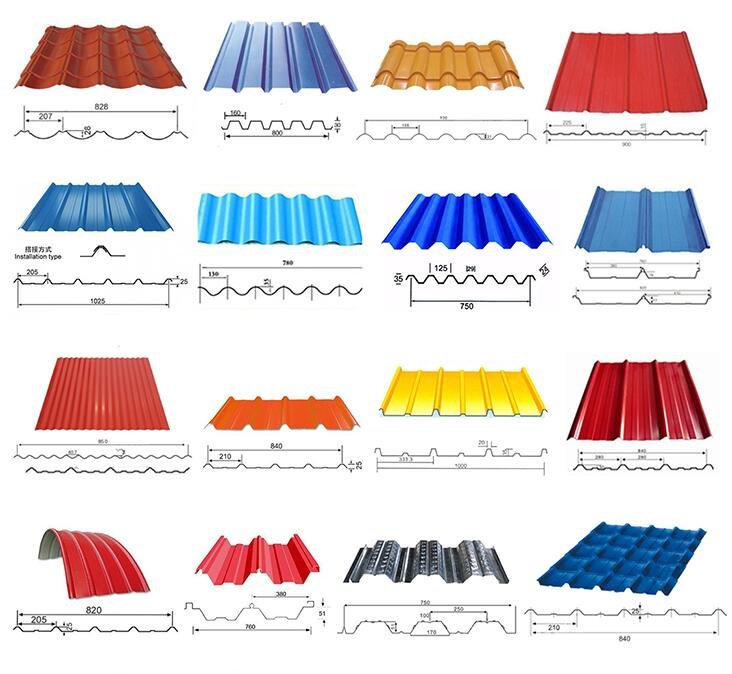

Different countries and construction markets use different corrugated roofing profiles. For this reason, ZTRFM can design the roll forming machine according to the customer's finished product drawing instead of limiting production to one standard profile.

Customers can provide a drawing showing the wave height, wave pitch, effective width and other profile dimensions. Our technical team can then design the corresponding forming rollers and machine structure.

Customization can include the roofing profile, material range, coil width, production speed, transmission system, cutting method, control system, decoiler, receiving table and automatic stacking equipment.

Optional Automation Equipment

Different auxiliary systems can be added according to production capacity and factory requirements.

Optional equipment includes hydraulic decoilers, coil loading trolleys, automatic feeding devices, servo cutting systems, finished sheet receiving tables and automatic stackers.

For customers operating larger roofing sheet factories, these optional systems can reduce material handling and improve overall production efficiency.

Factory Testing and Quality Control

Before shipment, the complete production line can be assembled and tested at the factory.

The inspection process focuses on machine operation, roller alignment, transmission stability, electrical control, hydraulic cutting and finished sheet forming quality.

Trial production allows technicians to inspect the final corrugated profile and make necessary adjustments before delivery. Customer-provided raw material can also be used for testing when required.

Easy Operation and Maintenance

The machine is designed for convenient daily production and maintenance. Operators mainly need to load the coil, align the feeding material, enter the production order and monitor the machine during operation.

Routine maintenance includes keeping the rollers clean, checking the transmission system, lubricating moving parts, inspecting the hydraulic system and checking electrical connections.

Regular maintenance helps maintain stable forming quality and supports long-term machine operation.

After-Sales Technical Support

ZTRFM provides technical support for machine installation, commissioning, operation and maintenance.

Customers can receive operating instructions, electrical documentation and remote technical guidance. Installation and commissioning support can also be arranged according to project requirements.

For a customized corrugated roofing sheet production solution, please send us your finished product drawing, raw material information and production requirements. Our technical team can design the machine according to your actual roofing profile and factory conditions.
