The China Trapezoidal 40 Roof Tile Roll Forming Machine is a professional cold roll forming solution designed for continuous production of trapezoidal metal roofing sheets and roof panels.
Trapezoidal roofing panels are widely used in industrial buildings, warehouses, workshops, commercial buildings, agricultural facilities, garages, and residential construction. With their regular ribbed structure and practical design, these panels provide an efficient solution for covering different types of buildings.
This roll forming machine transforms metal coils into finished trapezoidal roofing sheets through a continuous forming process. The production line can integrate decoiling, feeding, progressive roll forming, length measurement, automatic cutting, and finished panel collection.
The machine can also be customized according to the customer's profile drawing, material requirements, production needs, and local roofing standards.
The Trapezoidal 40 profile is designed with regular raised ribs along the length of the roofing sheet.
During production, the flat metal strip passes through multiple forming stations. Each station gradually shapes the material until the required trapezoidal profile is completed.
Progressive roll forming helps maintain consistent profile geometry throughout production while reducing unnecessary deformation of the metal sheet.
The finished roofing panels can be produced in different lengths according to construction requirements, making the machine suitable for both standard products and customized orders.
The complete production process follows a continuous workflow:
Coil Loading → Feeding → Roll Forming → Length Measurement → Automatic Cutting → Finished Panel Output
The metal coil is installed on the decoiler and prepared for continuous production.
The feeding section guides the metal strip into the forming machine and helps maintain stable alignment.
The material passes through multiple forming stations and gradually develops the required trapezoidal profile.
The control system monitors the production length according to the programmed requirements.
When the desired length is reached, the cutting system separates the finished roofing panel.
The completed panels are transferred to the output section for collection and further handling.
This continuous process reduces repetitive manual operations and provides an efficient production solution for roofing manufacturers.

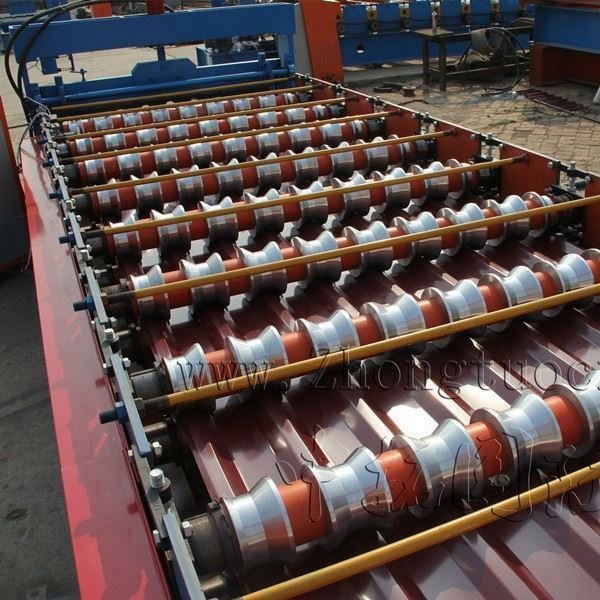

The forming roller system is the core component of the machine.
For Trapezoidal 40 roofing panels, the roller geometry is designed according to the confirmed product profile.
Each forming station performs a specific shaping operation. Instead of creating the complete profile in a single step, the machine gradually forms the metal strip through multiple stages.
A properly designed forming system helps achieve:
For pre-painted and coated materials, appropriate roller design is particularly important to help reduce unnecessary friction and protect the surface finish.
Trapezoidal roofing profiles can vary between different countries, manufacturers, and construction projects.
Even when two products are both described as trapezoidal roofing sheets, their rib dimensions, profile shape, panel width, and edge structure may be different.
ZTRFM therefore provides customized machine design according to the actual product.
Customers can provide:
Our engineering team can evaluate the product and design the corresponding roll forming solution.
This customized approach allows the machine to be adapted to different regional roofing standards and specific market requirements.
The Trapezoidal 40 roofing sheet machine can be designed for commonly used metal roofing materials.
Galvanized steel is widely used for roofing applications because its protective coating provides additional resistance to outdoor exposure.
Pre-painted steel provides different color options and is suitable for projects where appearance and functional performance are both important.
Aluminum zinc coated steel can be used for roofing applications requiring suitable corrosion resistance and long-term outdoor performance.
Other suitable metal coils can also be evaluated according to their material characteristics and forming requirements.
Before machine manufacturing, customers should provide material information so the roller system can be properly matched to the intended application.
The machine is designed around continuous and automated production.
After the required production settings are entered into the control system, the machine can coordinate forming, length measurement, and cutting.
This reduces repetitive operator intervention and makes daily production easier to manage.
Automatic production can provide:
The level of automation can also be customized according to the customer's production requirements.
The PLC control system provides centralized management of the production line.
Operators can control the main production functions through the control interface.
Typical functions include:
The control interface can be customized according to the customer's requirements.
Operation instructions and technical guidance can also be provided during installation and commissioning.
The cutting system is designed to separate the finished roofing panels according to the required length.
The operator can set the desired panel length through the control system.
Once the required length is reached, the machine automatically coordinates the cutting operation.
This helps reduce manual measuring and cutting while improving the consistency of finished products.
The cutting solution can be customized according to the profile, material, and production requirements.
A strong and stable machine frame provides the foundation for continuous roll forming production.
The structure supports the forming stations, transmission components, cutting system, and control system.
A stable frame helps reduce unnecessary vibration and provides a reliable working platform for the forming rollers.
The production line layout can also be customized according to the customer's factory conditions.
Factors such as material flow, operator access, coil storage, finished panel handling, and available workshop space can all be considered during machine planning.
Trapezoidal metal roofing panels are suitable for many types of construction projects.
The panels are widely used for factories, workshops, manufacturing facilities, and steel structure buildings.
Trapezoidal roofing sheets are suitable for warehouses and storage facilities requiring efficient coverage of large roof areas.
The panels can be used for commercial buildings where practical performance, appearance, and convenient installation are important.
The roofing sheets can be applied to barns, agricultural storage buildings, farm workshops, and other agricultural structures.
Trapezoidal panels can also be used for garages, private workshops, storage buildings, and extensions.
Depending on local construction requirements, trapezoidal metal roofing can also be used for houses and residential renovation projects.
The machine processes metal coils continuously, making it suitable for regular roofing sheet manufacturing.
The forming roller system helps maintain stable profile geometry during production.
Finished panels can be produced according to different construction requirements.
Automatic feeding, forming, measuring, and cutting reduce repetitive operator work.
The forming system can be designed according to the customer's own roofing profile.
The machine can be adapted to different roofing products and market requirements.
The Trapezoidal 40 roll forming machine can be supplied as part of a complete roofing sheet production line.
Depending on the project, the system can include:
Supports the metal coil and provides continuous material feeding.
Guides the metal strip into the forming system and helps maintain proper alignment.
Gradually transforms the metal strip into the required trapezoidal roofing profile.
Automatically separates finished panels according to the programmed length.
Provides centralized management of forming and cutting operations.
Supports and collects finished roofing panels after cutting.
Additional automation can be considered for customers who require higher production efficiency or reduced manual handling.
ZTRFM focuses on the design and manufacturing of cold roll forming machinery for construction and metal processing applications.
Our equipment range covers:
Our engineering team focuses on matching the machine to the customer's actual product rather than simply supplying a standard configuration.
This is especially useful for customers who need a specific Trapezoidal 40 profile or another customized roofing design.
OEM and ODM services are available for customers who have their own product designs.
If you already have a specific trapezoidal roofing profile, you can provide the drawing or finished product sample.
Our engineering team can evaluate the profile and develop a corresponding roller forming system.
Customized manufacturing is suitable for:
A customized machine can help manufacturers develop roofing products that better match their local market.
Before delivery, the machine is assembled and tested at our factory.
The testing process can include:
Factory testing helps confirm the normal operation of the equipment before shipment.
For customized projects, customers can also communicate their specific testing requirements with our technical team before delivery.
For international customers, technical support is an important part of the complete production solution.
ZTRFM can provide remote assistance for:
Through online communication and video guidance, customers can receive technical assistance during installation and production.
For projects requiring on-site installation or commissioning, engineer service can also be discussed according to the project requirements.
The machine is designed for practical daily operation and maintenance.
After installation and commissioning, operators can learn the basic production process through the operation manual and technical guidance.
Regular maintenance may include:
Proper maintenance helps maintain stable machine operation and reduce unnecessary downtime.
Before designing the machine, customers are encouraged to provide detailed product information.
A clear cross-section drawing is the preferred reference for roller design.
If a drawing is unavailable, a finished roofing sheet sample can also help our engineers understand the required profile.
Please provide the material type and relevant material characteristics.
The desired panel width, profile shape, finished length, and production requirements should be confirmed.
Available workshop space and production workflow can also be considered when planning the machine layout.
After receiving this information, our engineering team can recommend a suitable customized production solution.
It is a continuous cold roll forming machine designed to transform metal coils into Trapezoidal 40 roofing panels.
Yes. The forming rollers and machine configuration can be designed according to the customer's profile drawing or finished product sample.
Common materials include galvanized steel, pre-painted steel, and aluminum zinc coated steel. Other suitable materials can be evaluated according to their forming characteristics.
Yes. The automatic cutting system can be configured to produce different finished panel lengths.
Yes. The production line can integrate automatic feeding, forming, length measurement, and cutting according to the required configuration.
Yes. Customers are welcome to provide their own profile drawing or finished panel sample for engineering evaluation.
Yes. Remote technical assistance can be provided for installation, commissioning, operation, troubleshooting, and maintenance.
Yes. The complete solution can include decoiling, feeding, roll forming, cutting, electrical control, and finished panel output.
The China Trapezoidal 40 Roof Tile Roll Forming Machine provides a professional and flexible solution for manufacturers producing metal roofing panels.
Through continuous cold roll forming technology, the machine can transform metal coils into consistent trapezoidal roofing sheets while reducing repetitive manual processing.
Its customized forming roller design allows the machine to adapt to different roofing profiles, while automatic control and cutting make daily production more convenient.
For manufacturers establishing a new roofing sheet production line, expanding an existing factory, or developing a customized trapezoidal roofing product, ZTRFM can provide a complete solution based on the actual product requirements.
Send us your Trapezoidal 40 profile drawing or finished roofing sheet sample, and our engineering team can evaluate your product and develop a suitable customized roll forming solution.
