ZhongTuo Cable Tray Roll Forming Machine Perforated Cable Tray Making Machine Trays 5.5KW

Cable Tray Roll Forming Machine Perforated Cable Tray Making Machine Trays Cable Forming Machine

Product Highlights:

• One Line can get two kinds Tray : This cable tray roll forming machine produces both cable tray profiles flap inside or flap outside in a single continuous pass with hydraulic punching integrated, eliminating secondary processing, saving workshop floor space, and cutting total investment for cable tray manufacturers.
• High-Efficiency Cable Tray Making Machine: Continuously forms, punches, and cuts 0.8-2.0mm galvanized steel coil in one pass with hydraulic punch and Cr12 high-grade steel blades, delivering accurate hole patterns and clean edges without extra manpower or secondary handling.
• Precision Cable Tray and Cover Roll Forming Machine: Precision Cr12 rollers and high-grade 45# steel shafts mounted on a 350H steel main frame ensure consistent profile dimensions along the full tray length, reducing rework and material waste while guaranteeing a smooth tray-to-cover fit on site.
• PLC-Controlled Flexible Output: Equipped with an imported PLC control system and 5.5KW main motor, this cable tray production machine lets one operator quickly adjust tray width, cover profile, hole spacing, and cut length, supporting customized output at 220V, 380V, or 440V for electrical projects, infrastructure, and industrial wiring systems.
• Aftersales service Support and Long Warranty: This cable trunking roll forming machine ships with machinery test report and video outgoing inspection before delivery, more than 5 years warranty, complete spare parts supply, technical documentation, and experienced engineers for after-sales service to help you run the line fast.

Stereo View for reference:

PARAMETERS：

The working flow as below:

Cable Tray Roll Forming Machine Perforated Cable Tray Making Machine Trays Cable Forming Machine

Formed Material	GI,PPGI
Thickness	0.8-2.0 mm
Roller station	28 rows(As your requirement of profile)
Roller material	45# steel with quenched treatment
Shaft diameter	80mm solid shaft
Shaft material	45# steel with tempered
Transmission	By 1 inch chain (double chains)
Motor power	15KW
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Gcr12 quenched treatment
Control system	PLC

PRODUCT DISPLAY:

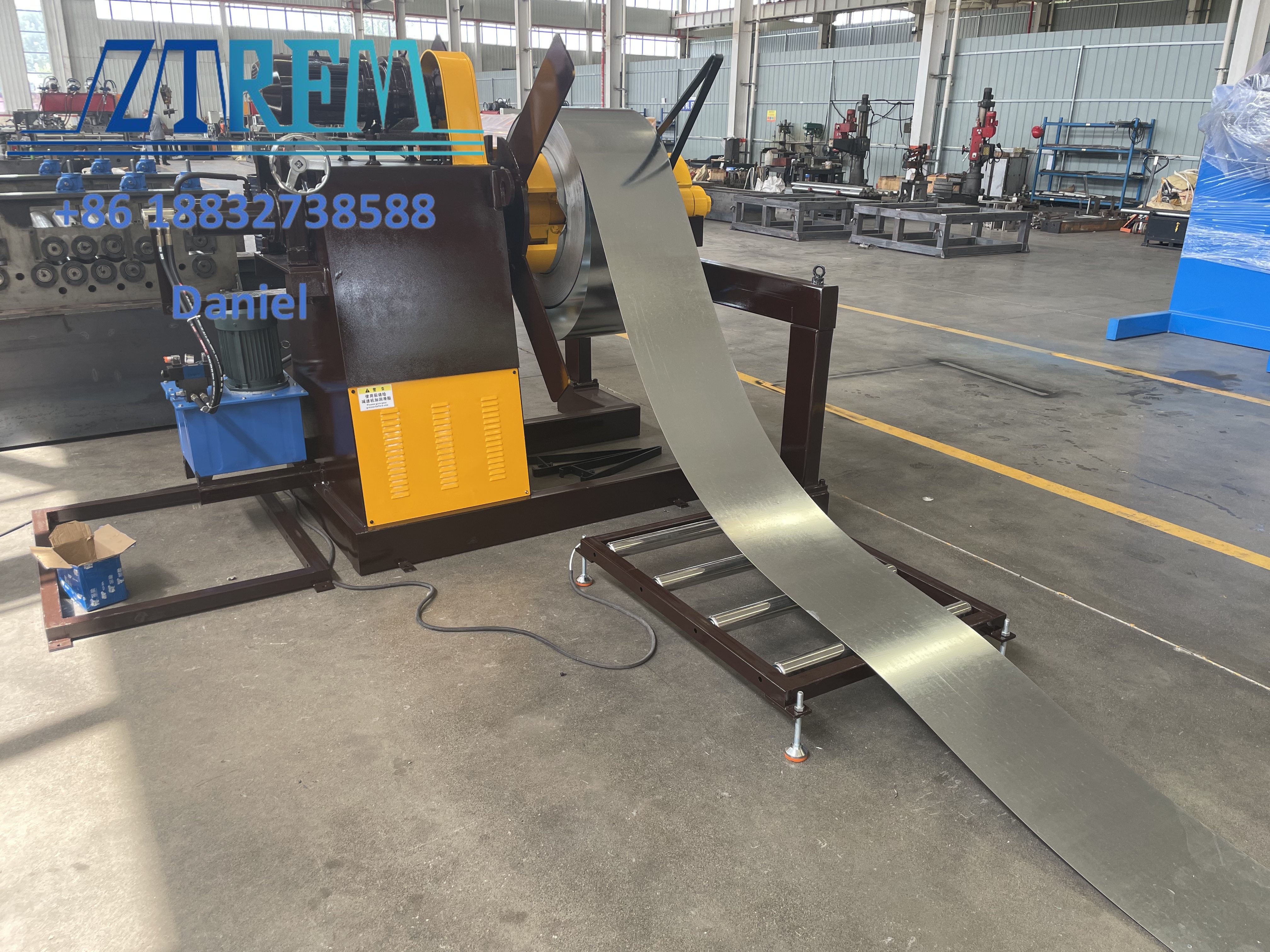

5TONS hydraulic decoiler

1. loading weight: 5T
2. Inner diameter of coil: 508mm
3. inner expansion range:480-520 mm
4. The maximal of Diameter: 1500mm
5. Motor power: 5.5kw frequency change control
6. Feeding speed:0-20m/min, adjustable

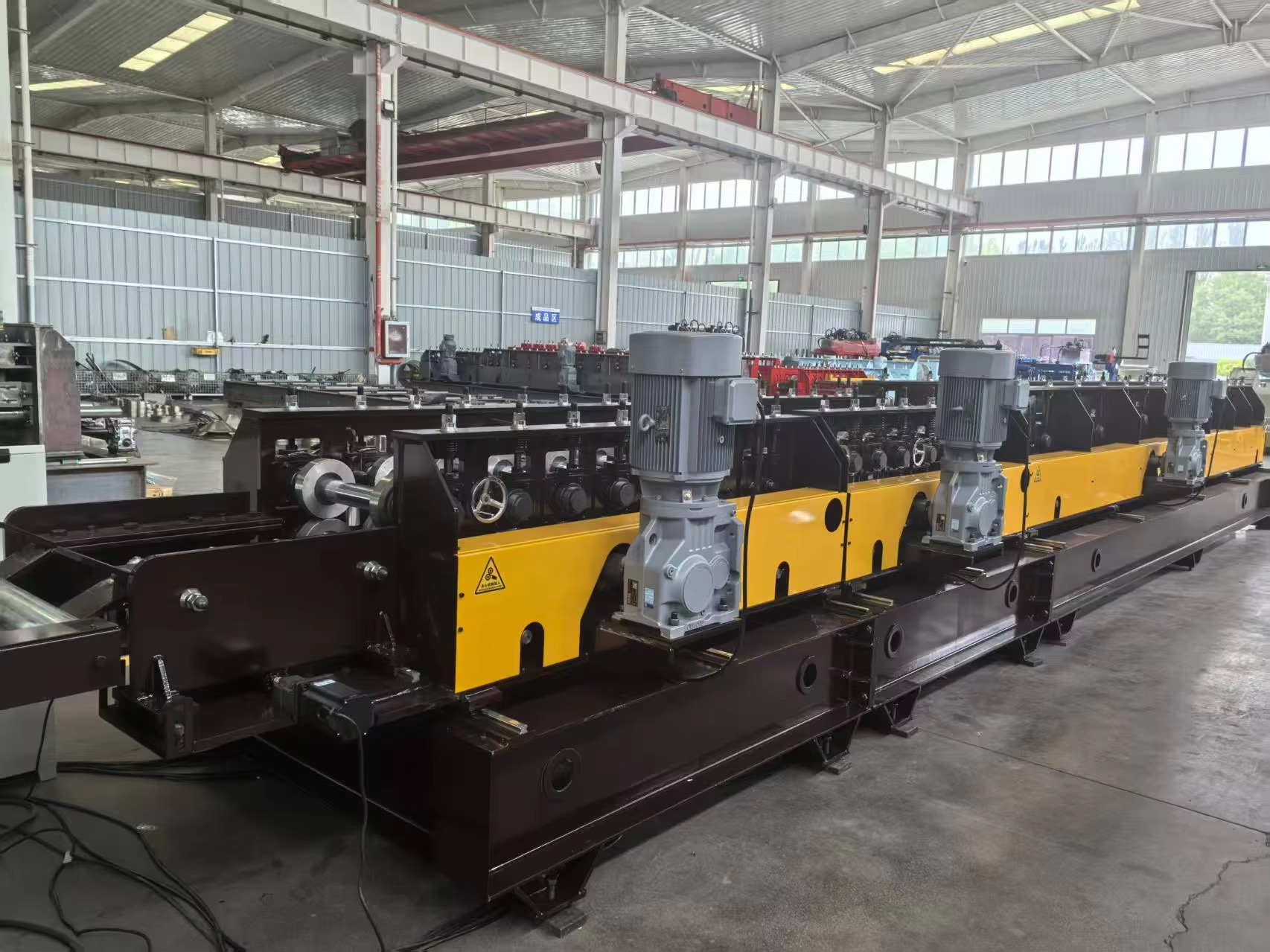

Main forming machine

1. Size changing type: Automatic adjust changing sizes by electric motor , easy to operate and high accuracy
2. Shaft diameter :80mm
3. Motor power :5.5 KW *3 Line speed :8-16 m/min

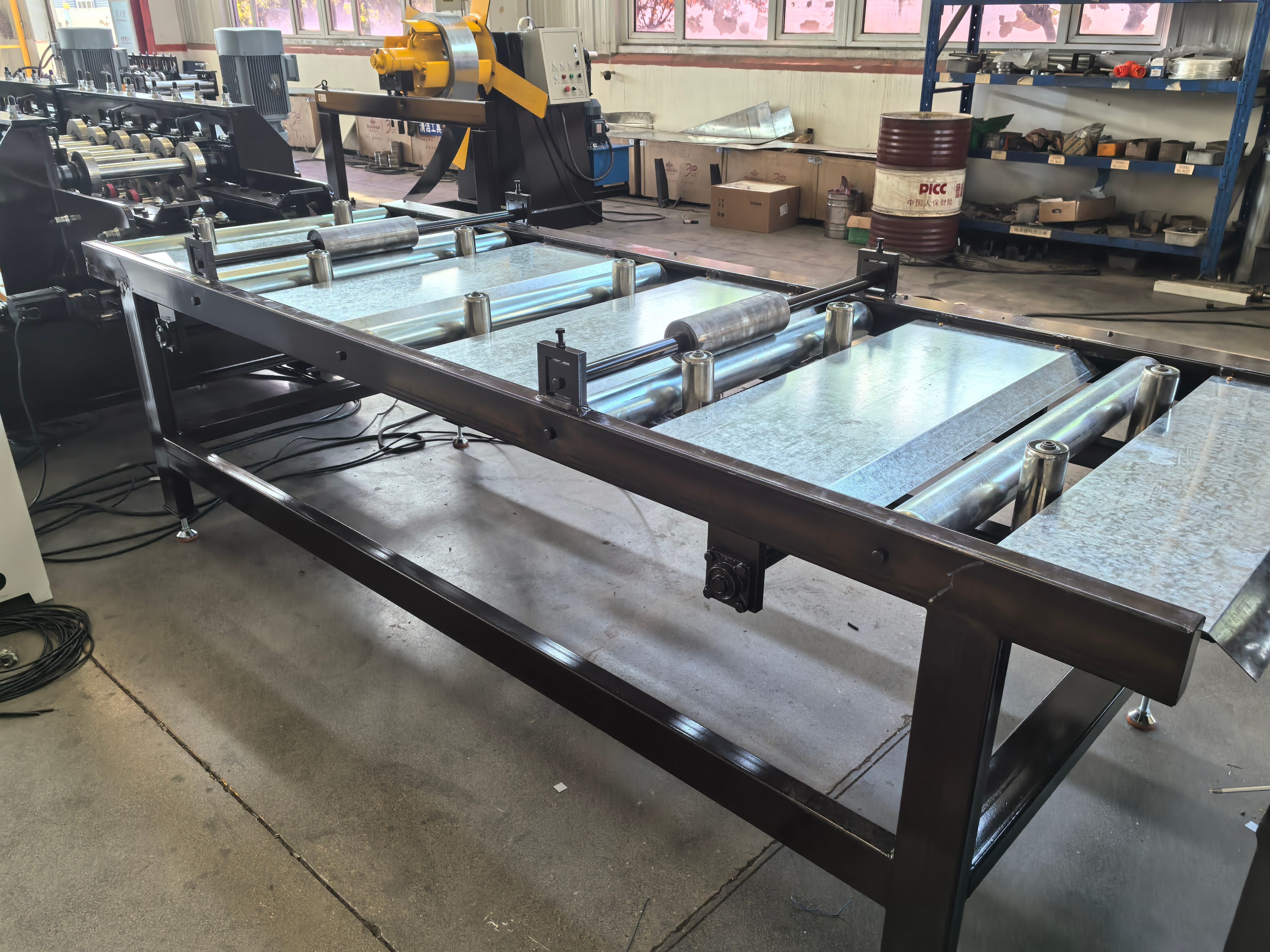

3-meter electric conveyor table

Main motor power (1.5x2KW)

3m Electric Conveyor Table Equipped with a 3-meter electric conveyor table to automatically receive and transfer finished cable trays at a higher speed.

Improves production efficiency, reduces manual handling, and ensures smooth movement of finished products after forming and cutting.

Helps workers collect finished cable trays more easily and creates a more continuous automatic production process.

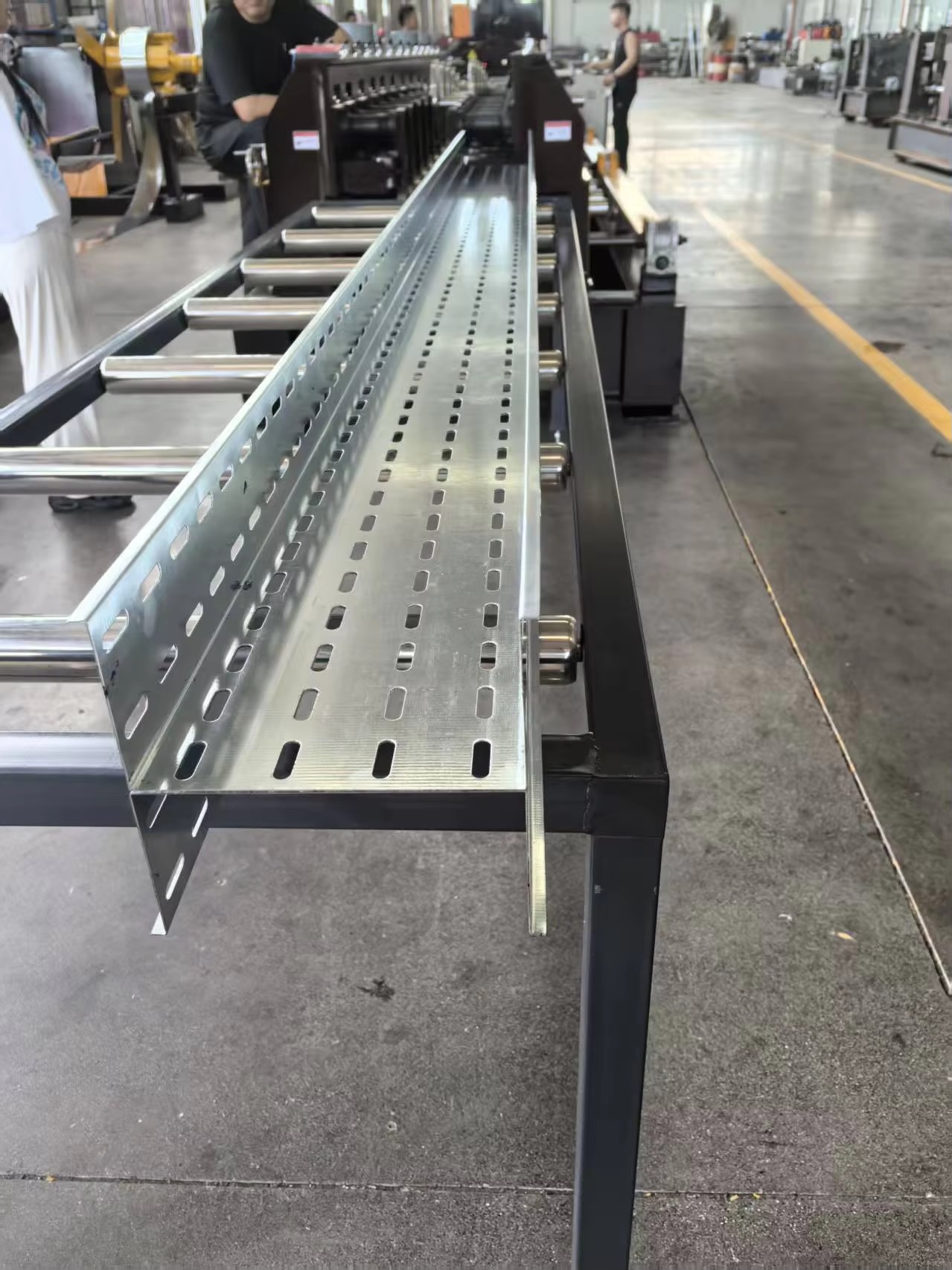

Cable tray details

Roller Materials: High grade 45#,with heat treatment,Chromed treatment (Chrome thickness:0.05 mm)

Roller station:28 stations(We can as your cable tray profile design roller structures and can add little trimming rollers)

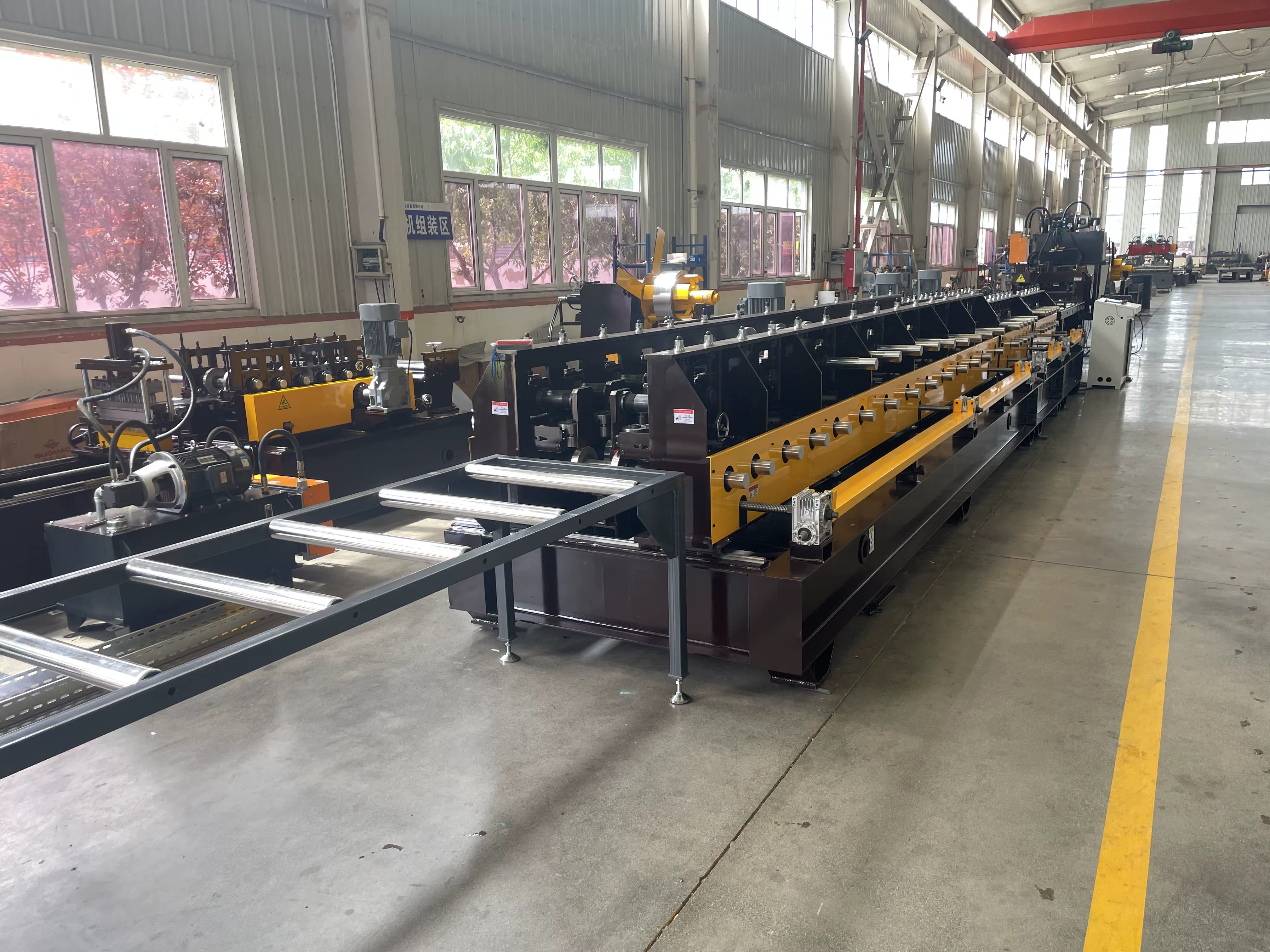

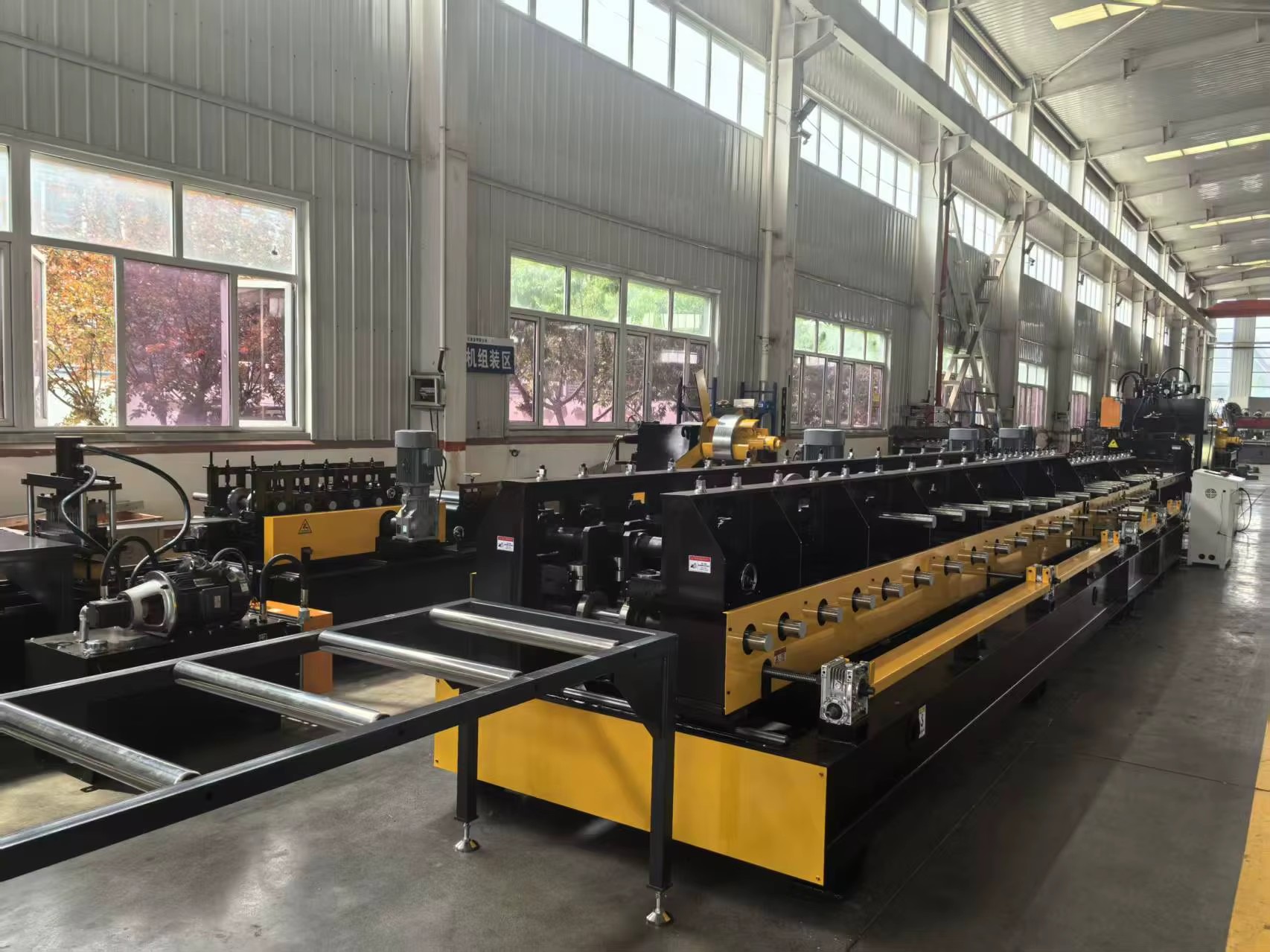

Galvanized Steel Perforated Cable Tray Roll Forming Machine Main forming machine

Size changing type: Automatic adjust changing sizes by electric motor , easy to operate and high accuracy

Shaft diameter :80mm

Motor power :5.5 KW *3 Line

speed :8-16 m/min
