Multi-size Automatic Cable Tray Production Line

The ZT-75 to 600 fully automatic cable tray roll forming machine produces cable trays suitable for various factories and buildings. Our Cable Tray Machine integrates an efficient punching press, hydraulic system, electric control panel, and other essential components, making it an ideal choice for many applications. This Cable Tray Roll Forming Machine ensures both superior quality and high production output in reduced time.

Product Display & Composition

The ZT-75 to 600 fully automatic cable tray rolling machine consists of the following main components: hydraulic decoiler, leveling system, punching unit, coil feeder, main roll forming station, and receiving table.

Application

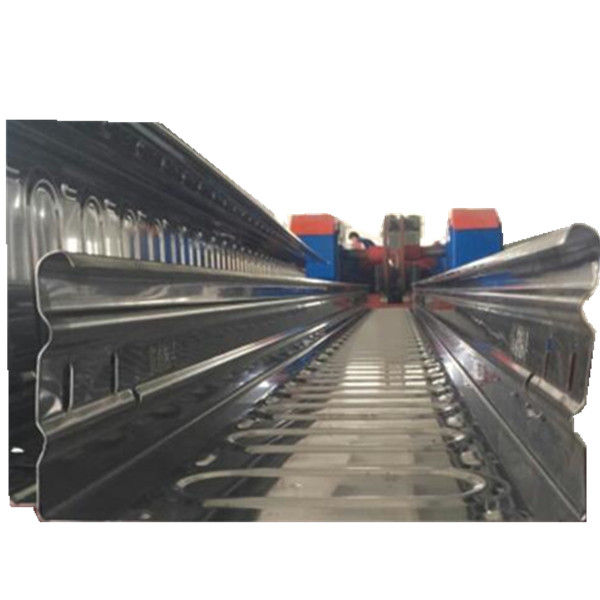

The Galvanized Steel Cable Tray Machine is designed to manufacture cable trays from various materials. In building electrical wiring, cable tray systems support insulated electric cables used for power distribution and communication. Cable trays serve as an alternative to open wiring or electrical conduit systems and are widely used for cable management in commercial and industrial construction. They are particularly advantageous in scenarios where wiring changes are anticipated, as new cables can be laid directly into the tray rather than pulled through pipes. The Zhongtuo cable tray roll forming machine operates on the roll forming principle to produce these trays efficiently.

Key Components & Specifications

1. De-coiler

• Material Width: 225–1020 mm
• Material Thickness: 1–2 mm
• Coil Inner Diameter: 508 mm (Expansion Range: 480–520 mm)
• Max Coil Outer Diameter: 1500 mm
• Max Loading Capacity: ≤5 Tons
• Motor Power: 5.5 kW (Frequency Conversion Control)
• Press Material Type: Pneumatic
• Feeding Speed: 0–15 m/min (Adjustable)
•

Packing List - C/U Roll Forming Machine

No.	Name	Unit	Quantity/Type	Remark
Part 1	3T Decoiler	Set	Manual	-
Part 2	Main Roll Forming Machine	Set	High Speed	-
Part 3	PLC Control Station	Set	Mitsubishi Brand	-
Part 4	Cutting System	Set	Hydraulic	-
Part 5	Hydraulic Station	Set	45# Oil	-
Part 6	Product Table	Set	Regular	-

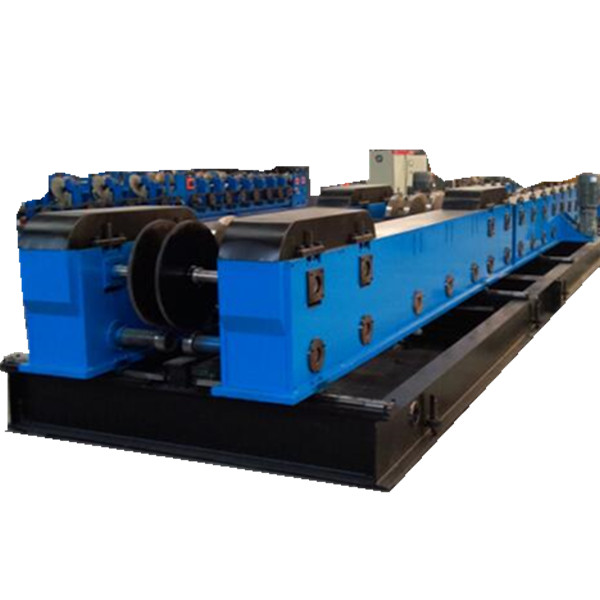

Features of Main Cable Tray Roll Forming Machine

• Material Thickness: 1.0–2.0 mm
• Forming Speed: 3–6 m/min
• Main Shaft Diameter: φ60 mm (40Cr steel, hardened and tempered)
• Side Plate Thickness: 27 mm steel plates
• Machine Body: 350H welded steel plate
• Main Transmission Motor: 4 kW K-series helical gear motor (2 sets); 5.5 kW K-series helical gear motor (2 sets)
• Side-to-Side Adjustment Motor: 1.5 kW (1 set), 1.1 kW (1 set)
• Side-to-Side Adjustment Range: 100–600 mm
• Lateral Plate Height Adjustment Range: 50–200 mm
• Cover Board Production: Capable of producing cover boards (width 100–600 mm)
• Width and Depth: Adjustable
• Working Length Error: ±1.5 mm
• Straightness Error: ≤2‰

Note: For more operational videos, please contact us.

3-Ton Manual De-coiler Specifications

• Type: Passive
• Max Coil Width: 400 mm
• Loading Capacity: 3 Tons
• Inner Diameter Range: 450–550 mm

Product Advantages

Leveling System:

• Roller Type: Nine-roller leveling machine
• Structural Features: Rollers undergo quenching, tempering, and chrome-plating to significantly enhance rigidity and surface finish. The system includes clamping rollers (independently controlled) and leveling rollers. It features one pair of horizontal guide rollers and two pairs of vertical guide rollers, easily adjustable via hand wheels.
• Automation: An optical sensor between the leveler and feeding device sends feedback signals to the control system, which adjusts the frequency conversion motor speed to achieve uninterrupted and precise leveling.

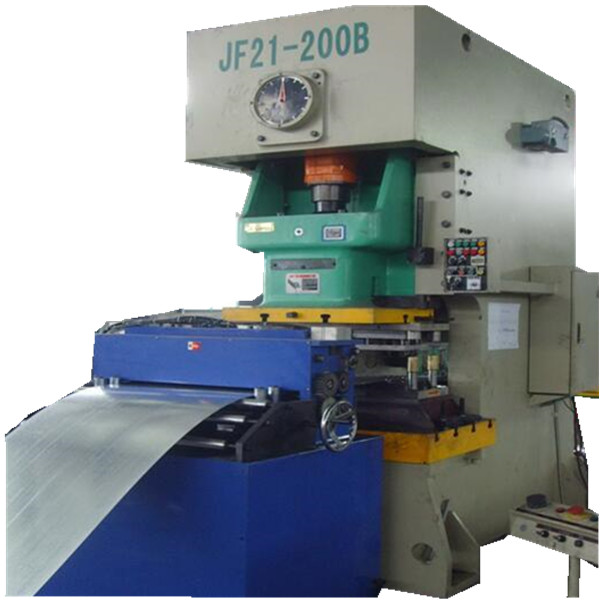

Punching Press:

• Model: JF21-120B
• Forming Stations: 14 sets
• Forming Variety: Bridge frame
• Roller Axis Diameter: 85 mm
