Road Guardrail Roll Forming Machine 15 Station Practical Build Guide

A road guardrail roll forming machine consists of several integrated systems. From coil entry to finished panel output, the process involves uncoiling, leveling, punching, forming, and cutting. How these systems work together determines whether the equipment can produce quality guardrail panels consistently. This article explains the main components and system relationships from a build perspective.

Applications

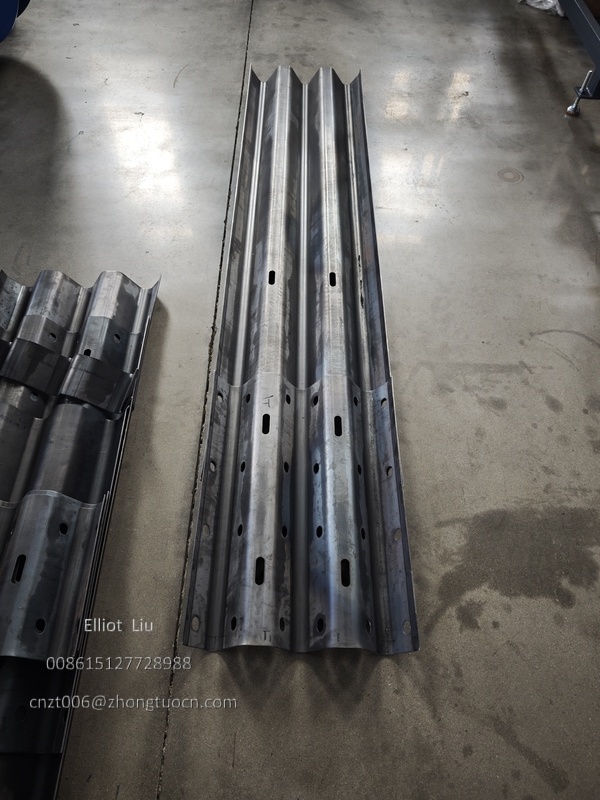

A road guardrail roll forming machine produces W-beam guardrail panels. Finished panels have a cover width of 312mm, a profile height of 90mm, and a standard length of 4320mm. These dimensions are common specifications in highway guardrail projects worldwide.

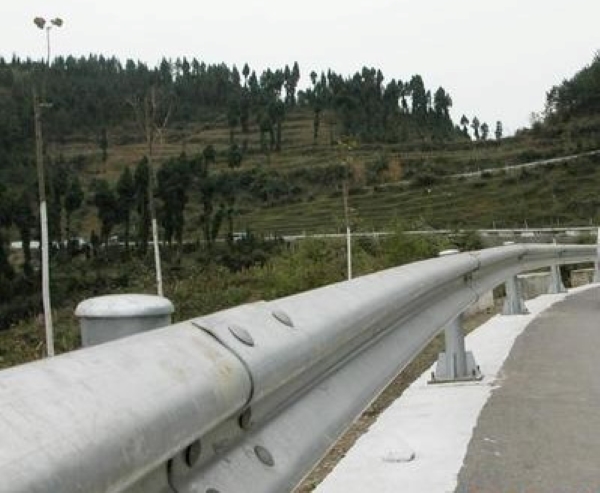

The machine processes galvanized steel, cold rolled steel, carbon steel, and Q235, with thickness ranging from 2.5mm to 4.0mm. Finished panels are widely used for highway side protection, primary road median barriers, mountain curve and cliff edge side protection, and bridge tunnel transition sections.

Machine Advantages

Continuous production: The line integrates uncoiling, leveling, punching, forming, and cutting into one continuous process, eliminating material handling and waiting time between steps.

Forming logic: Fifteen stations form the profile gradually with deformation distributed evenly across the stations.

Automation: A PLC coordinates all steps. The operator sets parameters and the system runs automatically.

Production flexibility: The equipment adapts to different thicknesses and material types, accommodating varied order requirements.

System Components and Flow

The complete production line follows this sequence:

Uncoiling → Alignment guiding roller → 9 rollers leveling → hydraulic punching hole → Panel Transport table → Swift sheet feeding → Photoelectrical switch → Roller guiding table → 15 stations roll forming → Finished product support table.

Coil enters through the uncoiling system, passes through the leveling system to reduce internal stress, and moves to the punching system for hole processing. The sheet then enters the forming system, where the photoelectric measuring system ensures accurate length before the 15 stations gradually shape the profile. Finally, the cutting system cuts the sheet to length, and finished panels land on the support table. A PLC coordinates speed matching across all systems, completing the process continuously from coil to finished panel.

Uncoiling System

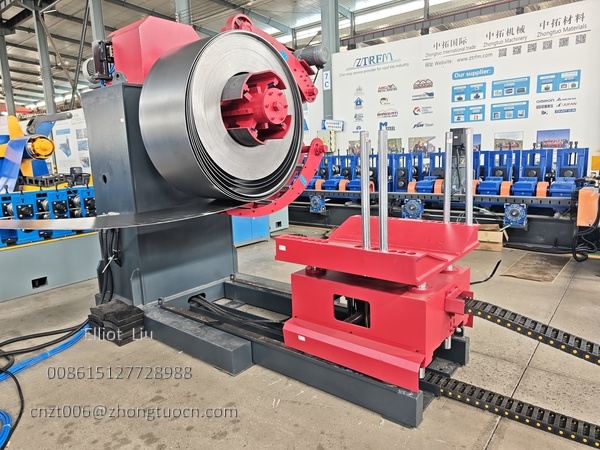

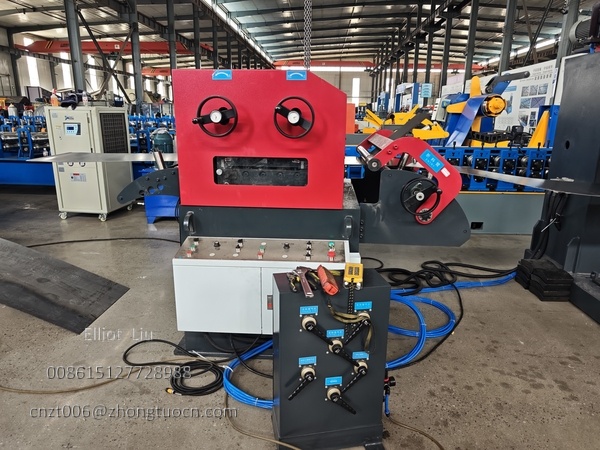

The uncoiling system sits at the front of the line. It holds the coil and feeds material steadily. After the coil gets loaded, hydraulic expansion mandrels grip the inner ring to keep the coil stable during rotation. The uncoiling speed adjusts automatically to match downstream steps, preventing material pileup or line starvation.

Leveling System

Coil coming off the uncoiler typically has curvature from the winding process. Without leveling, finished panels may show bending or wavy edges. The leveling system passes the strip through multiple offset rollers that bend and release it repeatedly, reducing internal stress and producing flatter stock for subsequent punching and forming.

Punching System

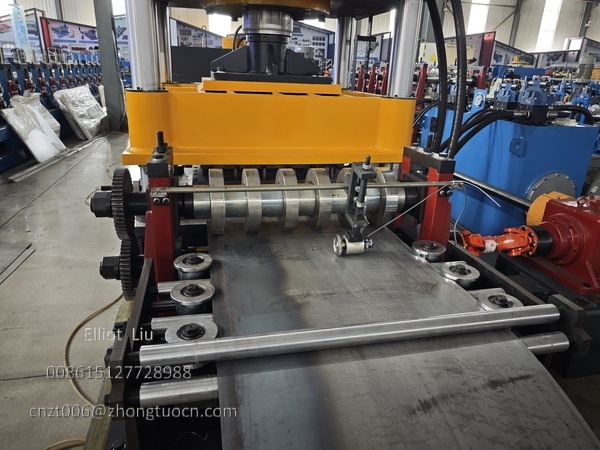

The punching system creates mounting holes on the panel for bolting to posts and blocks. This step syncs with the feed speed. After punching, the sheet moves forward through the conveyor table into the forming machine.

Forming System

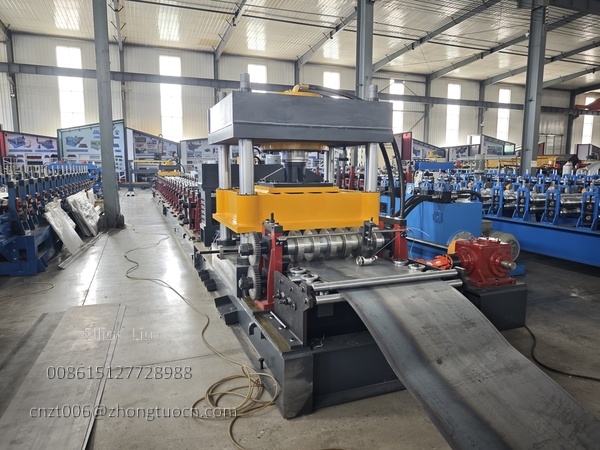

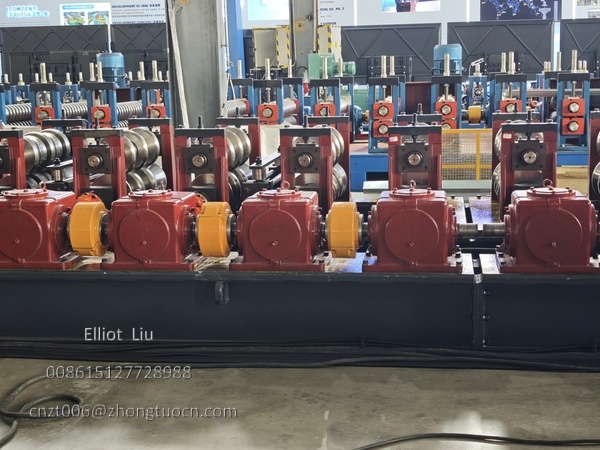

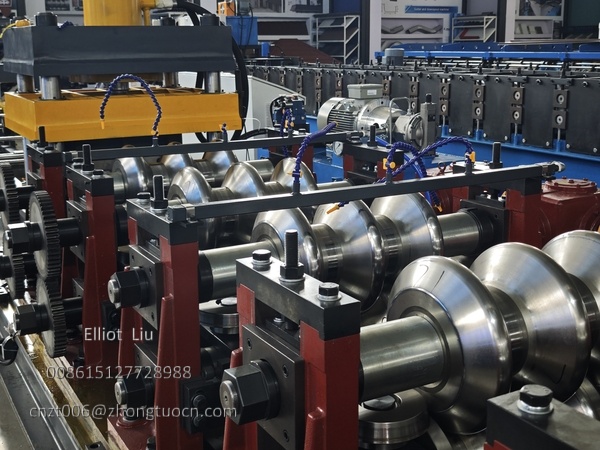

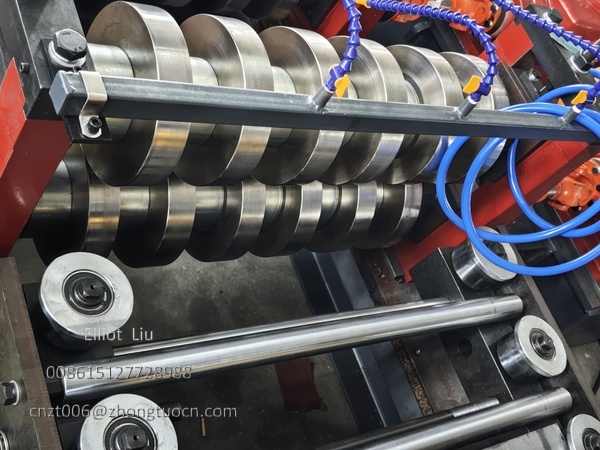

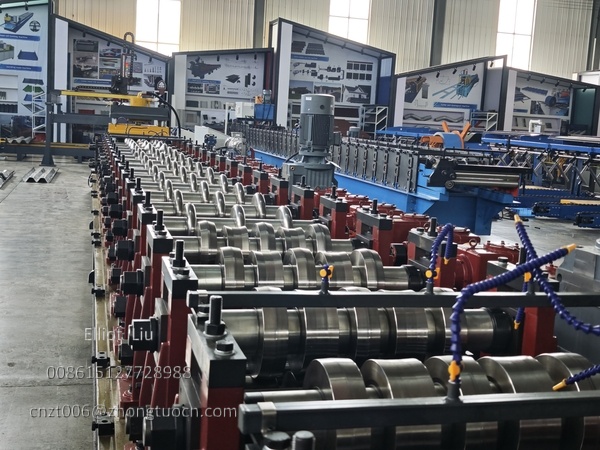

The forming system is the core of the line. The sheet enters 15 fixed driven forming stations. Each station bends the sheet at a specific angle. From the first station to the fifteenth, the profile gradually takes shape from flat to fully formed. Synchronized distribution gearboxes keep all stations at the same line speed. Speed variations between stations can affect forming stability, so maintaining consistent speed across stations is important for profile quality.

Cutting and Output System

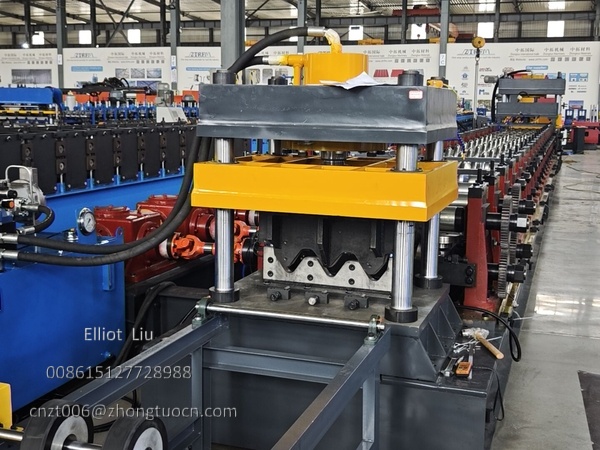

After forming, a photoelectric measuring unit checks sheet length in real time. When the length reaches the set value, the measuring system triggers the hydraulic cutting device to cut the sheet automatically. Finished panels drop onto the support table for collection.

Control System

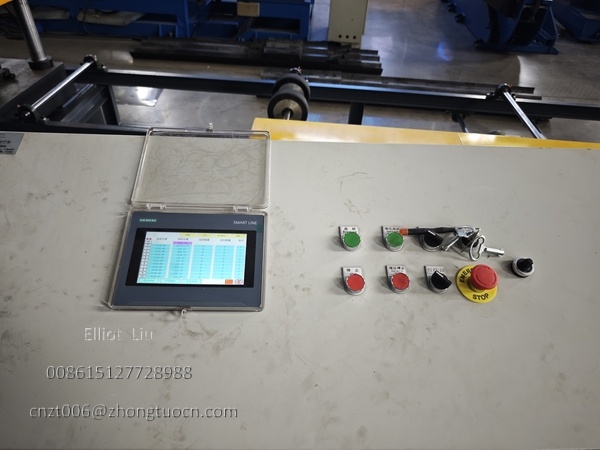

A PLC controller coordinates all steps. The operator uses a touchscreen to set parameters and monitor operation. Speed matching across systems, timing between punching and feeding, and cutting signal execution all run through the PLC.

Technical Parameters

Design Decisions That Determine Performance

The performance ceiling of a road guardrail roll forming machine is set during the design phase. Key decisions lock in what the equipment can and cannot do.

The number of forming stations determines how much deformation each station handles. Too few stations mean more deformation per step, which can increase the risk of cracking or springback. Too many stations add cost and floor space with limited additional benefit. Fifteen stations represent a commonly used configuration for this type of equipment.

The synchronization method determines whether stations maintain consistent speed relationships over time. Gearbox based mechanical synchronization is one approach. The choice of synchronization method affects how the system performs during production.

Roller material affects how well the machine maintains accuracy over long production runs. Gr15 bearing steel with HRC55-60 hardness treatment is used for the roller material in this equipment. This choice influences maintenance frequency and precision stability in production.

These design decisions have a significant impact on what the equipment can deliver. Understanding this logic is the first step in judging whether a machine can meet specific production requirements.
