ZhongTuo Automatic Cold Room Wall Panel Roll Forming Machine for Cold Storage Construction Customizable

Name: ZhongTuo Automatic Cold Room Wall Panel Roll Forming Machine for Cold Storage Construction Customizable
Brand: ZhongTuo
Availability: InStock

$***/ platform

Min. Order:1 platform

You can log in to view more discounted prices.Login Now

Order CodeZT118847725

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Customizable:

Customizable

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications
- Machine
  Customizable
- Color
  Customizable
- Certification
  CEISO9001
Title: Cold Room Wall Panel Roll Forming Machine

Cold Room Panel Roll Forming Machine

The Cold Room Panel Roll Forming Machine (also known as a Linear Roll Forming Machine) is specifically designed to produce wall panels for cold storage applications. This machine offers high customization capabilities, allowing adjustments to profile width, production speed, logo stamping, and other specifications to meet diverse manufacturing needs.

Equipped with user-friendly and safety-focused components, the machine features removable switches, circuit breakers, radiators, transformers, and earth leakage protectors. The entire system is controlled by a PLC from world-renowned brands such as Mitsubishi Electric, Siemens, or Delta, ensuring precise, efficient, and reliable long-term operation.

Technical Specifications

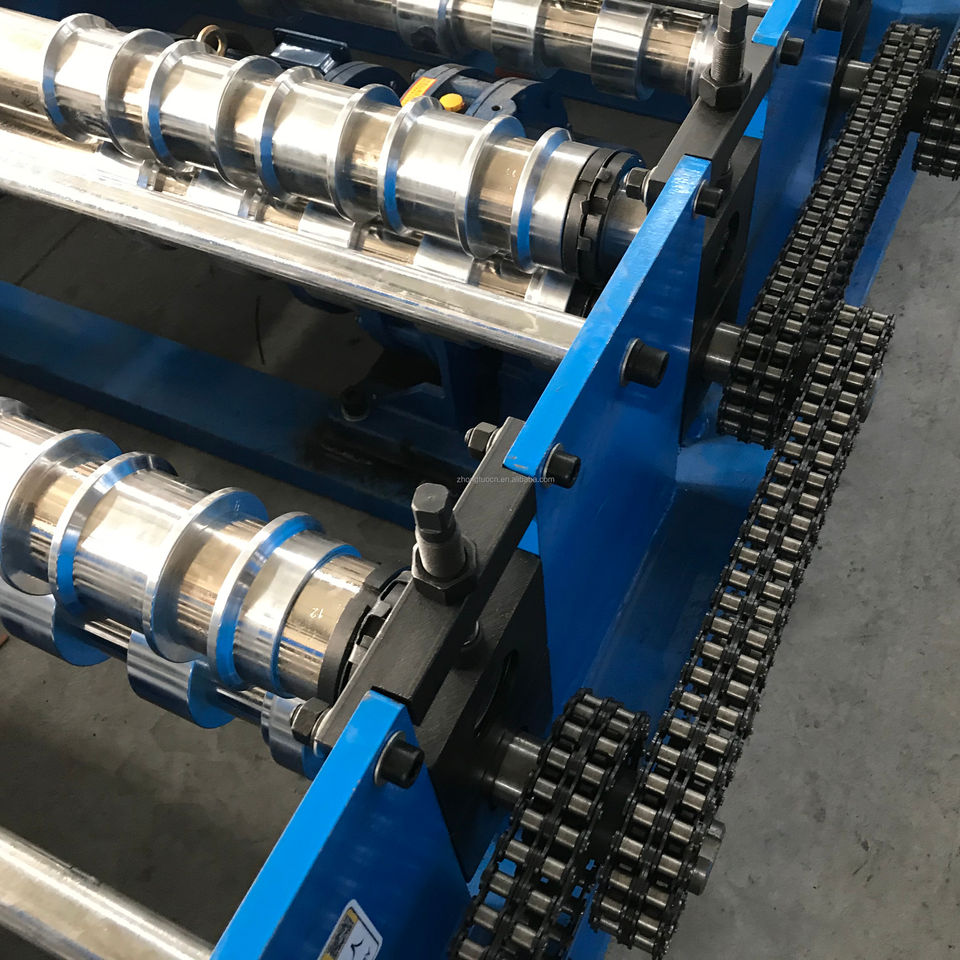

- Roller Stations: 12 stations (single-side adjustment structure)
- Roller Material: GCr15 steel, quenched and chrome-plated (HRC 58-60)
- Shaft Material: 45# solid steel
- Shaft Diameter: 65 mm
- Working Speed: 15-25 m/min
- Shearing Blade Material: Cr12MoV, quenched (HRC 58-60)
- Transmission: Chain drive
- Voltage: 380V, 50Hz, 3-Phase
- Forming Motor Power: 4 kW
- Hydraulic Station Motor Power: 3 kW
- Control System: PLC
- Machine Frame: Middle plate structure
- Dimensions: 4.5m x 1.6m x 1.0m
- Color: Blue & Yellow (Customizable)
5T Hydraulic Decoiler Specifications
- Decoiling Type: Active Uncoiling
- Loading Capacity: 5 Tons
- Max. Loading Width: 1250 mm
- Coil Inner Diameter: 450-550 mm
- Max. Coil Outer Diameter: 1500 mm
- Motor: Included (See Manual De-coiler Sample Pictures)
FAQ

Q: Can you customize the machine to our company's specifications?
A: Yes, we can manufacture the machine according to your specific requirements.

Q: How is the quality ensured?
A: All raw materials undergo strict quality control. Our staff pays attention to every detail during handling and packaging, and our Quality Control Department is responsible for inspecting each product.

Q: Do you provide after-sales service?
A: Yes, we offer comprehensive after-sales support via email, WhatsApp, WeChat, Skype, and other communication channels.

Q: Does the machine come with a warranty?
A: Yes, it comes with a 1-year warranty.
