ZhongTuo Automatic Cable Tray Roll Forming Machine for Export Production High Percision

Cable Tray Roll Forming Machine for Export：Automatic Cable Tray Making Line

Description:Buy a cable tray roll forming machine built for export: automatic punching, roll forming and cutting for ladder, perforated and trough cable trays. Factory direct, custom profiles, global shipping.

A cable tray roll forming machine is the production backbone for factories that supply cable management systems to power, construction, industrial and infrastructure projects. Instead of cutting and bending tray sections by hand or with separate machines, this automatic line takes a steel or aluminium coil and turns it into finished cable tray profiles through decoiling, levelling, servo feeding, precision punching, multi-station roll forming, fixed-length cutting and automatic stacking. The result is consistent dimensions, repeatable hole patterns, smoother edges and higher daily output—exactly what overseas buyers and project contractors expect from a professional cable tray manufacturer.

Why This Machine Fits Export-Oriented Cable Tray Factories

Export orders usually demand strict tolerances, traceable quality and the ability to switch between tray types without rebuilding the whole line. Our cable tray making machine is engineered for that environment. It is not a generic roll former with a new label; it is configured around real production needs: stable running speed, accurate punching, easy mould change, PLC control in English, and heavy-duty frames that survive long sea freight, site installation and continuous shift work.

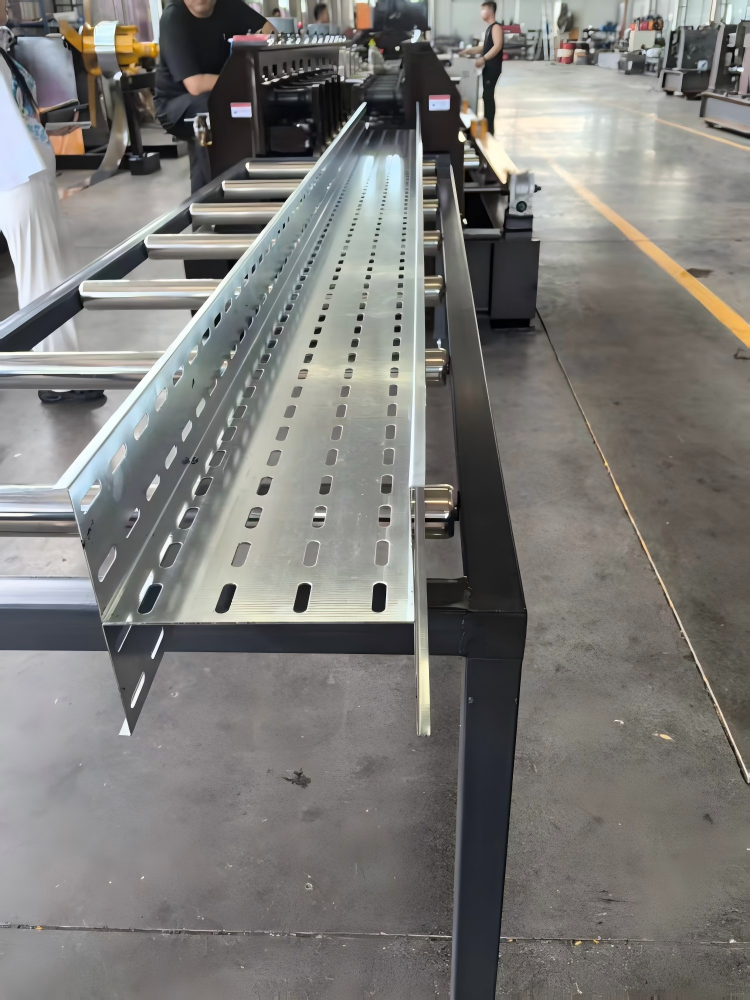

The line is suitable for ladder cable tray, perforated cable tray, trough cable tray, solid bottom tray and custom cable management profiles. Width, height, flange depth, hole layout and material thickness can be set according to your market standard or client drawing.

What The Production Line Does

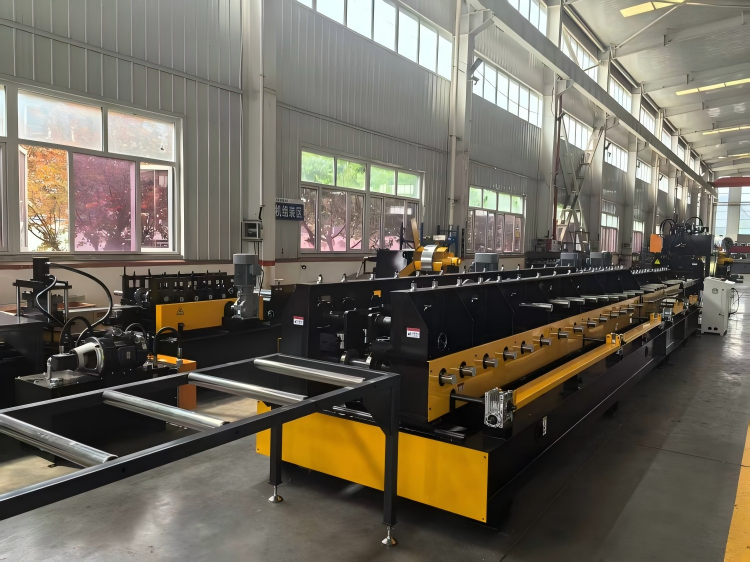

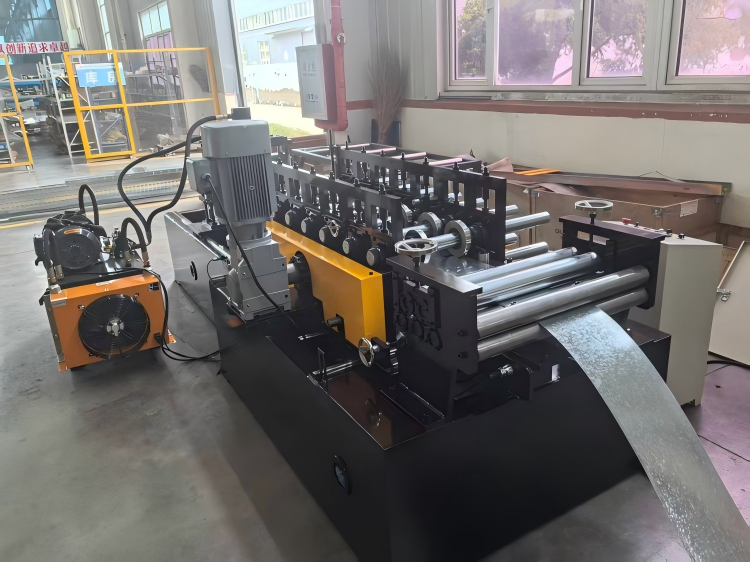

Material starts as a coil on the hydraulic decoiler. The strip passes through a leveller to remove coil memory and ensure flat feeding, then a servo feeder positions it precisely before the punching station. Ventilation holes, mounting holes, coupling holes and rung slots are punched with synchronized tooling so the pattern stays correct along the full length. After punching, the strip enters the roll forming section where calibrated rollers progressively shape the profile—side rails, return lips, tray bottom and ladder rung seats—without twisting or surface scoring.

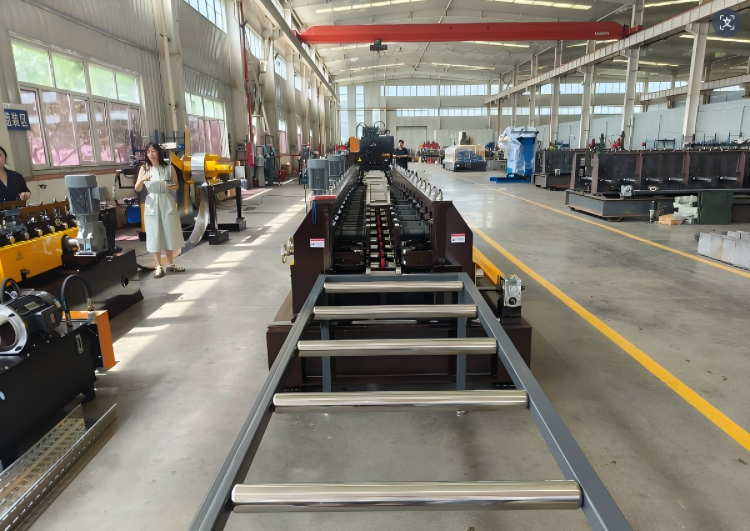

A hydraulic or servo cutting unit cuts to set length without stopping the line, and finished trays move to the outlet table or stacking system. The operator manages everything from a PLC touch screen: batch length, piece count, hole programme, speed and fault alerts. This reduces dependence on highly experienced labour and makes it easier to train local staff after installation abroad.

Key Advantages

The biggest advantage is process integration. One line replaces several standalone steps, so you get fewer handling marks, less scrap and faster order turnaround. Forming rollers are machined from alloy steel, heat treated and ground for long service life; shafts are hardened and supported in heavy housings to keep the profile stable at higher speed. Punching dies are designed for quick changeover, which means you can serve mixed orders—different widths, hole patterns or tray types—without losing a full day to retooling.

Automation also protects quality. Because length, hole pitch and roller gap are controlled digitally, the first tray and the thousandth tray stay close to the same tolerance. That matters for export because trays often have to match couplers, brackets, covers and third-party fittings already specified in the project.

Materials And Profile Range

The machine handles galvanized steel, pre-painted steel, cold-rolled steel, stainless steel and aluminium within the agreed thickness range. Typical export configurations cover thickness from 0.8 mm to 2.0 mm, tray width from 100 mm to 800 mm or wider on custom design, and side rail height adjusted to the required load class. If your market uses ladder tray with specific rung spacing, or perforated tray with a particular open-area pattern, the punching programme and roller set can be built around that standard.

Material yield strength, coating type and coil weight are confirmed before production of the machine, because they affect roller pressure, punching force and decoiler capacity. This avoids the common problem of a line that works in the showroom but struggles on the customer’s actual coil stock.

Technical Configuration In Plain Terms

Main frame is fabricated and stress-relieved for continuous operation. Forming stations are arranged to gradually shape the metal rather than force it, which reduces spring-back and edge cracking. Drive can be chain or gearbox depending on speed and torque requirement. Control is PLC with HMI, inverter-controlled or servo-assisted feeding, and optional remote support module.

Speed is usually set between 10 and 20 metres per minute for punched tray lines, higher for unpunched profiles. Cutting accuracy and hole pitch accuracy are maintained through encoder feedback and synchronized punch timing. Power supply is built to destination market: 380V/50Hz/3-phase is common, but 415V, 440V or 60Hz versions are prepared on request. Safety covers, emergency stops and lockable panels are included for CE-aligned markets.

Applications Across Industries

Cable trays produced on this line are used in commercial buildings, factories, warehouses, power plants, substations, data centres, airports, metro and railway projects, oil and gas facilities, water treatment plants and renewable energy sites. In each case the same priorities apply: safe cable routing, ventilation, load resistance, corrosion performance and easy maintenance access.

For a contractor, that means trays must arrive straight, hole-compatible and coating-intact. For a manufacturer, it means the machine must repeat the profile reliably across large batches and different shifts. Our design focuses on that repeatability rather than only peak speed.

Customization And Factory Support

We do not treat the cable tray roll forming machine as a fixed SKU only. Profile drawings, local voltage, language HMI, labelling, spare-part kit, extra rollers and training are part of the order engineering. Before production, we review your sample tray or CAD section, confirm material and tolerance, then build the line to match.

Export support includes wooden case or nude packing with anti-rust treatment, clear loading plan, instruction manual, electrical diagram, spare-part list, commissioning guidance and video support. Installation supervision and on-site training can be arranged for large projects. MOQ is one production line; delivery is typically 45 to 60 days after design confirmation, depending on customization.

Quality Control And Trust Signals

Every machine is assembled, wired and run with material before shipment. We check alignment of rollers, punch die centre, cutting squareness, PLC logic, safety circuits and noise/vibration under load. Rollers and shafts are inspected for hardness and finish. Major components—PLC, inverter, hydraulic seals, bearings, sensors—are selected from brands accepted in your market or equivalent tested alternatives.

Certification such as CE and ISO documentation can be prepared when required. We recommend buyers ask for a test-run video with their own profile drawing before payment balance; this single step removes most misunderstanding about hole pattern, tray shape and surface quality.
