Product Title: Algeria High-Speed TN40 Metal Roofing Sheet Forming Machine

Product Overview
The High-Speed TN40 Metal Roofing Sheet Forming Machine is specifically engineered for the Algerian market. Named "TN40" due to its 40mm panel rib height, this model is widely recognized and utilized in Algeria. We have successfully exported numerous units to this region. The machine features a gearbox transmission system and a flying shear mechanism, capable of processing material thicknesses from 0.2mm to 1.0mm.

Key Advantages

1. High Production Speed: Operating speed of 35-40 m/min.
2. Gearbox Transmission: Ensures extended service life and stable operation.
3. Flying Shear System: Enables non-stop cutting, significantly increasing production capacity.
4. Full Automation: Equipped with an automatic decoiler and stacker to reduce labor costs and enhance operational efficiency.
5. Versatile Coil Width Compatibility: Capable of processing both 1000mm and 1250mm coil widths with a single machine.

Technical Specifications

1. Forming Material
Material: PPGI, GI, Al (Aluminum)
Thickness: 0.3-1.0mm
Width: 1000mm / 1250mm (Customizable)

2. Decoiler
Type: Hydraulic Automatic Decoiler
Note: A manual decoiler is provided free of charge as an alternative.

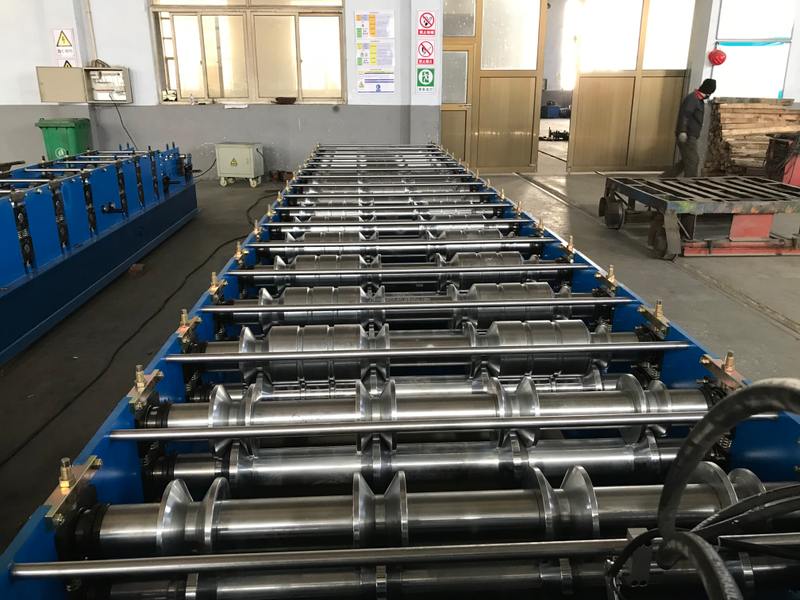

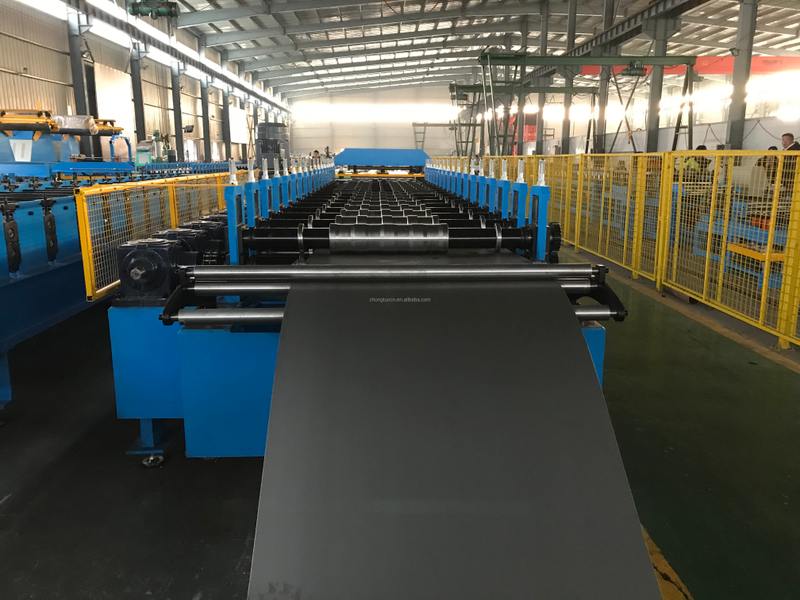

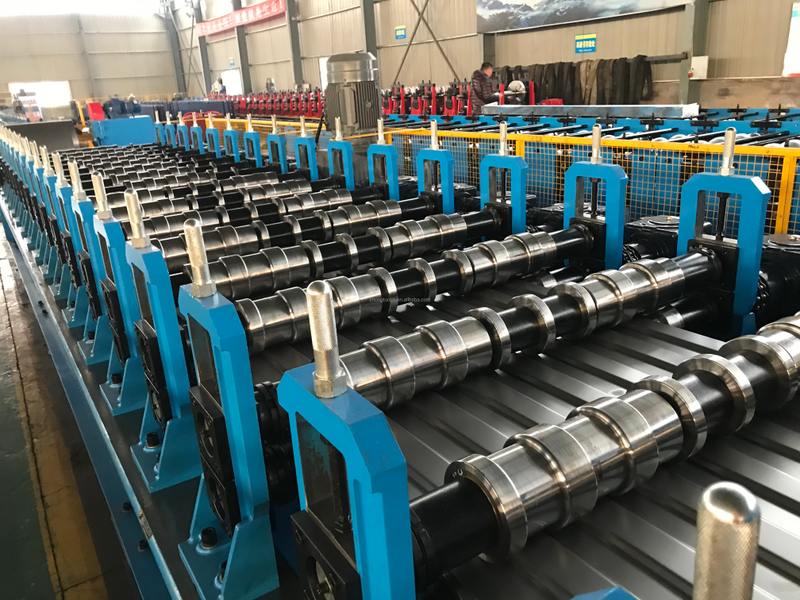

3. Main Body
Roller Stations: 29 rows (Customizable per requirement)
Shaft Diameter: 80mm solid shaft
Roller Material: #45 Steel with hard chrome plating
Machine Frame: 400 H-beam steel
Drive System: Gearbox transmission
Dimensions (L*W*H): 15000*1800*1600 mm (Customizable)

4. Cutting System
Type: Automatic Flying Shear
Blade Material: Cr12Mov (Ensures no scratches or deformation)

5. Power System
Main Motor: 7.5KW × 2 sets (Siemens brand)
Hydraulic System Power: 7.5KW

6. Electrical Requirements
Voltage: 380V, 50Hz, 3-Phase (Customizable per requirement)

7. Control System
Electric Box: Customized with famous brand components
Interface Language: English (Supports multiple languages)
PLC Control: Fully automatic production control; allows setting of batch size, length, quantity, etc.

8. Forming Speed
Speed: 30-35 m/min
Note: Actual speed depends on tile profile shape and material thickness.
