ZhongTuo 2/3 Wave W-Beam Crash Barrier Roll Forming Line for Highway Guardrail Production High Precision

Highway Guardrail Forming Machine：2/3 Wave W-Beam Crash Barrier Roll Forming Line

Description:Highway Guardrail Forming Machine is a professional automatic cold roll forming production line dedicated to manufacturing highway safety guardrails, also known as crash barrier roll forming machine and W-beam guardrail forming machine. This fully integrated production equipment is designed for mass production of standard 2-wave and 3-wave highway guardrails, which are widely used in highway, expressway, municipal road, and bridge safety protection projects. Adopting advanced continuous cold bending forming technology, the machine completes uncoiling, leveling, punching, forming, fixed-length cutting and automatic stacking in one process, solving the defects of low efficiency, uneven specification and high defective rate of traditional separate processing equipment. It is the preferred core equipment for road safety facility manufacturers to realize standardized and large-scale production.

With the continuous expansion of global road infrastructure construction, the market demand for high-standard, high-strength and durable highway guardrails is increasing year by year. Overseas road engineering projects in Southeast Asia, Europe, Africa, the Middle East and South America have put forward higher requirements for guardrail dimensional accuracy, structural stability and delivery efficiency. Our automatic highway guardrail roll forming machine is optimized according to international road safety standards, fully adapting to the production demands of different national engineering specifications, helping overseas customers reduce production costs, improve product qualification rate and win more engineering orders.



Complete Production Line Configuration

Our highway guardrail forming machine adopts an integrated modular design, with complete supporting equipment and stable overall matching performance. The standard production line consists of the following core components, which can realize unattended automatic cyclic production:



Automatic Uncoiler: Hydraulic automatic coil loading and unwinding, suitable for large-weight galvanized steel coils and carbon steel coils, with stable feeding and no material deviation



Material Leveling Device: Multi-group straightening rollers eliminate material bending and deformation, ensuring flat raw materials and laying a foundation for precise forming



Servo Feeding & Punching System: High-precision servo feeding, synchronous hydraulic punching, accurate hole position, fully meeting guardrail installation hole standard requirements



Roll Forming Host: 16-24 groups of precision forming rollers, gradual cold bending forming, no material damage, stable profile molding



Hydraulic Flying Cutting System: High-speed fixed-length cutting, no burrs on the incision, adjustable cutting length freely



Automatic Stacking Machine: Finished products are automatically stacked and sorted, saving manual handling time



PLC Intelligent Control Cabinet: Touch screen human-computer interaction, one-key parameter setting, real-time equipment operation monitoring



Core Advantages of Highway Guardrail Forming Machine

Different from ordinary guardrail processing equipment on the market, our guardrail forming production line focuses onhigh speed, high precision, high stability and low failure rate, with outstanding advantages in industrial batch production scenarios, fully complying with international export quality standards:

Dual-Mode Production, Wide Application

This machine supports the integrated production of 2-wave W-beam and 3-wave highway guardrails. Customers only need to adjust the roller parameters and simple die replacement to switch product specifications, realizing one machine with multiple uses. It can produce various standard road guardrails, bridge guardrails and roadside anti-collision barriers, perfectly adapting to different road engineering construction standards in various countries and greatly expanding the product production range of enterprises.

High-Precision Forming, Qualified Rate Up to 99.8%

The forming rollers are made of high-hardness GCr15 bearing steel, which is quenched and wear-resistant, with long service life. Equipped with a CNC precision calibration system, the dimensional error of finished guardrails is controlled within ±0.3mm. The product has smooth surface, uniform wave height and standard hole position, fully meeting the safety inspection standards of international highway projects, effectively avoiding installation errors and engineering quality problems caused by dimensional deviation.

High-Speed Automatic Production, Greatly Improve Efficiency

The equipment adopts frequency conversion speed regulation and servo synchronous control technology, with a production speed of 15-20 meters per minute. The whole process from raw material feeding to finished product stacking is fully automated, with only 1-2 workers required for auxiliary monitoring. Compared with traditional semi-automatic equipment, it saves more than 70% of labor costs, with stable daily output and shortens the product delivery cycle, helping customers undertake large-scale road engineering orders.

Robust Structure, Stable Continuous Operation

The whole machine adopts thickened steel plate integral welding structure, with strong overall rigidity and no vibration or deformation during long-term high-load operation. Key transmission parts are equipped with protective devices, with low failure rate and strong durability. The equipment can adapt to 24-hour uninterrupted industrial production, suitable for high-intensity batch production, and the long-term operation cost is far lower than similar equipment.

Strong Material Adaptability & Custom Support

The production line is compatible with various raw materials such as galvanized steel, hot-dip galvanized steel and carbon steel, with applicable material thickness of 1.0mm-3.0mm. We support personalized customization according to customer needs, including guardrail specification adjustment, production speed upgrading, automatic coding function, and multi-station punching optimization, to meet the differentiated production needs of different overseas markets.

Energy-Saving & Environmentally Friendly, Meet Export Certification

Optimized energy-saving motor and hydraulic system reduce idle energy consumption by 30%. The whole production process is closed cold forming, no dust pollution, no material waste, meeting European and American environmental protection standards. All equipment has passed CE certification, compliant with international export qualification requirements, and can be smoothly exported to global countries and regions.



Working Process

Raw material coil loading → Automatic hydraulic unwinding → Material leveling and correction → Servo fixed-length feeding → Synchronous hydraulic punching → Multi-pass roll forming → High-speed hydraulic cutting → Automatic conveying and stacking → Finished product storage. The whole process is intelligently controlled, with high production continuity and stable product quality, realizing standardized assembly line operation.



Application Scenarios

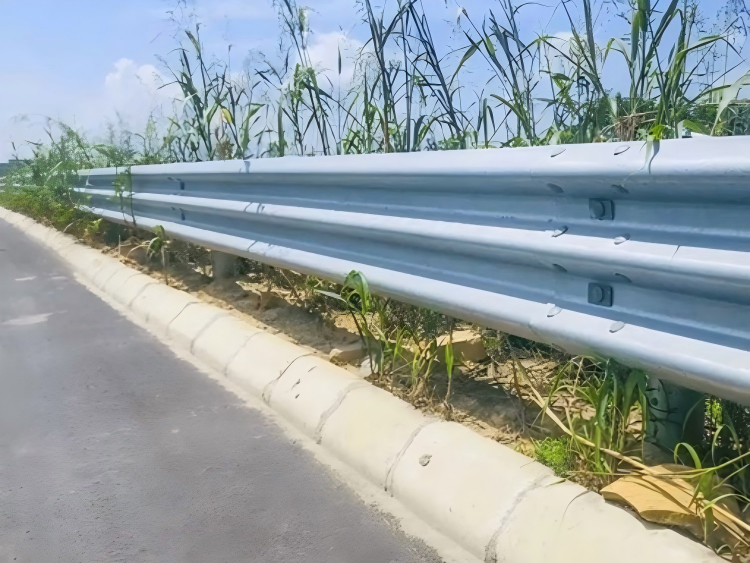

Our highway crash barrier forming machine is widely used in road safety facility manufacturing factories, steel structure processing enterprises, and infrastructure engineering supporting factories. The produced guardrail products are applicable to expressways, national highways, provincial roads, municipal urban roads, highway bridges and tunnel road sections. The equipment and finished products have been successfully exported to Europe, Southeast Asia, the Middle East, Africa, Latin America and other regions, and have been highly recognized by overseas customers for stable performance and reliable quality.
