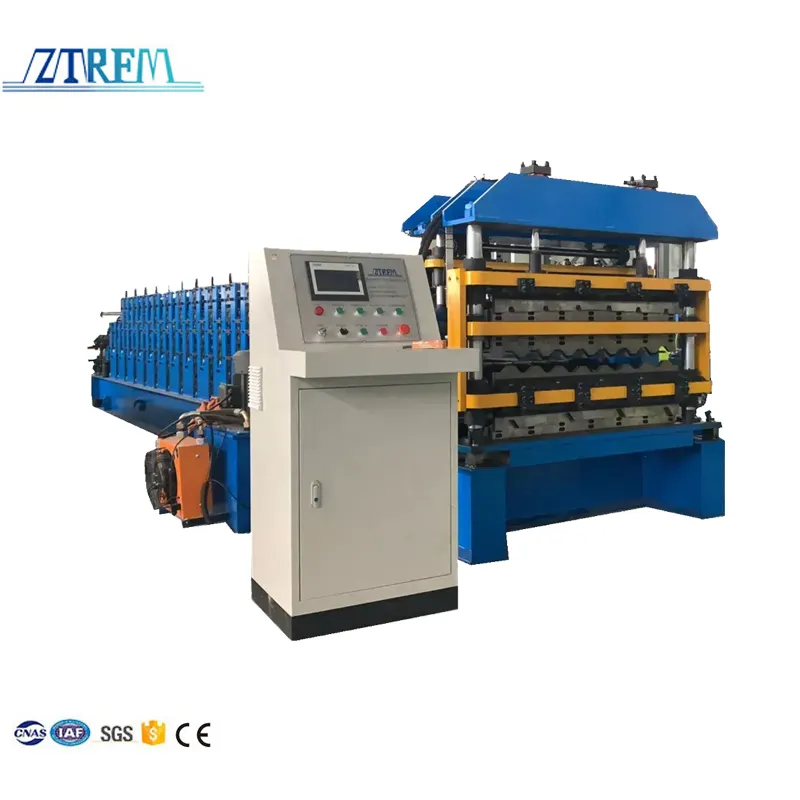

ZTRFM Triple Layer Roll Forming Machine Steel Sheet Panel Roll Forming Machine Roof Tile Making Machine 13kw

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Triple Layer Roll Forming Machine Steel Sheet Panel Roll Forming Machine Roof Tile Making Machine 13kw

Name: ZTRFM Triple Layer Roll Forming Machine Steel Sheet Panel Roll Forming Machine Roof Tile Making Machine 13kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51165517

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

13kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380v 50Hz or as customer's request
Rolling Thinckness
0.3-0.8mm
Feeding Width
1200mm

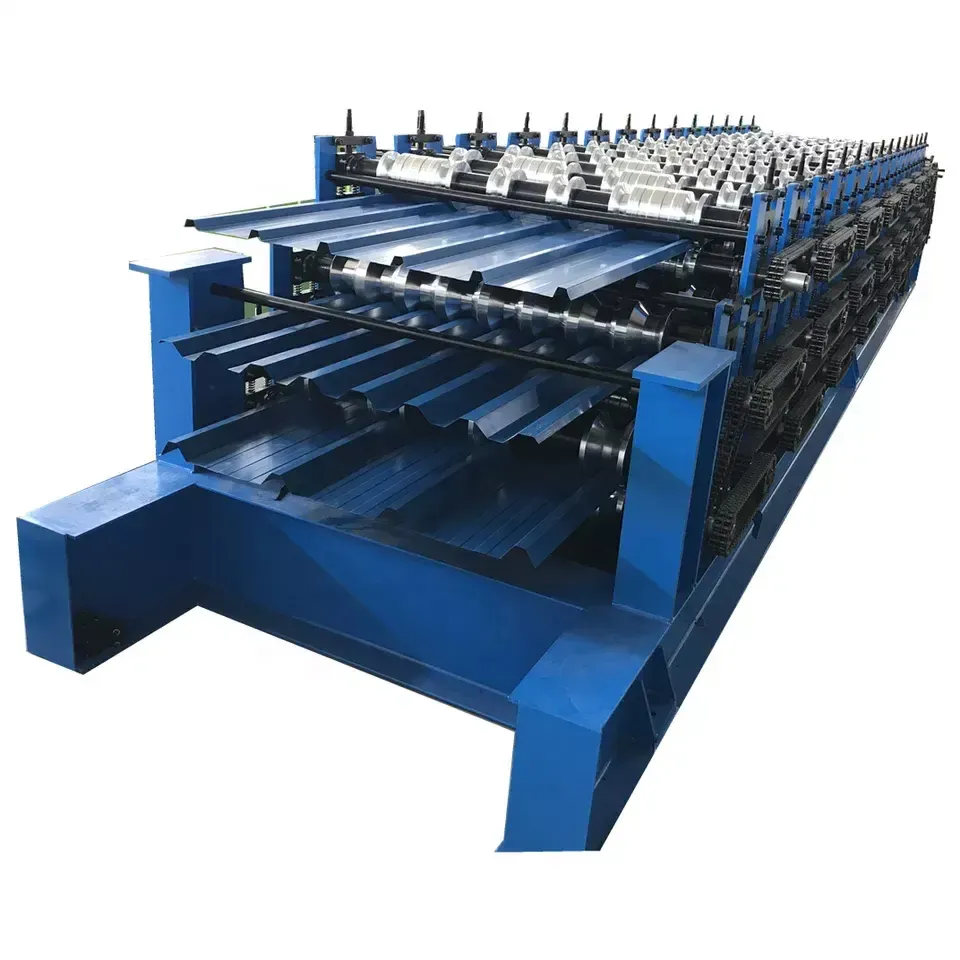

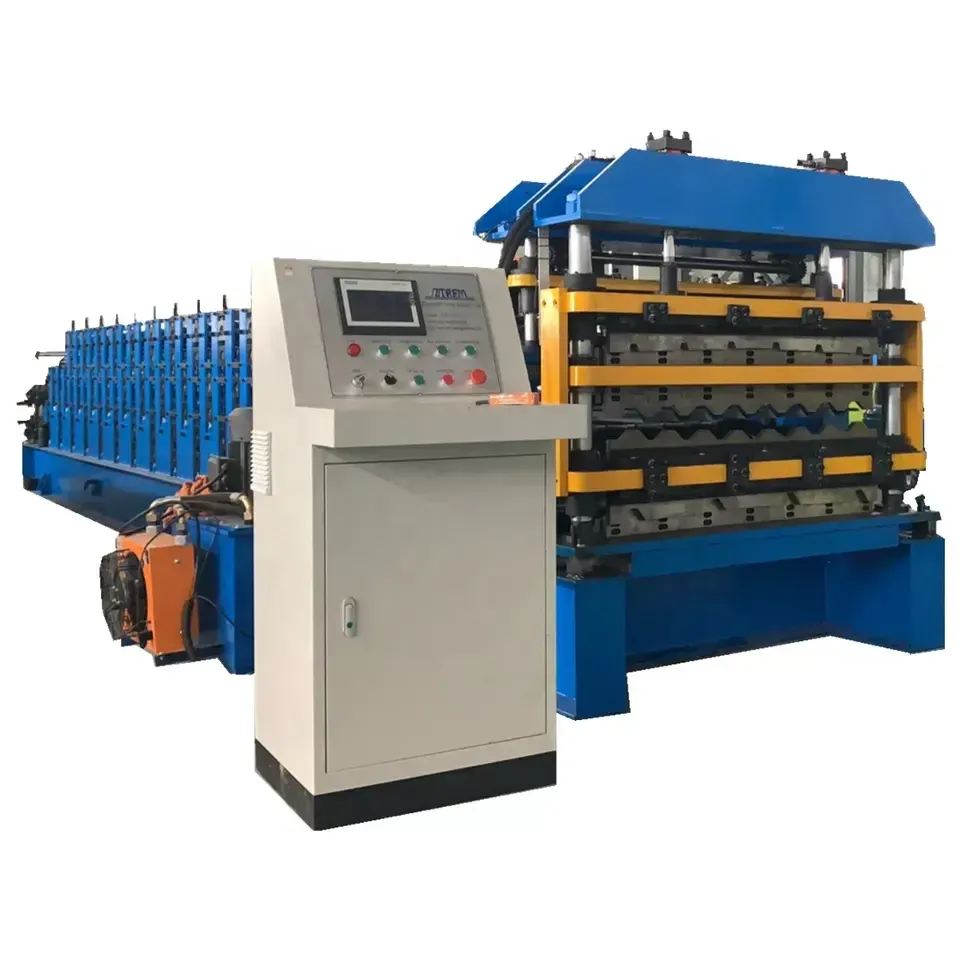

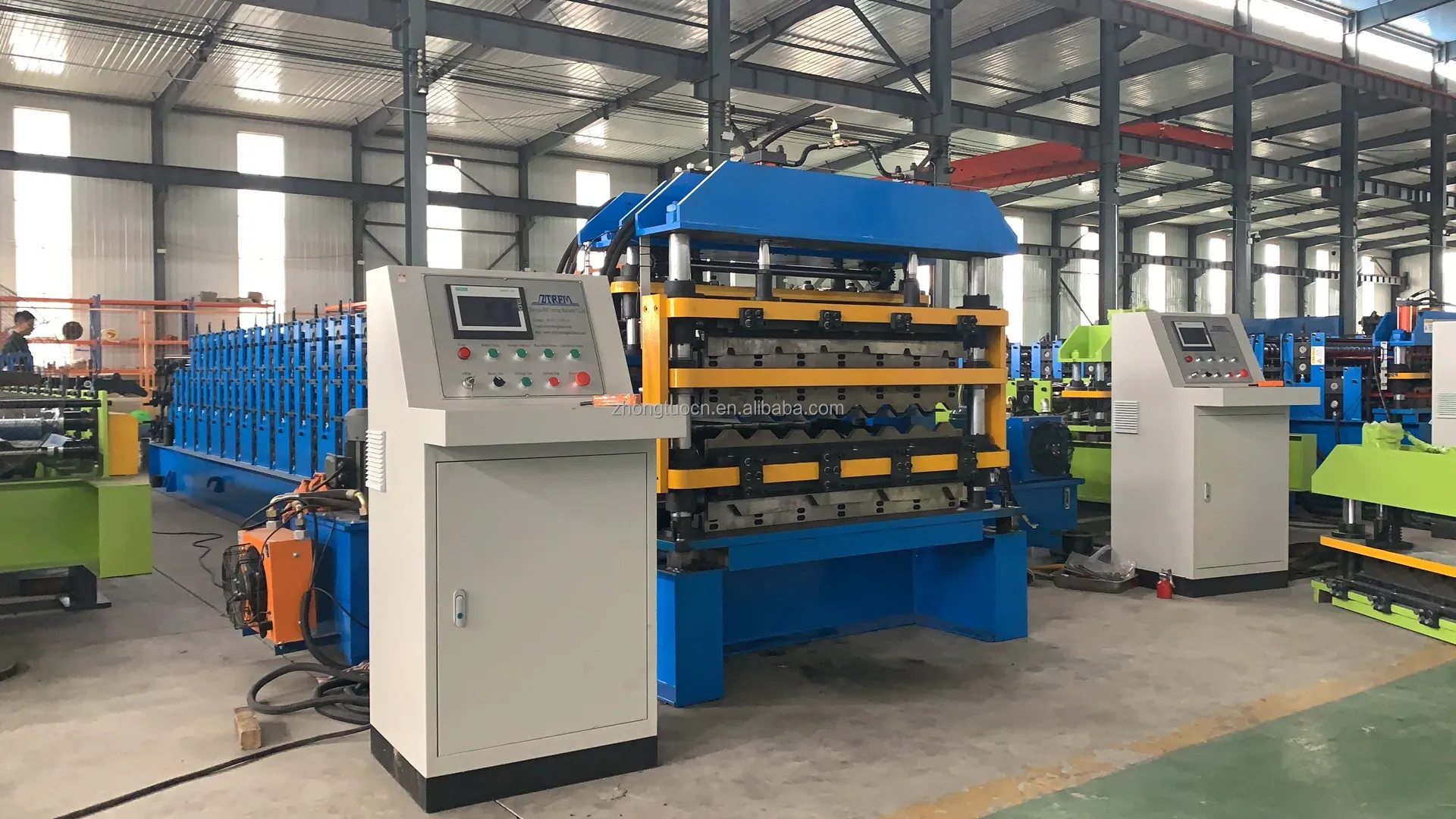

ZTRFM Triple Layer Roll Forming Machine Steel Sheet Panel Roll Forming Machine Roof Tile Making Machine

ZTRFM Triple Layer Roll Forming Machine Steel Sheet Panel Roll Forming Machine Roof Tile Making Machine is the roll forming machine which can produce 3 products in one machine, it has the advantages of saving place and low cost.The finished product can be customized as customer's request.

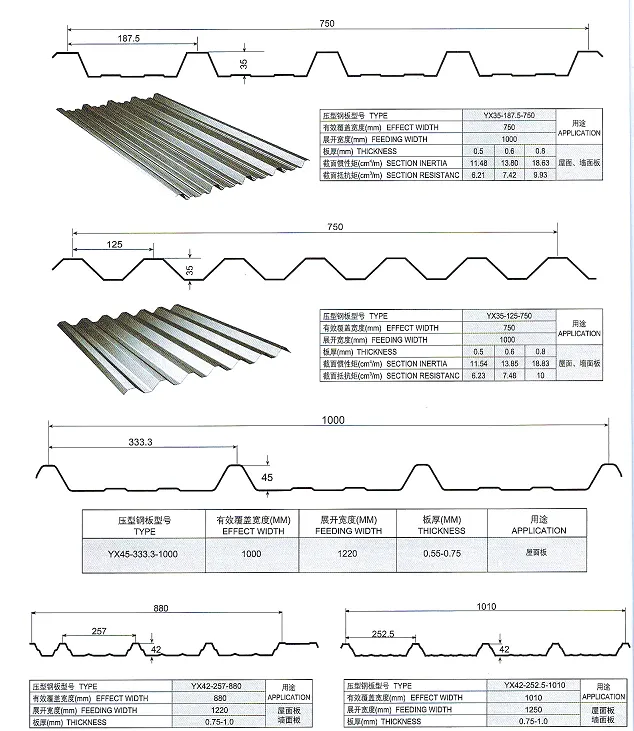

Roofing/wall sheet profile drawing for option:

ZTRFM Triple Layer Roll Forming Machine Steel Sheet Panel Roll Forming Machine Roof Tile Making Machine
Formed Material	PPGI,GI,AI,GL
Thickness	0.3-0.8mm
Roller station	15+17+19 rows(As your requirement)
Diameter of shaft	80mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Drive	Chain transmission
Cutter	cr12mov material, no scratches, no deformation
Motor power	7.5KW
Hydraulic system power	5.5KW
Voltage	380V 50Hz 3Phase(As your requirement)
Cutting type	Hydraulic cutting
Forming Speed	15-20m/min(The speed is adjustable)

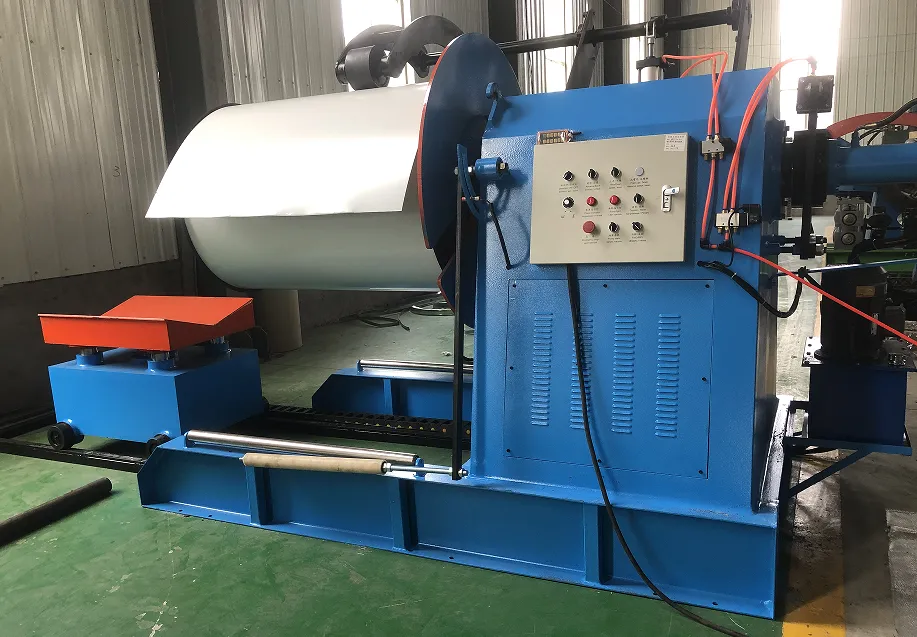

Hydraulic decoiler

1. Automatic working
2. Hydraulic expansion
3. With press arm to keep the coil from loosing
4. With braking system and speed sensor to match the speed with other machines

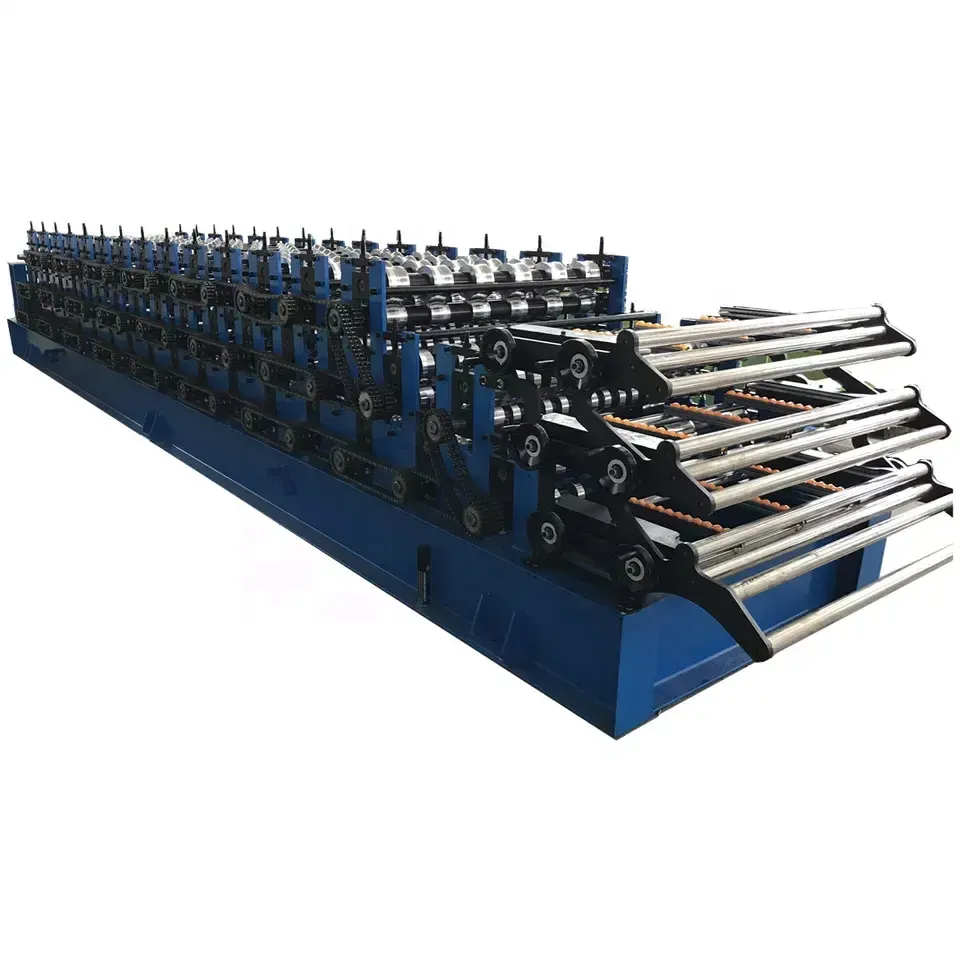

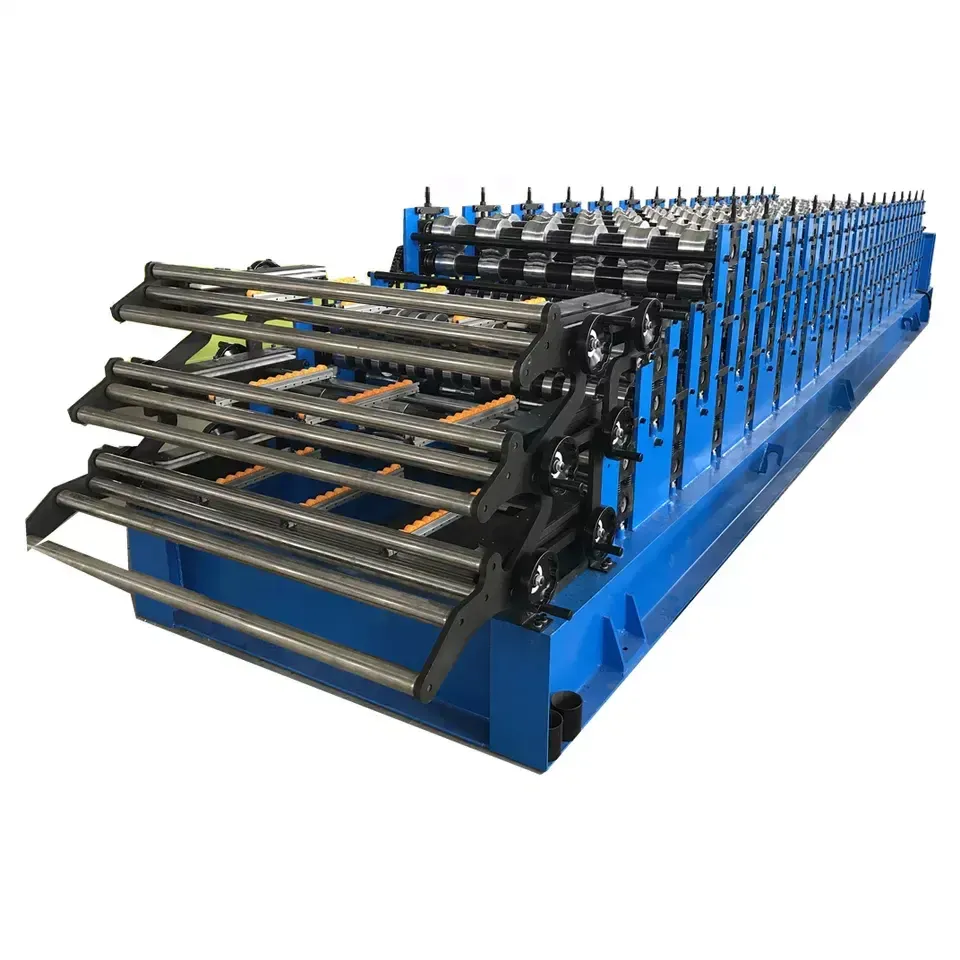

Entry Beach

Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

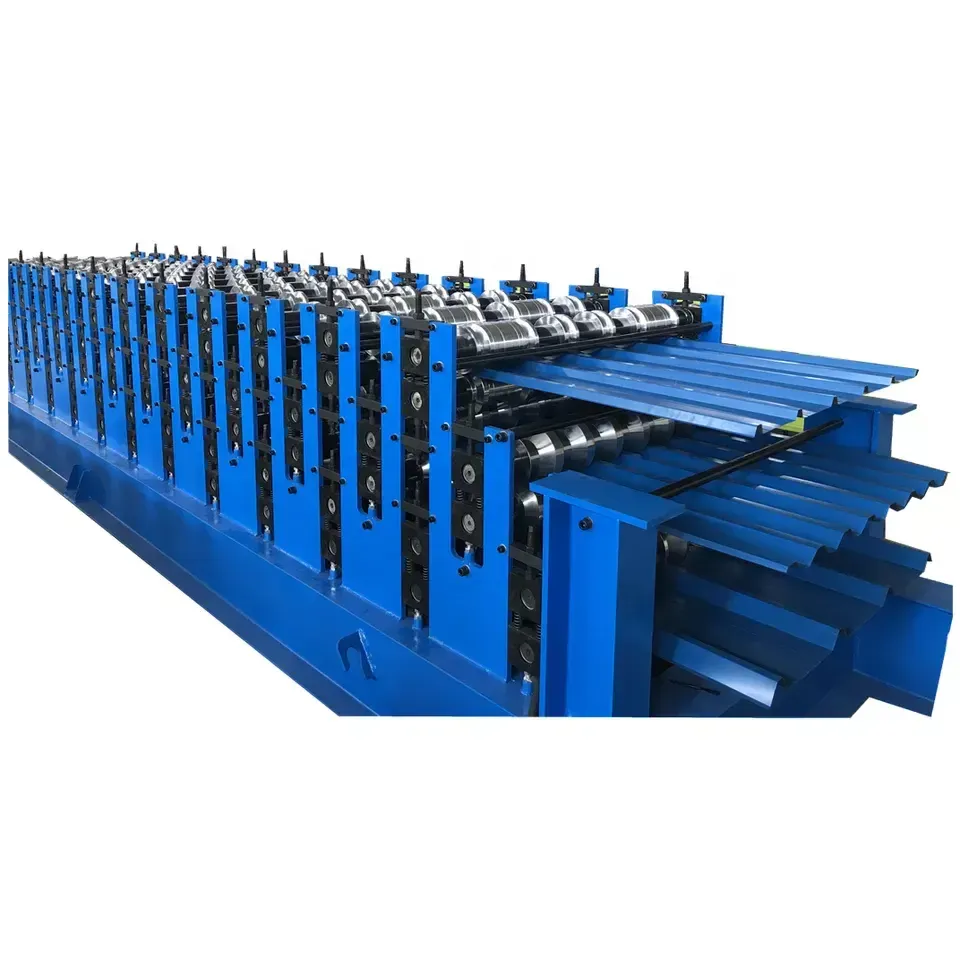

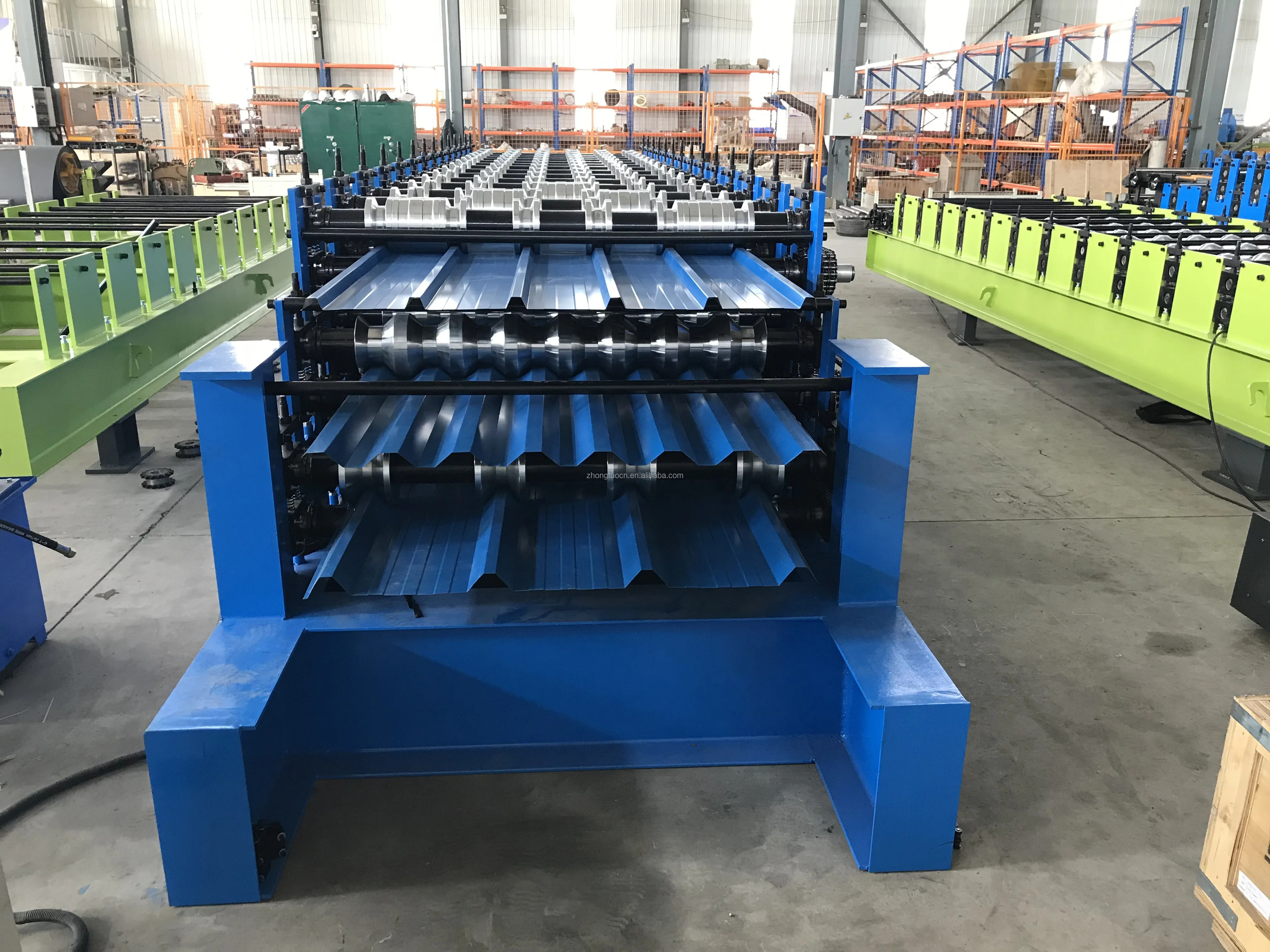

Roll forming machine

Feature: Ensure stability , precision and lifetime.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

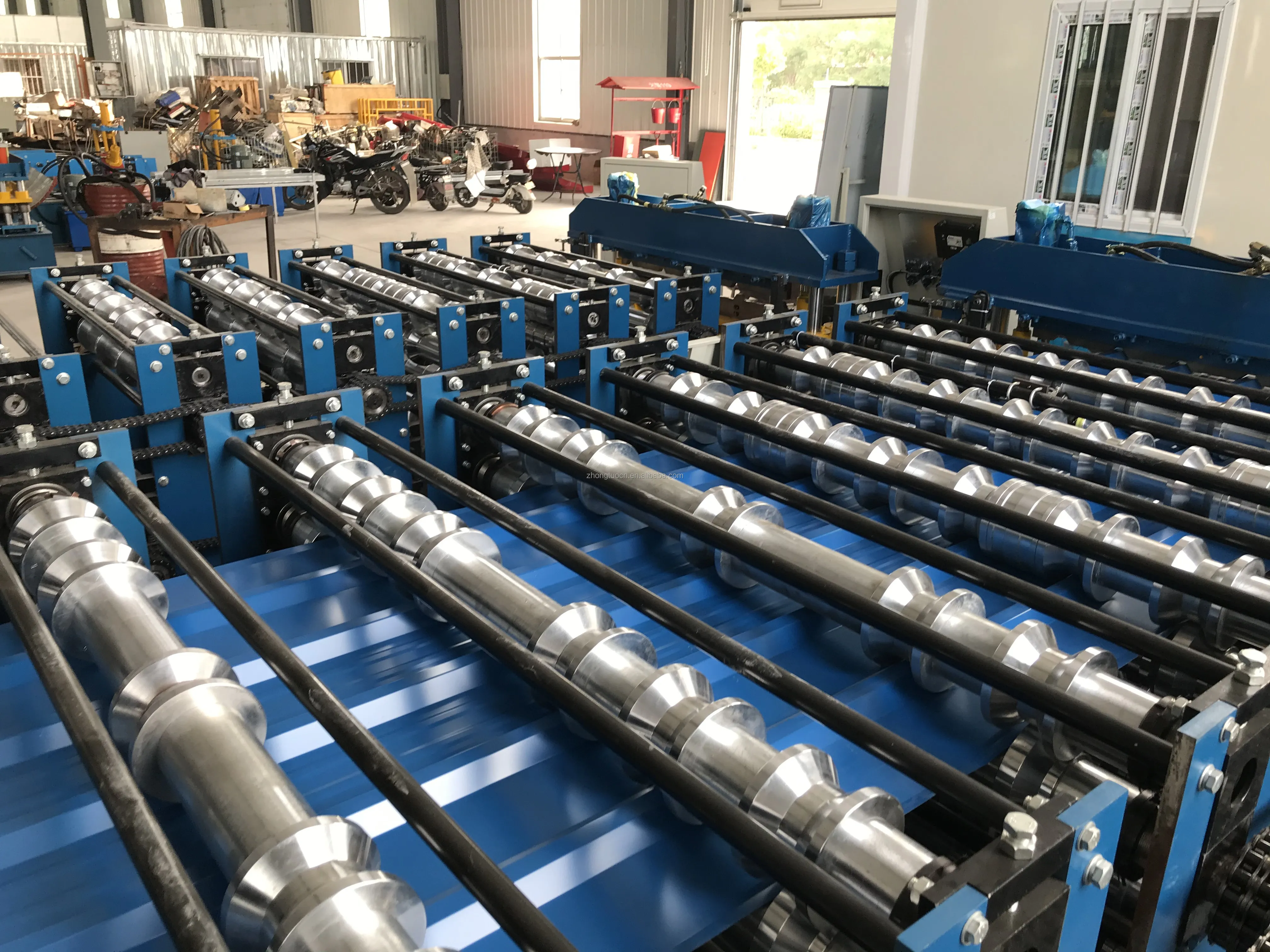

Rollers

1. Surface with chromed treatment
2. Material: 45# steel

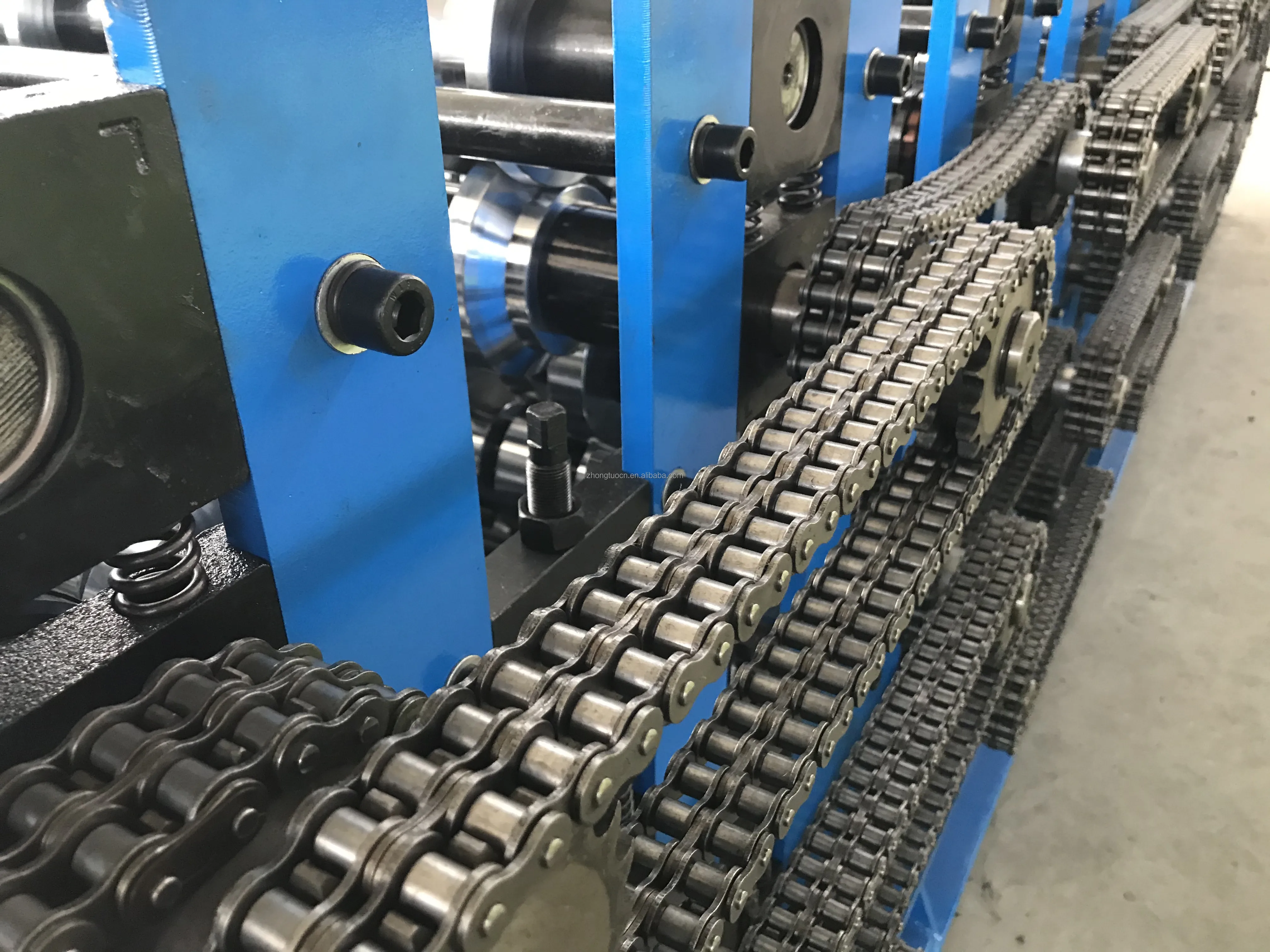

Transmission: Double chains

Gear and double chain drive, strong and stable.

Cutting system

1. Work type: Hydraulic cutting
2. Hydraulic oil number: 46#
3. Cooling method: Equipped with fan on the tank
4. Cutter material: GCr12 with heat treatment
5. Cutting length tolerance: ±1mm/3m

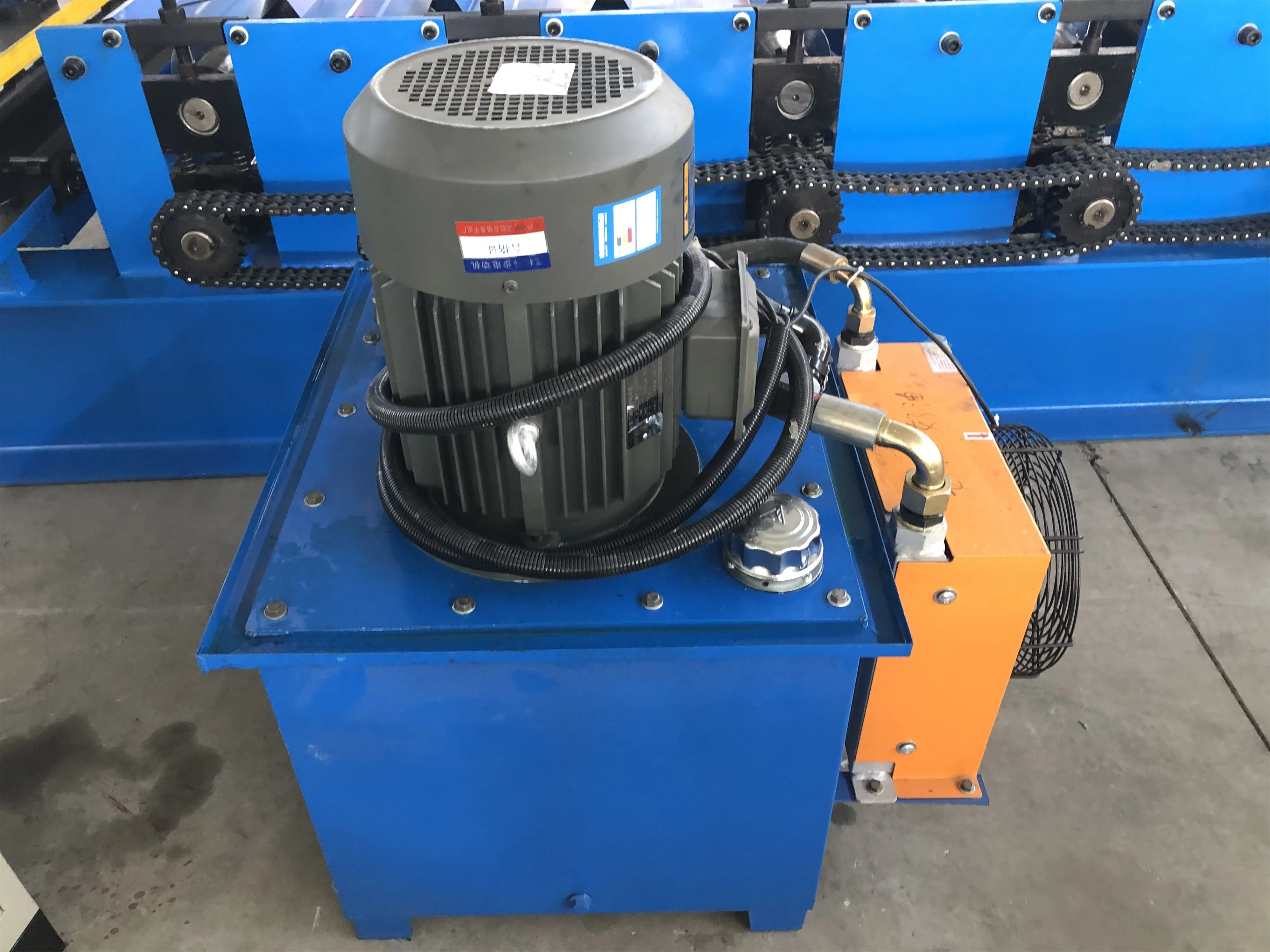

Hydraulic system

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

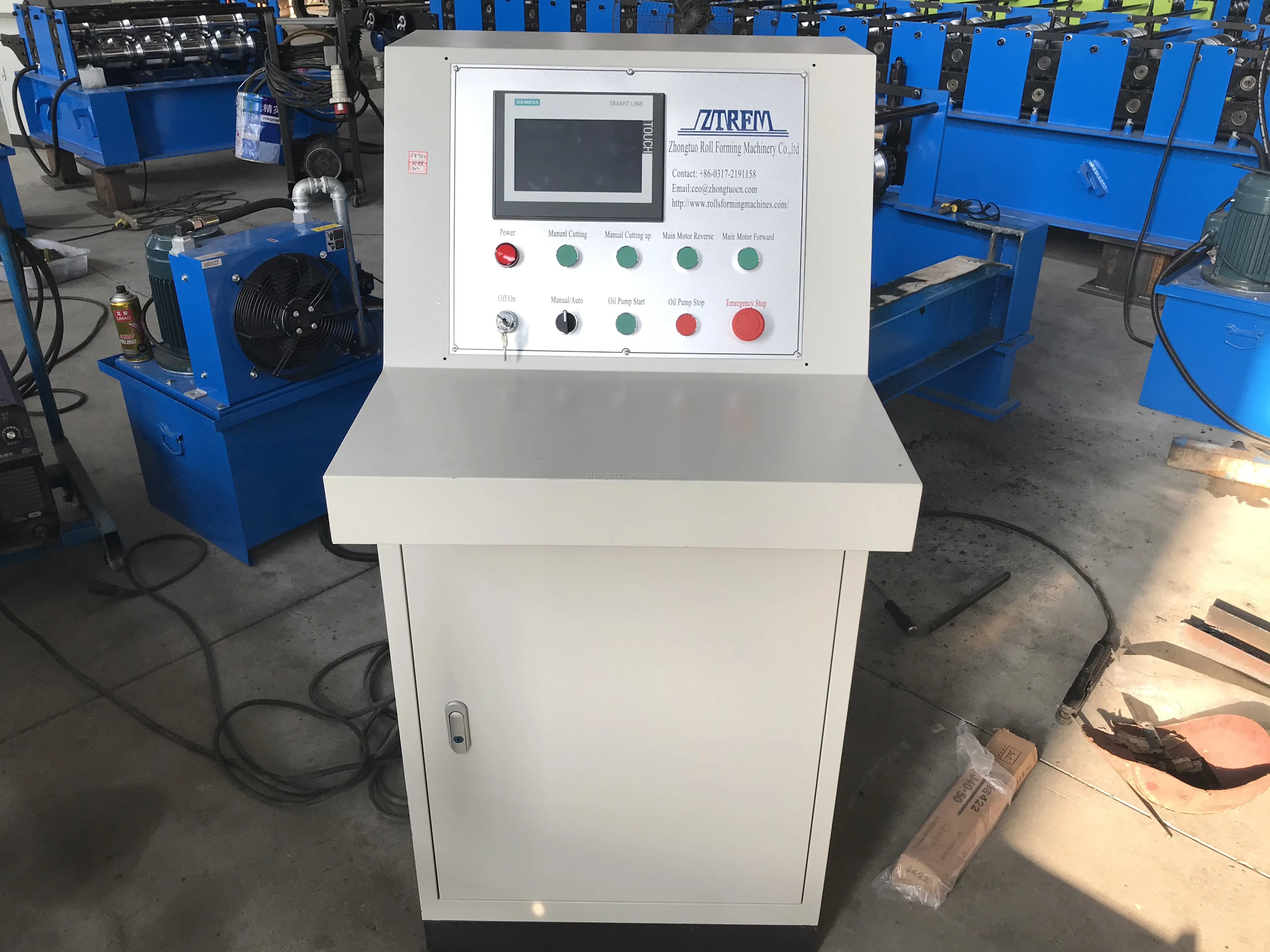

PLC control system

Feature: Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

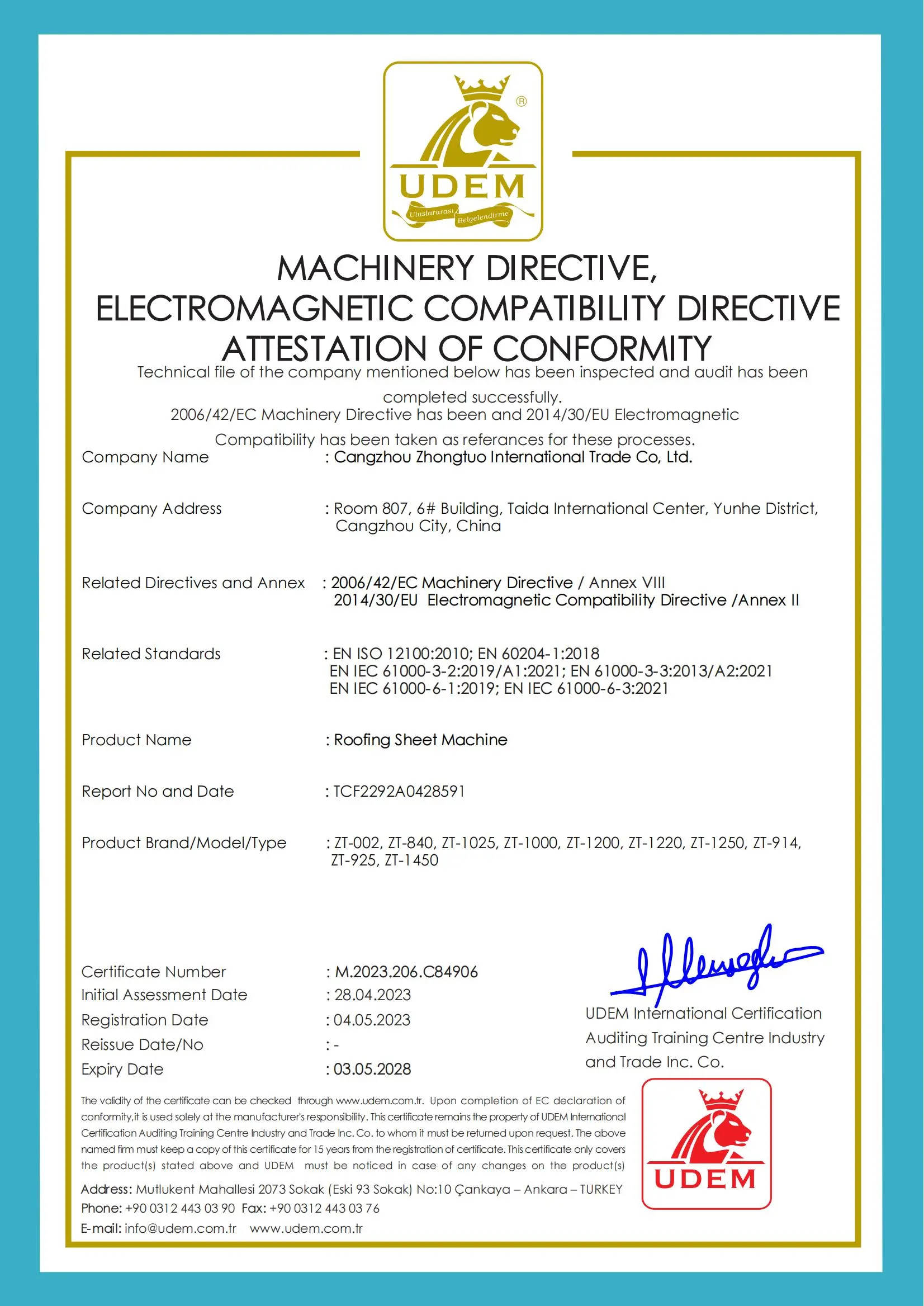

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
