Technical Specifications

Work Pressure
380V/50Hz/3Phases
Voltage
380V/50HZ 3Phase
Power(W)
7.5 kw

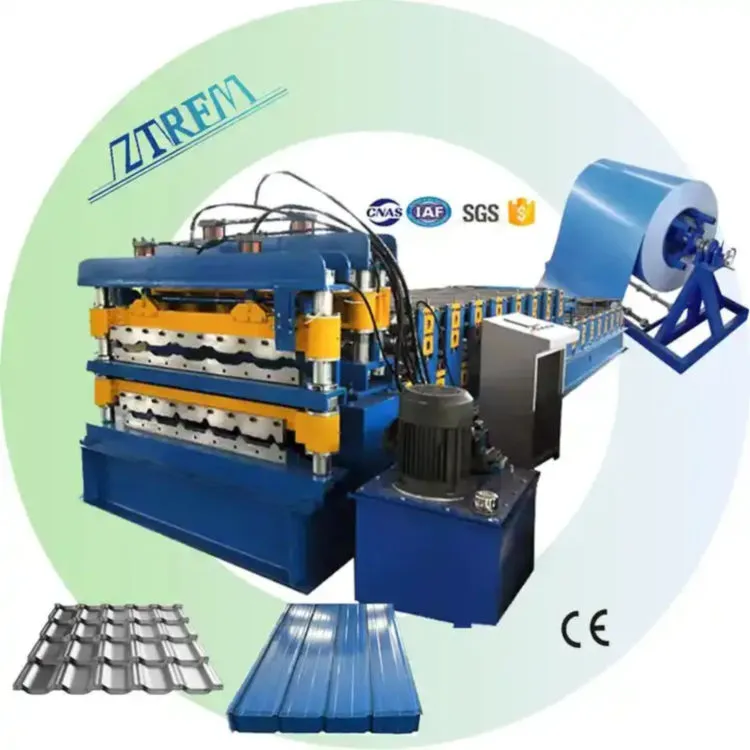

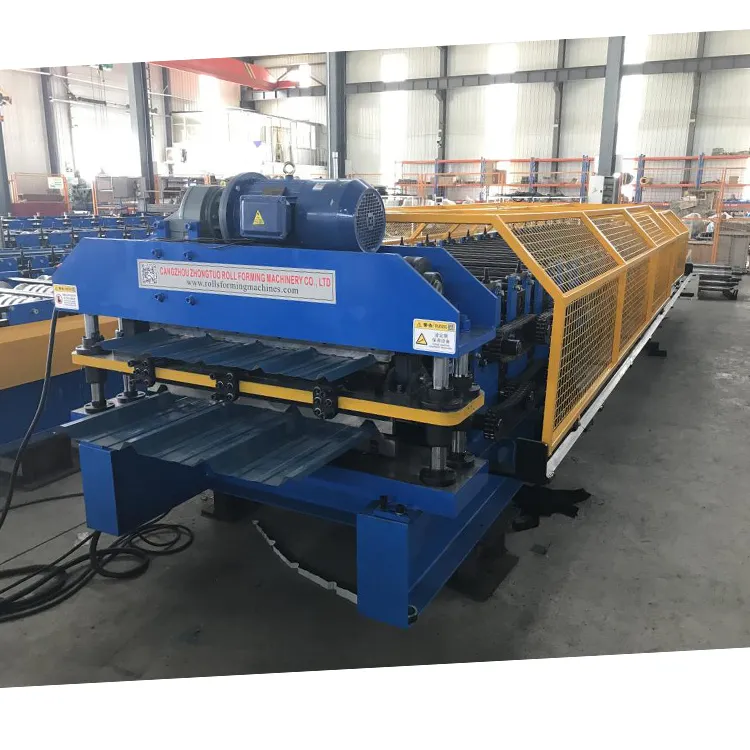

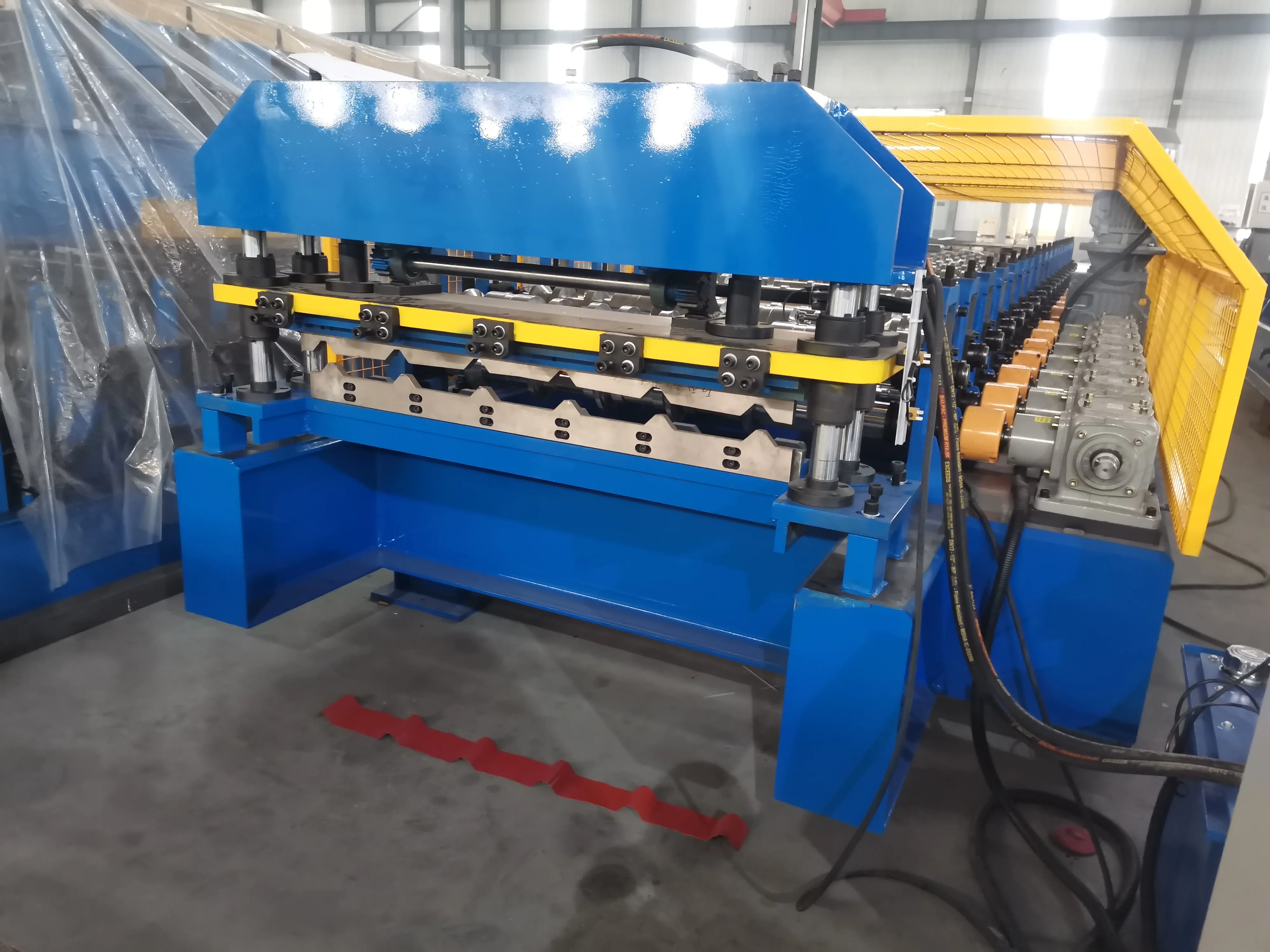

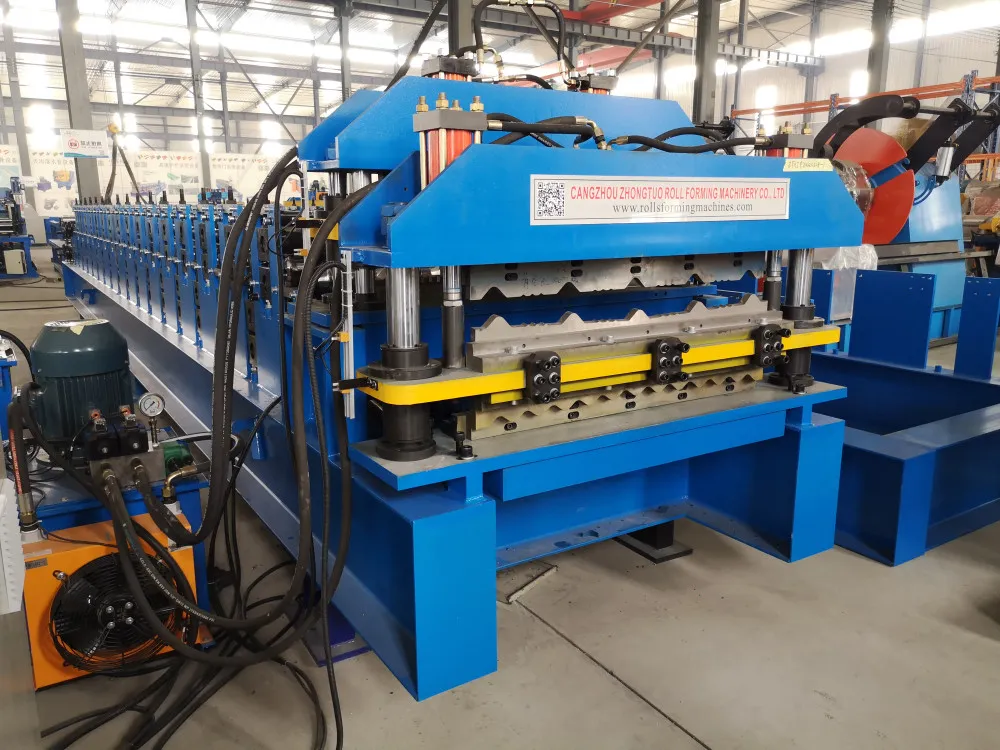

USA hot sale double layer PBR metal roof tile roll forming machine

PBR roll forming machine consists of six parts:Decoiler system,Main roll forming system,PLC control system,Shearing system,Hydraulic station,Feeding device.This is the equipment that mainly produces trapezoidal tile.It is very common in our daily life.Such as work shop,warehouse,carport,portable house.Everything has its two sides,of course it does.Its advantages are light weight,high strength,heat insulation,easy installation,bright colors and waterproof.It is adjusted to cut two different sheets.

Working flow:

N/M	Name	Specifications
Manual decoiler	Carry weight	7000kg
		Equipment	Handwheel(contribute decoiling) and brake(avoid the deposition)
		Price	Free as gift
Main roll forming system	Machine dimension	9.5m1.65m1.5m
		Work voltage	380V/50Hz/3Phases
		Main power	7.5KW
		Feeding thickness	Material thickness: 0.3mm-0.8mm
		Material of roller	45#steel,forging with surface hard chrome plating
		Roller shaft	Φ80mm solid
		Material	PPGI,PPGL
		Number of roller stations	16+17
		Main frame	350H Beam
Cutting device	Cutting blade	Cr12 quenched HRC58-62
		Cutting length tolerance	±1mm/3m
		Cutting type	Hydraulic cutting
PLC Control system	Brand	Delta
PLC Control system		Operation	Touch screen

Hydraulic Cutting Blade

1.Material of blade: Cr12mov quench treatment

2.Length measuring: automatic encoder measuring

3.Tolerance of length is 3000mm+- 1.0mm
You can manually adjust the cutter to cut different sizes of c/z purlin. You do not need to change new blade and this cutter is easy to operate.

PLC Control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen

● Encoder brand:Omron

● Electrical components:Schneider

● Operating
language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

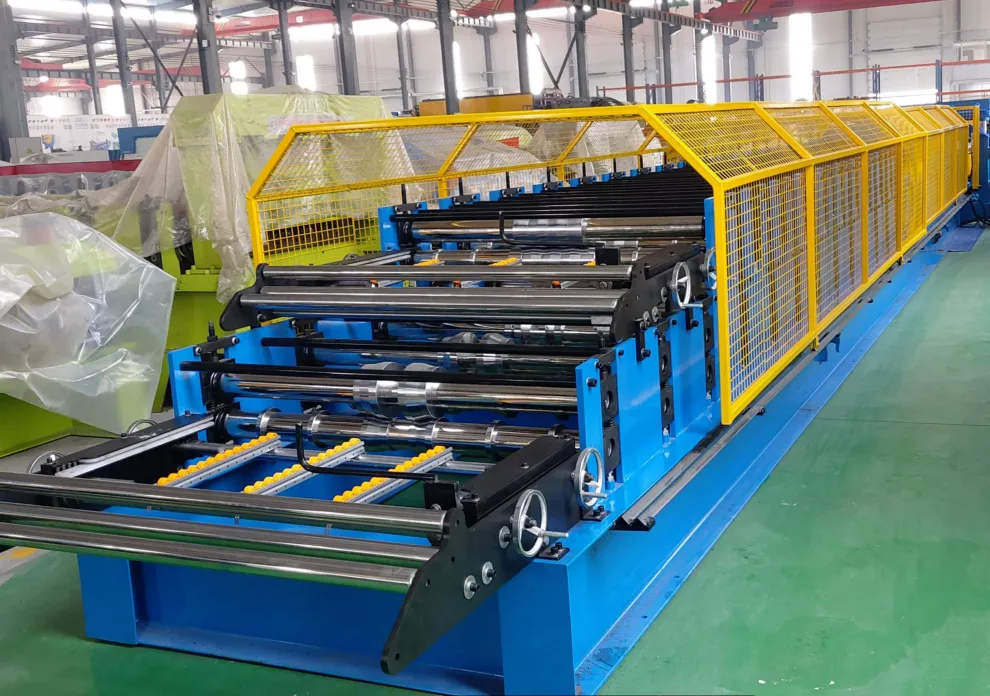

Feeding device

1.Hand wheels on both sides can be used to adjust the feeding width.

2.Four stainless rollers can make the material go into the
machine smoothly and prevent the scratch on the material surface.

3.There are three rows of orange plastic rollers can make the
steel coil go into the machine smoothly.

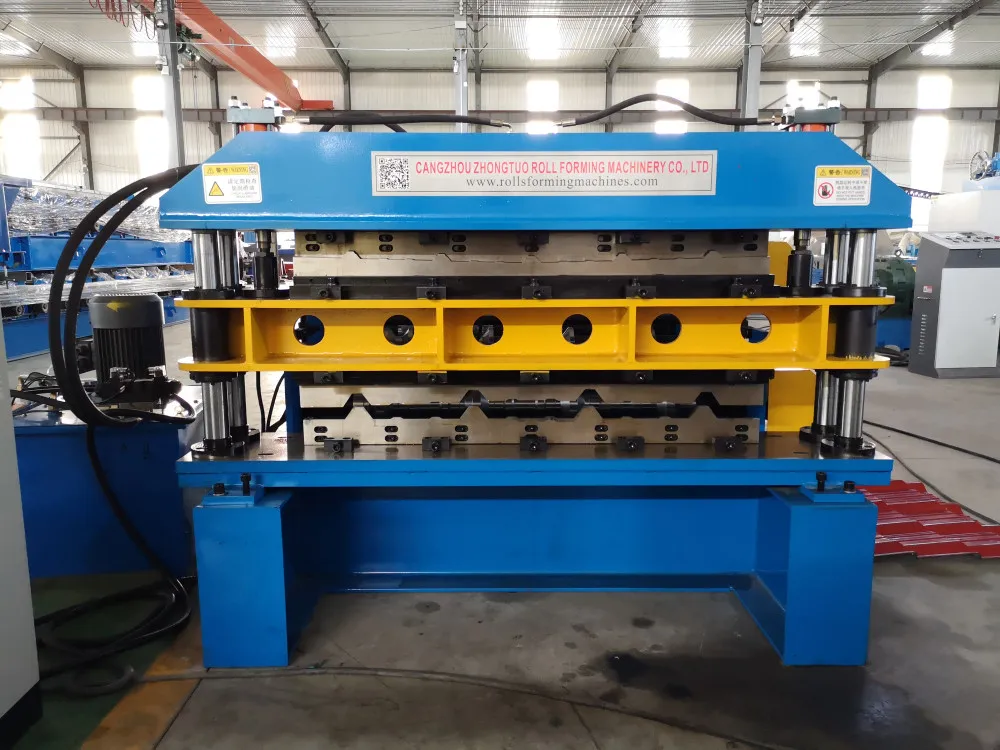

Roll Forming And Transmission Device

Rollers material: Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning

Roller stations: 16+17 rows

Shaft material:Shaft material: 40 Cr CNC processing HRC 28-32 ,finish turning and electroplate
Drive by Heavy duty chains: 1.5 inch

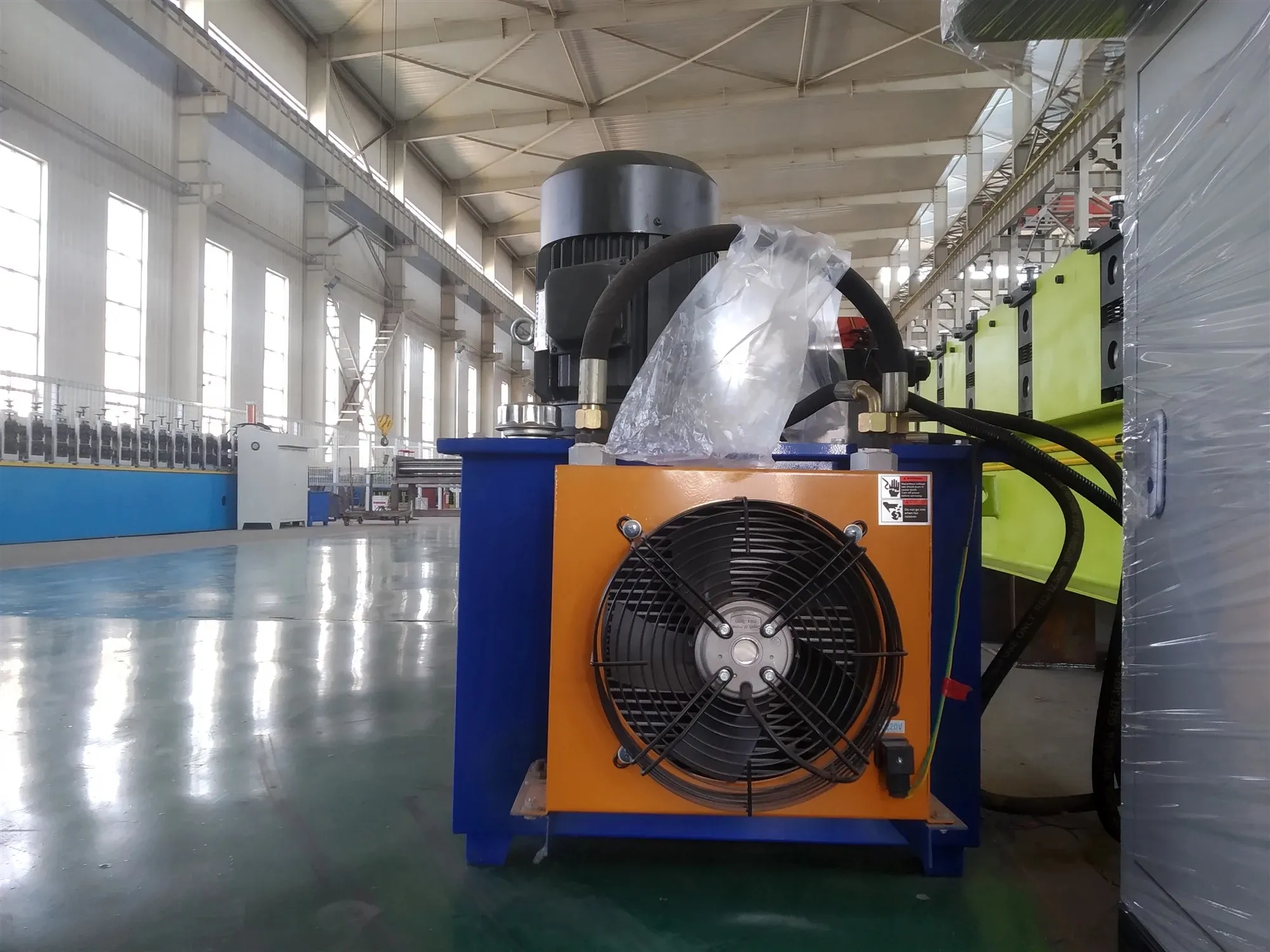

Hydraulic station

● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil
● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism
valve

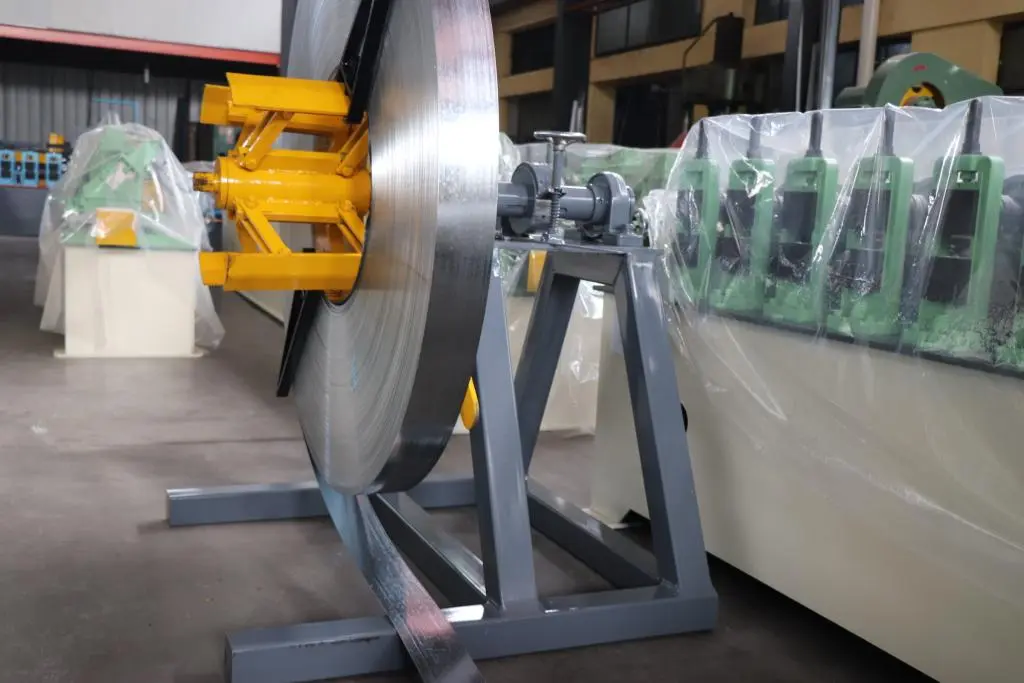

Manual decoiler

Capacity: 7 tons Coil inner diameter:450-550mm Feeding width: max 500mm Structure: welded by the steel plates and profiled bar.The shrink and expand of core is manually, with manual brake,The coil moving forward or reverse is pulled by roll forming machine.This one can be given as a free gift.

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
