ZTRFM Standing Seam Roofing Panel Roll Forming Standing Seam Roof Panel Machine Metal Roof Seamer Machine 15kw

Cangzhou Zhongtuo International Trade Co., Ltd

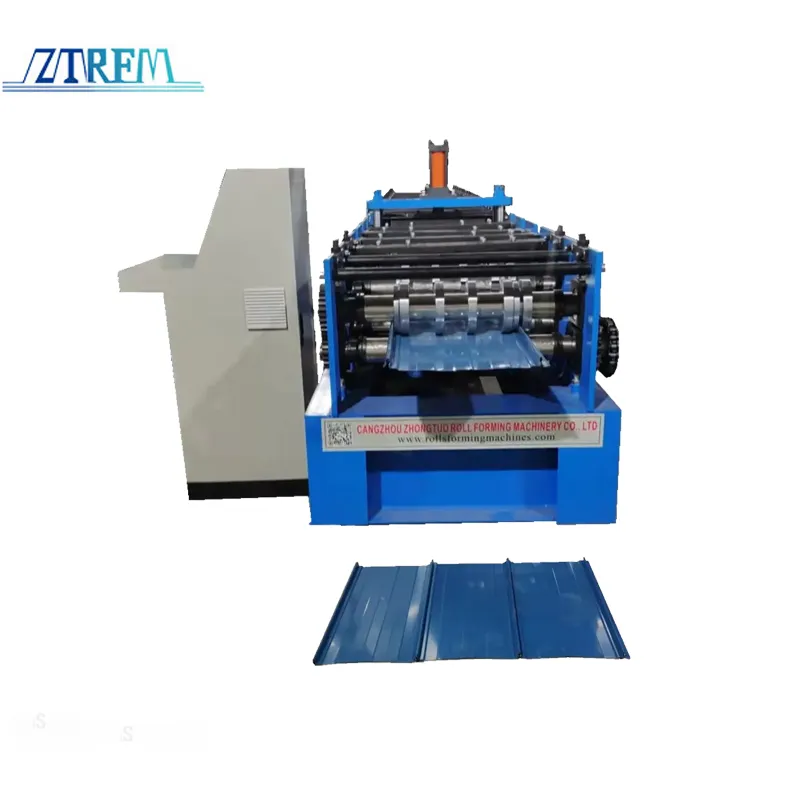

ZTRFM Standing Seam Roofing Panel Roll Forming Standing Seam Roof Panel Machine Metal Roof Seamer Machine 15kw

Name: ZTRFM Standing Seam Roofing Panel Roll Forming Standing Seam Roof Panel Machine Metal Roof Seamer Machine 15kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT60320826

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

15kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380V,50HZ,3P
Rolling Thinckness
0.4-0.8mm
Feeding Width
610mm

ZTRFM Electric Roof Seamer Roofing Machine Roll Forming Lock Roofing Sheet Machine Roll Forming

Advantages of the Machine:

1. Motor install inside of the machine,which can save place for customer.
2. Control station installed in the machine, in this way, when the machine arrive at customer's factory,it doesn't need to contact wire any more. Very easy to install and operate.
3. Add the pre-cutter in the front of the machine, which can reduce the waste material for customer.
4. Spacers are also chromed, which can improve the hardness and enlong the useage of the machine.
5. Automatic changing size.

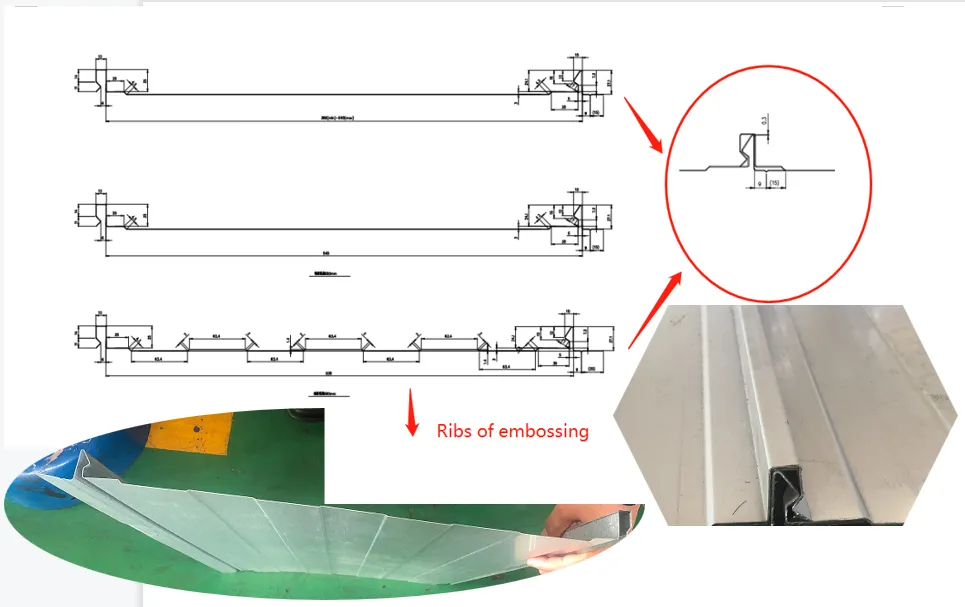

Profile drawing for reference:

ZTRFM Electric Roof Seamer Roofing Machine Roll Forming Lock Roofing Sheet Machine Roll Forming
Formed Material	PPGI,GI,AI
Thickness	0.3-0.8mm
Roller station	18 rows(As your requirement)
Diameter of shaft	70mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Drive	Chain transmission
Cutter	cr12mov material, no scratches, no deformation
Main power	5.5kw
Voltage	380V 50Hz 3Phase
Control system	PLC
Forming Speed	15-20m/min

Feeding Part

1. With handwheels for easy adjustable
2. Equipped with 2 plastic bands in the middle of the platform and two pinch plates to feed the material, prevent the material surface from being damaged, and feed the material more easily and quickly

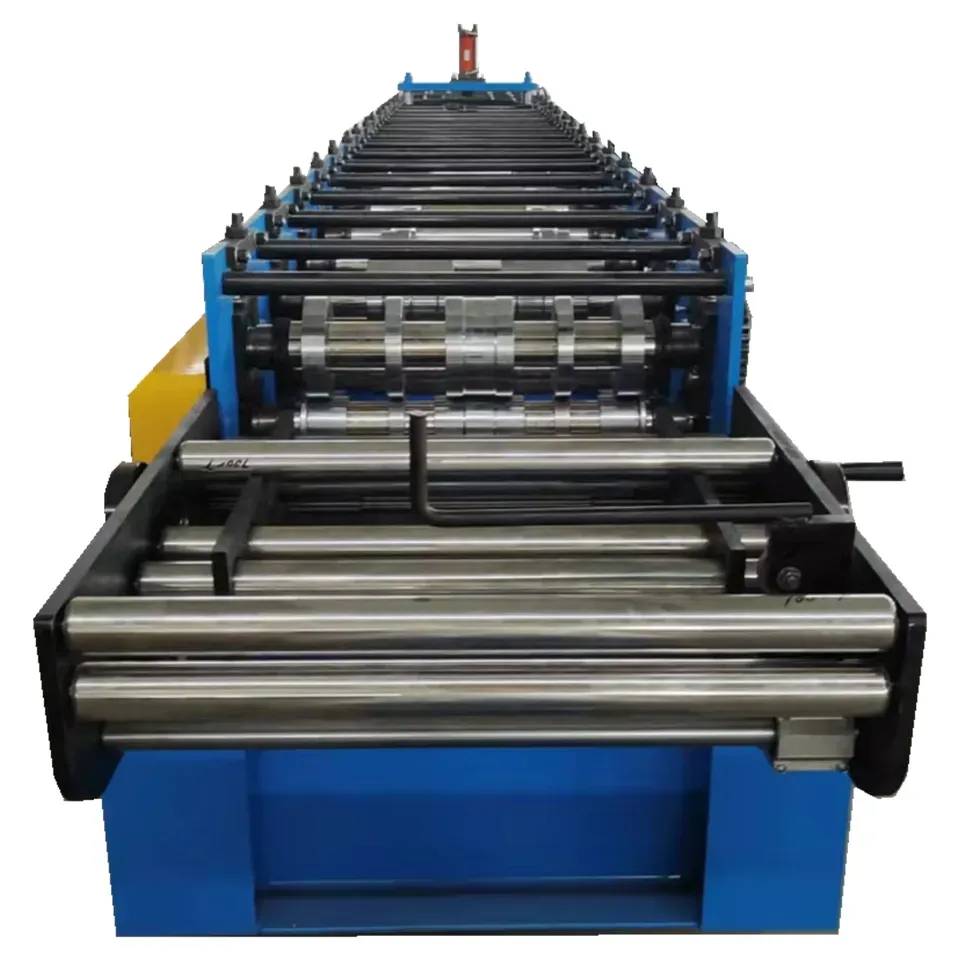

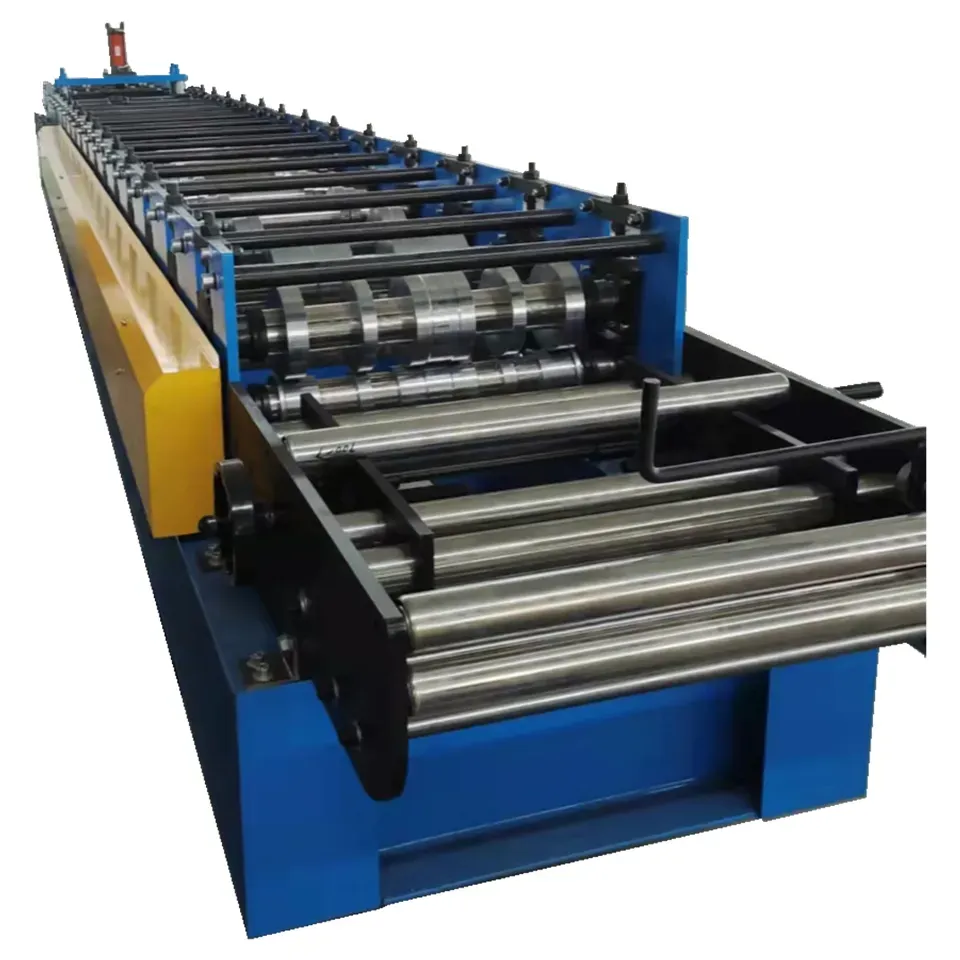

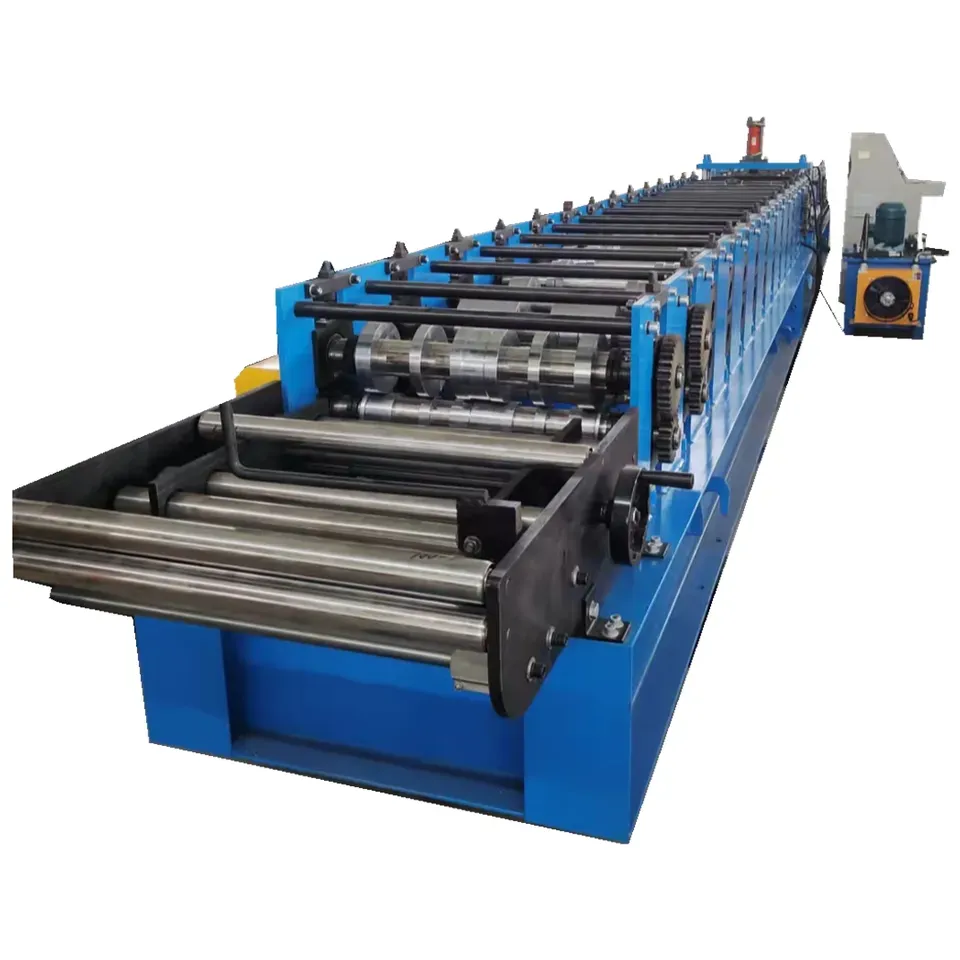

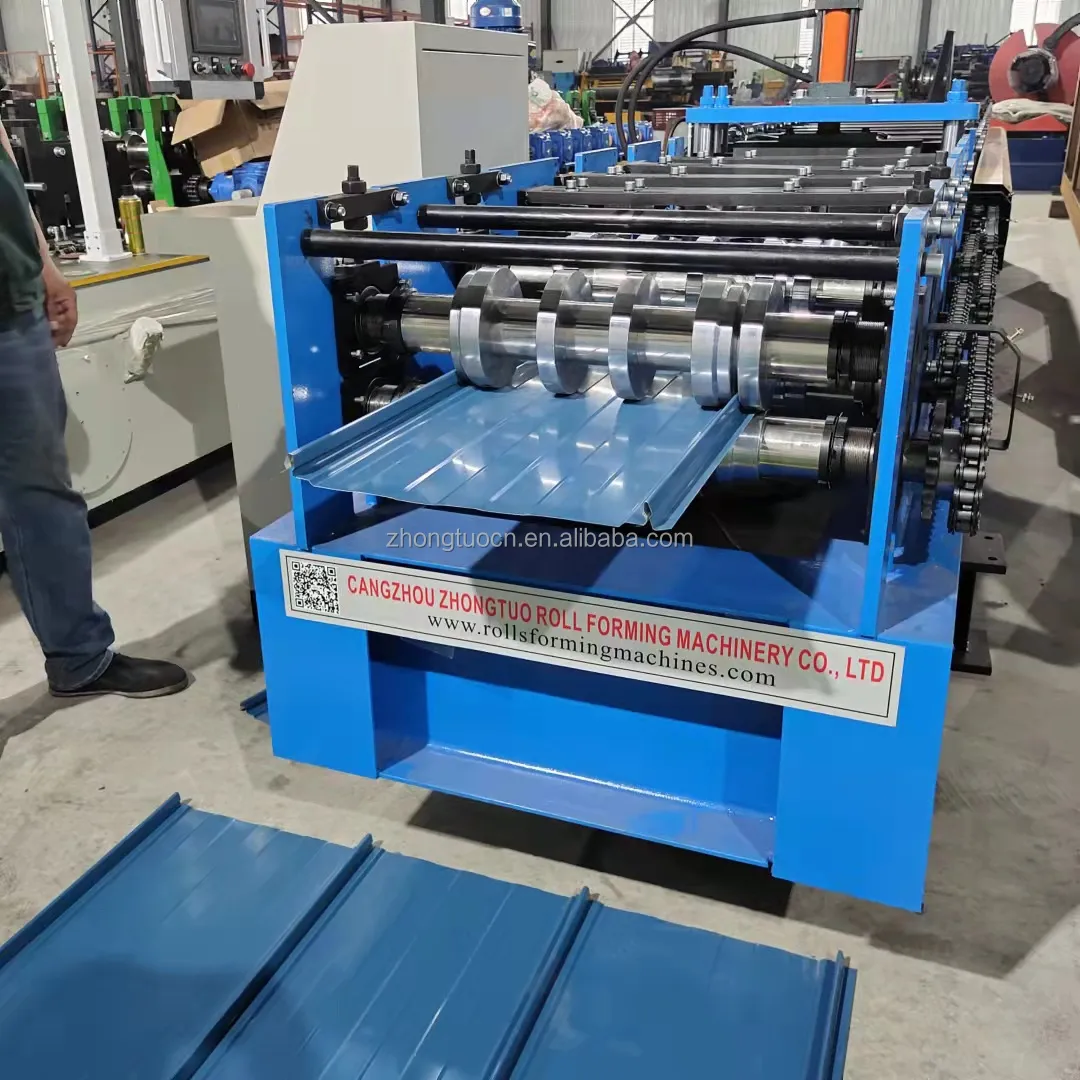

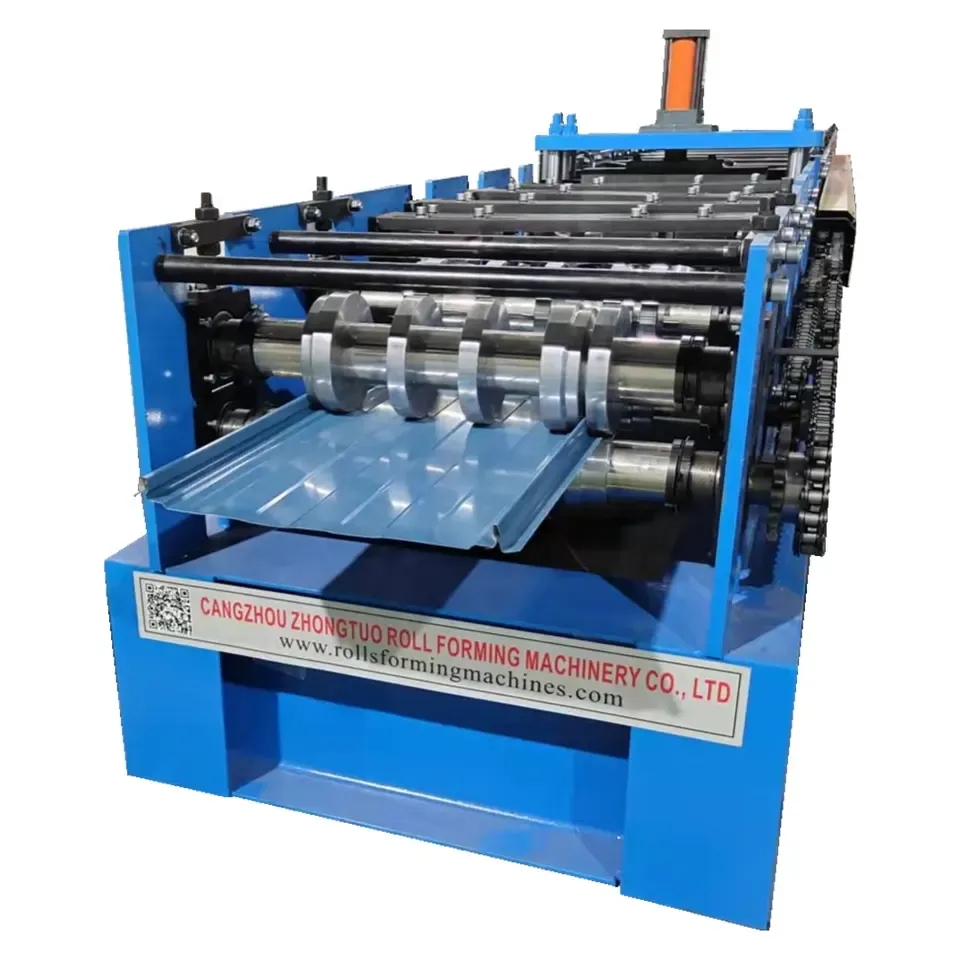

Main Roll Forming Machine

1. Roller station: 18 rows(As your requirement)
2. Diameter of shaft: 70mm solid shaft
3. Material of rollers: 45# steel, hard chrome plated on the surface
4. Machine body frame: 350 H steel
5. Drive: Chain transmission

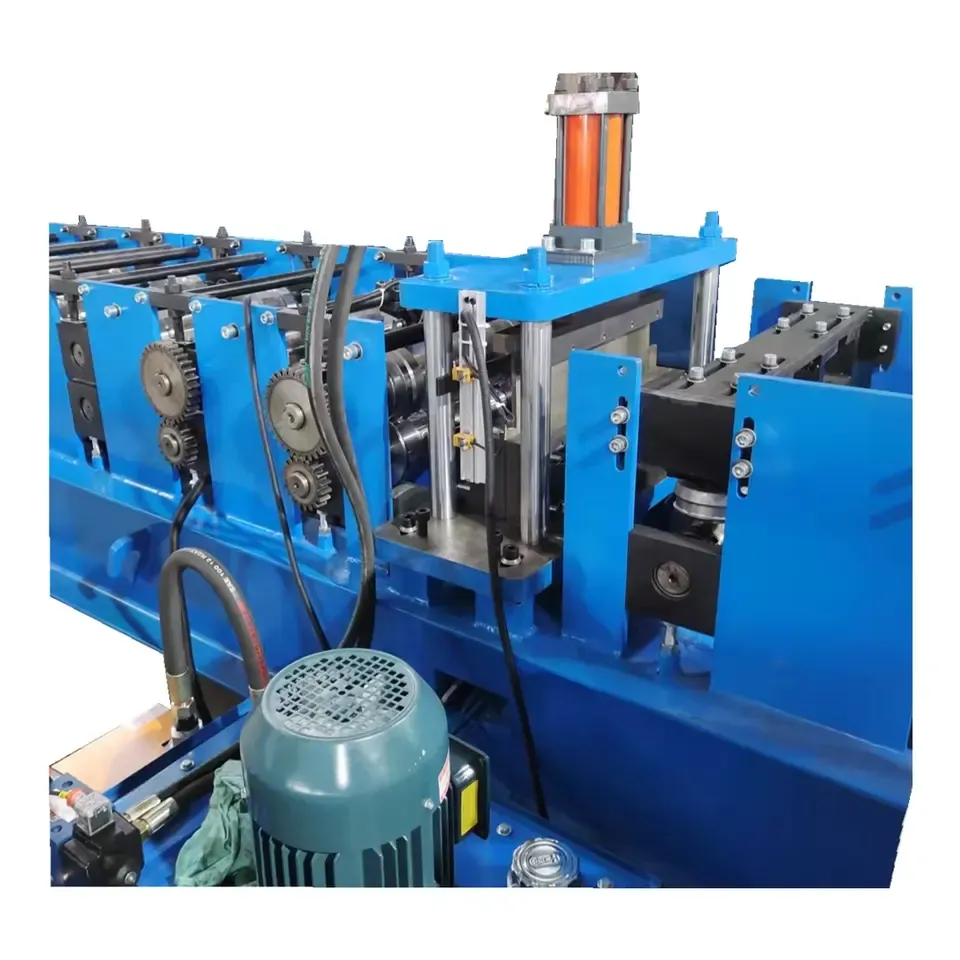

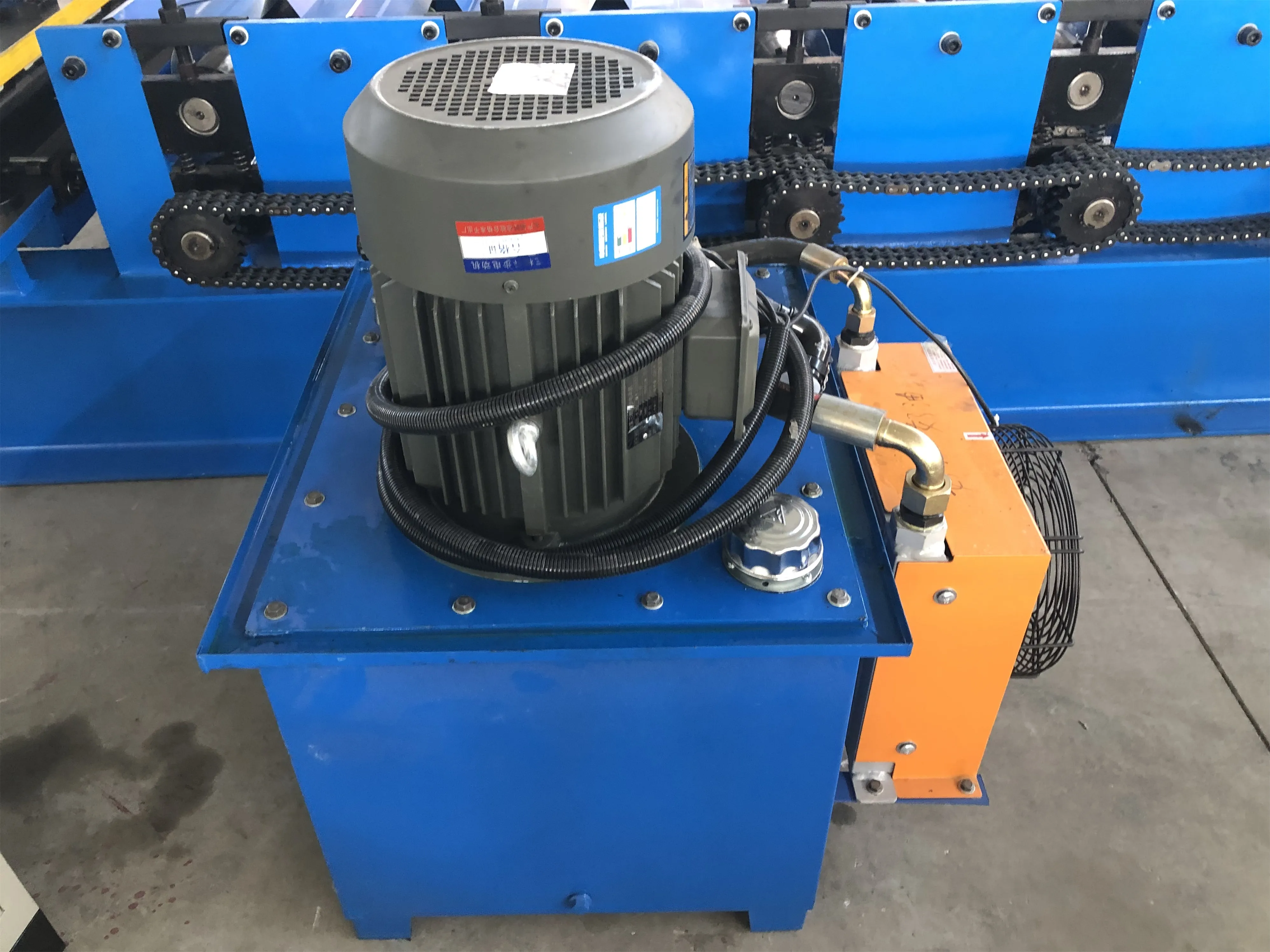

Hydraulic station

1. Hydraulic station motor: 5.5KW
2. Hydraulic oil: 46# hydraulic oil
Components: The system includes a set of hydraulic tank , a set of hydraulic oil pump, four hydraulic pipes, and two sets of electromagnetism valves.

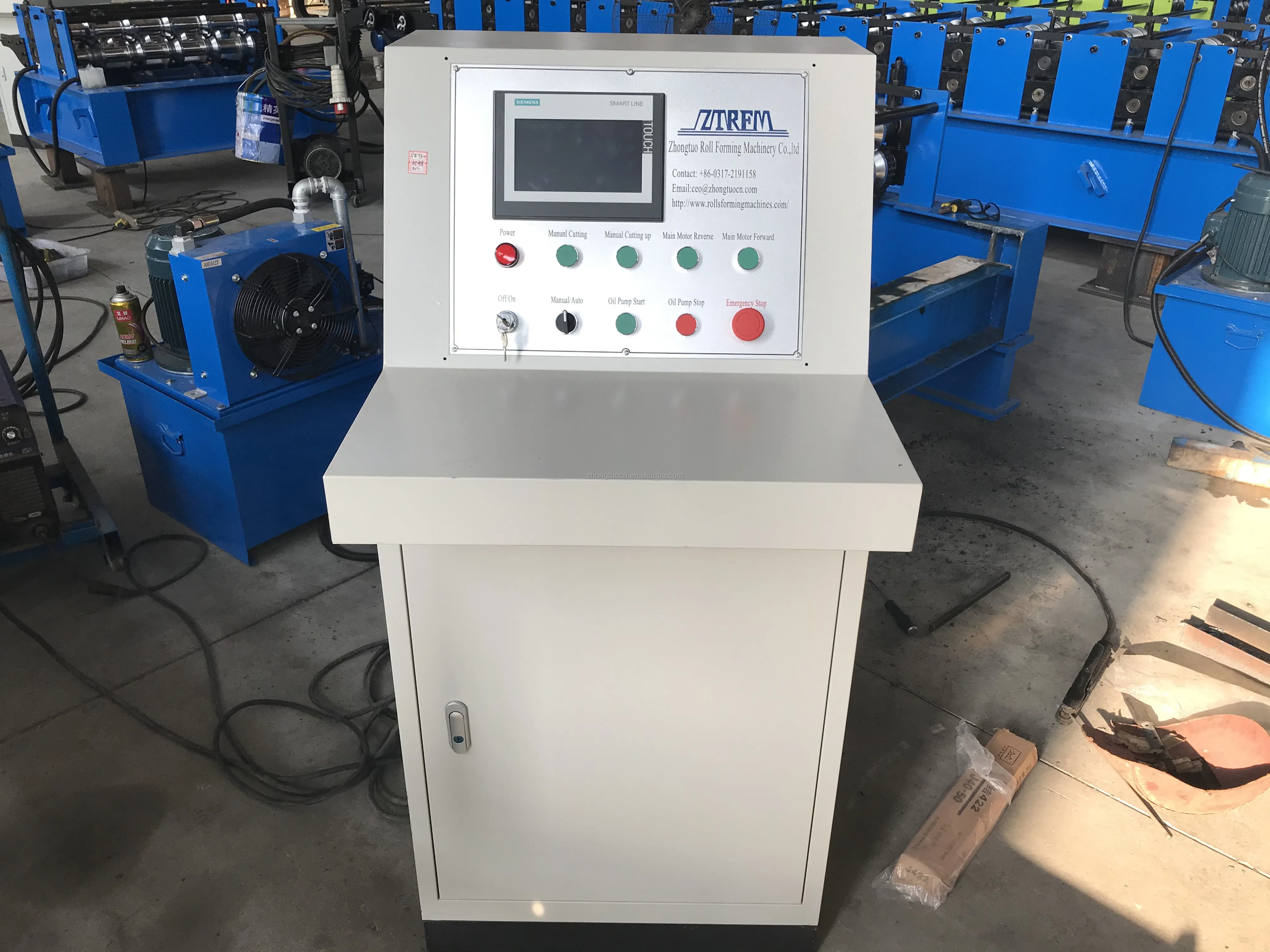

PLC control system

Function: Automatic control the length,quantity and batch
Feature: Adopted PLC, frequency converter, Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
