ZTRFM Roof Tile Accessories V L Shape Metal Corner Roll Forming Machine Ridge Tile Making Machine 1+5.5kw+15 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Roof Tile Accessories V L Shape Metal Corner Roll Forming Machine Ridge Tile Making Machine 1+5.5kw+15 m/min

Name: ZTRFM Roof Tile Accessories V L Shape Metal Corner Roll Forming Machine Ridge Tile Making Machine 1+5.5kw+15 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT70612258

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

Power(W):

5.5kw

Production Capacity:

15 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V 50HZ 3P
Rolling Thinckness
Other
Feeding Width
max 1250mm

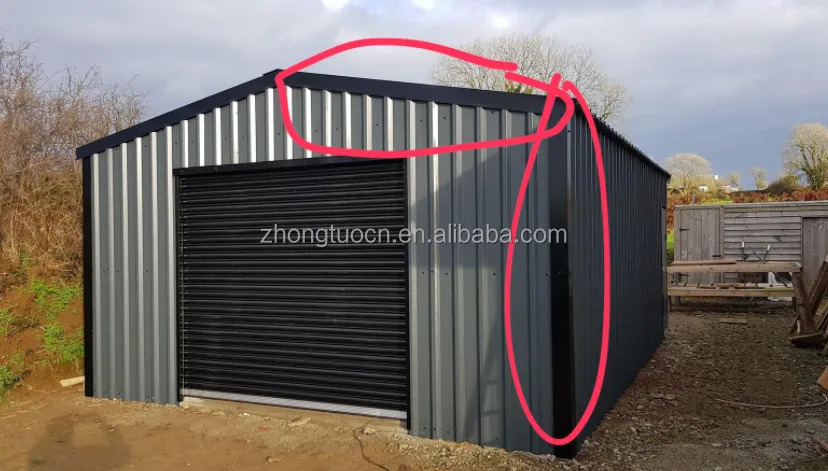

Where the roof flashing used for? Where a roof meets a vertical structure, there are natural weaknesses, including areas of discontinuity like joins and penetrable sections. If not properly sealed, these all become entry points for moisture.Roof flashing is used to connect these areas.

Zhongtuo Machinery can make a Economical and high quality roofing flashing machine, the machine size is small , it can’t take up so much factory space, the production speed 15-20m/min. The max speed we can design up to 55m/min, that will be a fully automatic high speed machine.

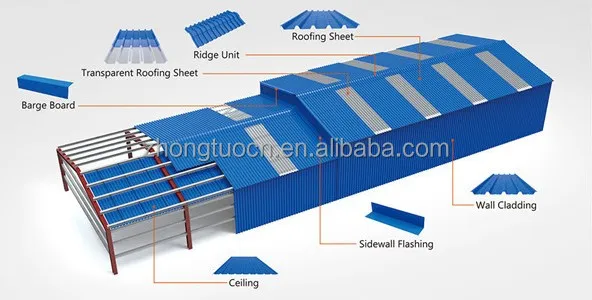

The application for the finished product:

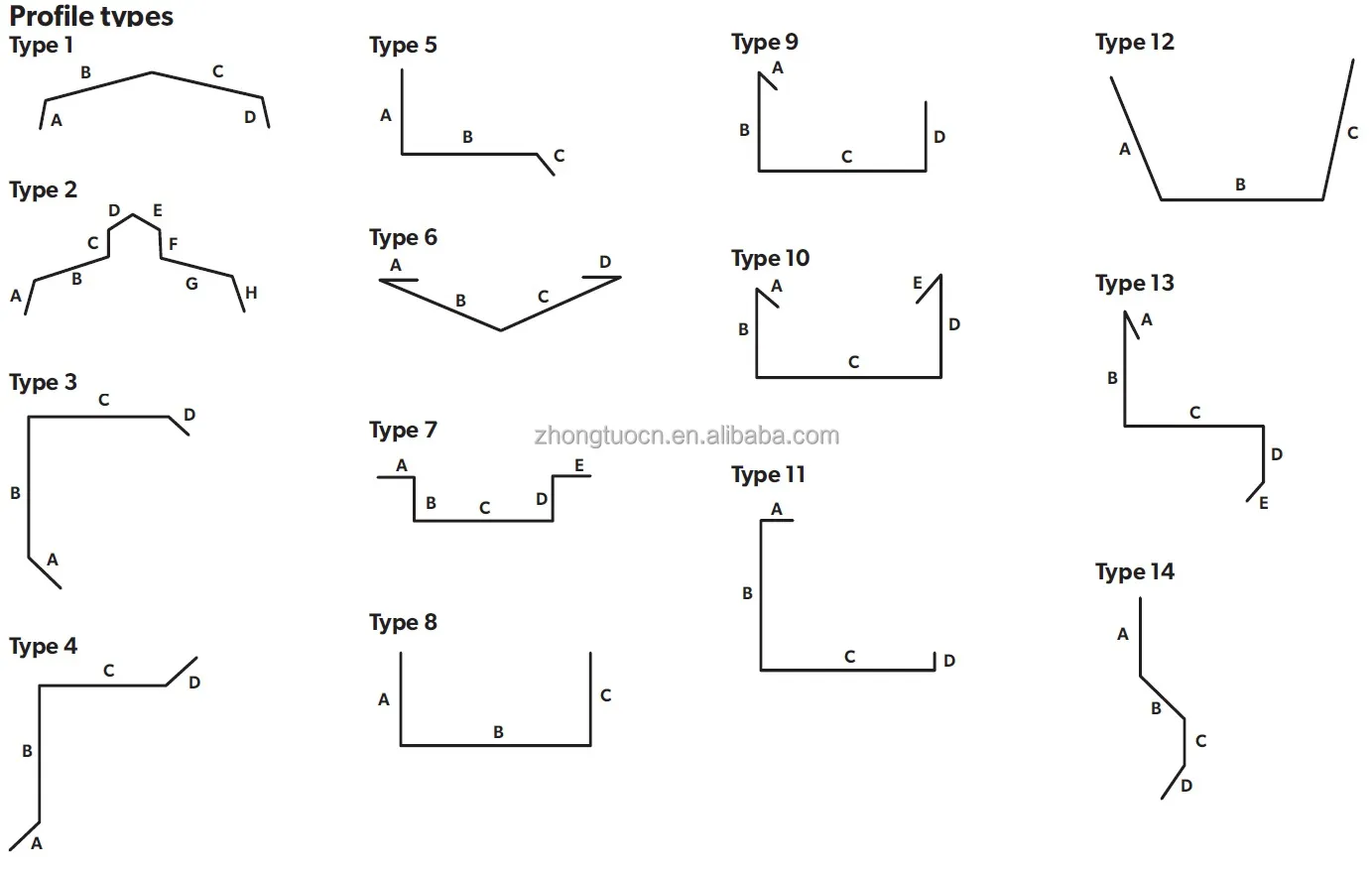

Profile drawing for reference:

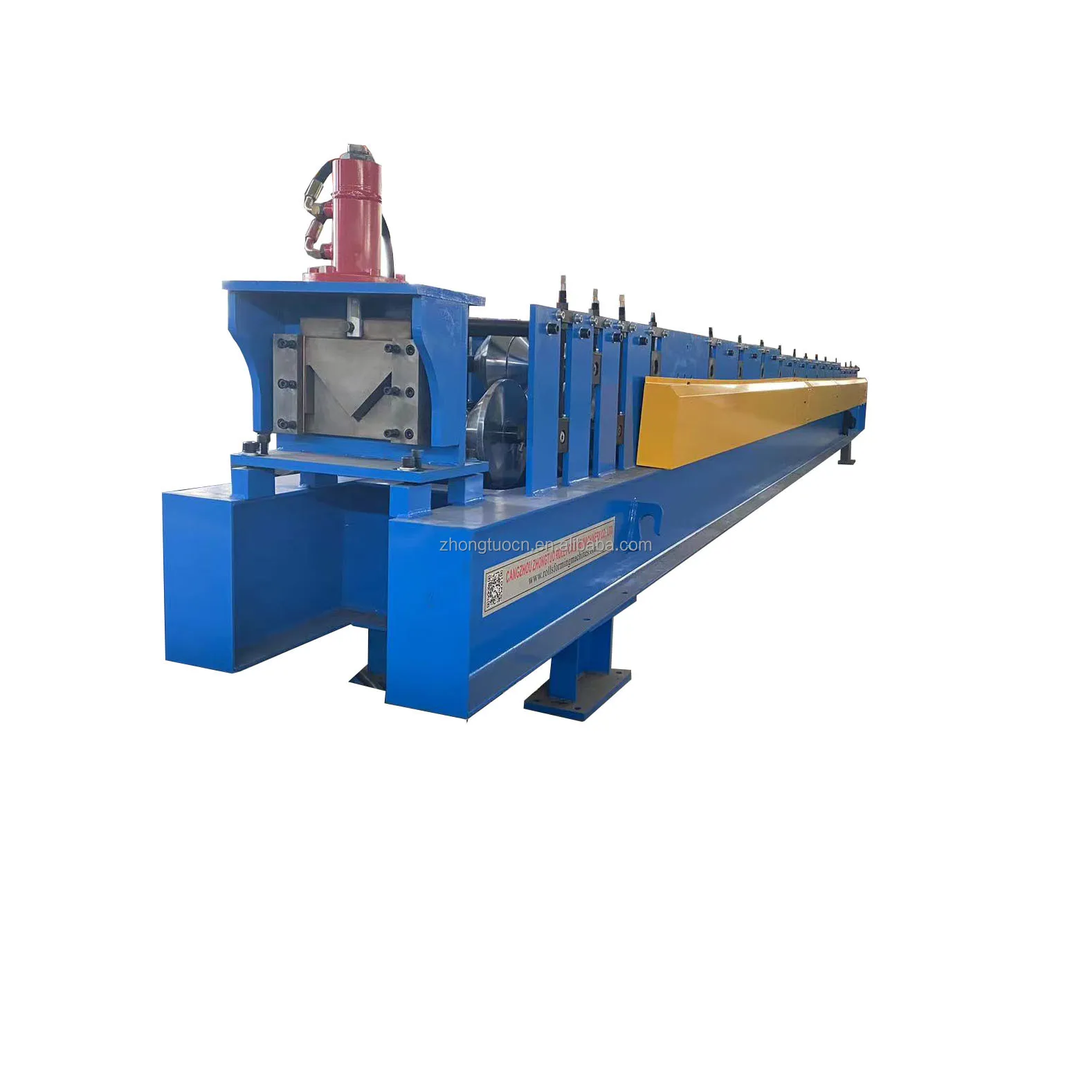

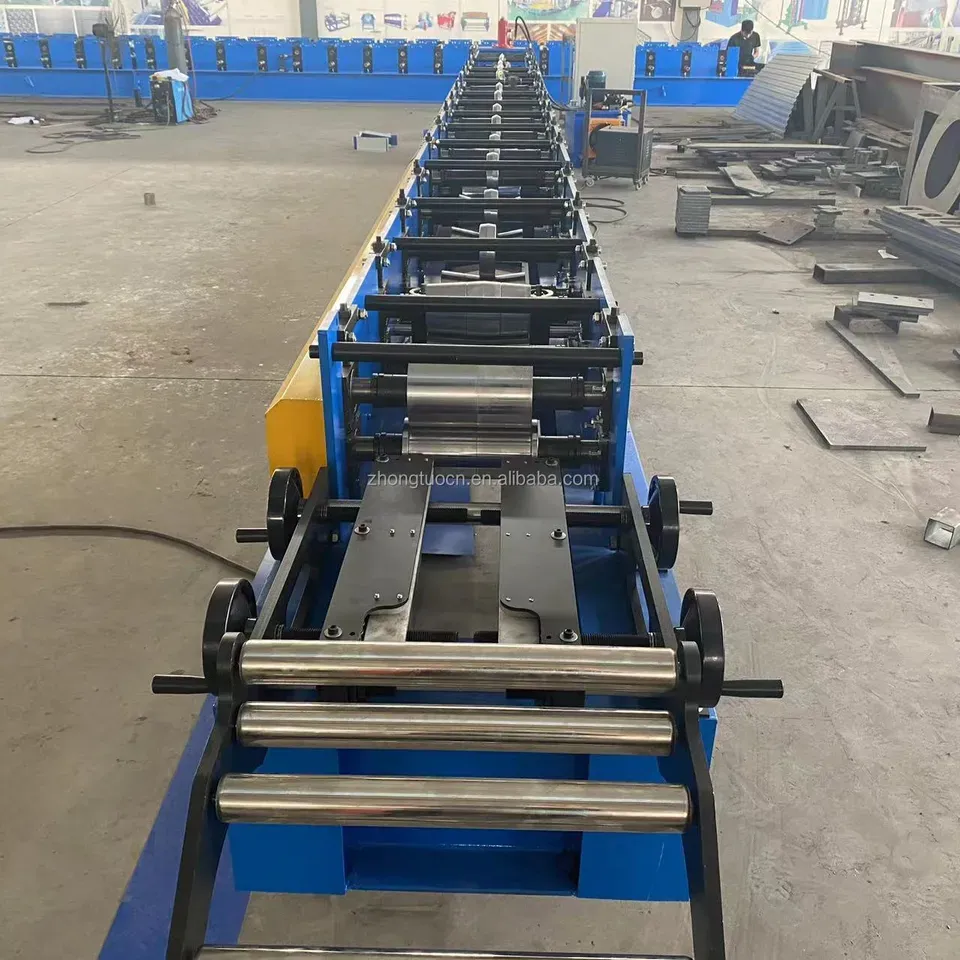

ZTRFM roof tile accessories V L shape metal corner roll forming machine Ridge cap machine
Shaft material	45# STEEL
Shaft diameter	60 mm
Shaft diameter	60 mm	Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Roller material	GB-Cr12
Rolling station	14 stations
Work speed	20m/min

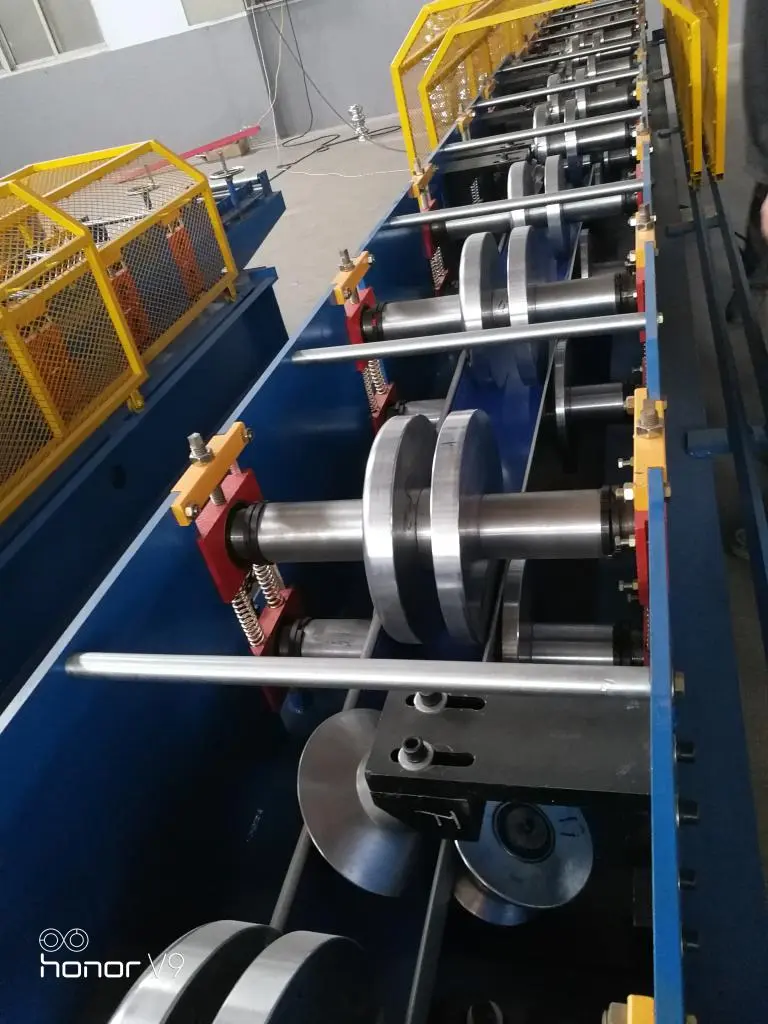

Machine frame	Vertical arch frame structure
Motor power	11 KW
Transmission	By chains

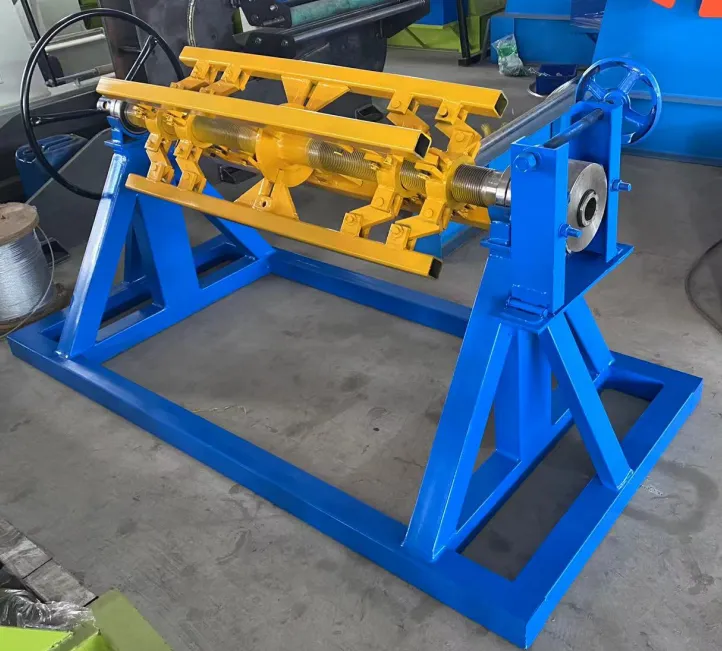

5T Manual Decolier For Free

Usage: It is used to support the steel coil and uncoil it in a turnable way.

Passive uncoil pulled by roll forming system.

1. Loading capacity: 5T
2. Uncoiling width: 1000mm
3. Inner diameter: 450-550mm

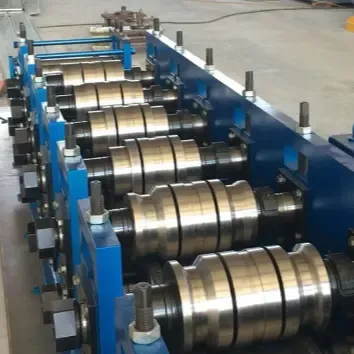

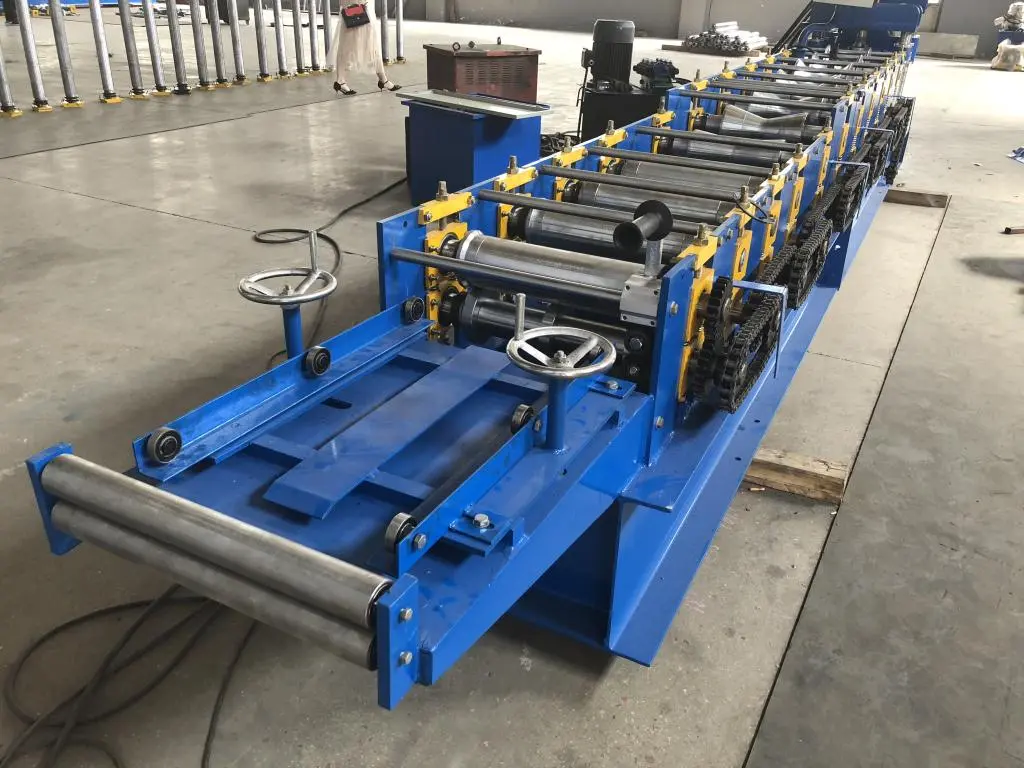

Main Roll Forming System

Feature: Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being
stamped.

Step-formed mechanism

Feature: it is used to make the step , the glazed tile's final formed.

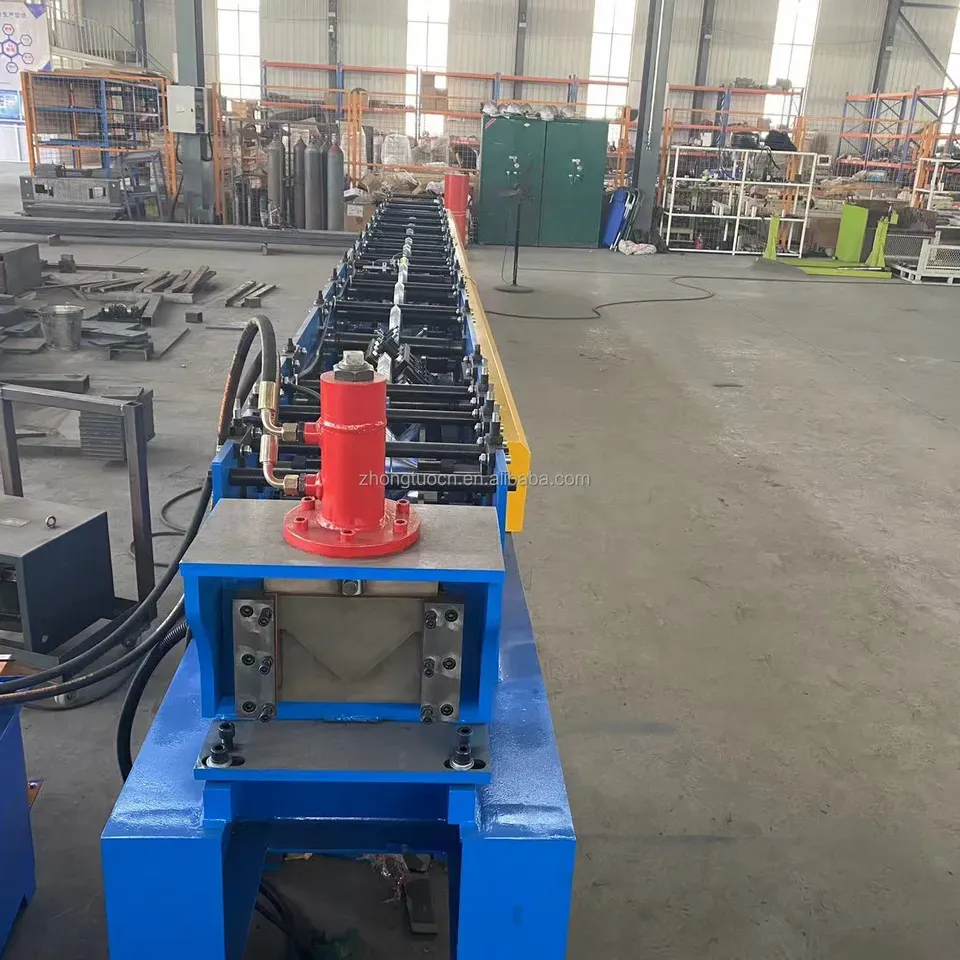

Shearing Mechanism

Feature: Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

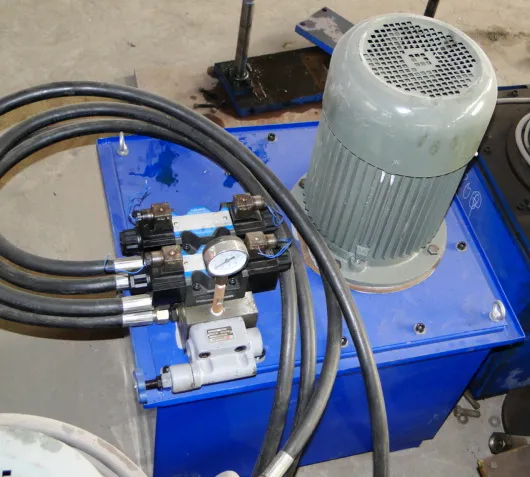

Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

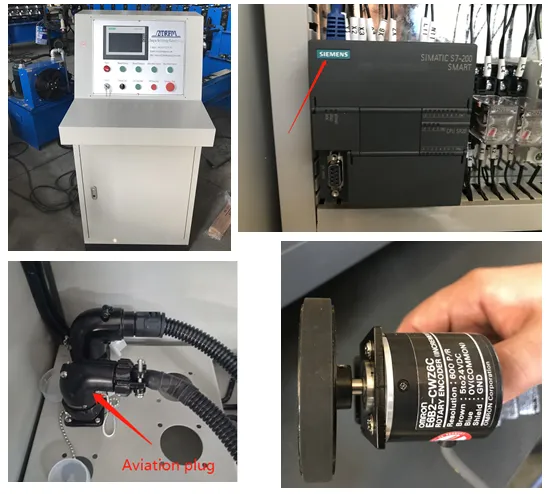

PLC control system

Feature: Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

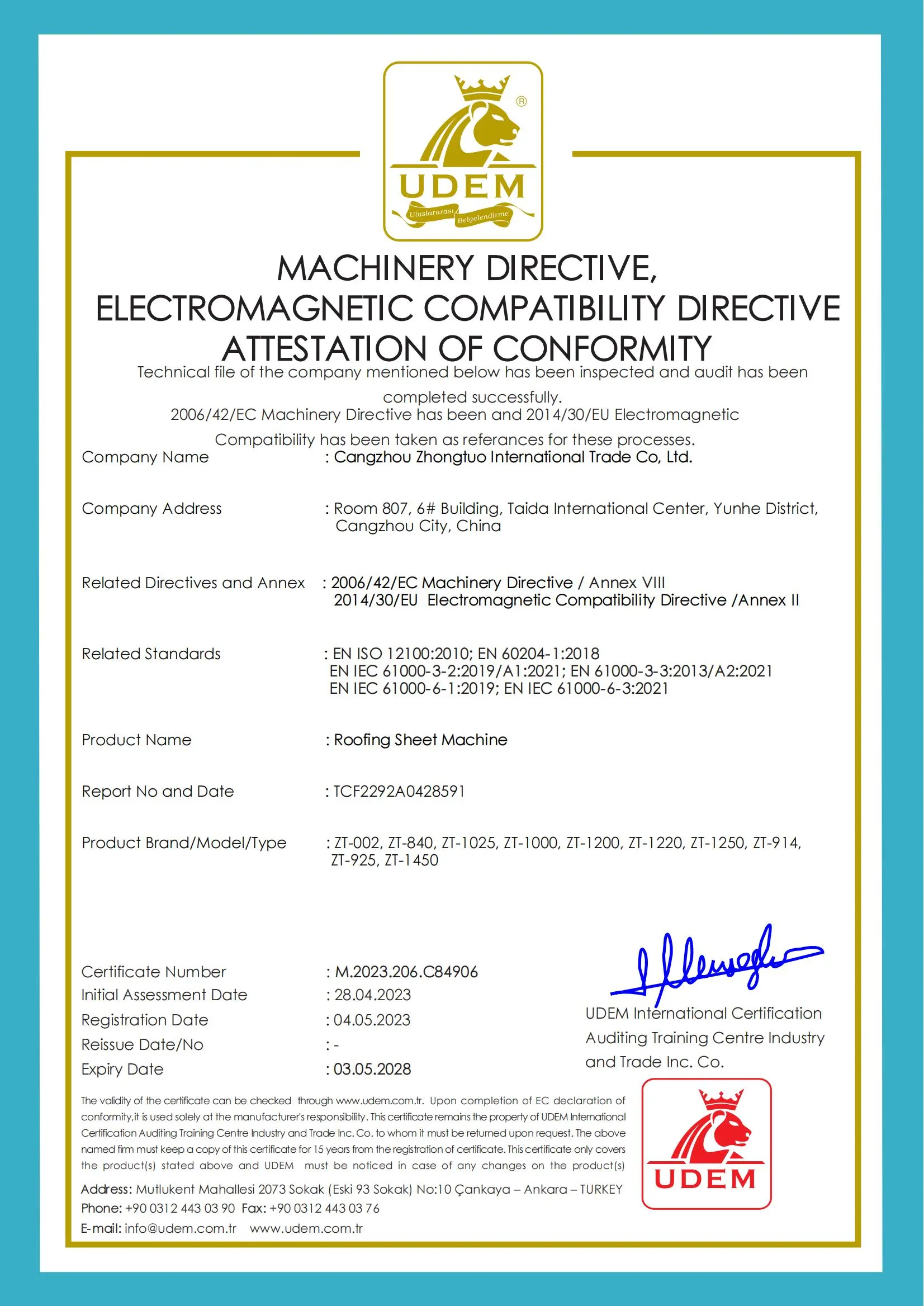

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
