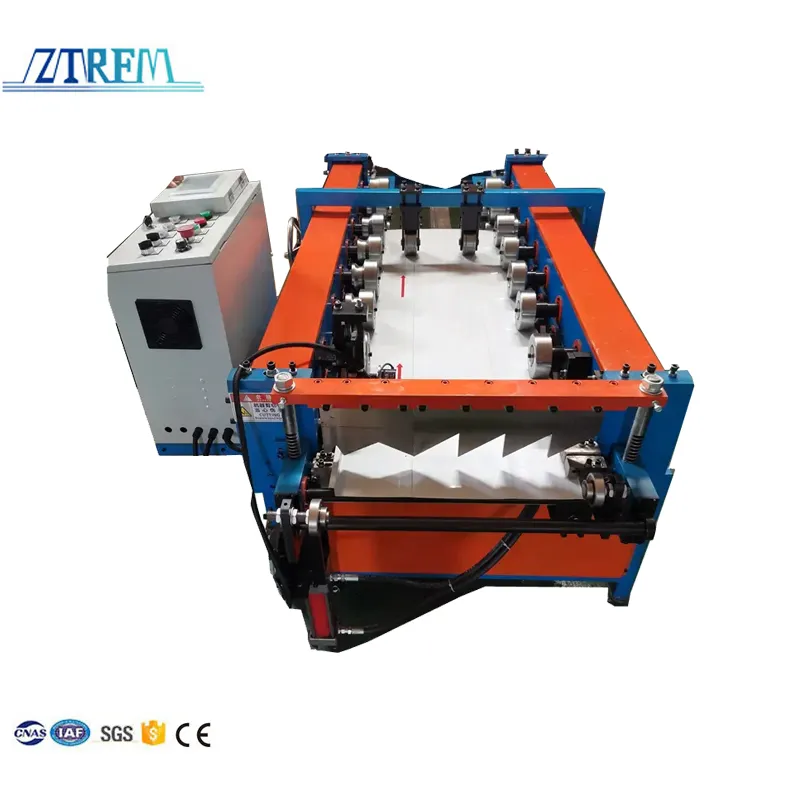

    ZTRFM Portable Standing Seam Metal Roof Panel Machine Metal Sheet Roof Panel Tile Making Machine 10kw
    Cangzhou Zhongtuo International Trade Co., Ltd
    Supplier Qualification

    ZTRFM Portable Standing Seam Metal Roof Panel Machine Metal Sheet Roof Panel Tile Making Machine 10kw

    $***/ Set
    Min. Order:1 Set

    Coupons: More >

    You can log in to view more discounted prices.Login Now

    Price:
    $***
    Quantity:
    ≥1Set

    Order CodeZT60306022
    Shipping:
    Delivery to:
    • Select country
    • 中国
    • Afghanistan
    • Aland Islands
    • Albania
    • Algeria
    • American Samoa
    • Andorra
    • Angola
    • Anguilla
    • Antarctica
    • Antigua and Barbuda
    • Argentina
    • Armenia
    • Aruba
    • Australia
    • Austria
    • Azerbaijan
    • Bahamas
    • Bahrain
    • Bangladesh
    • Barbados
    • Belarus
    • Belgium
    • Belize
    • Benin
    • Bermuda
    • Bhutan
    • Bolivia
    • Bonaire, Saint Eustatius and Saba
    • Bosnia and Herzegovina
    • Botswana
    • Bouvet Island
    • Brazil
    • British Indian Ocean Territory
    • British Virgin Islands
    • Brunei
    • Bulgaria
    • Burkina Faso
    • Burundi
    • Cabo Verde
    • Cambodia
    • Cameroon
    • Canada
    • Cayman Islands
    • Central African Republic
    • Chad
    • Chile
    • Christmas Island
    • Cocos Islands
    • Colombia
    • Comoros
    • Cook Islands
    • Costa Rica
    • Croatia
    • Cuba
    • Curacao
    • Cyprus
    • Czechia
    • Democratic Republic of the Congo
    • Denmark
    • Djibouti
    • Dominica
    • Dominican Republic
    • Ecuador
    • Egypt
    • El Salvador
    • Equatorial Guinea
    • Eritrea
    • Estonia
    • Eswatini
    • Ethiopia
    • Falkland Islands
    • Faroe Islands
    • Fiji
    • Finland
    • France
    • French Guiana
    • French Polynesia
    • French Southern Territories
    • Gabon
    • Gambia
    • Georgia
    • Germany
    • Ghana
    • Gibraltar
    • Greece
    • Greenland
    • Grenada
    • Guadeloupe
    • Guam
    • Guatemala
    • Guernsey
    • Guinea
    • Guinea-Bissau
    • Guyana
    • Haiti
    • Heard Island and McDonald Islands
    • Honduras
    • Hungary
    • Iceland
    • India
    • Indonesia
    • Iran
    • Iraq
    • Ireland
    • Isle of Man
    • Israel
    • Italy
    • Ivory Coast
    • Jamaica
    • Japan
    • Jersey
    • Jordan
    • Kazakhstan
    • Kenya
    • Kiribati
    • Kosovo
    • Kuwait
    • Kyrgyzstan
    • Laos
    • Latvia
    • Lebanon
    • Lesotho
    • Liberia
    • Libya
    • Liechtenstein
    • Lithuania
    • Luxembourg
    • Madagascar
    • Malawi
    • Malaysia
    • Maldives
    • Mali
    • Malta
    • Marshall Islands
    • Martinique
    • Mauritania
    • Mauritius
    • Mayotte
    • Mexico
    • Micronesia
    • Moldova
    • Monaco
    • Mongolia
    • Montenegro
    • Montserrat
    • Morocco
    • Mozambique
    • Myanmar
    • Namibia
    • Nauru
    • Nepal
    • Netherlands Antilles
    • New Caledonia
    • New Zealand
    • Nicaragua
    • Niger
    • Nigeria
    • Niue
    • Norfolk Island
    • North Korea
    • North Macedonia
    • Northern Mariana Islands
    • Norway
    • Oman
    • Pakistan
    • Palau
    • Palestinian Territory
    • Panama
    • Papua New Guinea
    • Paraguay
    • Peru
    • Philippines
    • Pitcairn
    • Poland
    • Portugal
    • Puerto Rico
    • Qatar
    • Republic of the Congo
    • Reunion
    • Romania
    • Russia
    • Rwanda
    • Saint Barthelemy
    • Saint Helena
    • Saint Kitts and Nevis
    • Saint Lucia
    • Saint Martin
    • Saint Pierre and Miquelon
    • Saint Vincent and the Grenadines
    • Samoa
    • San Marino
    • Sao Tome and Principe
    • Saudi Arabia
    • Senegal
    • Serbia
    • Serbia and Montenegro
    • Seychelles
    • Sierra Leone
    • Singapore
    • Sint Maarten
    • Slovakia
    • Slovenia
    • Solomon Islands
    • Somalia
    • South Africa
    • South Georgia and the South Sandwich Islands
    • South Korea
    • South Sudan
    • Spain
    • Sri Lanka
    • Sudan
    • Suriname
    • Svalbard and Jan Mayen
    • Sweden
    • Switzerland
    • Syria
    • Tajikistan
    • Tanzania
    • Thailand
    • The Netherlands
    • Timor Leste
    • Togo
    • Tokelau
    • Tonga
    • Trinidad and Tobago
    • Tunisia
    • Turkey
    • Turkmenistan
    • Turks and Caicos Islands
    • Tuvalu
    • U.S. Virgin Islands
    • Uganda
    • Ukraine
    • United Arab Emirates
    • United Kingdom
    • United States
    • United States Minor Outlying Islands
    • Uruguay
    • Uzbekistan
    • Vanuatu
    • Vatican
    • Venezuela
    • Vietnam
    • Wallis and Futuna
    • Western Sahara
    • Yemen
    • Zambia
    • Zimbabwe
    • Select province
    • Select city

    Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

    Specification:

    Power(W):
    10kw
    Payment:
    Transaction Protection:
    • Secure payments
    • Money-back protection
    • 24/7 support
    • Data privacy
    ZT60306022
    Quantity:
    -
    +
    Add to CartBuy Now
    • Product Details
    • Reviews(0)

    • Technical Specifications

      • Type
        Tile Forming Machine
      • Tile Type
        Steel
      • Use
        ROOF
      • Voltage
        380V 50Hz 3phases or as your requirement
      • Rolling Thinckness
        0.3-0.8mm
      • Feeding Width
        1200mm
      ZTRFM Portable Standing Seam Metal Roof Panel Machine Metal Sheet Roof Panel Tile Making Machine

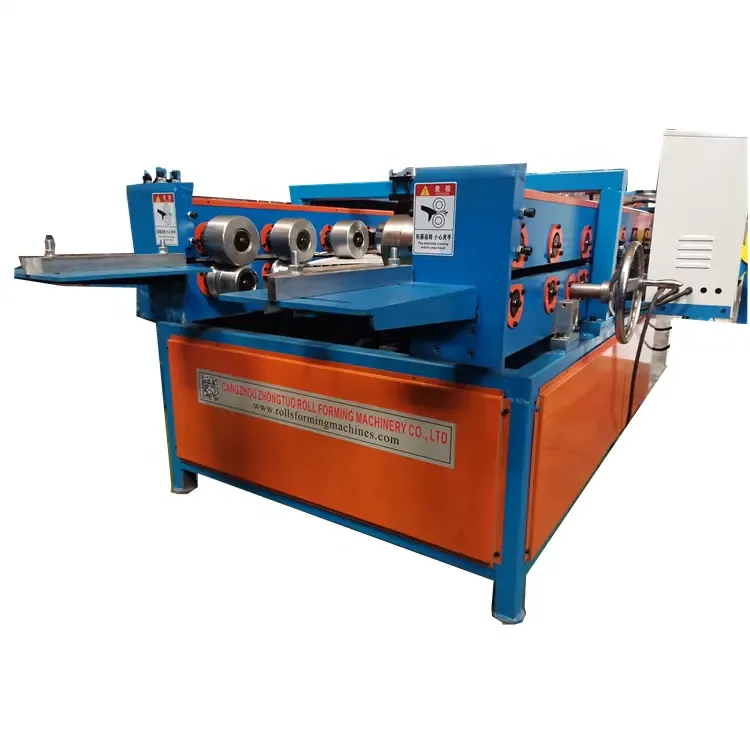

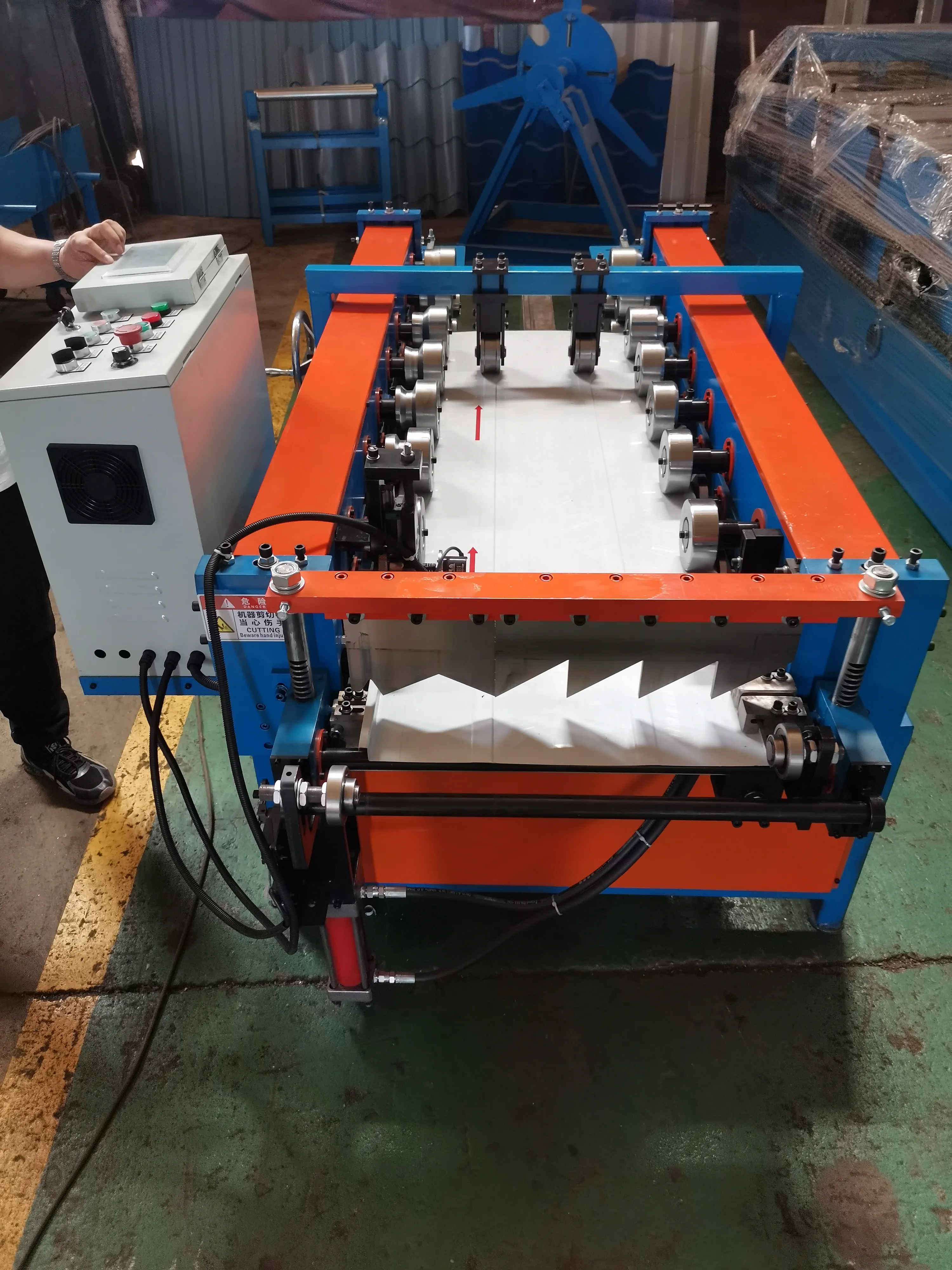

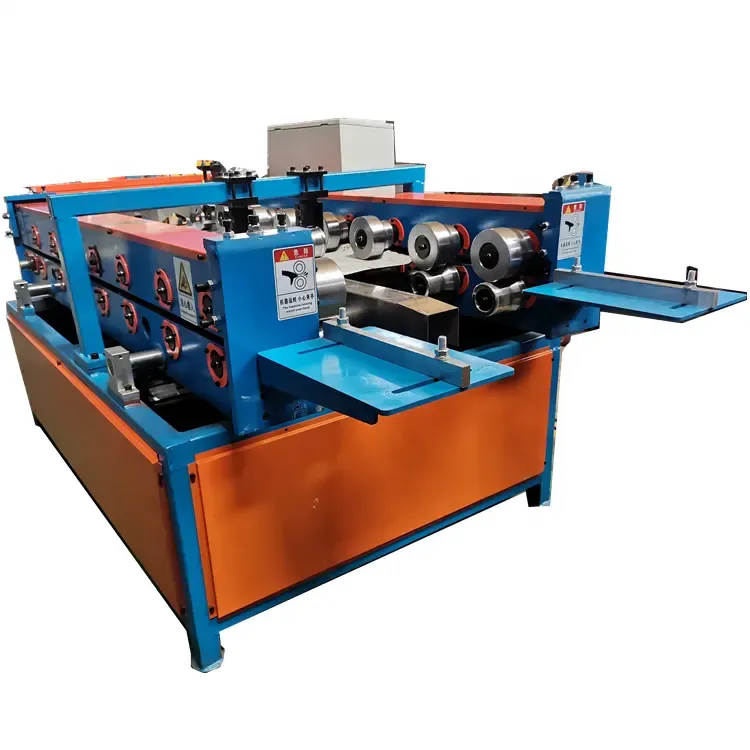

      ZTRFM Portable Standing Seam Metal Roof Panel Machine Metal Sheet Roof Panel Tile Making Machine is a fully mobile pan former ideal for both the workshop and for on-site operation. All functions and adjustments are positioned to one side of the machine. It is easy to transport, light weight with two castors mounted on frame.
      This saves on freight costs, shortages and the need for difficult leak prone panel end laps.The guillotine-shear cuts panels without distortion and burr-free. equipped with 4 crane lifting eyes.
      Working flow of small portable linear roll forming machine for wall panel or roofing sheet: For this portable machine, you can either use it as the production line or use separately. When working as the production line, the working speed can reach 15 to 25 meter per minute. If you use it as the production line, ZT machinery can supply the hydraulic decoiler and receiving table.

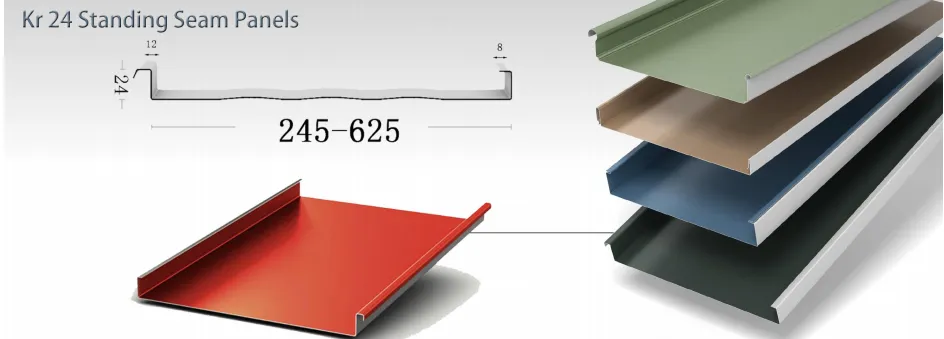

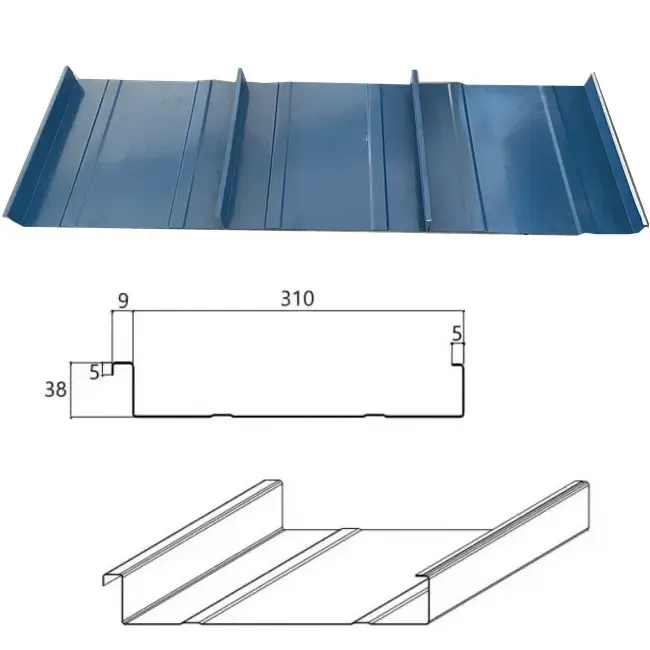

      Profile drawing for reference:

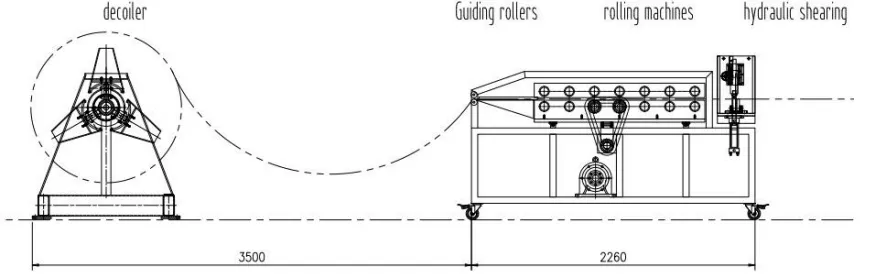

      Working Flow as below:
      ZTRFM Portable Standing Seam Metal Roof Panel Machine Metal Sheet Roof Panel Tile Making Machine
      Working speed
      15 m/min
      Power
      8 KW
      Voltage
      Customize (Usually 380V-3P-50HZ)
      Machine size
      2.3*1.3*1.5 m
      Weight
      1.5 T
      Roller shaft diameter
      45 mm
      Roller station
      7 Rows
      Roller shaft material
      45# steel
      PLC brand
      Delta
      Screen type
      Touch screen
      Screen language
      English/ Chinese or customize
      Encoder
      Omron
      Hydraulic motor power
      3 KW
      Cutting type
      Hydraulic Cutting
      Cutting material
      Cr12
      Cutting length tolerance
      +- 1 mm/ 3 m

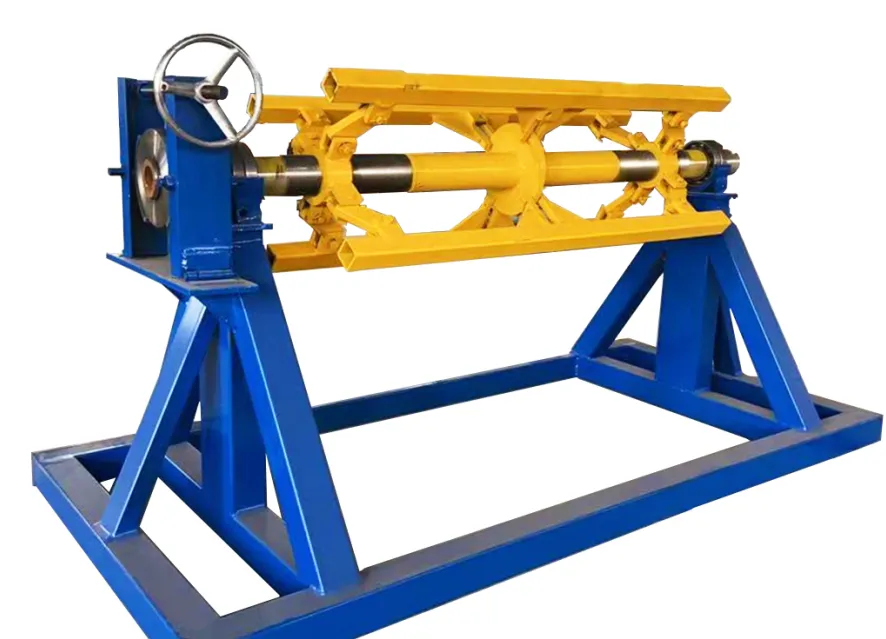

      Manual De-coiler
      1. Type: passive
      2. Coil width: max 400 mm
      3. Loading capacity: 3 tons
      4. Inner diameter: 450-550 mm
      Feeding Part
      Usage: Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

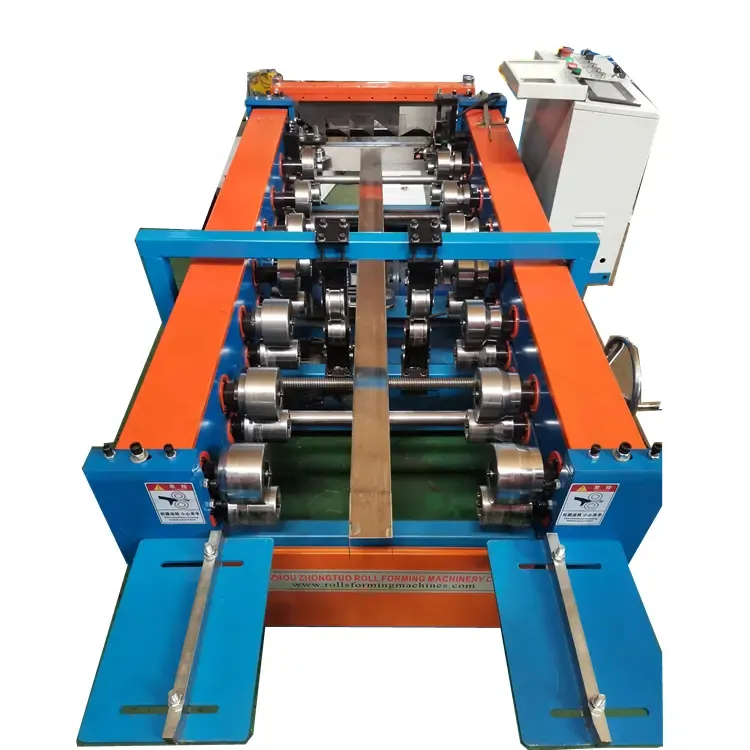

      Forming device
      1. Machine structure: wall panel structure
      2. Main power: 3 KW siemens motor
      3. Roller stations: 7 stations
      4. Roller material: 45# steel with quenched treatment, polished and coated with chrome, surface with 0.05mm
      5. Diameter of shaft: 70mm
      6. Shaft material: 45# steel
      7. Max rolling speed: 12-15m/min
      8. Transmission: by gear
      Shearing Mechanism
      1. Feature: Ensure stability, precision and cutting speed
      2. Function: Automatic cutting controlled by PLC

      It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

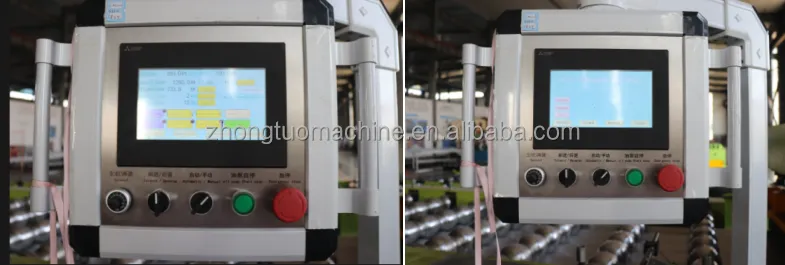

      PLC control system
      1. PLC brand: Delta(Taiwan)
      2. Frequency converter brand: Delta(Taiwan)
      3. Encoder: Omron
      4. Function: Automatic control the length,quantity and batch
      CE(No.OP180719.CZIDC95)
      ISO 9001(No:ZL92090220234630)
