ZTRFM Partition Walls Drywall Keel Profile Steel Sections Cold Roll Forming Machine 40-45m/min or faster

Name: ZTRFM Partition Walls Drywall Keel Profile Steel Sections Cold Roll Forming Machine 40-45m/min or faster
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT74608440

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

40-45m/min or faster

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
16Mpa
Voltage
380V,50Hz,3P(Or as request)
Power(W)
22.5kw

ZTRFM Partition walls drywall keel profile steel sections cold roll forming machine

This machine is used to produce the CW UW CD UD light steel frame profiles for drywall and ceiling and others, one machine can produce different sizes from 40mm-150mm or customized as request.
The advantages of the machine:
1. Automatic changing size type which is control by PLC
2. Flying shear with servo motor drived, speed can reach at 45m/min or faster as request
3. Equipped with automatic bundle machine

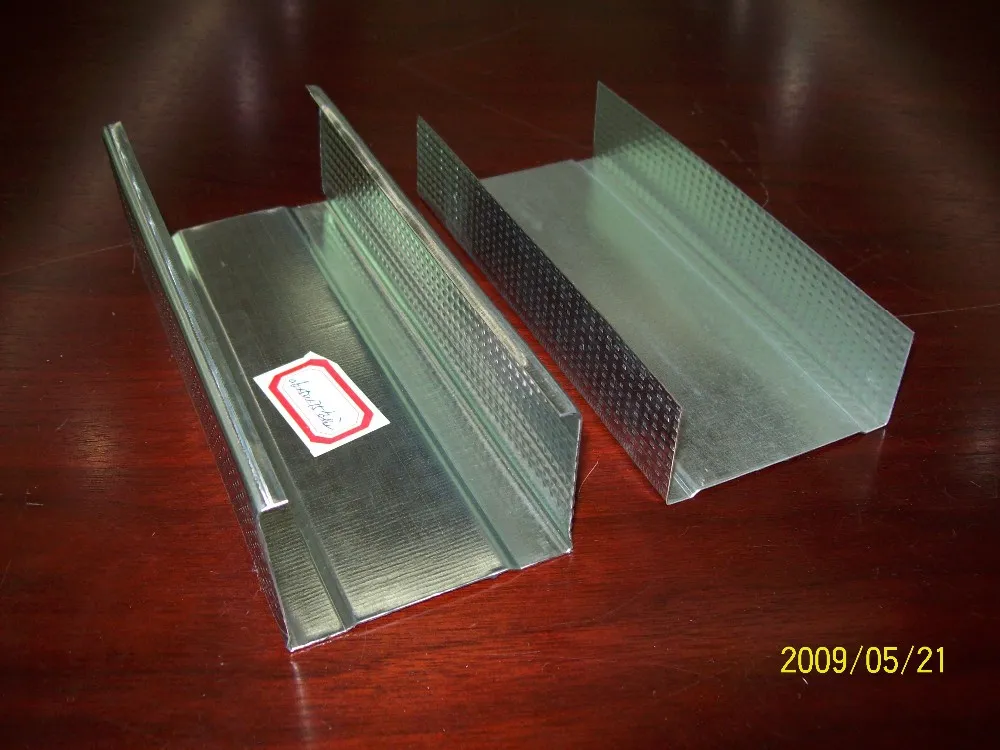

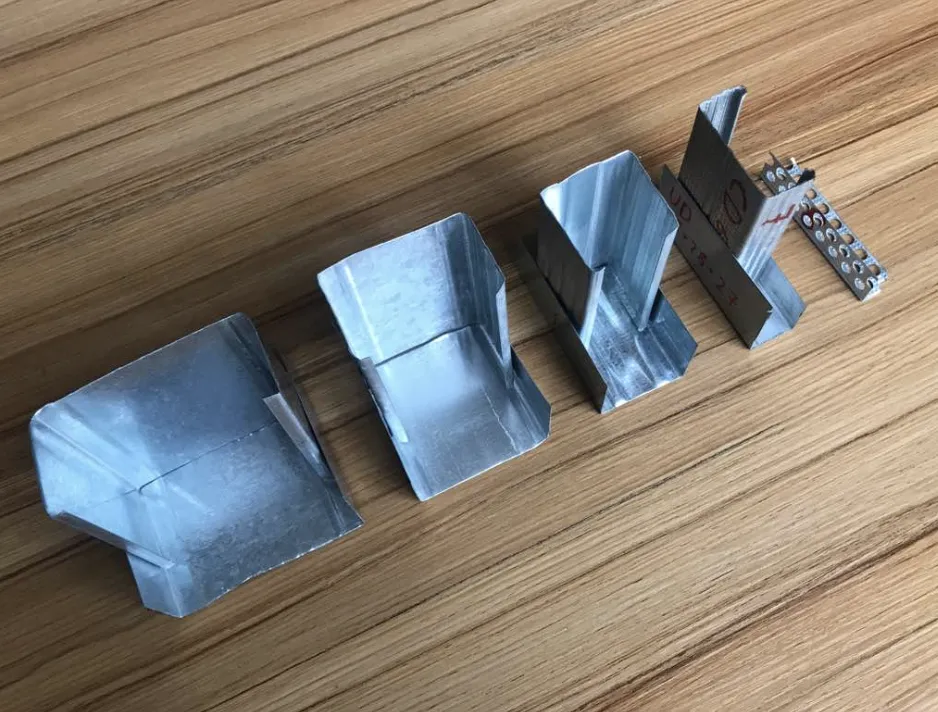

The pictures for the finished product:

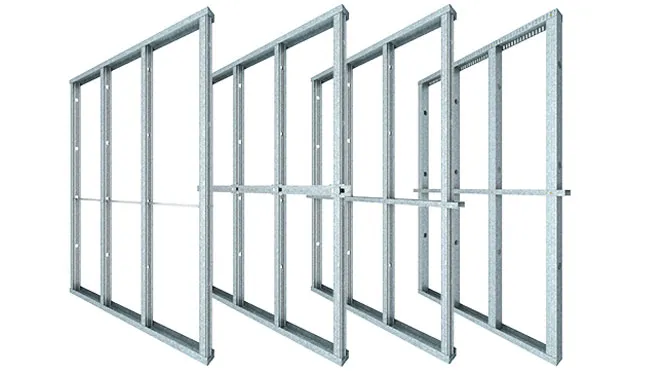

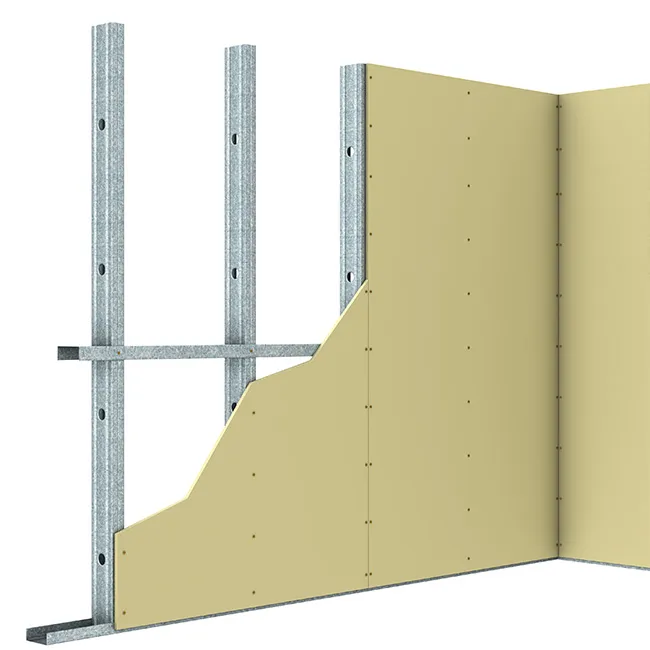

Installation of the products:

ZTRFM Partition walls drywall keel profile steel sections cold roll forming machine
1.Formed Material	PPGI,GI,AI	Thickness:0.5-1.2mm
2.Decoiler	Hydraulic automatic decoiler	Manual decoiler(will give you as free）
3.Main body	Roller station	12 rows(As your requirement)
		Diameter of shaft	50mm solid shaft
		Material of rollers	45# steel, hard chrome plated on the surface
		Machine body frame	Metal steel welded
		Drive	Gear transmission
		Dimension(LWH)	55008001200(customize)
		Weight	About 4.5T
4.Cutter	Automatic	cr12mov material, no scratches, no deformation
5.Power	Motor Power	7.5KW*2 sets
5.Power		Hydraulic system power	5.5KW
6.Voltage	380V 50Hz 3Phase	As your requirement
7.Control system	Electric Box	Customized(famous brand)
		Language	English(Support multiple languages)
		PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8.Forming Speed	40-45m/min(customized)	The speed depends on the shape of the tile and the thickness of the material.

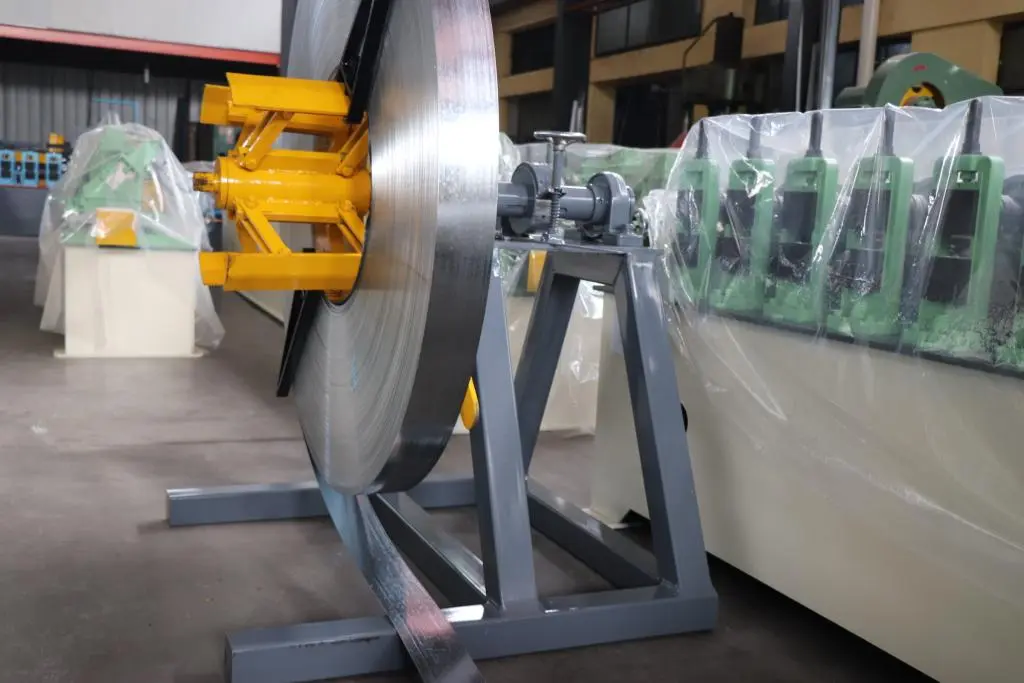

Decoiler

1. Work type: Passive type
2. Loading capacity: 3 Tons
3. Coil inner diameter: 450-550 mm (adjustable)
4. Coil outer diameter: 1500 mm
5. Coil width: 350 mm

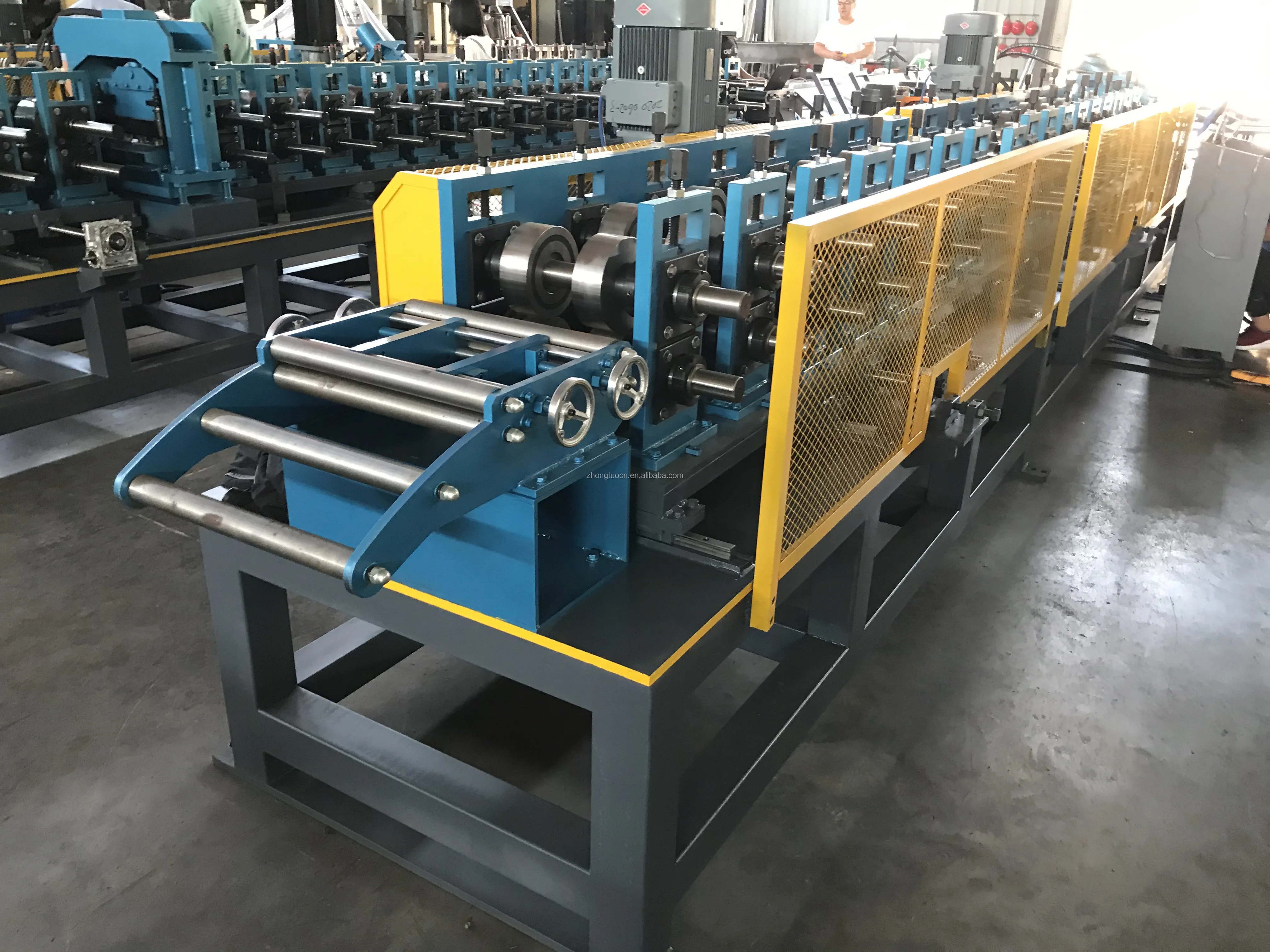

Entry Beach

Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

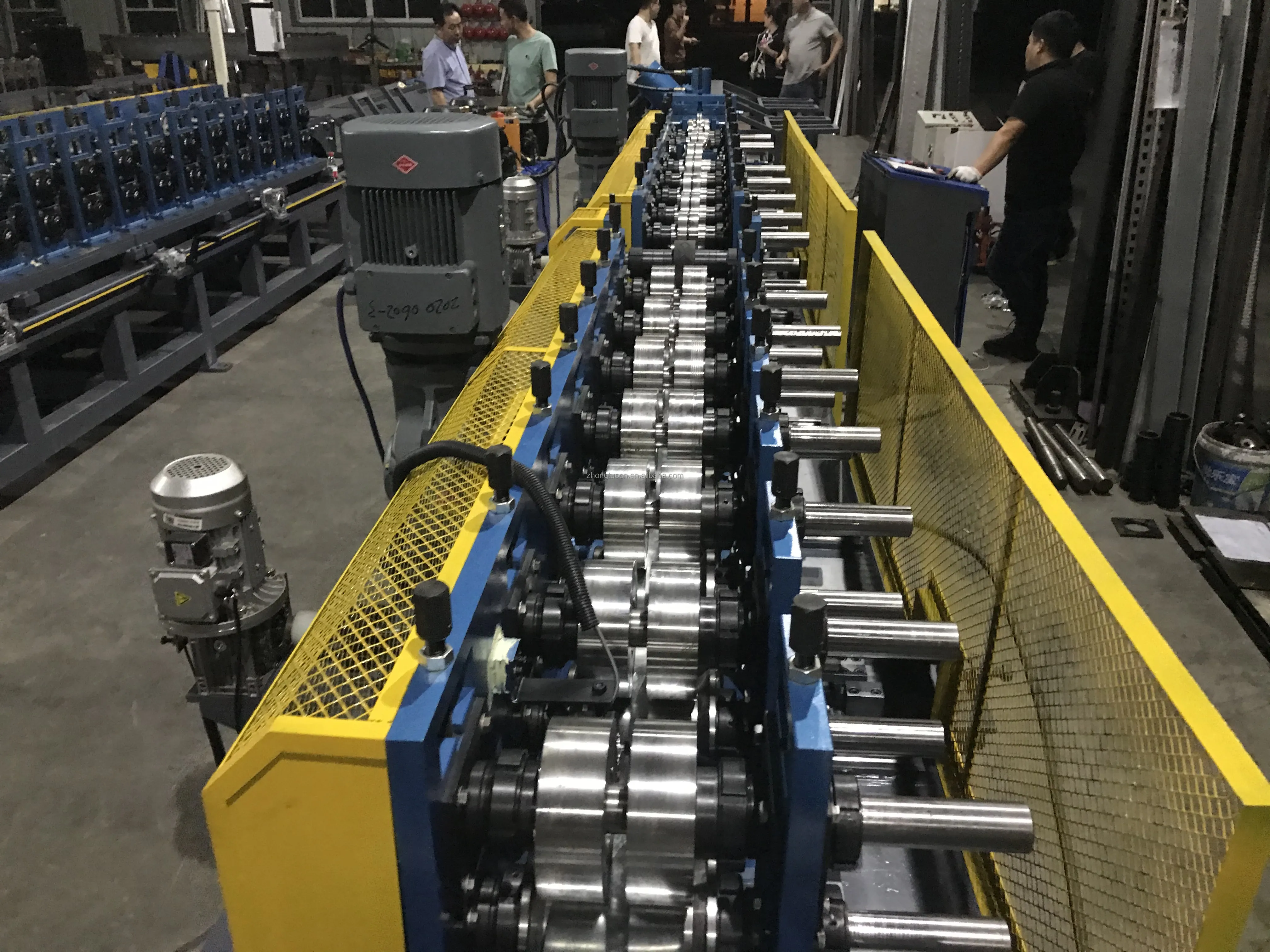

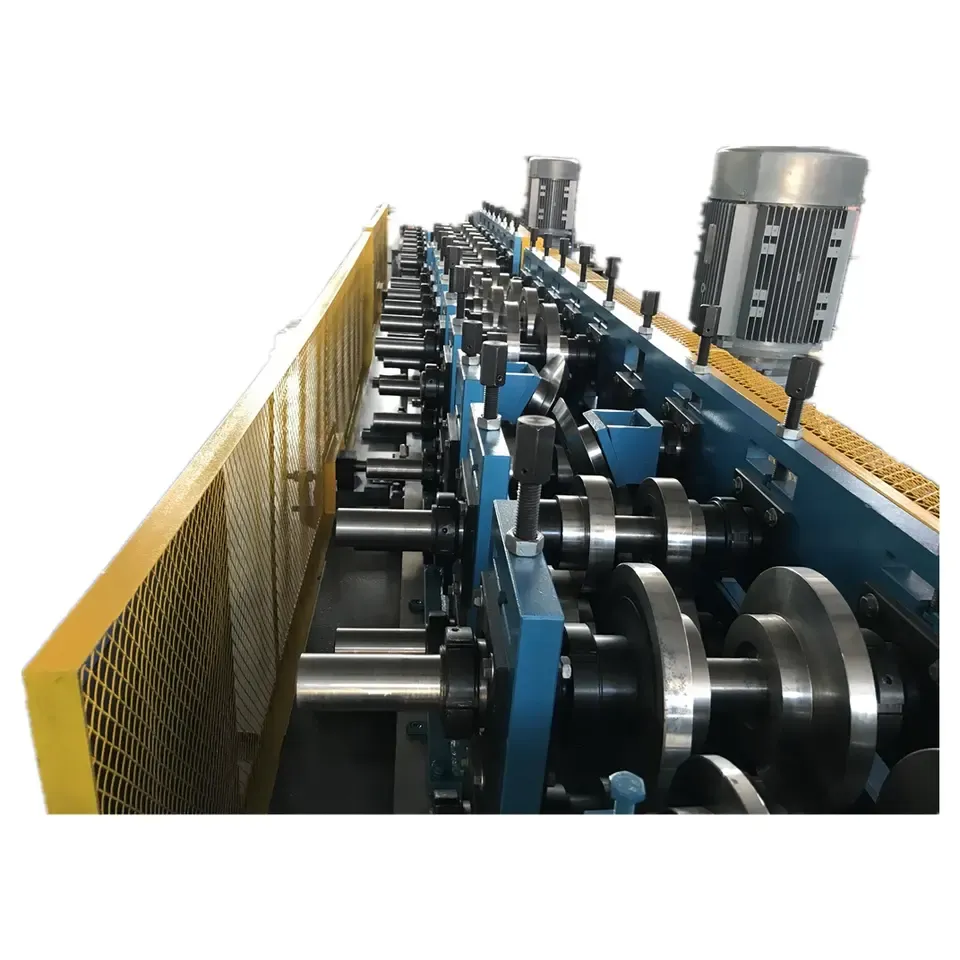

Roll forming system

1. Roller station: 12 rows(As your requirement)
2. Diameter of shaft: 50mm solid shaft
3. Material of rollers: 45# steel, hard chrome plated on the surface
4. Machine body frame: Metal steel welded
5. Drive: Gear transmission

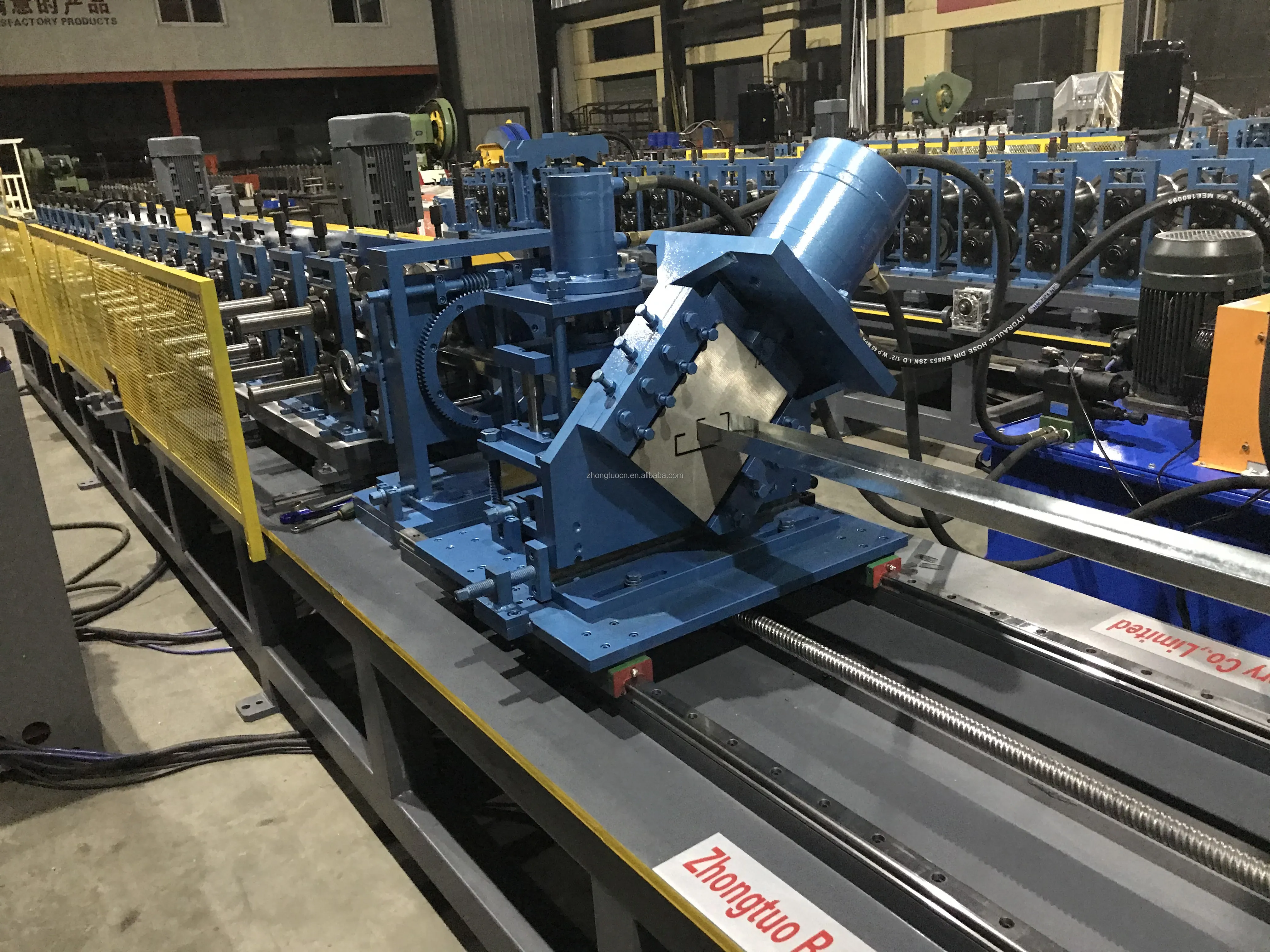

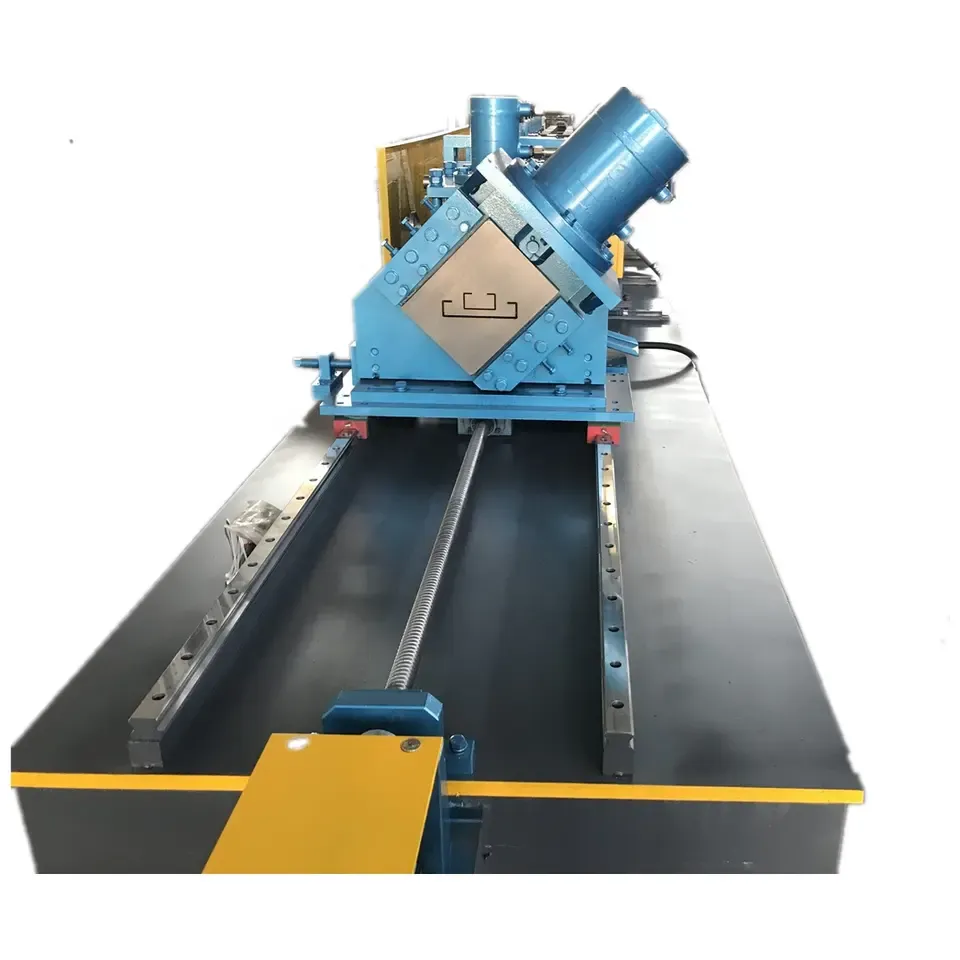

Cutting Part

1. Work type: Hydraulic running cutting

2. Cutter material: GB-Cr12
4. Cutting length tolerance: ±1mm/3m
5. Cutting feature: Automatic cutting after forming, no distorting or wasting.

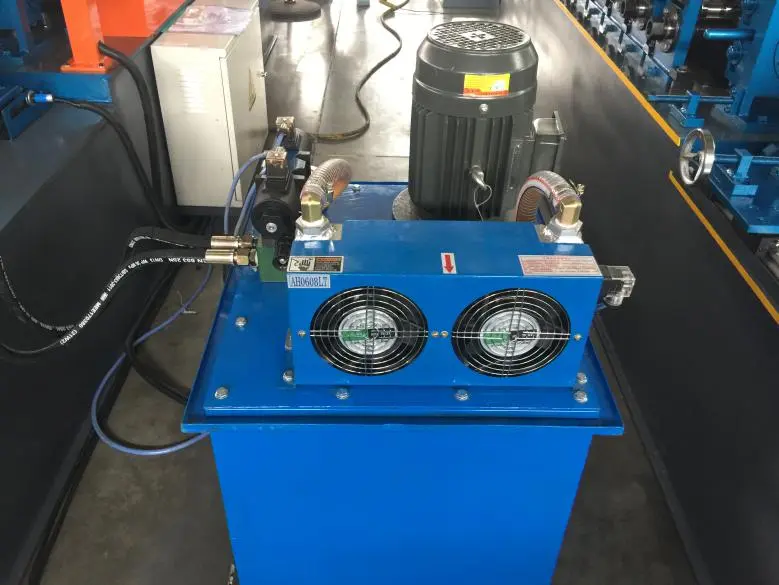

Hydraulic Station

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

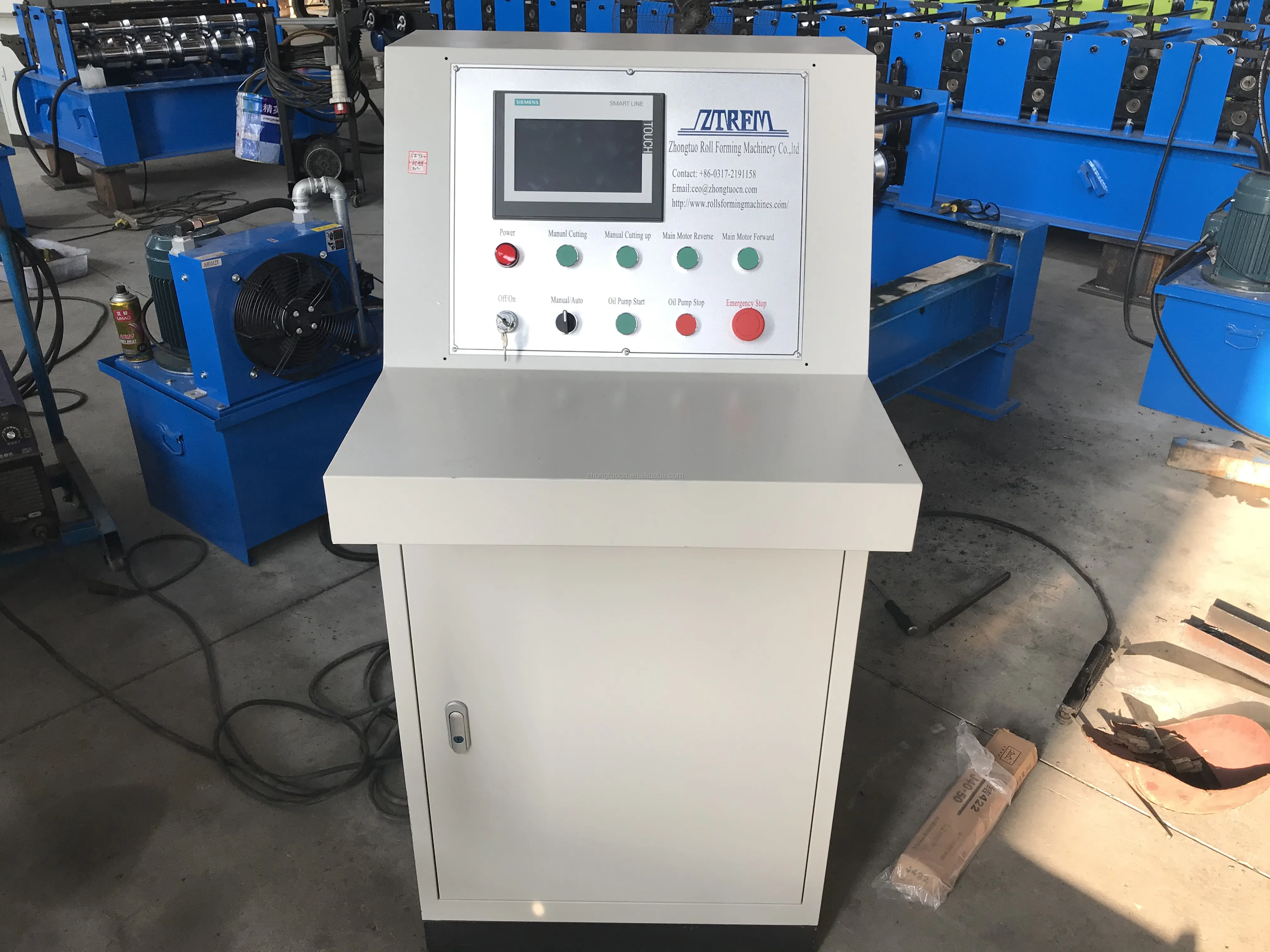

PLC control system

1. Frequency brand: Delta (original)
2. PLC brand: Delta (original)
3. Screen type: Touch screen & buttons
4. Screen language: English/Chinese/French
5. Encoder: Omron
