ZTRFM OEM ODM Roofing Gutter Making Machine Gutter Coil Aluminum Making Machine 10 m/min+DS50+16.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM OEM ODM Roofing Gutter Making Machine Gutter Coil Aluminum Making Machine 10 m/min+DS50+16.5kw

Name: ZTRFM OEM ODM Roofing Gutter Making Machine Gutter Coil Aluminum Making Machine 10 m/min+DS50+16.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT113060202

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

10 m/min

Model Number:

DS50

Power(W):

16.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications
- Type
  Gutter roll forming machine
- Tile Type
  Steel
- Use
  DOWN SPOUT
- Voltage
  220V-3P-50HZ
- Rolling Thinckness
  0.4-0.9 mm
- Feeding Width
  Other

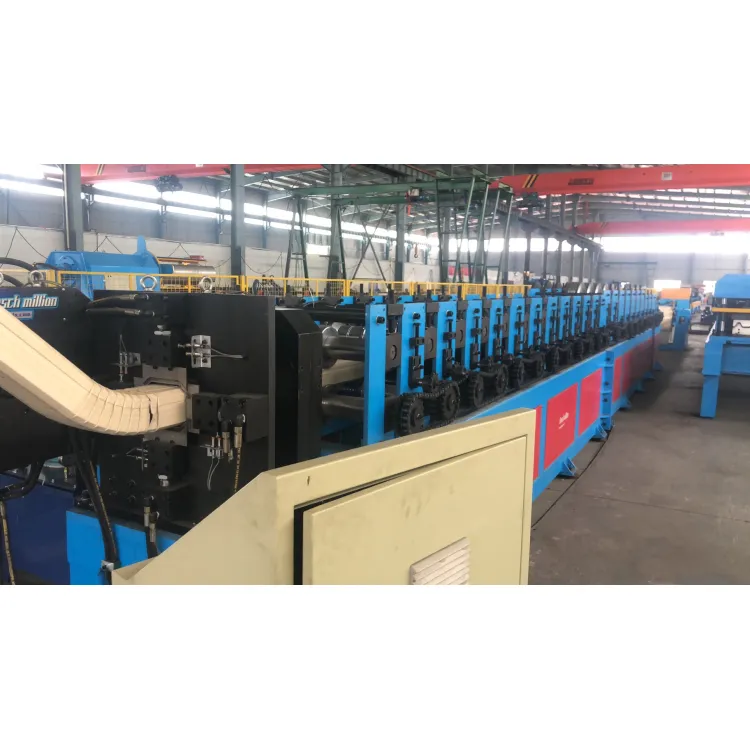

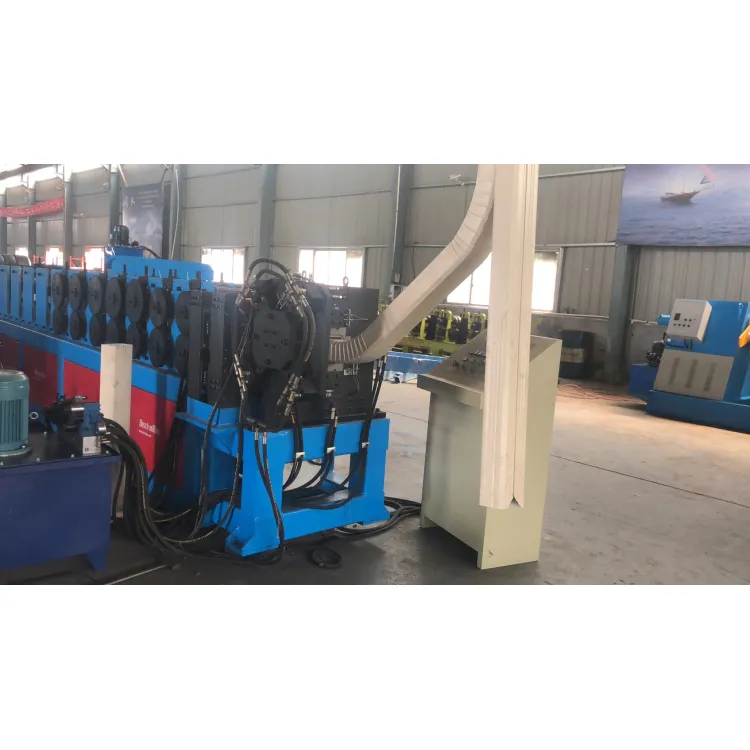

ZTRFM OEM ODM plain square steel gutter downspout roll forming machine

Downpipe use. Collecting roof rainwater is an integral part of the falling water system, which is concentrated into the rainwater pipes laid below the ground. Downpipe material can be divided into: 1. Metal pipes (such as cast iron pipes, colored aluminum pipes, copper pipes, colored steel pipes, etc.) 2. Plastic pipes (such as PVC pipes, etc.)

Profile drawing as below

Here is the downspout profile drawing and dimensions for your reference.
This interlock design don't need any welding, it can save cost in machine production.

Product

Details

Parameter

Raw material

PPGI,PPGL,GI,GL

Material thickness

0.5-0.8 mm

Cutting length

Adjustable

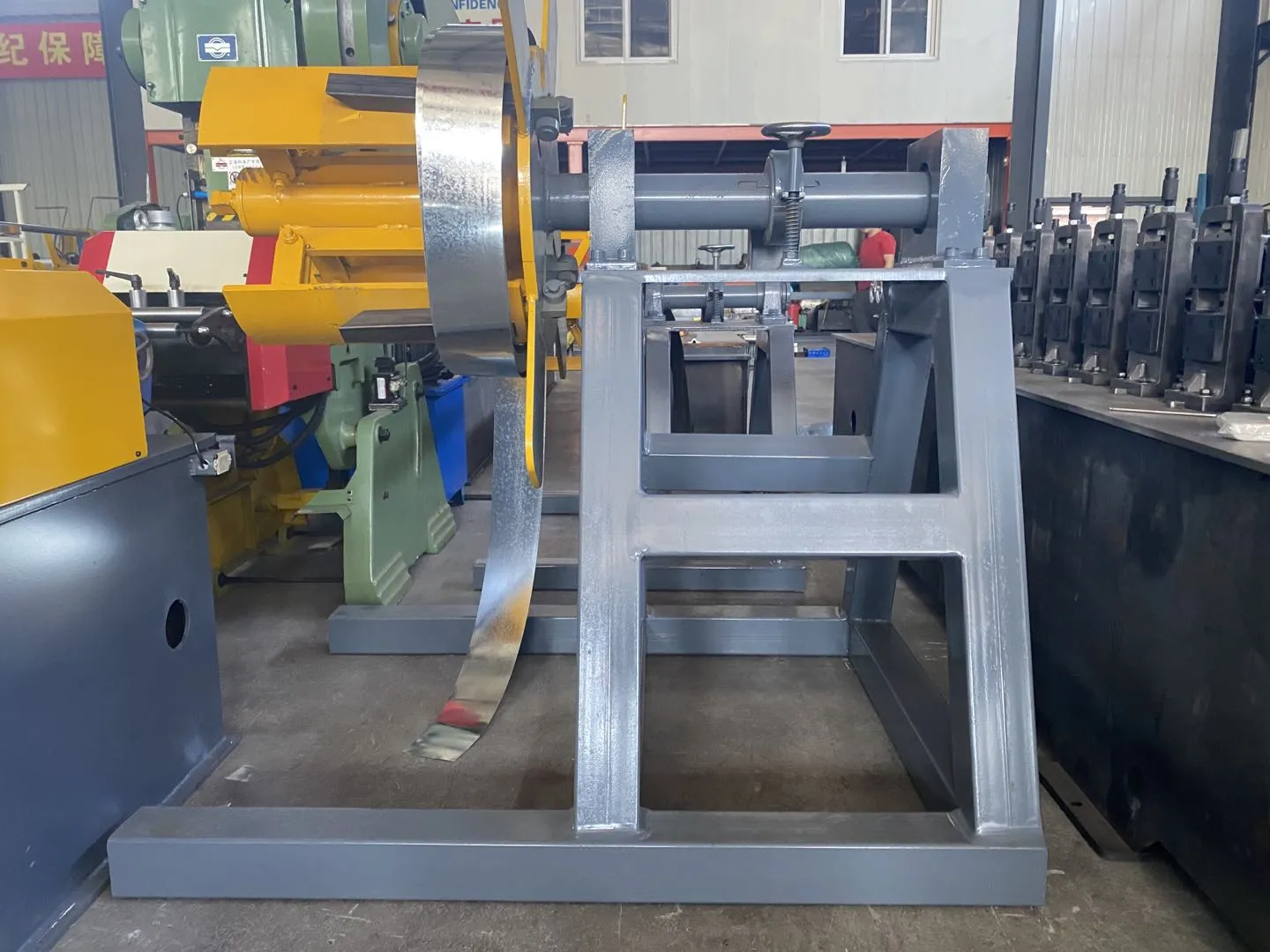

Decoiler

Work type：Passive type Loading capacity：3 Tons Coil inner diameter：450-550 mm (adjustable) Quantity：1 set

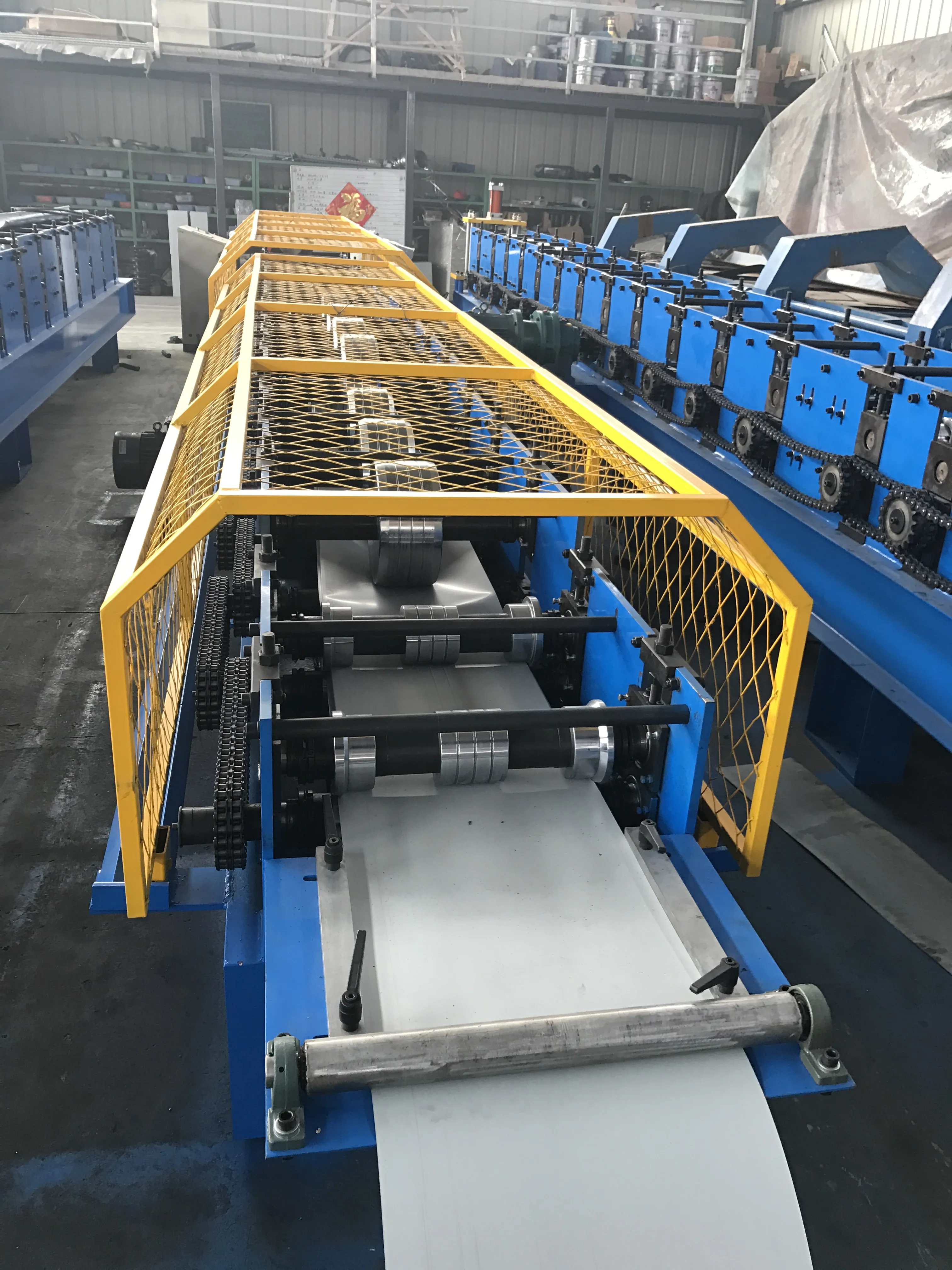

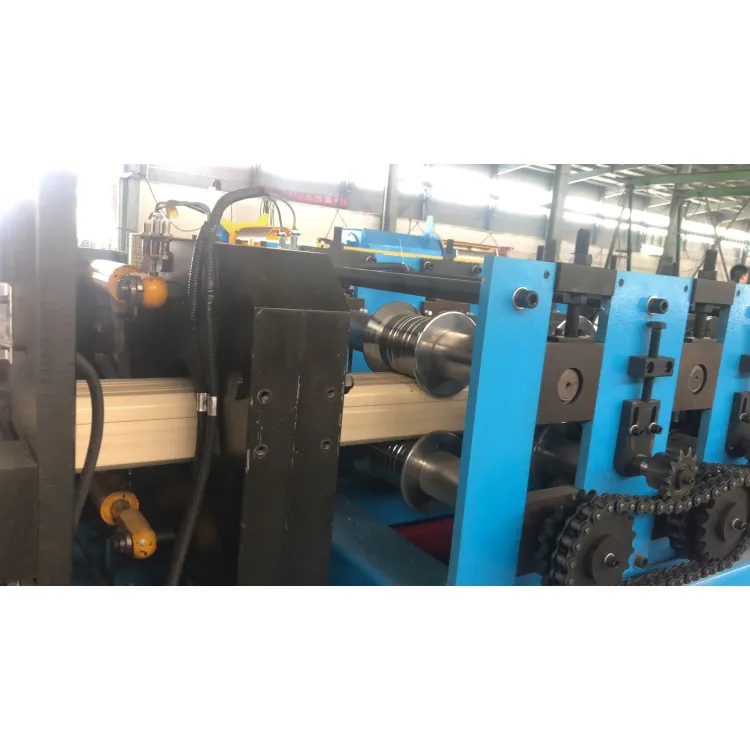

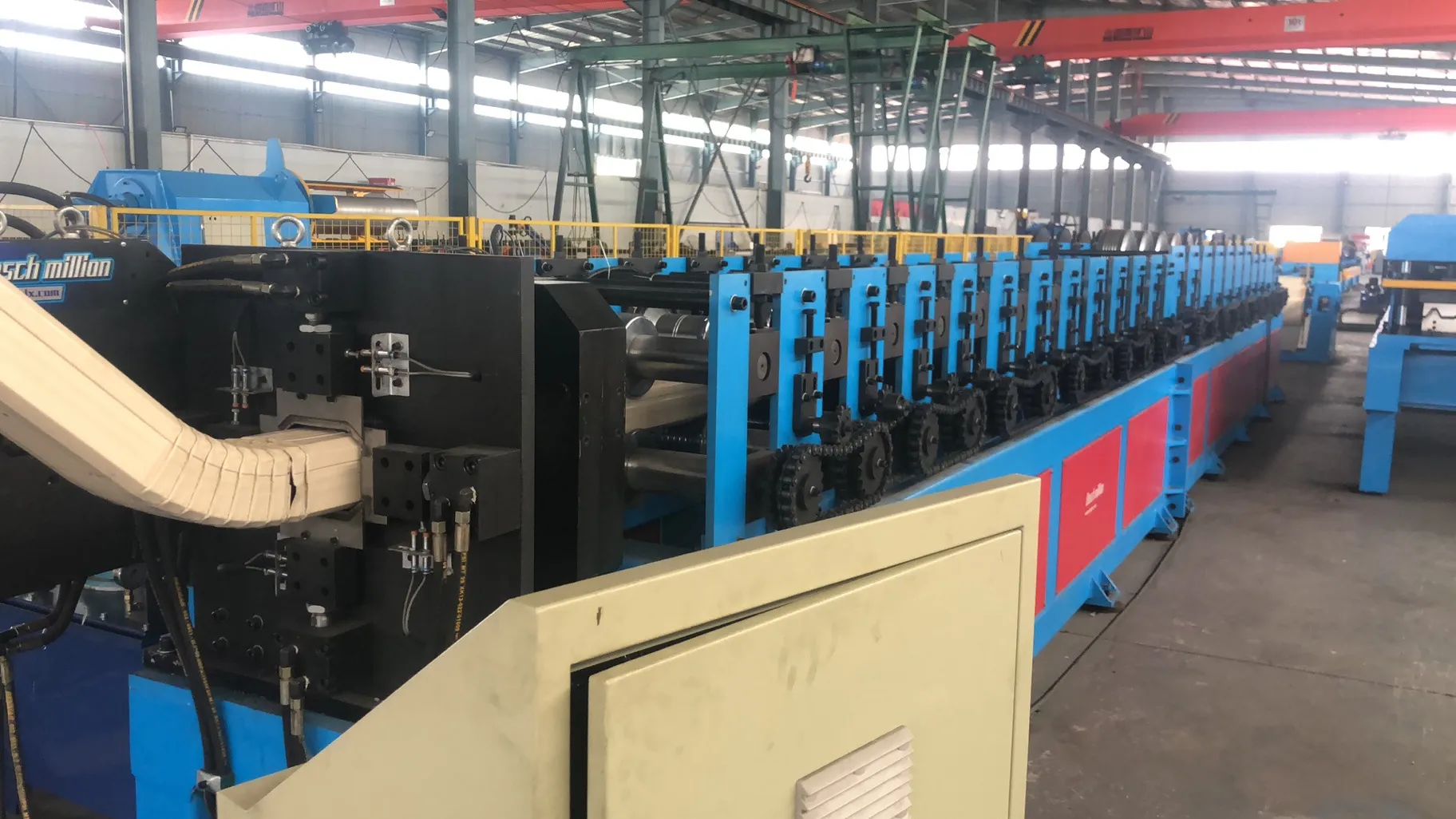

Roll Forming System

Rolling shaft:
Shaft material: 45# steel Shaft diameter: 70 mm Tempering treatment

Roller: Roller material: 45# steel Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life Rolling station number:22 stations Work speed:0-10 m/min Machine frame:20mm thick steel wall plate Bearing:Chinese famous brand Harbin Work power:7.5 kw Transmission:By chains

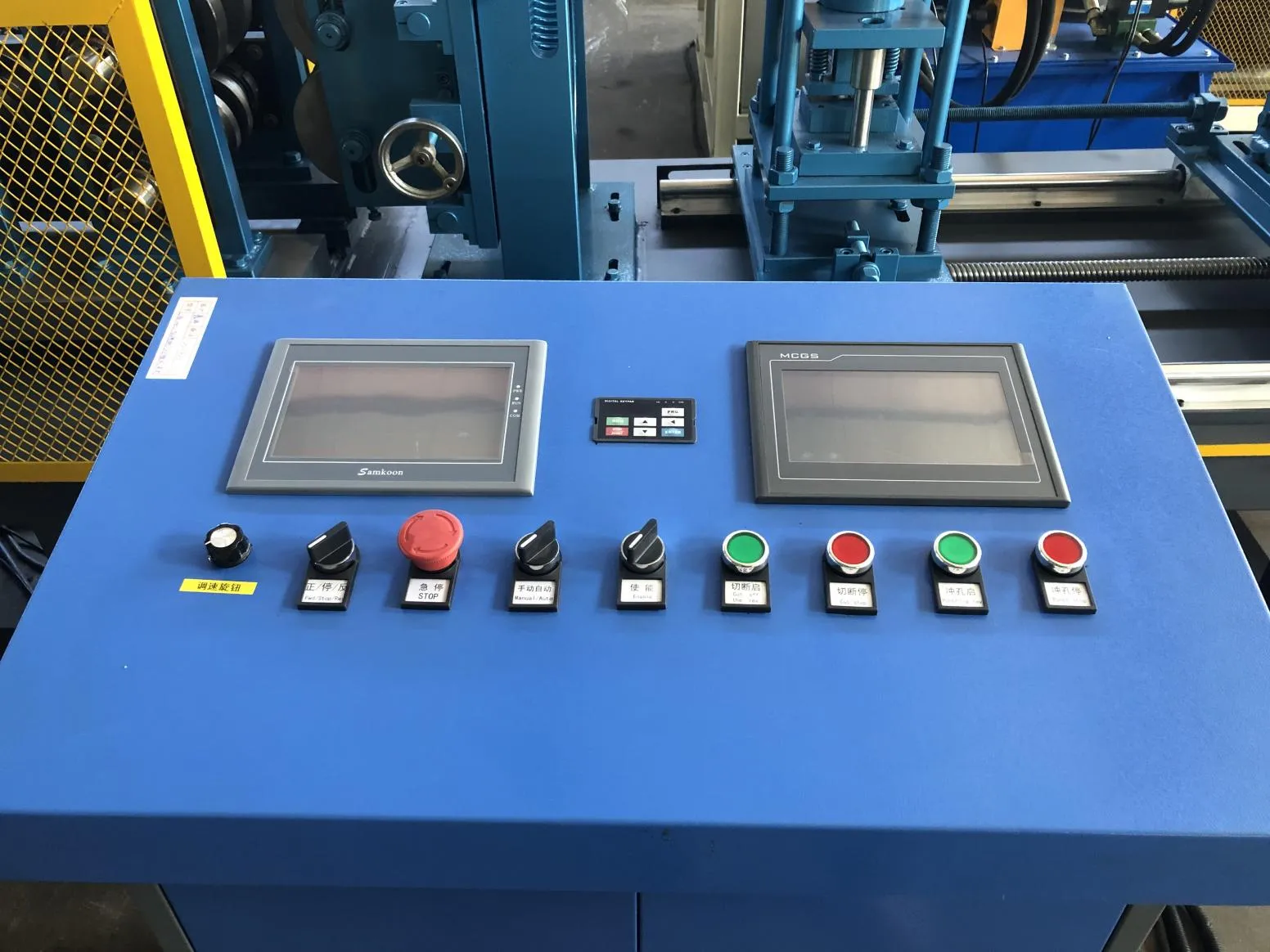

PLC Control System

Frequency brand: Delta (original) PLC brand: Delta (original) Screen type: Touch screen & buttons Screen language:English/Chinese Encoder: Omron Low pressure electrical part brand: Schneider Function: Cutting length and quantity control, speed adjustment control, dimension adjust.

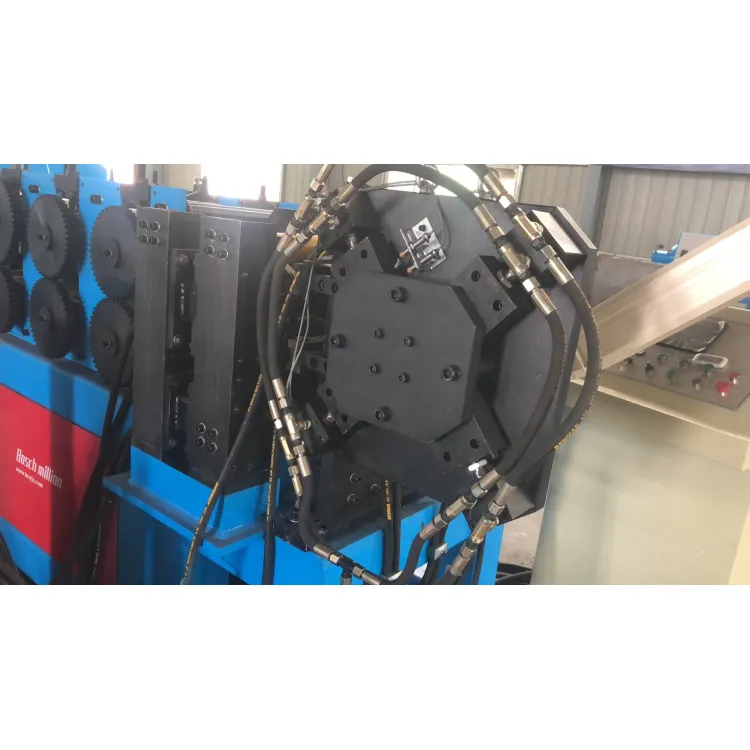

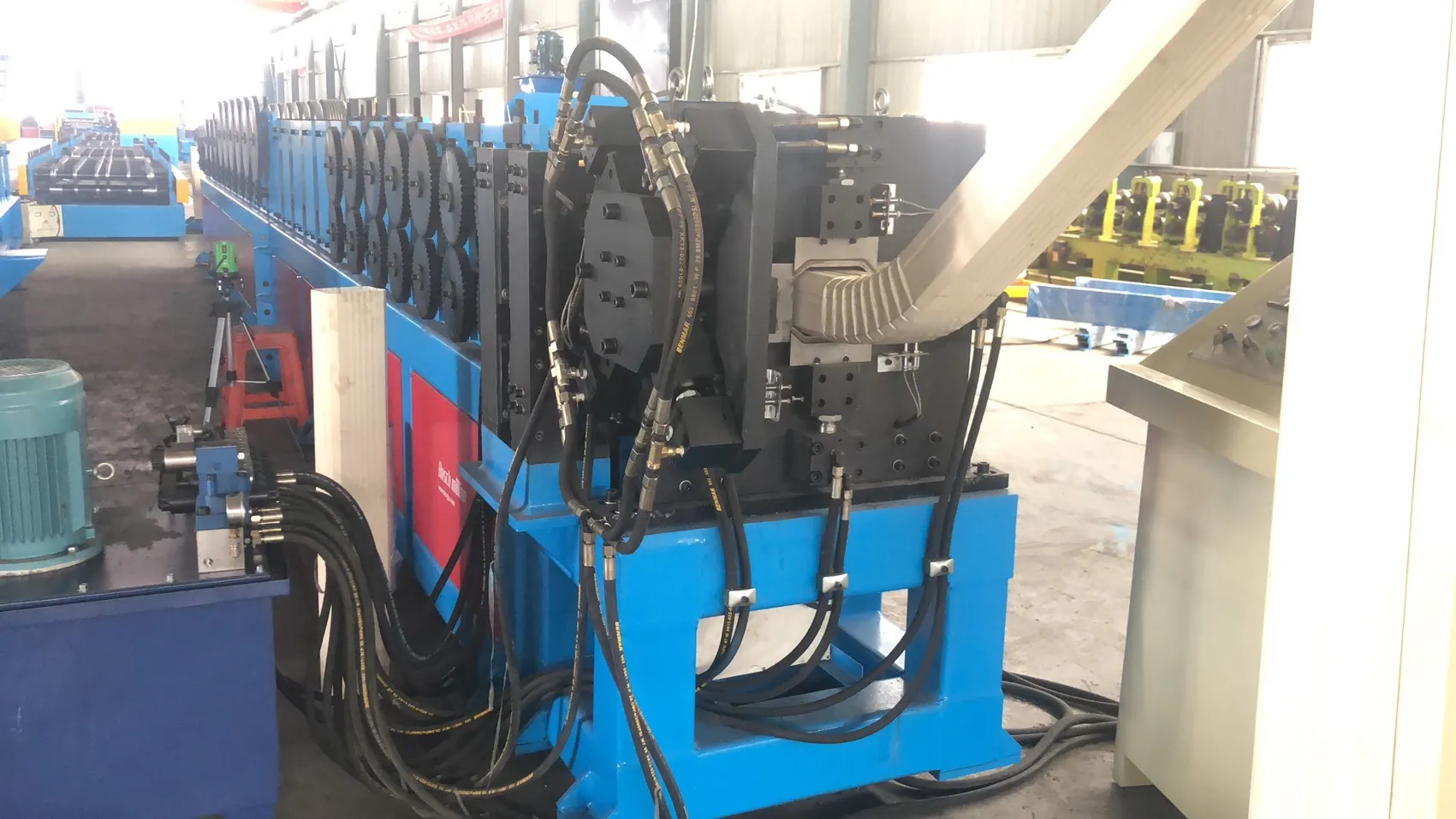

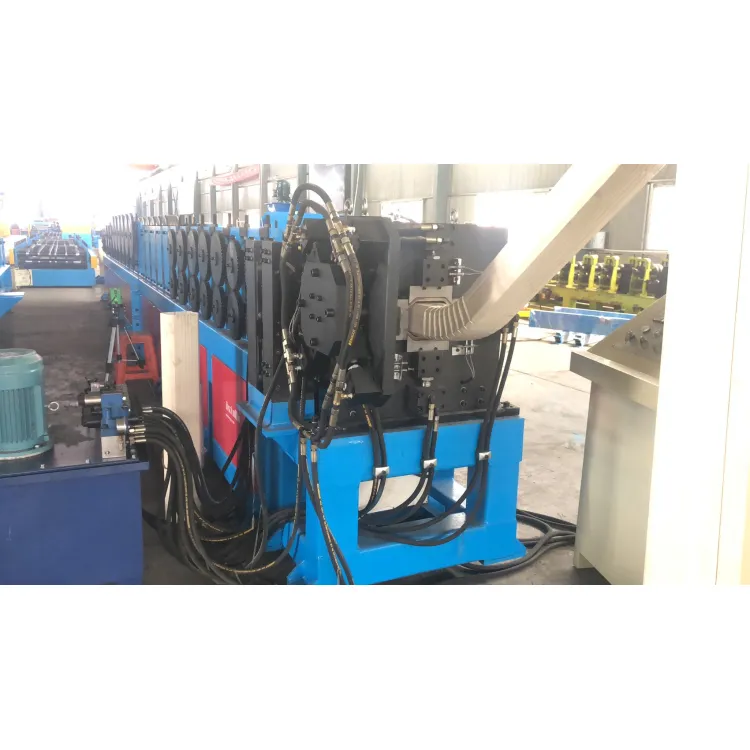

Hydraulic cutting device

PLC brand: DELTA brand Work type: hydraulic power cutting the downspout into length Hydraulic power: 3 kw Cutting length tolerance:±1 mm/3 m Cutting feature: Automatic cutting after forming, no distorting.

Afer-Sale Service

1.Payment: 30%T/T in advance and 70%balance after testing and before shipment. 2.Delivery: 50 working days after the deposit. 3.Validity time: 15 working days 4.After-sales service A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available. B: Training and service: the buyer should charge of visa, round-trip ticket, food and accommodation overseas and USD 80/person/day for salary. C.The advantage of my factory: we have a team of skilled engineers and one group for after-sale service. D: we will provide you the manual for installation, operation and maintenance in English.
