ZTRFM OEM ODM Customized Sound Barrier Panel Machine Noise Barrier Making Machine for Highway 20 M/Min+Russian Click-clock Folding Roof Machine+7.5KW

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM OEM ODM Customized Sound Barrier Panel Machine Noise Barrier Making Machine for Highway 20 M/Min+Russian Click-clock Folding Roof Machine+7.5KW

Name: ZTRFM OEM ODM Customized Sound Barrier Panel Machine Noise Barrier Making Machine for Highway 20 M/Min+Russian Click-clock Folding Roof Machine+7.5KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT70066214

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

20 M/Min

Model Number:

Russian Click-clock Folding Roof Machine

Power(W):

7.5KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Steel
Use
ROOF
Voltage
380 V, 440 V
Rolling Thinckness
0.4-0.8 mm
Feeding Width
625mm/415mm

Company Profile

Cangzhou ZHONGTUO cold roll forming machinery Co.ltd

Cangzhou ZHONGTUO cold roll forming machinery is a professional manufacturer and exporter that are concerned with the design,development and production of cold roll forming machines, material of machines. The company cooperates with several production factories and associated enterprises. It is located in northwest of CangZhou, as a long history and it is the hometown of martial arts. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

Product Description

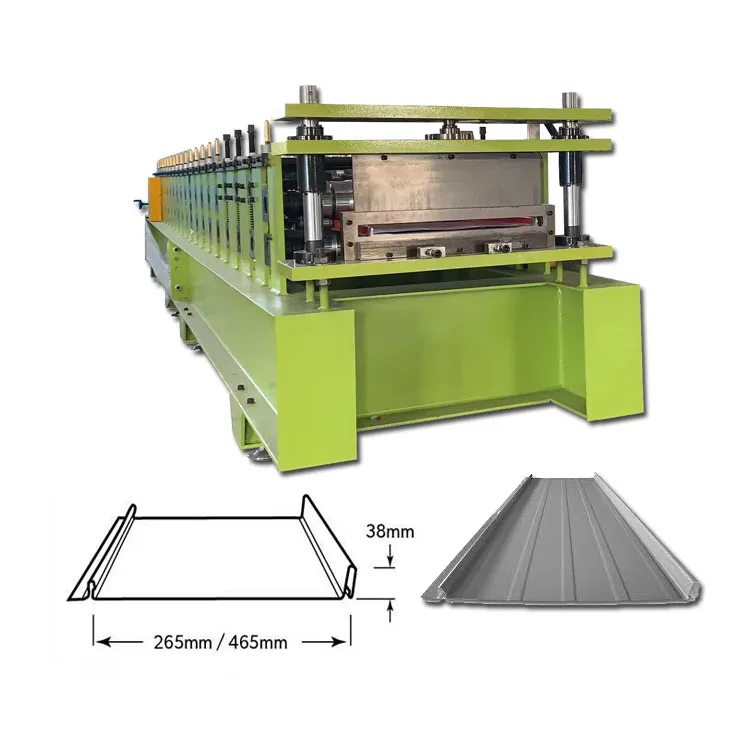

Russian Click-clock Folding Roof Machine

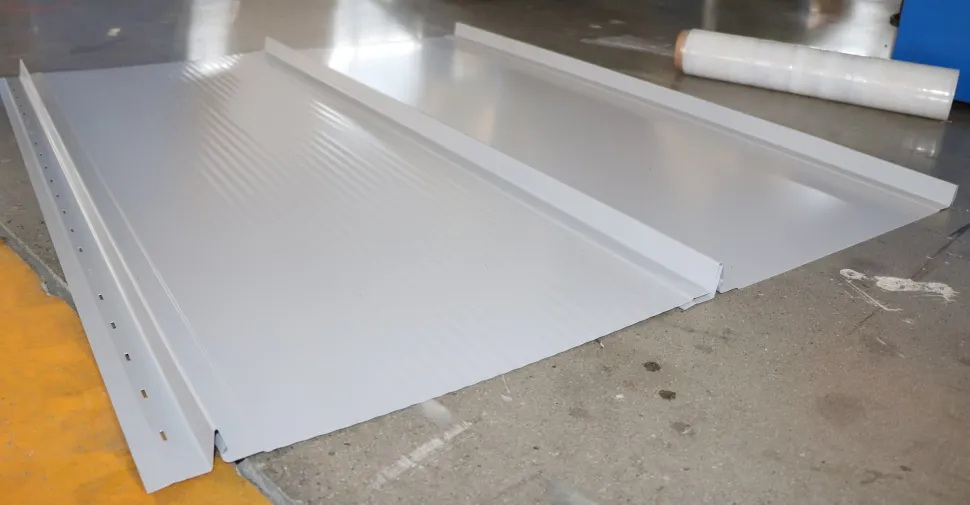

There are many different profile options for the roofing panels— including mechanical seam, snap-lock, and nail strip/fastener flange — are distinctly different in terms of performance, engineering and testing, slope requirements, attachment method, price, and so on. Here we will introduce one type width adjustable standing seam profiles, snap

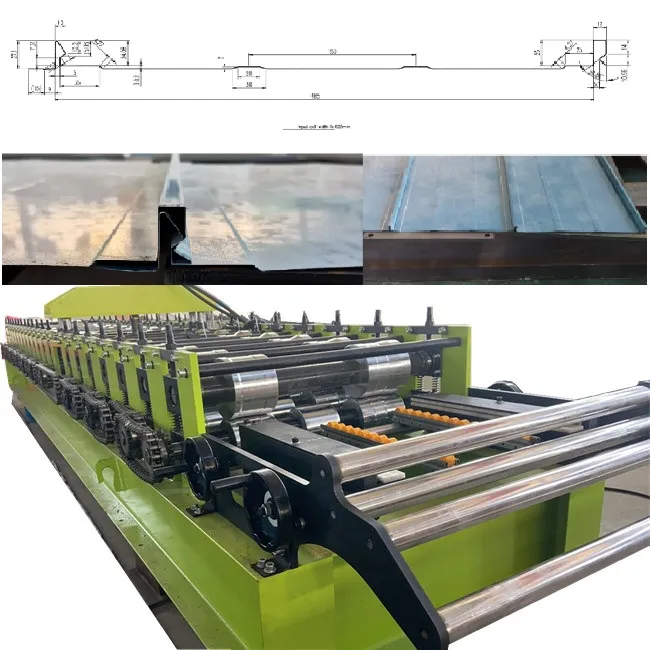

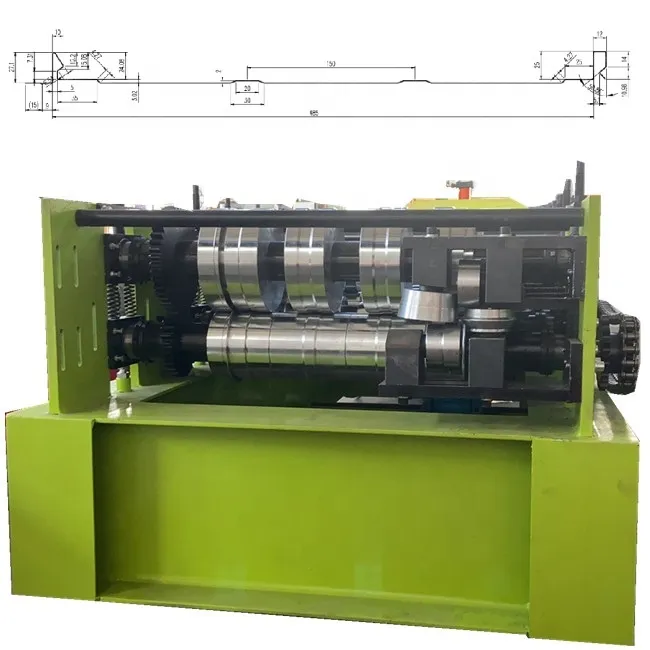

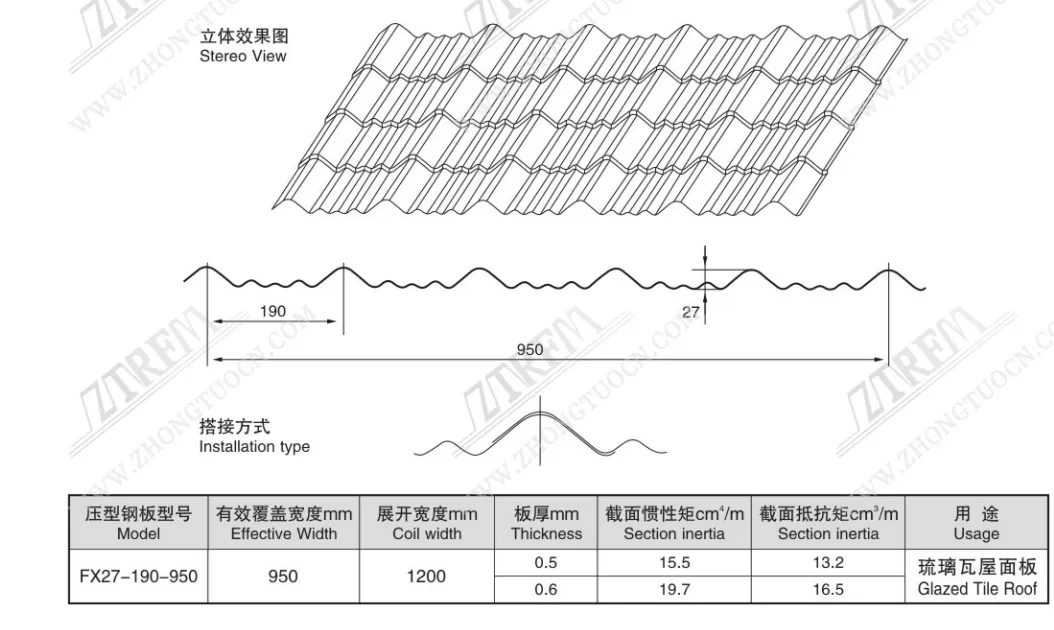

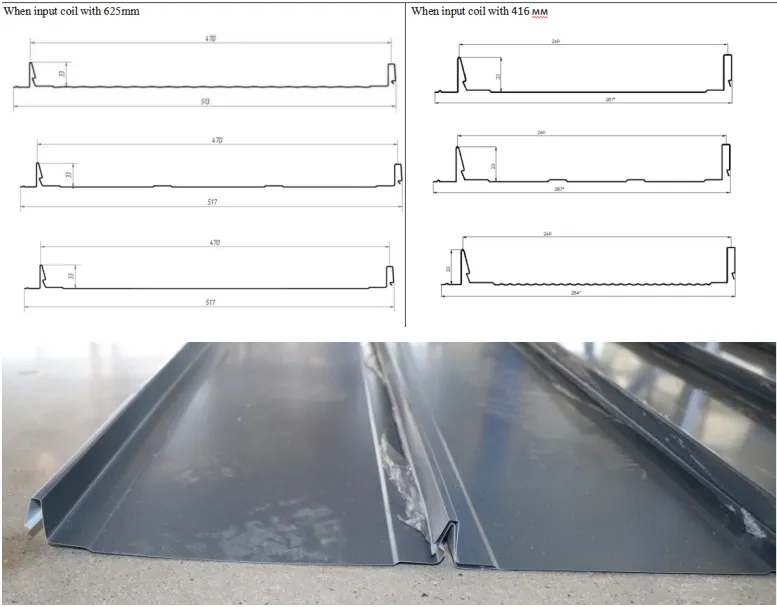

lock type here, also the metal embossing type also adjustable. Here are some drawing profiles for your reference:

Machines' advantages 1. Width adjustable by PLC automatically.
2. With embossing rollers for different types.
3. With linear motor more accurately.
4. Strong rollers for long time to use.
5. Smap lock could be tightly.
6. With the side locking, you can choose to let it work or not with.

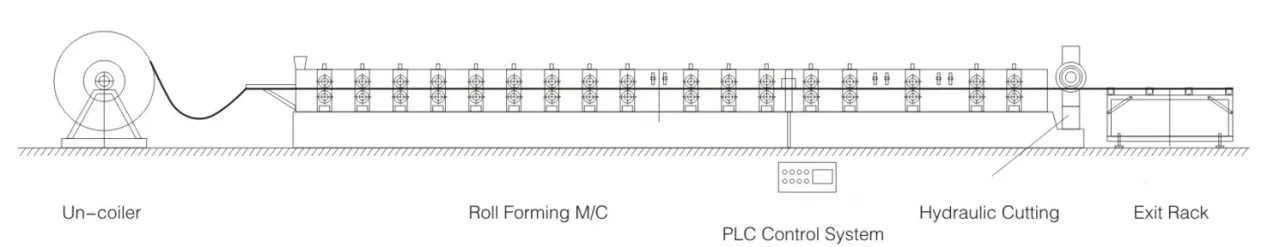

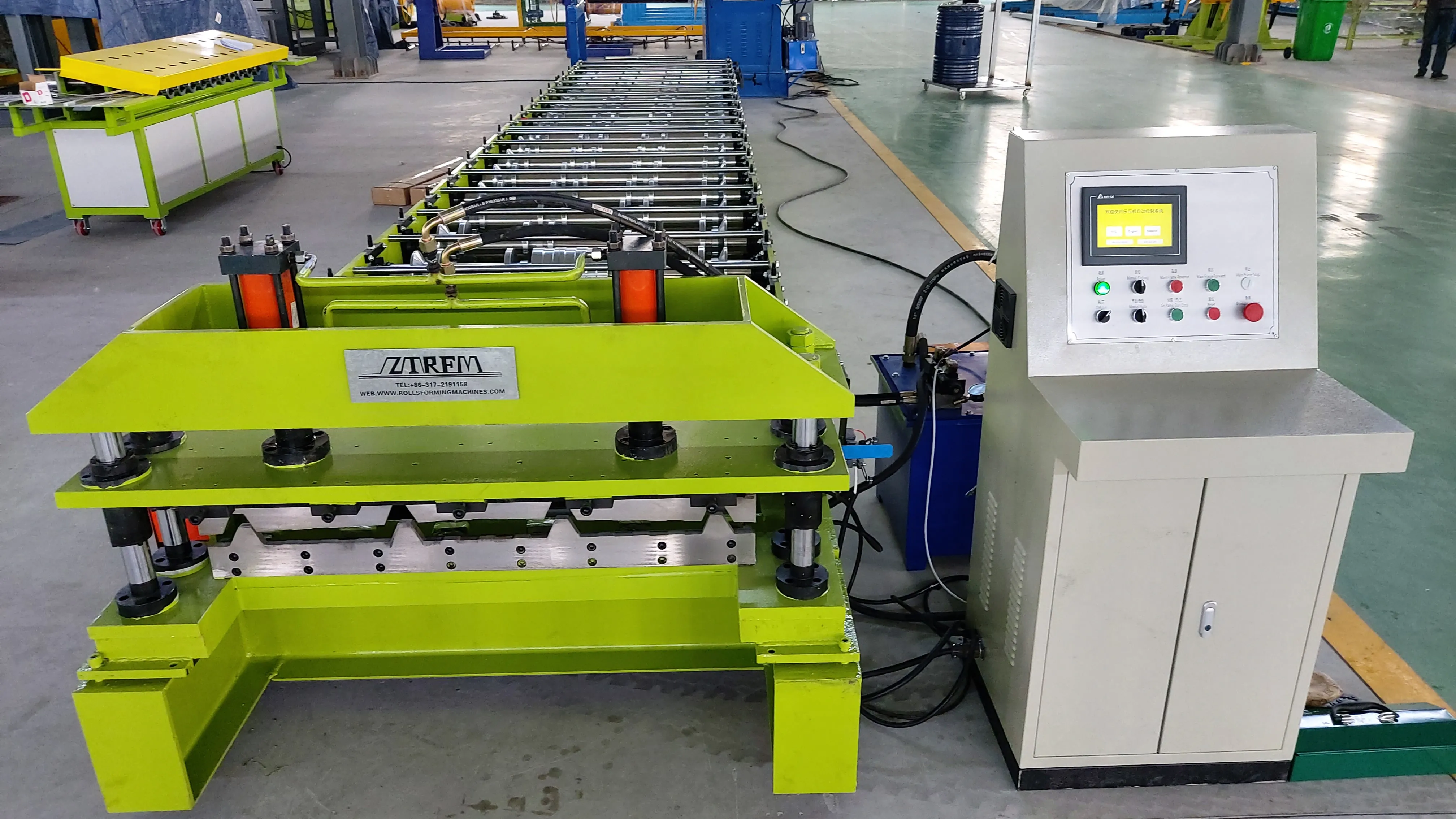

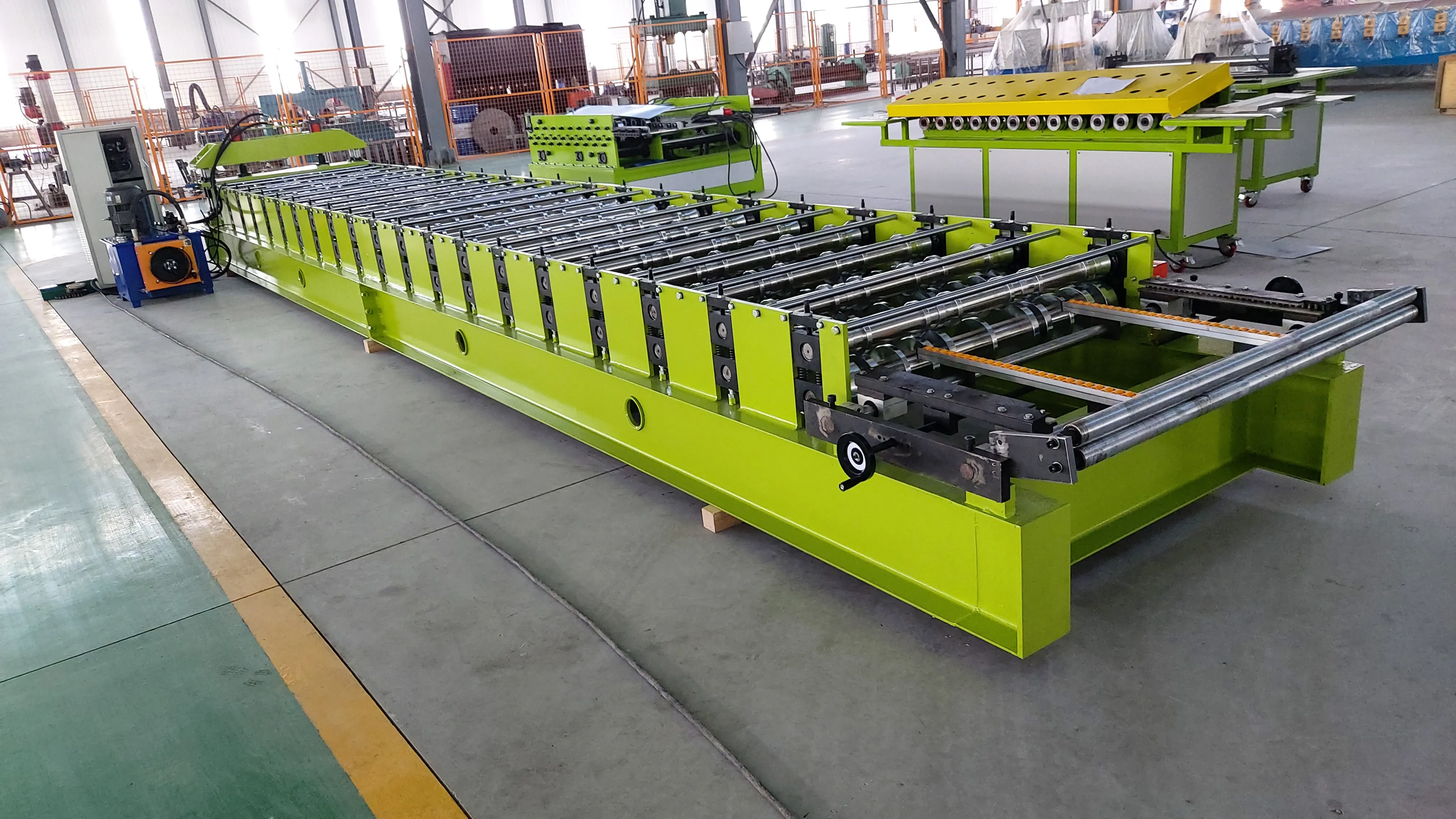

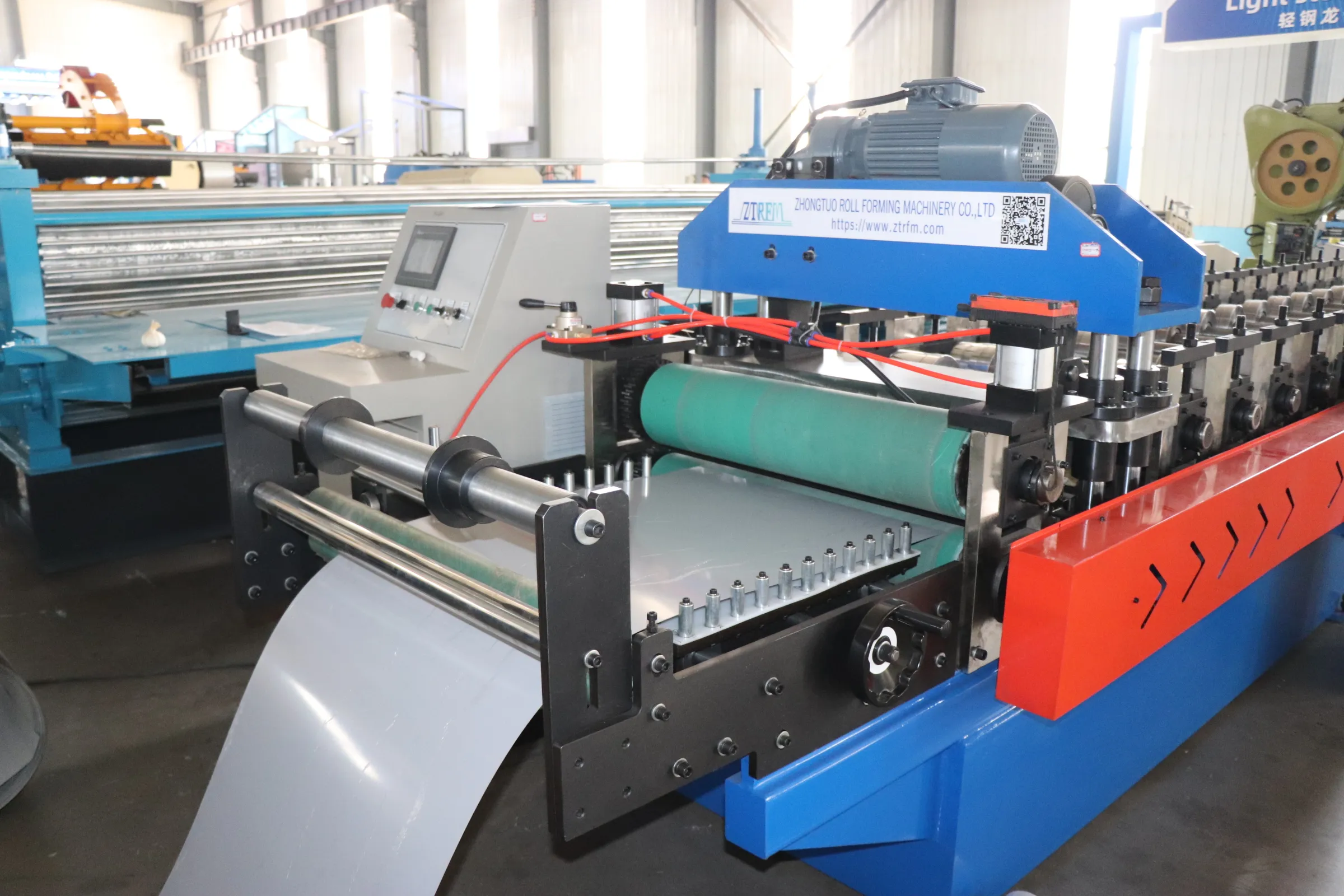

Click-clock folding roof machine
Raw Material	PPGI
Raw Material		Material thickness:0.3-0.8mm Coil width ：416-625mmmm Effective width:260 mm, 470mm
Machine Frame	350# H steel welded,Steel plate welded structure
Material Of Rollers	45# Steel,Chromed treatment, improve the hardness and prevent abrasion, anti corrosion increase of service life
Rolling station	Roller stations :18 rows
Diameter of shafts	Φ75mm solid
Material of shafts	45# STEEL,Tempering treatment to prevent deformed and improve hardness
Forming speed	20 m/min
Voltage	380V/50HZ/3P (as requested)
Transmission way	By Chains with cover
Main motor	7.5 KW

Feeding device

1.Protect coil material

2.With handwheels for easy adjustable.

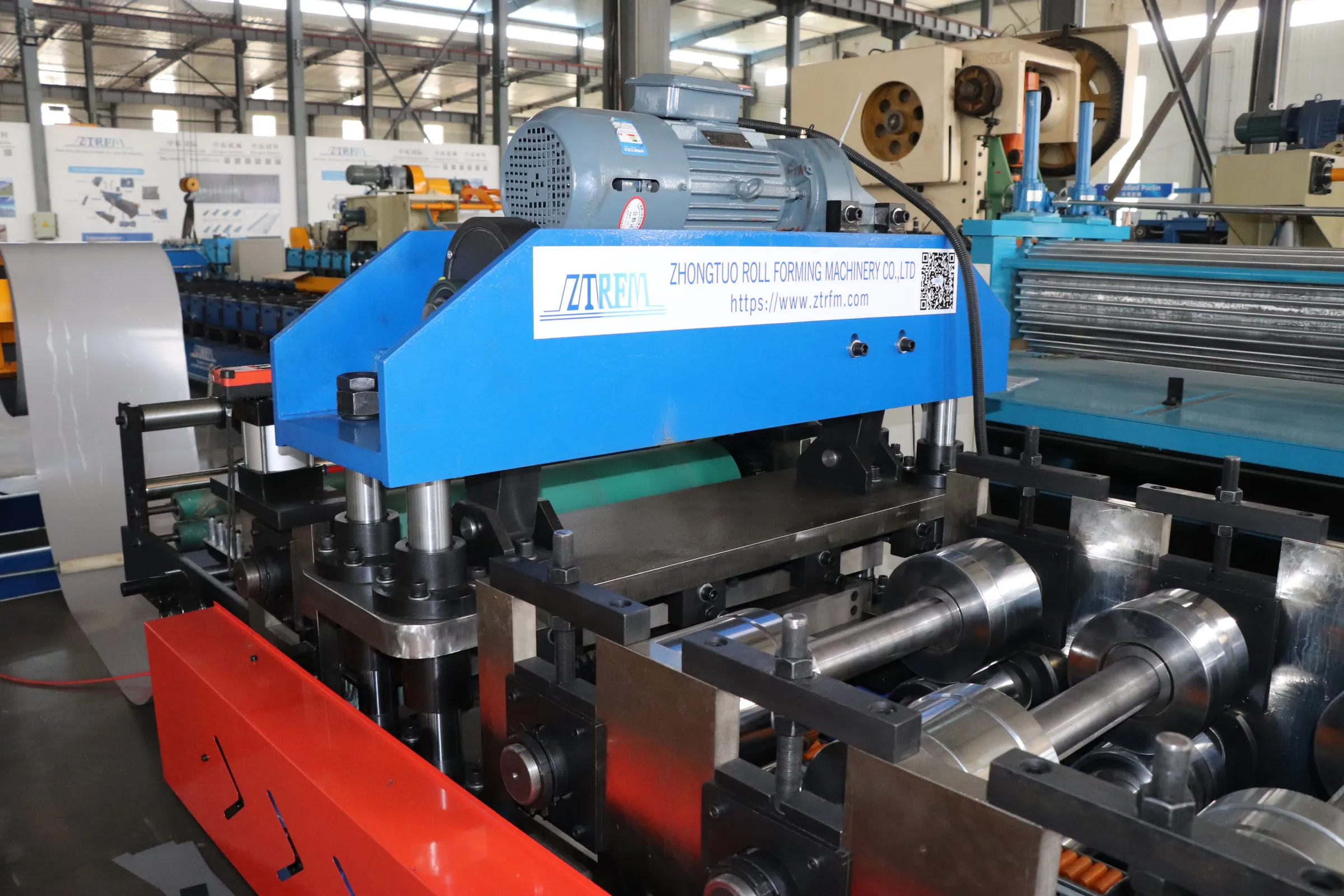

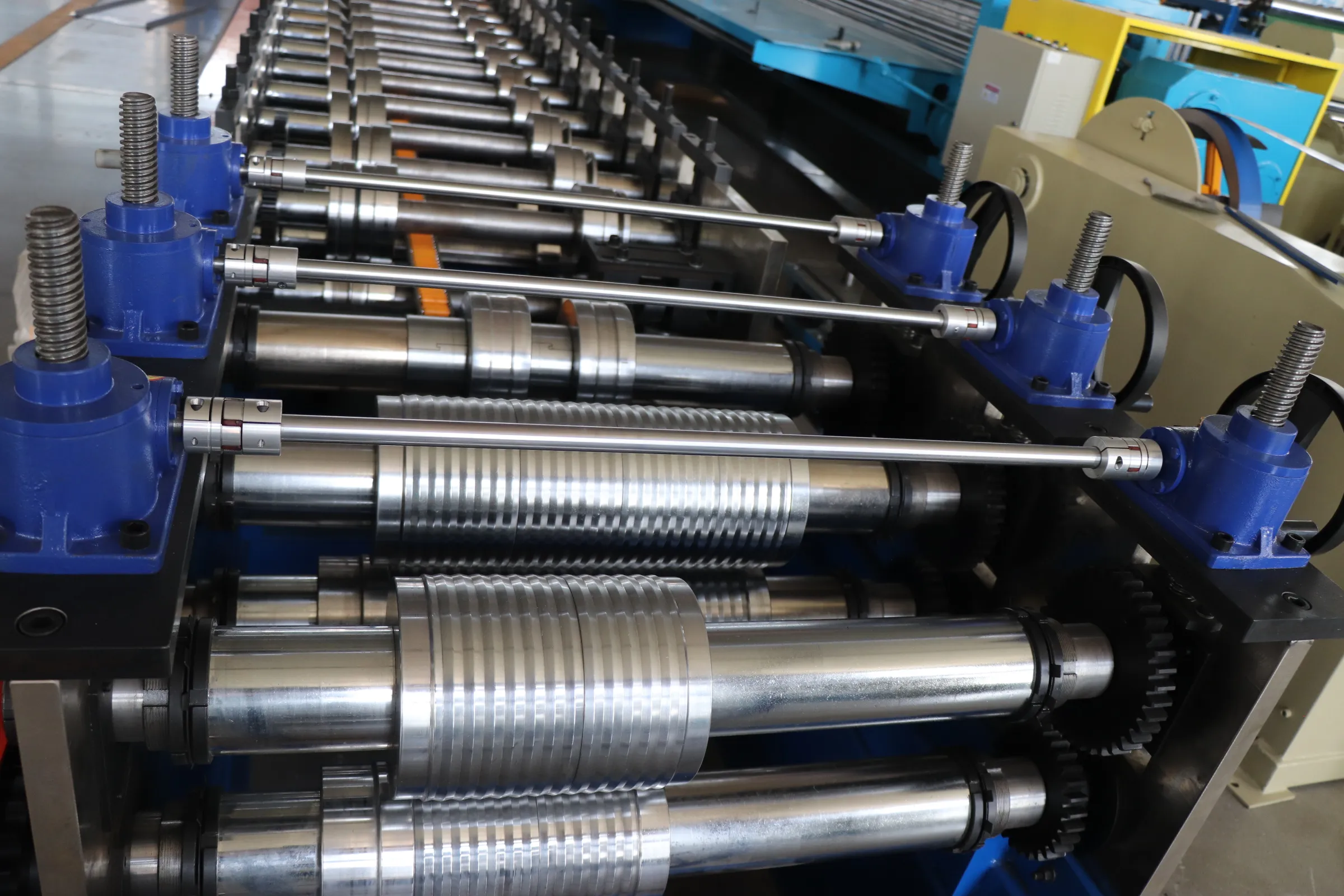

Rollers and shaft

1.Surface with chromed treatment
2.Material:45# steel

Pre-Cutting system

1.Fully automated knuckle pressing

2. Fully automated cut of products

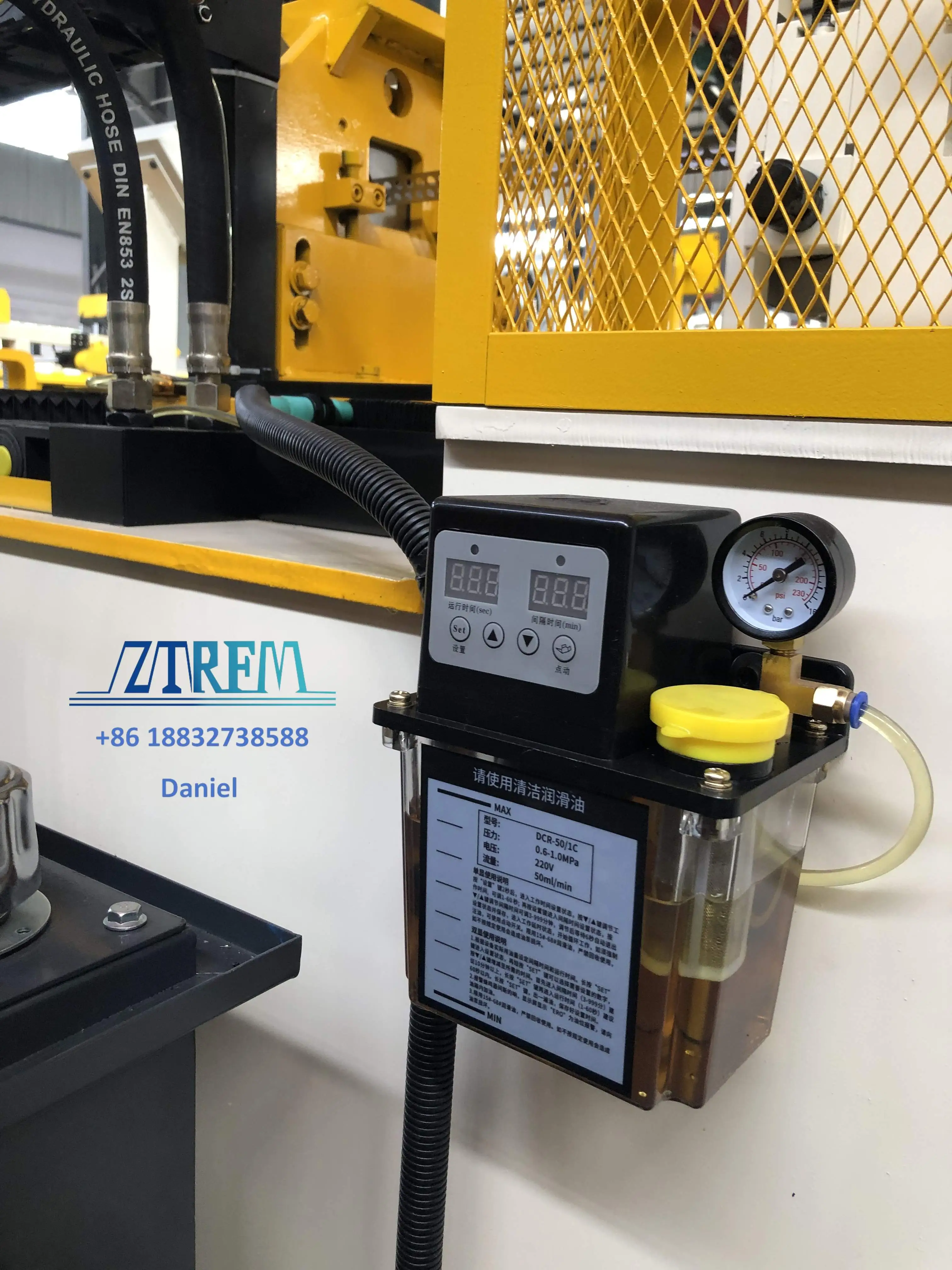

Automatic oil filler

1.Automatic lubrication for the cutter

2.Reduce machine maintenance time and cost

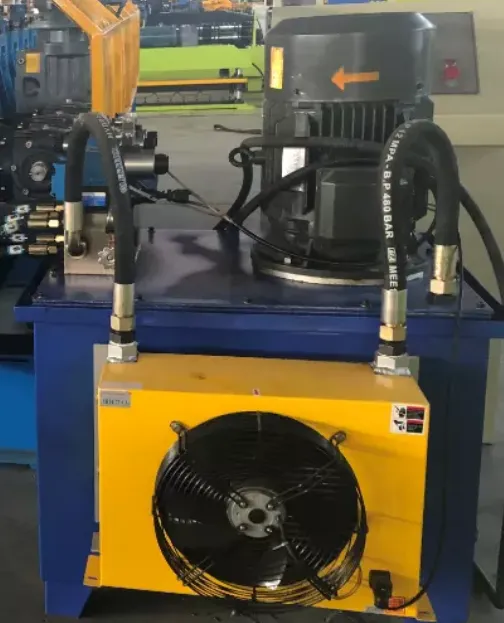

Hydraulic station

1.Updated type

2.Low noise

3.Cooling fan for long service time.

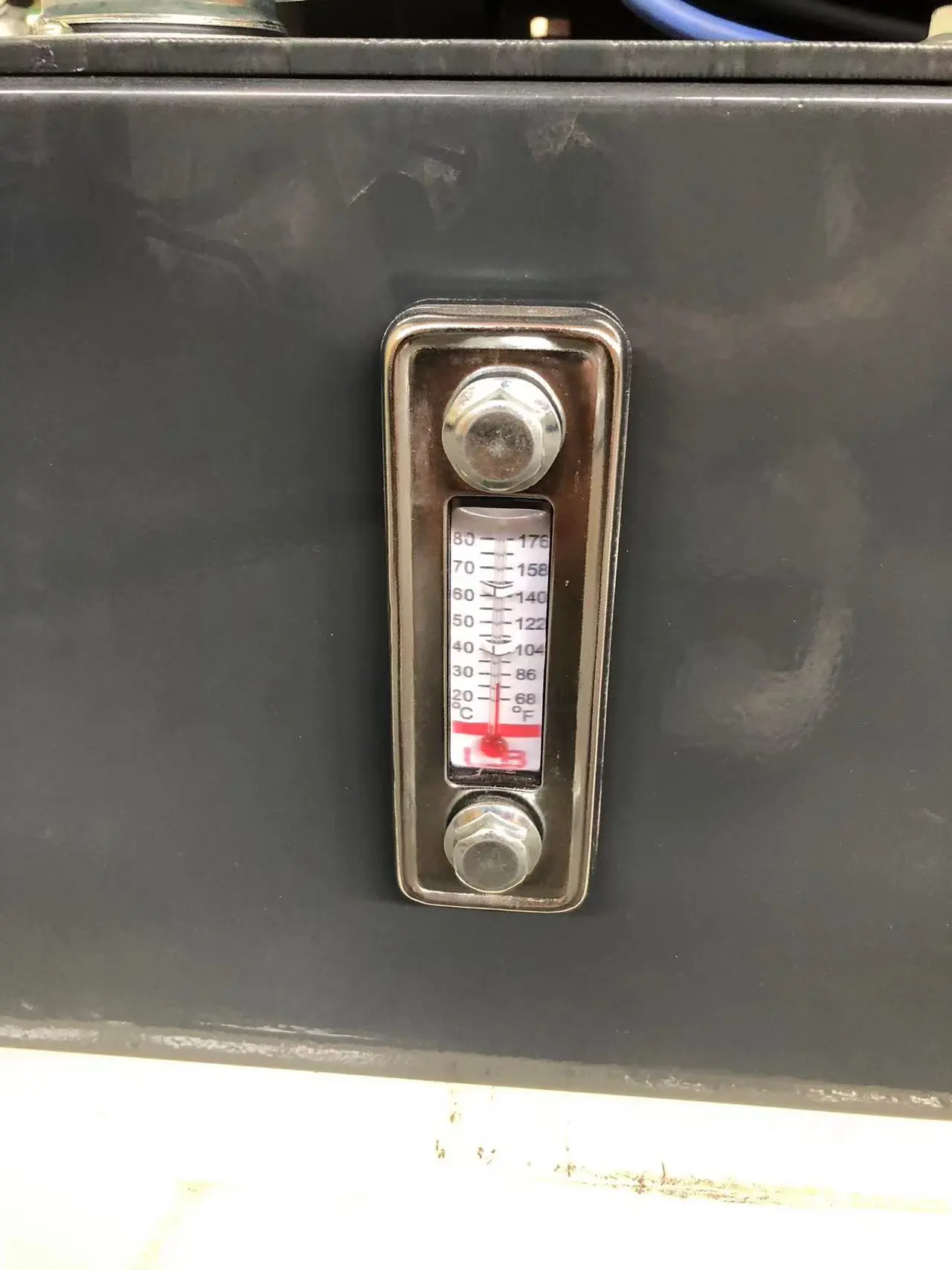

Thermometer

The temperature of the hydraulic station can be measured in real time, more convenient and faster

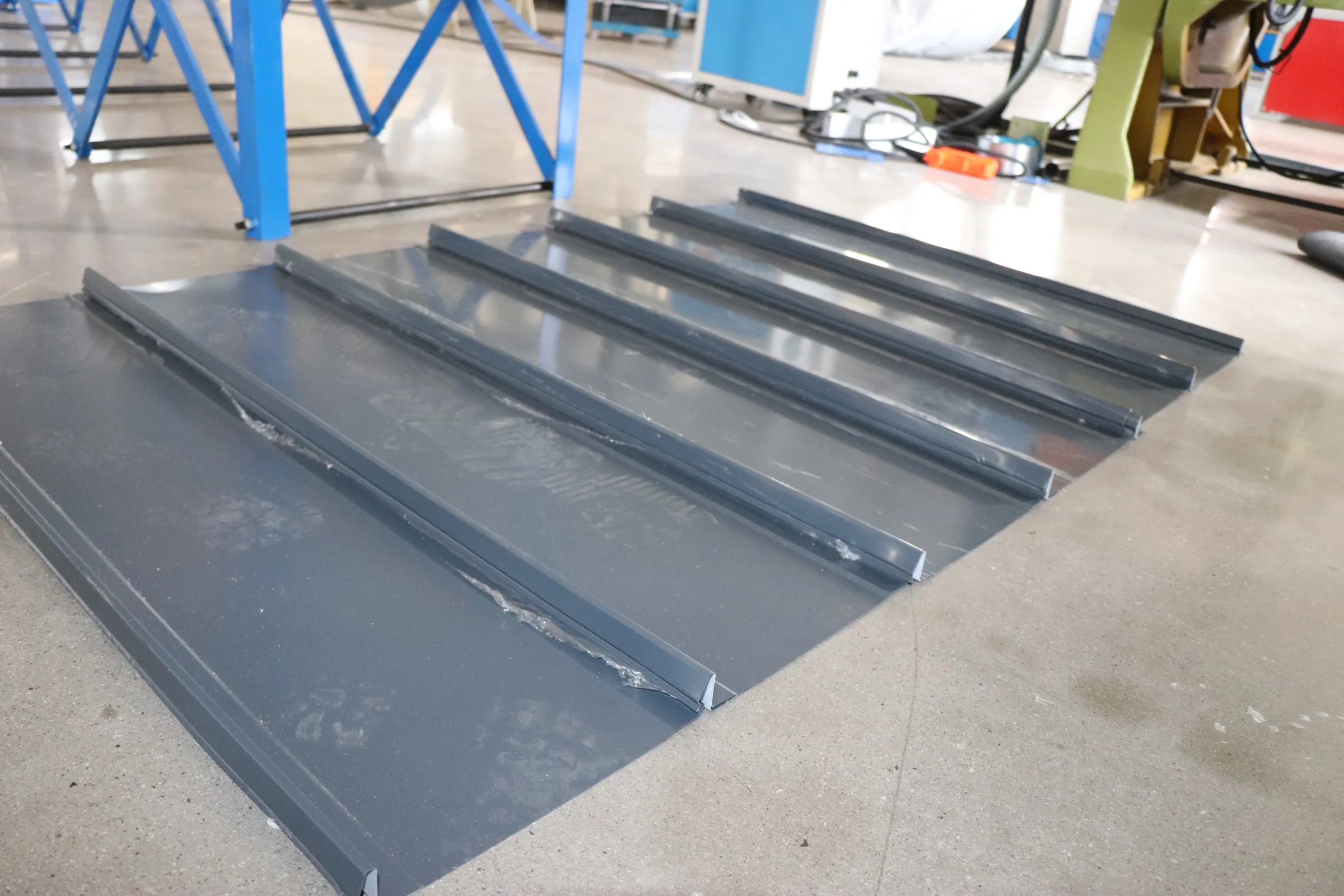

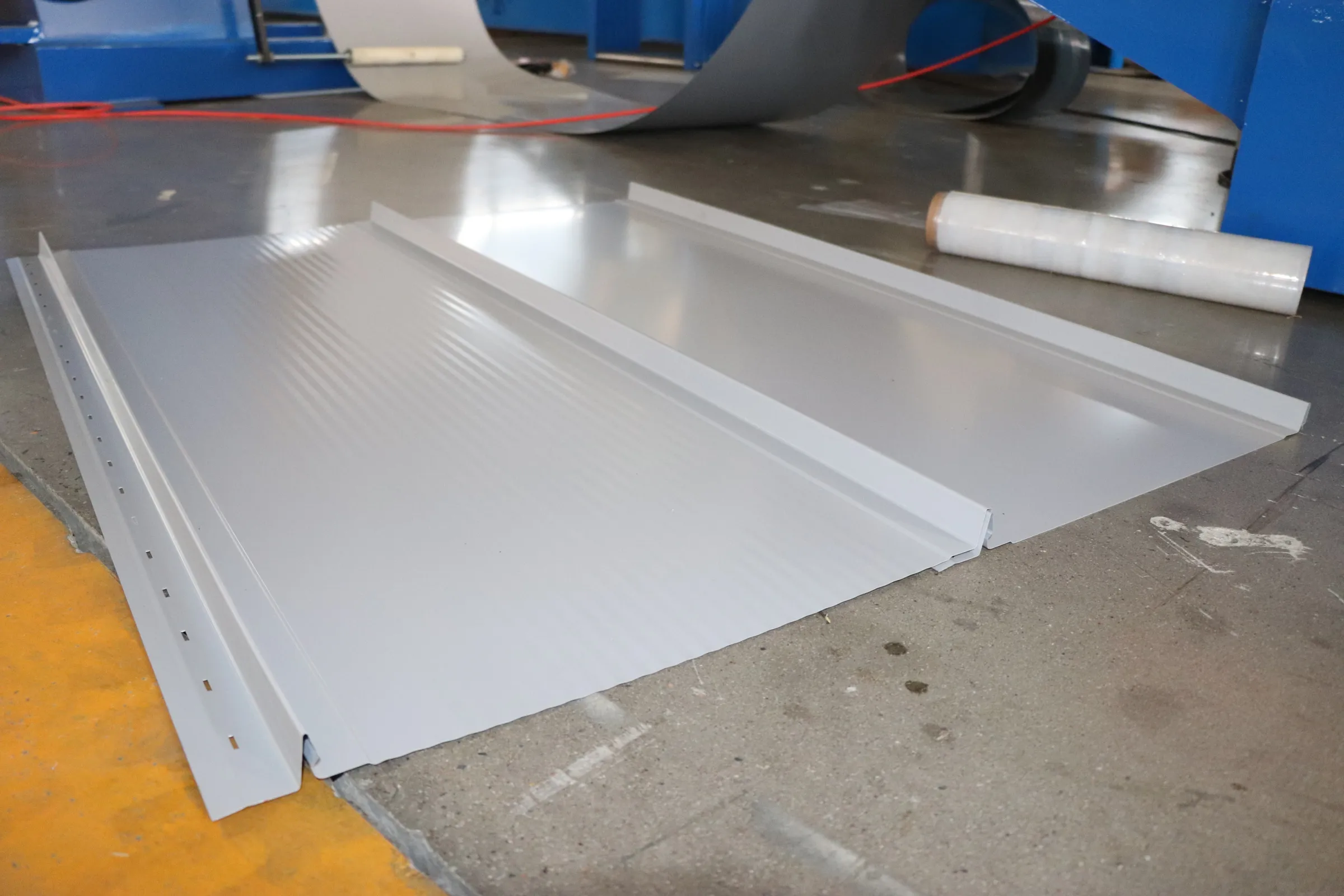

Product display

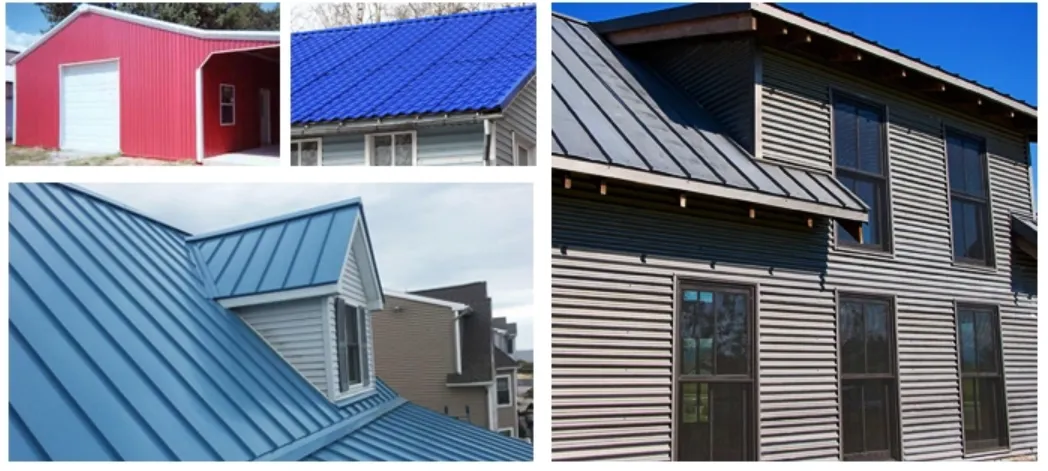

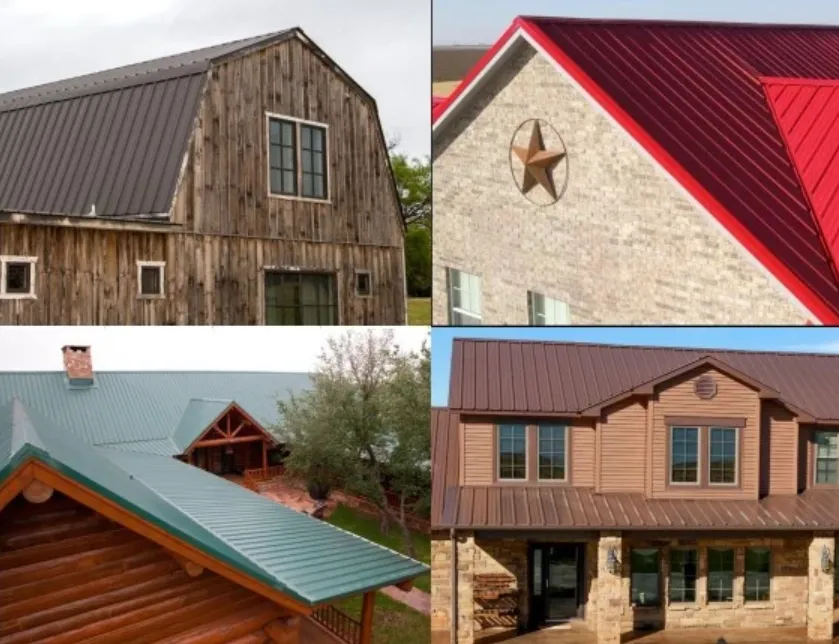

Application
