ZTRFM Made in China Hot Sale High Speed 80 Meters Per Minute Cut to Length Machine Automatic Metal Sheet Cut to Length Machine 4KW

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Made in China Hot Sale High Speed 80 Meters Per Minute Cut to Length Machine Automatic Metal Sheet Cut to Length Machine 4KW

Name: ZTRFM Made in China Hot Sale High Speed 80 Meters Per Minute Cut to Length Machine Automatic Metal Sheet Cut to Length Machine 4KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT89410531

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

4KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380v/50hz/3p
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

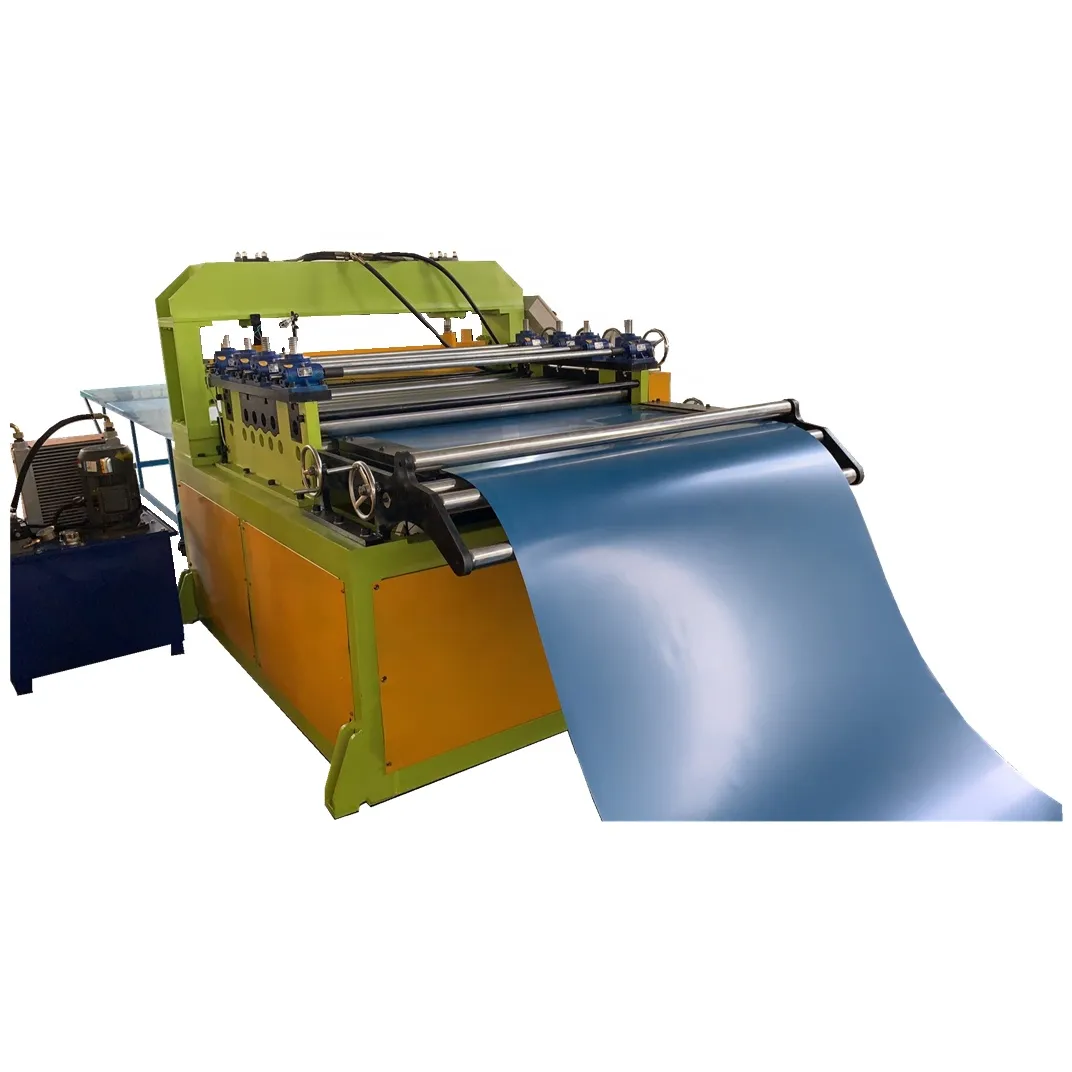

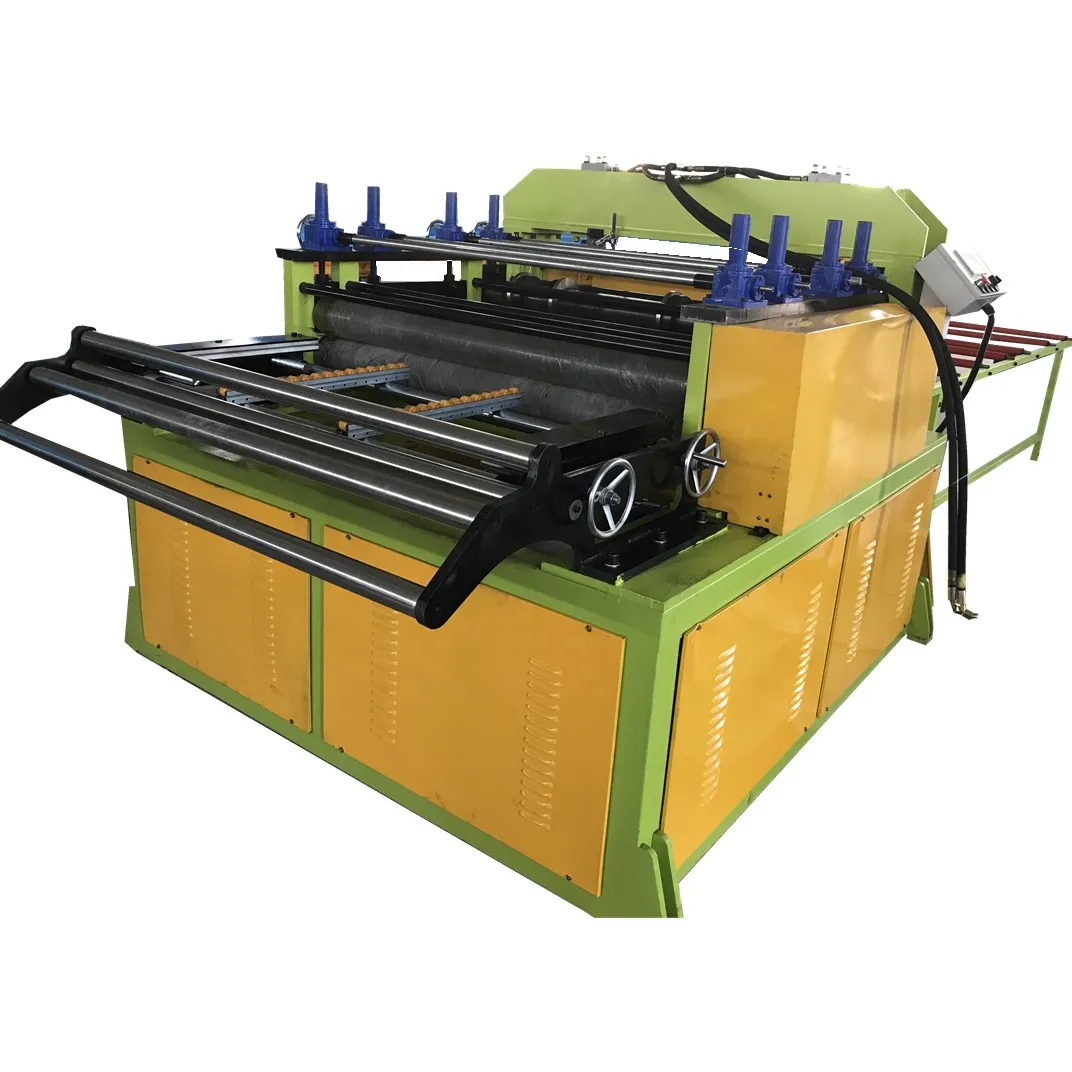

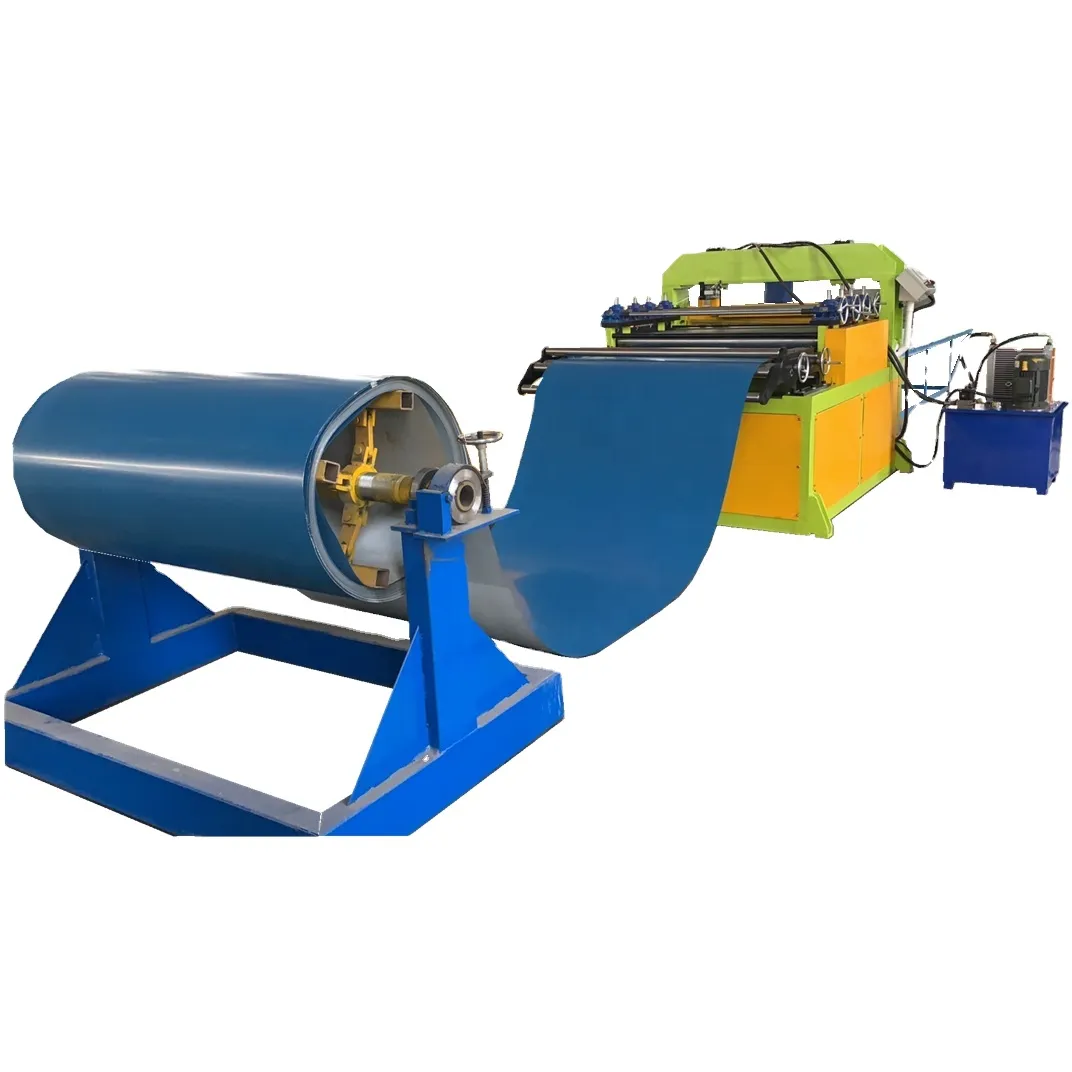

ZTRFM Made in China Hot Sale High Speed

80 Meters Per Minute Cut to Length Machine

Automatic Metal Sheet Cut To Length Machine

FEATURES

Details Determine the Success; Choices Realize the Future !

High speed 80m/min cut to length production line is designed for those who want to do the shearing in batch and fast production.

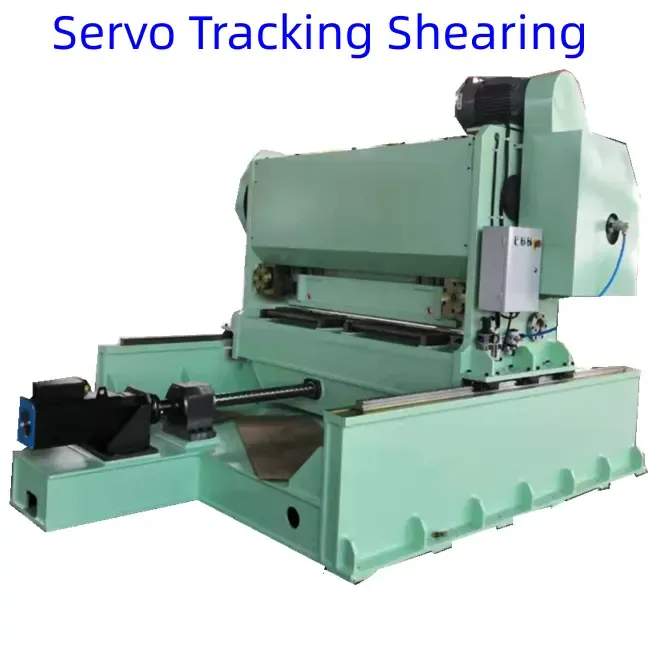

The machine working speed can reach 80m/min using the servo tracking shearing system.

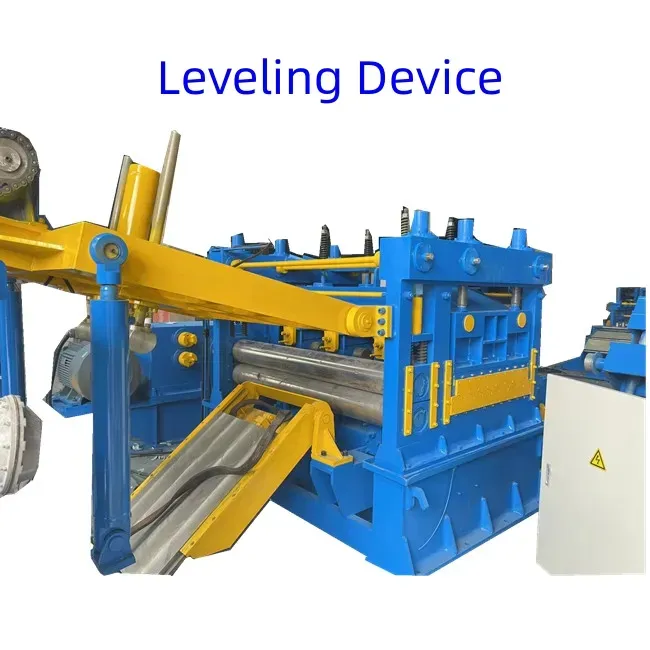

Also to make sure the leveling accuracy, we use the 4 layers leveling, one hand it can make sure the leveling speed and then it can make sure the leveling accuracy. The
following parts, we will share more information of each part.

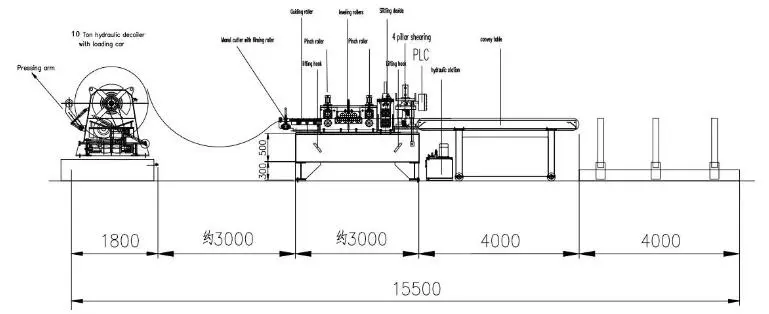

WORKING FLOW

PARAMETERS

Emphasize Technological Literacy; Enhance Research and Development Capabilities !

No.	Name	Parameter
1	applied to	carbon steel, GI
2	thickness	0.1-2mm
3	width	500-1550mm
4	ID	φ480-520mm
5	OD	≤1600mm
6	coil weight	≤15 ton
7	diameter of leveling rollers	65mm
8	distance of leveling rollers	70mm
9	number of leveling rollers	19
10	materail of leveling rollers	GCr15
11	material of cutter blade	6CrW2Si
12	speed	≤80m/min
13	cutting speed	it can cut about 30pcs for 1 meter per minute it can cut about 25-26 pcs for 2 meter length per minute it can cut about 20-22 pcs for 3 meter length per minute
14	direction of feed material	from right to left
15	length tolerance	≤±0.5mm
16	diagonal precision	≤±1mm
17	straighten precision	1mm
18	power	380v50hz3ph(customize for you)

Side Guide Device

It uses the vertical rollers of both sides to guide the plates into the slitting machine correctly.

The guide rollers are ajusted by the roads on both sides. The width range is 500-1550mm.

Name	Parameter	Remark
motor power	75kw DC
level temperature	-10~40℃
frame material	Q235
work roller material	GCr15	forge plece
work roller surface material	42Cr	forge piece
surface hardness of supporting roller material	HRC52-56	hardened depth 3-5 mm
roller handling process	raw material temopering- rough process- hardened HRC55-60- finish machining	according to the bearing shaft processing technology

Feed Roller Device

It is good for guiding the steel plates into next process.

It is made by rollers and frame.

Name	Instruction	Remark
guide model	vertical edging roller	6 pieces
guide roller technology	quench and finish grinding
adjustment model	adjustment by manual
main part	welding parts, overall aging treatment

PAYMENT TERMS AND WARRANTY

Quality is Our First Principle; Service is Our Highest Loyalty !

1. Payment: 30% T/T in advance and 70% balance after testing and before shipment.

2. Delivery: 15 working days.

3. Validity time: 15 working days.

4. After-sales services:

(1) Warranty: one year, and we will provide the technical support for the whole life. Some spare parts are available.

(2) Training and service: the buyer should charge of visa, round-trip ticket, food and accomodation overseas and 100 USD/ person/ day for salary.

(3) The advantage of my factory: we have a team of skilled engineers and one group for after-sale service.
