Technical Specifications

Work Pressure
380V 50Hz 3Phase(As your requirement)
Voltage
380V/50HZ 3Phase
Power(W)
7kw

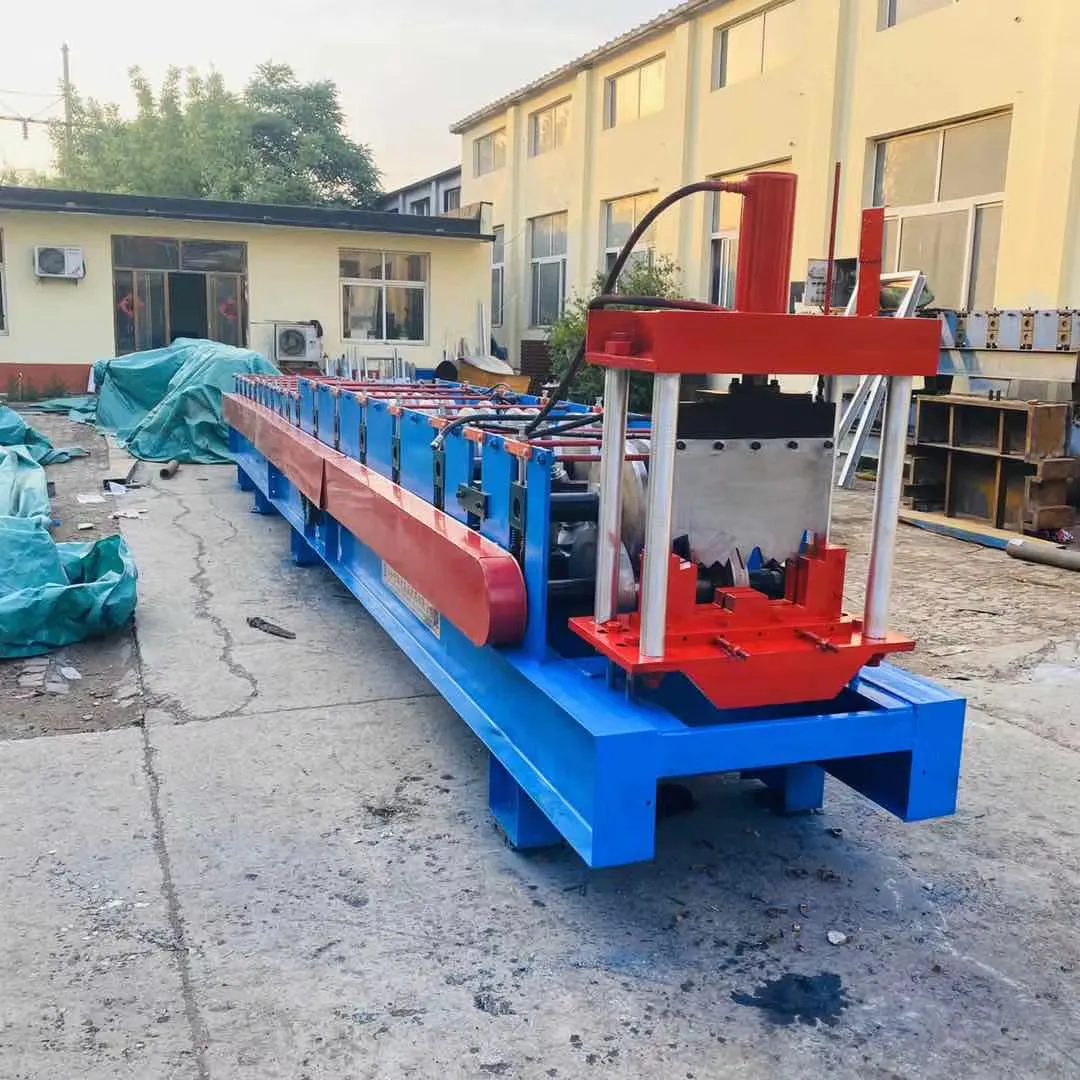

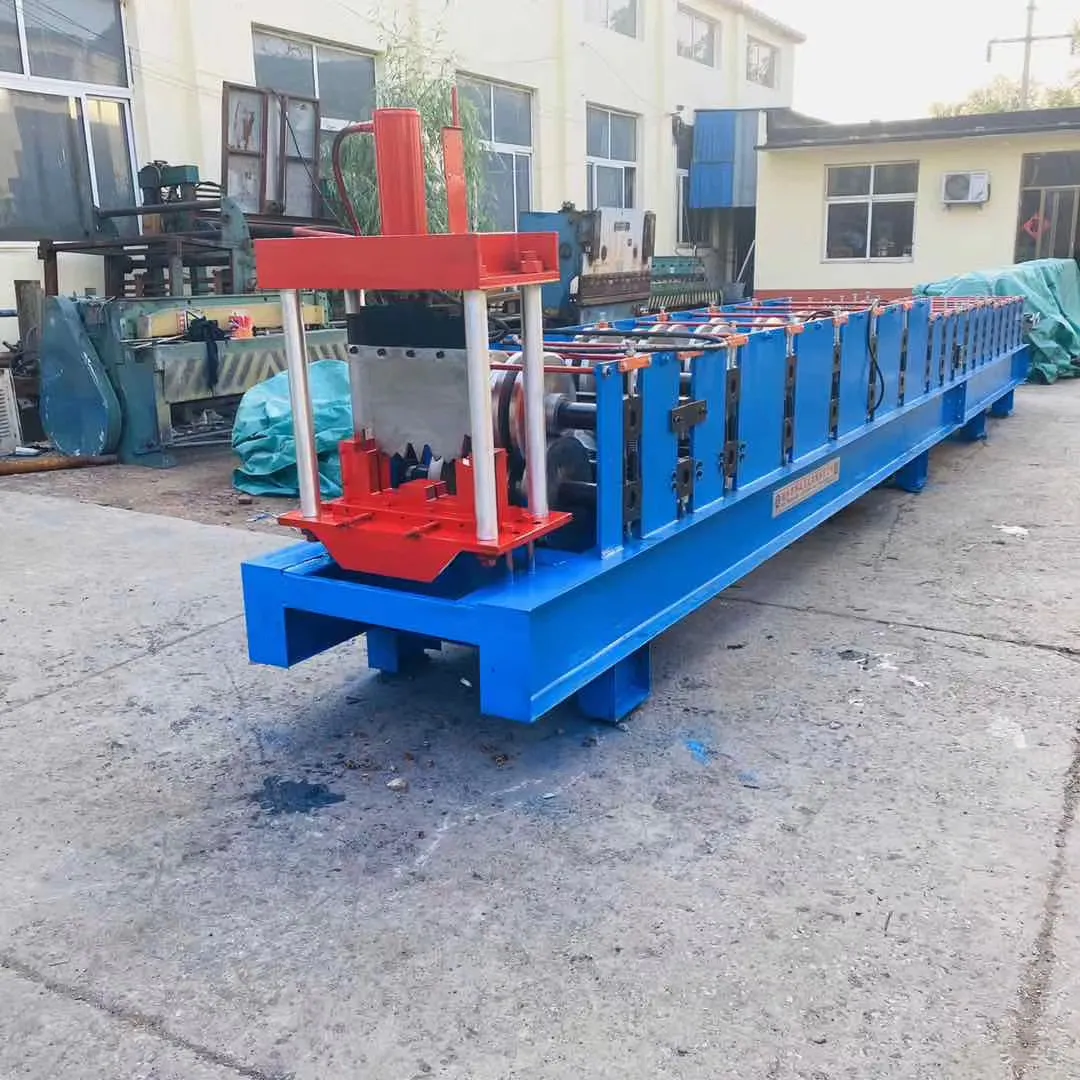

ZTRFM M Mode Metal sheet roll forming machine

This machine is customized and which produce the M Shape sheets.The machine consists six parts as well and have high accuracy of cutting system.The final sheets are widely used in house making field which can strengthen the structure.

Working flow:

N/M	Name	Specifications
Manual decoiler	Carry Weight	3000kg
		Equipment	Handwheel(contribute decoiling) and brake(avoid the deposition）
		Price	Free as gift
Main roll forming system	Machine dimension	9500х1800х1400mm
		Work voltage	380V
		Power	11KW
		Feeding thickness	Material thickness:0.5 mm-2.5mm
		Material of roller	45#steel,forging with surface hard chrome plating
		Roller shaft	Φ80mm solid
		Material	PPGI,PPGL
		Number of roller stations	22 stations
		Main frame	400mm H beam structure, with 20mm thickness welded steel middle support plate
Cutting device	Cutting blade	Cr12 quenched HRC58-62
		Cutting length tolerance	±1mm/3m
		Cutting type	Hydraulic cutting
PLC Control system	Brand	Delta
PLC Control system		Operation	Touch screen

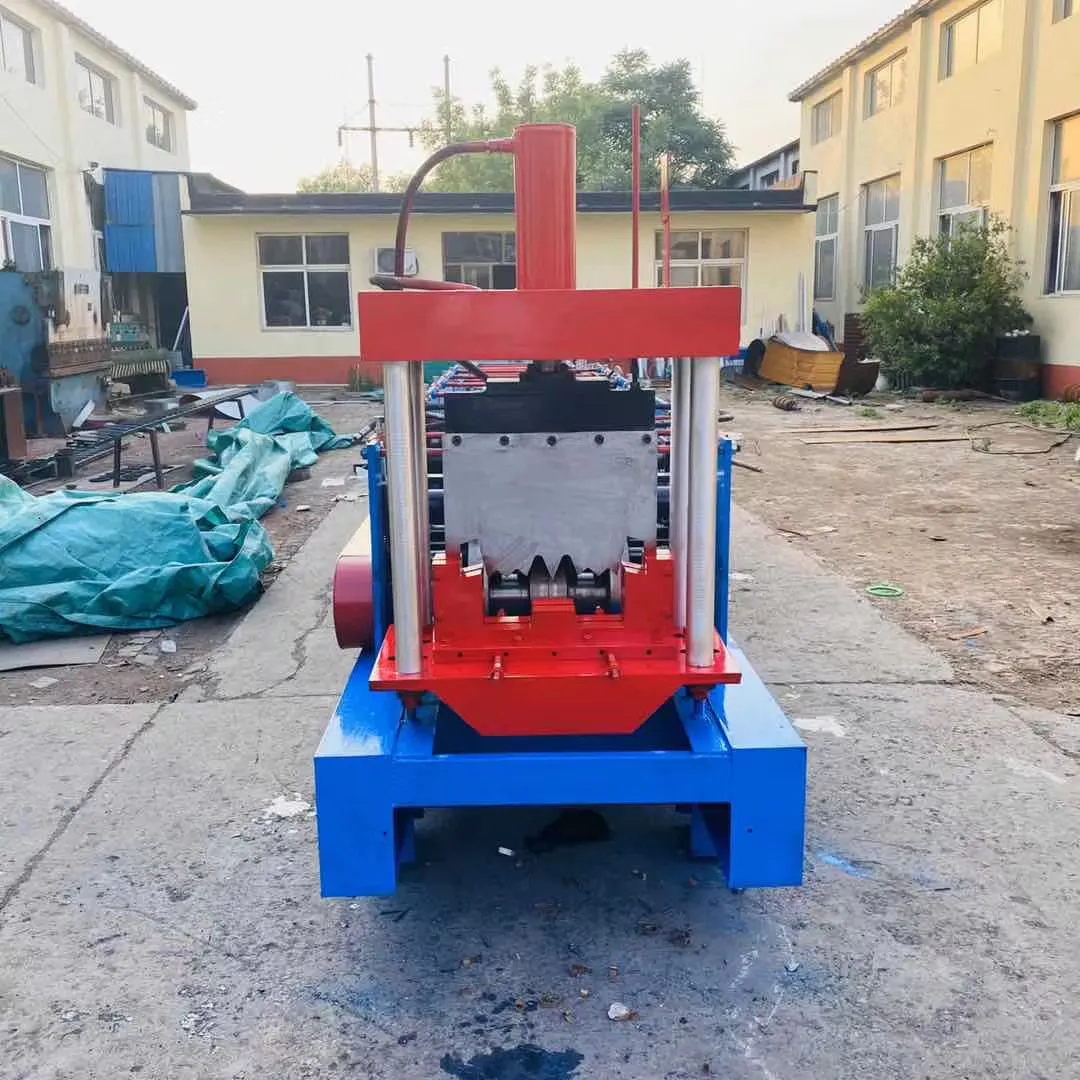

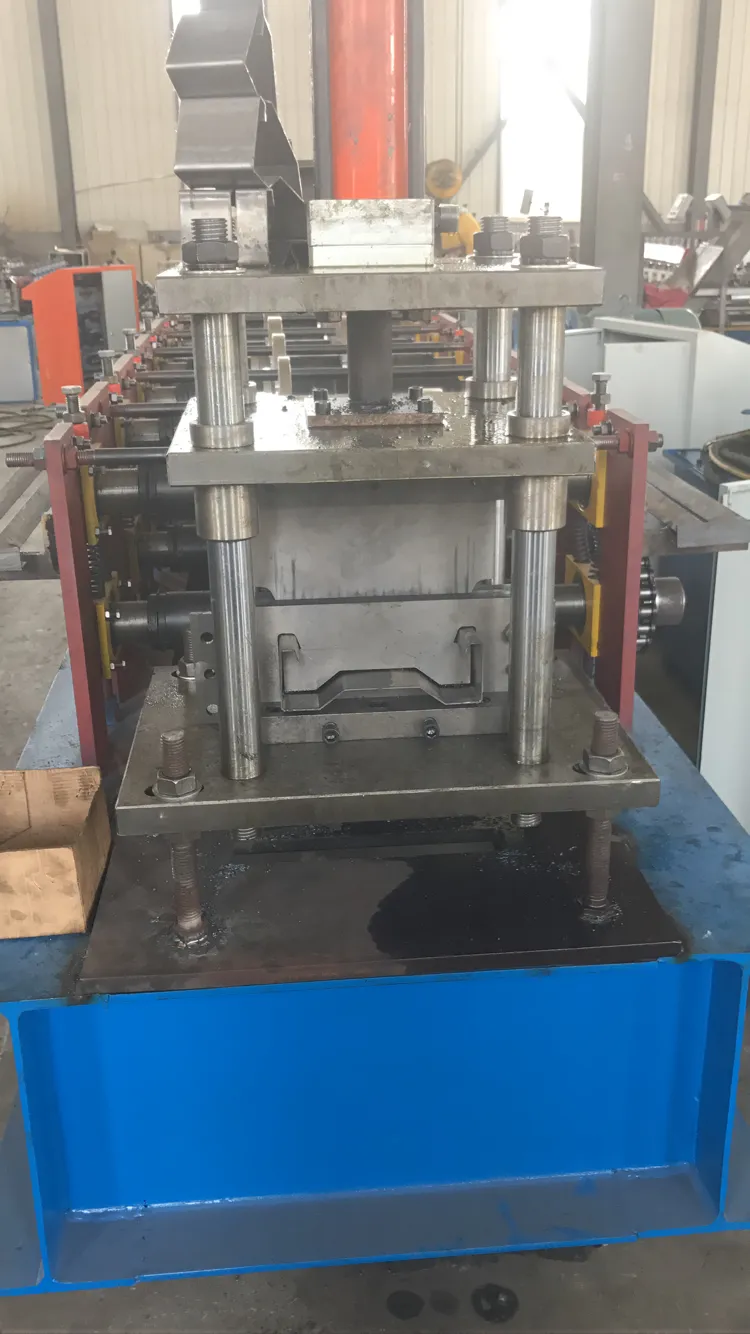

Cutting Blade

1.Material of blade: cr12mov material, no scratches, no deformation

2.Length measuring: automatic encoder measuring
3.Tolerance of length is 3000mm+- 1.0mm
4.Hydraulic cutting pressure:10-12Mpa

PLC Control system

PLC brand:Delta(Taiwan) PLC, and transducer and touched screen

● Encoder brand:Omron

● Electrical components:Schneider

● Operating
language:English and Chinese(or as requested) You can set the orders on this part,changing product length and quantity,it is
really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

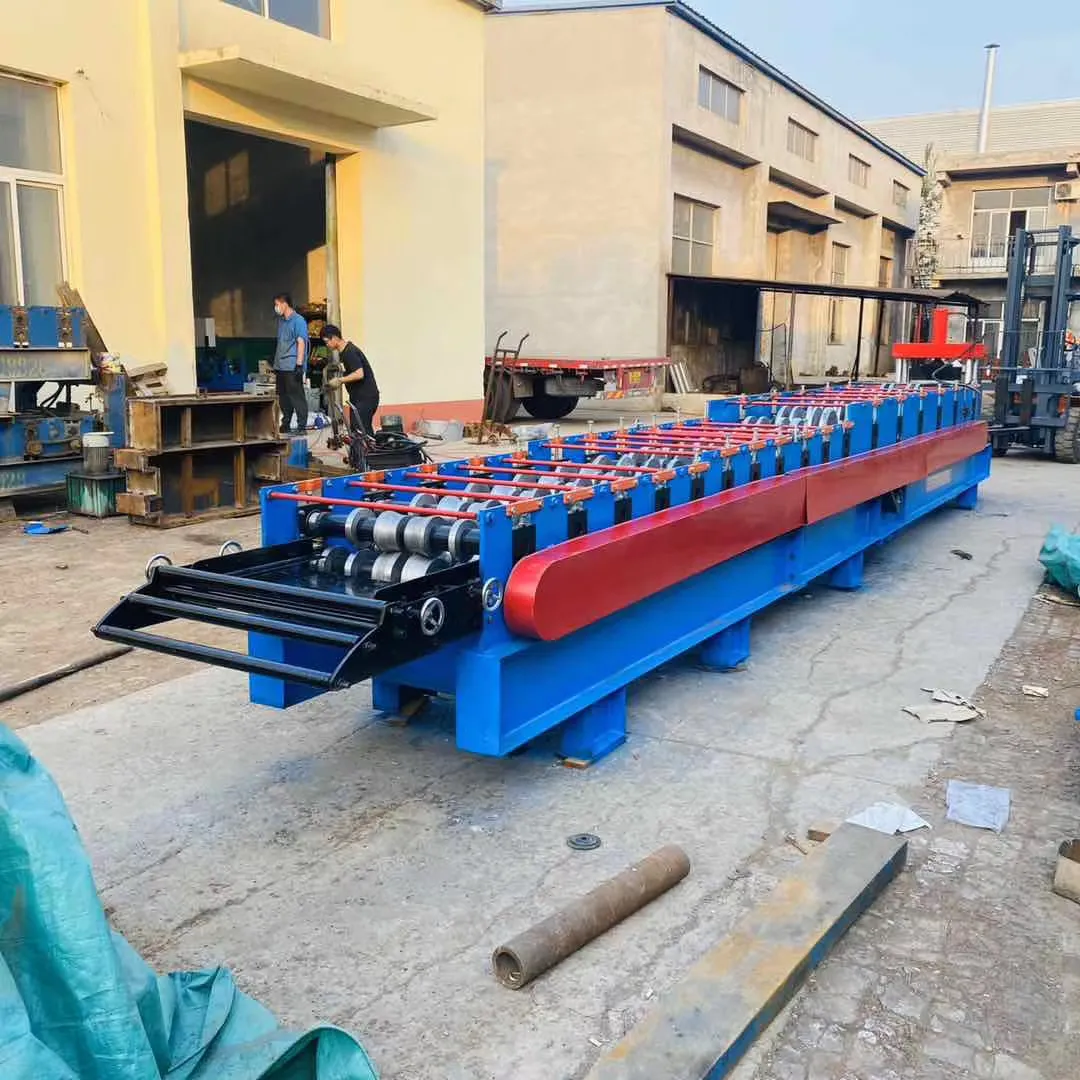

Feeding device

1.Hand wheels on both sides can be used to adjust the feeding width.

2.Stainless rollers can make the material go into the machine smoothly and prevent the scratch on the material surface.

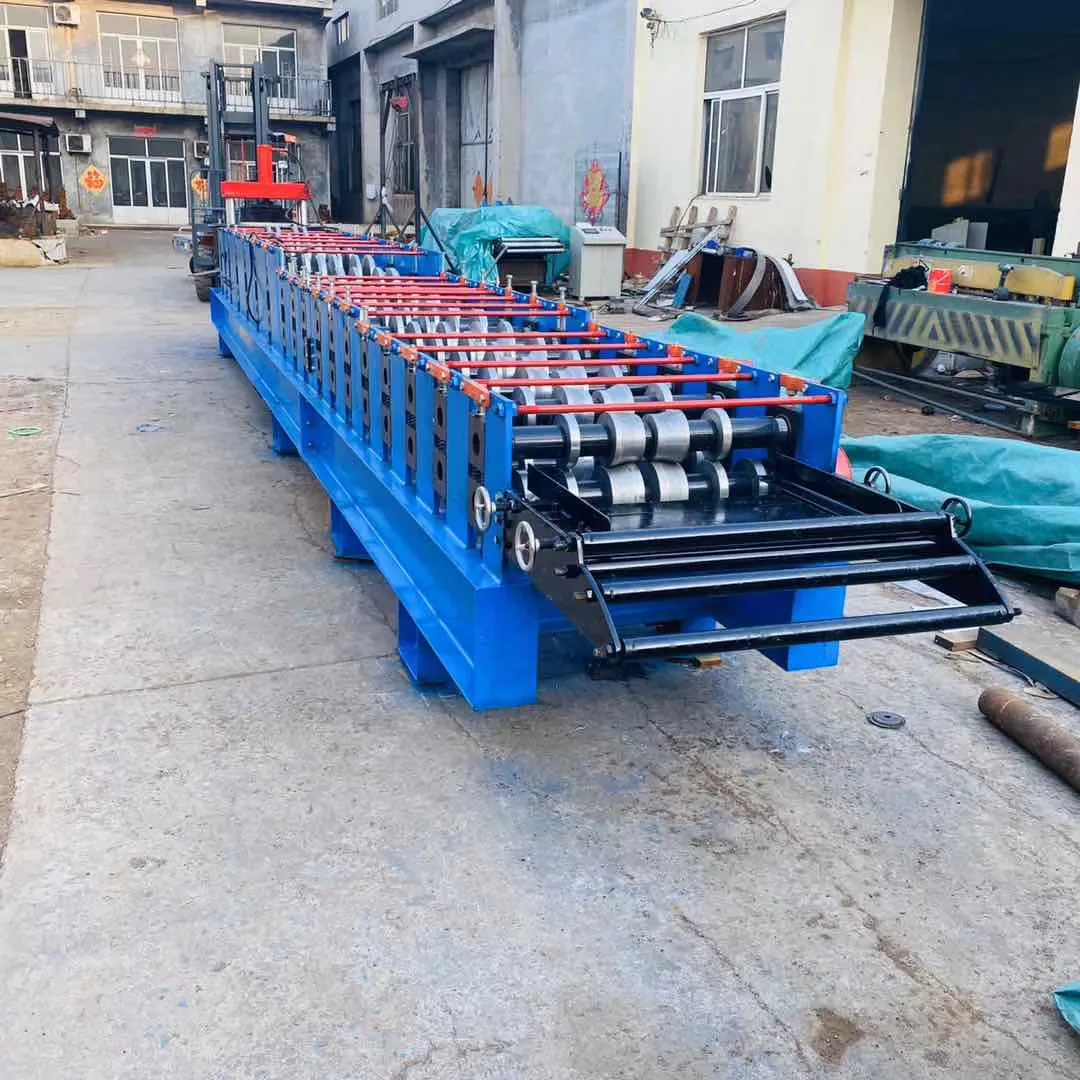

Roll forming system

Rollers material: Cr12 CNC processing heat treatment to HRC: 58-60 ,finish turning

Roller stations: 22 rows
Shaft material:Shaft material: 40 Cr CNC processing HRC 28-32 ,finish turning and electroplate
Drive by Heavy duty chains: 1.5 inch

Hydraulic station

1.Hydraulic station motor:5.5KW 2.Hydraulic oil:46# hydraulic oil
3.Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic
pipes. And one of electromagnetism valve

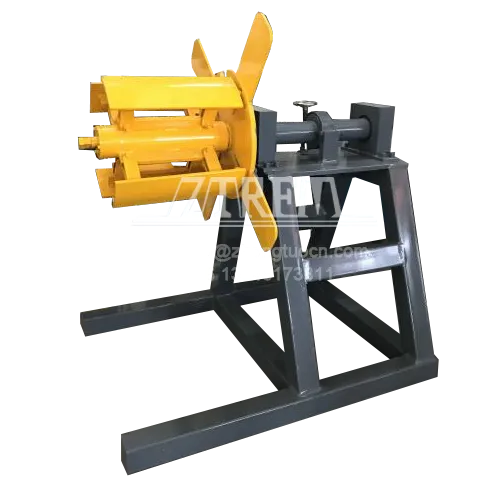

Manual decoiler

Capacity:3 tons Coil inner diameter:450-550mm

Feeding width: max 500mm

Structure: welded by the steel plates and profiled bar.

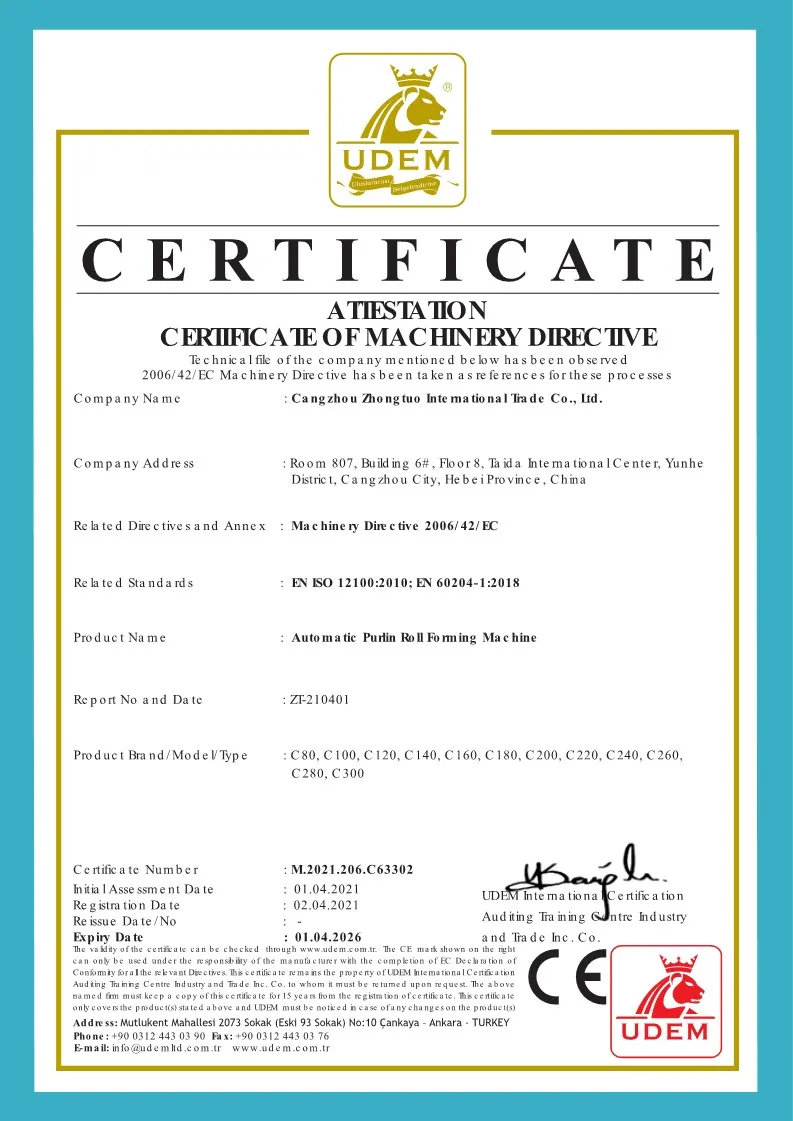

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
