ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine 7.5kw+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine 7.5kw+30 m/min

Name: ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine 7.5kw+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT51102713

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

7.5kw

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V 50HZ 3P(Or customized)
Rolling Thinckness
0.3-0.8mm
Feeding Width
max 1250mm

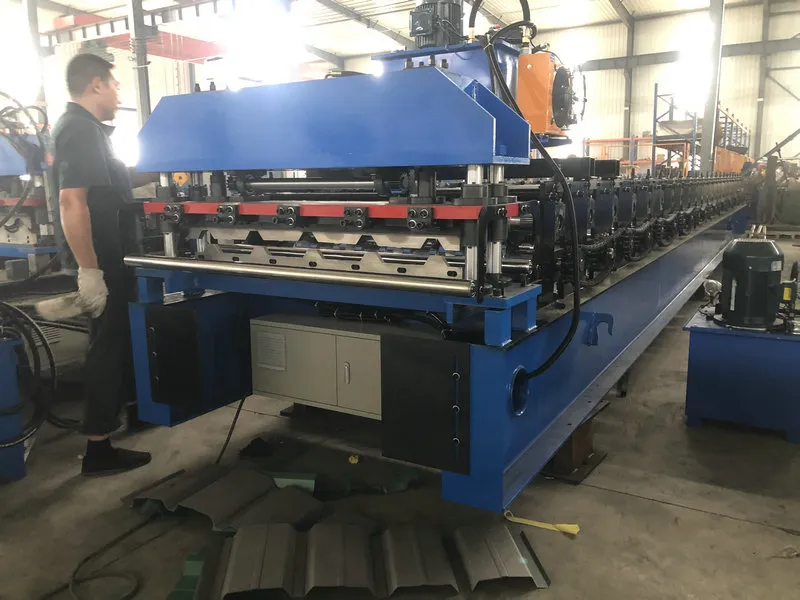

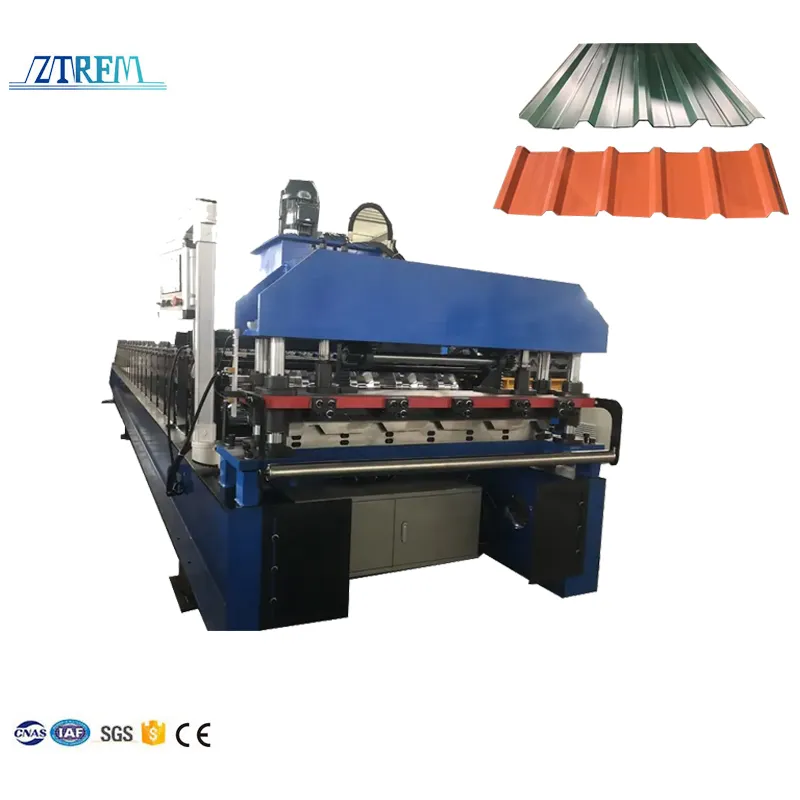

ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine

Our ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine for different models based on different designs or customer's samples . It is a machine produce building material of metal roof, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

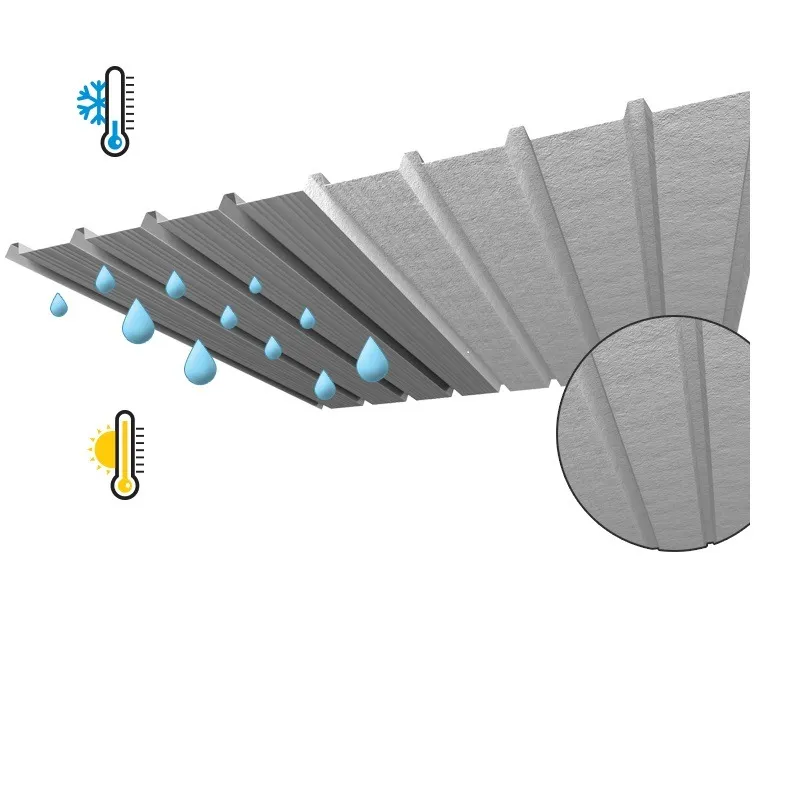

Our ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine suit for normal PPGI metal steel materials also our brand mini laminated composite material(With the function of thermal insulation,sound insulation,waterproof and anti condensation). This laminated composite material can laminated different layers and materials, with different function. Here laminated PE poam roof sheet showing for you.

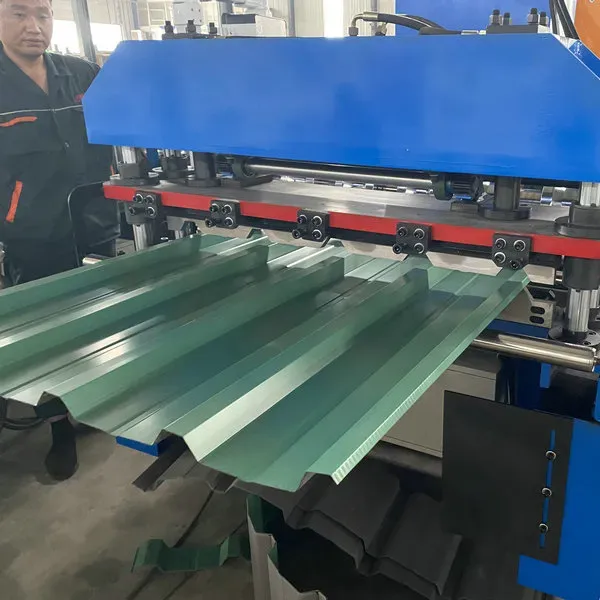

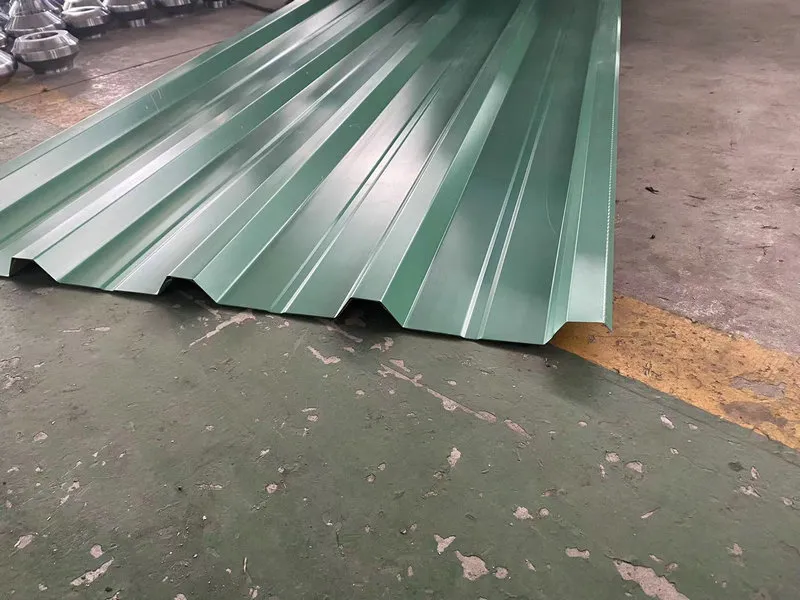

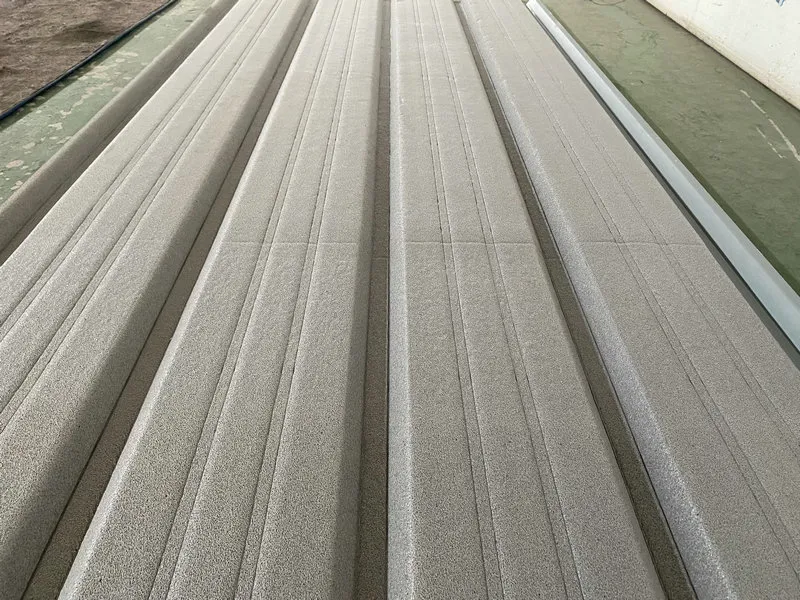

The pictures for the finished product:

ZTRFM Laminated R Panel Terrazzo PE Foam Metal Steel Roofing Sheet Making Roll Forming Machine
Formed Material	PPGI,GI,AI and ZTRFM new design composite material
Raw material thickness	0.3-1.0mm
Raw material thickness	0.3-1.0mm	Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Felt device	Available
Roller station	20 rows(Due to your profile drawing design)
Diameter of shaft	80mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	400 H steel
Drive	Gearbox transmission
Cutter	cr12mov material, no scratches, no deformation
Motor Power	7.5KW*2 sets,Siemens brand
Voltage	380V 50Hz 3Phase(As your requirement)
Hydraulic system power	7.5kw
Cutting tolerance	+/-1mm
Control system	PLC
Forming Speed	15-80m/min(The speed is adjustable)

Hydraulic decoiler

1. Has power, it can work automatically

2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter

3. With Pneumatic braking system

4. With press arm to keep coil from loosing

5. With speed sensor to match with whole line’s speed

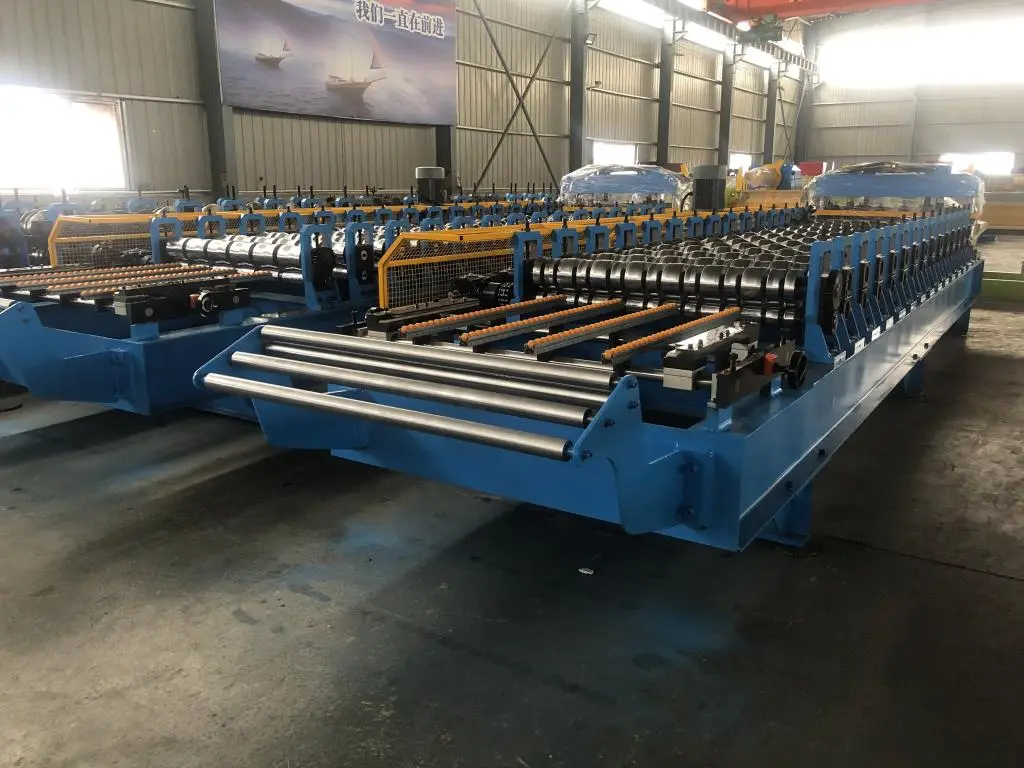

Entry Beach

Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

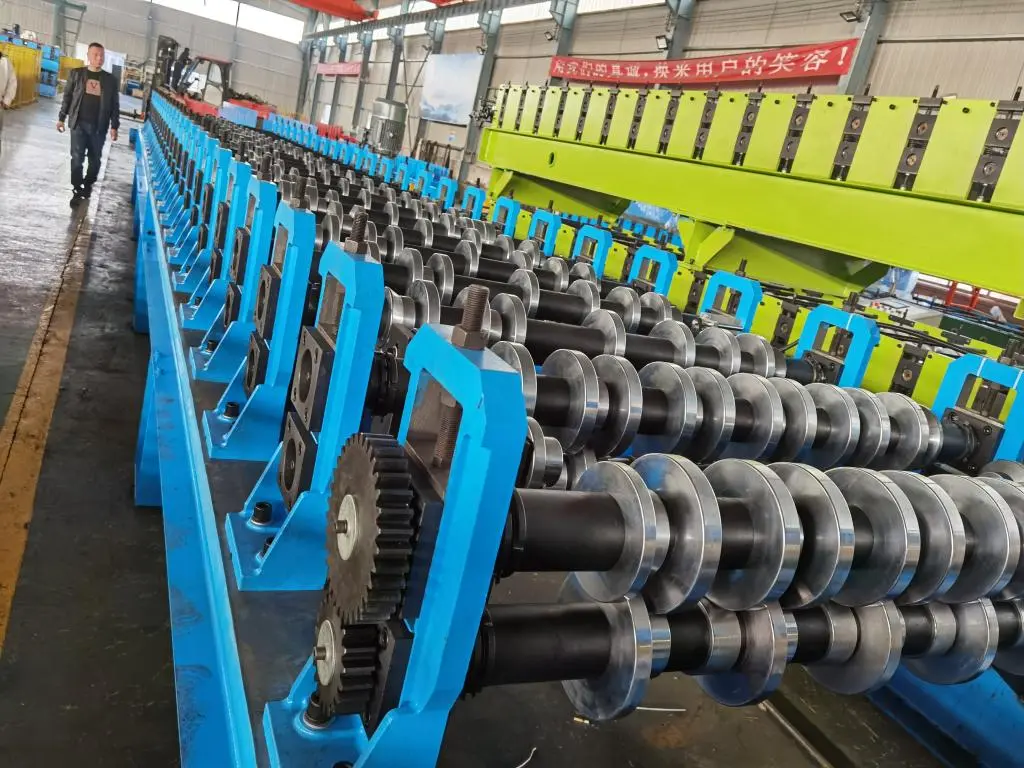

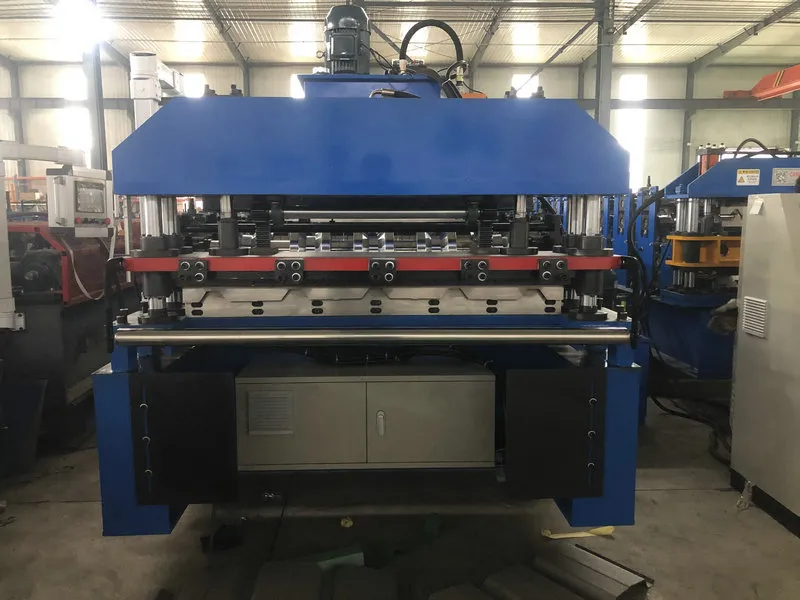

Main Roll Forming System

Feature: Ensure stability, precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Shearing Mechanism

Material of blades: Cr12 quenched

Power supply: hydraulic power

Components: It contains one set of blade, one hydraulic tank and one cutter machine.

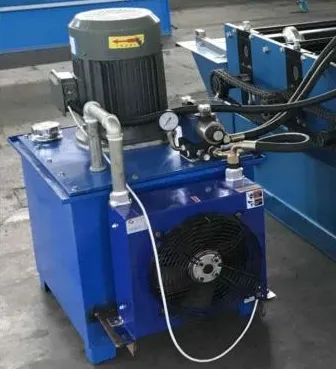

Hydraulic system

Hydraulic station motor: 5.5KW

Hydraulic oil: 46# hydraulic oil

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

PLC control system

Function: Automatic control the length,quantity and batch

Feature: Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
