Technical Specifications

Type
Tile Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380V, 50Hz, 3Phase( or as your requirement)
Rolling Thinckness
0.3-0.8mm
Feeding Width
1200mm

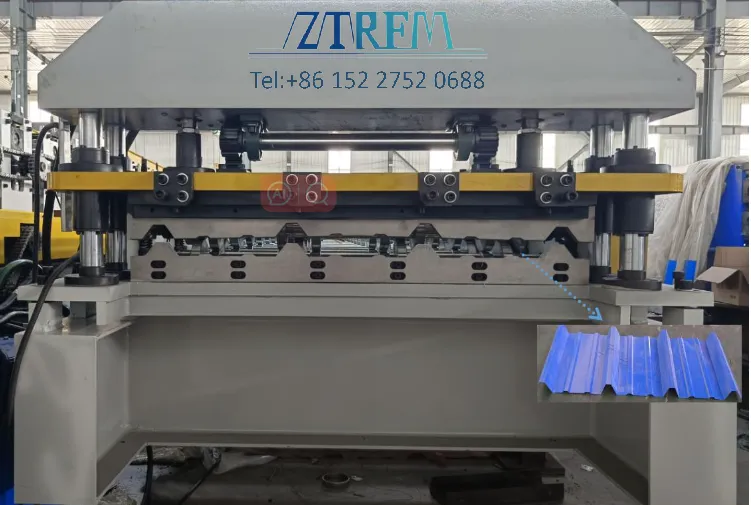

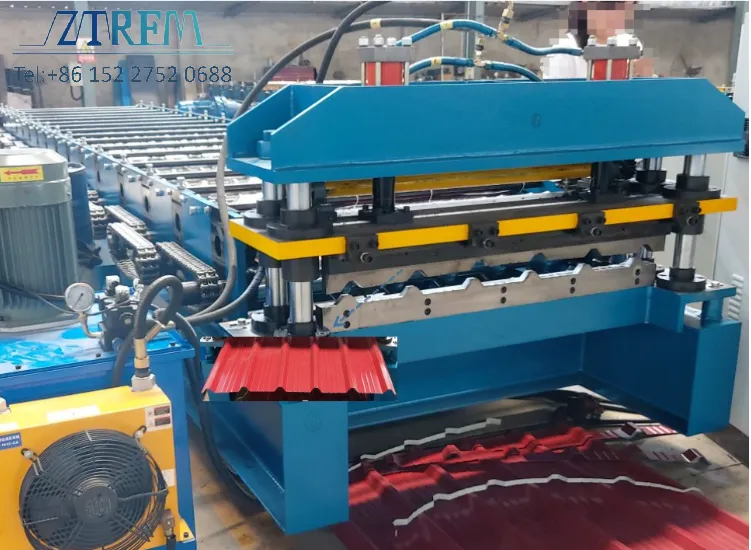

ZTRFM high speed trapezoidal sheet metal tile cold metal-bending roofing making Roll forming Machine for construction building

Design Idea：

Full Automatic Easy Operation:high automatic production line, just need one person for operation.

Processing Flow

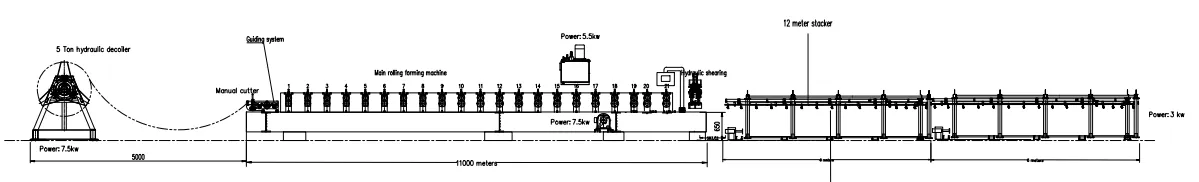

Uncoiling → Feeding material into machine →Roll forming → Hydraulic Auto cutting →Transport device→Auto stacker

ZTRFM high-end Wall cladding panel machine wall panel make machine cold roll forming machine
Raw Material	PPGI,PPGL
Raw Material	Raw material	Material Thickness:0.3-0.8 mm
Machine Frame	350mm H Beam Structure, arch frame structure
Material Of Rollers	High Grade 45# Forged Steel
Material Of Rollers	Material Of Rollers	Chromed Treatment (Chrome Thickness:0.05 Mm), Make The Rollers Surface More Smoothly, Improve The Hardness And Prevent Abrasion,Anti Corrosion Increase Of Service Life
Forming Stations	Roller Stations :20 Rows
Forming Stations		Rolling Type: Separate Rolling Design Concept, It Can Release Internal Stress From The Sheets, Then The Sheet Will Be In Good Shape And High Precision.
Diameter Of Shafts	Φ80mm Solid
Material Of Shafts	High Grade 45#,With Heat Treatment
Forming Speed	40m/Min
Voltage	380v/50hz/3p (As Requested)
Transmission Way	gear box
Main Motor	7.5 kw*2
Cutting Blade Material	Gcr12 quenched treatment
Cutting Type	hydraulic post cutting
Driving Method	By pillar type Cylinder

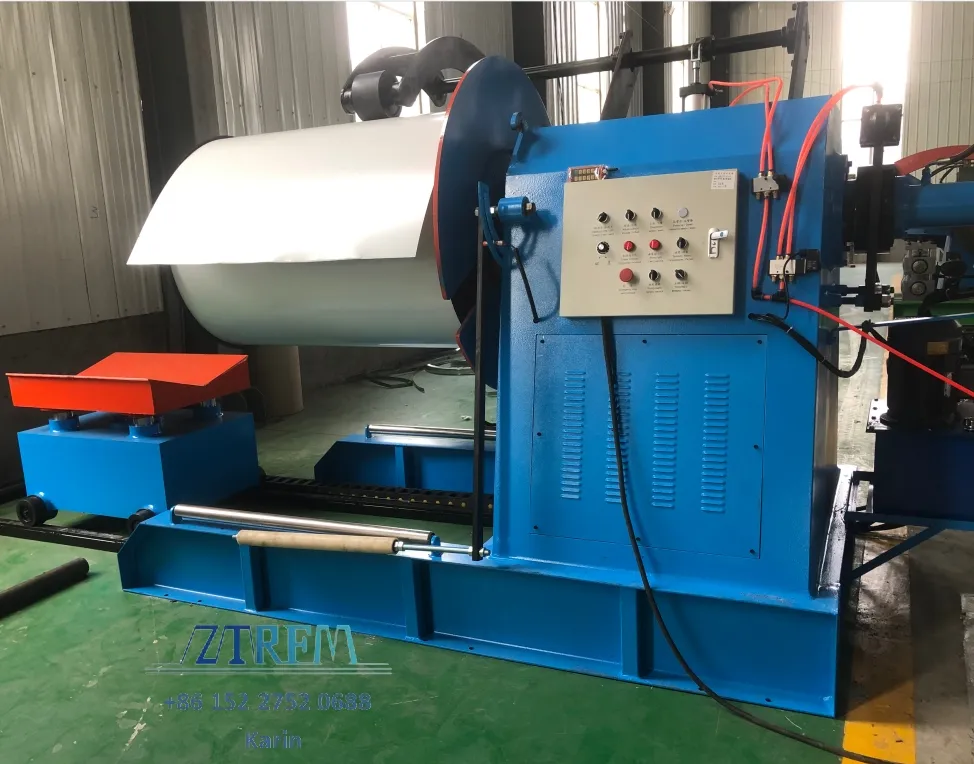

5T Hydraulic Decolier

Capacity:5 tons Coil inner diameter:450-550mm Feeding width: max 1220mm Structure: welded by the steel plates and profiled bar. The shrink and expand of core is hydraulic driving.

The coil moving forward or reverse is by the motor

Loading car: making loading easily

Press arm: prevent the material bouncing

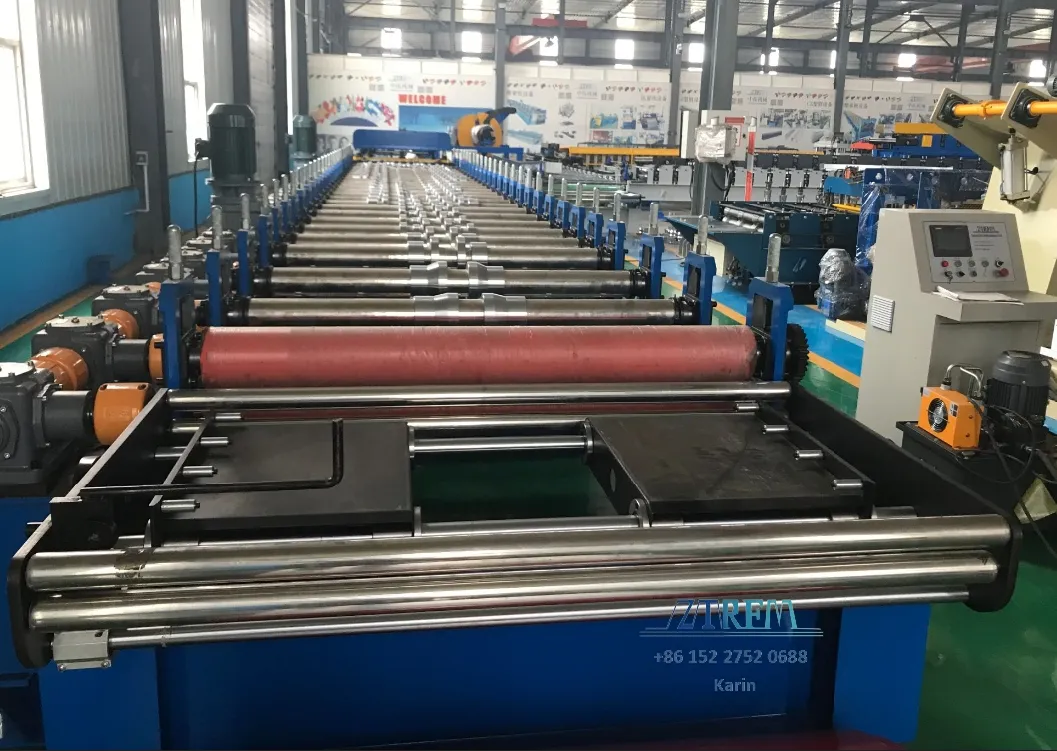

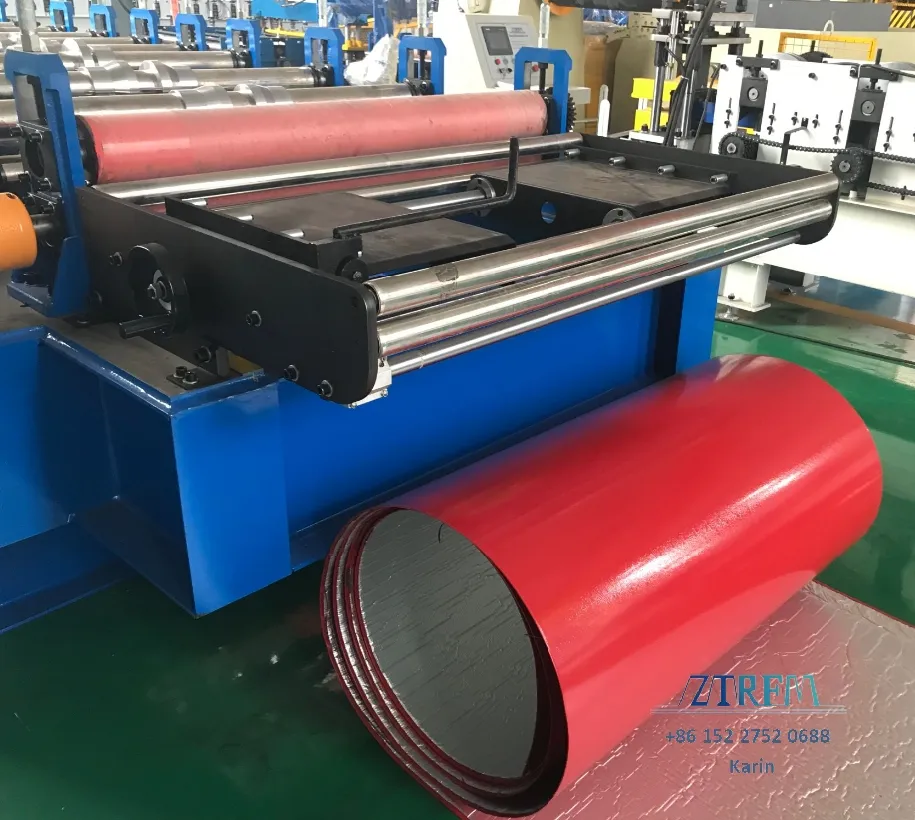

Feeding Device

1.Hand wheels on both sides can be used to adjust the feeding width. 2.Stainless rollers and yellow roller can make the material go into the machine smoothly and prevent the scratch on the material surface; 3.Nylon plate: prevent material surface scratch

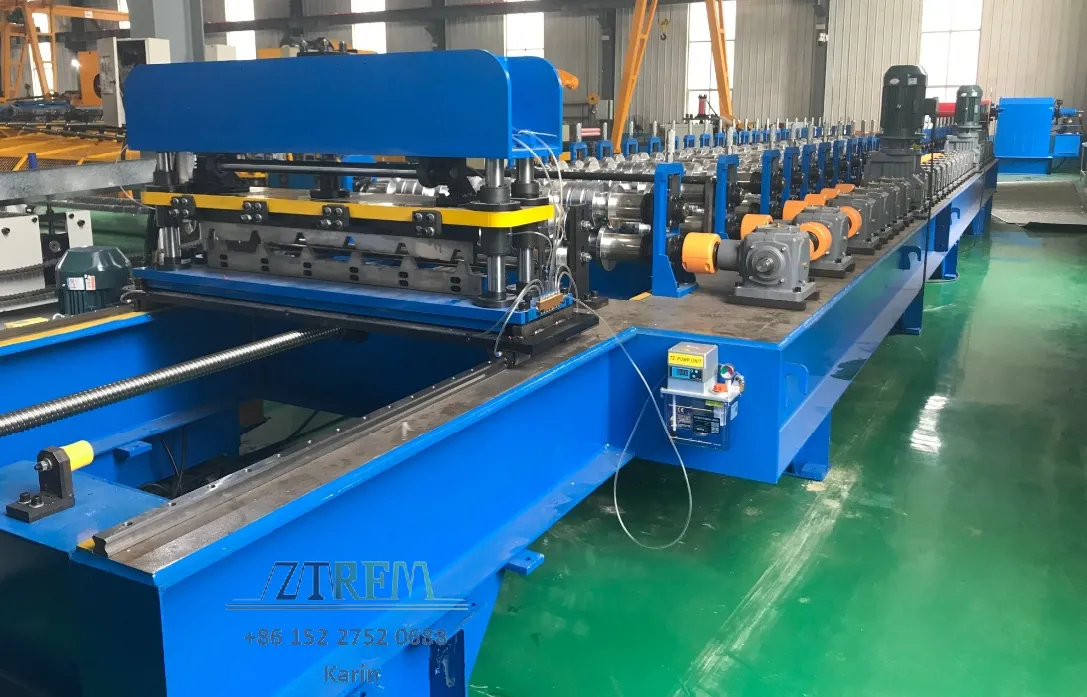

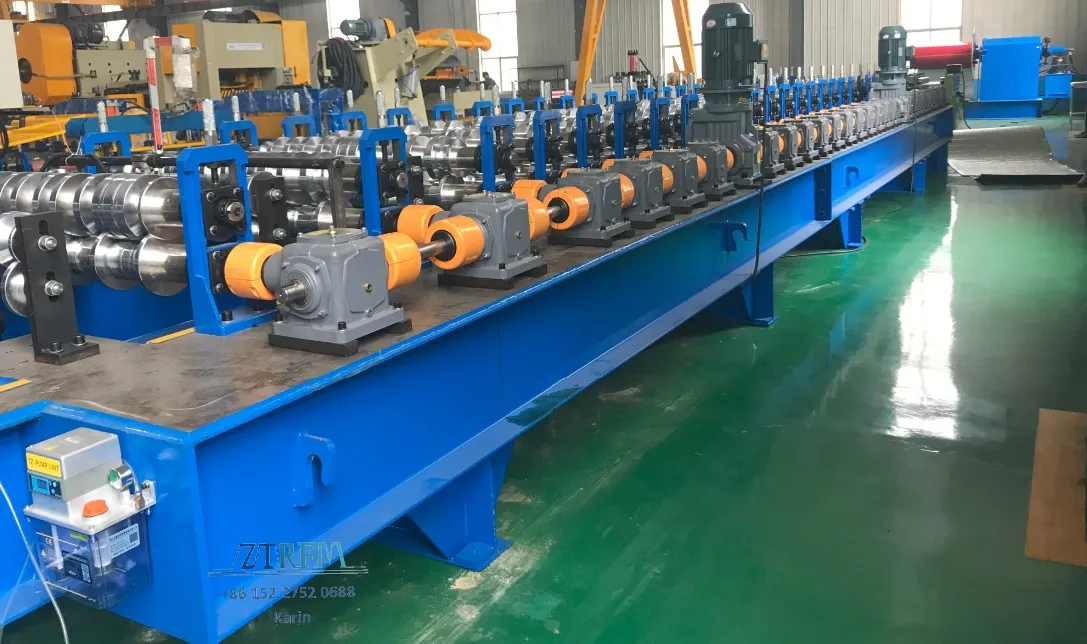

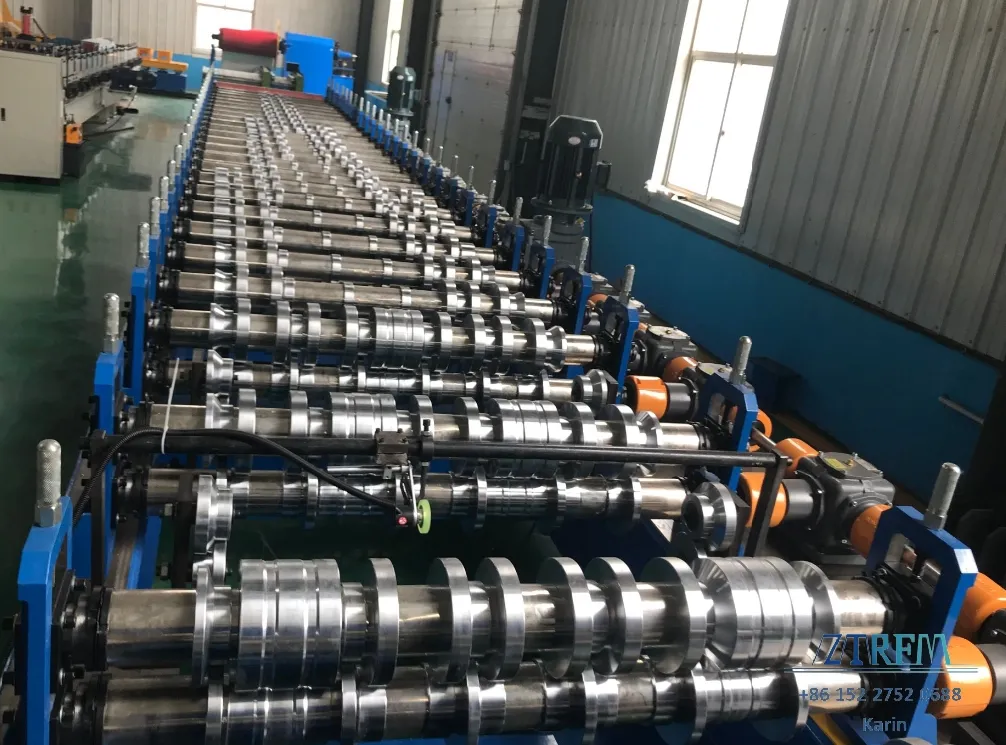

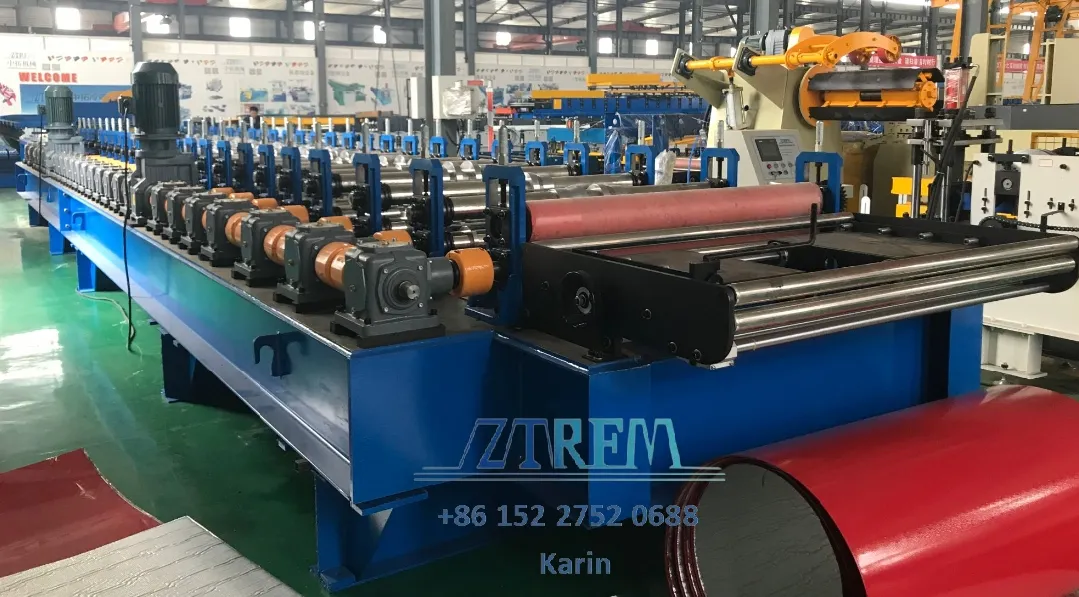

Roll Forming And Transmission Device

1.Rollers thick chromed good hardness for long service time. 2. Each roller has number and with keynotes, it can fix on the shaft steadily 3.Drive by gear box

4.Main motor:7.5 kw*2

5.Roller: 45#material with high hardness chrome

6.Roller shaft diameter:80 mm

7. Roller station: 20 stations

8. 380 V 50 Hz 3 phase

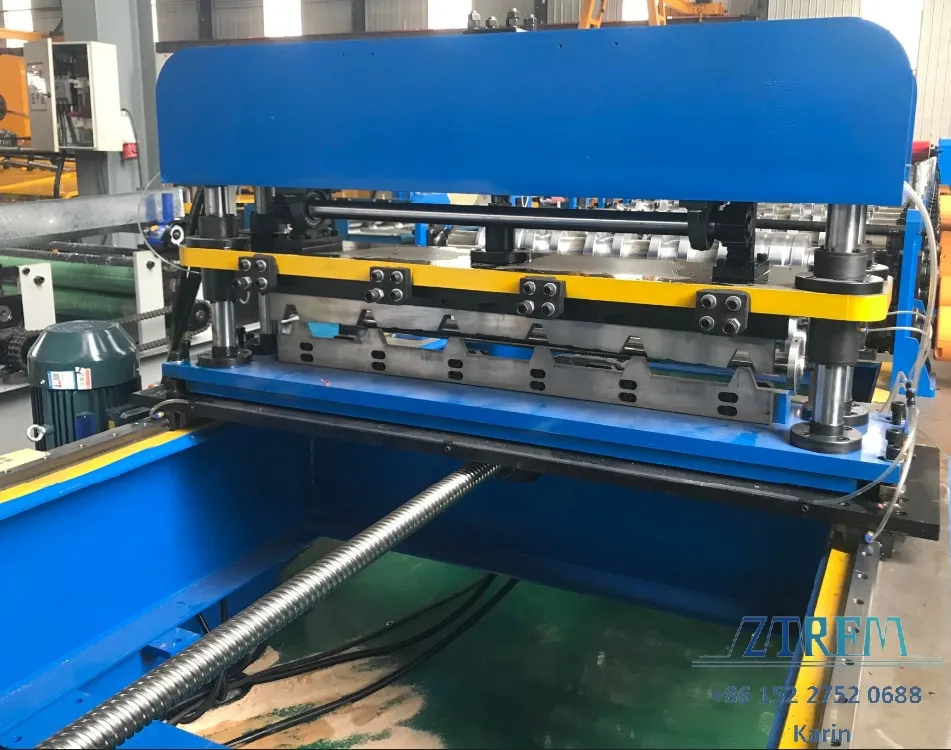

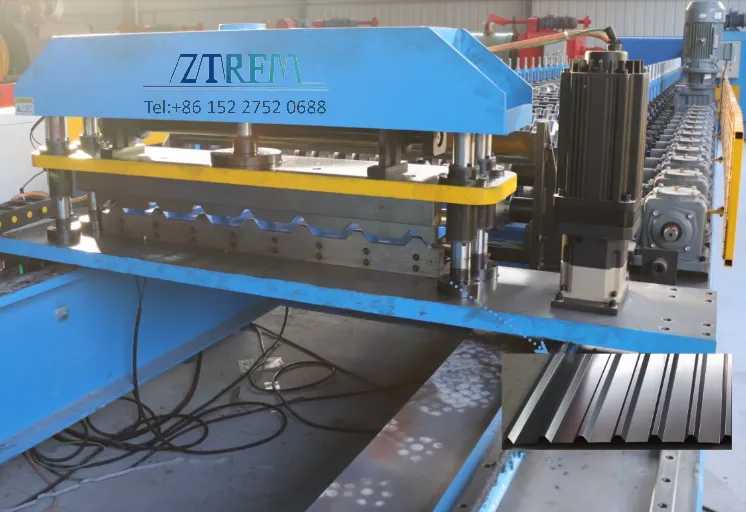

Hydraulic Cutting Device

1.We use four pillars cutting system structure, it can make sure the cutting stable

2.Double cylinder guide hydraulic shear 3.Double line of nuts to fix the shear blades

4.Material of shear blade: GCr12

5.Servo cutting design meet client's high speed requirement

PLC control system

1. PLC and touched screen brand:Siemens or Delta(as your requirement) 2. Encoder brand : Omron 3. Electrical components:Schneider 4.Operating language:English and Chinese(or as requested) 5.You can set the orders on this part,changing product length and quantity,it is really easy to operate,and there are aviation plugs to make it much easier to install the machine while it arrived.

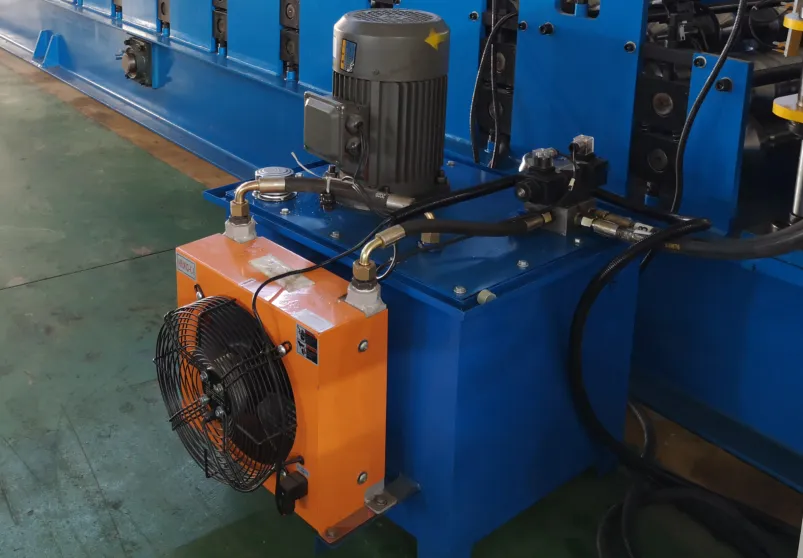

Hydraulic station

● Hydraulic station motor:5.5KW ● Hydraulic oil:46# hydraulic oil ● Main components:Include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism valve

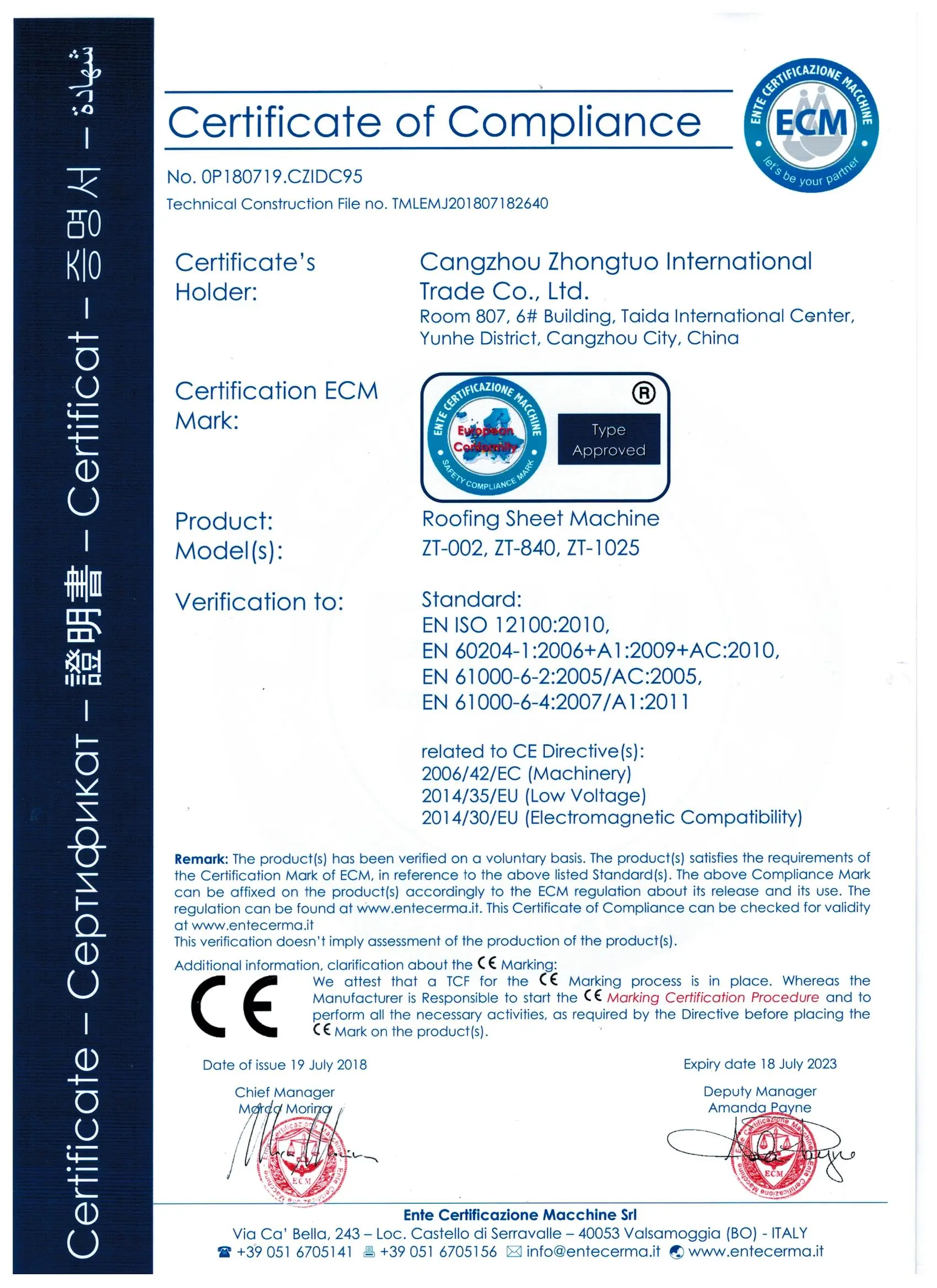

CE(NO.OP180719.CZIDC95)
