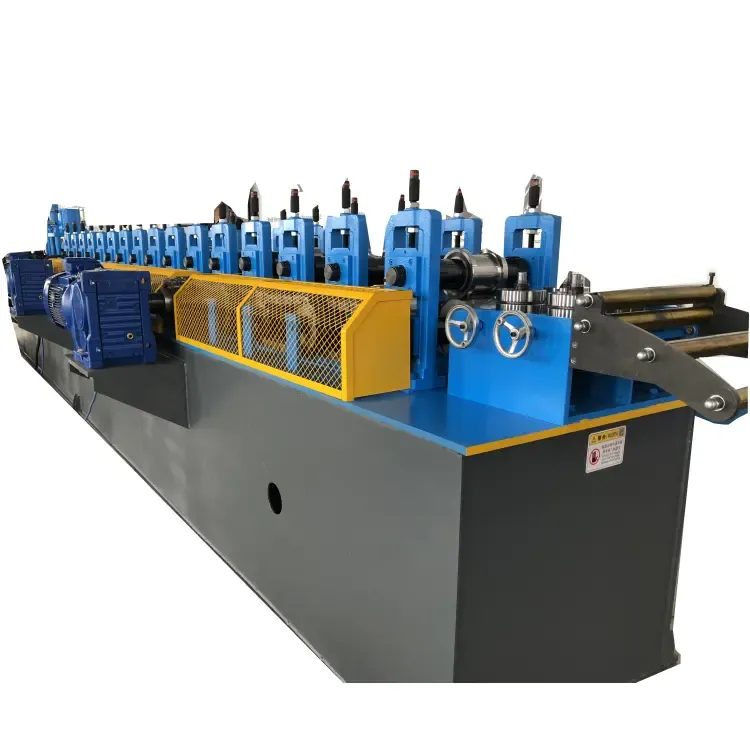

ZTRFM High Speed Solar Panel C Channel Light Duty Strut Roll Forming Machine

The Features of the Machine:

1. The machine speed reach 25 m/min, we design the punching device after roll forming, prevent the holes stretcher strain. The punching device design is tracking cutting with servo motor control, very stable. The punching mold can punching 10 holes one time. The punching and cutting is working at the same time.

2. The main power of the machine adopt 5.5 kw*2 motors, save power.

3. The roller material is Cr 12 MOV with quenched treatment. Ensure when the machine running in a high speed, will not influence to its hardness,strength and service life.

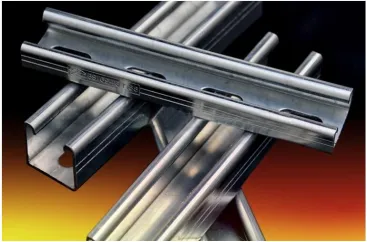

The pictures for the finished product:

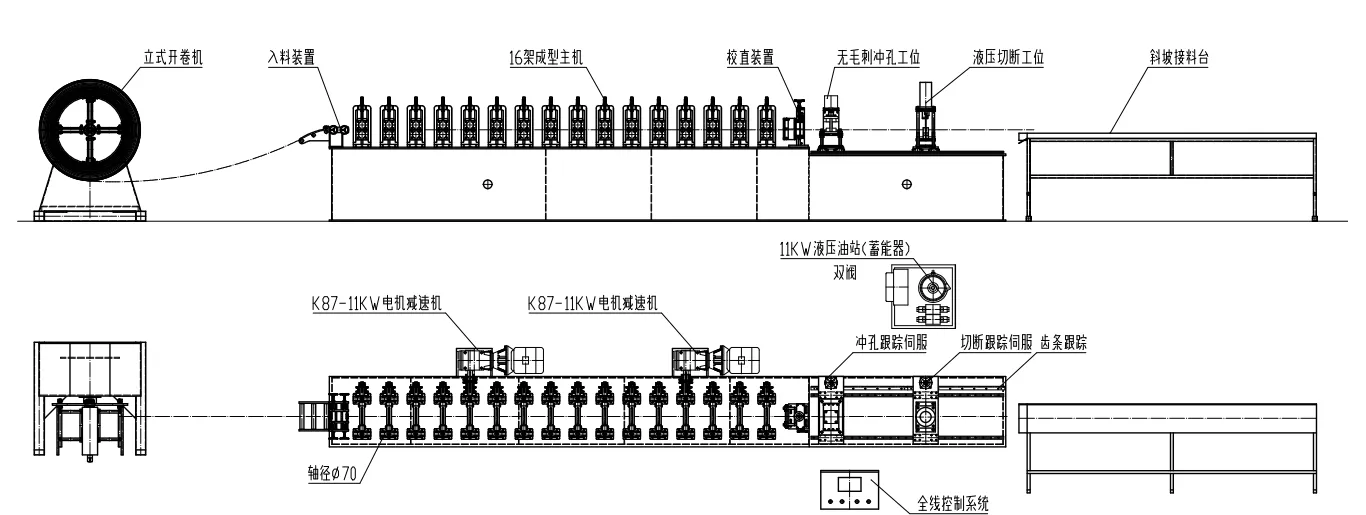

Drawing Profile:

Working flow as below:

ZTRFM High Speed Solar Panel C Channel Light Duty Strut Roll Forming Machine
Forming steps	16 steps
Outer diameter	60mm
Machine frame (type)	pillar frame
Thickness of memorial arch frame	30mm
Roller Raw material	GCr12MoV
Quenched degree	56-58°C
Shaft material	45# steel with heat treats and hard chrome plated on the surface
Main motor power	18.5kw
Voltage	380V 50HZ 3P or customized
Working material	galvanized steel
Material Thickness	1.5 to 2.5mm

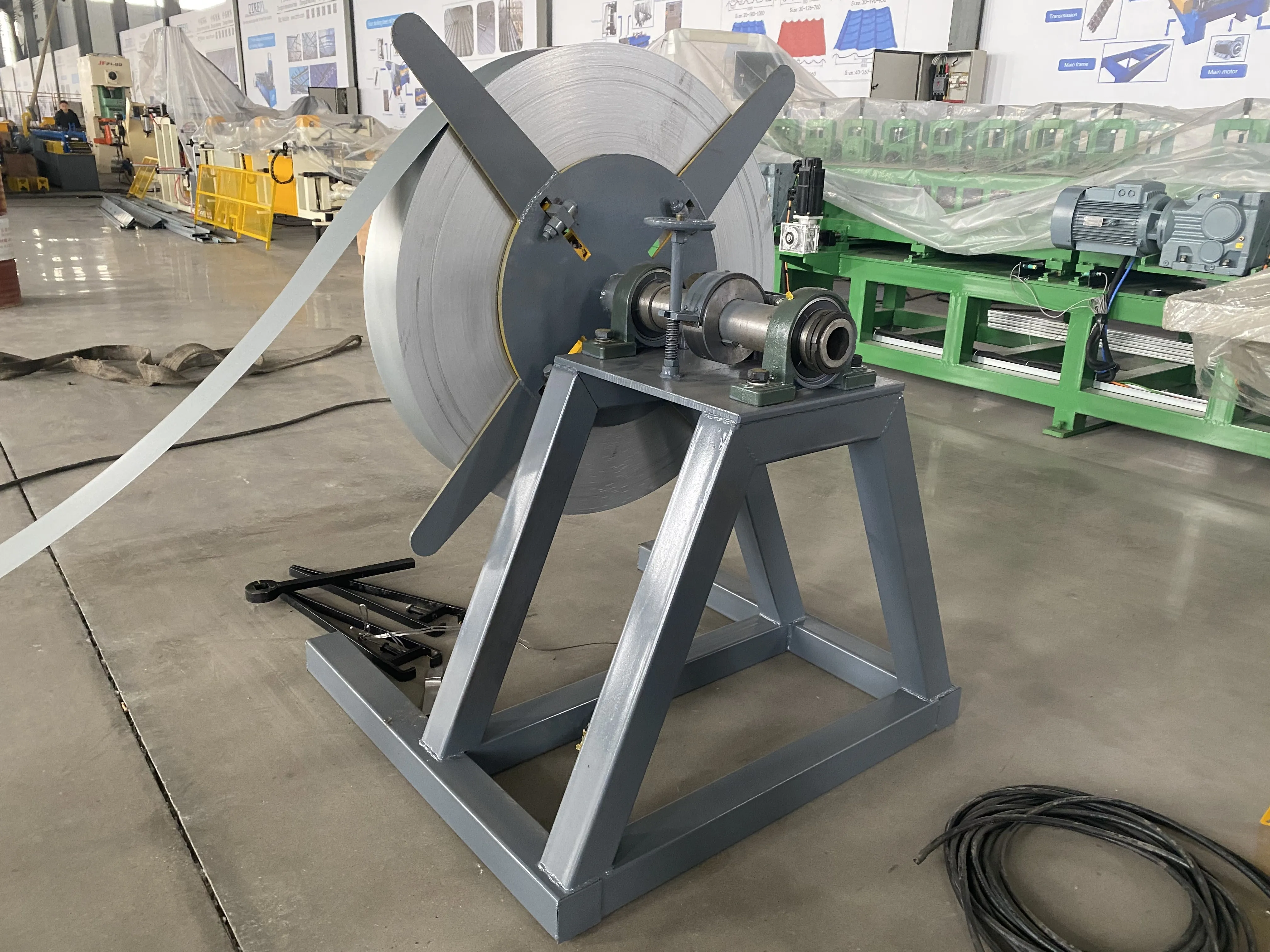

Manual Decoiler

1. Working type: Manual

2. Loading capacity: 3 tons

3. Coil inner diameter: 450-550 mm

4. Structure: welded by the steel plates and profiled bar.

The shrink and expand of core is manually, with manual brake, The coil moving forward or reverse is pulled by roll forming machine

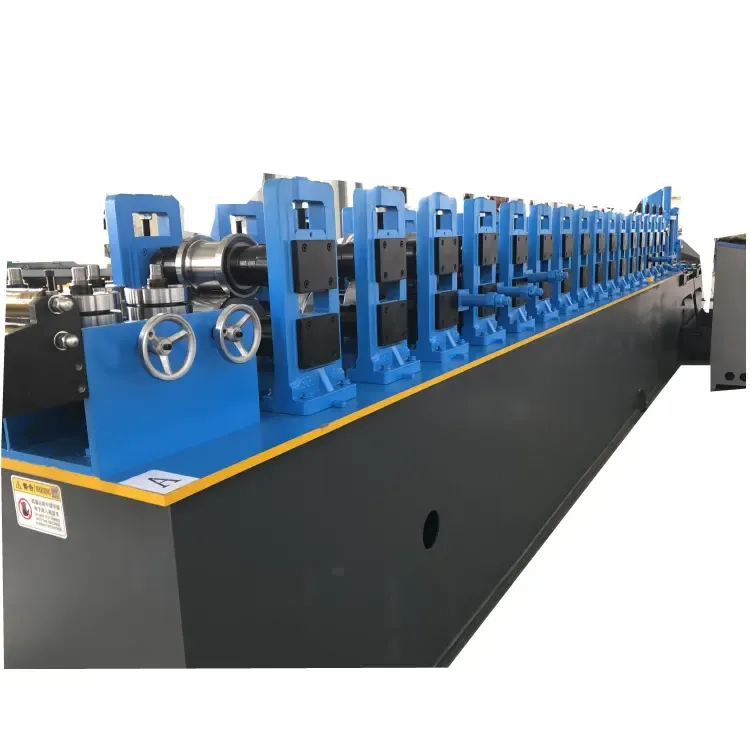

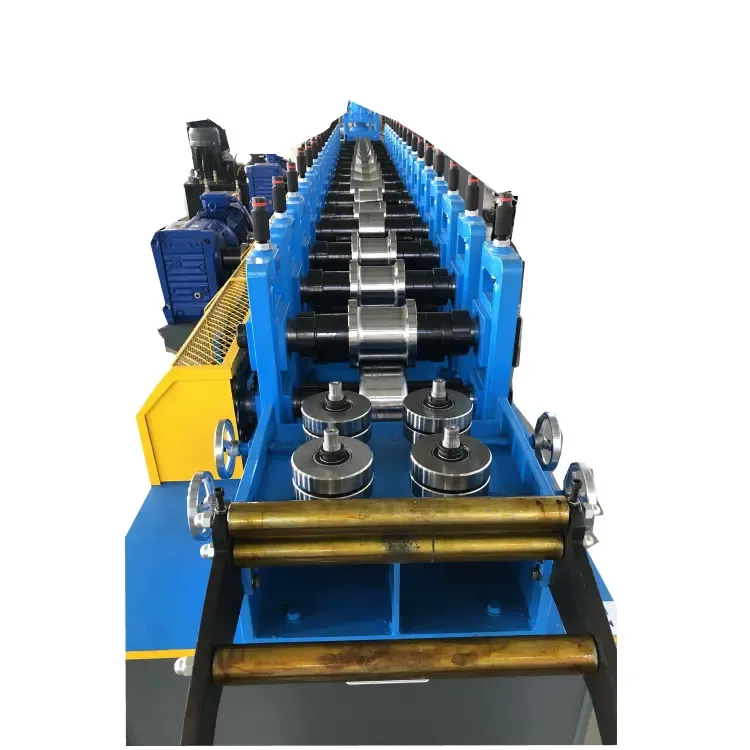

Roll forming system

1. Speed: 25 m/min

2. Main power: 5.5 KW*2

3. Roller material: Cr 12 MOV with quenched treatment

4. Roller station:16 roller stations

5. Roller diameter: 60 mm

6. Transmission: By chains

7. Machine structure: Molding frame with 40 mm thickness

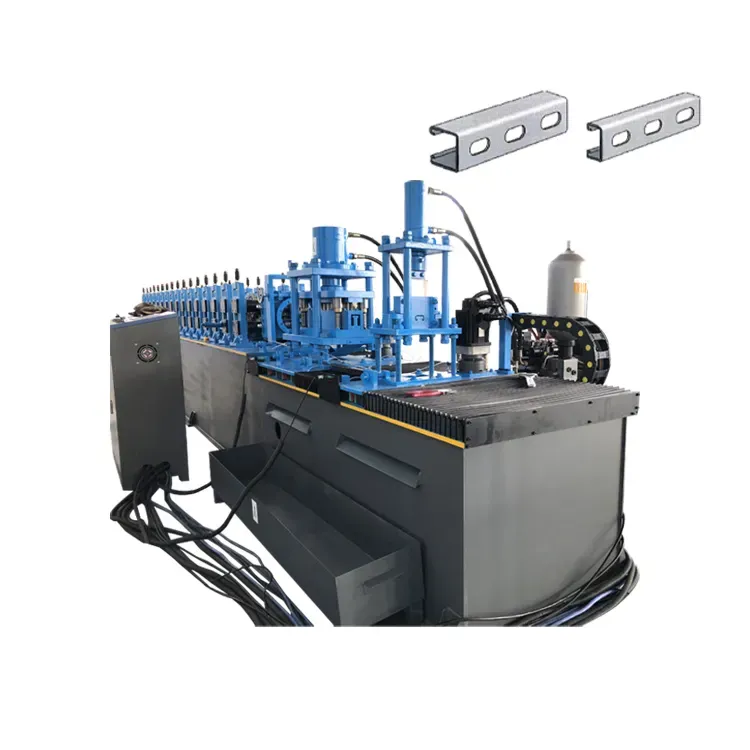

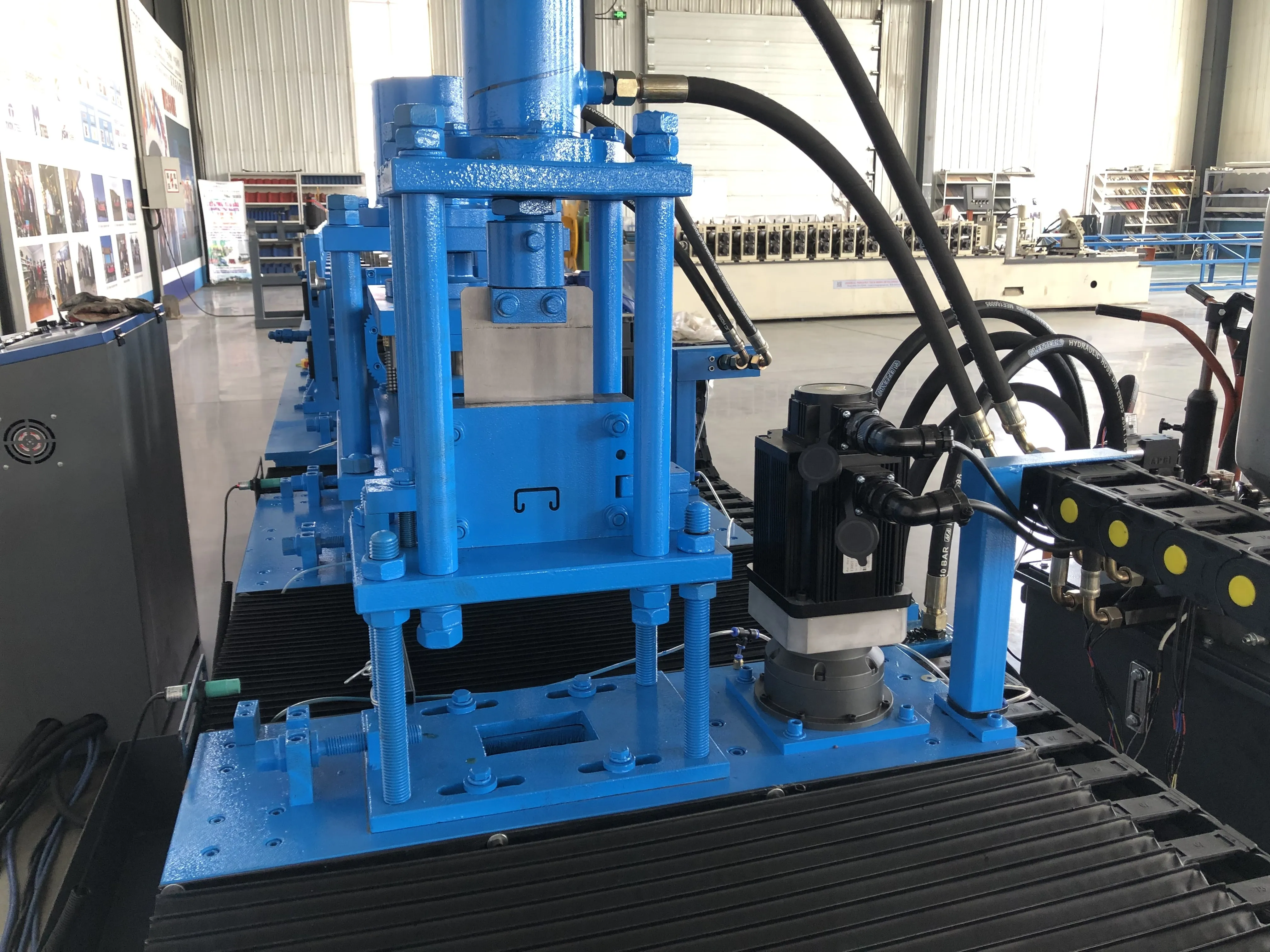

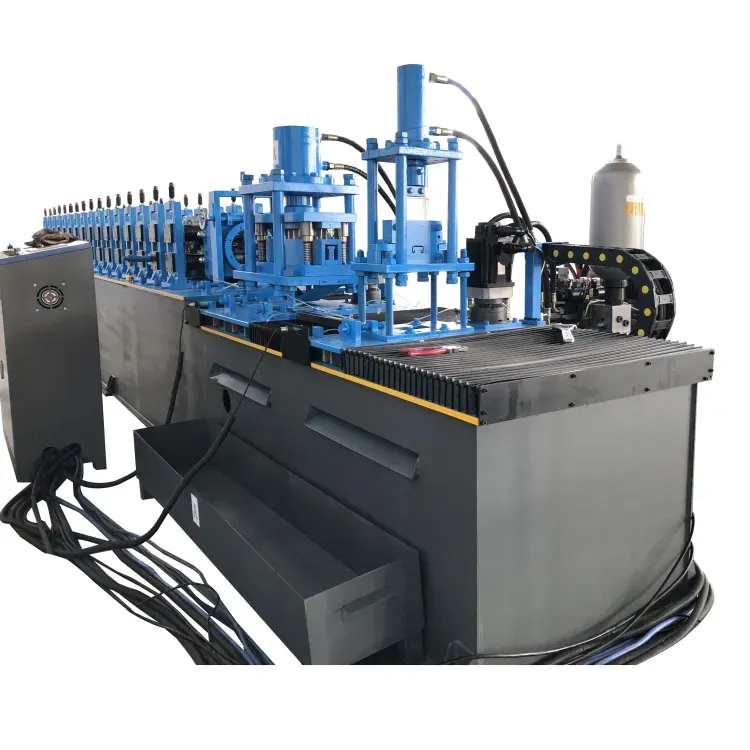

Punching system

1. Punching type: Tracking punching
2. Power: 5.5 KW
3. Punching mold: Cr12
4. Punching holes quantity: 10 holes one time

Hydraulic cutting system

1. Cutter material: Cr12
2. Cutting power: 5.5 kw
3. Cutting type: hydraulic tracking cutting

Hydraulic oil pump station

1.Type: with air-cooling system to prolong the service life.
2.Include a set of hydraulic tank, a set of hydraulic oil pump, four hydraulic pipes.And two sets of electromagnetism valves
3.Oil tube and wires connection: All wires will be marked by numbers or letters, So very easy to connect

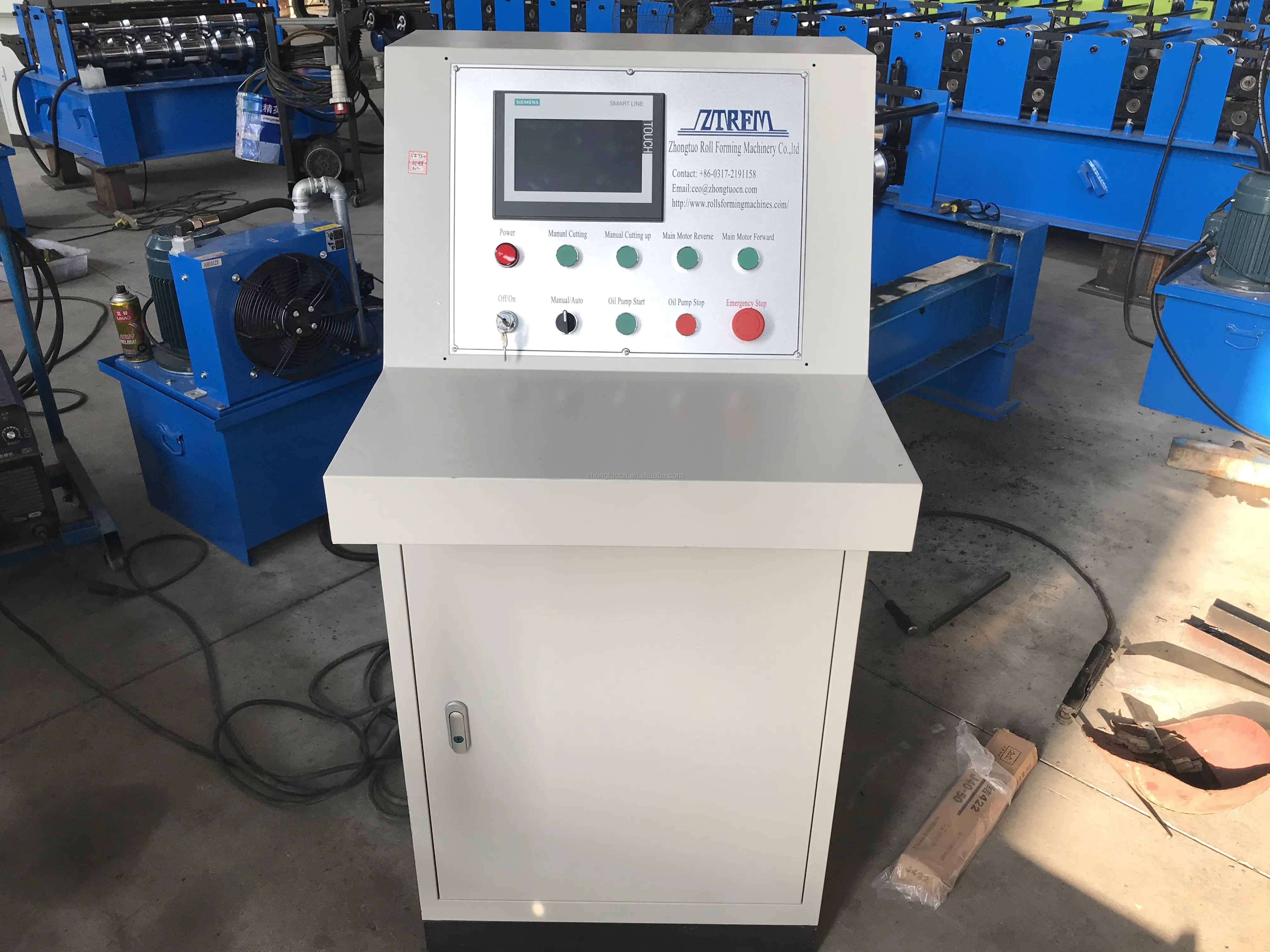

PLC control system

1. PLC brand: DELTA brand
2. Frequency: DELTA brand
3. Screen: Touch screen

4. Language: English/ Chinese

5. Voltage: 220 V/380 V or customized
6. Function: Length, speed and production quantity control
