ZTRFM High Speed Glazed Tile Roll Forming Machine Glazed Tile Making Machine Step Tiles Roll Forming Machine 30 m/min+4KW

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM High Speed Glazed Tile Roll Forming Machine Glazed Tile Making Machine Step Tiles Roll Forming Machine 30 m/min+4KW

Name: ZTRFM High Speed Glazed Tile Roll Forming Machine Glazed Tile Making Machine Step Tiles Roll Forming Machine 30 m/min+4KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT80611108

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

30 m/min

Power(W):

4KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

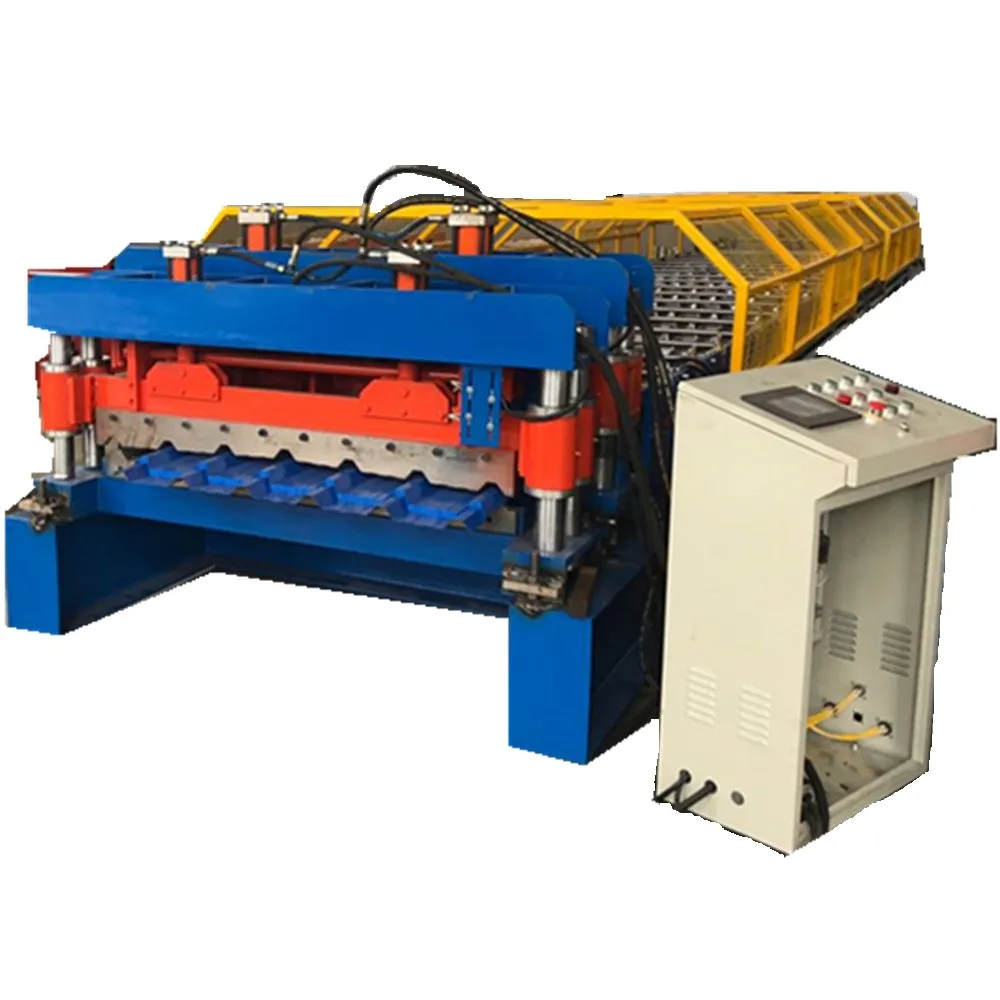

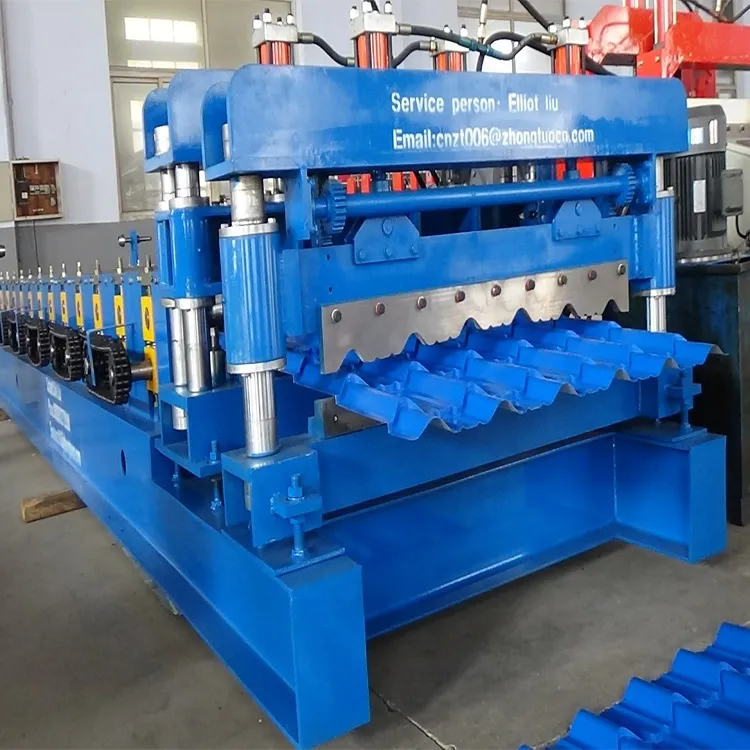

ZTRFM Popular in Bolivia Glazed Tile Roll Forming Machine Glazed Tile Making Machine Step Tiles Roll Forming Machine

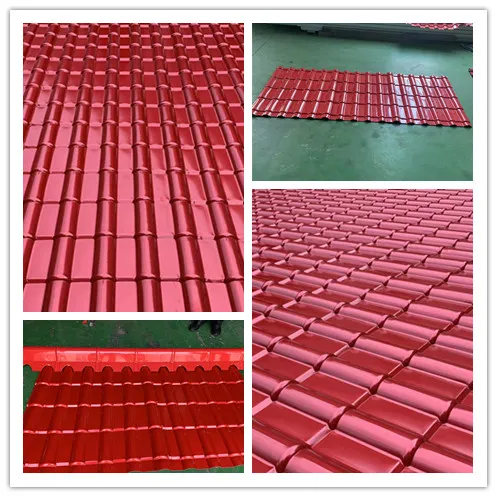

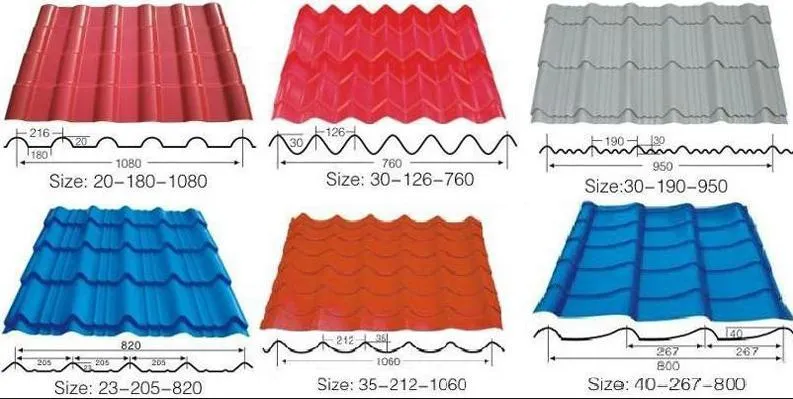

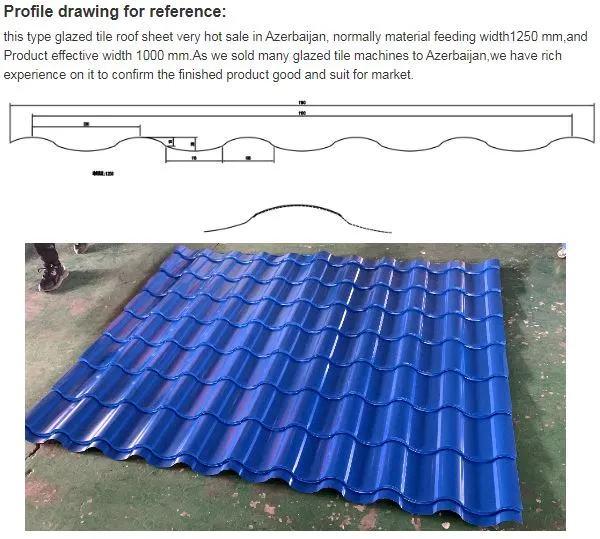

TILE TYPE FOR YOUR REFERENCE

DESIGN IDEA

High speed:0-8m/min

Special Design Cutting Device:As azerbaijan customer’s requirement different with others,for the cutting device we made special design and obtain a patent.
Stable Transmission: gearbox drive.

PRODUCT PARAMETERS

Processing Flow

Decoiler-Feeding Material-Roll Forming-Cutting-Receiving the Product

raw material	PPGI
raw material		material thickness:0.32-0.8mm
machine frame	350#H steel frame welded
machine structure	vertical arch frame structure

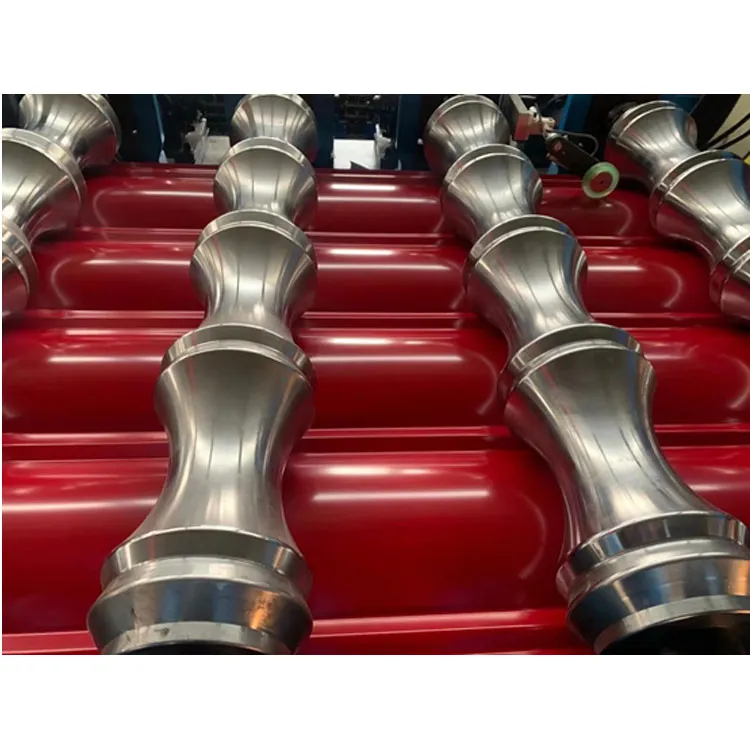

material of rollers	45# steel chromed treatment (Cr Thickness:0.05mm), anti-corrosion, increase hardness, ensure the precision and good abrasion performance
forming stations	16 stations
diameter of shafts	φ80mm
material of shafts	45# steel tampering treament prevent deformed and improve the hardness
forming speed	about 0-8m/min
voltage	380v 50hz 3ph or as required
transmission	gear box transmission
		material of gear box: iron casting
		material of gear:20 Crmnti
		the connection between gear boxes are chains
		gear box will connect with the rolling station one for one
		advantage : can improve the speed directly after cutting
work power	11kw (gear reducer and servo motor driving)
cutting blade material	Cr12Mov quenched treatment to improve hardness
cutting type	hydraulic cutting

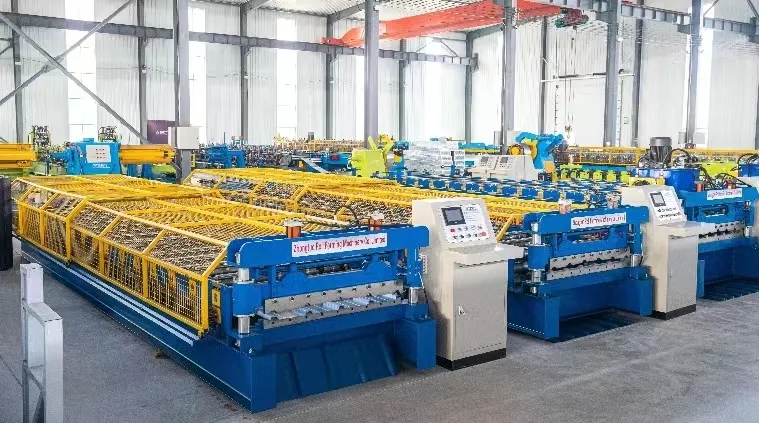

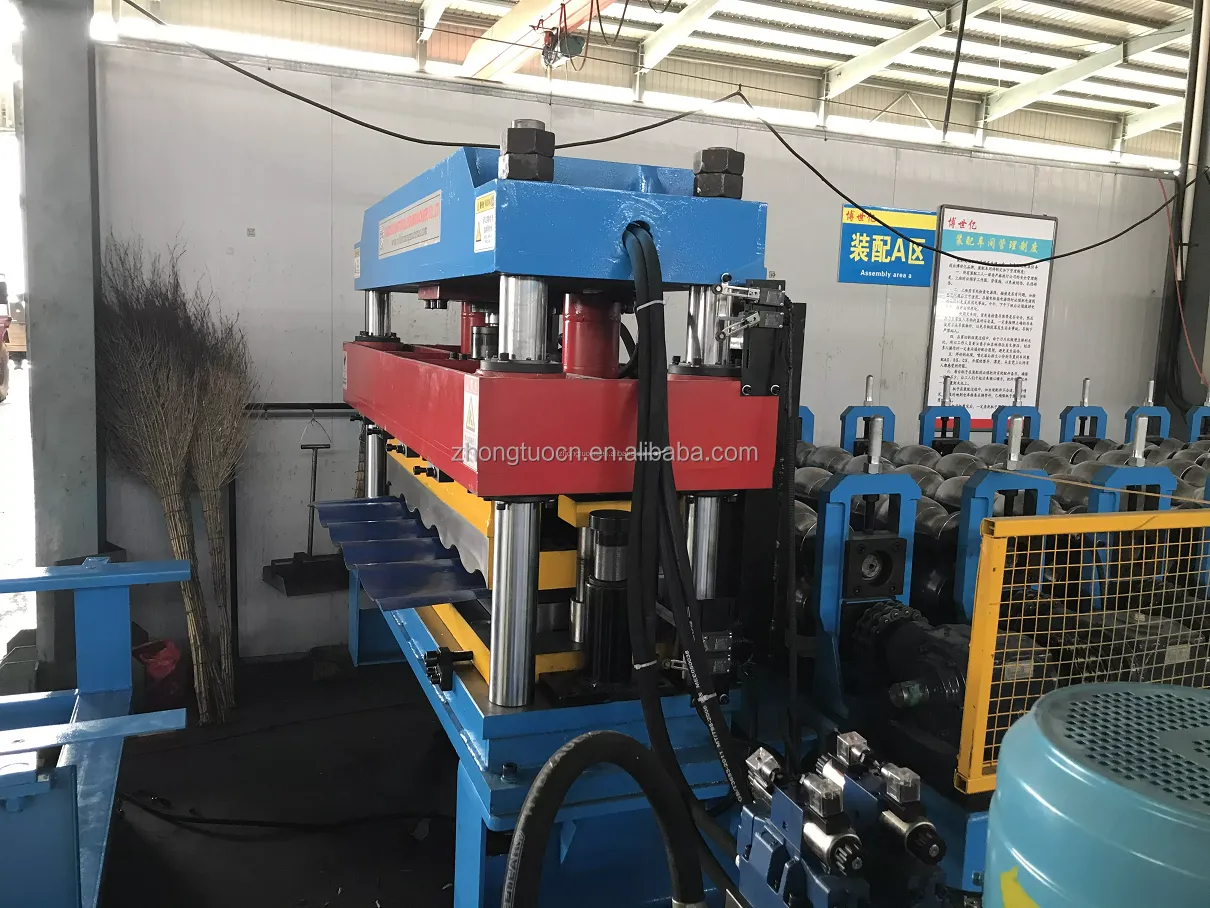

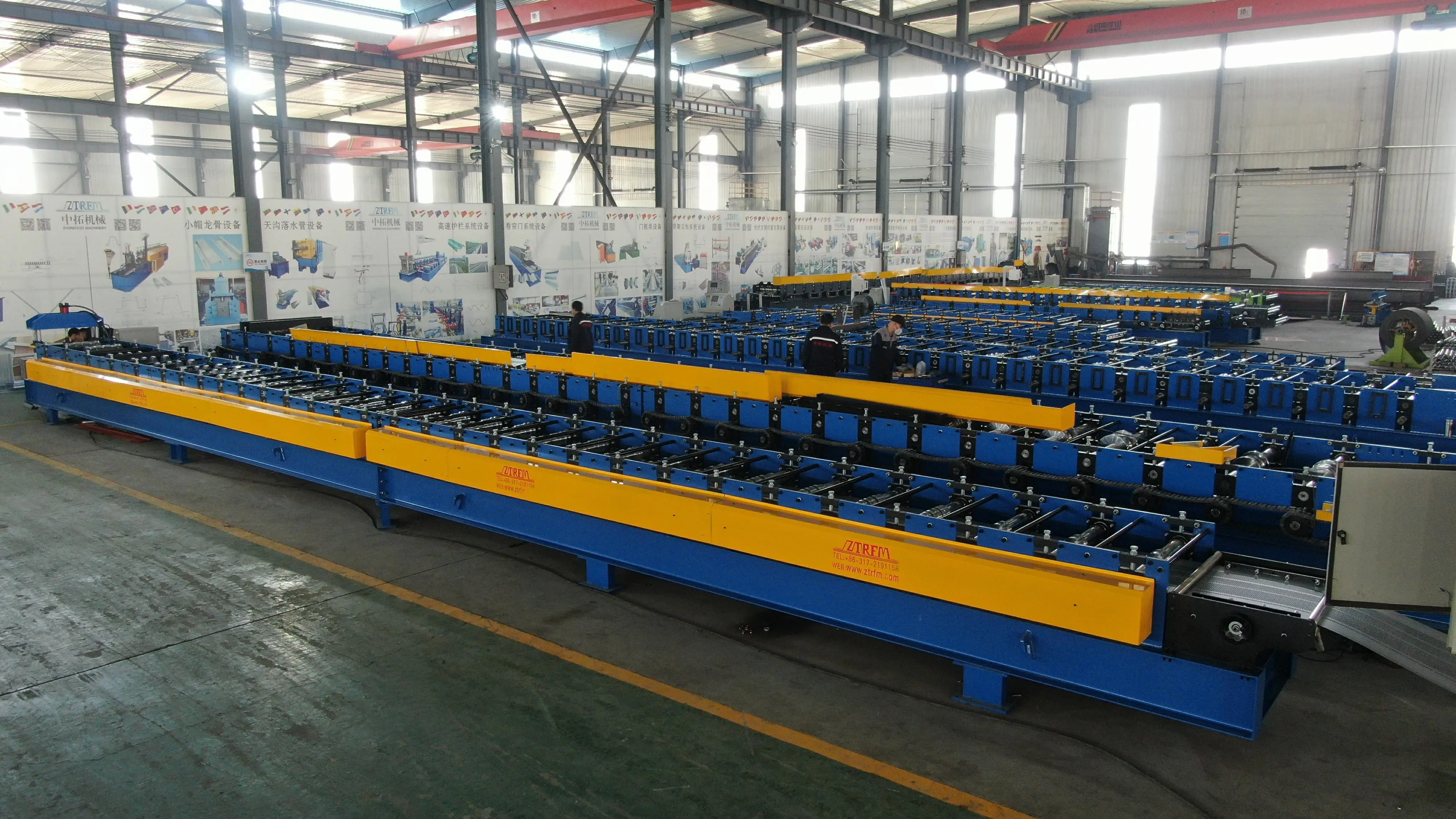

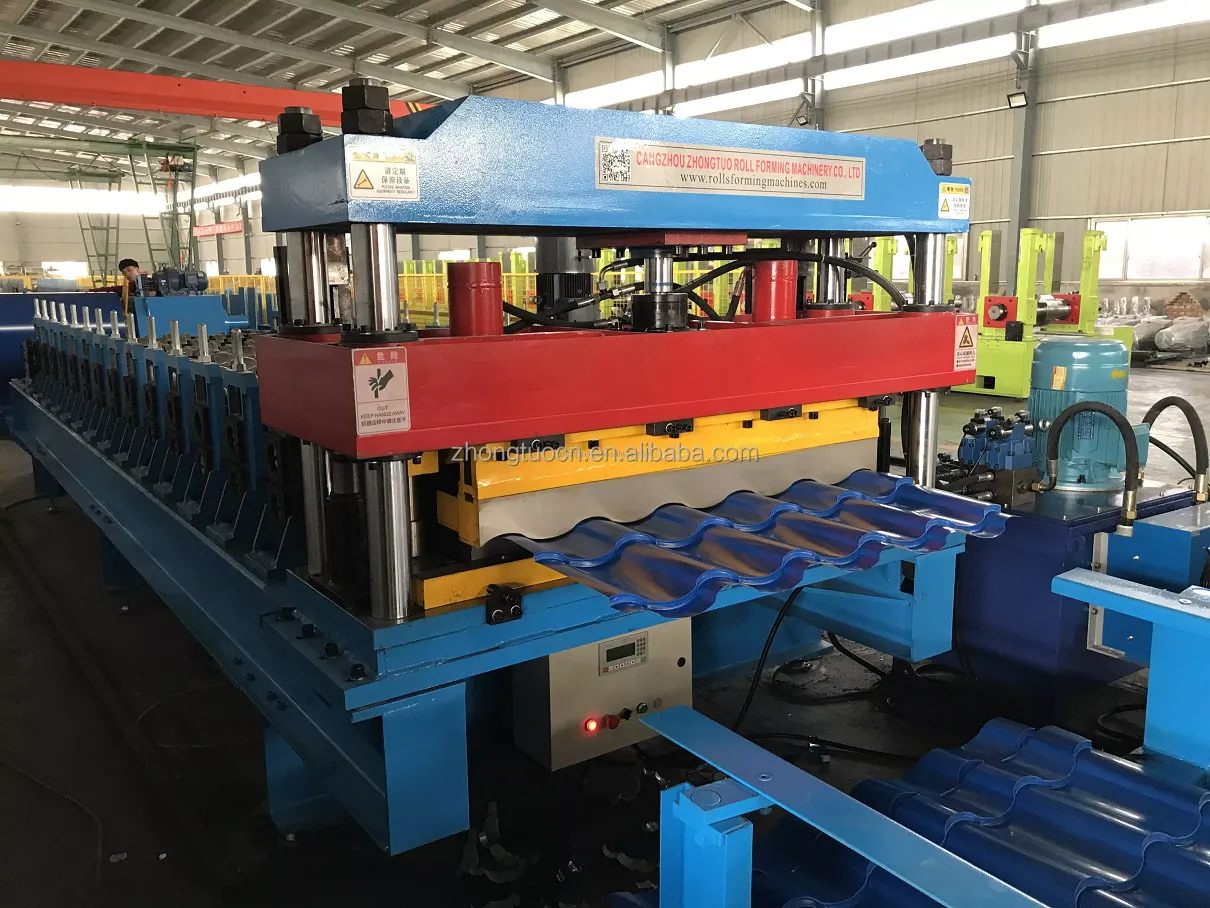

PRODUCT DISPLAY

Technology Is The Primary Productive Force

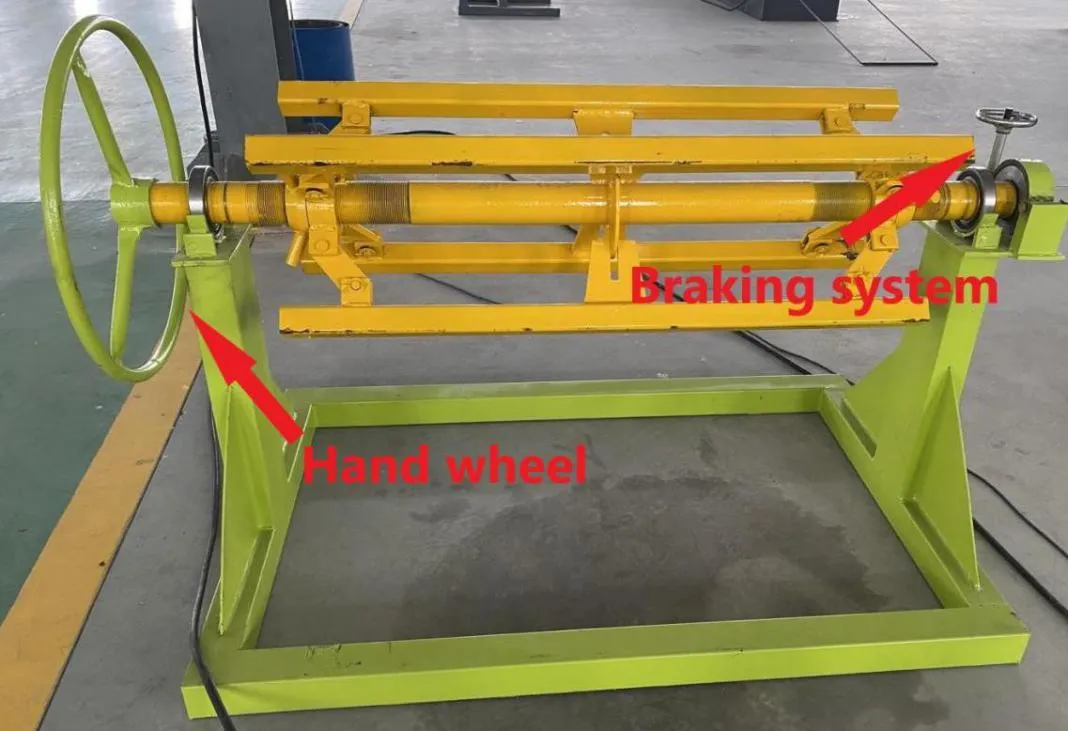

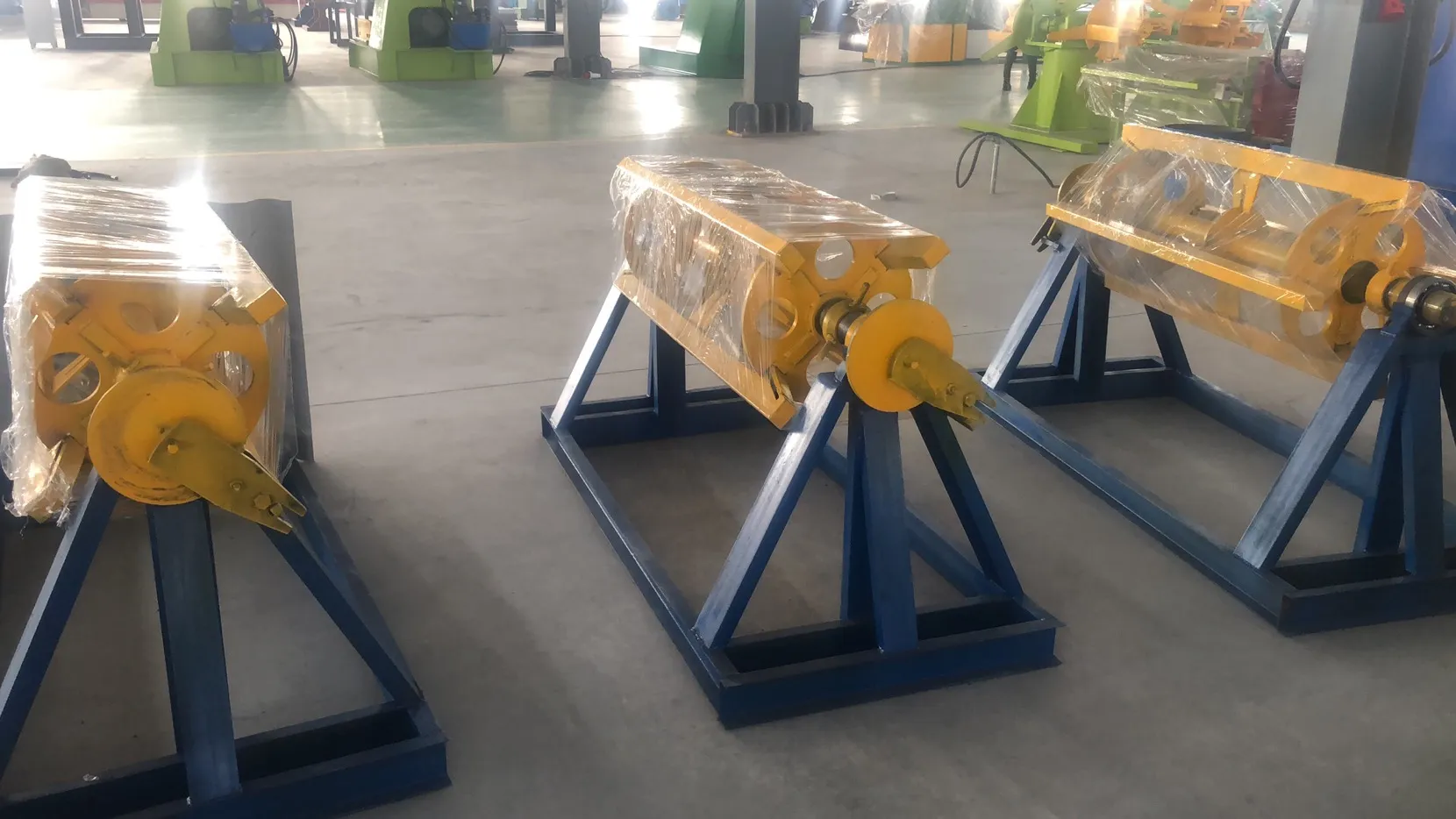

5 ton Manual Decoiler

1. capacity: 5t

2. coil diamater: 450-550mm

3. coil outer diameter: 1500mm

4. coil width: 1250mm (as requst)

Feeding Part

1. The feeding rollers which we use is stainless steel.

2. And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

3. Hand wheels on both sides can be used to adjust the feeding width.

4. There are two rows of orange plastic rollers can make the steel coil go into the machine smoothly.

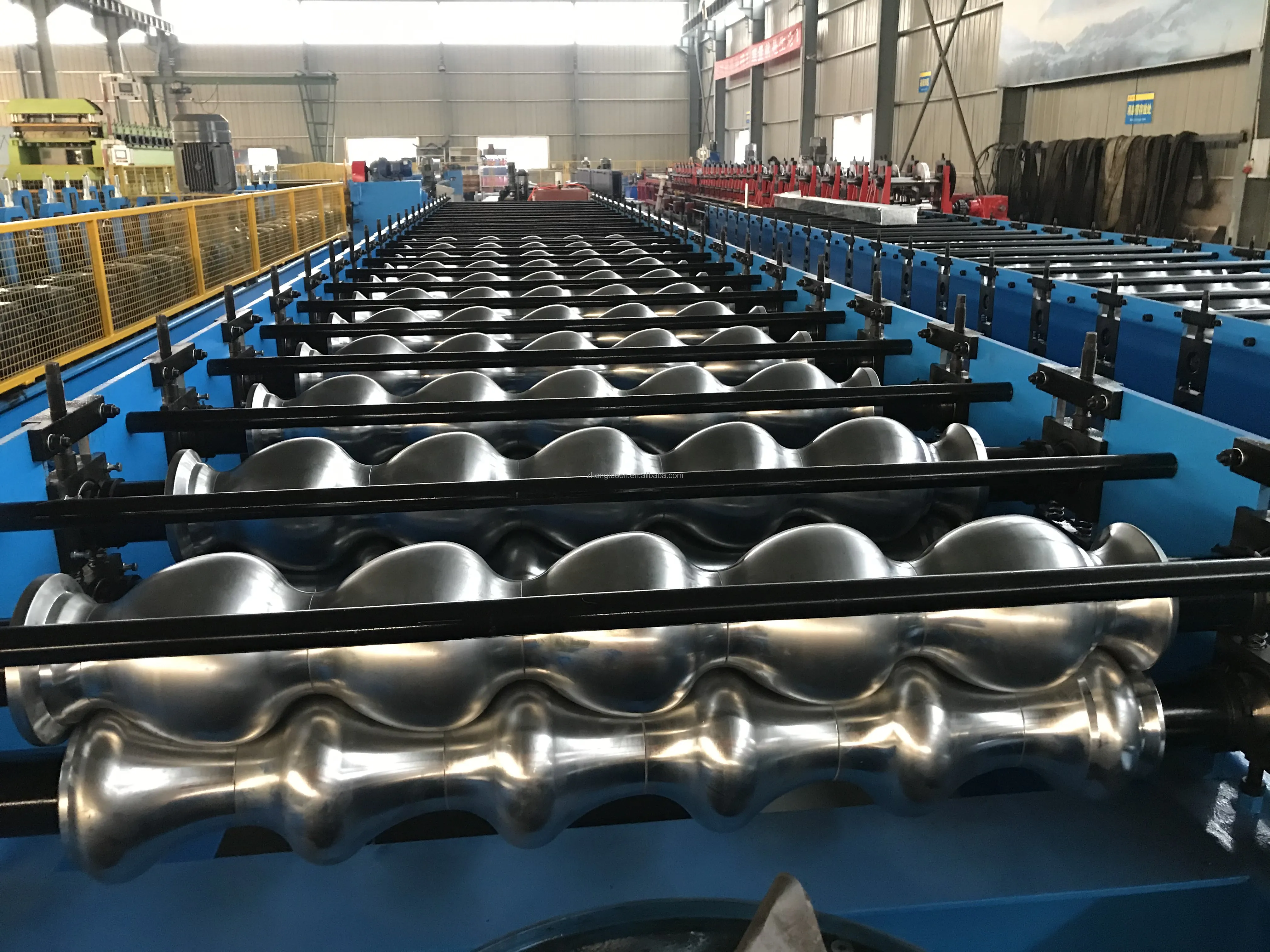

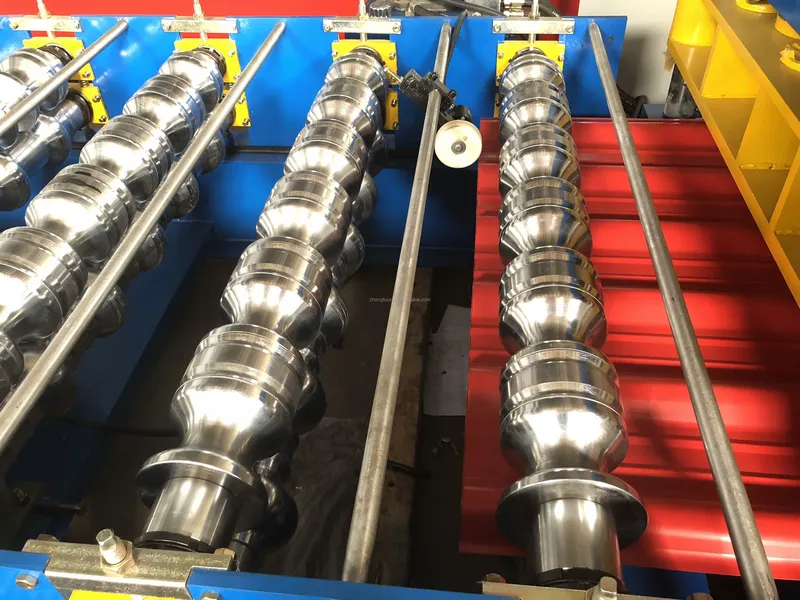

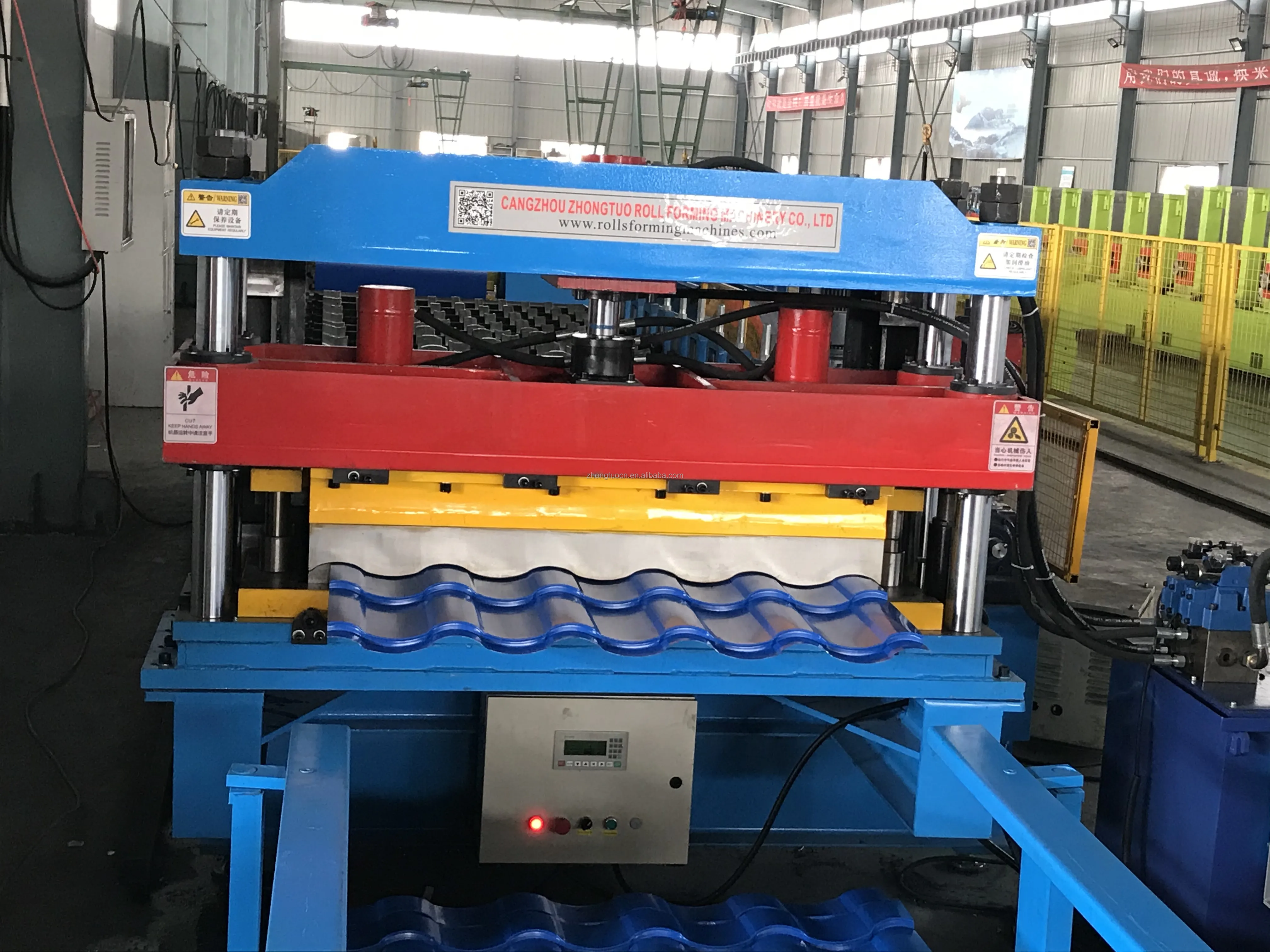

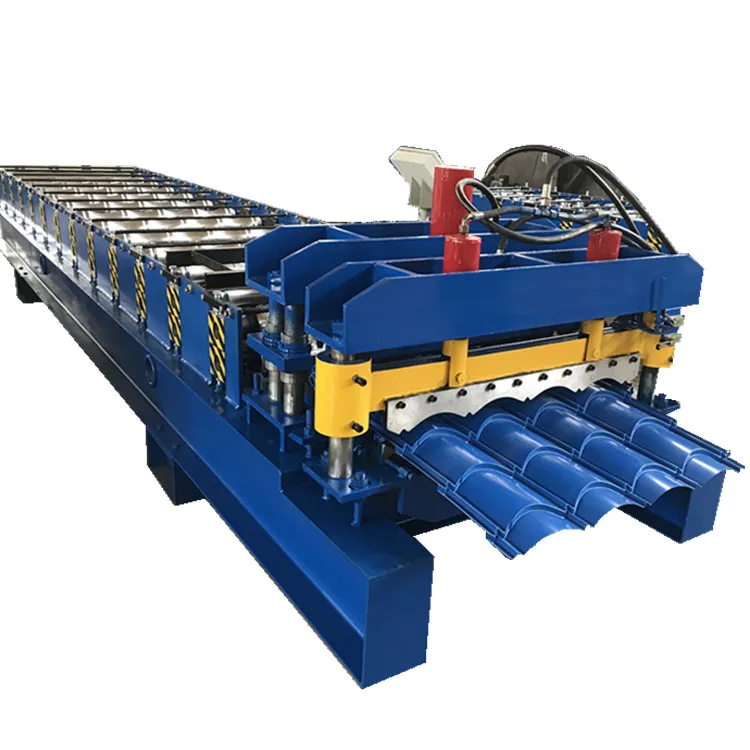

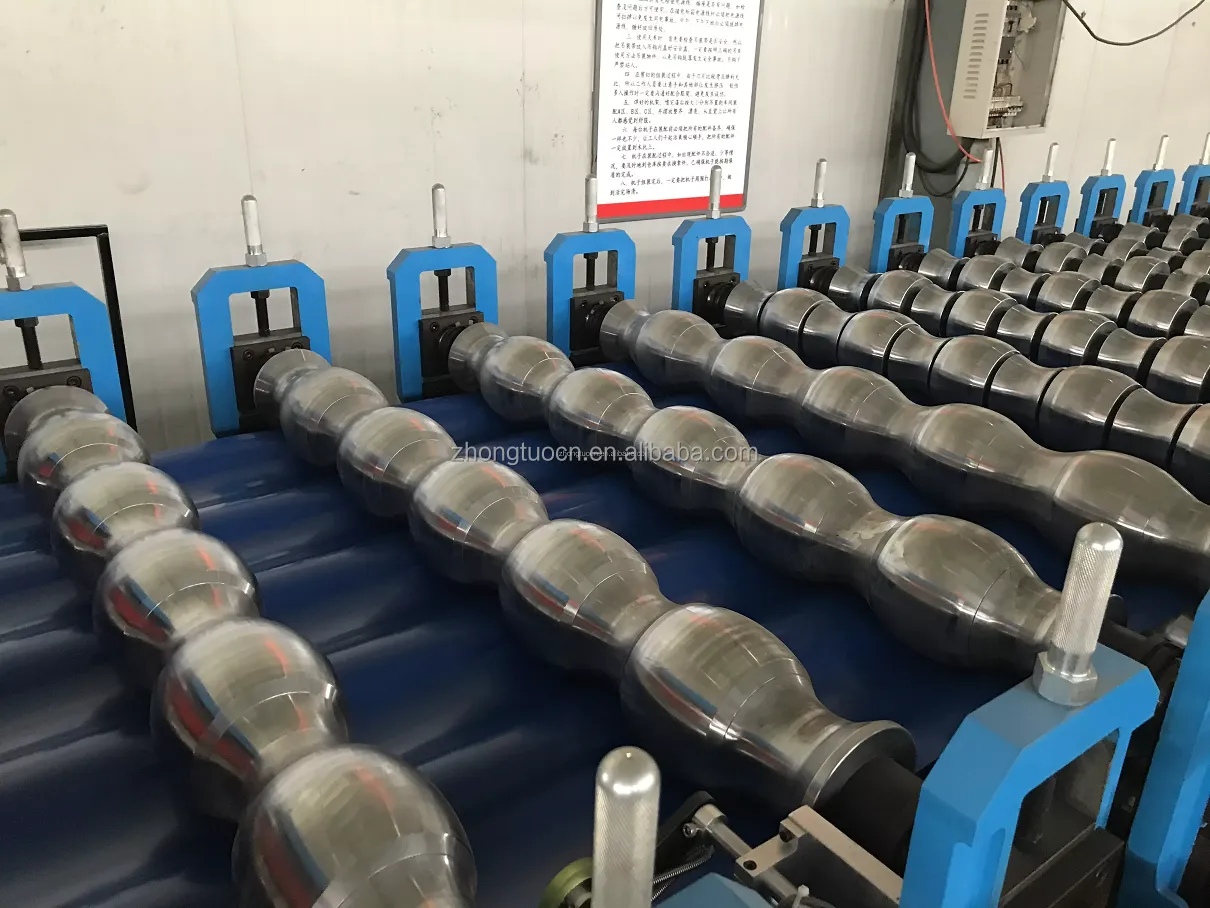

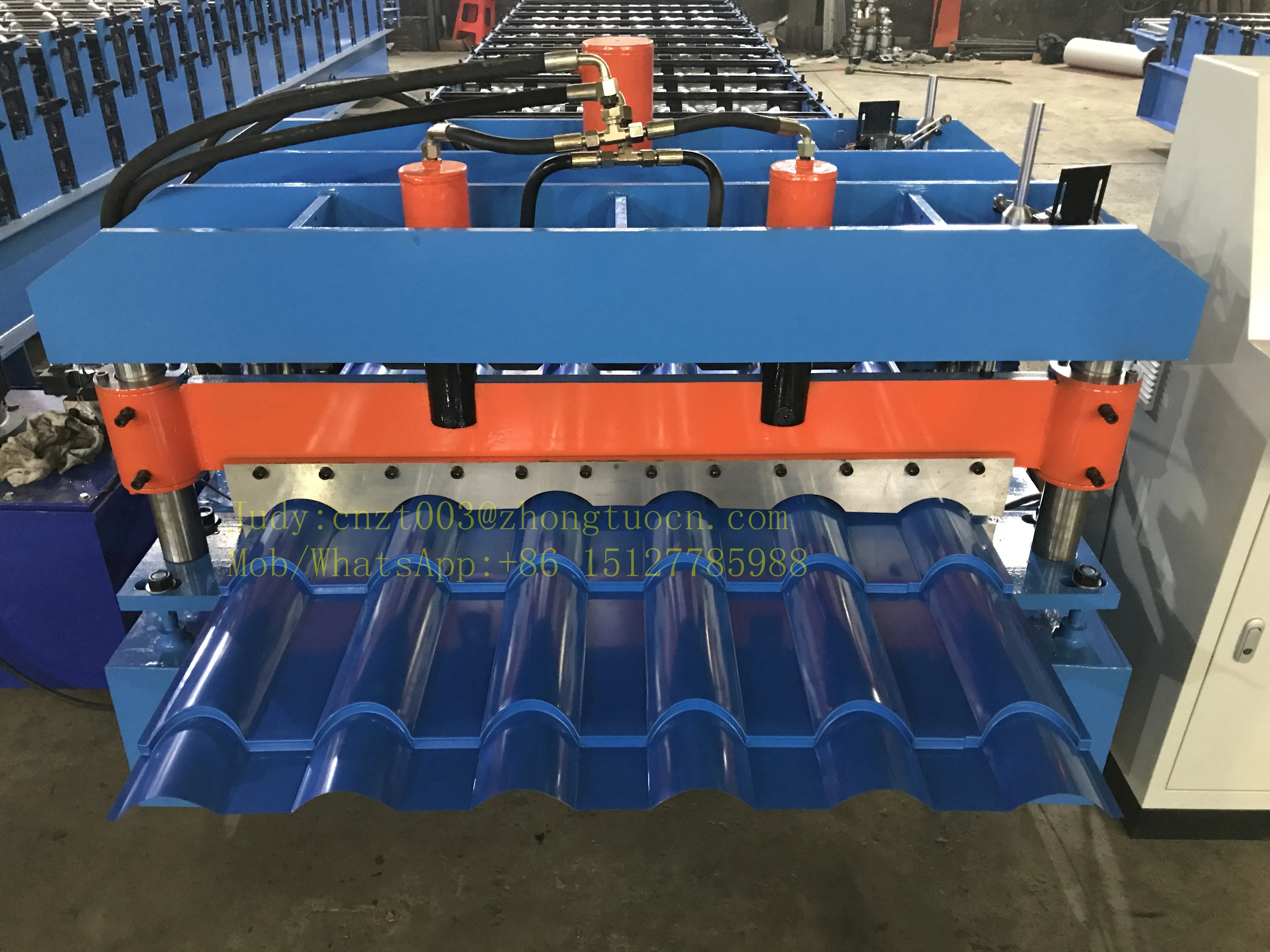

Roll Forming System

1. Frame: 350 H steel, with 20 mm middle plate support.

2. Roller stations: 16 stations

(depend on the profile drawing)

3. Roller material: 45# steel with quenched treatment and hard chrome

4. Shaft diameter: 80 mm , solid

5. Shaft material: 45# steel with tempering treatment 6. Motor power: 7.5 kw

Hydraulic Cutting System

1. Blade material: Cr 12, with quenched treatment 2. Hydraulic power: 7.5 kw 3. Cutting tolerance: ±1 mm 4. With fan cooling on the oil pump

PLC Control System

1. Control system: PLC 2. PLC brand: Delta from Taiwan 3. Frequency converter brand: Delta from Taiwan 4. Encoder: Omron 5. Function: Automatic control the length and quantity

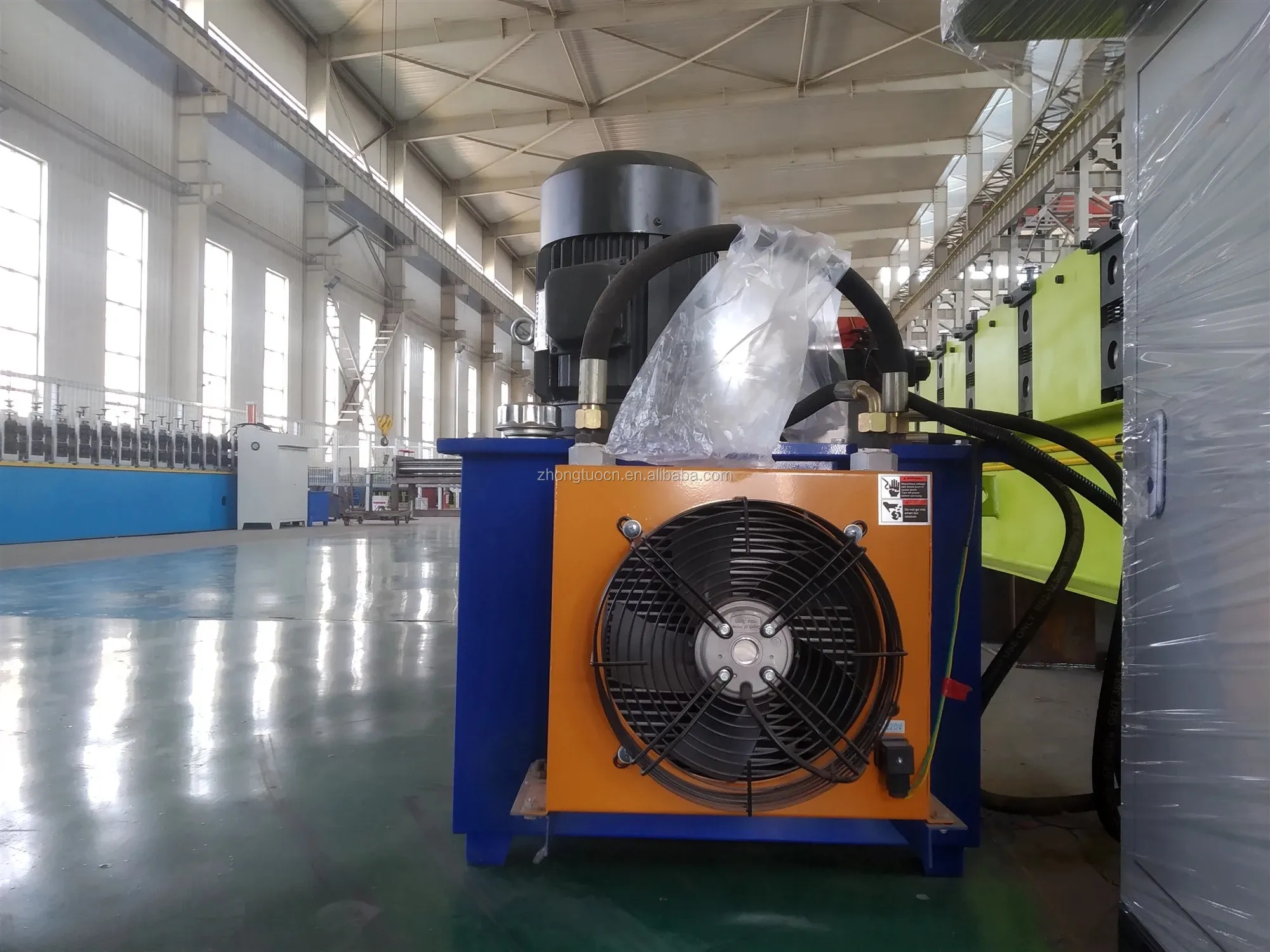

Hydraulic Station

1. Hydraulic station motor: 5.5KW

2. Hydraulic oil: 46# hydraulic oil

3. Main components: include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism value

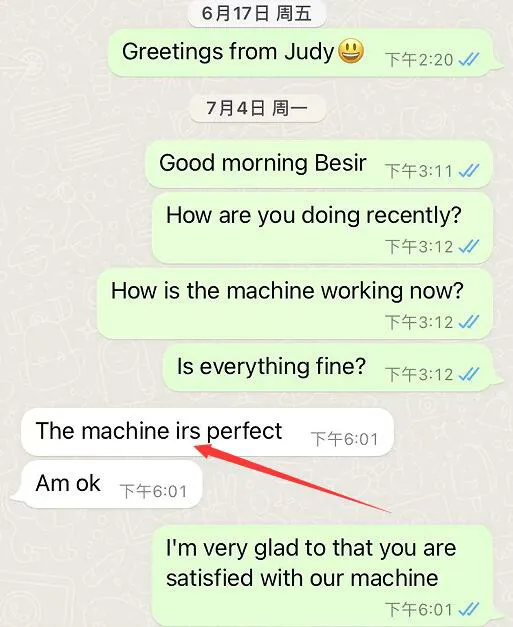

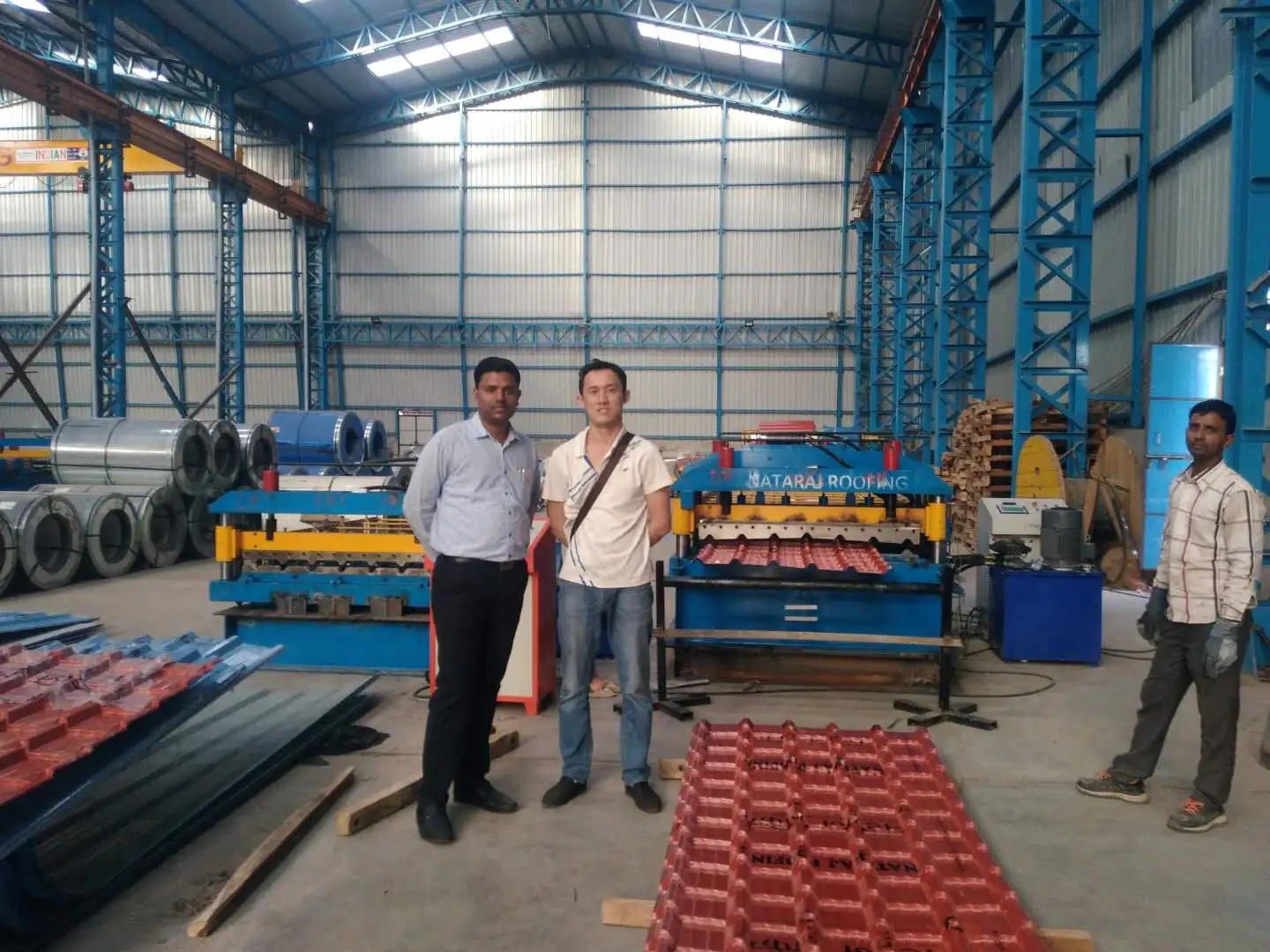

CUSTOMER FEEDBACK

Meeting Your Requirements is Our Goal; Solve Your Problems Heart and Soul !

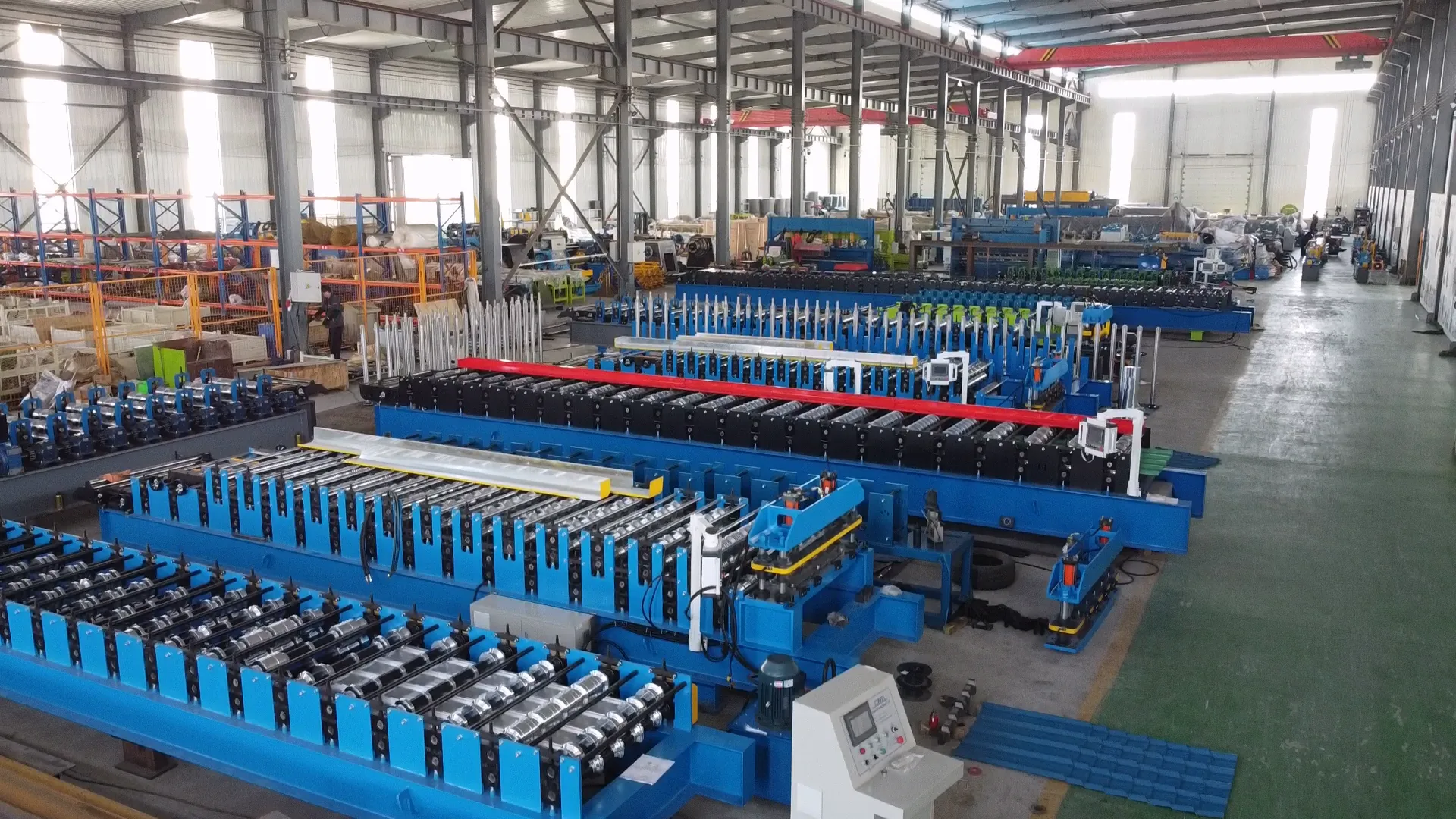

——OUR COMPANY——

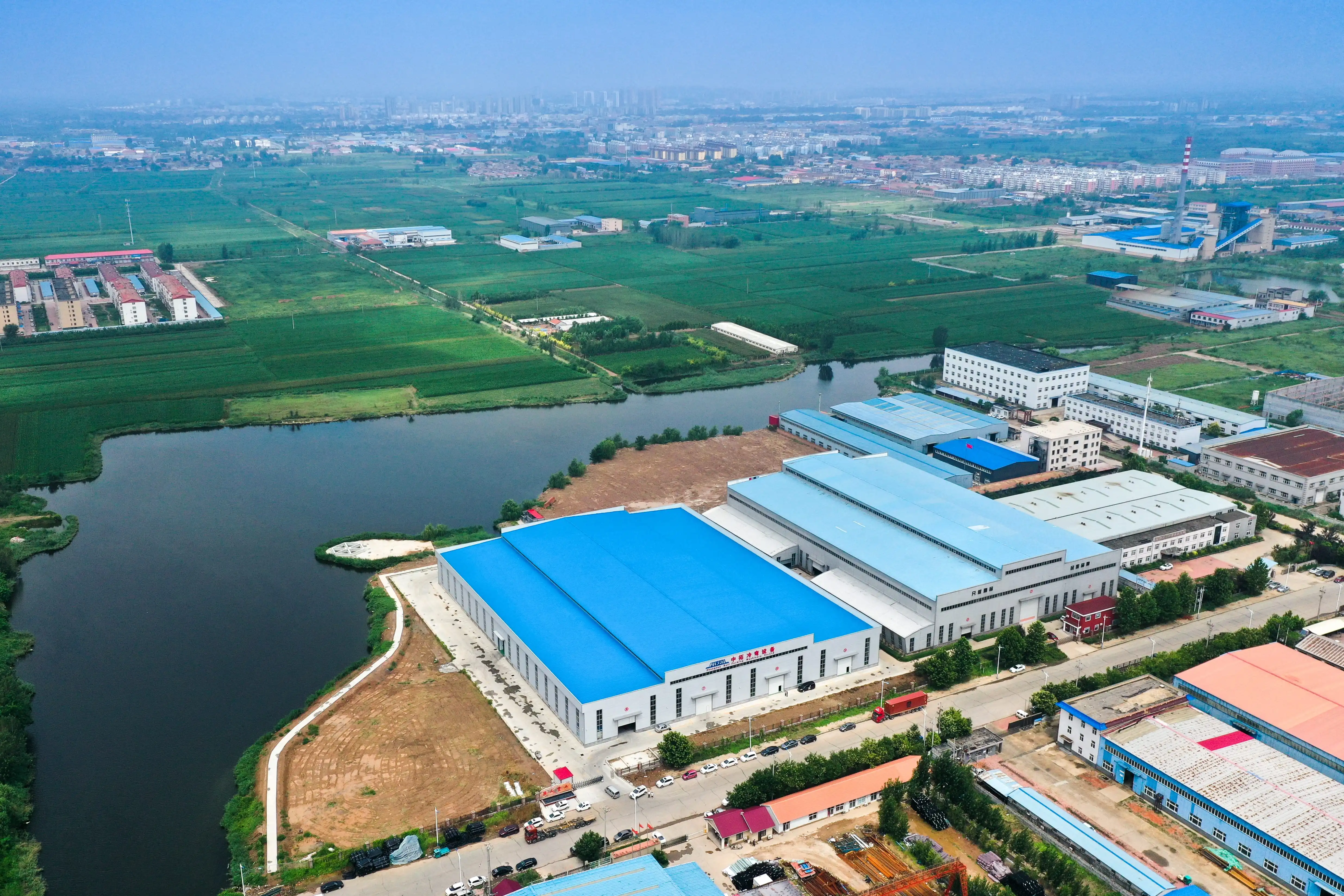

CANGZHOU ZHONGTUO came from Hebei-China, is a factory that committed to the desiging and manufacturing of different types cold roll forming machines. We are a factory that has a long history, we do the desiging and manufacturing of cold roll forming machines since 2006. The machines we can manufacture contains:roofing sheet machine, cz purlin machine, light steel gauge maghine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machine as so on.The company has passed ISO9001 quality control system certification, European CE safety certification, North American CSA electric certification, and has instill the concept "time is money, quality is life" into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowaday our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients. Development vision: become a global one-stop supplier of cold roll forming machines and accessaries. Development concept: time is money, quality is life.

——OUR STRENGTH——

——OUR TECHNICAL TEAM——

——EXHIBITION——

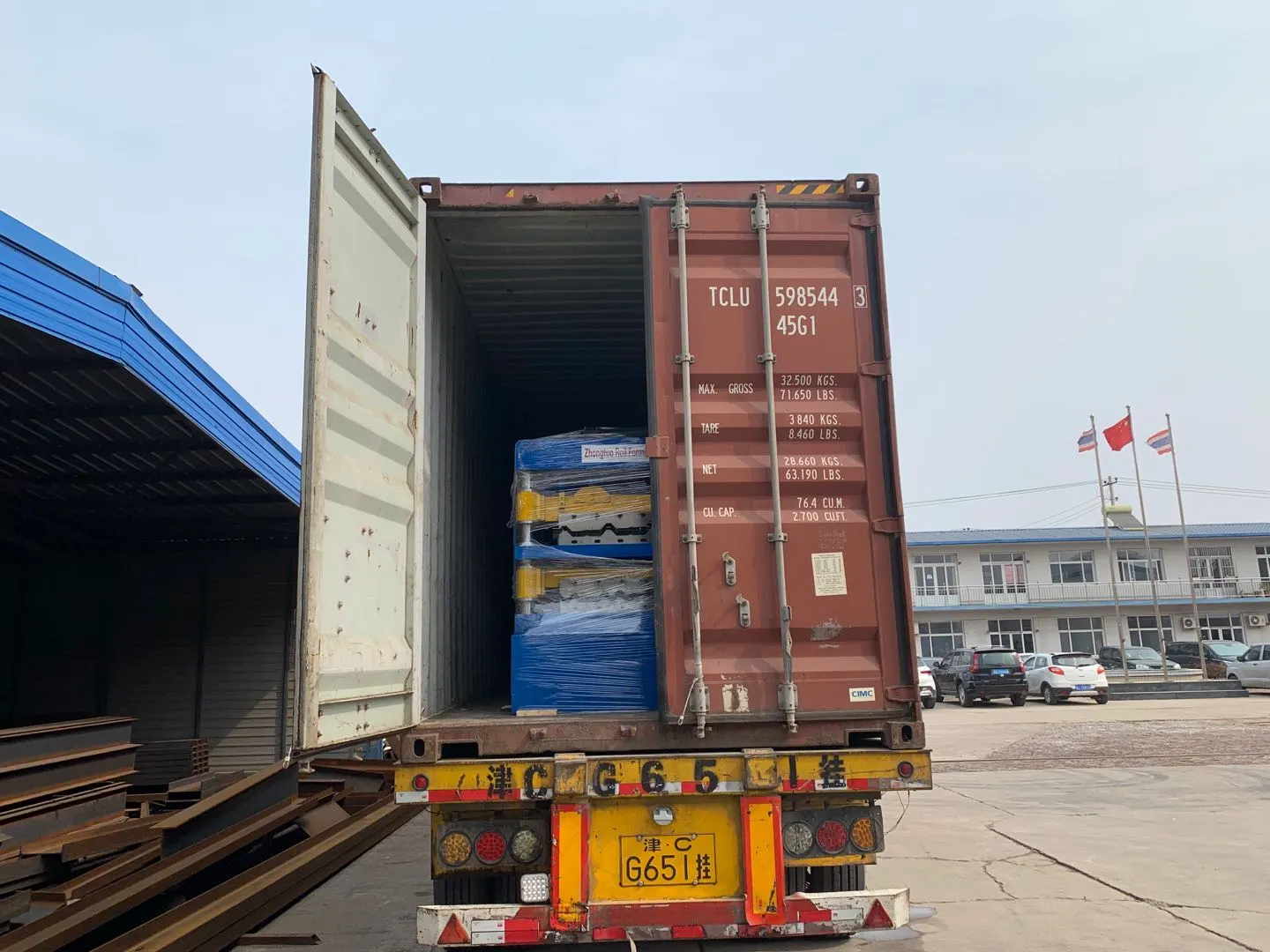

——PACKING AND LOGISTICS——
