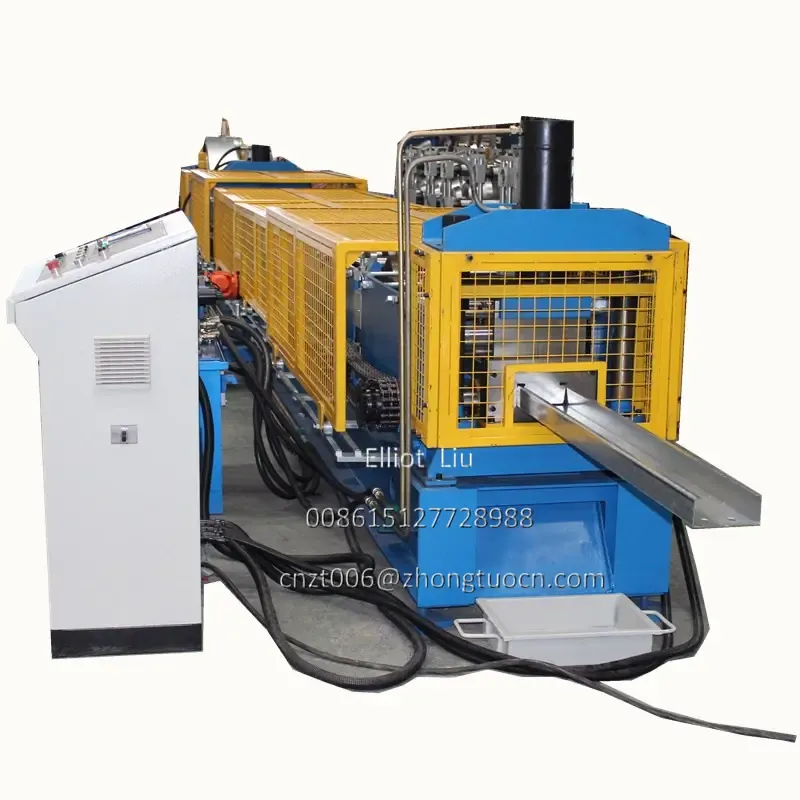

ZTRFM Full Automatic c purlin roll forming machine steel channel make machine

ZTRFM Full Automatic c purlin roll forming machine steel channel make machine consists of passive loading rack, leveling device, punching device, after forming cutting device, hydraulic station, computer control systems.

C section steel rolling machine equipment of c-beam bending finished with good pressure performance good flatness, automatic fixed-length cutting, automatic punching, high degree of automation, quick and easy installation.

C size:80-300mm
Material thickness:1.5mm-3mm

Profile drawing for reference:

Working flow:

ZTRFM Full Automatic c purlin roll forming machine steel channel make machine
Formed Material	PPGI,GI,AI
Thickness	0.40-0.80mm
Diameter of shaft	80mm solid shaft
Material of rollers	Gcr 15 with quenched teeatment
Machine body frame	Metal steel welded
Drive	Chain transmission
Cutter	cr12mov material, no scratches, no deformation
Motor Power	6KW
Hydraulic system power	5.5KW
Voltage	380V 50Hz 3Phase(As your requirement)
Forming Speed	The speed is adjustable

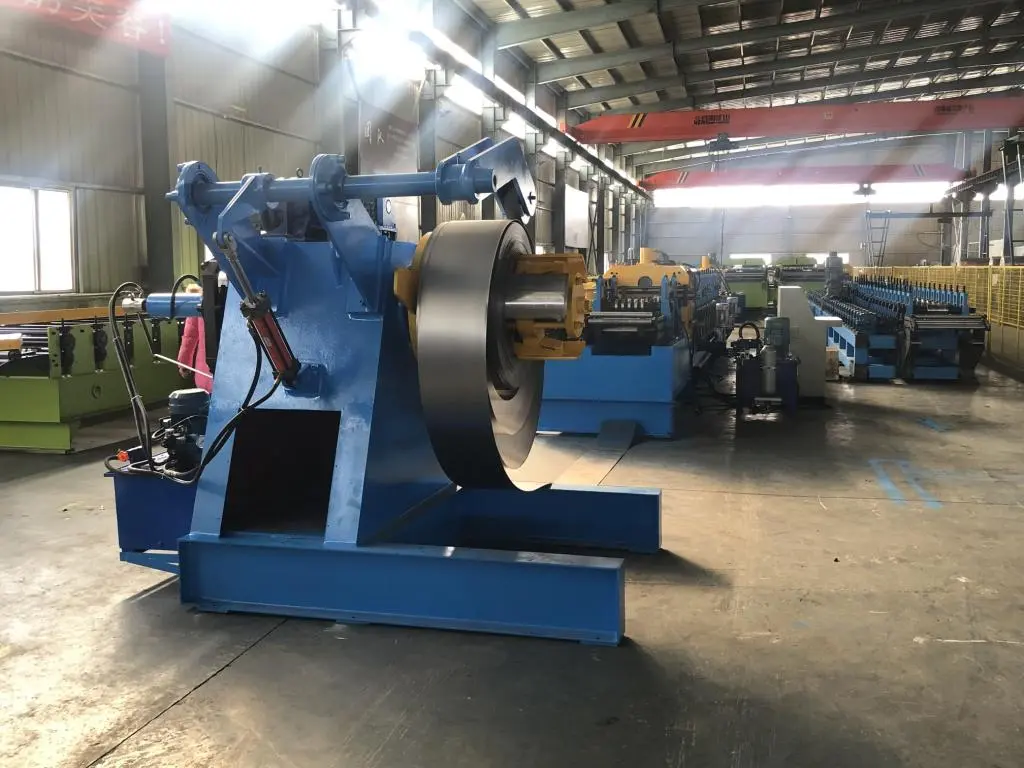

Hydraulic decoiler

1. Has power,it can work automatically
2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter
3. With Pneumatic braking system
4. With press arm to keep coil from loosing
5. With speed sensor to match with whole line’s speed

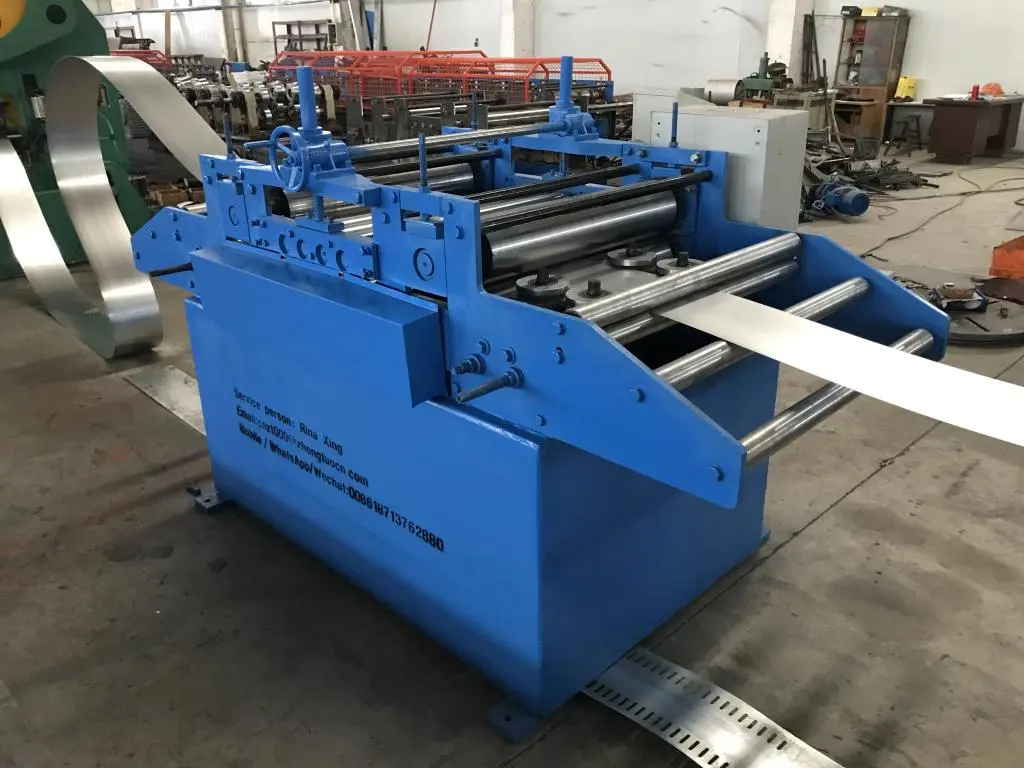

Coil feeding part

1. Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
2. Feeding type: adjustable
3. Feeding width range: 200-600mm
4. Entrance and guide roller: diameter is ￠65mm, material is SAE1045, HRC48-52° surface with chrome

Punching Part

The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating both punches and dolies should be easily replaceable without requiring disassembly of complete units.
The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator's console.

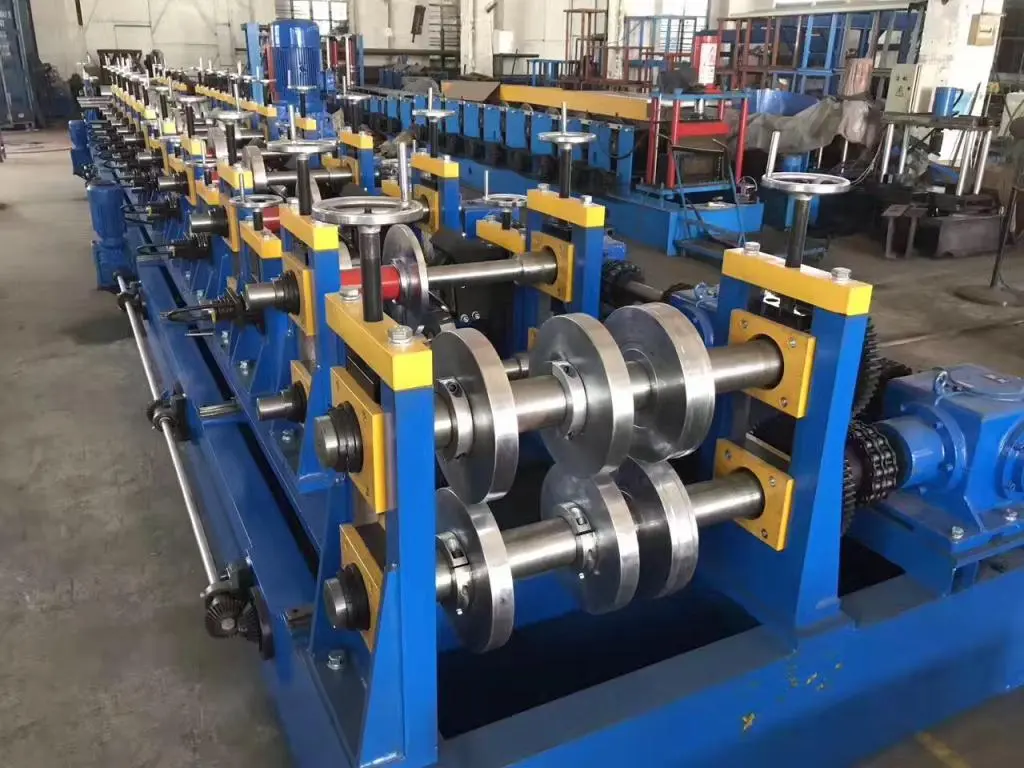

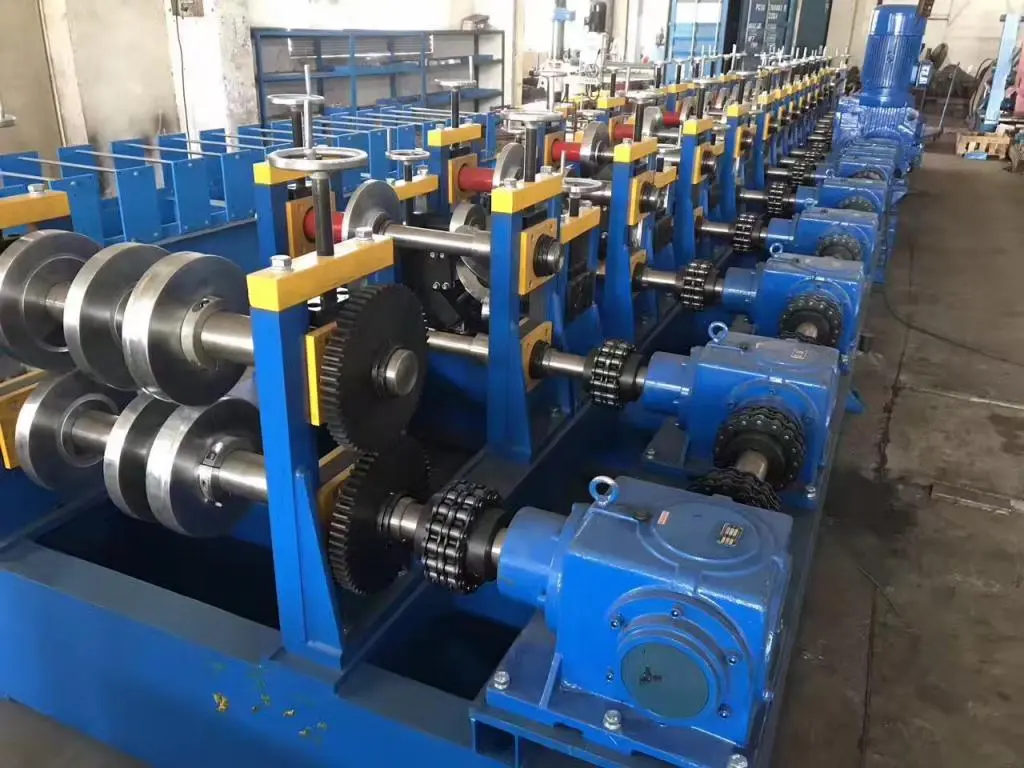

Forming Section

1. Roll former has leveling bolts in the base for adjust the leveling
2. Machine base frame adopt H beam welding steel
3. In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
4. Machine adopt iron cast as station to make machine in strong
5. To avoid accidents,all of drive part adopt protect cover

Shearing system

Feature: Ensure stability, precision and cutting speed
Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

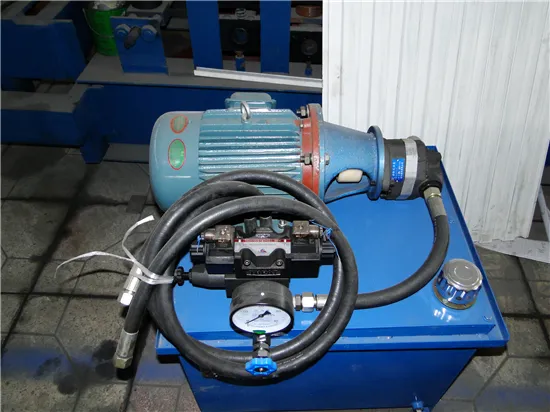

Hydraulic station

1. Hydraulic power: 5.5kw
2. Working pressure:20Mp adjustable
3. Solenoid valve: 1 groups
4. Hydraulic oil: 46# hydraulic oil

PLC station

1. Voltage: 380 V, 50 Hz, 3Phase
2. Control panel: Button-type switch and touch screen
3. PLC brand: Panasonic
4. Touch screen: Taiwan Weinview
5. Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved.
6. Length inaccuracy can be amended easily.

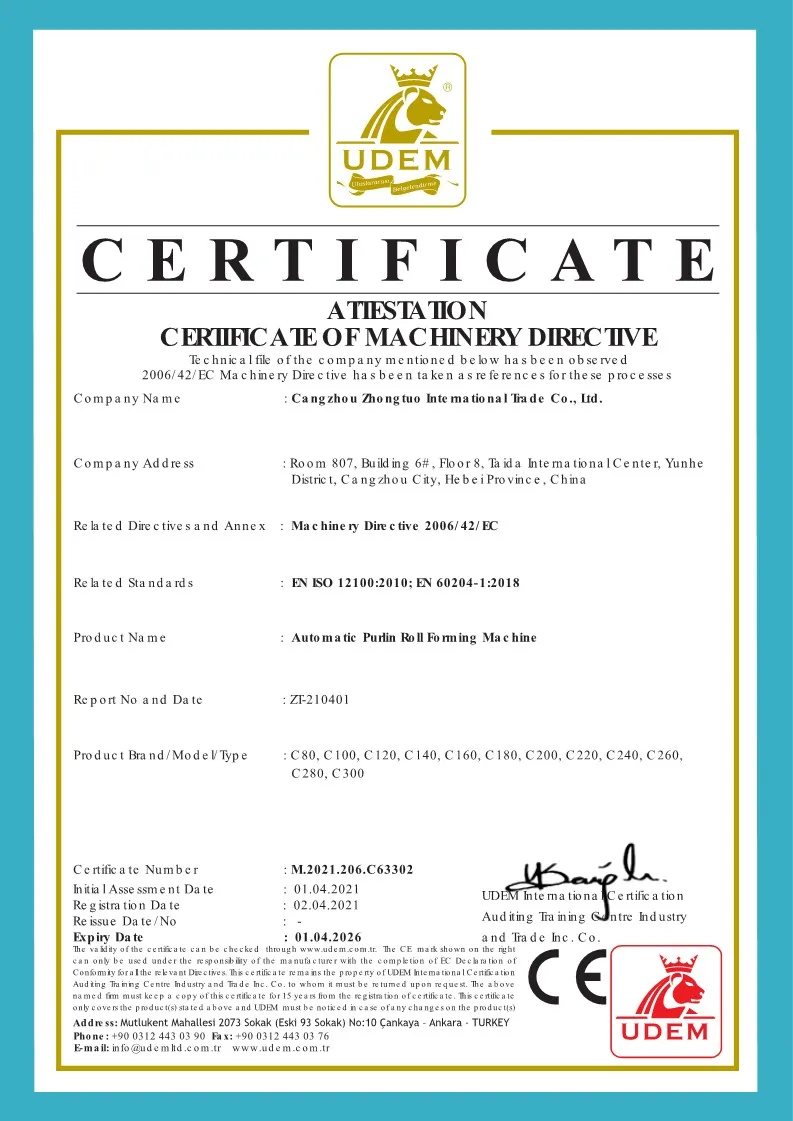

CE(NO.OP180719.CZIDC95)
