ZTRFM Full Automatic Metal Rain Gutter Downspout and Elbow Roll Former Machine 0-20m/min+5.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Full Automatic Metal Rain Gutter Downspout and Elbow Roll Former Machine 0-20m/min+5.5kw

Name: ZTRFM Full Automatic Metal Rain Gutter Downspout and Elbow Roll Former Machine 0-20m/min+5.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT113088745

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Production Capacity:

0-20m/min

Power(W):

5.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to RFQ CartSend Inquiry

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Glazed
Use
Wall
Voltage
380V,50HZ,3PH
Rolling Thinckness
0.3-0.8mm
Feeding Width
200-300mm

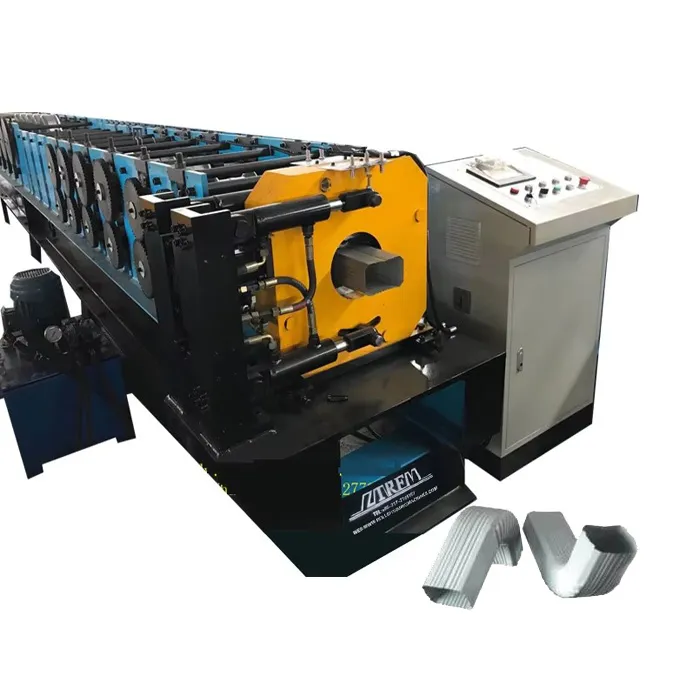

ZTRFM Full Automatic Metal Rain Gutter Downspout and Elbow Roll Former Machine

Our ZTRFM Rain gutter Downspout and elbow Roll former machine is professional in manufacturing the Rain gutter downspout and elbow,and we also can customize the machine as the final product which is requested by customers. Our machines have exported to a lot of countries, welcome to contact us for more details of the machine.

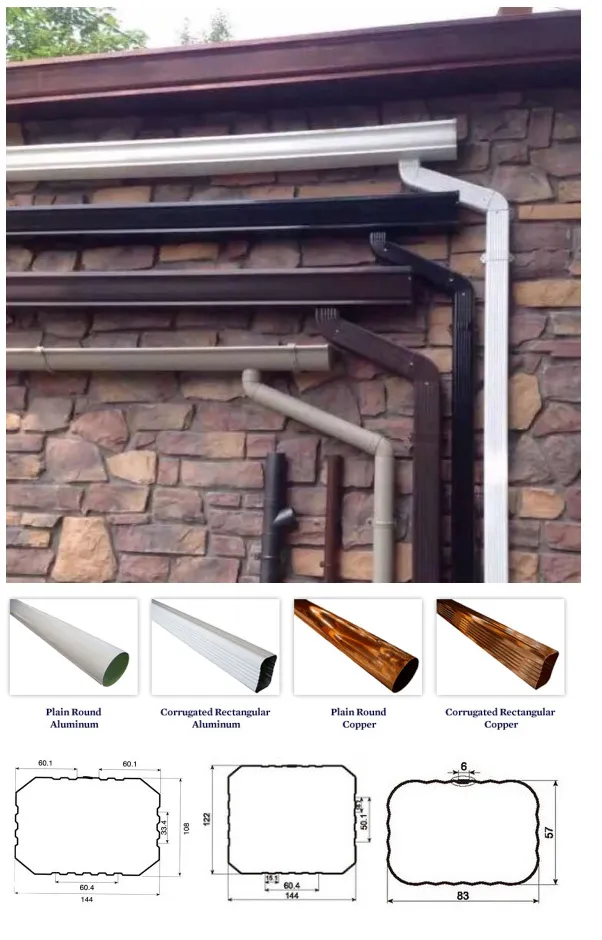

The pictures for the finished product:

Profile drawing for reference:

Working flow as below:

ZTRFM Full Automatic Metal Rain Gutter Downspout and Elbow Roll Former Machine
Formed Material	PPGI,GI,AI,SS
Thickness	0.3-0.8mm
Roller station	18 rows(As your requirement)
Diameter of shaft	80mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	350 H steel
Drive	Chain transmission
Motor Power	5.5KW
Voltage	380V 50Hz 3Phase
Control system	PLC
Forming Speed	15-20m/min

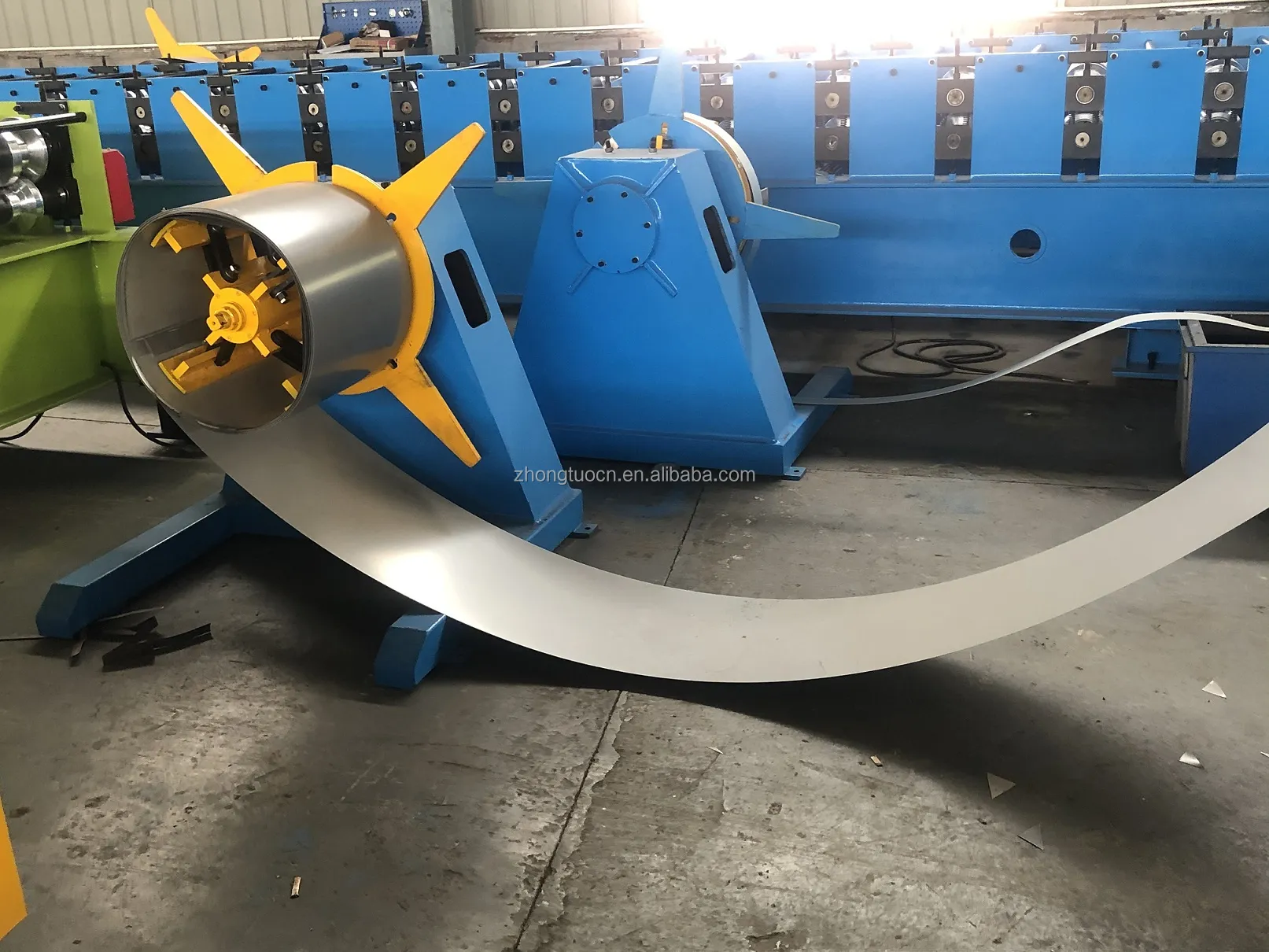

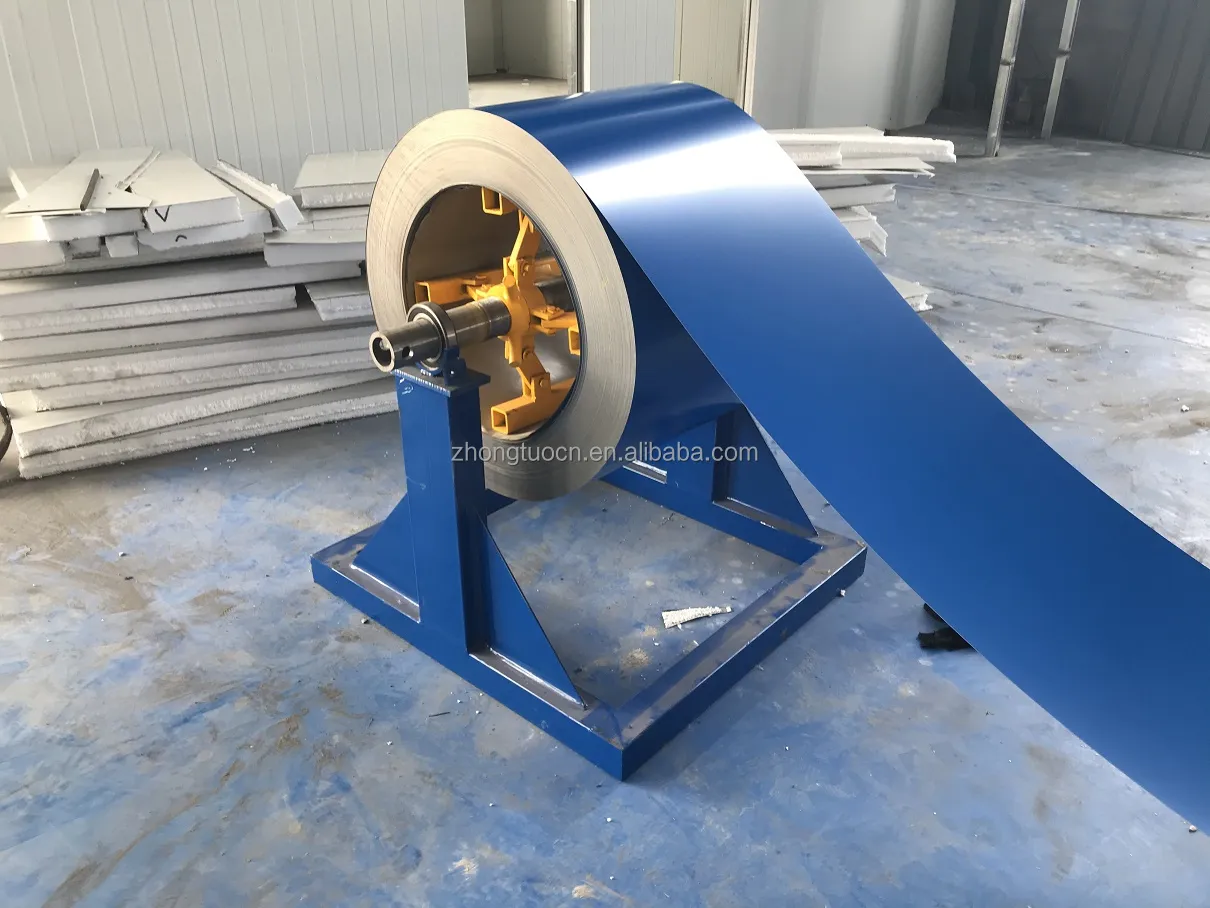

Manual Decolier

1. Power: by manual

2. Loading capacity: 3T

3. Inner diameter: 450-550mm

Advantage: with brake handle to control it. With bar to protect coil from losing.

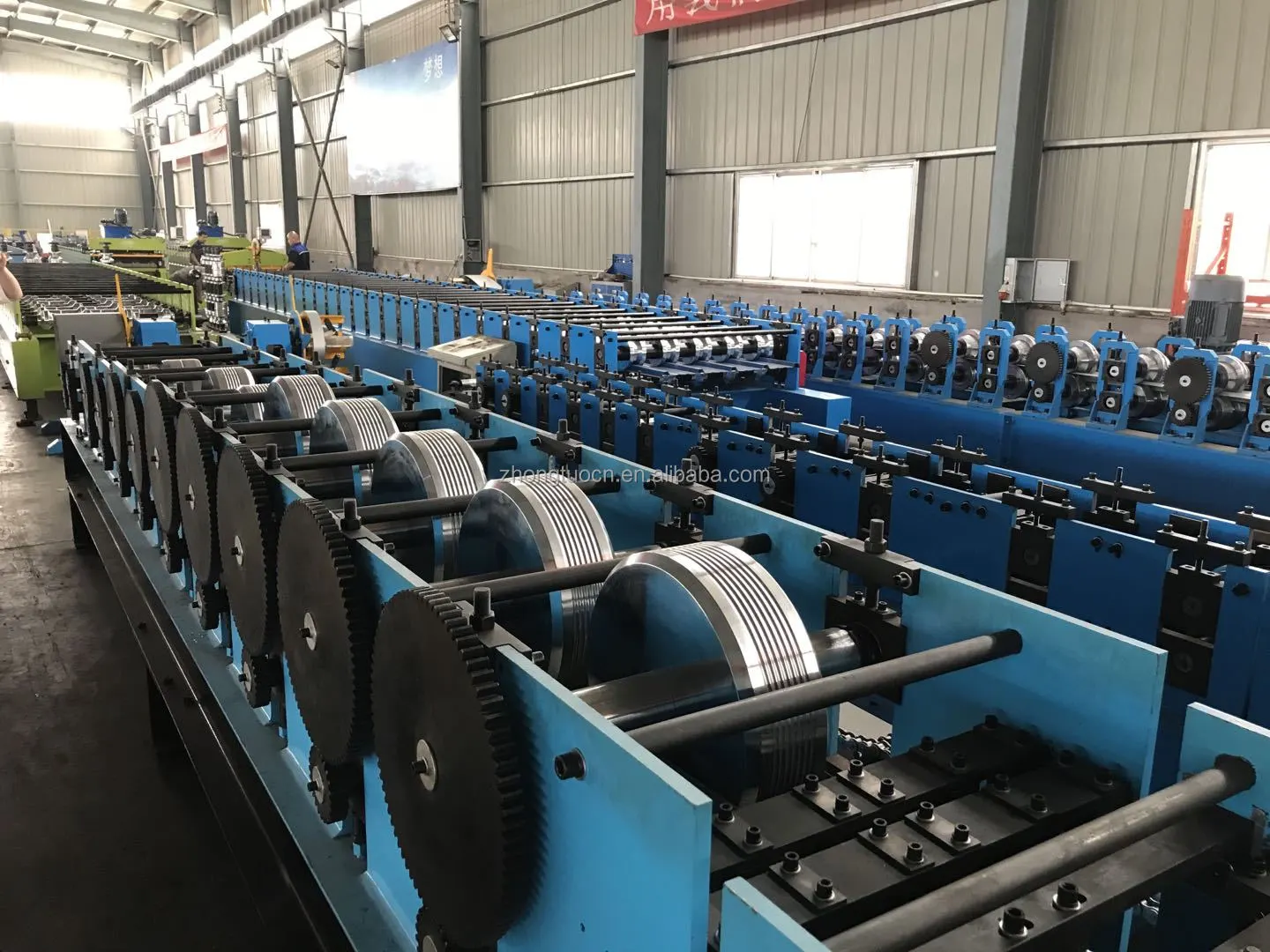

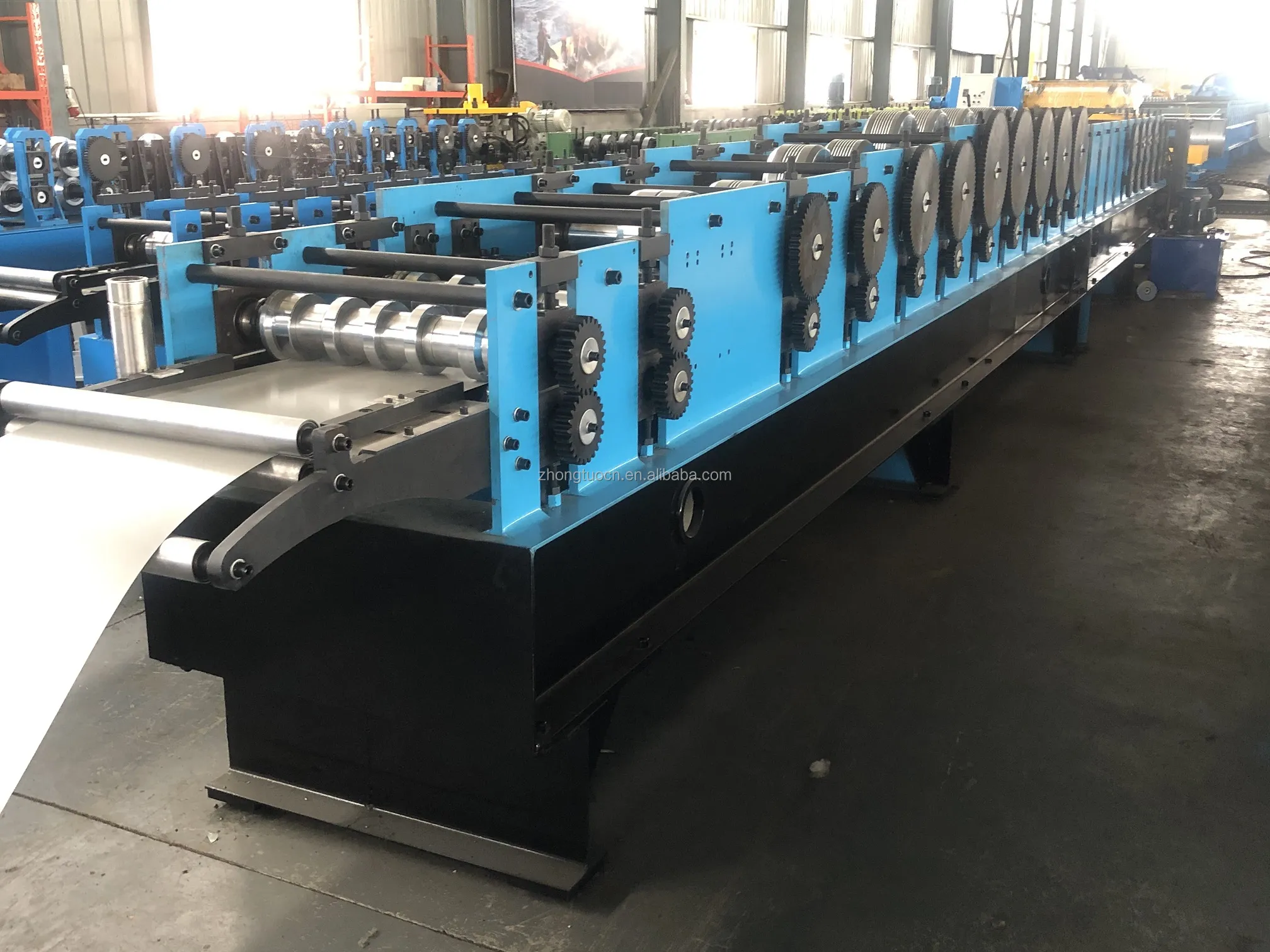

Roll forming machine

1. Power: 5.5kw

2. Roller station: 18

3. Roller material: Chrome 45# steel

4. Roller fixer: 20mm middle plate

5. Shaft diameter: 80mm

6. Shaft material: Solid 45# steel

7. Speed: 10m/min

8.Drive mode: By chain

10. Machine frame: 350# H steel

11. Blade material: Cr12 with tempering

12. Shearing way: Hydraulic method

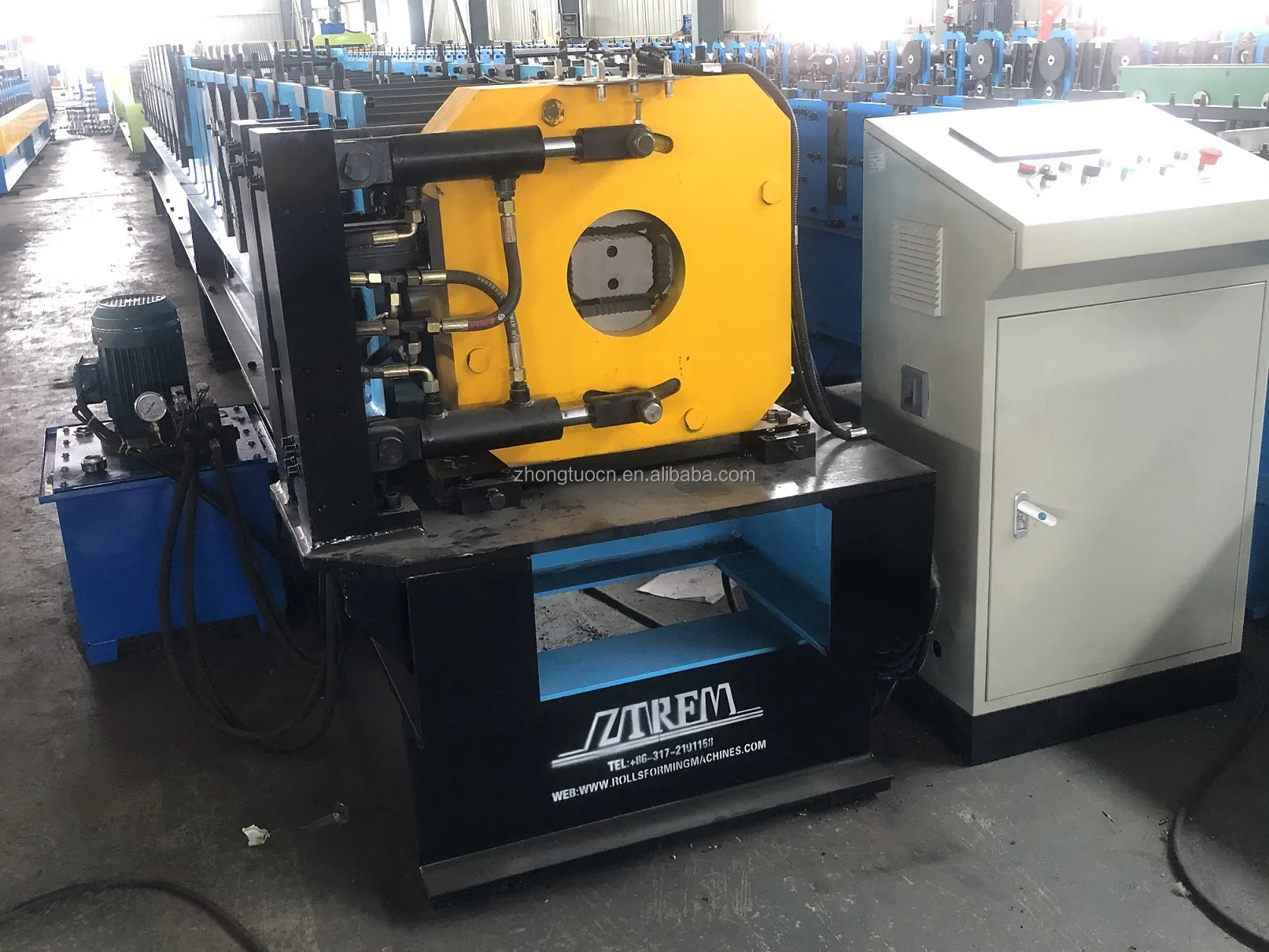

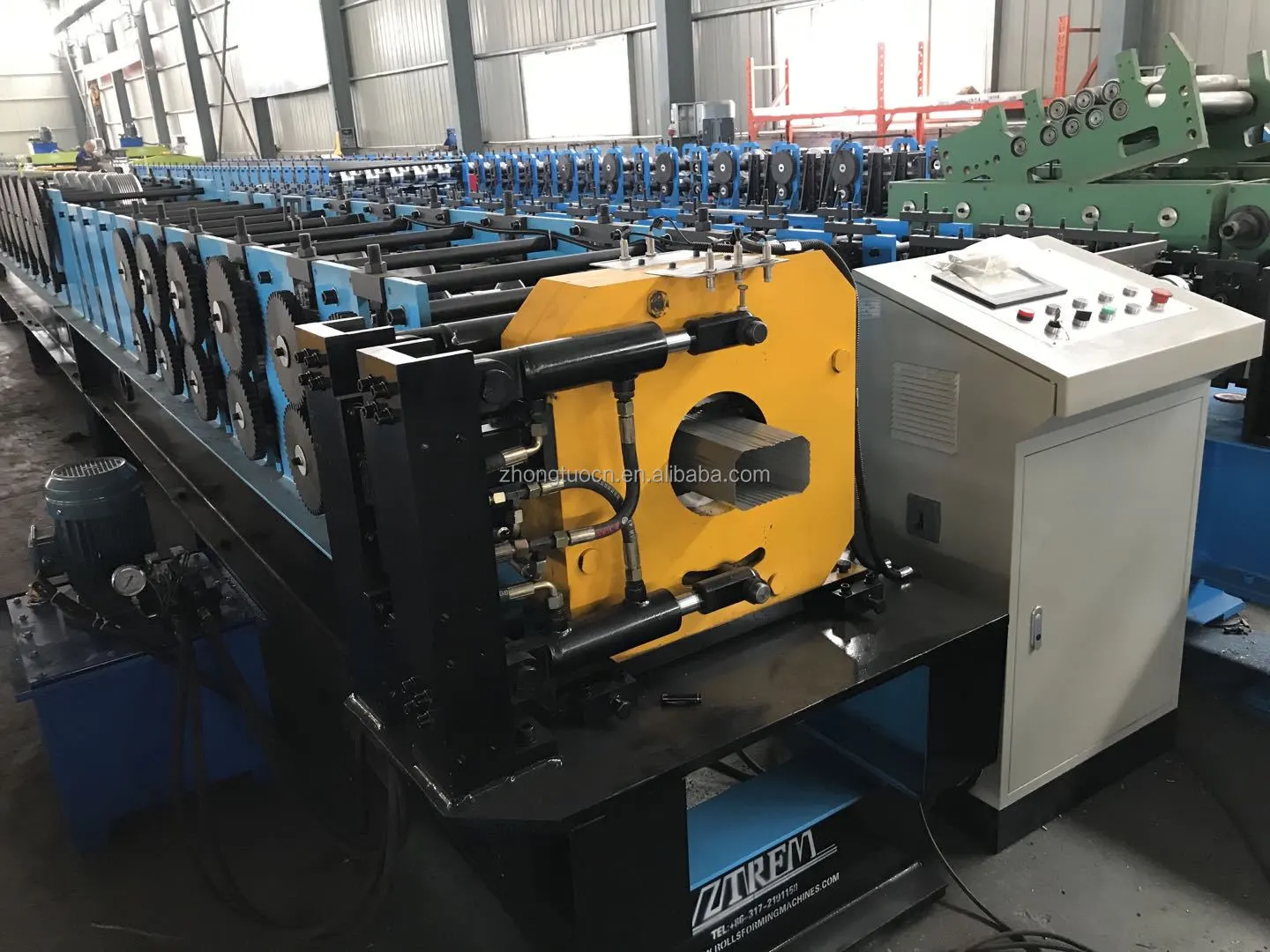

Shearing Mechanism

Feature: Ensure stability, precision and cutting speed
Function: Automatic cutting controlled by PLC

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

PLC control system

Usage：Computer is used to control length and quantity. Machine will automatically cut to length you need and stop when required quantity is achieved.

1. PLC brand: Delta
2. Control panel: Touch screen
3. Advantage: Adopted Aviation plug，easy for customer installation.

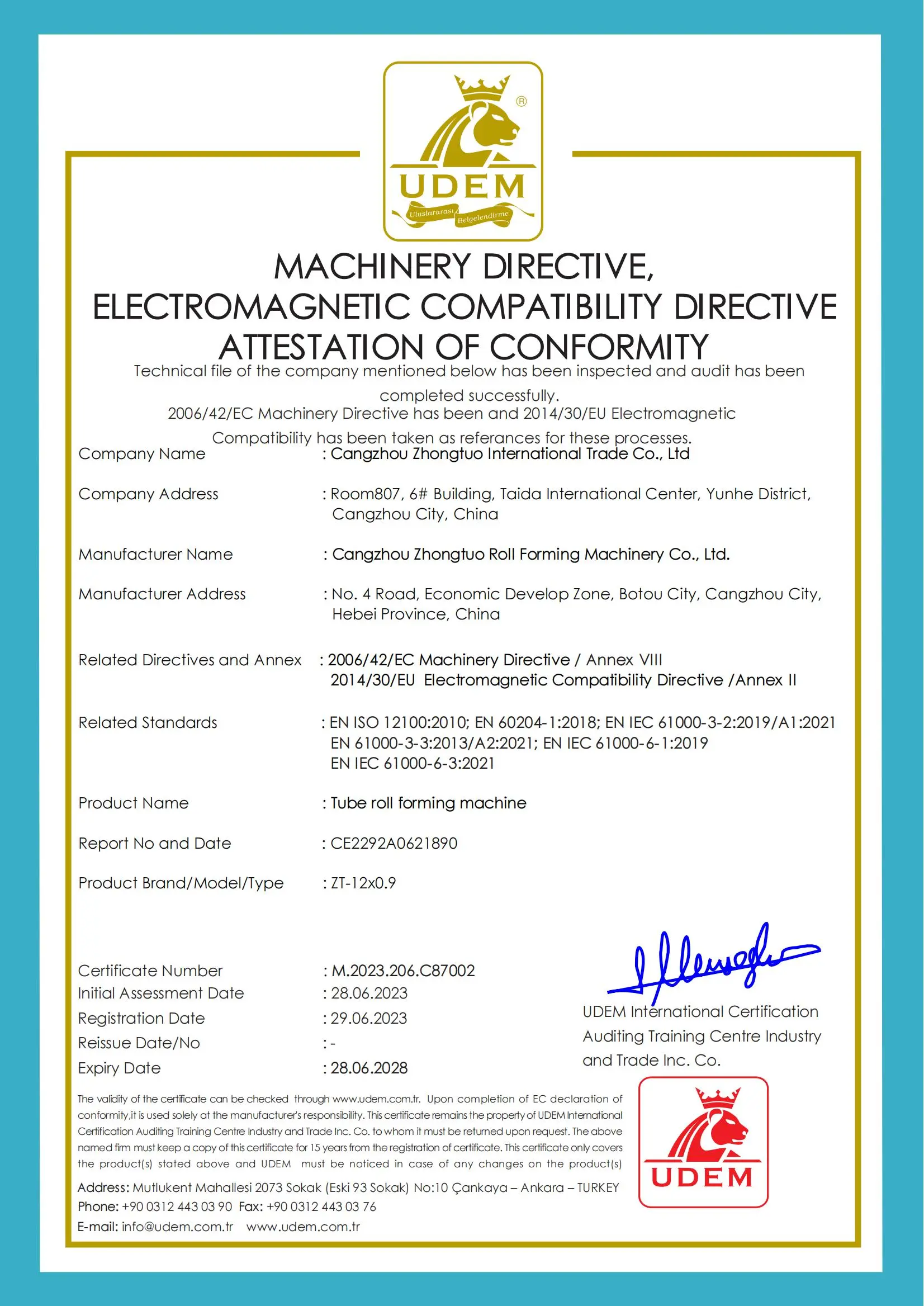

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
