Gutter and Downspout System > Finished Products > Downspout

ZTRFM Full Automatic High Speed Downspout Water Gutter Pipe Roll Forming Machine Downspouts & Downpipes Roll Forming Machine 4KW

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Full Automatic High Speed Downspout Water Gutter Pipe Roll Forming Machine Downspouts & Downpipes Roll Forming Machine 4KW

Name: ZTRFM Full Automatic High Speed Downspout Water Gutter Pipe Roll Forming Machine Downspouts & Downpipes Roll Forming Machine 4KW
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT85306138

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

4KW

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
380V
Rolling Thinckness
0.3-0.8mm
Feeding Width
1220 mm

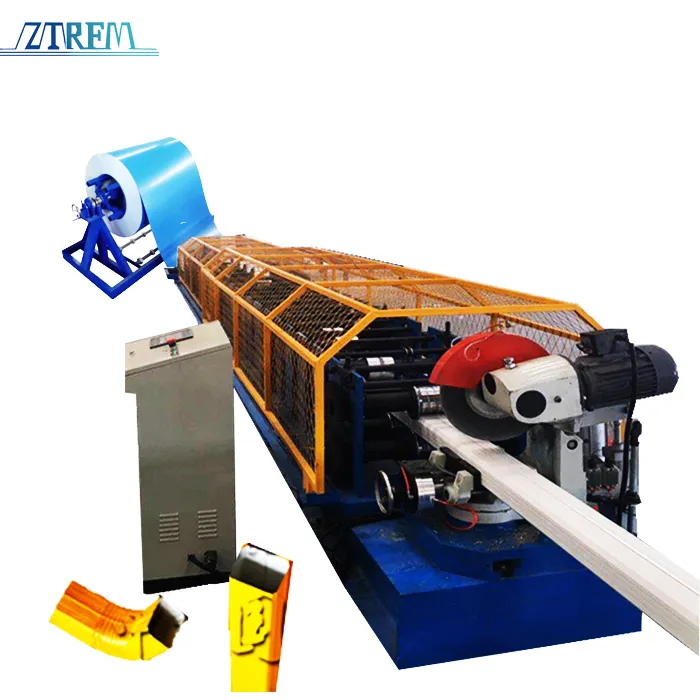

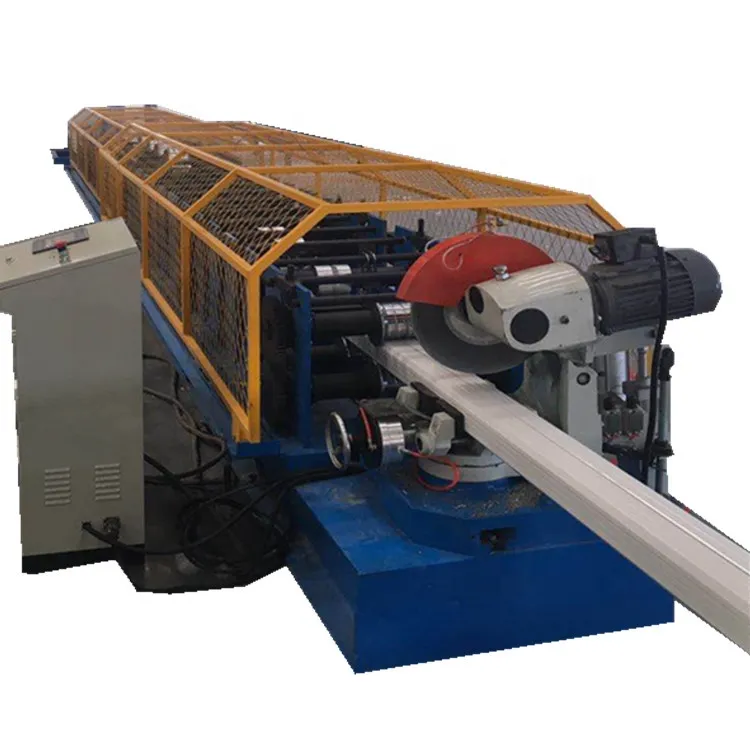

ZTRFM Full Automatic High Speed

Downspout Water Gutter Pipe Roll Forming Machine

Downspouts & Downpipes Roll Forming Machine

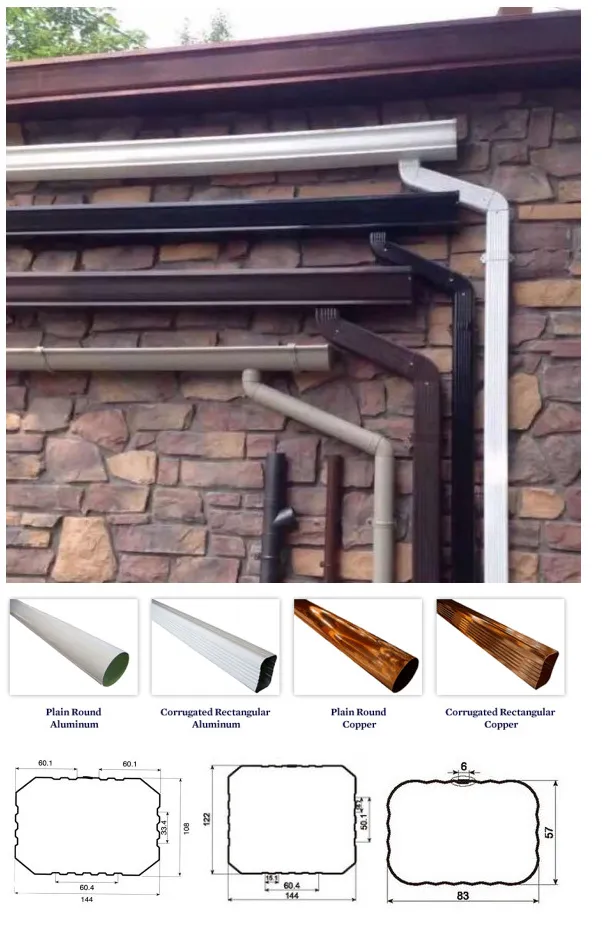

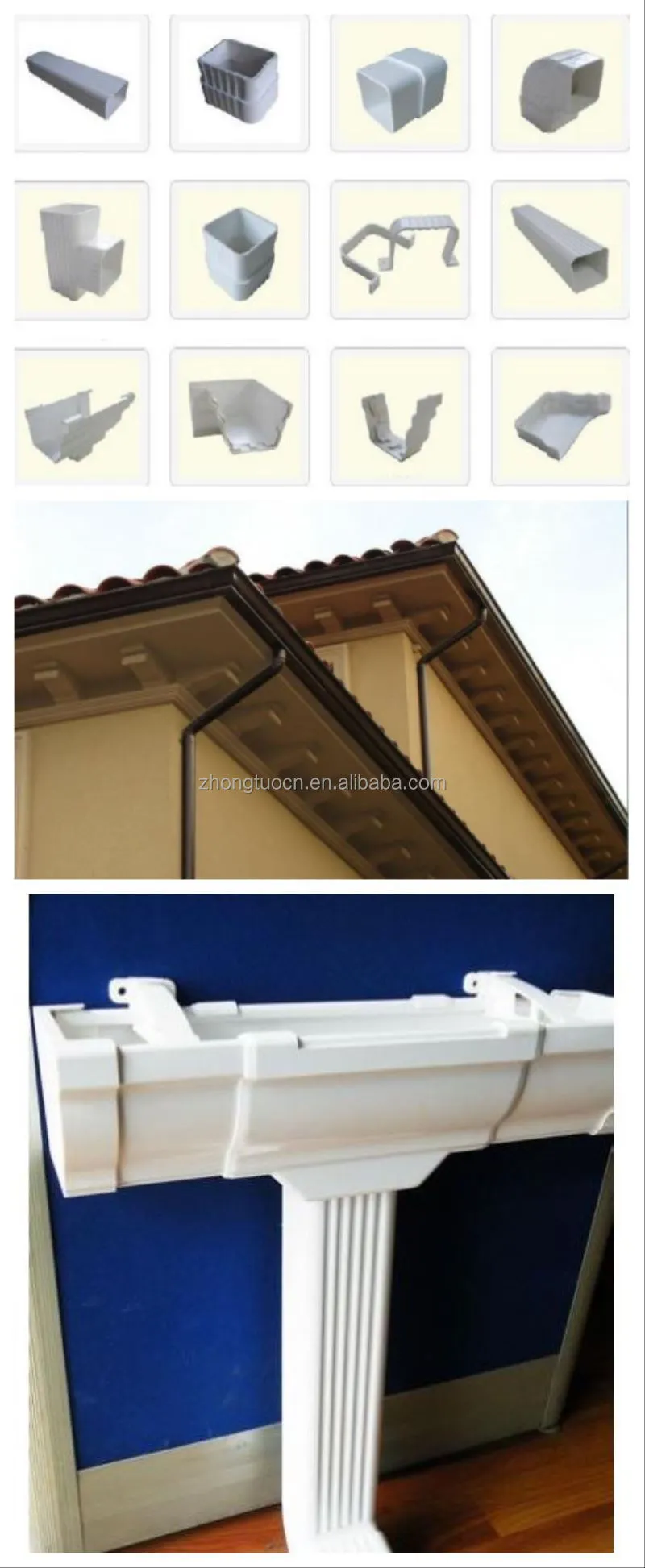

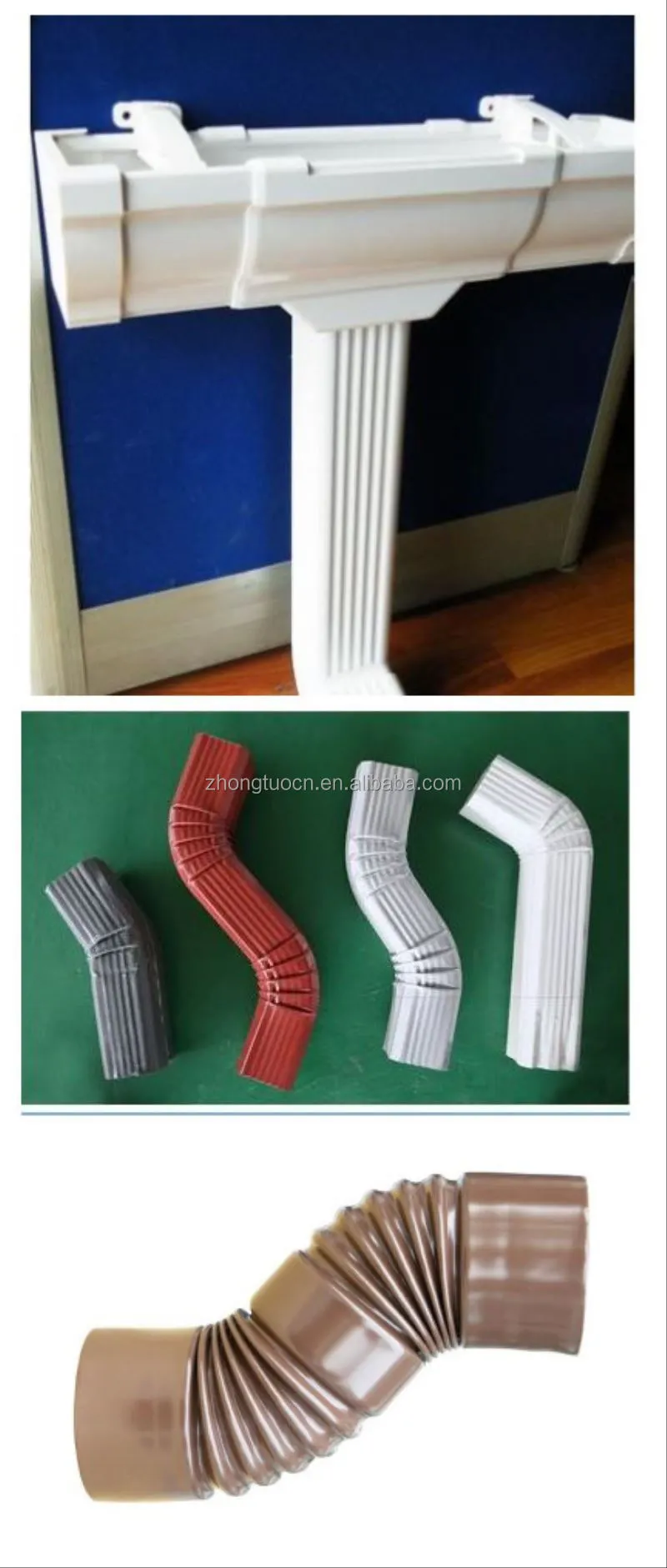

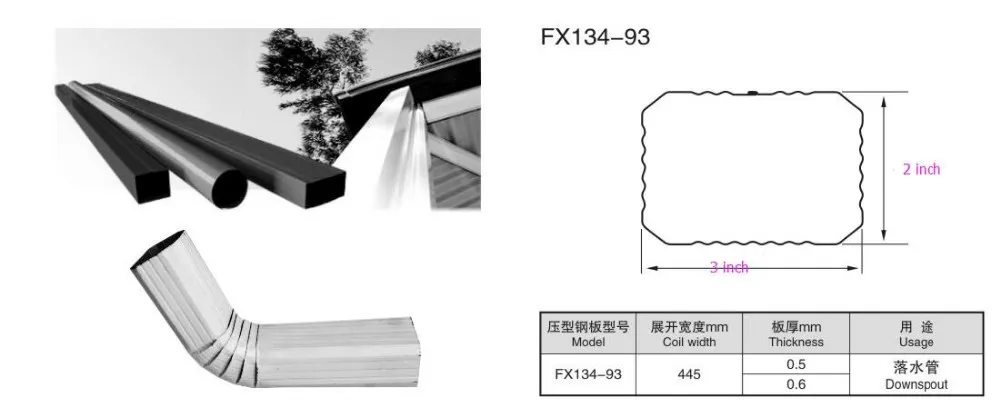

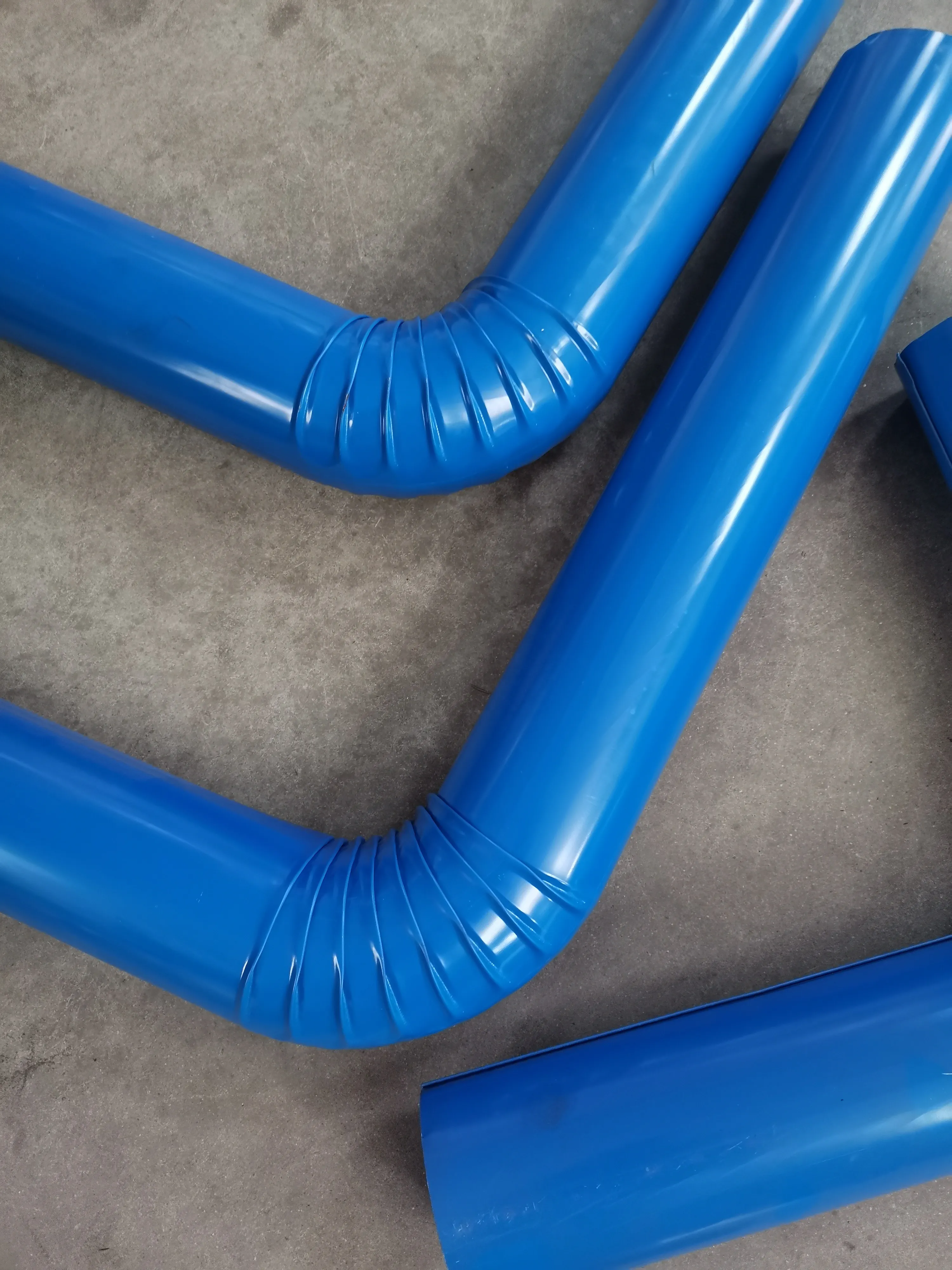

TILE TYPE FOR YOUR REFERENCE

DESIGN IDEA

Downspout roll forming machine, also known as downpipe roll forming machine, downspout elbow machine, roof leader, downcomer or gutter downpipe machine.

Automatic control PPGI steel downspout making machine, downspout machine and bending machine are for making the downspout pipe for rain water collection and guiding.

PRODUCT PARAMETERS

Working Flow

1. Formed material	PPGI,GI,AI,GL	Thickness:0.7-0.8mm Width: As per profile drawing
2. Decoiler	Hydraulic automatic decoiler	Manual decoiler (will give you as free）
3. Main body	Roller station	21 rows(As your requirement)
		Diameter of shafts	60mm solid shaft
		Material of rollers	45# steel, hard chrome plated on the surface
		Machine body frame	350 H steel
		Drive	Chain transmission
		Dimension(LWH)	8.51.651.5m(customize)
		Weight	4.5T
4. Cutter	Aotomatic	Cr12mov material, no scratches, no deformation
5. Power	Motor Power	5.5KW
5. Power		Hydraulic system power	5.5KW
6. Voltage	380V 50Hz 3Phase	As your requirement
7. Control system	Electric Box	Customized(famous brand)
	Language	English(Support multiple languages)
	PLC	Automatic production of the whole machine. Can set batch, length, quantity, etc.
8. Forming speed	8-10m/min	The speed depends on the shape of the tile and the thickness of the material.

PRODUCT DISPLAY

Technology Is The Primary Productive Force

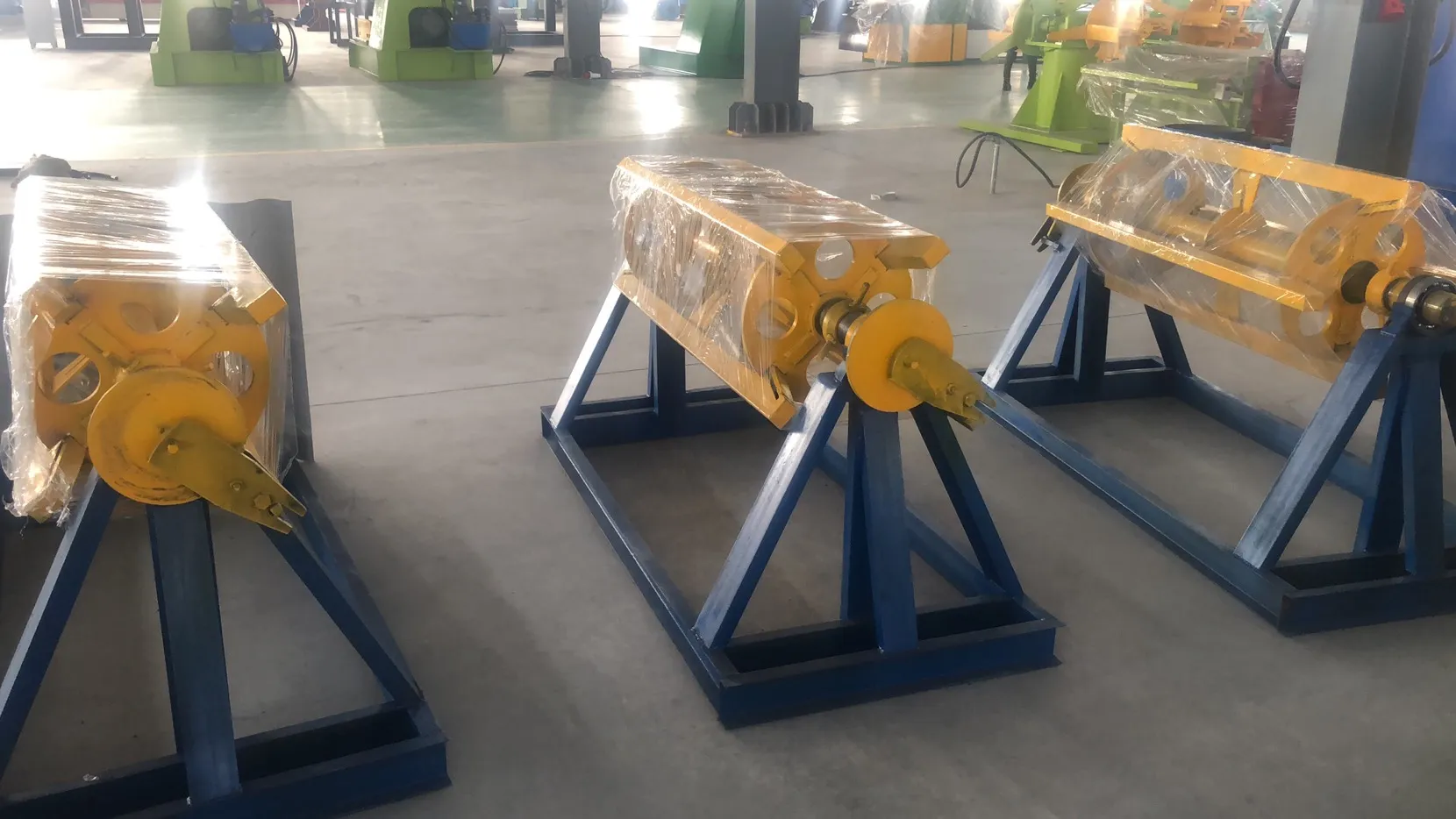

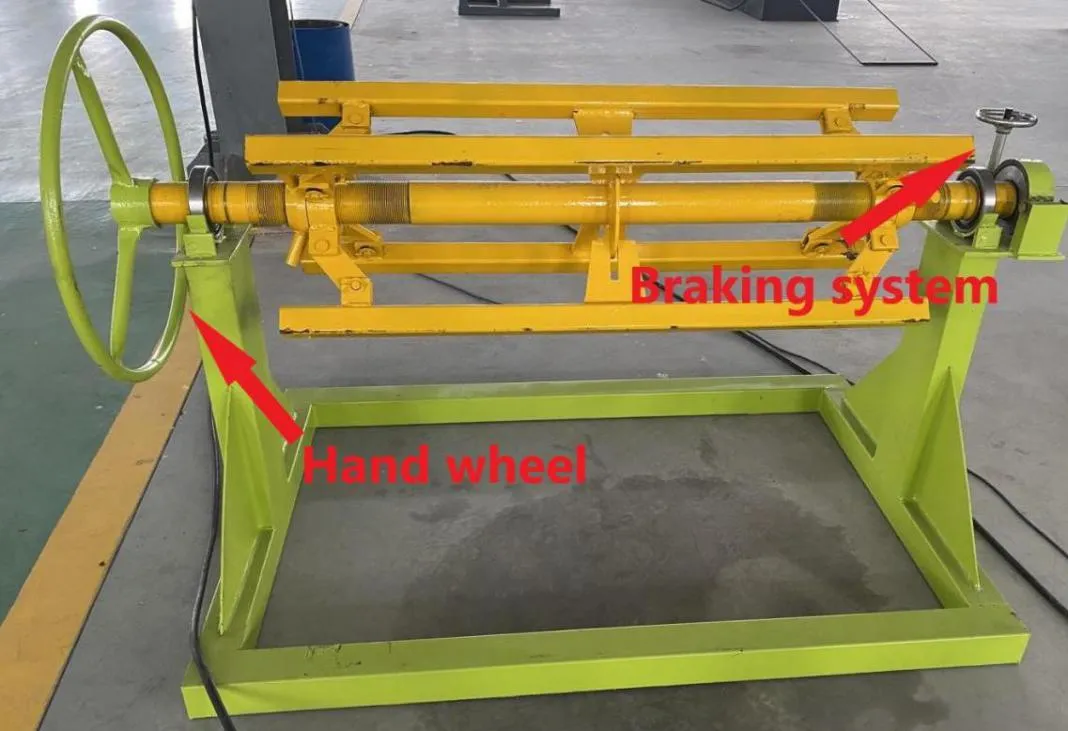

5 ton Manual Decoiler

1. capacity: 5t

2. coil diamater: 450-550mm

3. coil outer diameter: 1500mm

4. coil width: 1250mm (as requst)

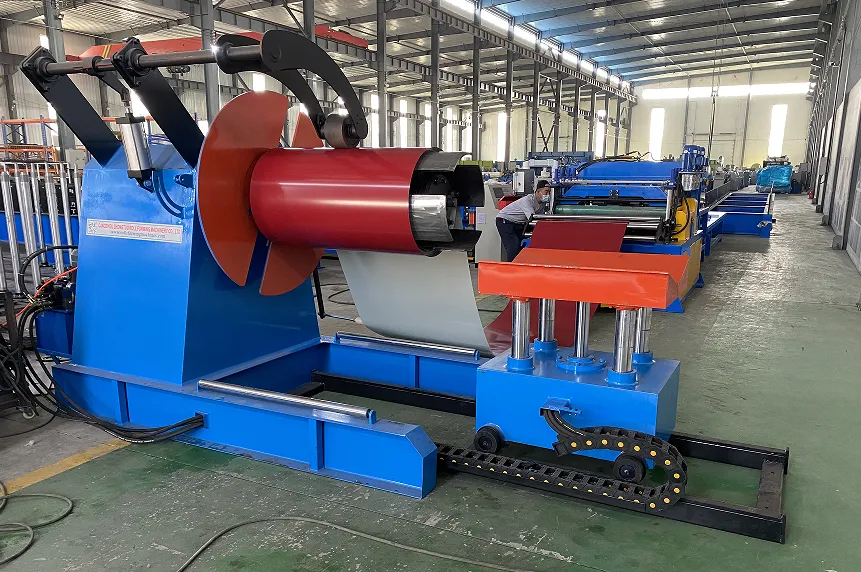

Hydraulic Decoiler

1.Automatic working
2.Hydraulic expansion
3.With press arm to keep the coil from loosing
4.With braking system and speed sensor to match the speed with other machines

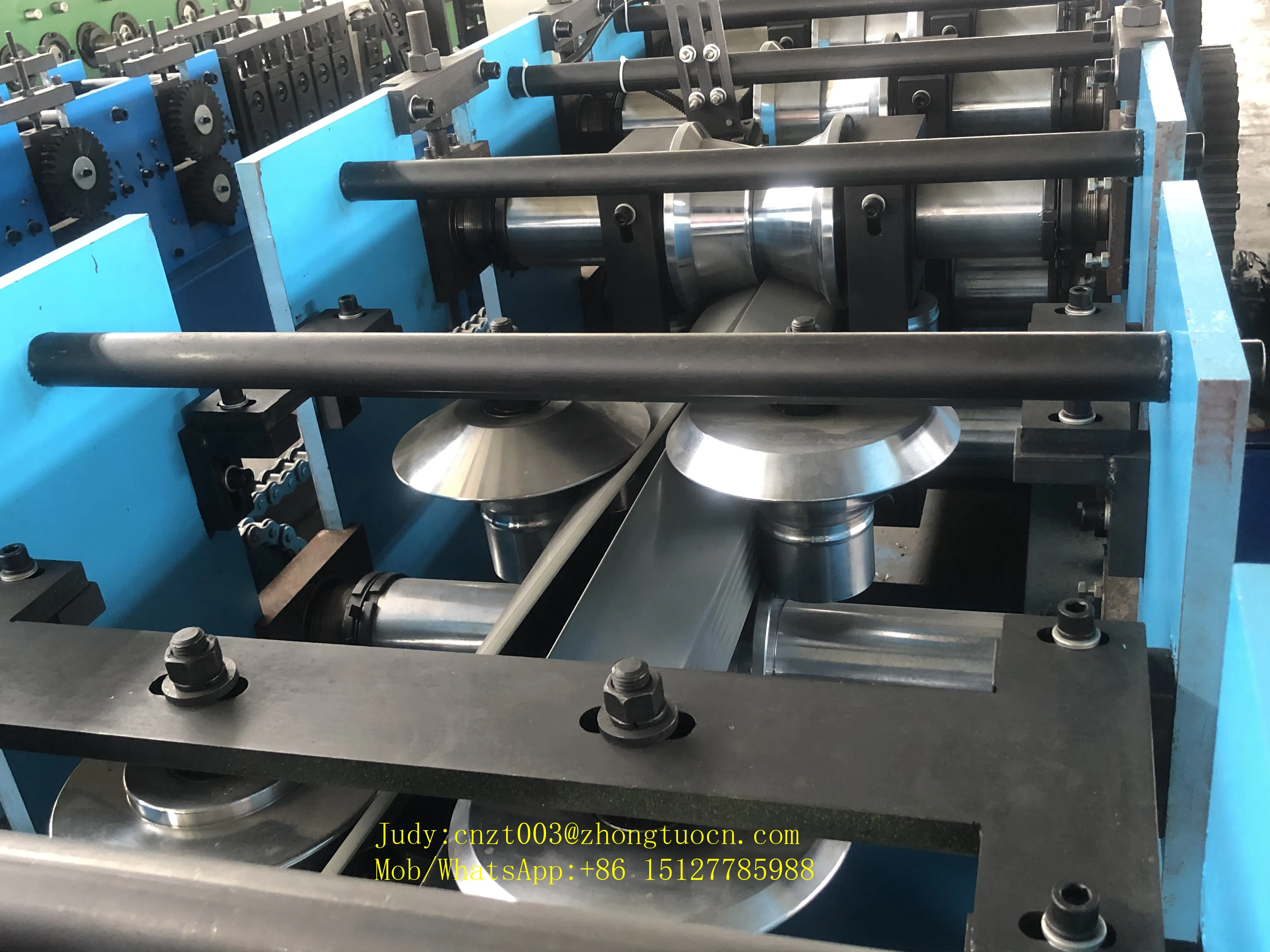

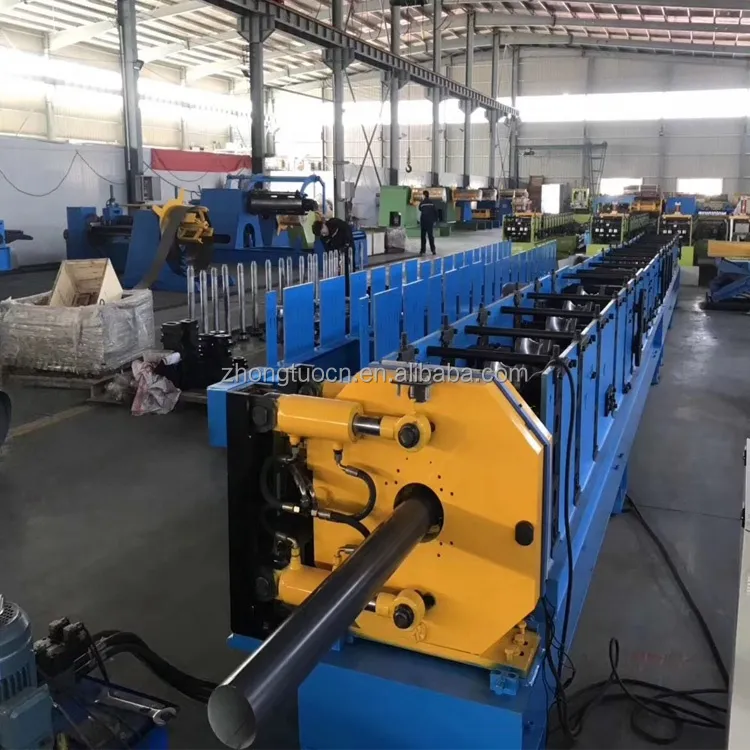

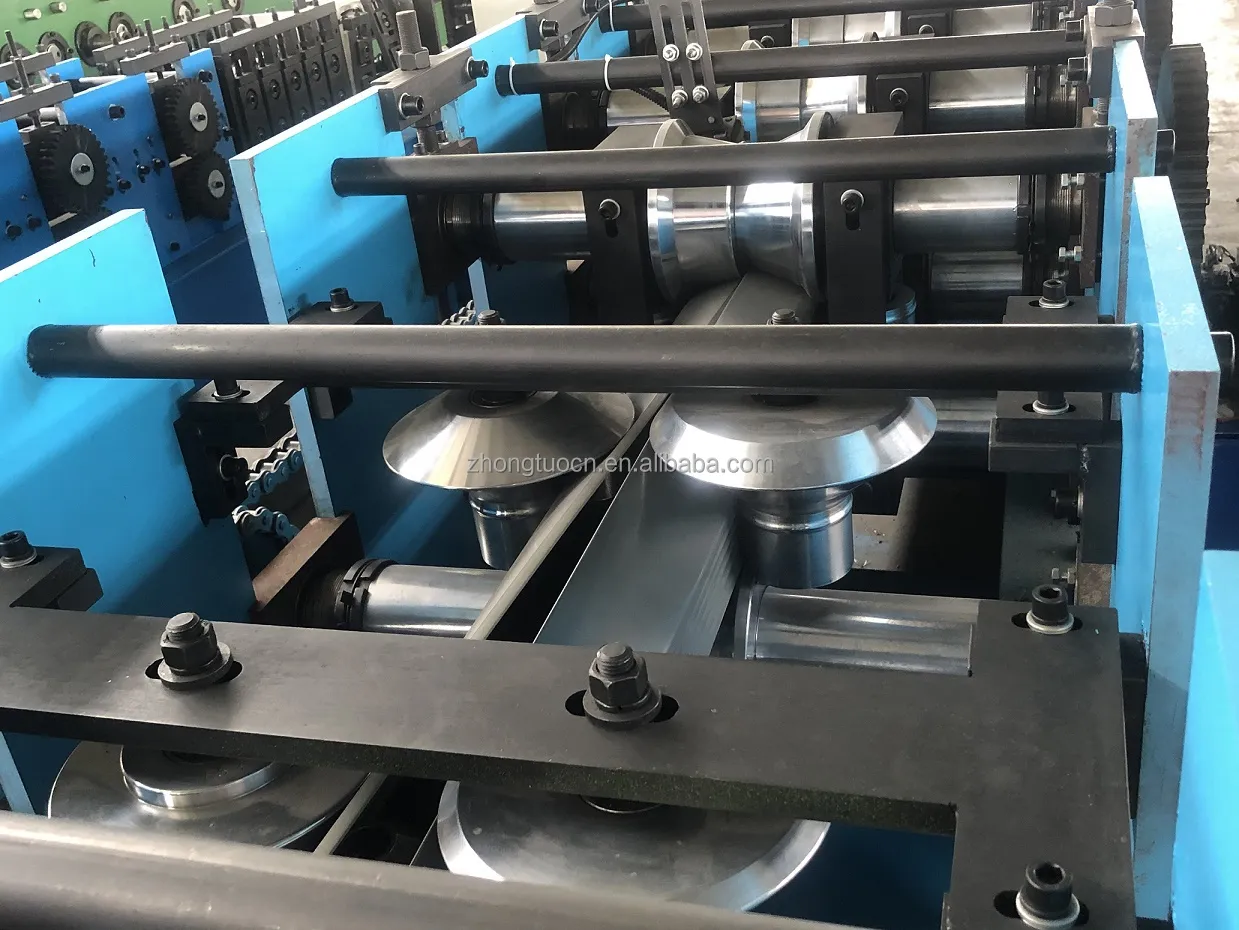

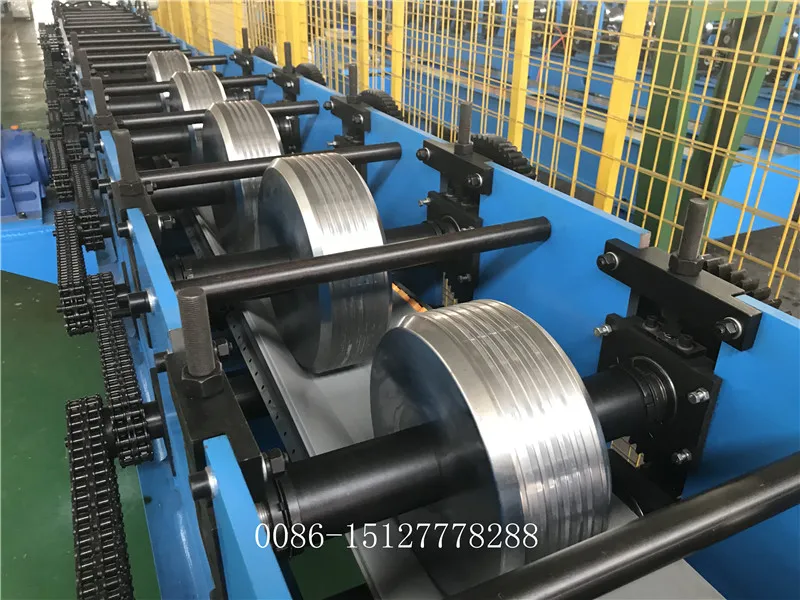

Main roll former

Stainless rollers as the feeder, will protect the material from scratching the surface

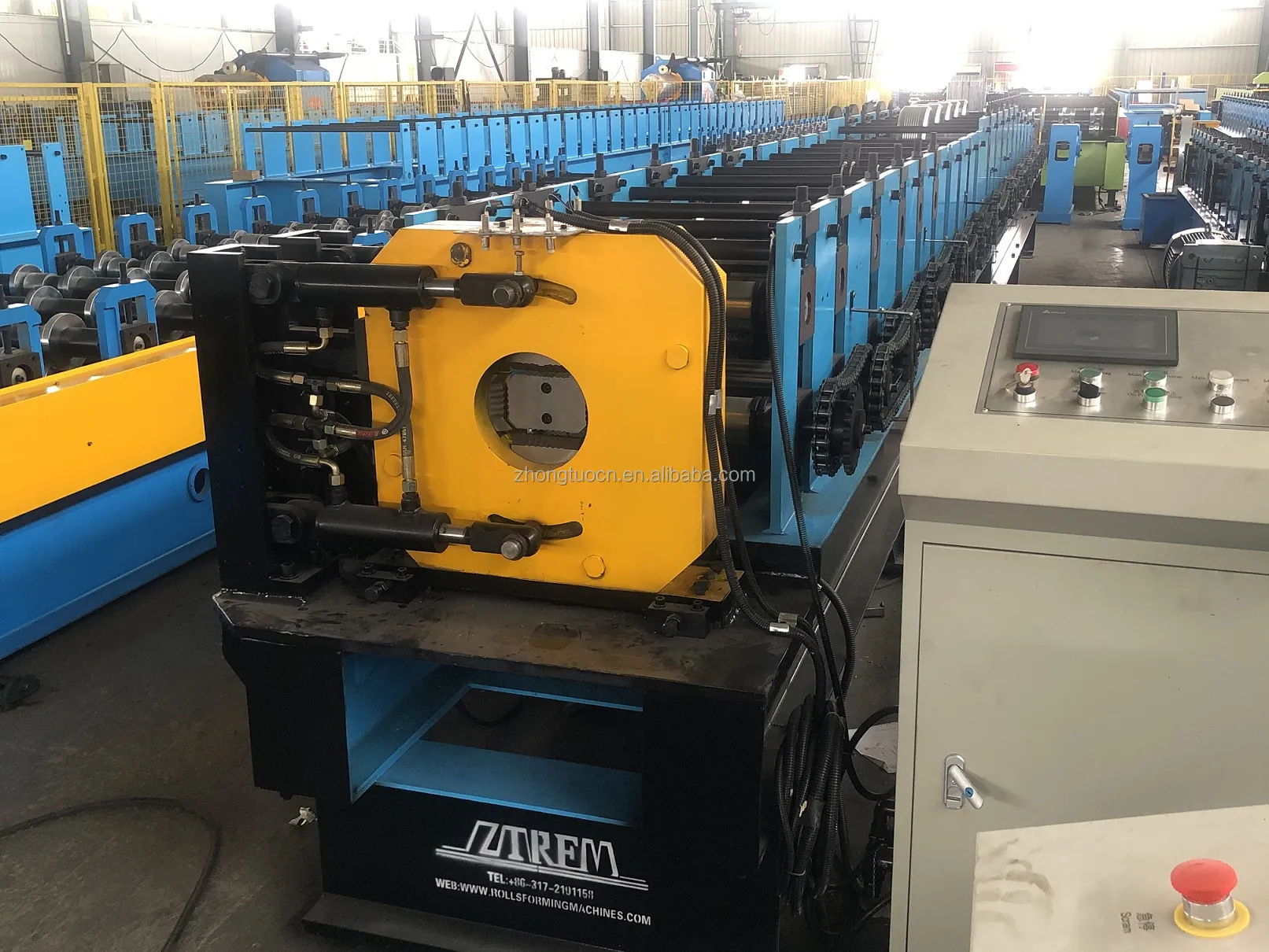

Hydraulic Cutting System

1.Surface with chromed treatment
2.Material:45# steel

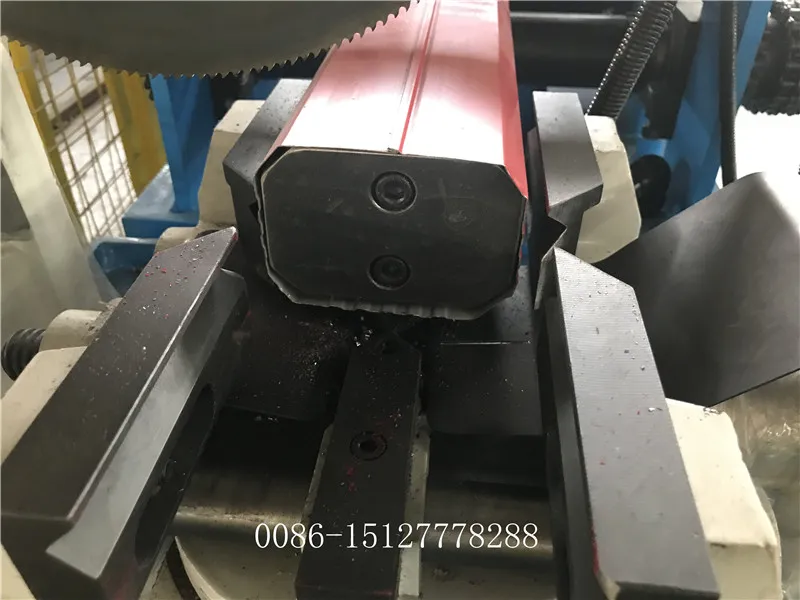

Cutter

Strong cutting blade

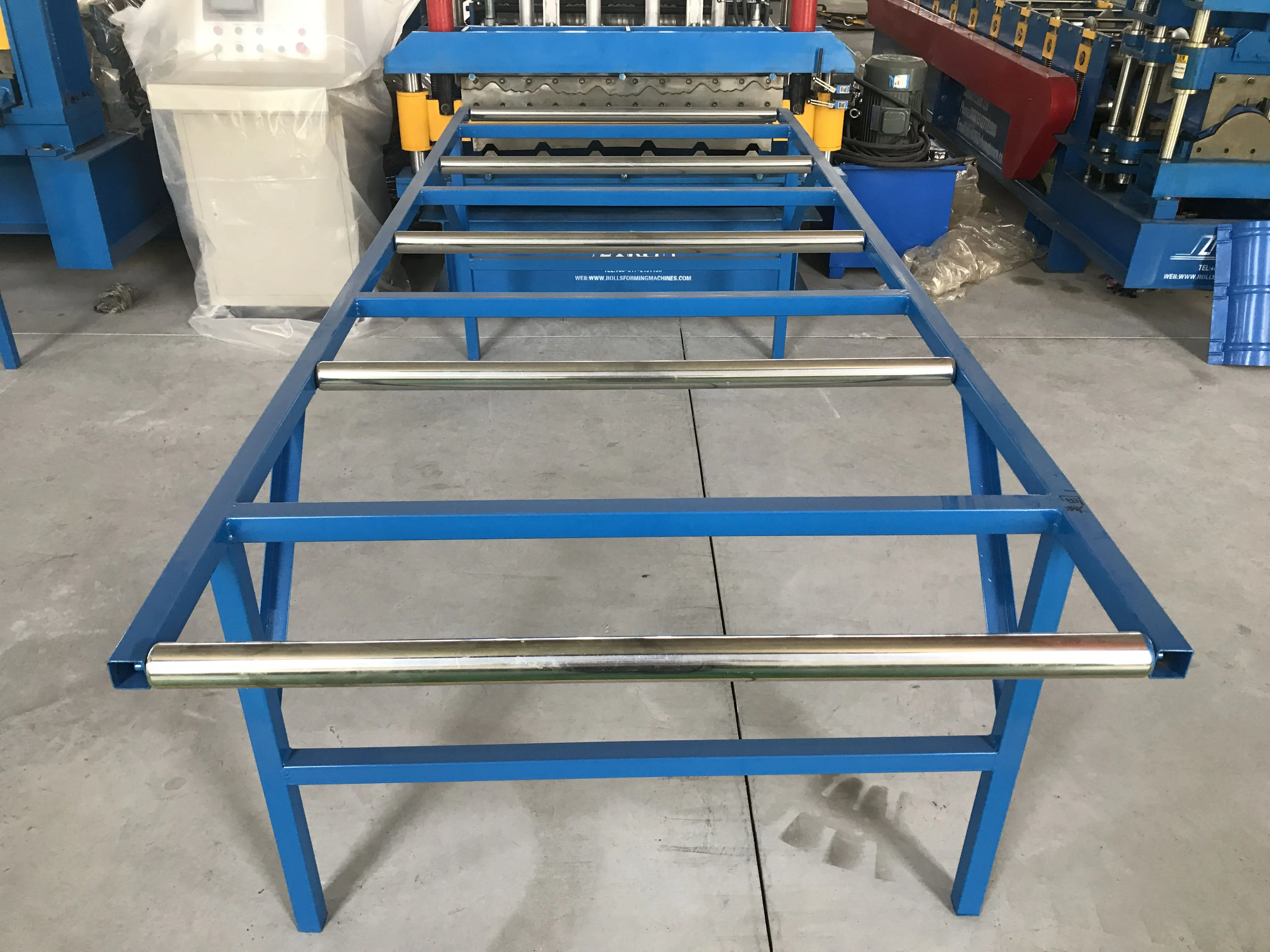

Receiving table

1.Manual or hydraulic as optional
2.Length:3-12m as request

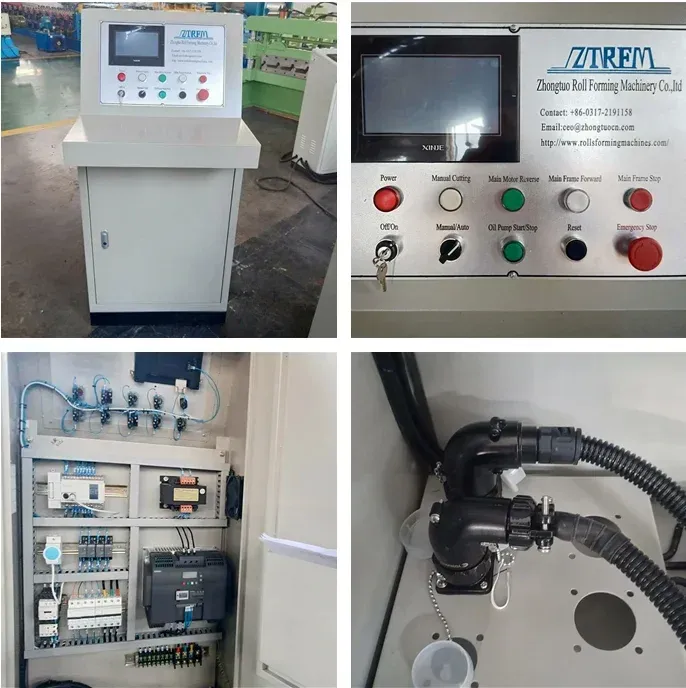

PLC Control System

1. Control system: PLC 2. PLC brand: Delta from Taiwan 3. Frequency converter brand: Delta from Taiwan 4. Encoder: Omron 5. Function: Automatic control the length and quantity

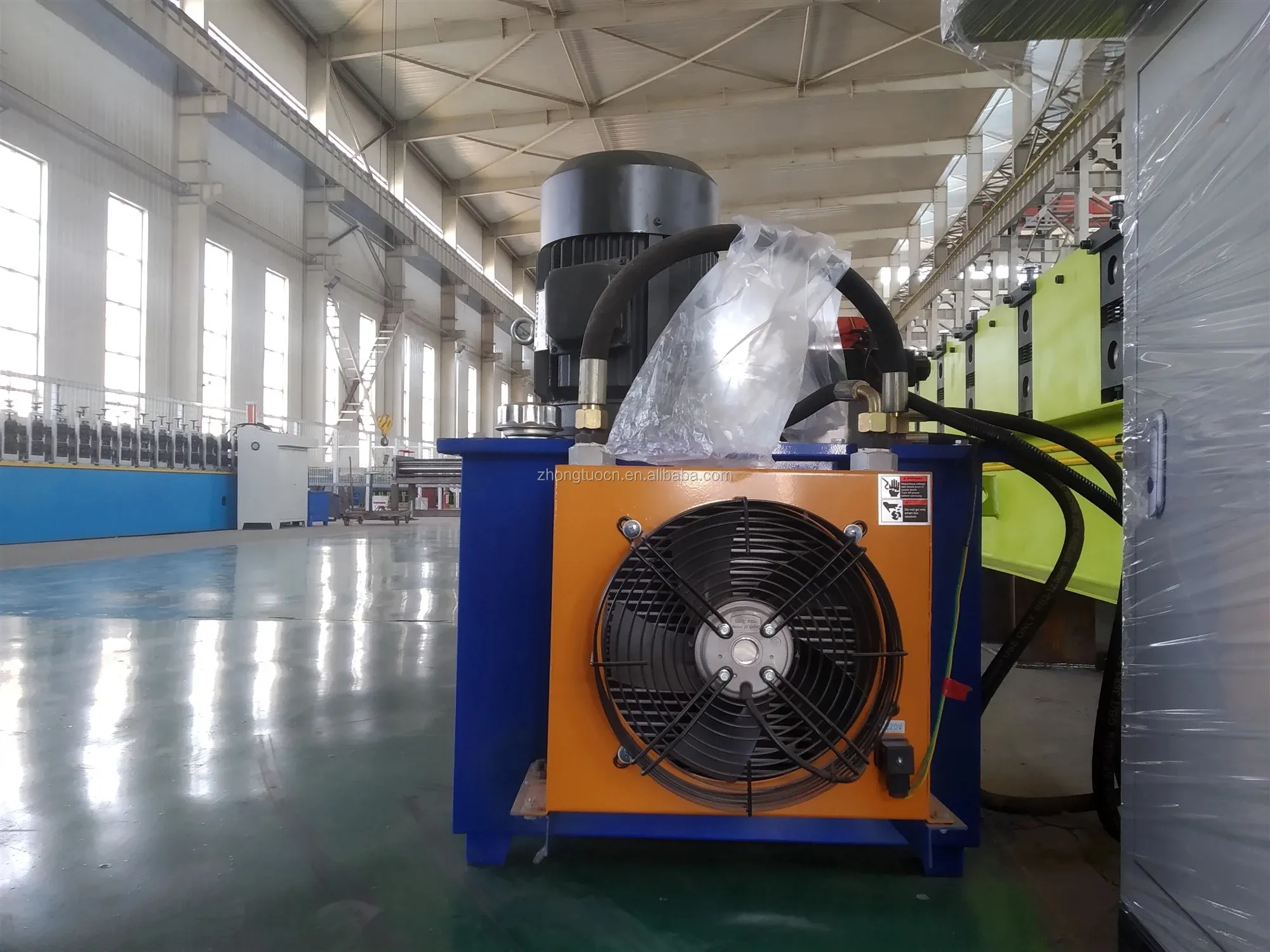

Hydraulic Station

1. Hydraulic station motor: 5.5KW

2. Hydraulic oil: 46# hydraulic oil

3. Main components: include a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And one of electromagnetism value

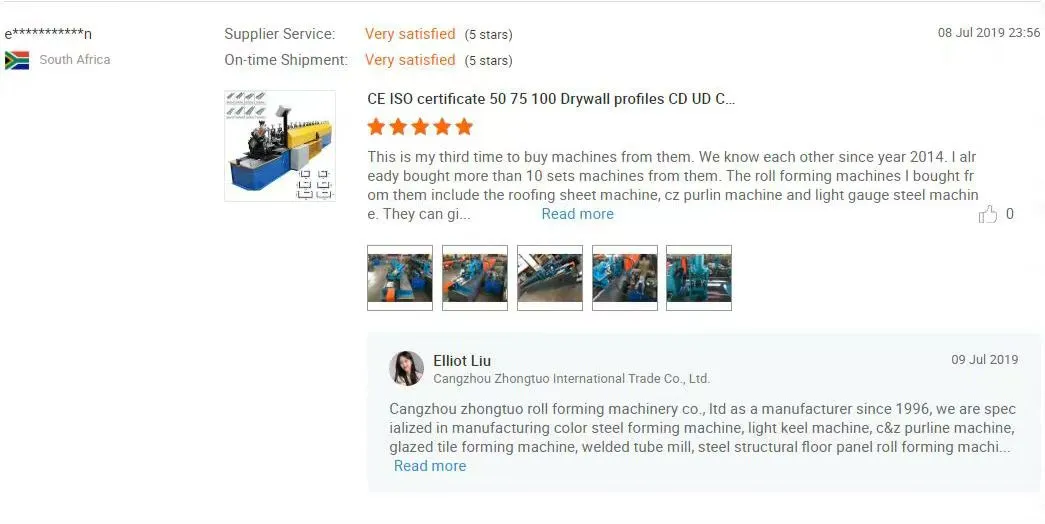

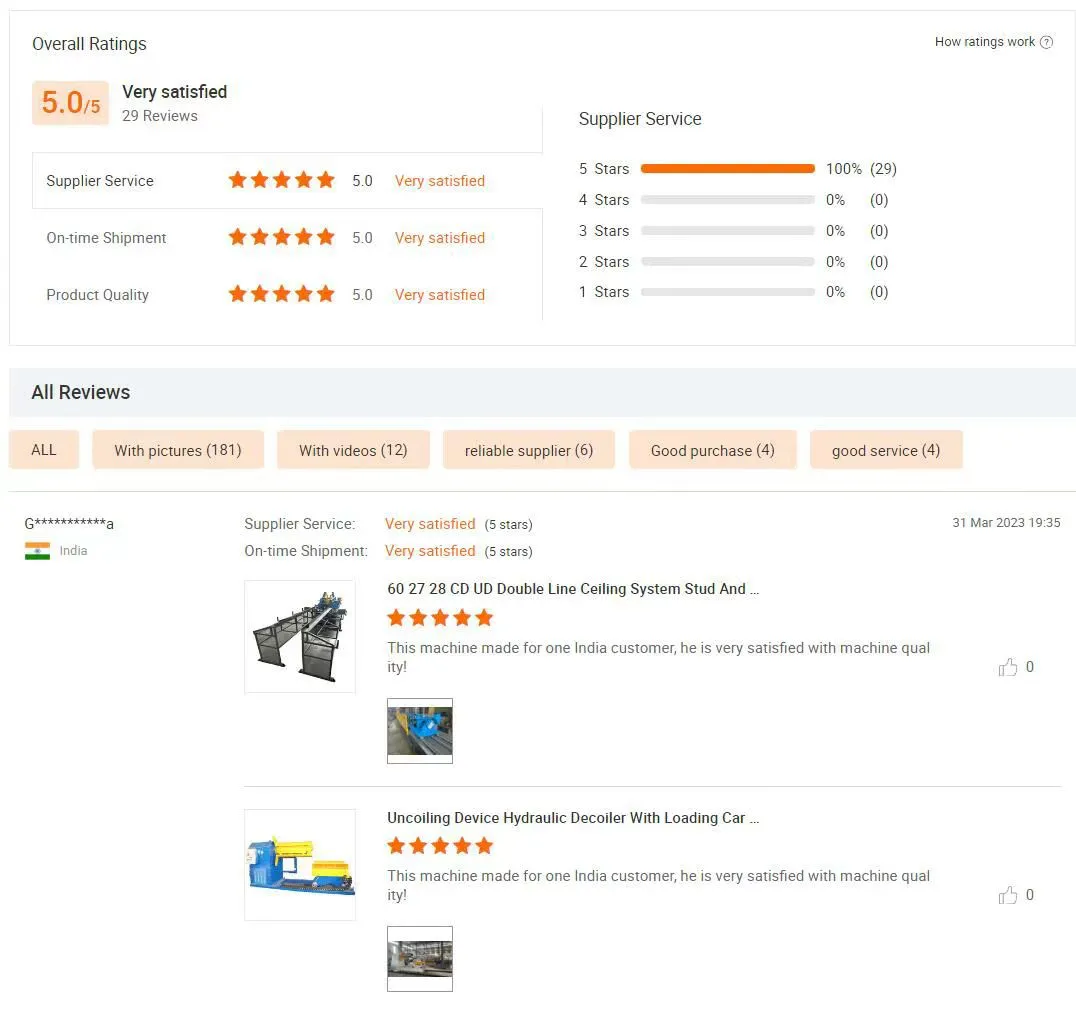

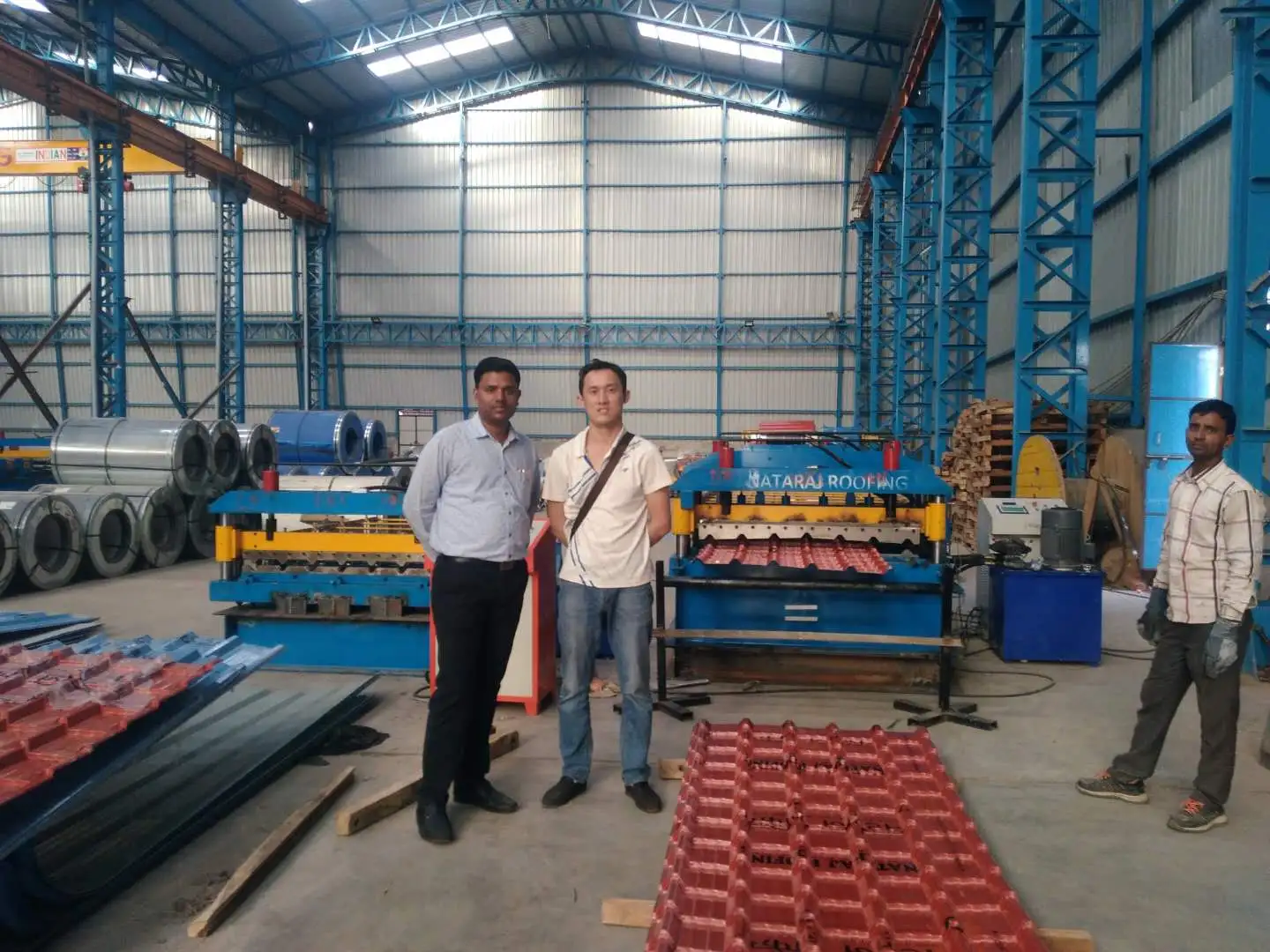

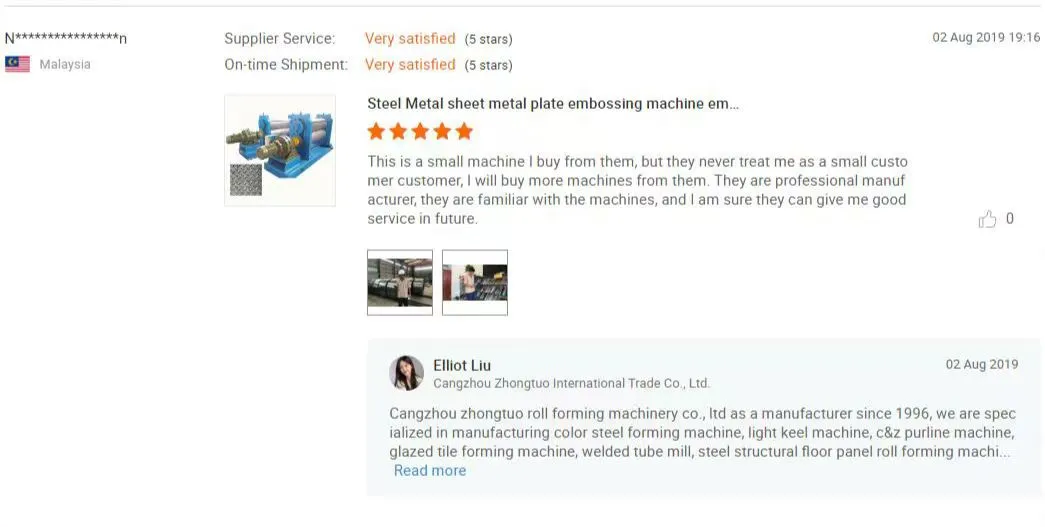

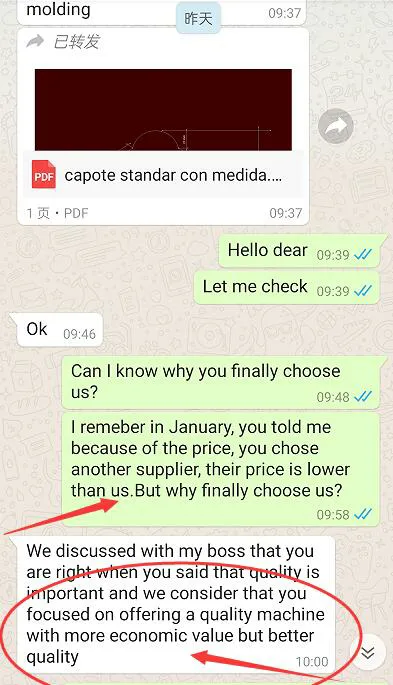

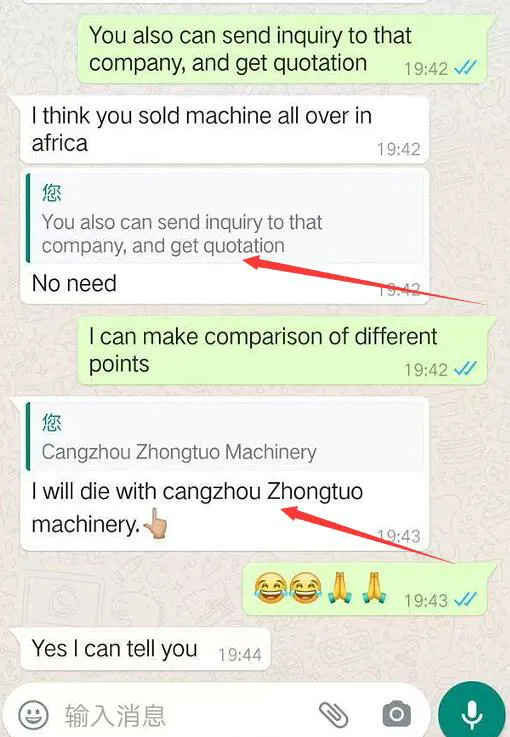

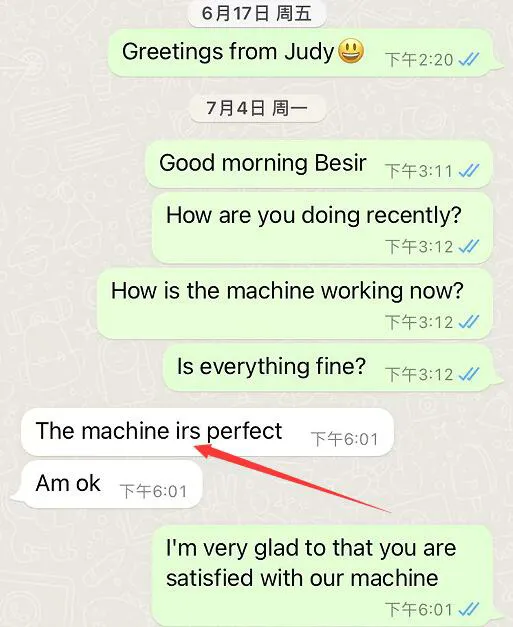

CUSTOMER FEEDBACK

Meeting Your Requirements is Our Goal; Solve Your Problems Heart and Soul !

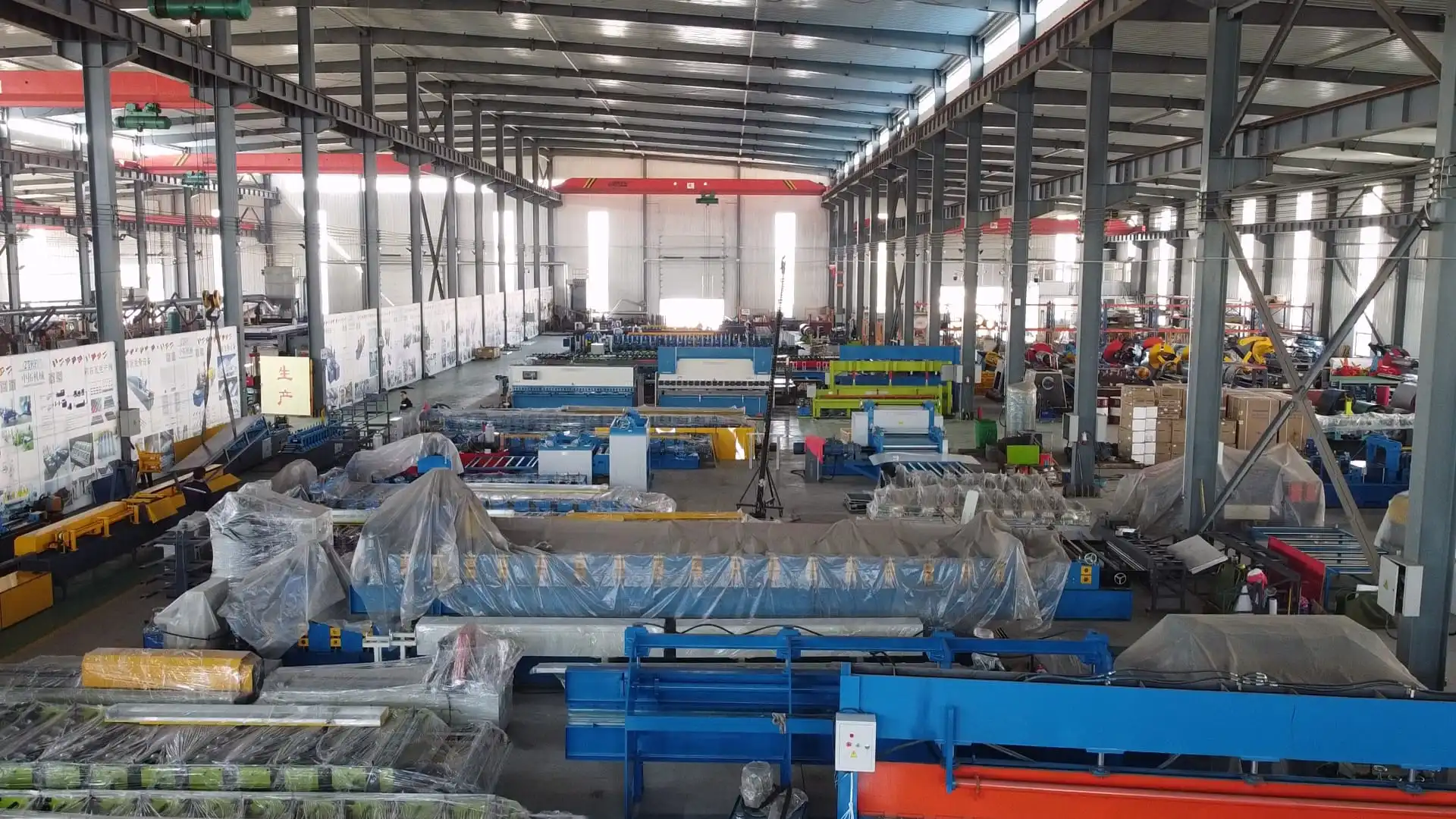

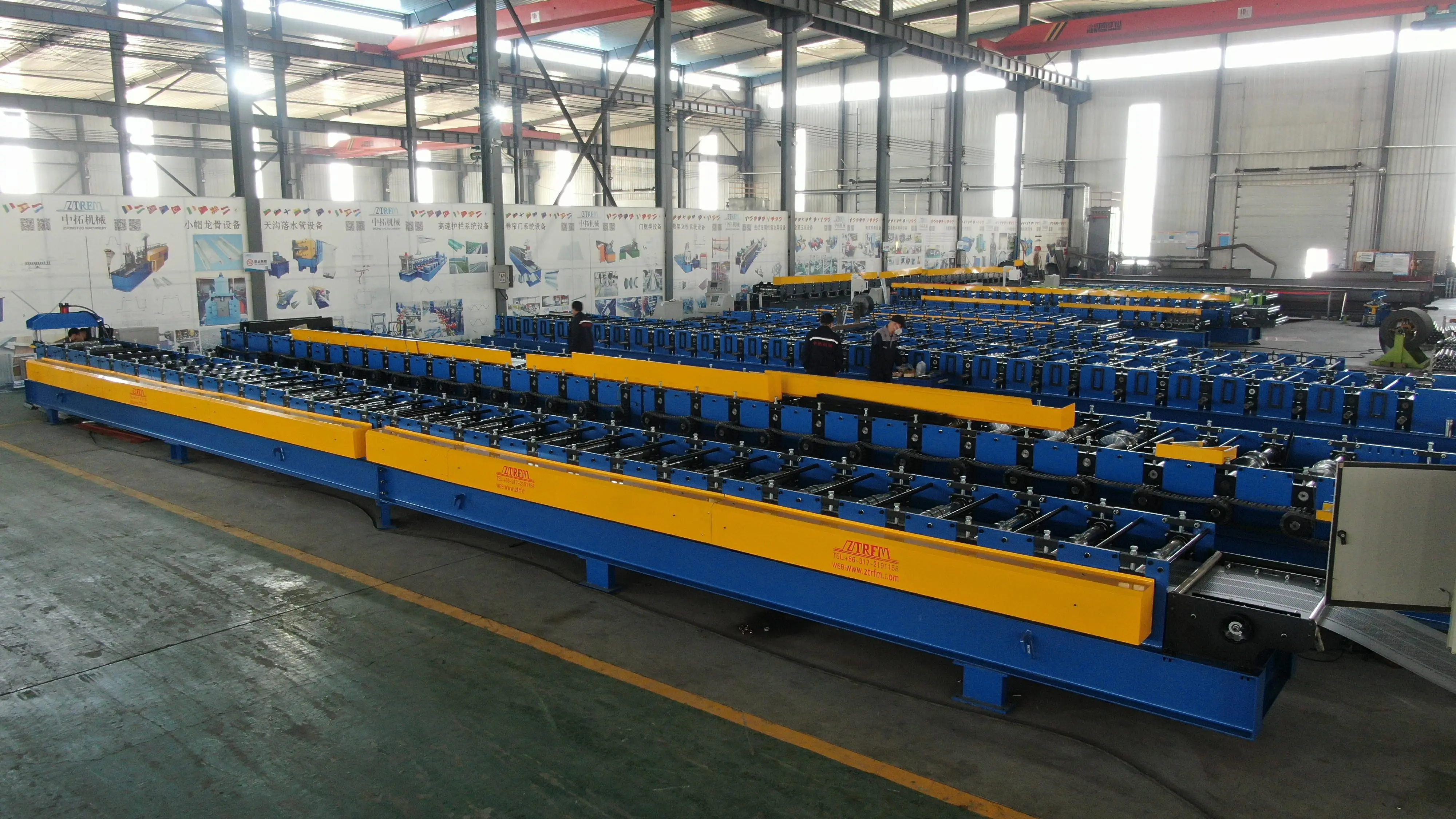

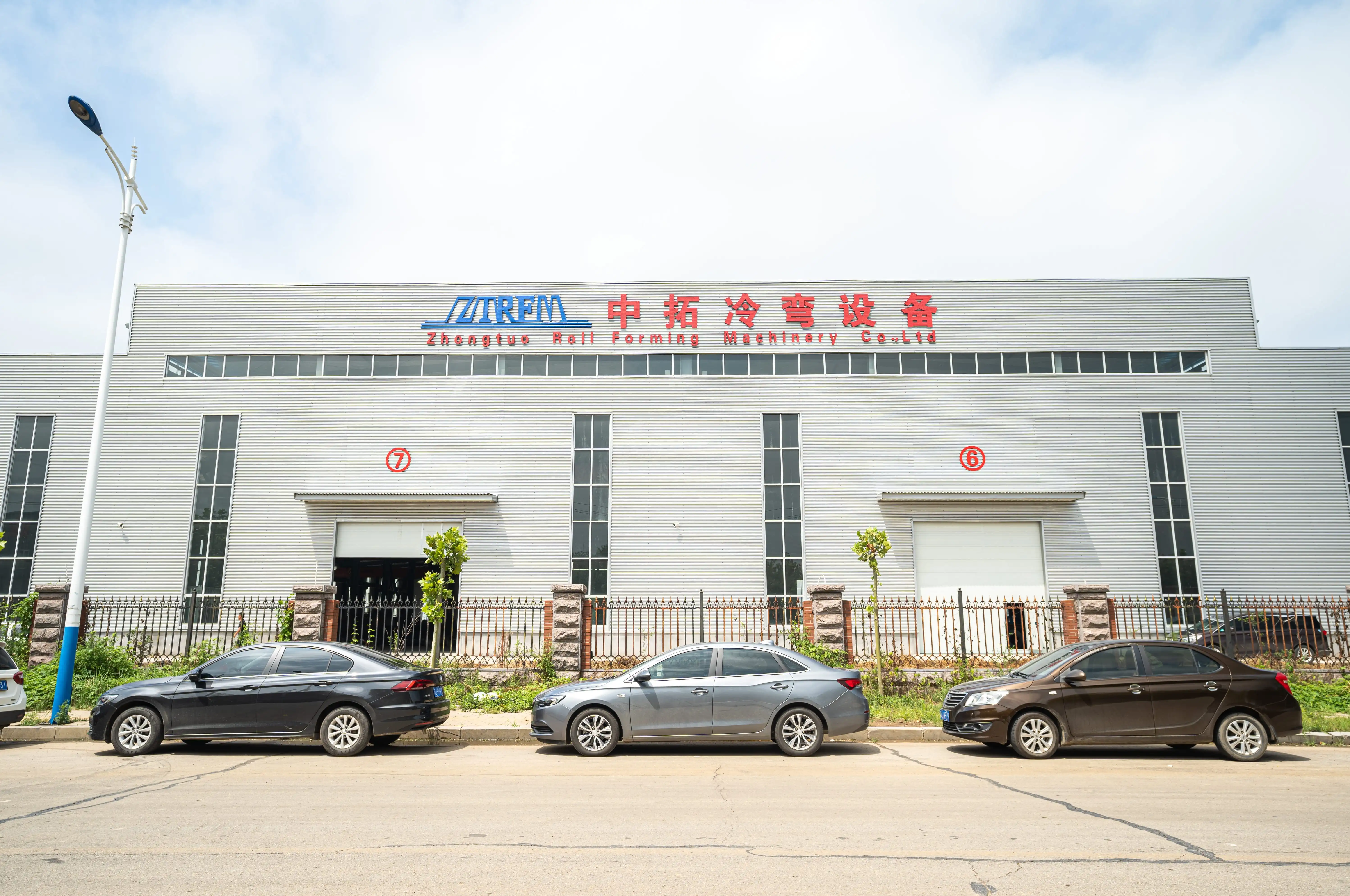

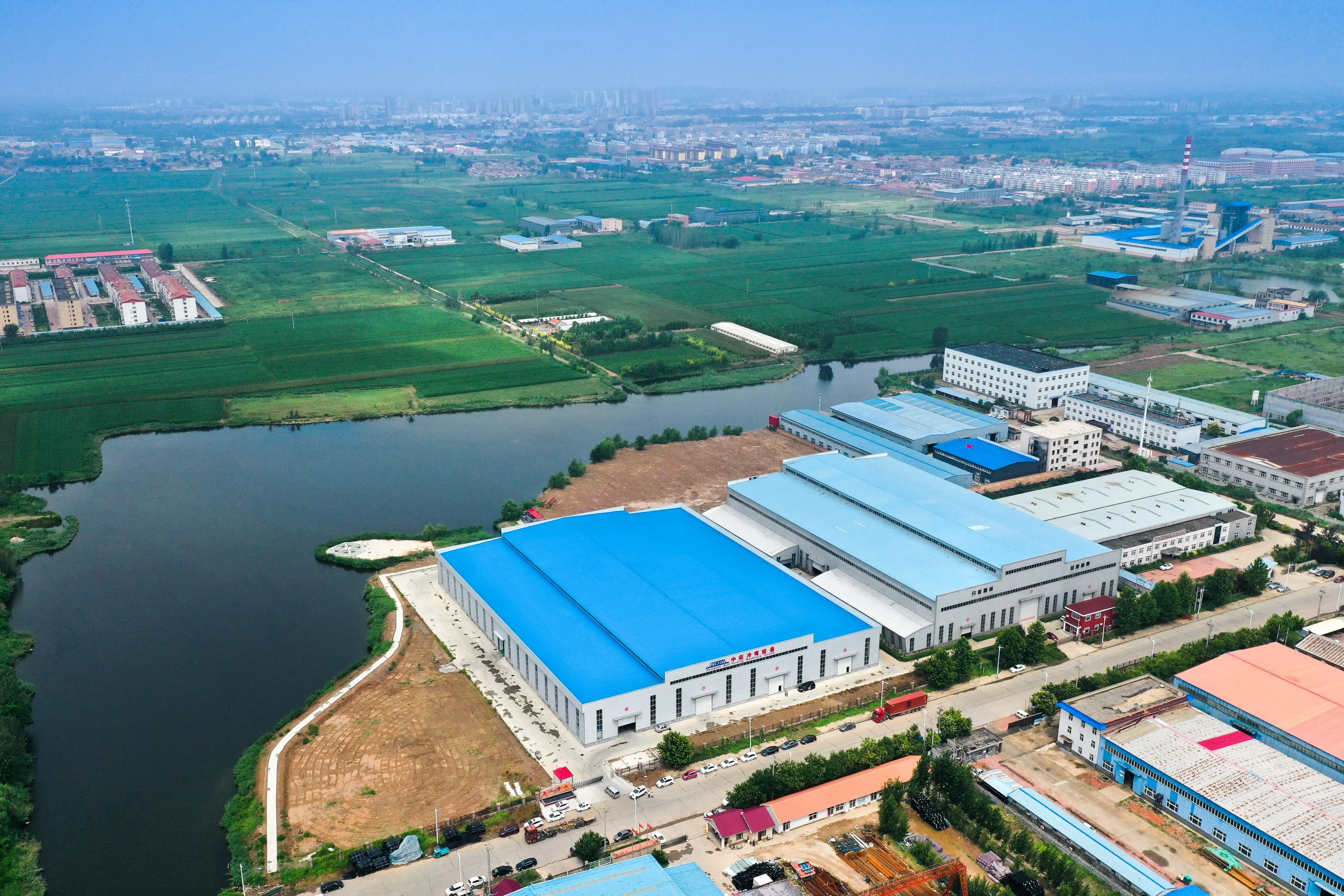

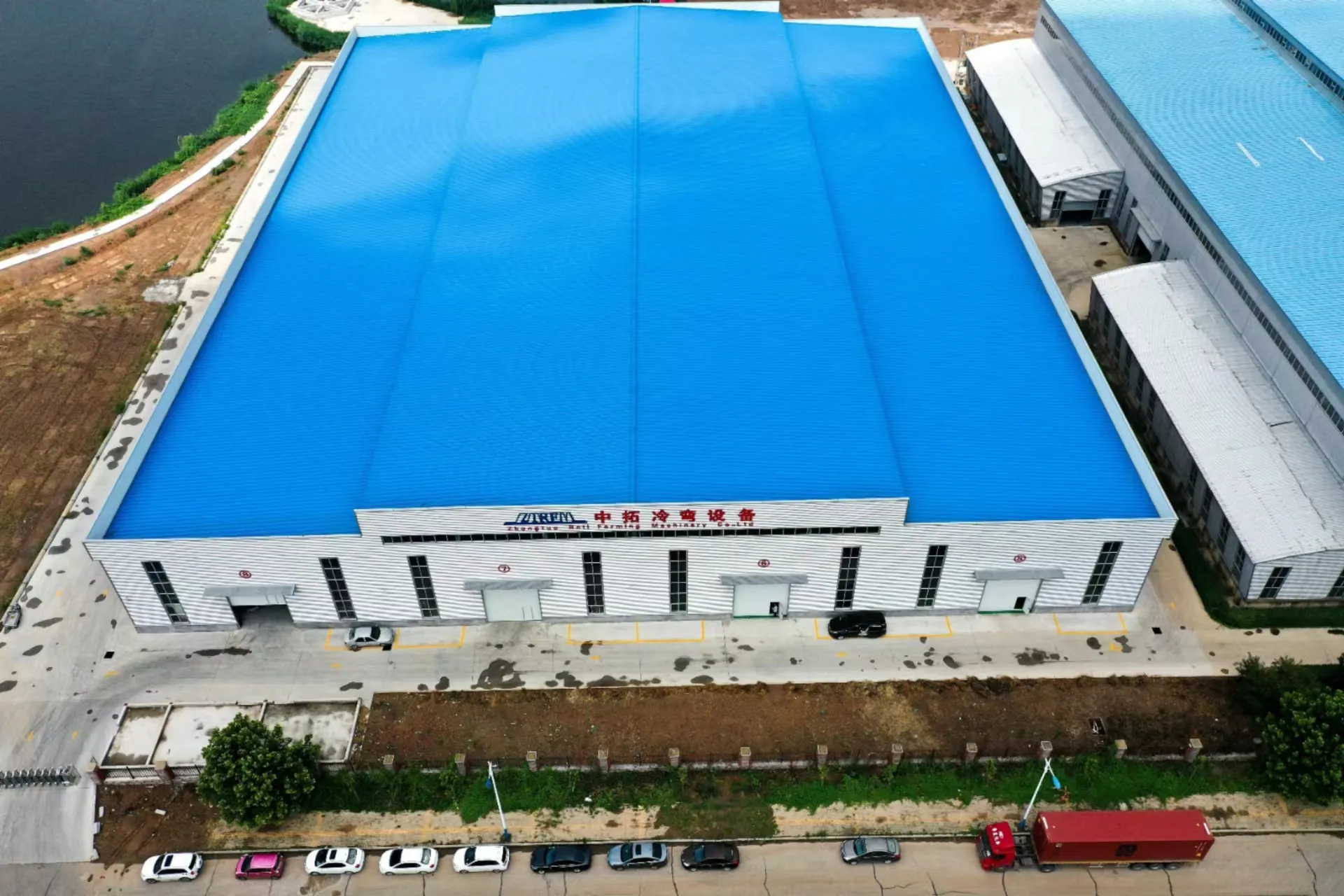

——OUR COMPANY——

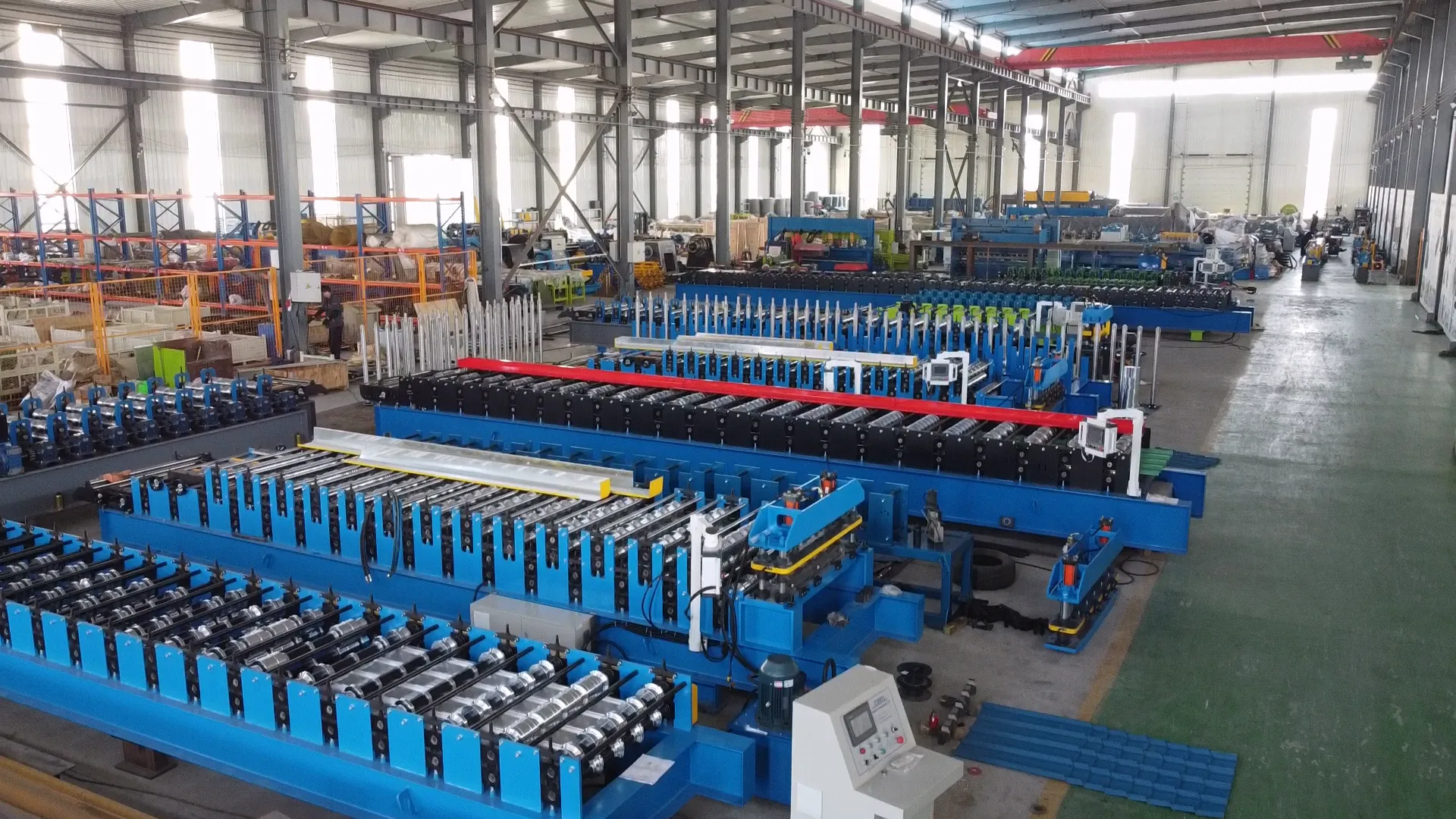

CANGZHOU ZHONGTUO came from Hebei-China, is a factory that committed to the desiging and manufacturing of different types cold roll forming machines. We are a factory that has a long history, we do the desiging and manufacturing of cold roll forming machines since 2006. The machines we can manufacture contains:roofing sheet machine, cz purlin machine, light steel gauge maghine, metal embossing machine, door system forming machine, ceiling system machine, pipe welding machine, slitting and cut to length machine as so on.The company has passed ISO9001 quality control system certification, European CE safety certification, North American CSA electric certification, and has instill the concept "time is money, quality is life" into the mind of every employees. We strictly control quality while improving production efficiency and shortening delivery time. All the machines produced by us need full line test before leaving the factory, we never send problematic equipment to customers. We have full experience of export and know well about the different needs of customers from both developing countries and developed countries, we provided many satisfactory machine proposals to customers in the past years. Nowaday our machines have already been exported to more than 150 countries and we established long-term and stable cooperative relationship with our clients. Development vision: become a global one-stop supplier of cold roll forming machines and accessaries. Development concept: time is money, quality is life.

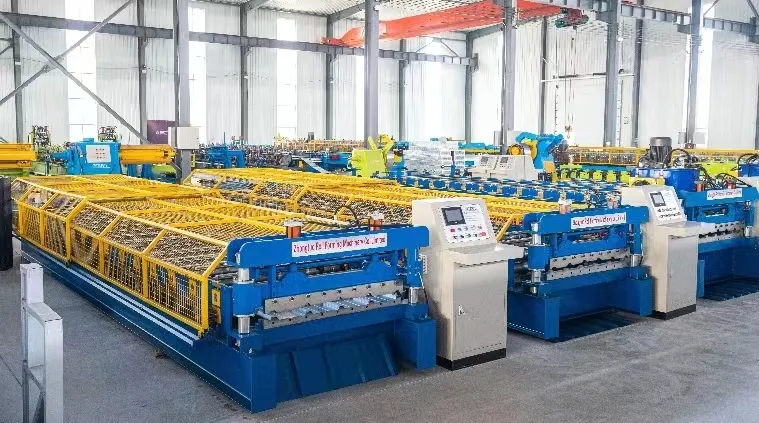

——OUR STRENGTH——

——OUR TECHNICAL TEAM——

——EXHIBITION——

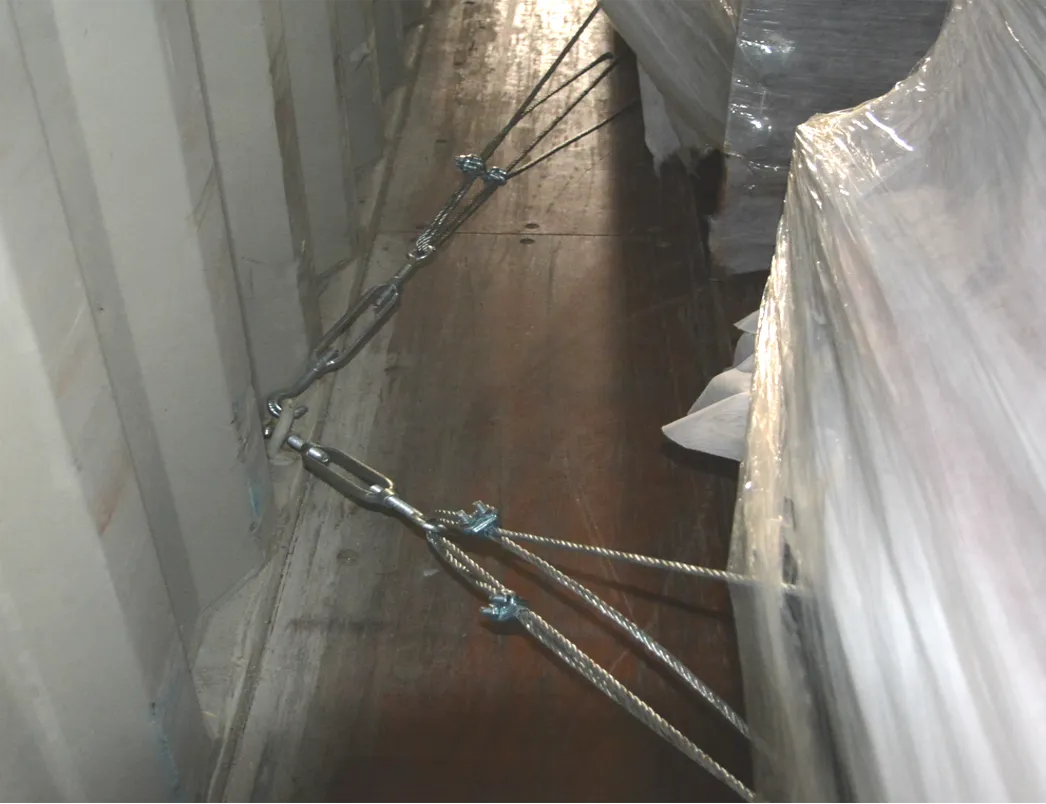

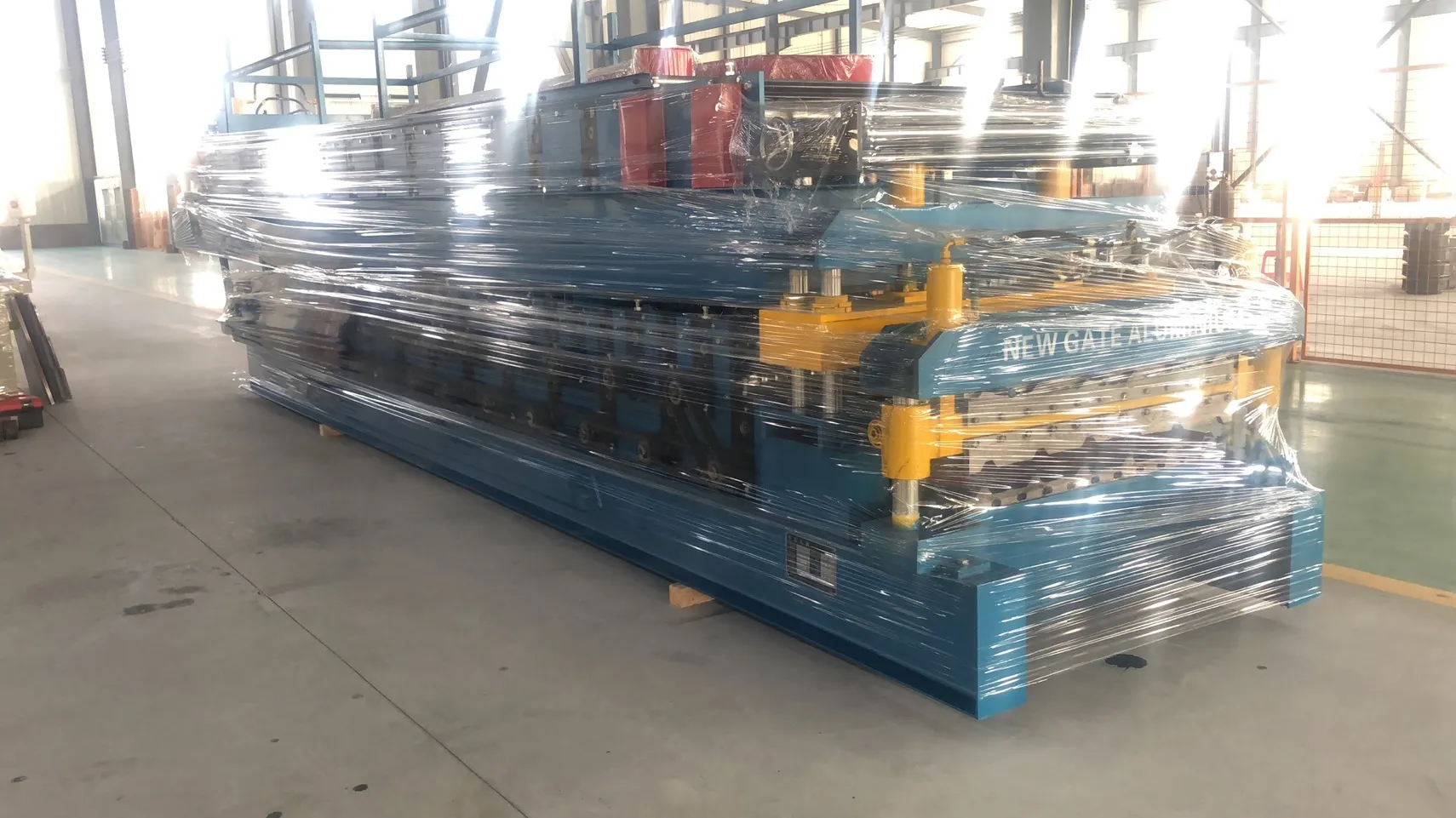

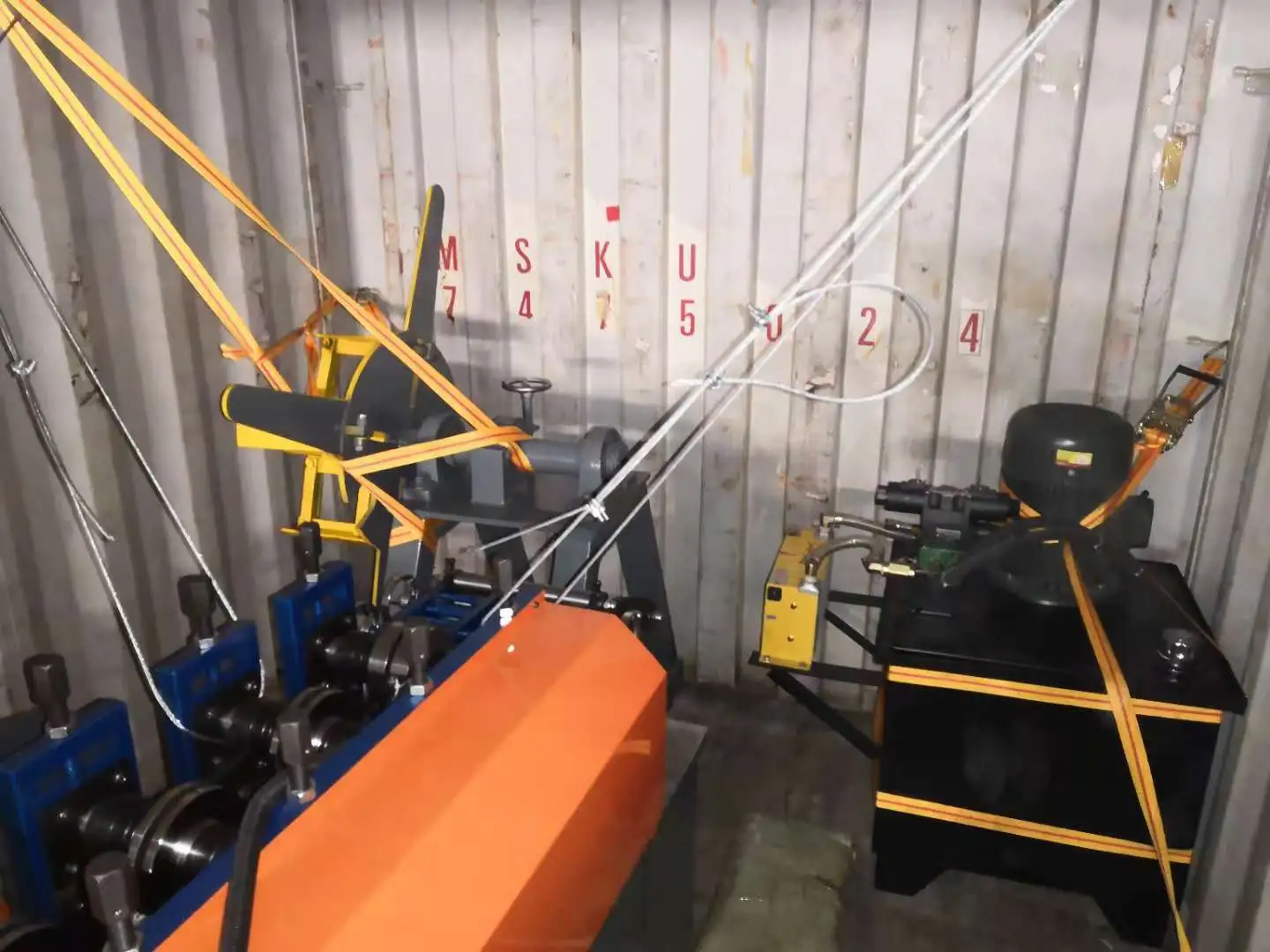

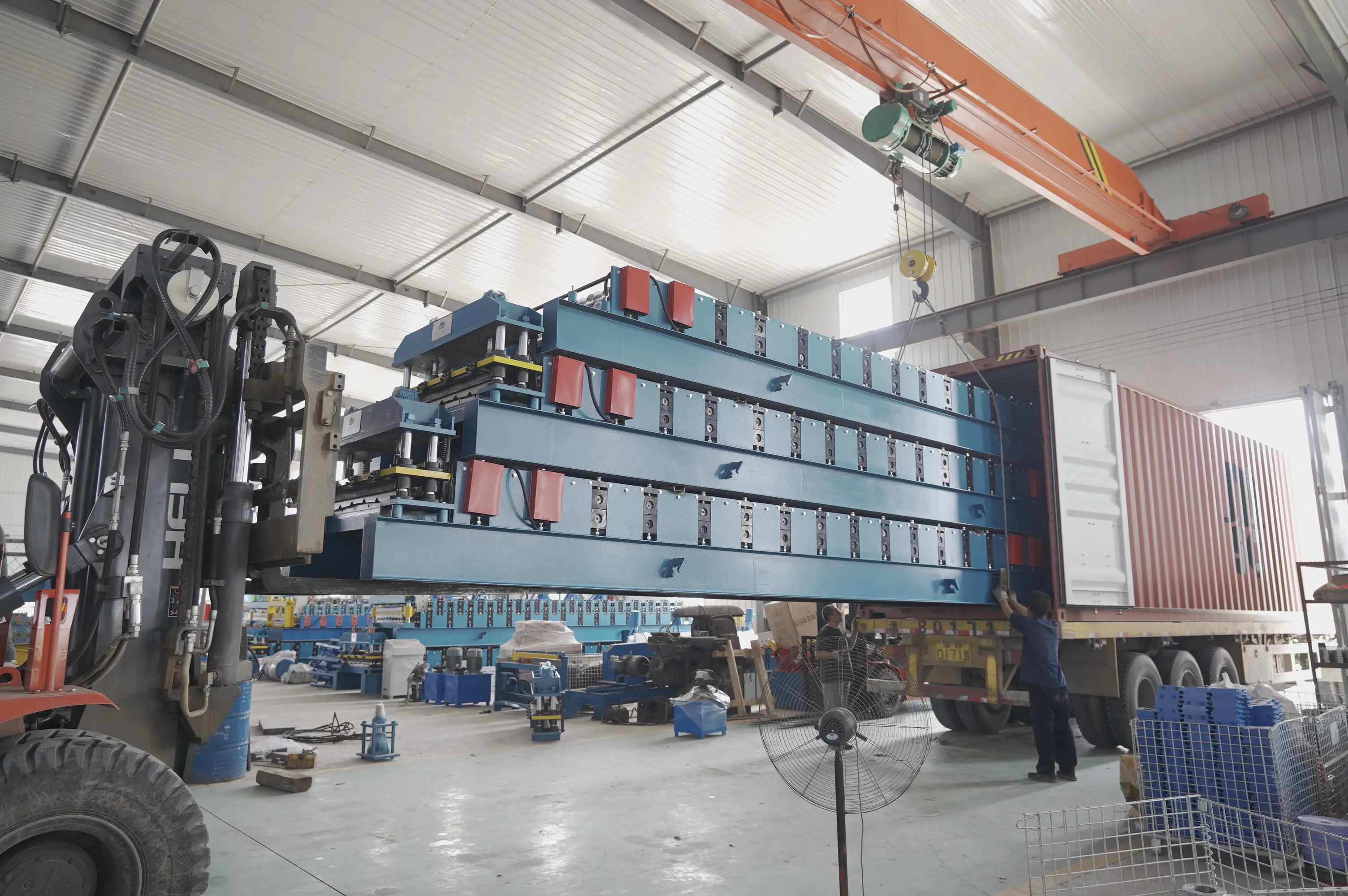

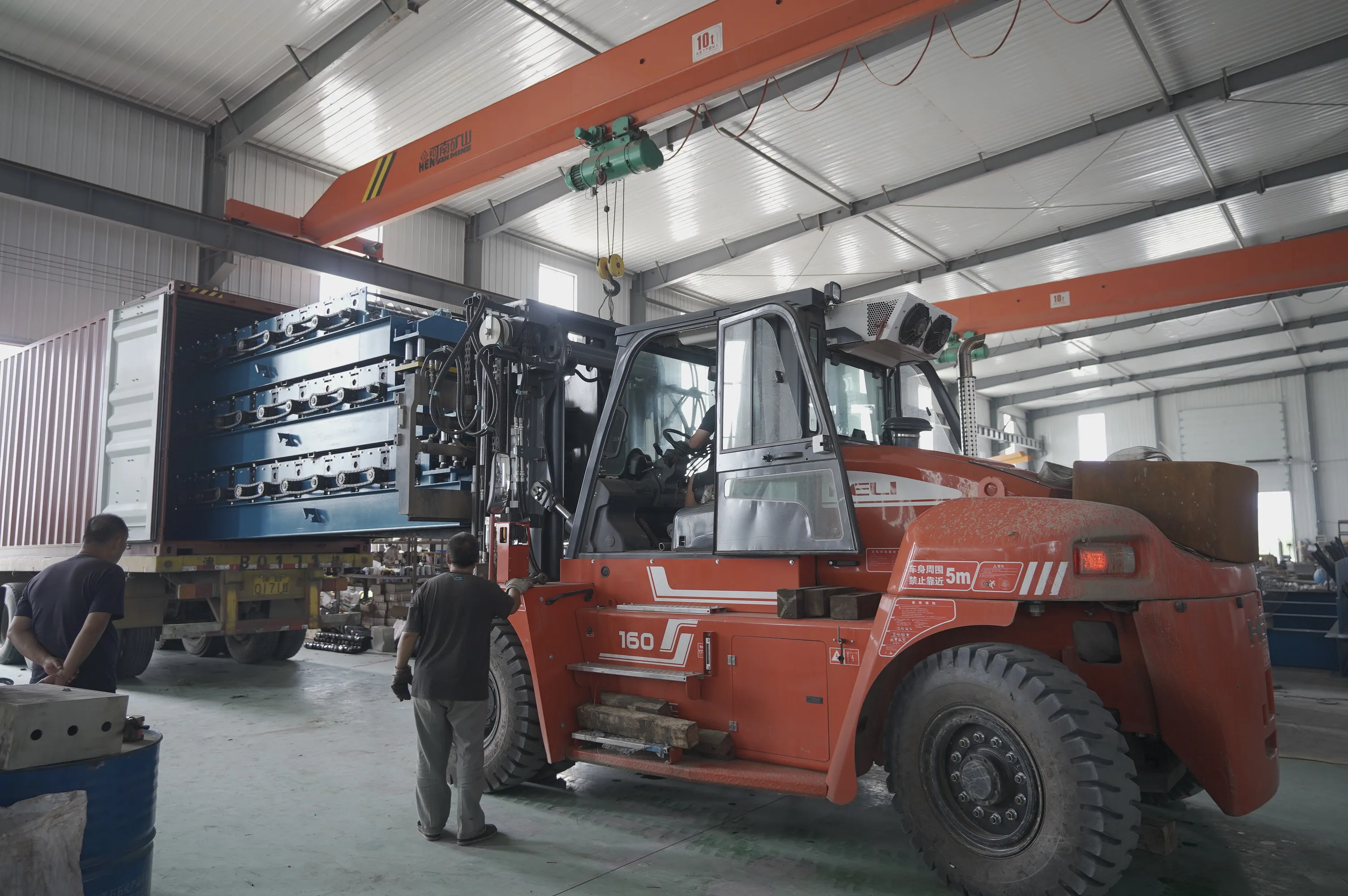

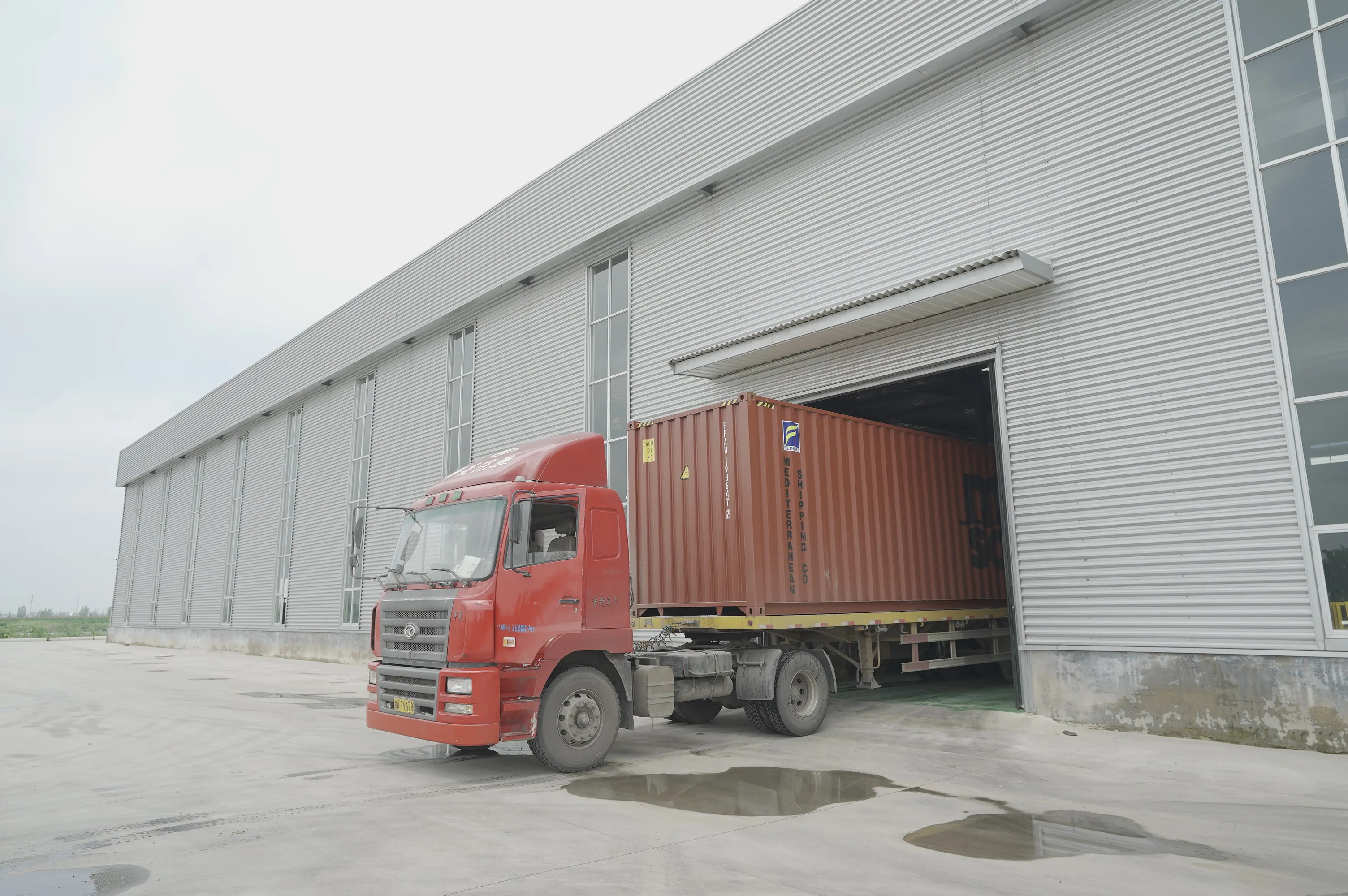

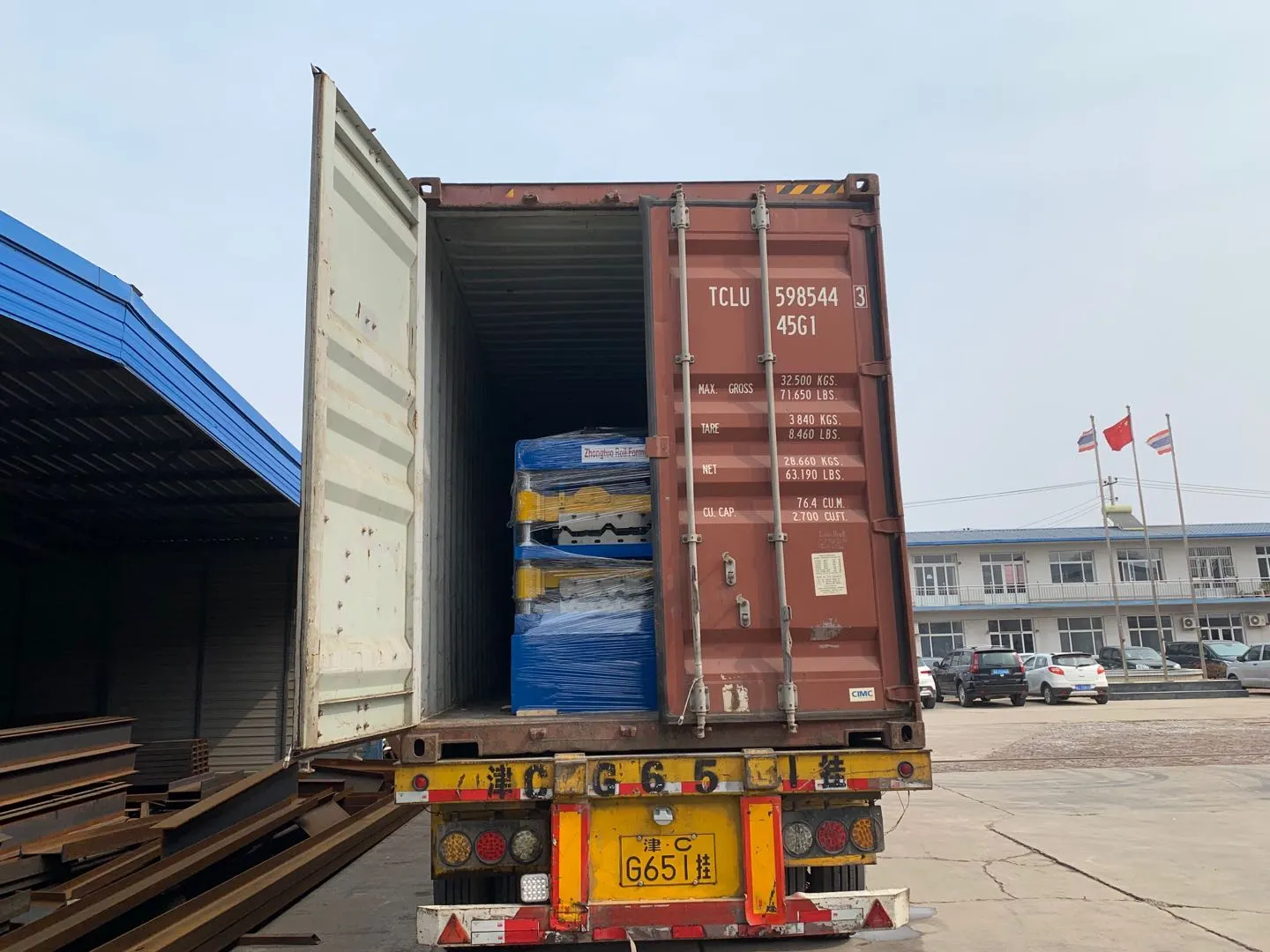

——PACKING AND LOGISTICS——

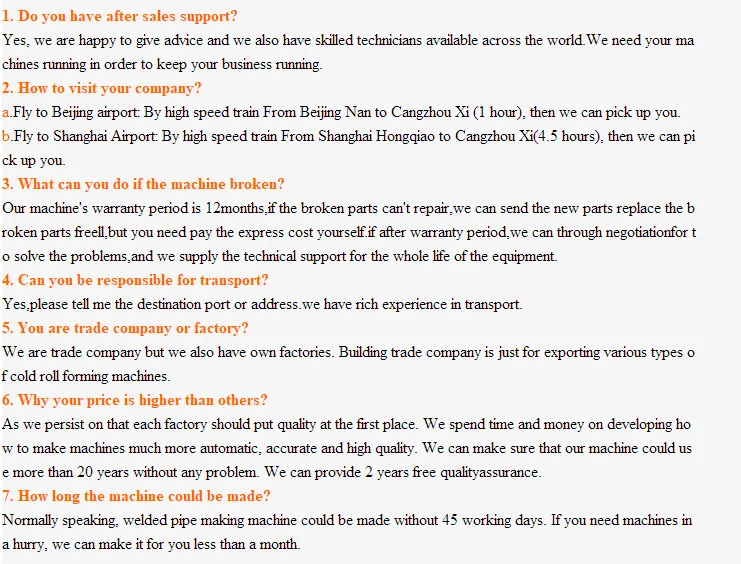

——FAQ——
