Gutter and Downspout System > Production Equipment > Gutter Roll Forming Machine

ZTRFM Full Automatic Half Round Gutter Machine and Round Gutter Making Machine ZTRFM+5.5-11kw+30 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM Full Automatic Half Round Gutter Machine and Round Gutter Making Machine ZTRFM+5.5-11kw+30 m/min

Name: ZTRFM Full Automatic Half Round Gutter Machine and Round Gutter Making Machine ZTRFM+5.5-11kw+30 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT85008576

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Model Number:

ZTRFM

Power(W):

5.5-11kw

Production Capacity:

30 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Roll Forming Machine
Tile Type
Steel
Use
ROOF
Voltage
380 V
Rolling Thinckness
0.5-1.2mm
Feeding Width
200-500mm

Product Description

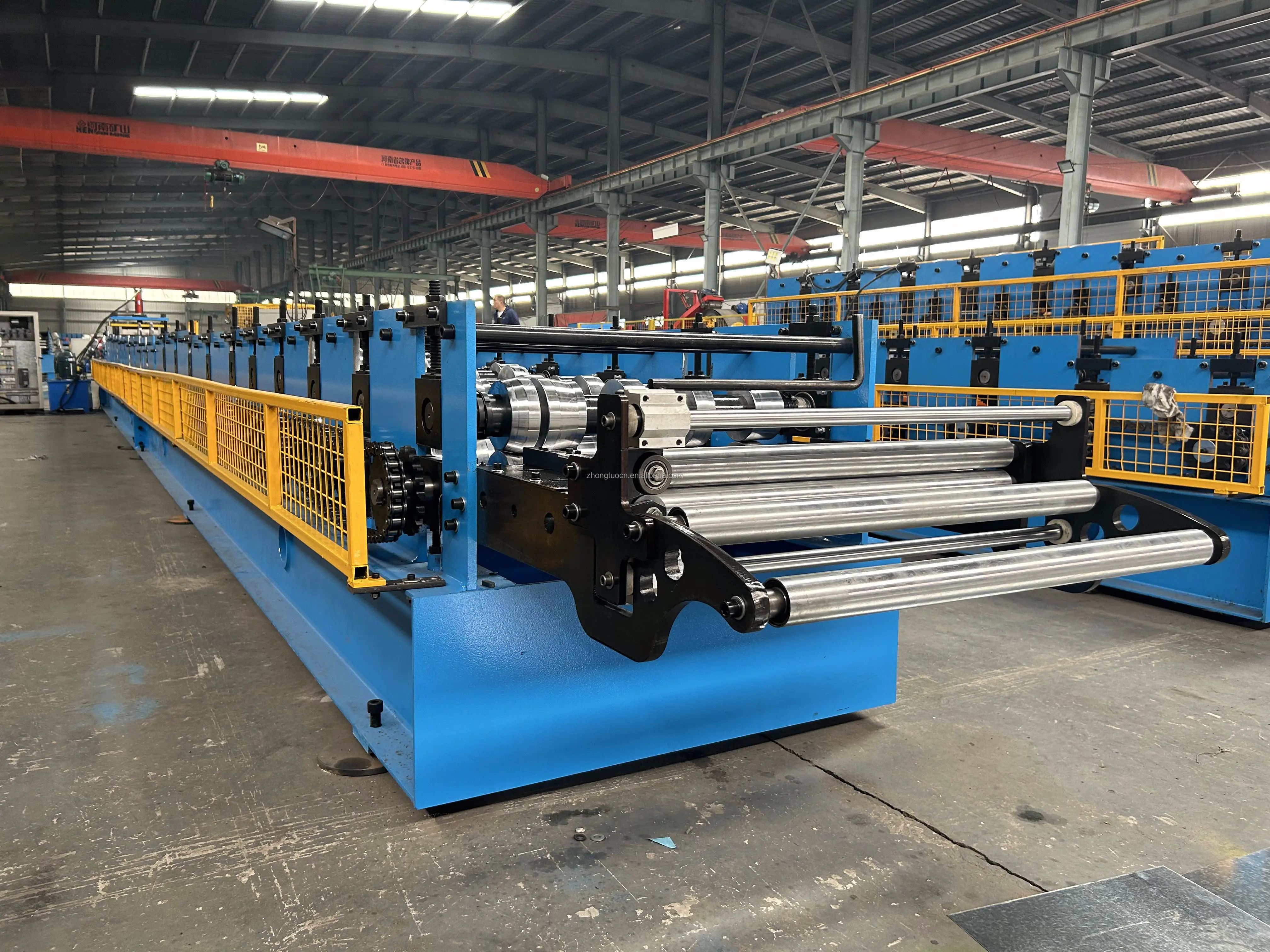

ZTRFM Full Automatic Half Round Gutter Machine And Round Gutter Making Machine

Our Zhongtuo half-round gutter machine features a polyurethane pressure drive system and Stainless-steel chrome plated forming rollers. The combination of polyurethane with forming drive rollers allow the machine to roll-form all recommended materials with minimal or no adjustment. Half-roundis manufactured in China at our 100,000 sq ft facility and is backed by our comprehensive warranty: 3 year parts and labor on all mechanical components and one year for electrical components.

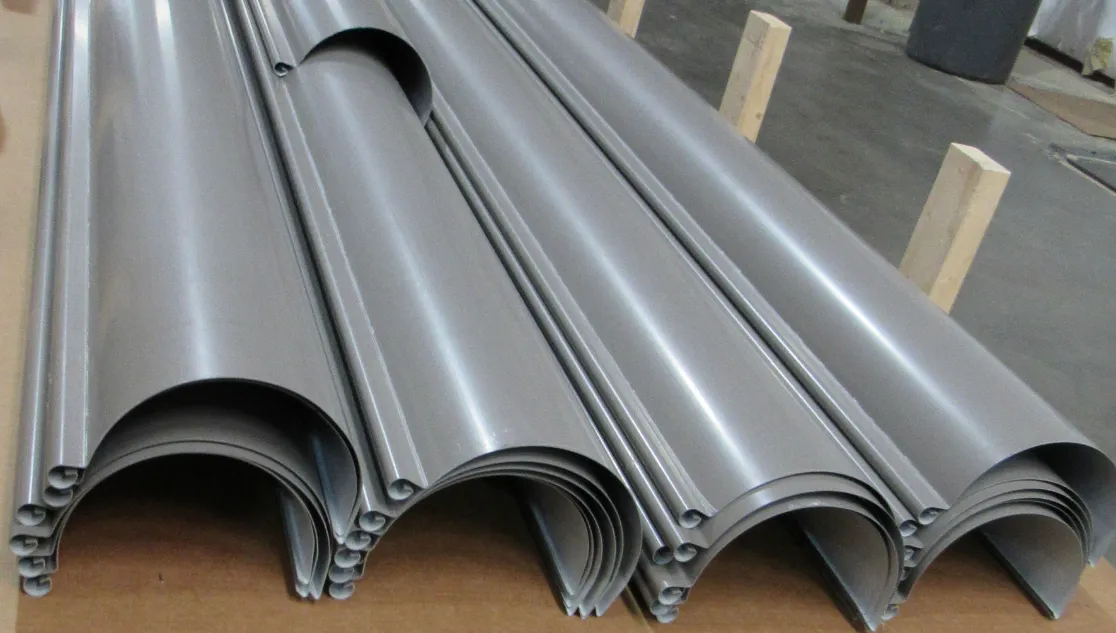

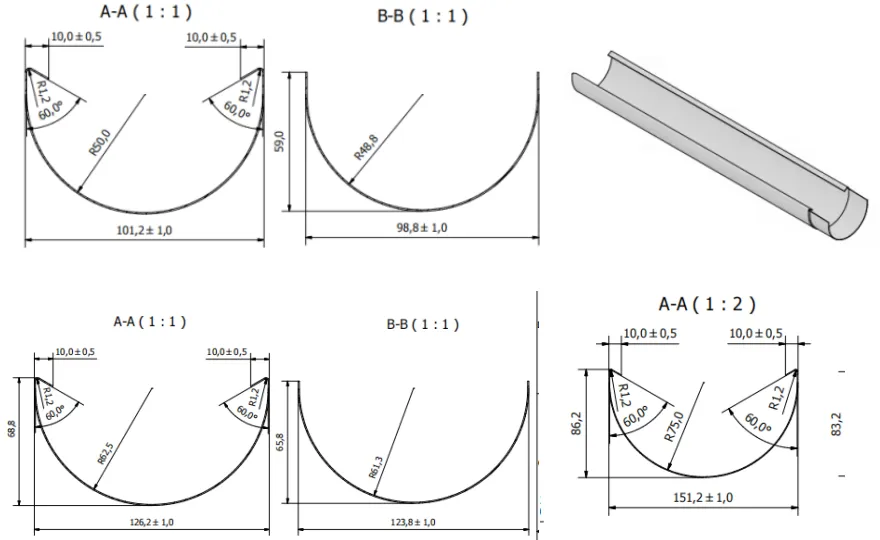

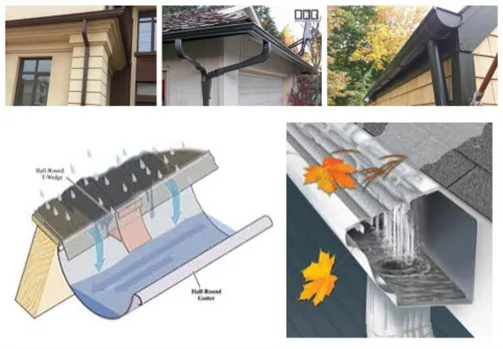

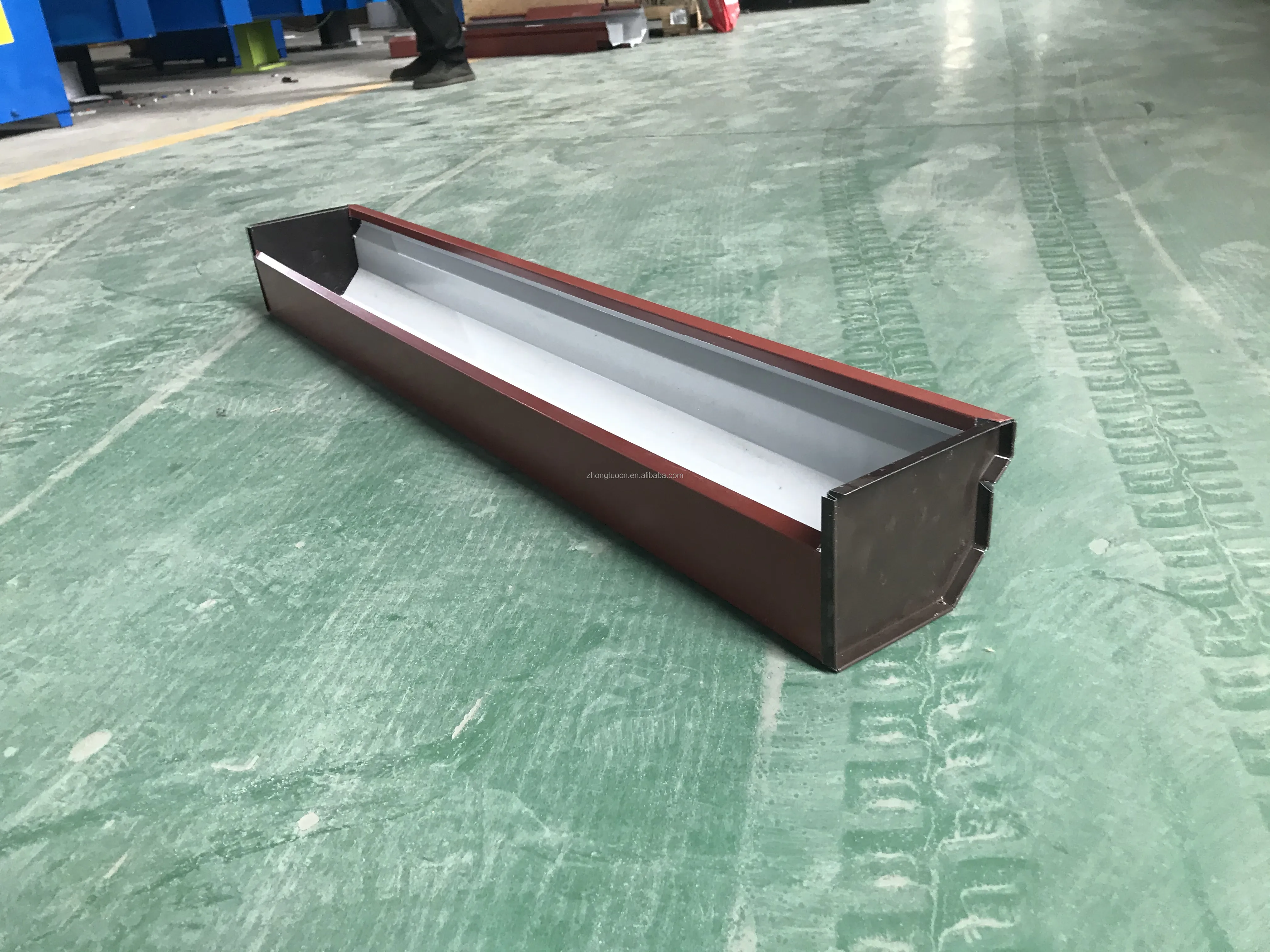

This machine‘’s finished product and application for your reference

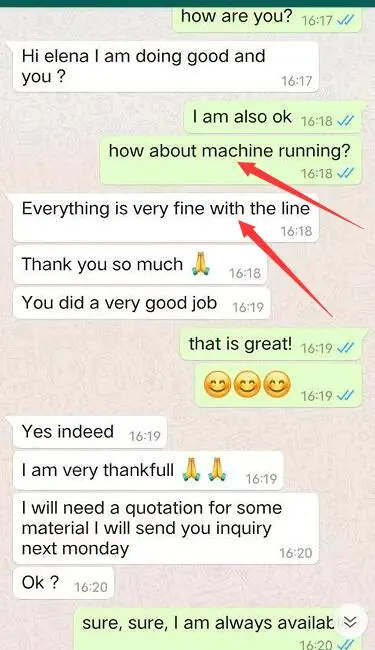

How customer say about us?

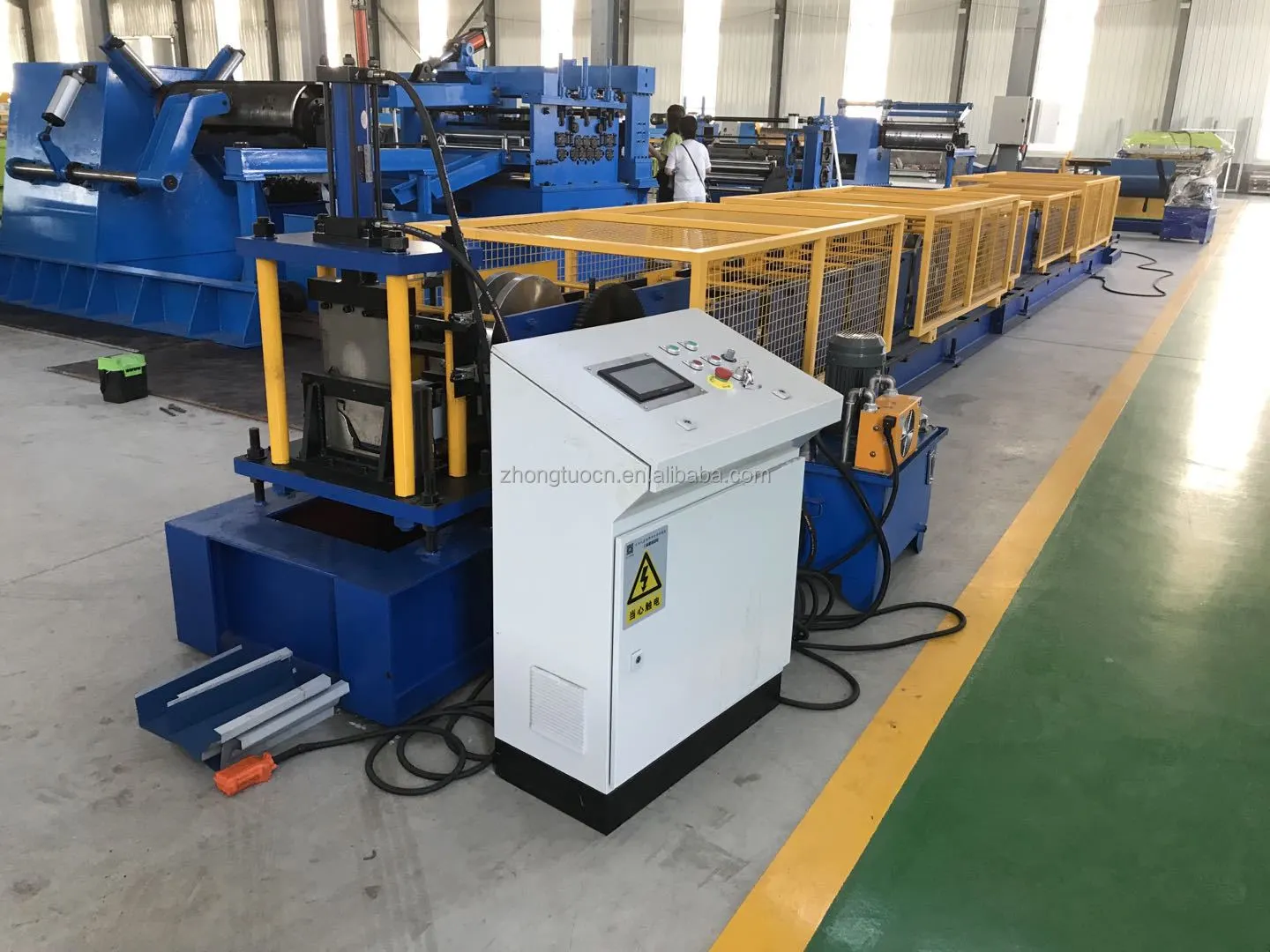

Full Automatic Half Round Gutter Machine And Round Gutter Making Machine
1.Formed Material	PPGI,GI,AI		Thickness:0.5-1.2 mm
2.Decoiler	Hydraulic automatic decoiler		Manual decoiler(will give you as free）
3.Main body	Roller station		12 rows(As your requirement)
		Diameter of shaft		80mm solid shaft
		Material of rollers		45# steel, hard chrome plated on the surface
		Machine body frame		350 H steel
		Drive		Chain transmission
		Dimension(LWH)		850010001200(customize)
		Weight		6.5T
4.Cutter	Automatic		cr12mov material, no scratches, no deformation
5.Power	Motor Power		5.5KW
		Hydraulic system power		5.5KW
6.Voltage	380V 50Hz 3Phase		As your requirement
7.Control system	Electric Box		Customized(famous brand)
		Language		English(Support multiple languages)
		PLC		Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed	15-30m/min		The speed depends on the shape of the tile and the thickness of the material.

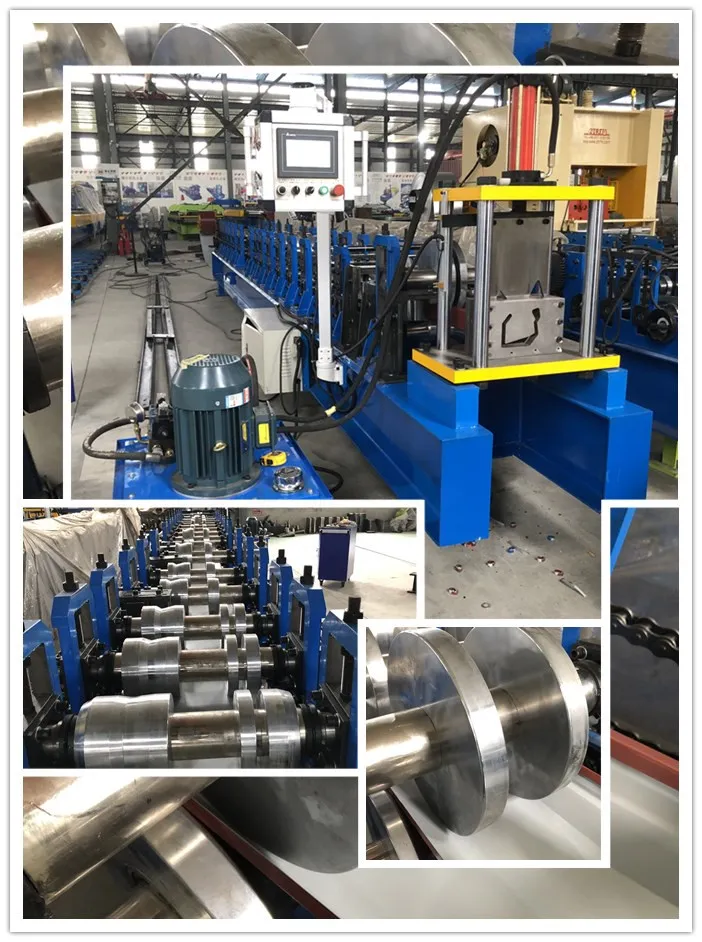

Products Display

Feeding device

With hydraulic pre-cutting,and handwheels for adjust for feeding material.

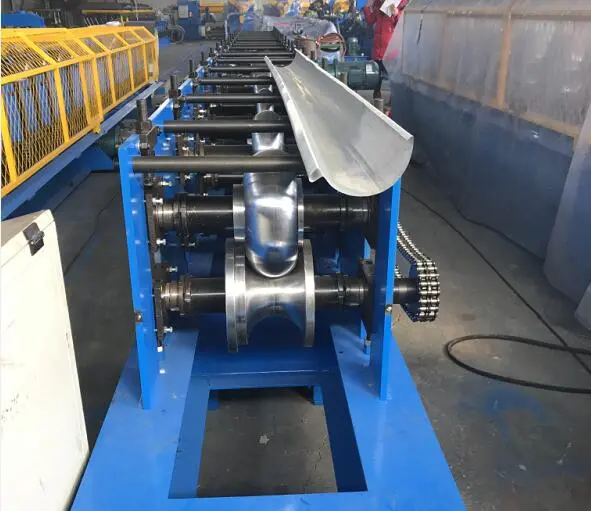

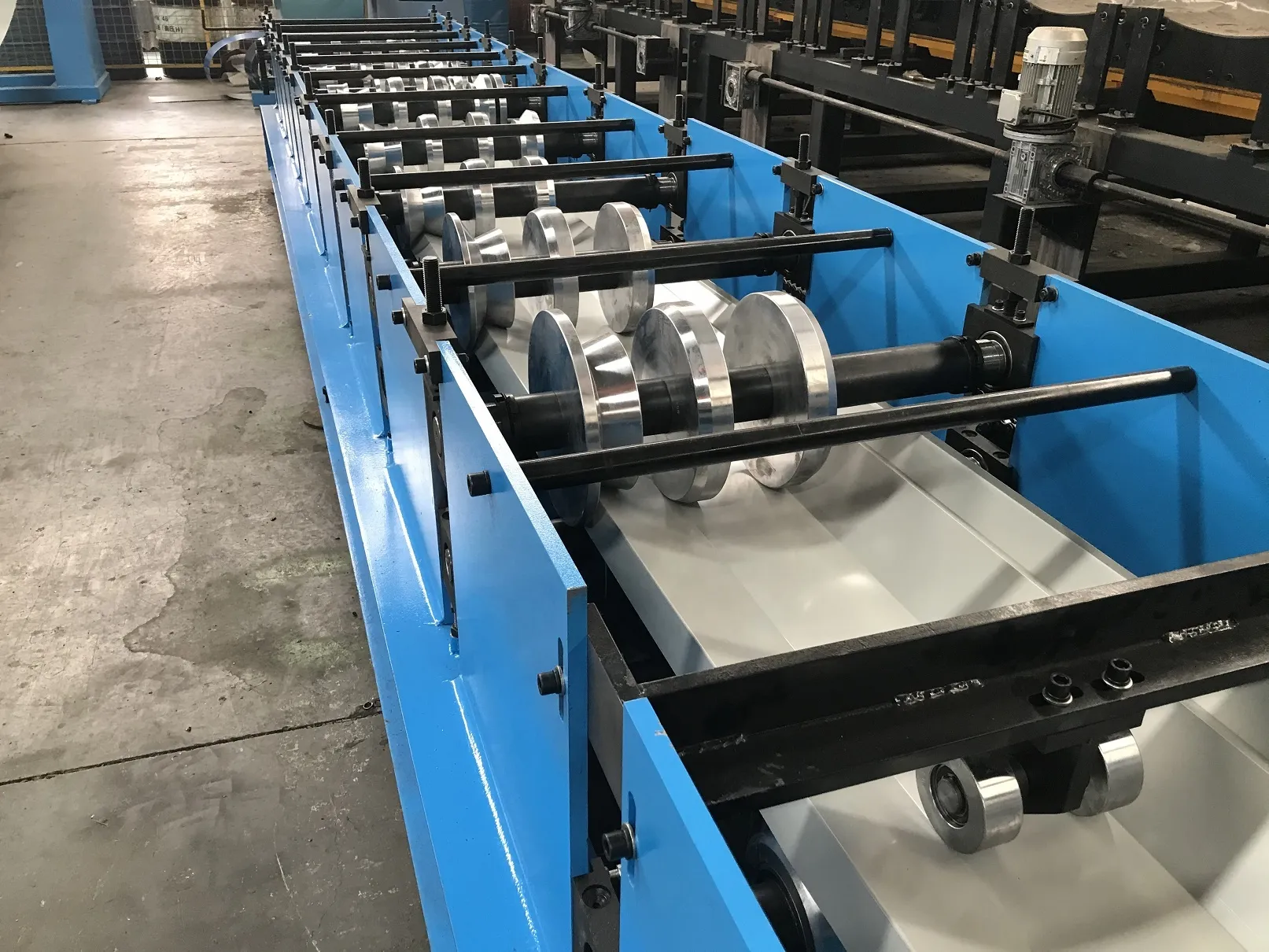

Roll forming device

rollers after thick chromed and quenched for good hardness.

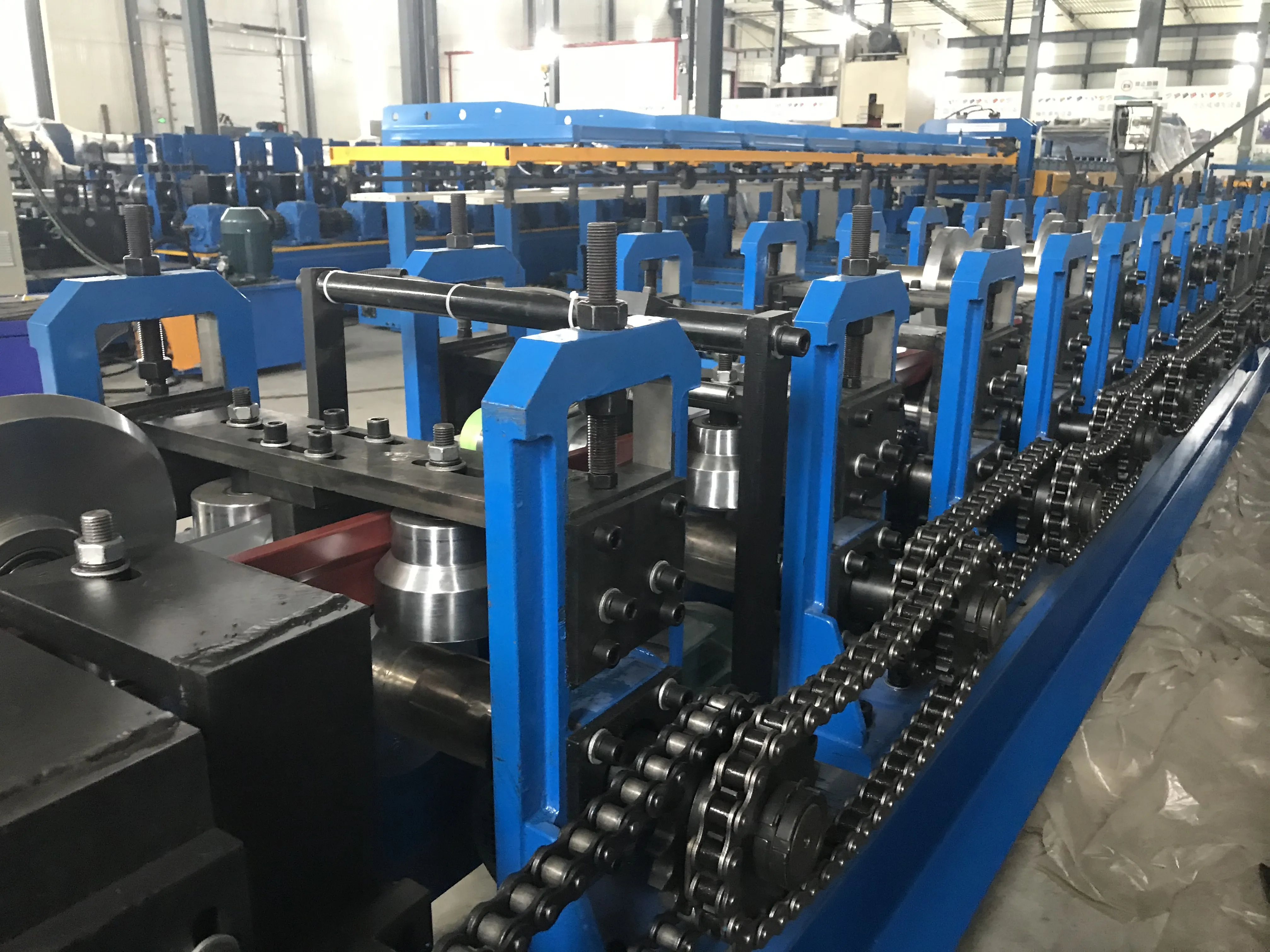

Gear and chain drive

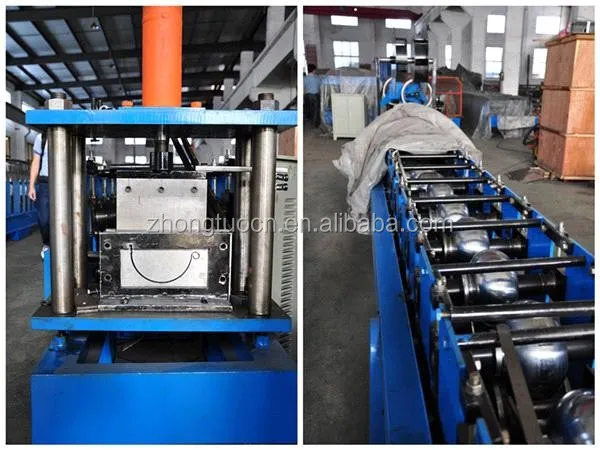

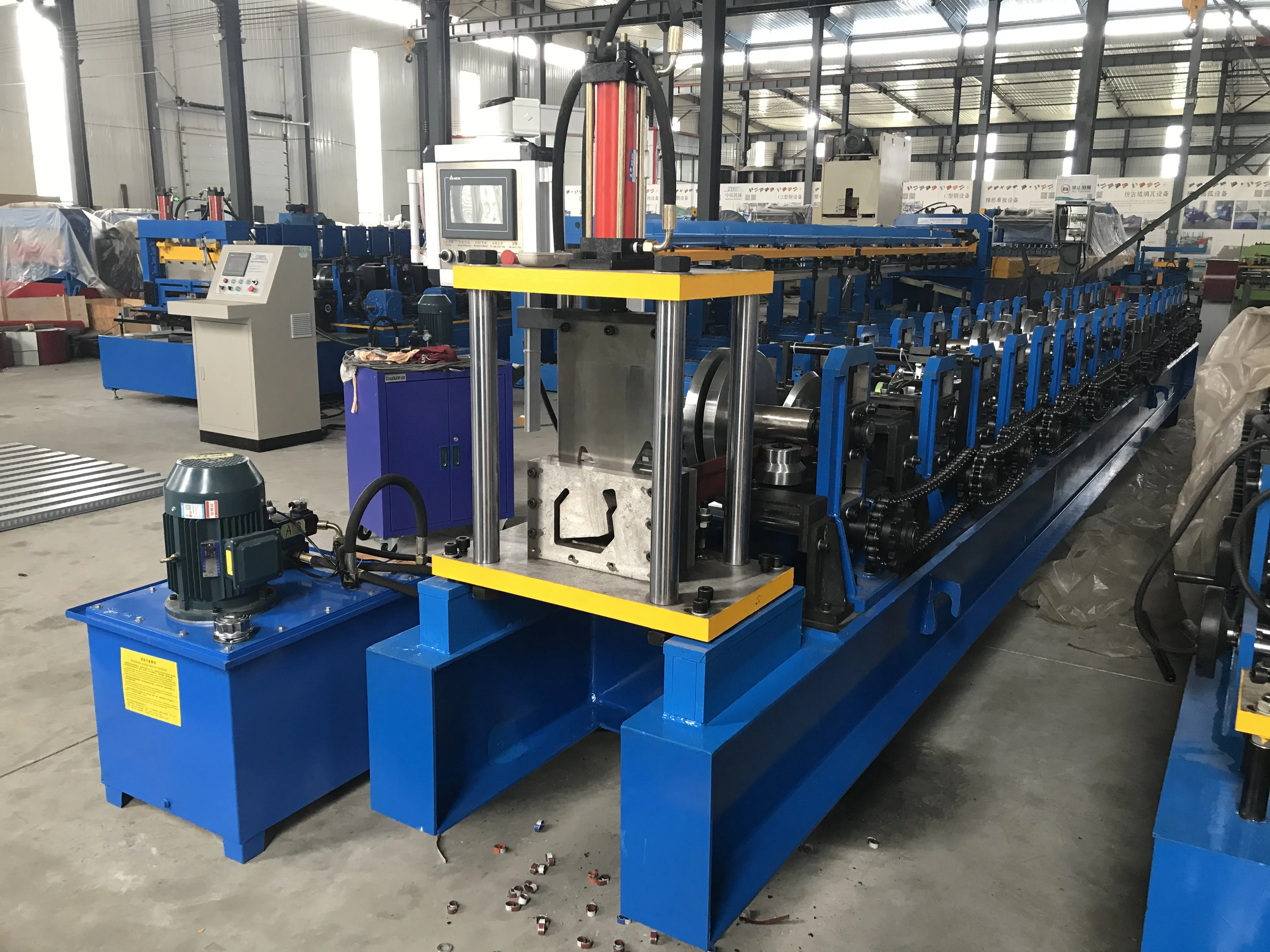

High precision Hydraulic cutting device

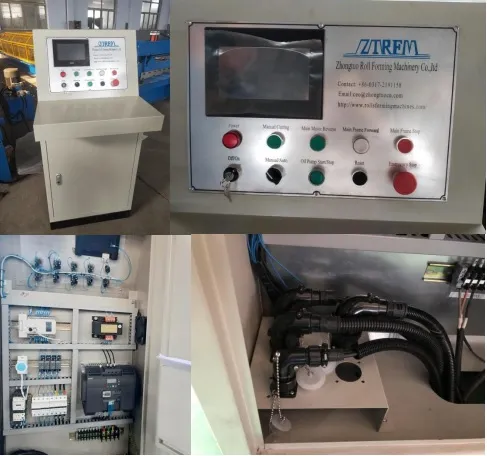

PLC control cabinet

Adopted Aviation plug for buyer easy installation,touch screen for easy adjust.

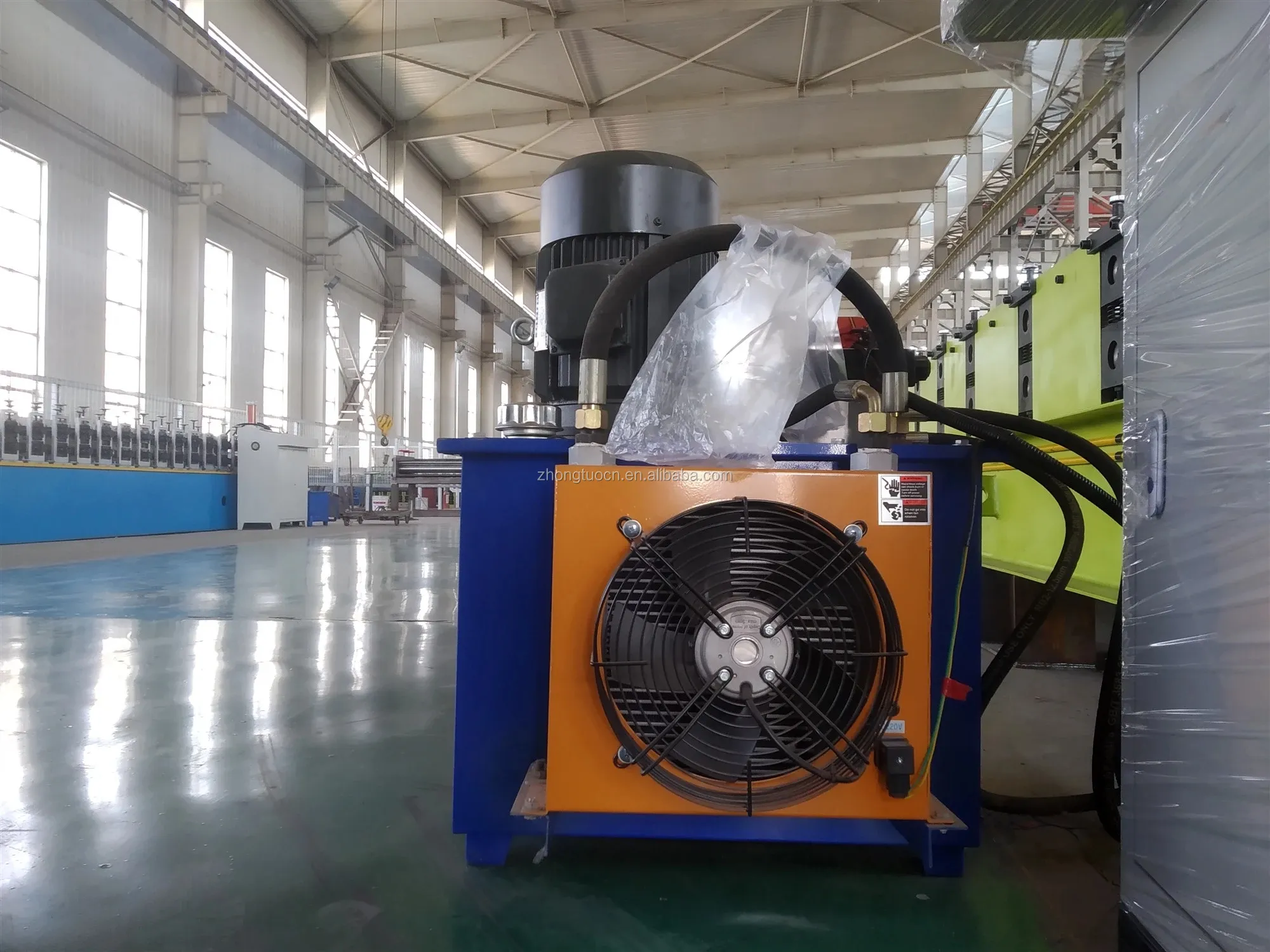

Hydraulic station

With cooling fun for long service time.
