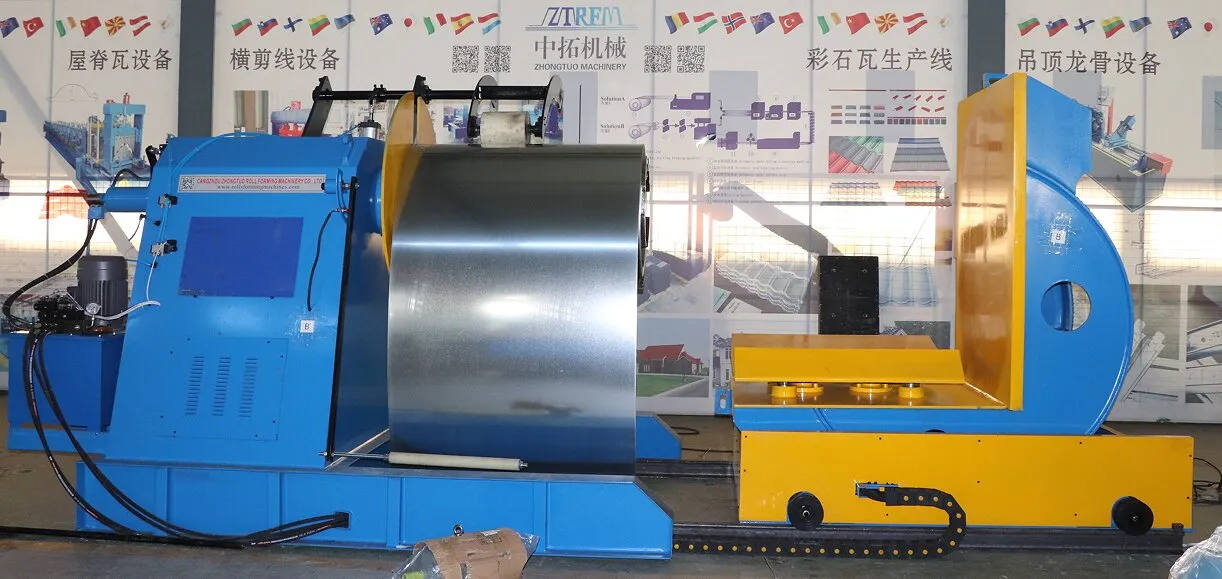

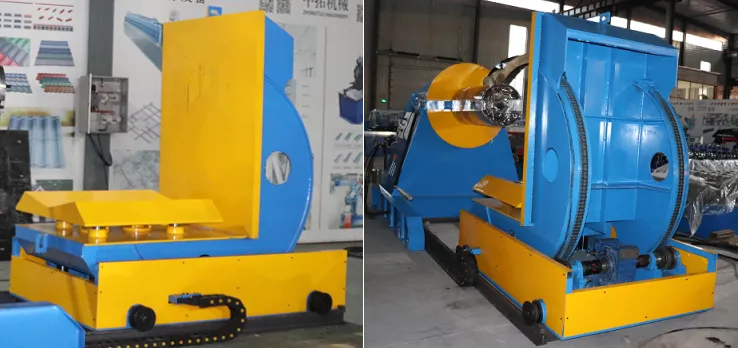

ZTRFM Full Automatic decoiler machine Metal steel PPGI hydraulic decoiler with coil turn over loading car

Main Features:

» Eliminates turn over damage to coils.

» Safe and reduces coil change over times on your production line.

» Rotating table ensures coil stack is always central to machine base for improved stability.

» Only a single operator required.

ZTRFM Full Automatic decoiler machine Metal steel PPGI hydraulic decoiler with coil turn over loading car
Formed Material	PPGI,GI,AI
Coil width	200-2000mm customized as request
Capacity	5-30T
Hydraulic power	4 kw
Motor power	5.5 kw
Press arm	To keep the coil from loosing
Braking system	Pnuematic
Voltage	380V 50Hz 3Phase
Forming Speed	0-40m/min(Match with the mail machine)

Automatic hydraulic decoiler with the coil turn over loading car is designed to make the decoiling work more easily, it is an multi-functions tool. Different with other company decoiler, ours have the following functions.

1. As to the Electrical parts, it is equipped with world famous brand “Schneider” electrical parts, more safety and reliable.Meanwhile it is easy to change. And the operation of the equipment is more safe, reliable and stable.

2. With the Pneumatic braking system, it can stop the rotate of coil immediately when required, avoid unnecessary coil output. Fast braking, more safer. The matching high-speed forming machine needs faster uncoiling speed, and the pneumatic brake can provide greater braking force. Customers need to be equipped with their own compressed air source.

3.Expanding device, Four arms expanding device with sliding block can provide more powerful force to fixing the coil, The synchronous action can avoid the deformation of the coil.The block installed on the the arms can suit the coils with bigger inner diameter.

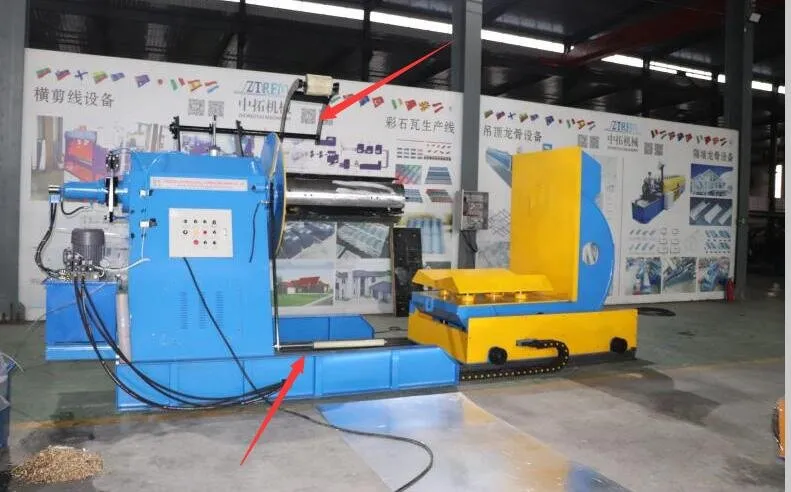

4.Limit Switch Arm and rollers on frame, It can automatically start and stop the rotate of coil according to the rate of progress of forming machine. It can also be installed the other side of the machine for opposite feeding direction. we have reserved the installation bracket.The rollers on the both sides of frame can avoid scratch of coil when it run out.

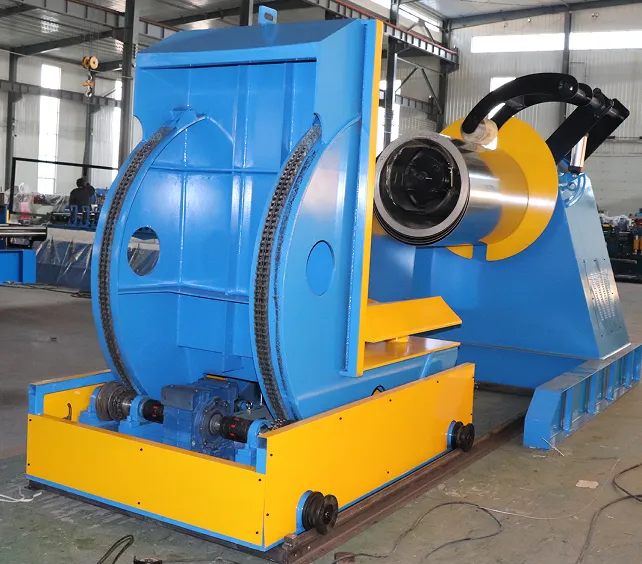

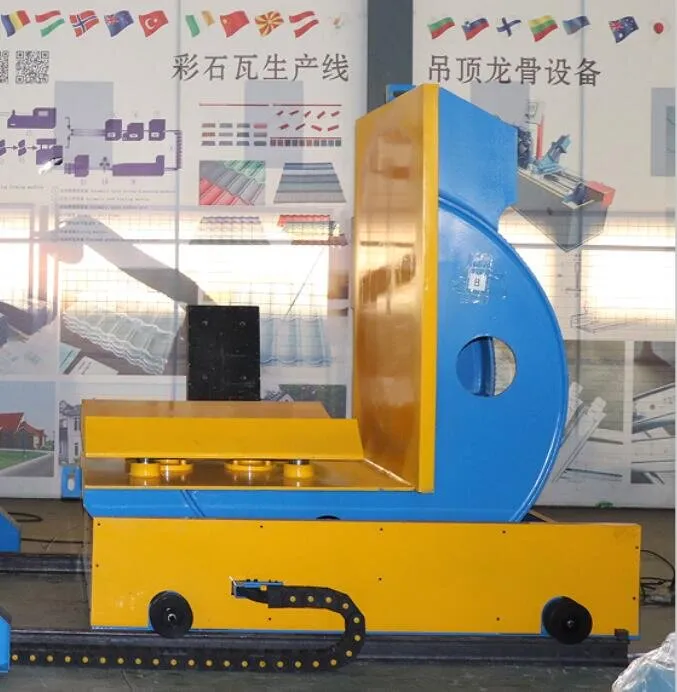

Global Tools & Machines coil turnover units are designed to eliminate coil damage and injuries when flipping over metal coils. Simply place your palletised or nonpalletised coil stack onto the rotating table. In no time at all you can have your coil upright and ready to load onto your coil car or uncoiler decoiler. We can build each Coil TurnOver Machine to suit your individual requirements. We have standard models to choose.

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
