Technical Specifications

Cutting Width (Mm)
500 - 3000 mm
Material Thickness(Mm)
1 - 2 mm
Cutting Speed(M/Min)
0 - 15 m/min
Coil Weight (T)
3
Voltage
380V,50hz,3p

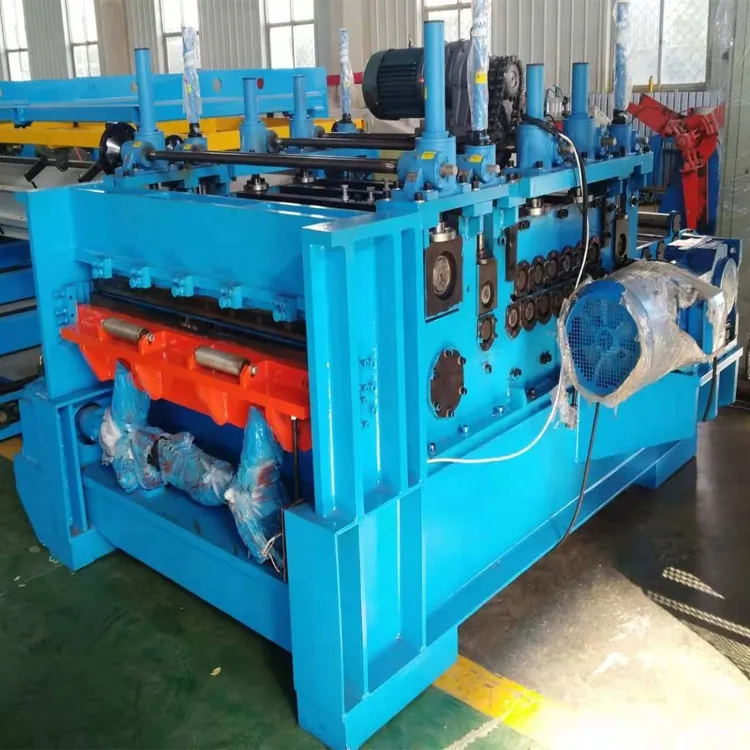

ZTRFM Economic Cheap Heavy Duty Metal Sheet Cut to Length& Slitting Machine

The Heavy Duty Metal Sheet Cut to Length& Slitting Machine is designed to cut to length of steel coil and slit coils to narrow strips.

work type	PLC control system
roller stations	upper: 6 stations downer: 7 stations Diameter: 95mm
leveling roller material	45# steel
cutter material	GCr 12
slitting cutter roller diameter	175 mm
slitting quantity	Max 5 pcs
raw material	GI/ carbon steel
raw material width	Max width 1250mm
raw material thickness	cutting to length thickness: 3mm slitting to strip thickness: 2mm
Main machine motor power	11 KW
hydraulic motor power	5.5 KW

Heavy Duty Metal Sheet Cut to Length& Slitting Machine Work process:

Uncoiling---feeding material---clamping device---leveling device---slitting material---cutting to length---product collect table

Heavy Duty Metal Sheet Cut to Length& Slitting Machine Machine features:

Heavy duty machine, stable in running ,prolongs machine service life.
Leveling gap is adjustable .
PLC system controls main speed and cutting length.
Clapming device ensures the coil not off tracking before the levleing device.
Leveling device designed with 6 upper rollers and 7 downer rollers to ensure the leveling result.

Packaging & Shipping

Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information

Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporter which has its own factory and also cooperate with several production factories and concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold rollforming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
