ZTRFM Double Layer Glazed Tile Roll Forming Machine Corrugated and Trapezoidal Roof Sheet Roofing Making Machines 5.5kw+15 m/min

Cangzhou Zhongtuo International Trade Co., Ltd

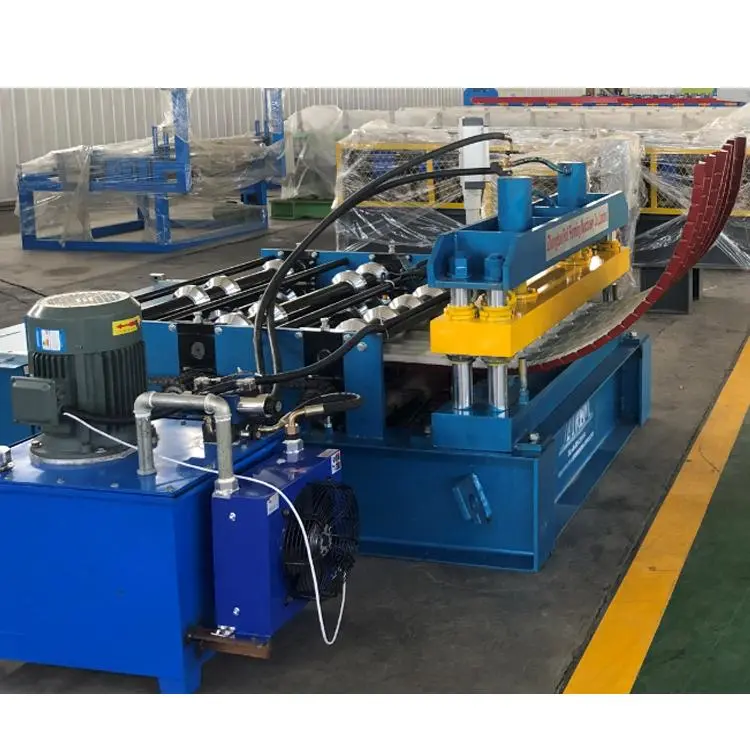

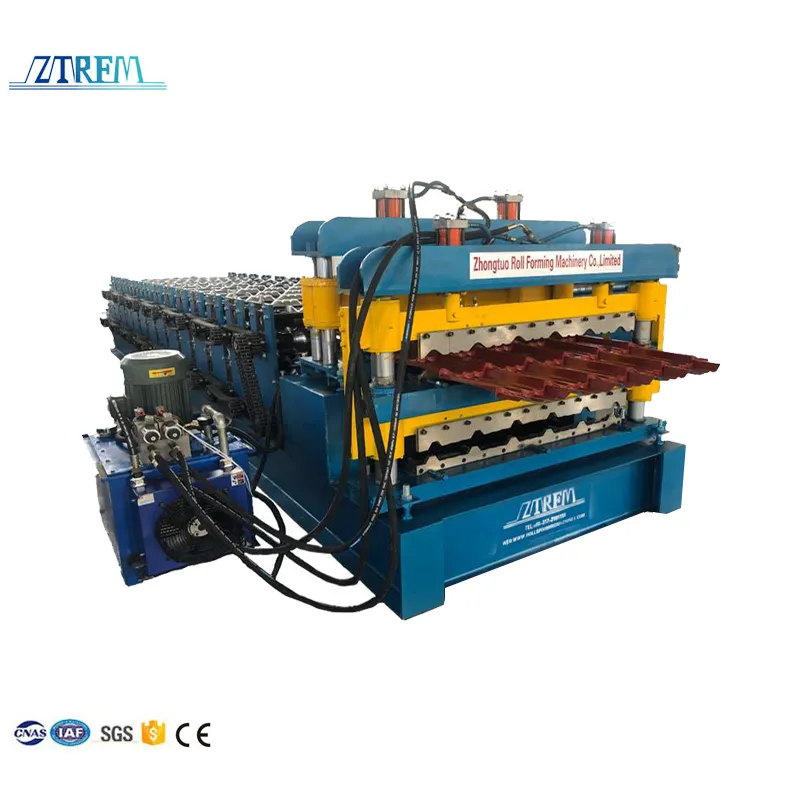

ZTRFM Double Layer Glazed Tile Roll Forming Machine Corrugated and Trapezoidal Roof Sheet Roofing Making Machines 5.5kw+15 m/min

Name: ZTRFM Double Layer Glazed Tile Roll Forming Machine Corrugated and Trapezoidal Roof Sheet Roofing Making Machines 5.5kw+15 m/min
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT53905280

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

5.5kw

Production Capacity:

15 m/min

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
230V/50HZ
Rolling Thinckness
0.3-0.8mm
Feeding Width
max 1250mm

Design Idea：
1. One machine can produce both trapezoidal sheet and corrugated sheet.
2. One machine can use both 1220mm width coil and 1250mm width coil.
3. This machine has felt device,which can attach the felt on the sheet.
4. The finished product is absolutely flat after cut.
5. The voltage of this machine is 230V,50HZ,Single phase.

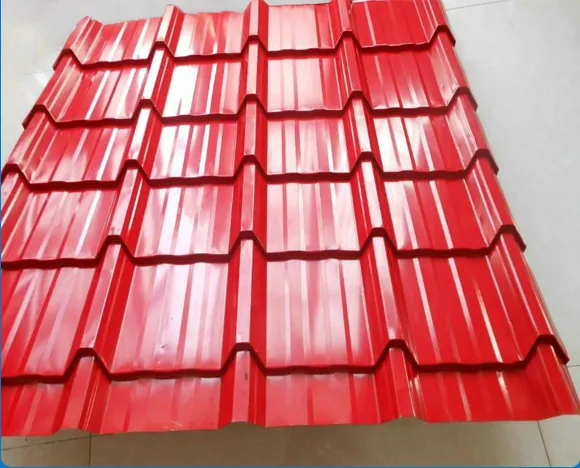

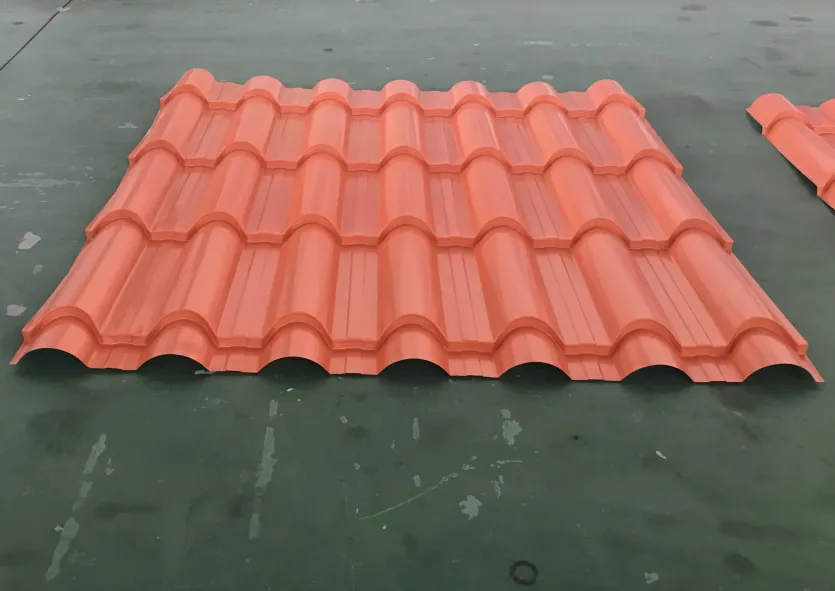

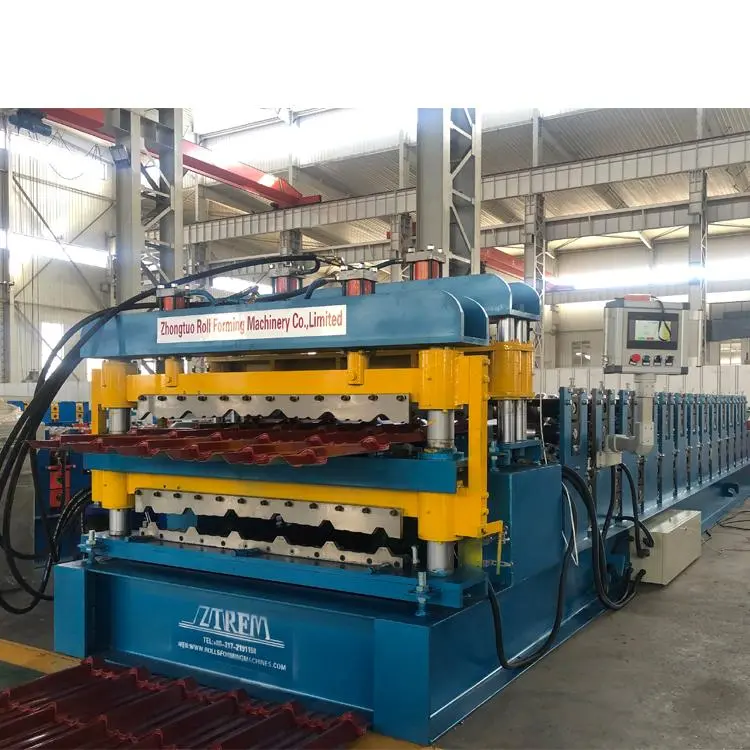

The pictures for the finished product:

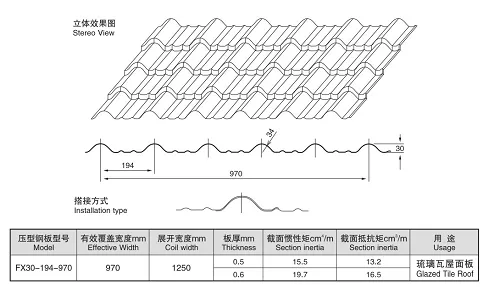

Profile drawing for reference:

ZTRFM Double Layer glazed tile roll forming machine Corrugated and Trapezoidal Roof Sheet roofing making machines
Raw material	colored steel plate, galvanized plate, or aluminum plate
Raw material thickness	0.3- 0.8 mm (or as your request)
Raw material thickness	0.3- 0.8 mm (or as your request)	Chromed treatment, make the rollers surface more smoothly, improve the hardness and prevent abrasion, anti corrosion increase of service life
Decoiler	5T Hydraulic decoiler(Different capacity for option,manual one for option)
Felt device	Available
Roller station	17+19 stations
Roller material	45# steel with quenched treatment
Shaft diameter	80mm
Shaft material	45# steel with tempered
Transmission	by chain
Motor power	7.5kw
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm
Control system	PLC

Hydraulic decoiler

1. Has power,it can work automatically.
2. Automatically adjust the decoiler to fit into the coil accorind to the coil diameter.
3. With Pneumatic braking system
4. With press arm to keep coil from loosing
5. With speed sensor to match with whole line’s speed

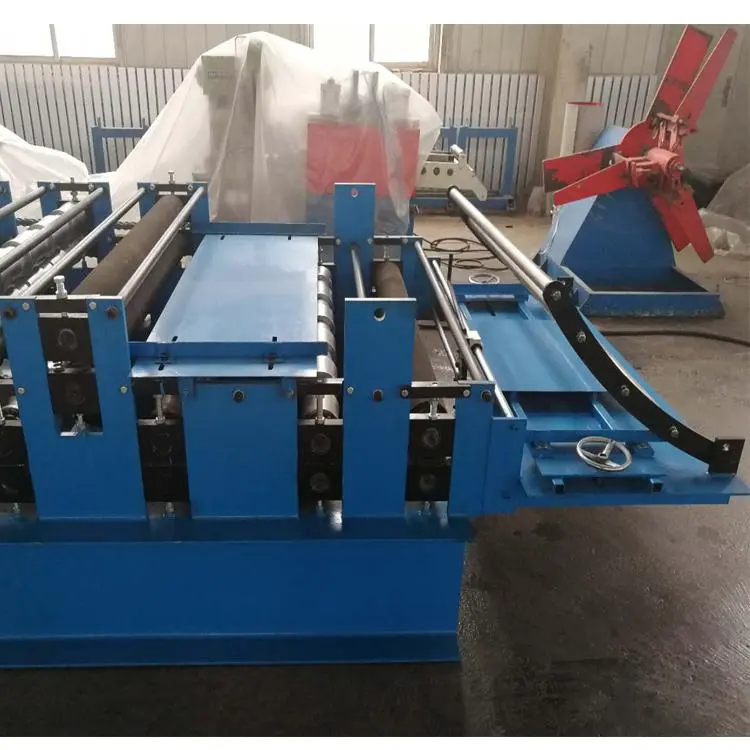

Entry Beach

Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity.

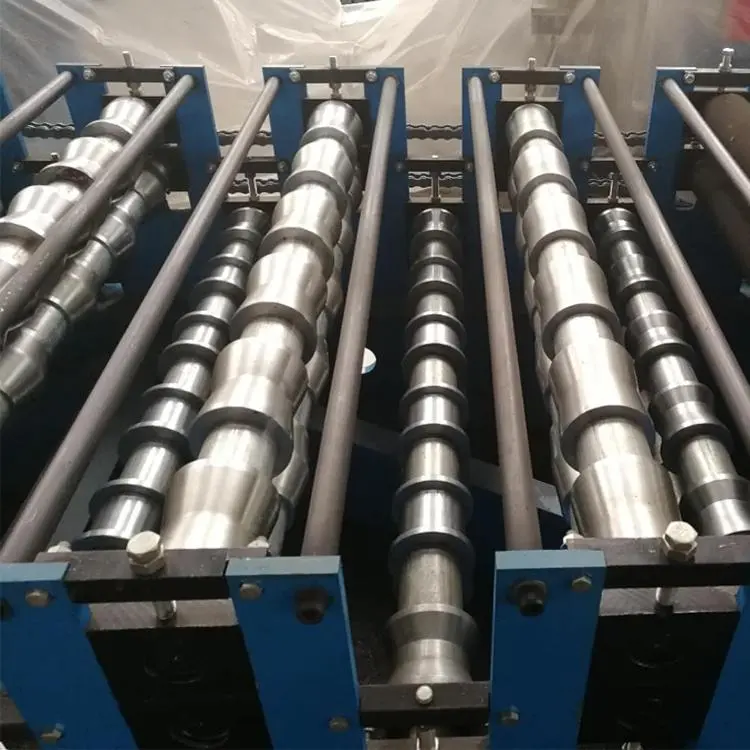

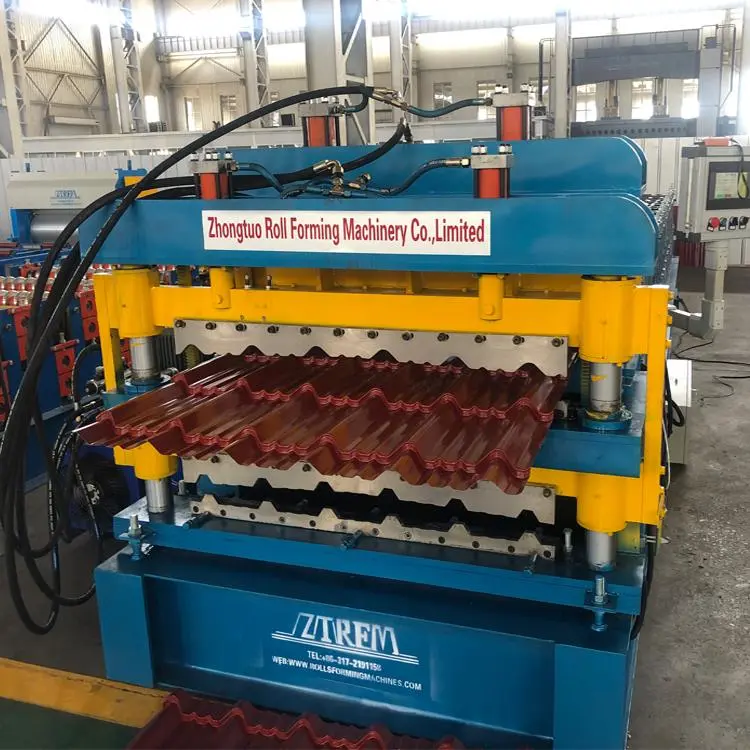

Main Roll Forming System

Feature: Ensure stability , precision and lifetime.

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain
transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

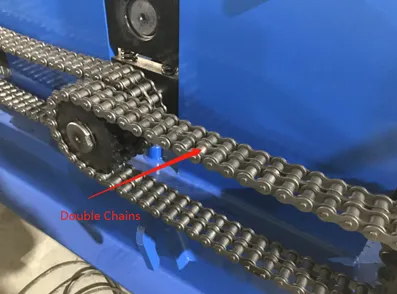

Transmission:Double chains

Gear and double chain drive,strong and stable.

hydraulic Cutting device

We use 4 pillars strong cutter frame,and the cutting mould is Cr12 mov with quenched treatment which can guarantee the quality.

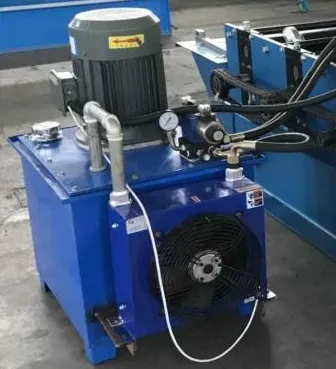

Hydraulic system

1. Hydraulic station motor: 5.5KW
2. Hydraulic oil: 46#

It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.

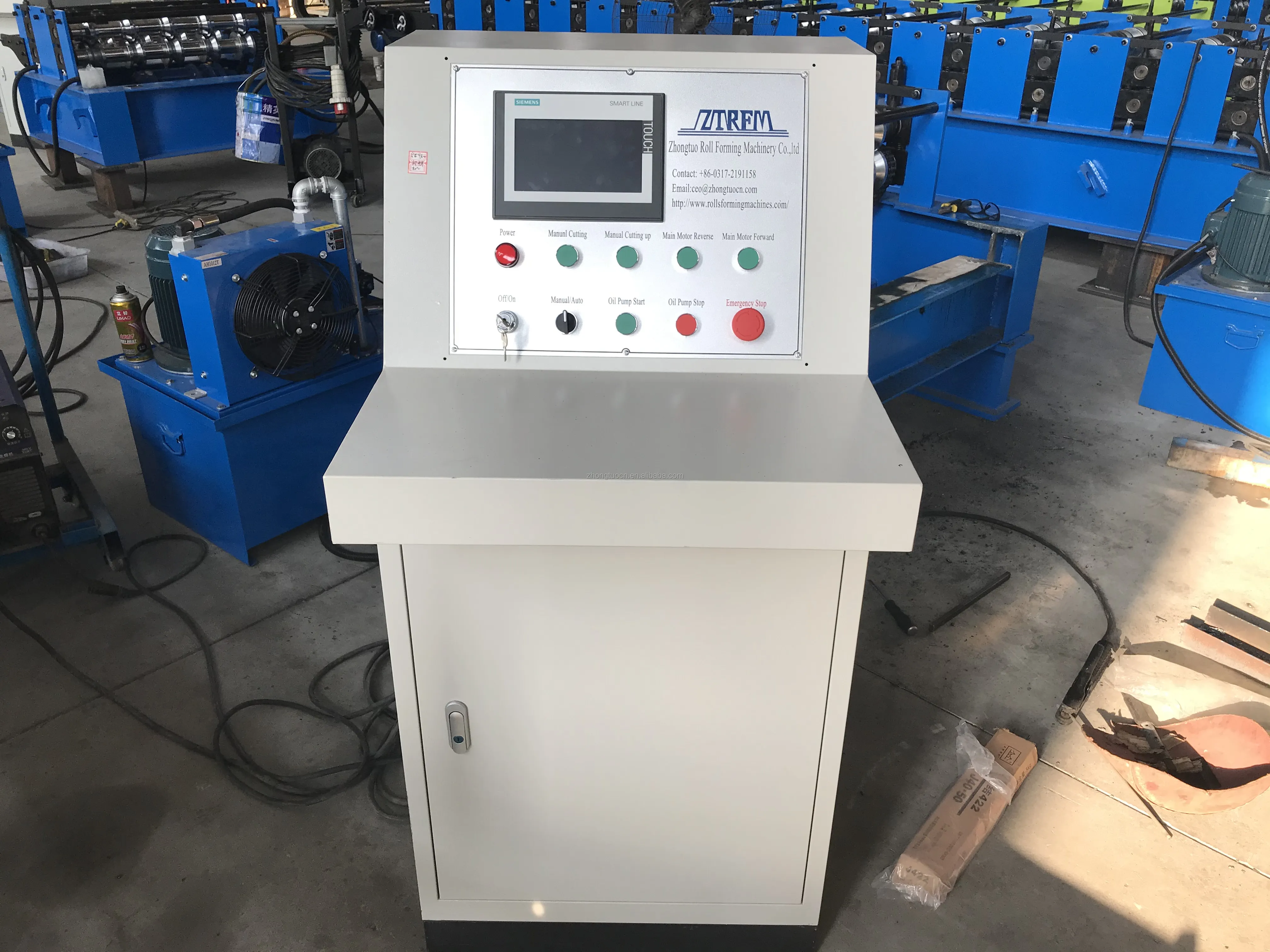

PLC control system

Adopted PLC , frequency converter , Delta touch screen from Taiwan to ensure high speed with stability, precision and lifetime.
