ZTRFM Double Layer Galvanized Tile Roofing Sheet Making Machine Double Layer Roofing Sheet Machine 7.5kw

Cangzhou Zhongtuo International Trade Co., Ltd

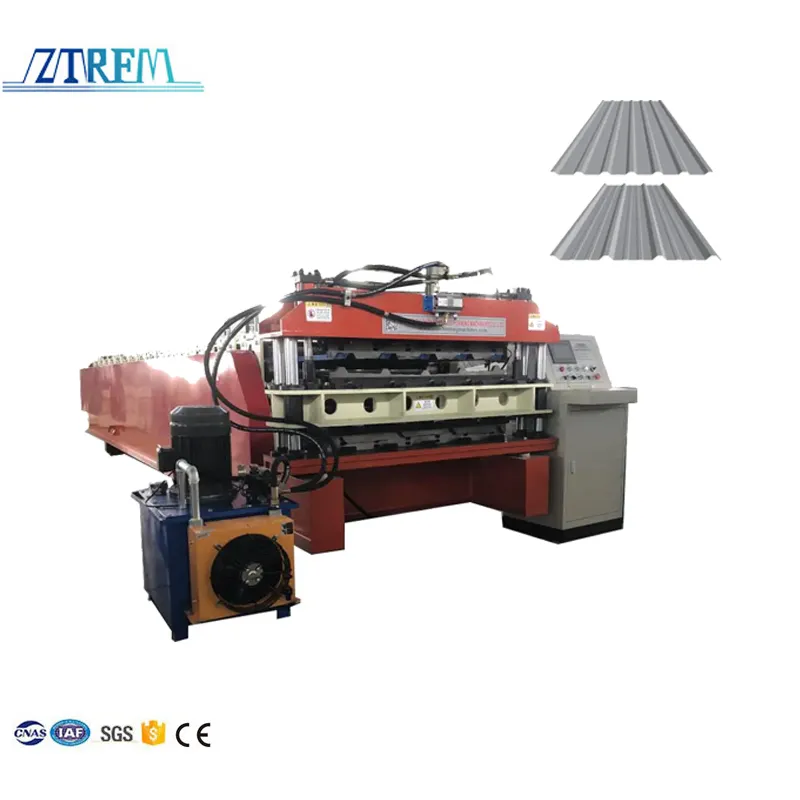

ZTRFM Double Layer Galvanized Tile Roofing Sheet Making Machine Double Layer Roofing Sheet Machine 7.5kw

Name: ZTRFM Double Layer Galvanized Tile Roofing Sheet Making Machine Double Layer Roofing Sheet Machine 7.5kw
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT58394321

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Power(W):

7.5kw

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Type
Tile Forming Machine
Tile Type
Colored Glaze Steel
Use
ROOF
Voltage
230V/50HZ
Rolling Thinckness
0.3-0.8mm
Feeding Width
max 1250mm

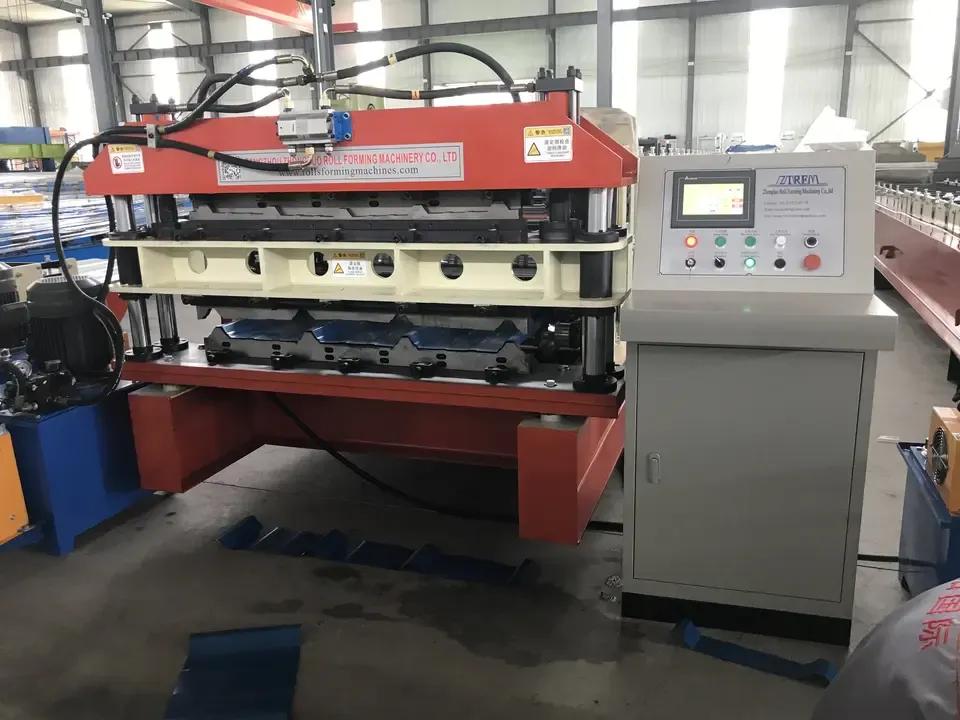

ZTRFM Double Layer Trapezoid Roof Sheet Forming Machine IBR R Panel Tr4 Tr5 Roofing Machine

Design Idea：
1. One machine can produce Two Types of trapezoidal sheet.
2. One machine can use both 1220mm width coil and 1250mm width coil.
3. This machine has felt device,which can attach the felt on the sheet.
4. The finished product is absolutely flat after cut.
5. The voltage of this machine is 230V,50HZ,Single phase.

Profile drawing for reference:

ZTRFM Double Layer Trapezoid Roof Sheet Forming Machine IBR R Panel Tr4 Tr5 Roofing Machine
Raw material	Galvanized steel and Pre-painted steel
Raw material thickness	0.3-0.6mm(thickness range shouldn’t be too big)
Felt device	Available
Roller station	17+18 stations
Roller material	45# steel with quenched treatment
Shaft diameter	80mm
Shaft material	45# steel with tempered
Transmission	by chain
Motor power	7.5kw
Machine frame	350H steel welded
Cutting type	Hydraulic cutting
Hydraulic power	5.5kw
Cutting blade material	Cr12 with quenched treatment
Cutting tolerance	+/-1mm
Control system	PLC

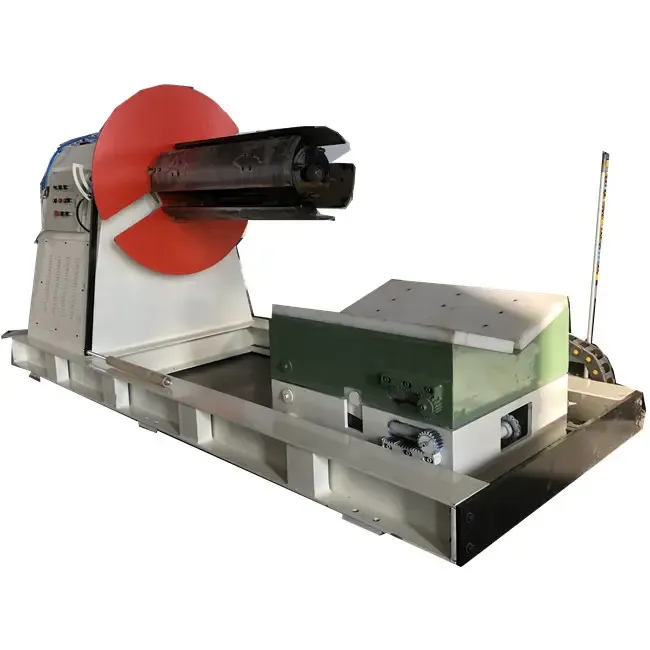

Hydraulic Decoiler

1. Bearing max coil weight: 10tons
2. Automatic degree: Full automatic
3. control system: PLC control panel
4. Brake system: Have

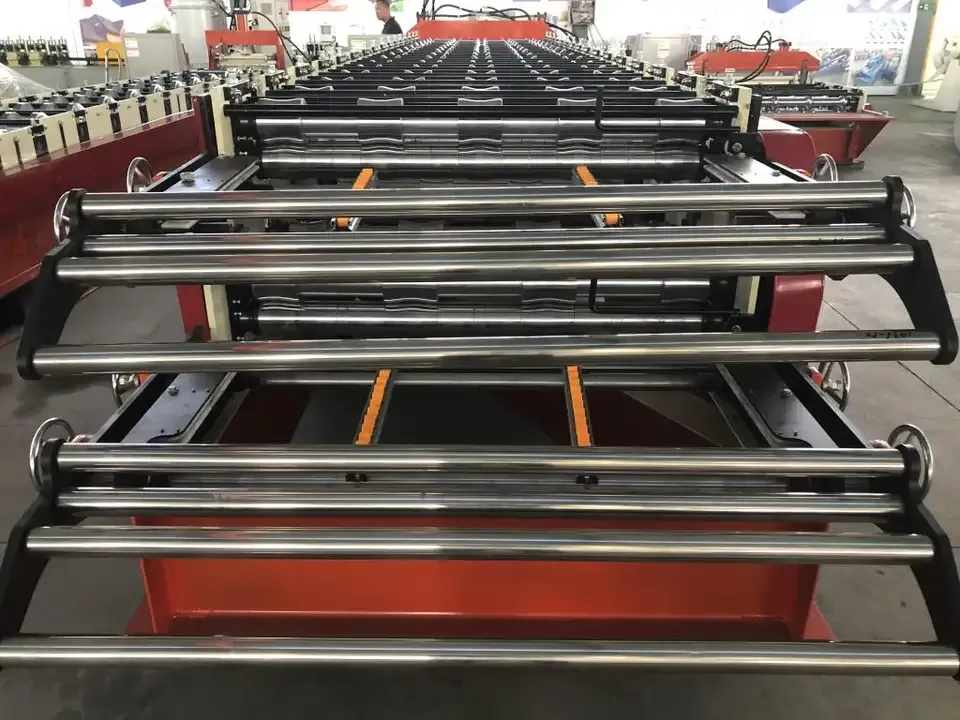

Feeding Device

1. guiding roller: One set
2. Feeding thickness: With handwheels easy adjust.
3. rubber rollers: Protect coil surface not damaged

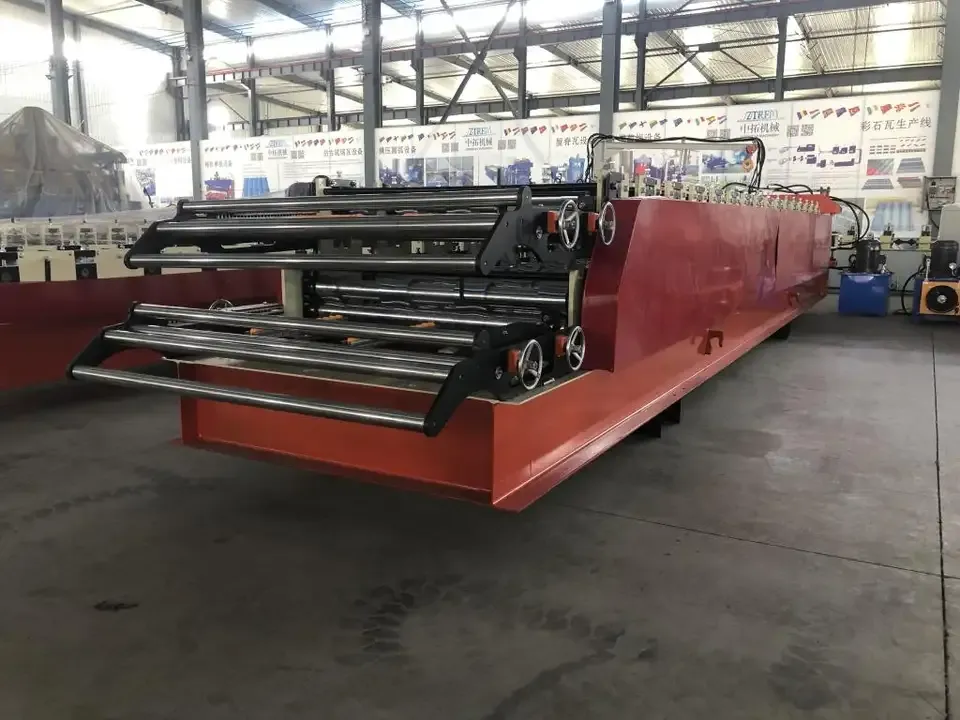

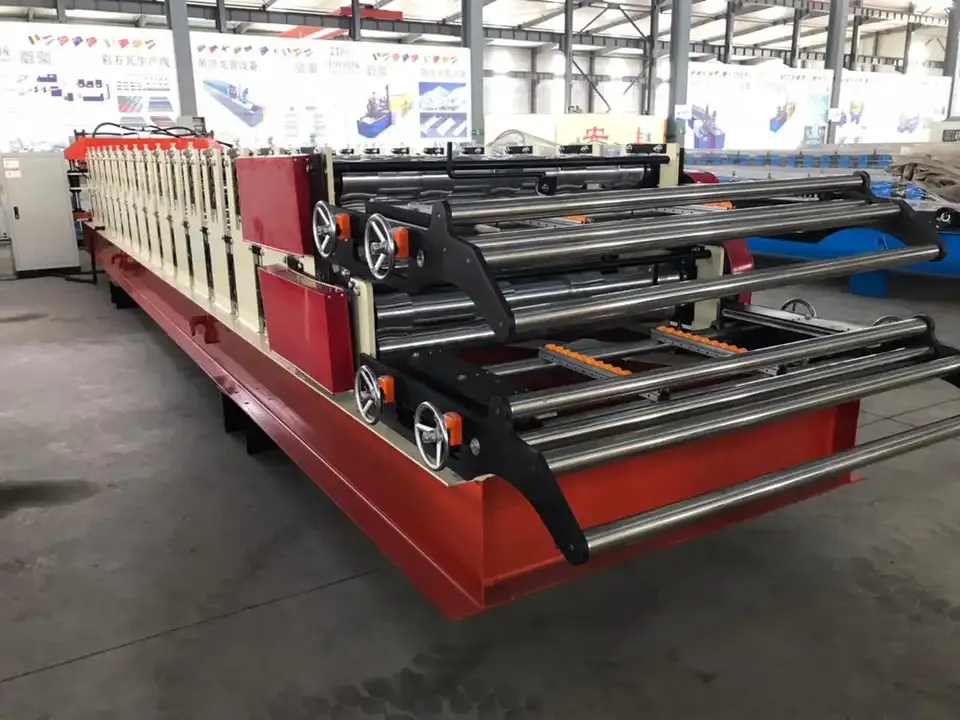

Roll Forming Device

1.Work speed: 0-20 m/min
2. Rolling station: 17+18 rolling stations
3. Work power: 7.5 kw
4. Transmission: By gear and Chains with cover
5. Rolling shaft: 45# STEEL 80 mm solid shaft, Tempering treatment to prevent deformed and improve hardness
6. Roller: 0.03mm Chromed treatment and quenched 45# steel

Hydraulic cutting system

1. Driving method: By pillar type Cylinder
2. Power: 5.5 kw
3. Cutter material: GB-Cr12
4. Oil tube and wires connection: All the tubes and wires will be marked by the numbers or letters,So that it will be very easy to connect for the new.

PLC control system

1. Connection: Aviation plugs easy installation
2. Encode: Omron brand
3. PLC brand: Delta (original)
4. Low pressure electric part: Schneider brand
5. Frequency brand: Delta (original)

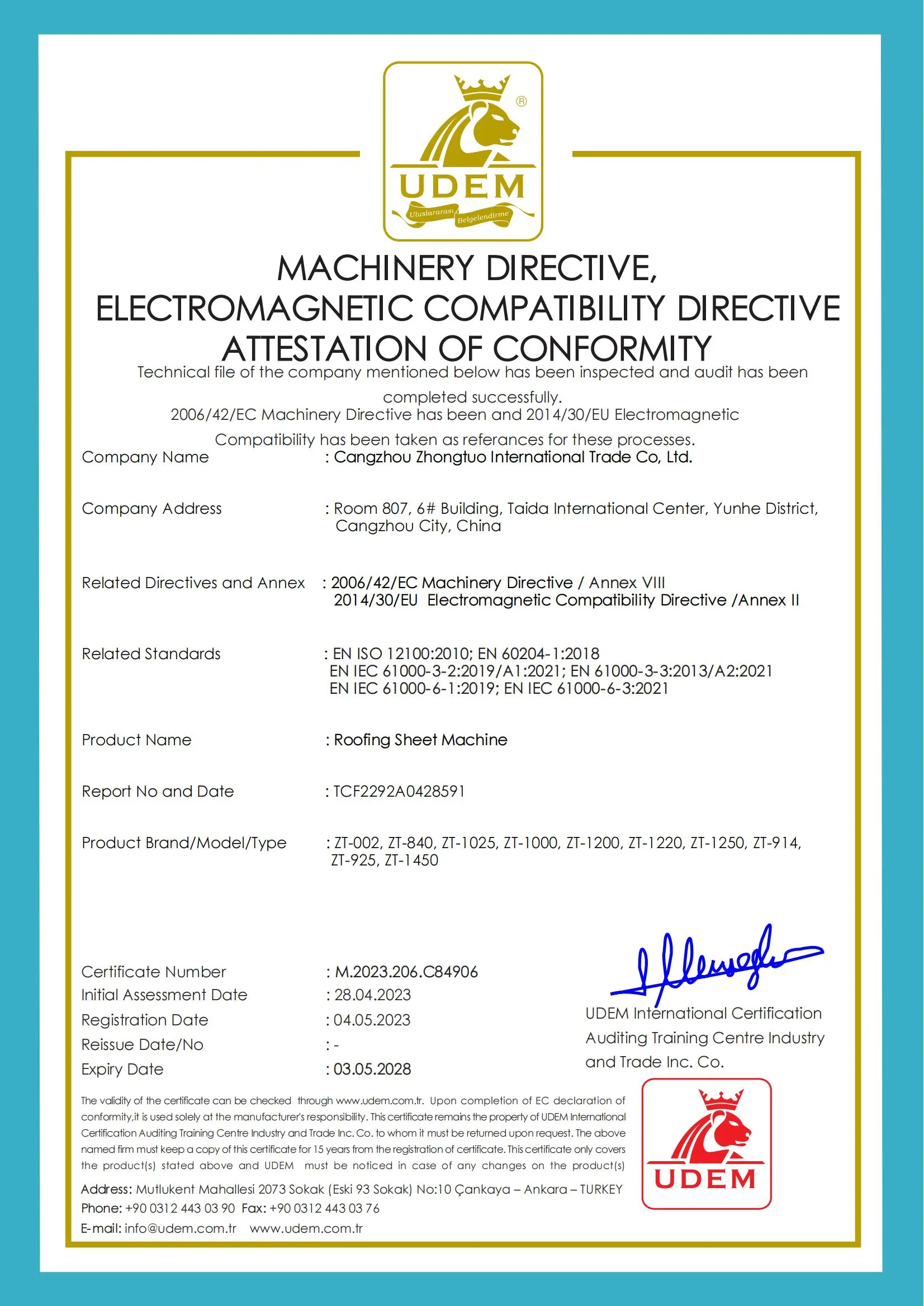

CE(No.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)
