Color Coated Steel System > Production Equipment > Light Steel Frame Roll Forming Machine

ZTRFM C Channel Roll Forming Machine Metal Stud and Track Roll Forming Metal Stud Making Machine PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump+25m/min or faster+Hebei, China+5500 kg+2 Years

Cangzhou Zhongtuo International Trade Co., Ltd

ZTRFM C Channel Roll Forming Machine Metal Stud and Track Roll Forming Metal Stud Making Machine PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump+25m/min or faster+Hebei, China+5500 kg+2 Years

Name: ZTRFM C Channel Roll Forming Machine Metal Stud and Track Roll Forming Metal Stud Making Machine PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump+25m/min or faster+Hebei, China+5500 kg+2 Years
Brand: 中拓无界
Availability: InStock

$***/ Set

Min. Order:1 Set

You can log in to view more discounted prices.Login Now

Price:

$***

Quantity:

≥1Set

Order CodeZT73692738

Shipping:

Delivery to:

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Specification:

Core Components:

PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Production Capacity:

25m/min or faster

Place of Origin:

Hebei, China

Weight:

5500 kg

Warranty:

2 Years

Payment:

Transaction Protection:

Secure payments
Money-back protection
24/7 support
Data privacy

Quantity:

Add to CartBuy Now

Product Details
Reviews(0)

Technical Specifications

Work Pressure
16Mpa
Voltage
380V,50Hz,3P(Or as request)
Power(W)
22.5kw

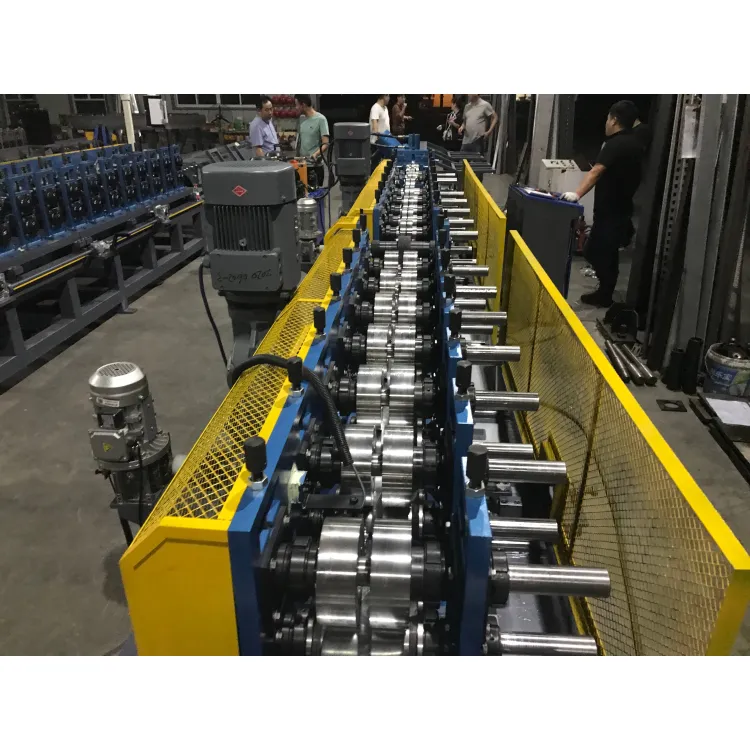

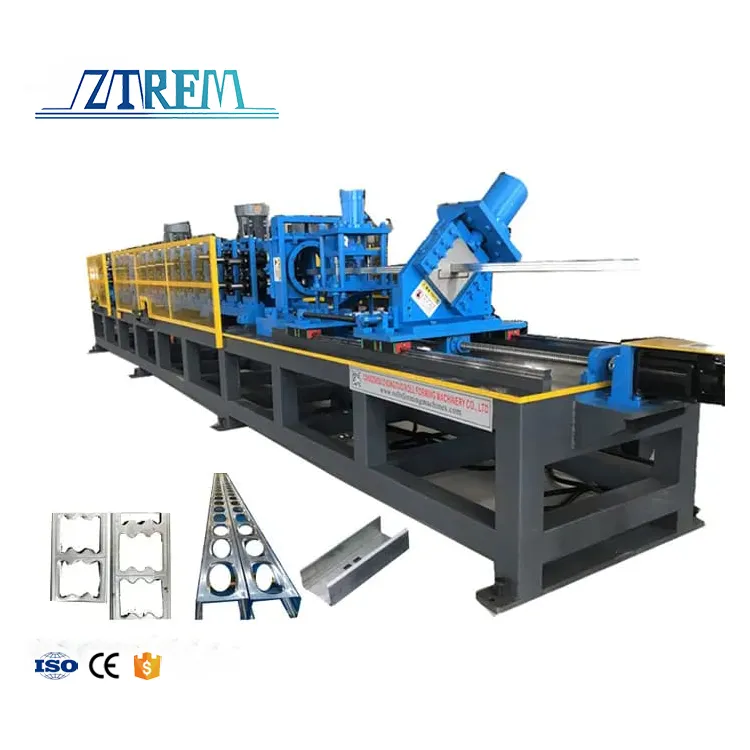

ZTRFM Metal Stud Framing Machine C Channel Forming Machine With Punching Holes Grouting Keel Machine

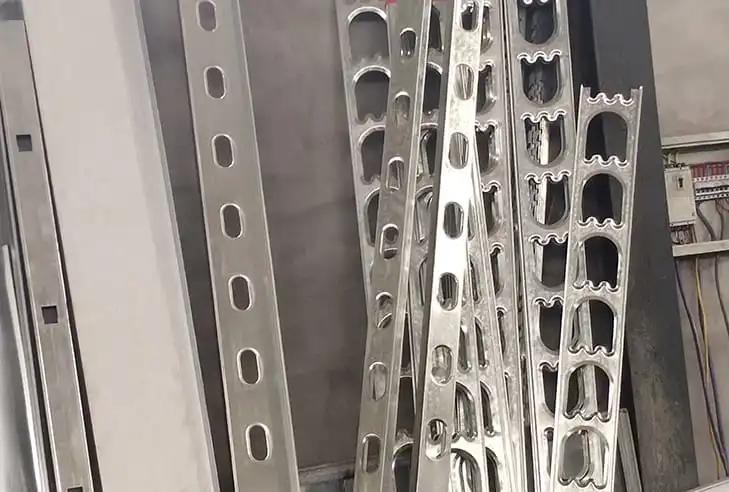

The grouting keel is made by rolling galvanized steel strips or thin steel plates through multiple processes using a special rolling mill. It has high strength and permeability.

It has the advantages of strong usability, good fire resistance, and easy installation, and can be used to assemble various types of gypsum boards, calcium plastic boards, sound-absorbing boards, etc. Supported by partition walls and keels, it is aesthetically pleasing. It is widely used in various civil construction projects and light textile industry sites, etc. So, it has a good effect on indoor styling, sound insulation, and other functions.

Material: galvanized steel plate/aluminum zinc plated steel

Thickness (mm): 0.6~1.5mm

Application scope: secondary structure household division, frame structure, frame shear structure filling partition, factory firewall, cold storage insulation wall

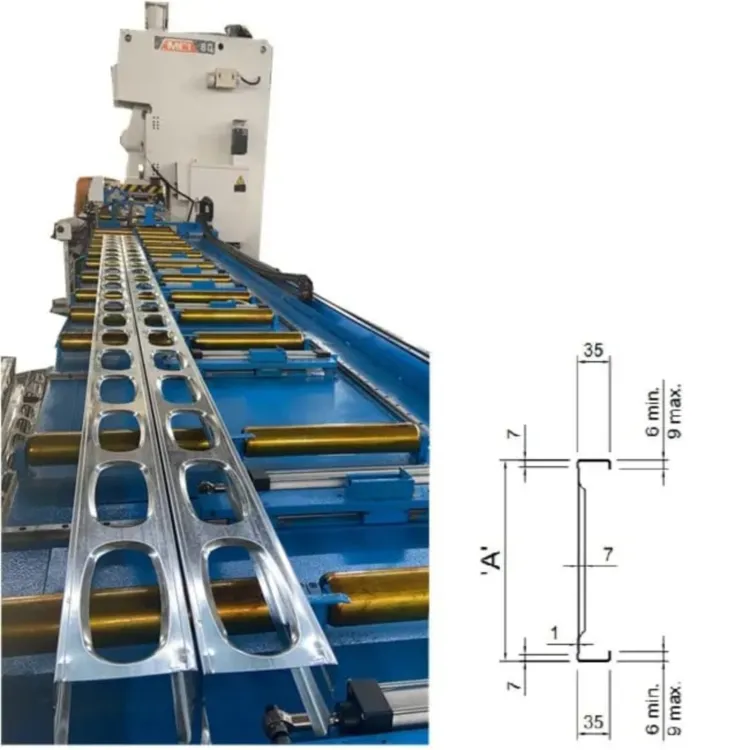

The drawing profile for your reference:

ZTRFM Metal Stud Framing Machine C Channel Forming Machine With Punching Holes Grouting Keel Machine
Formed Material	PPGI,GI,AI
Thickness	0.5-1.2mm
Roller station	16 rows(As your requirement)
Diameter of shaft	50 mm solid shaft
Material of rollers	45# steel, hard chrome plated on the surface
Machine body frame	Metal steel welded
Drive	Gear transmission
Cutter	cr12mov material, no scratches, no deformation
Motor Power	7.5KW*2 sets
Hydraulic system power	5.5 KW
Voltage	380V 50Hz 3Phase(As your requirement)
Control system	PLC
Forming Speed	40-45m/min(customized)

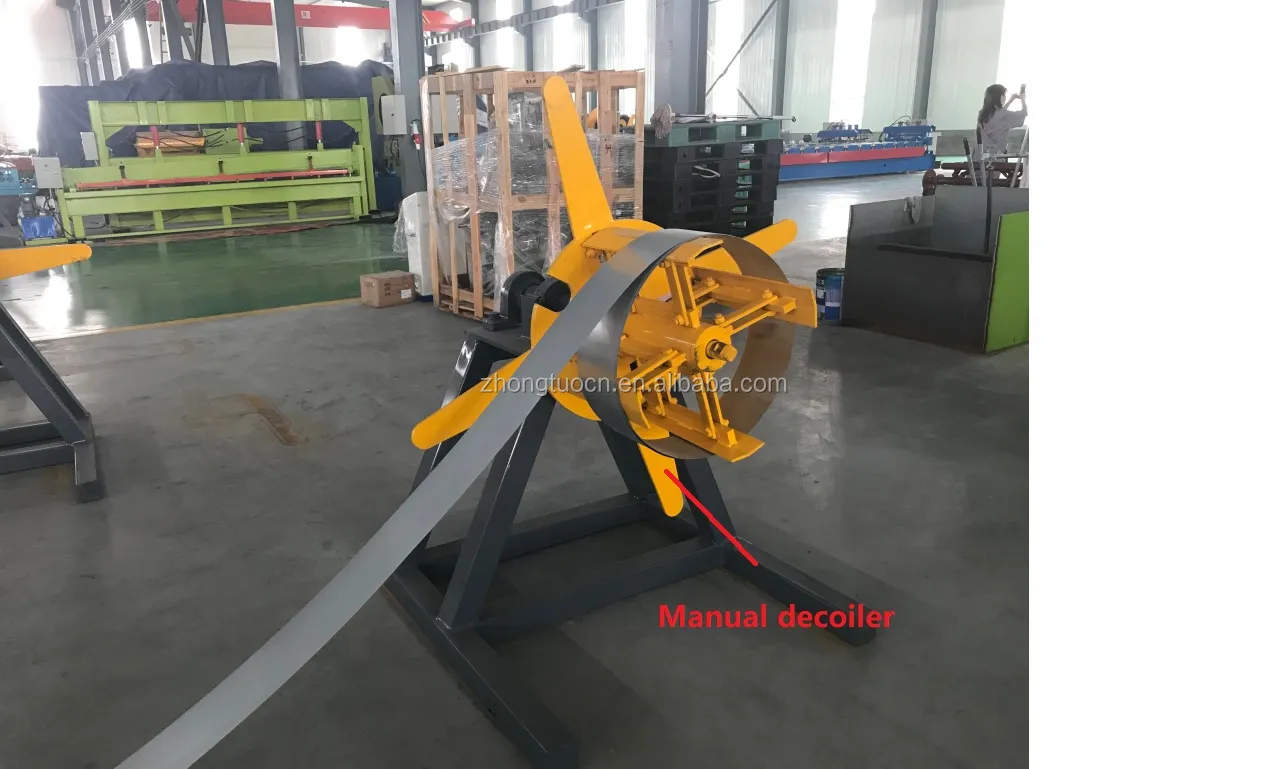

Manual Decoiler

1. Work type: Passive type

2. Loading capacity: 3 Tons

3. Coil inner diameter: 450-550 mm (adjustable)

4. Quantity: 1 set

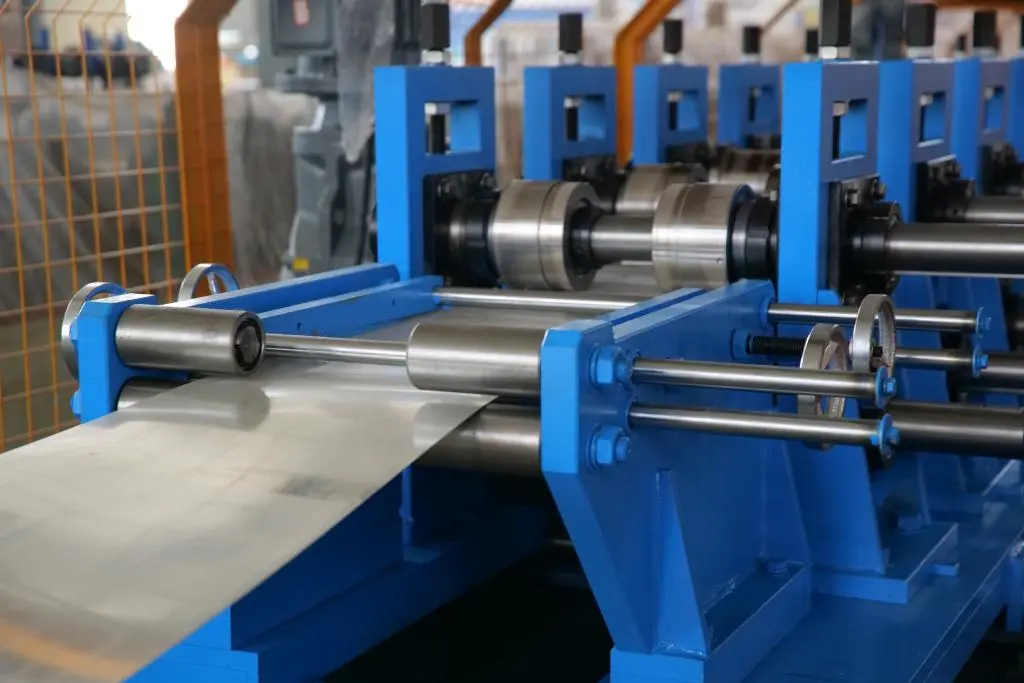

Feeding Part

The feeding rollers which we use is stainless steel. And the ball bearing roller is inside the feeding rollers which is very convenient to feed the steel coil into it.

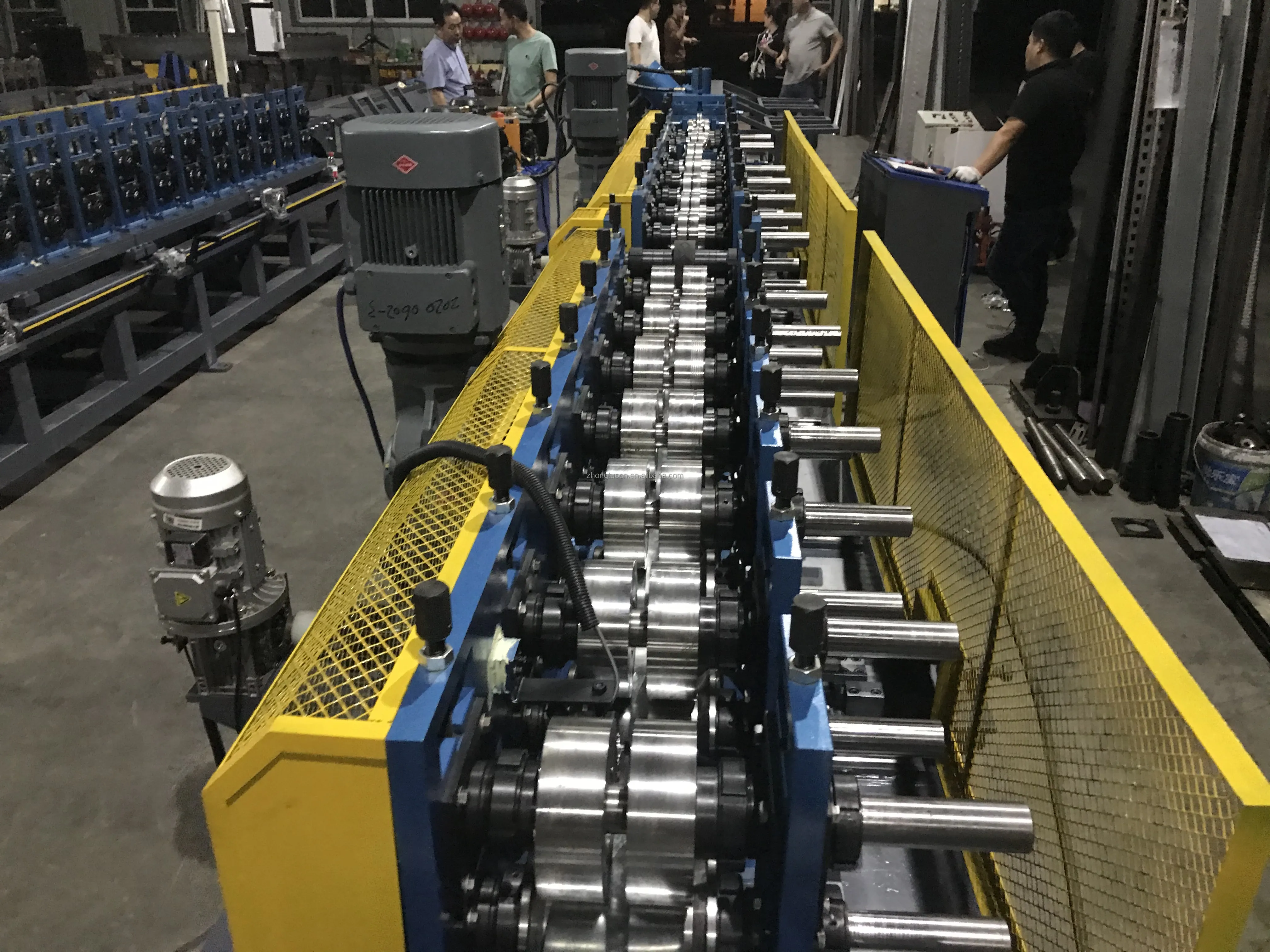

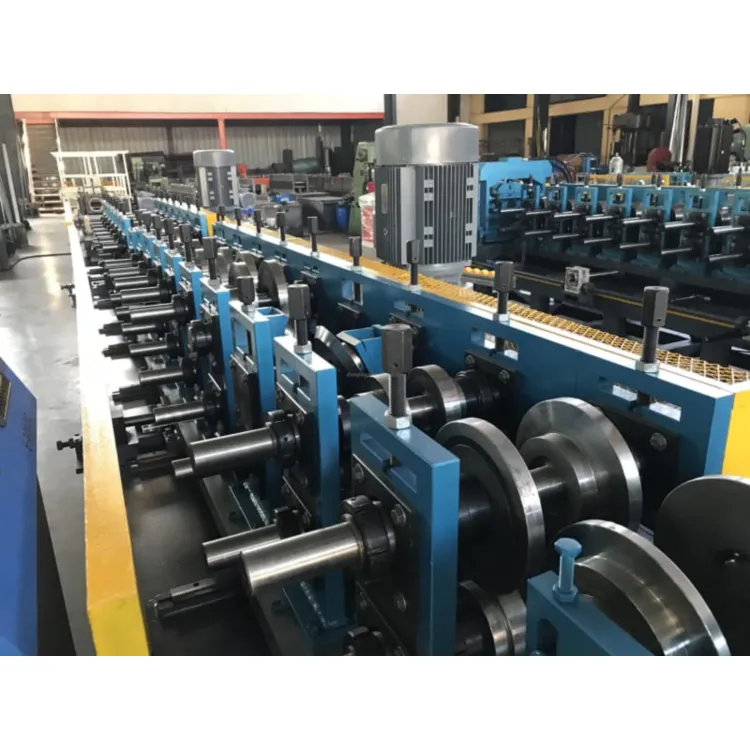

Roll Forming System

1. Feature: The one side machine frame can be move by PLC control to adjust the stud and truck dimension.

2. Machine frame: Vertical iron arch casting frame structure

3. Bearing: Chinese famous brand Harbin

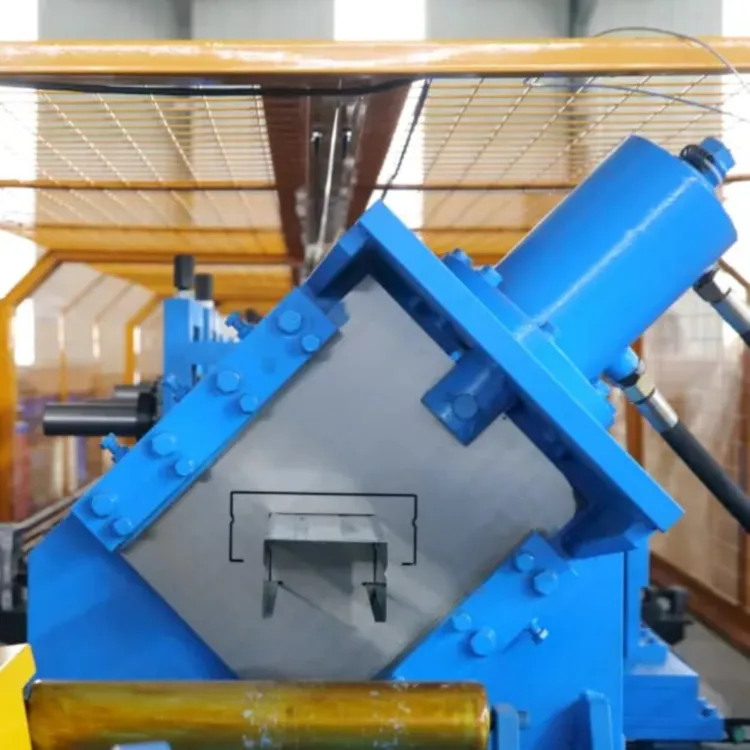

Hydraulic System

1. Work type: Hydraulic track cutting with servo motor

2. Driving method: By pillar type Cylinder

3. Cutter material: GB-Cr12

4. Cutting length tolerance: ±1 mm/3 m

5. Cutting feature: Automatic
cutting after forming, no distorting.

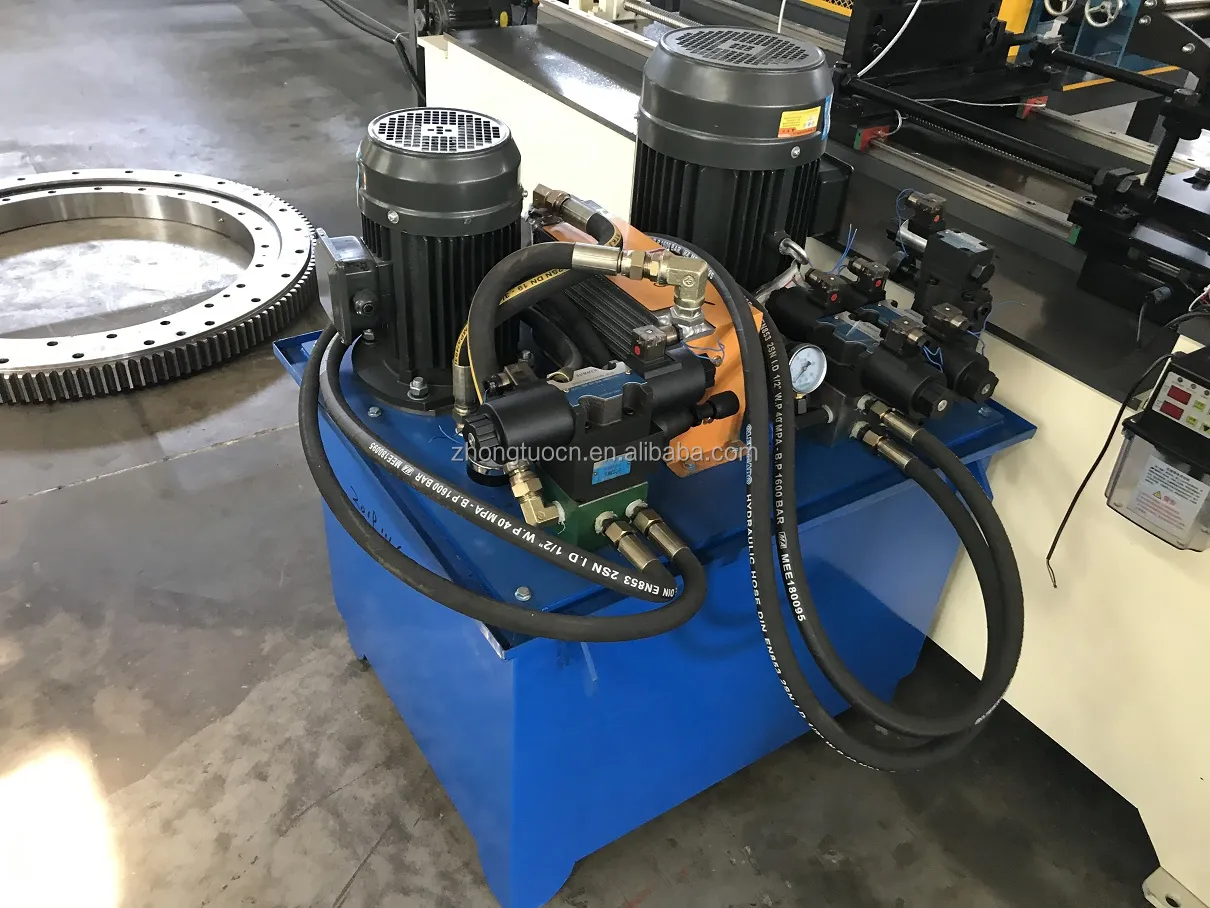

Hydraulic station

1. We weld the hydraulic station with the machine, so you do not need to connect lots of pipes and wires. So it is easy for installation.
2. With cooling system, it can make sure shearing powerful even if in hot weather.

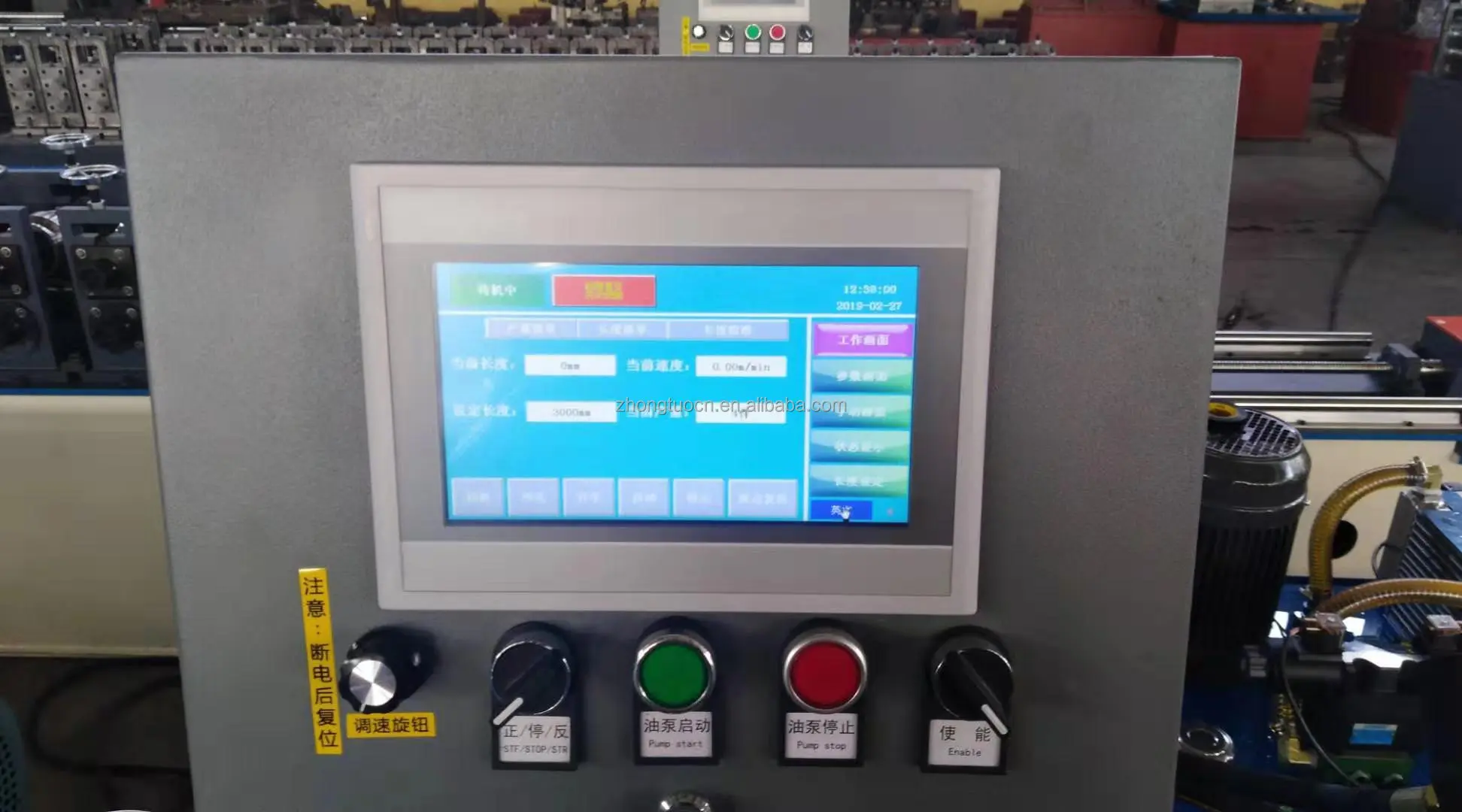

PLC control system

1. PLC brand: Delta(Taiwan)
2. Frequency converter brand: Delta(Taiwan)
3. Encoder: Omron

4. Function: Automatic control the length,quantity and batch

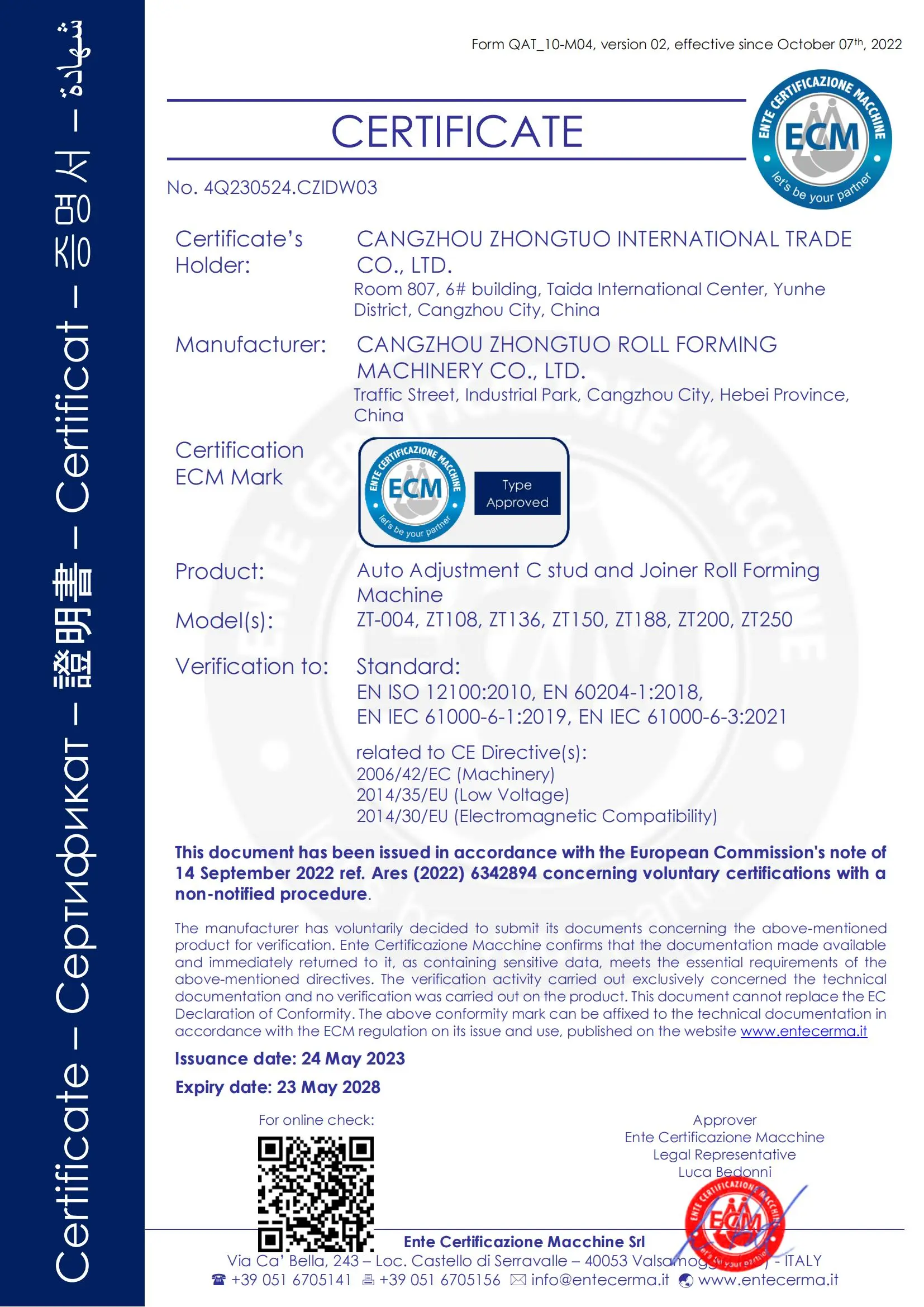

CE(NO.OP180719.CZIDC95)

ISO 9001(No:ZL92090220234630)

Our Machine Sells Well In US
Gets High Praise From US Customers！
